1. Or Getting Worms for < $50 Babby’s First Honeypot Noah Nadeau NN

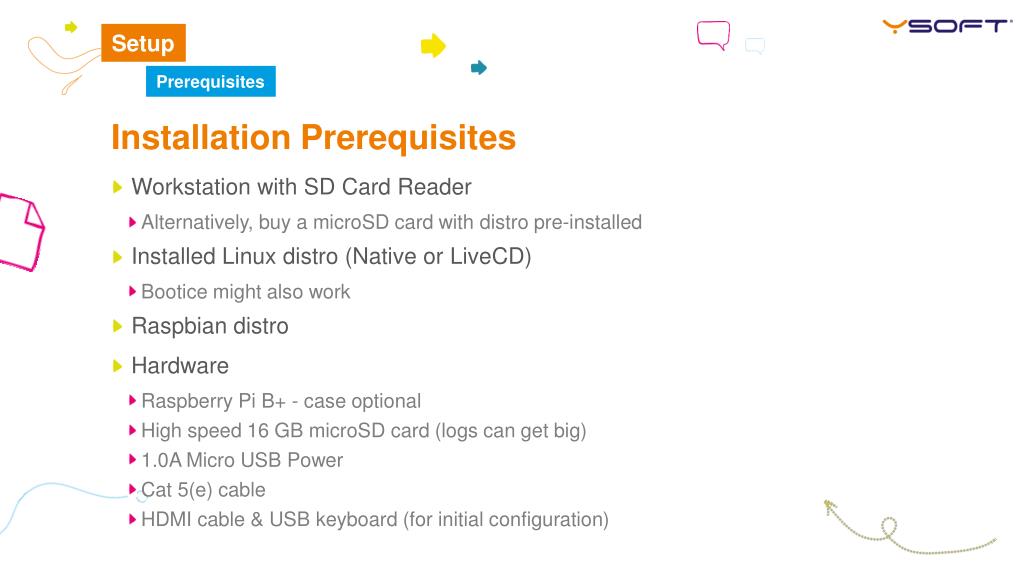

2. Installation Prerequisites • Workstation with SD Card Reader • Alternatively, buy a microSD card with distro pre-installed • Installed Linux distro (Native or LiveCD) • Bootice might also work • Raspbiandistro • Hardware • Raspberry Pi B+ - case optional • High speed 16 GB microSD card (logs can get big) • 1.0A Micro USB Power • Cat 5(e) cable • HDMI cable & USB keyboard (for initial configuration) • Prerequisites • Setup

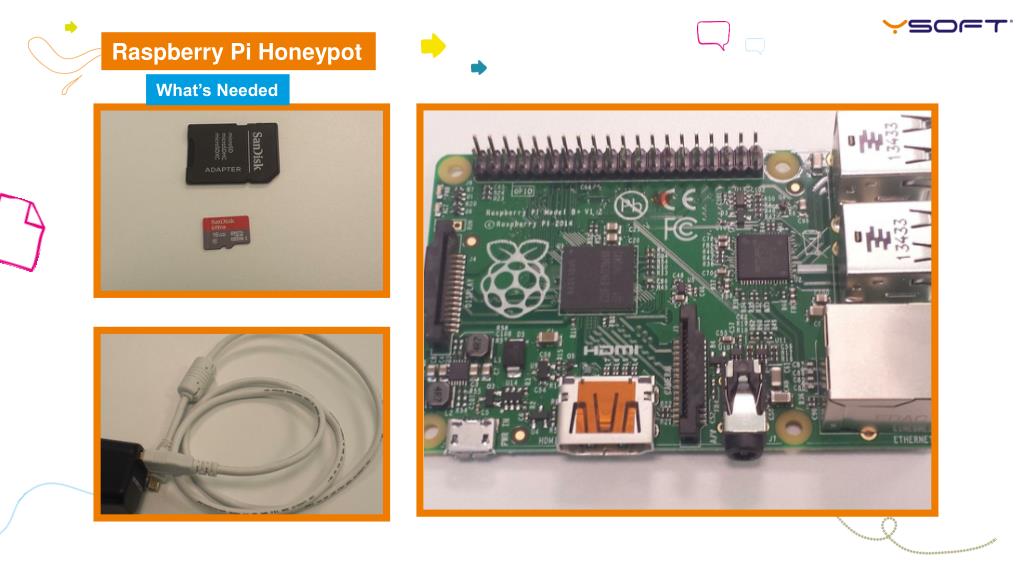

3. What’s Needed Raspberry Pi Honeypot

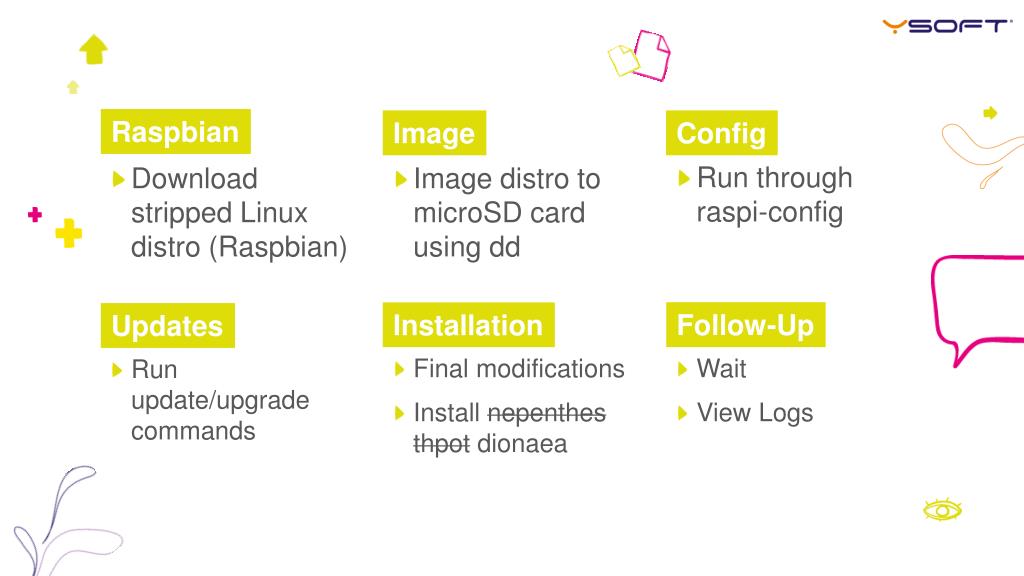

4. Raspbian • Download stripped Linux distro (Raspbian) • Image distro to microSD card using dd • Run through raspi-config • Run update/upgrade commands • Final modifications • Install nepenthesthpotdionaea • Wait • View Logs • Image • Config • Updates • Installation • Follow-Up

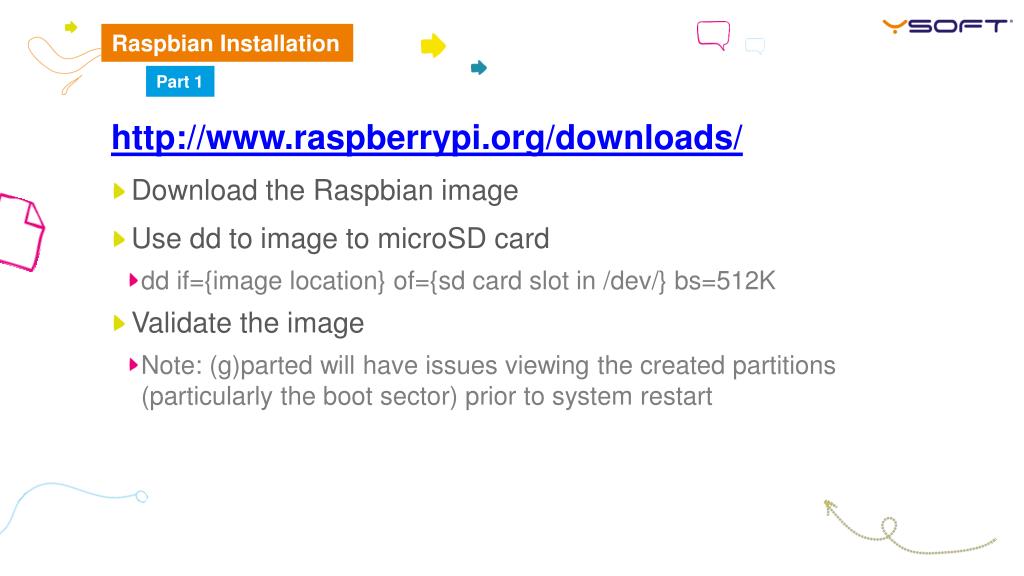

5. http://www.raspberrypi.org/downloads/ • Download the Raspbian image • Use dd to image to microSD card • dd if={image location} of={sd card slot in /dev/} bs=512K • Validate the image • Note: (g)parted will have issues viewing the created partitions (particularly the boot sector) prior to system restart • Part 1 • Raspbian Installation

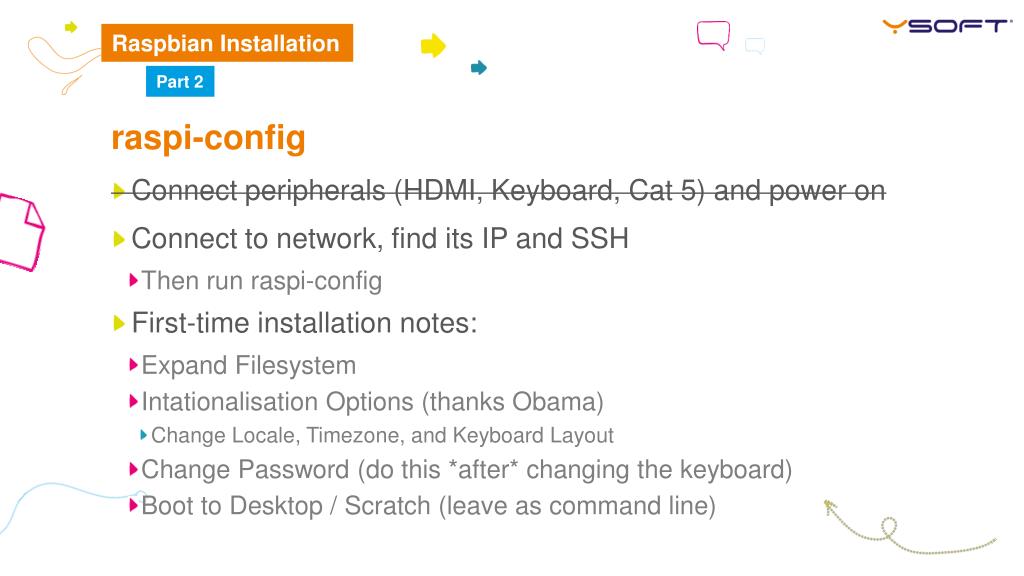

6. raspi-config • Connect peripherals (HDMI, Keyboard, Cat 5) and power on • Connect to network, find its IP and SSH • Then run raspi-config • First-time installation notes: • Expand Filesystem • Intationalisation Options (thanks Obama) • Change Locale, Timezone, and Keyboard Layout • Change Password (do this *after* changing the keyboard) • Boot to Desktop / Scratch (leave as command line) • Part 2 • Raspbian Installation

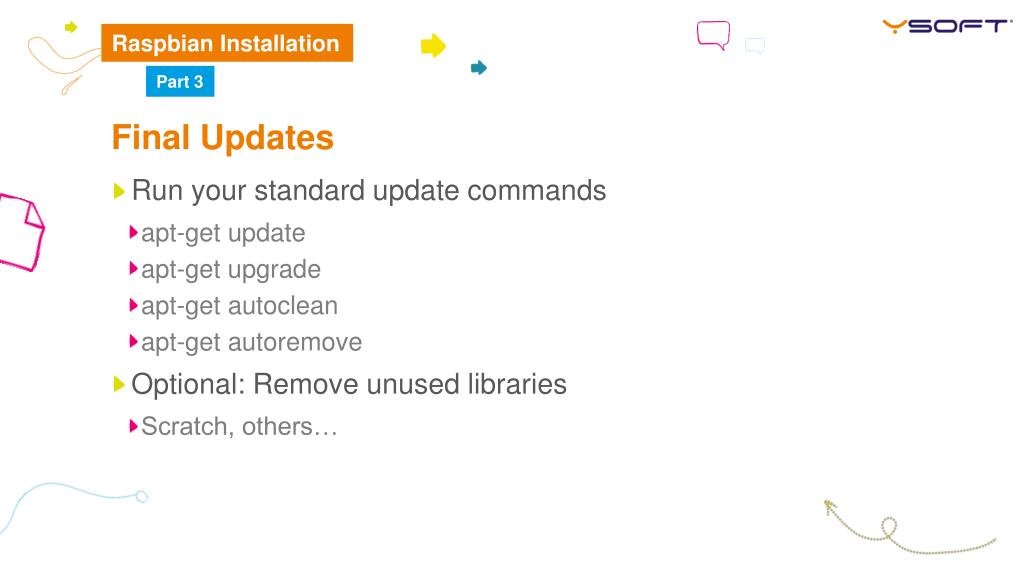

7. Final Updates • Run your standard update commands • apt-get update • apt-get upgrade • apt-get autoclean • apt-get autoremove • Optional: Remove unused libraries • Scratch, others… • Part 3 • Raspbian Installation

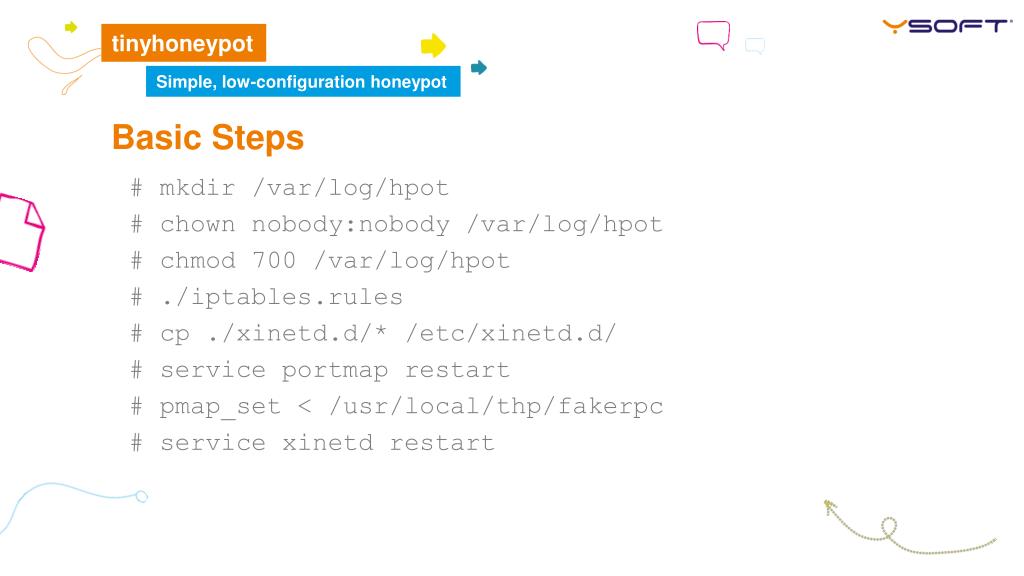

8. Basic Steps # mkdir /var/log/hpot # chownnobody:nobody /var/log/hpot # chmod 700 /var/log/hpot # ./iptables.rules # cp ./xinetd.d/* /etc/xinetd.d/ # service portmap restart # pmap_set < /usr/local/thp/fakerpc # service xinetd restart • Simple, low-configuration honeypot • tinyhoneypot

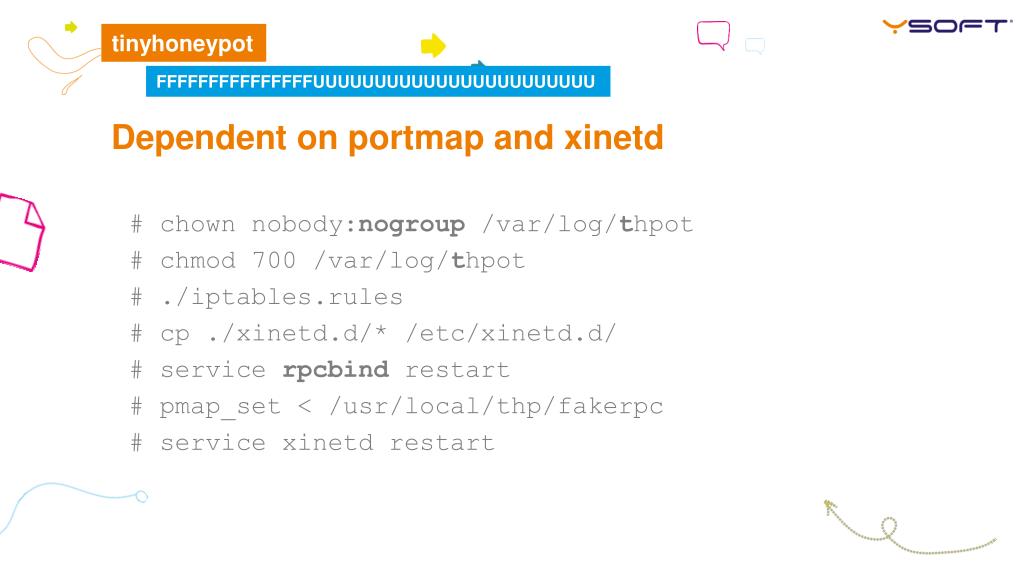

9. Dependent on portmap and xinetd # chownnobody:nogroup /var/log/thpot # chmod 700 /var/log/thpot # ./iptables.rules # cp ./xinetd.d/* /etc/xinetd.d/ # service rpcbindrestart # pmap_set < /usr/local/thp/fakerpc # service xinetd restart • FFFFFFFFFFFFFFFUUUUUUUUUUUUUUUUUUUUUUU • tinyhoneypot

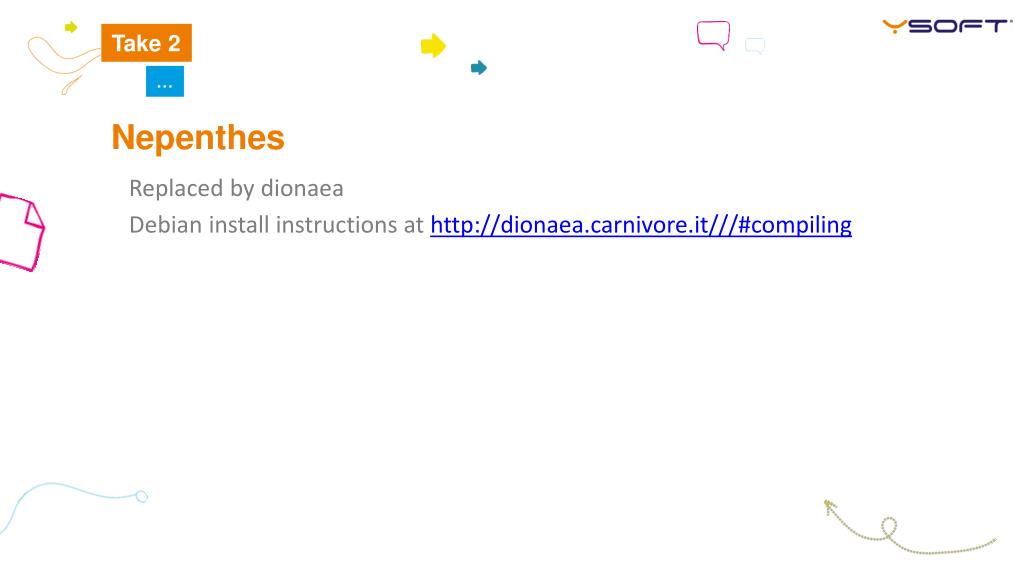

10. Nepenthes Replaced by dionaea Debianinstall instructions at http://dionaea.carnivore.it///#compiling • … • Take 2

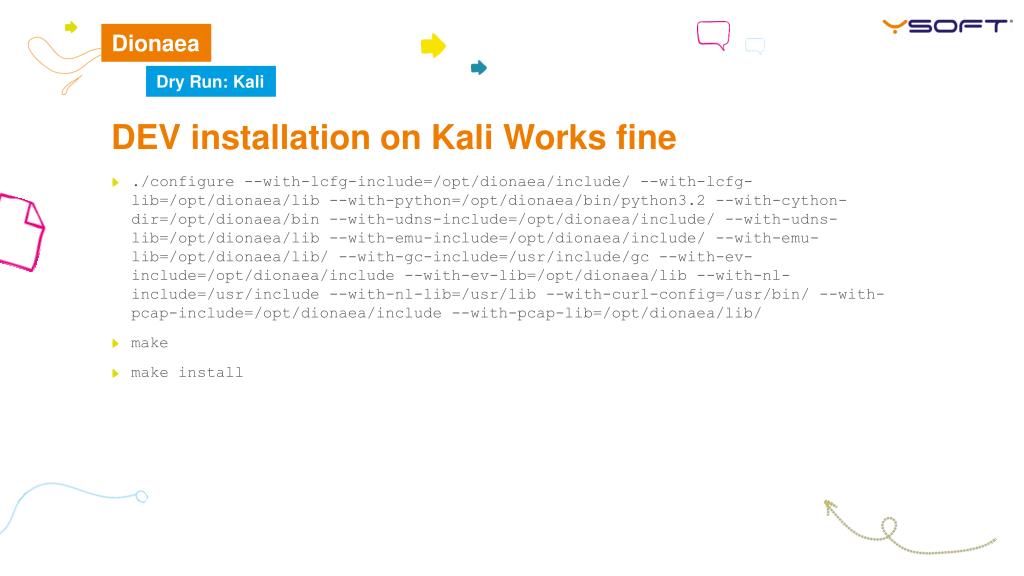

11. DEV installation on Kali Works fine • ./configure --with-lcfg-include=/opt/dionaea/include/ --with-lcfg-lib=/opt/dionaea/lib --with-python=/opt/dionaea/bin/python3.2 --with-cython-dir=/opt/dionaea/bin --with-udns-include=/opt/dionaea/include/ --with-udns-lib=/opt/dionaea/lib --with-emu-include=/opt/dionaea/include/ --with-emu-lib=/opt/dionaea/lib/ --with-gc-include=/usr/include/gc --with-ev-include=/opt/dionaea/include --with-ev-lib=/opt/dionaea/lib --with-nl-include=/usr/include --with-nl-lib=/usr/lib --with-curl-config=/usr/bin/ --with-pcap-include=/opt/dionaea/include --with-pcap-lib=/opt/dionaea/lib/ • make • make install • Dry Run: Kali • Dionaea

12. Raspbian Dionaea

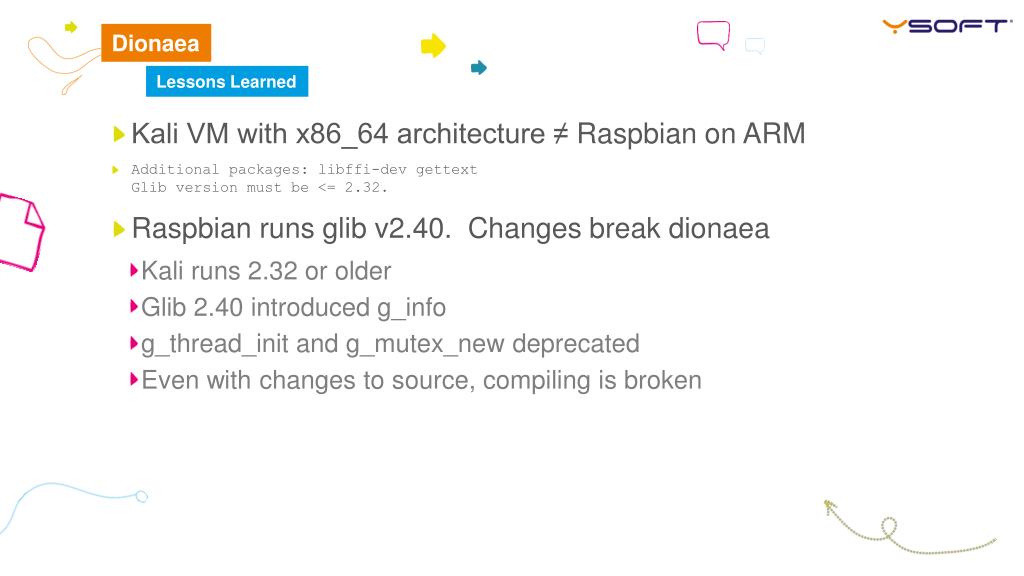

13. Kali VM with x86_64 architecture ≠ Raspbian on ARM • Additional packages: libffi-devgettextGlib version must be <= 2.32. • Raspbian runs glib v2.40. Changes break dionaea • Kali runs 2.32 or older • Glib 2.40 introduced g_info • g_thread_init and g_mutex_new deprecated • Even with changes to source, compiling is broken • Lessons Learned • Dionaea

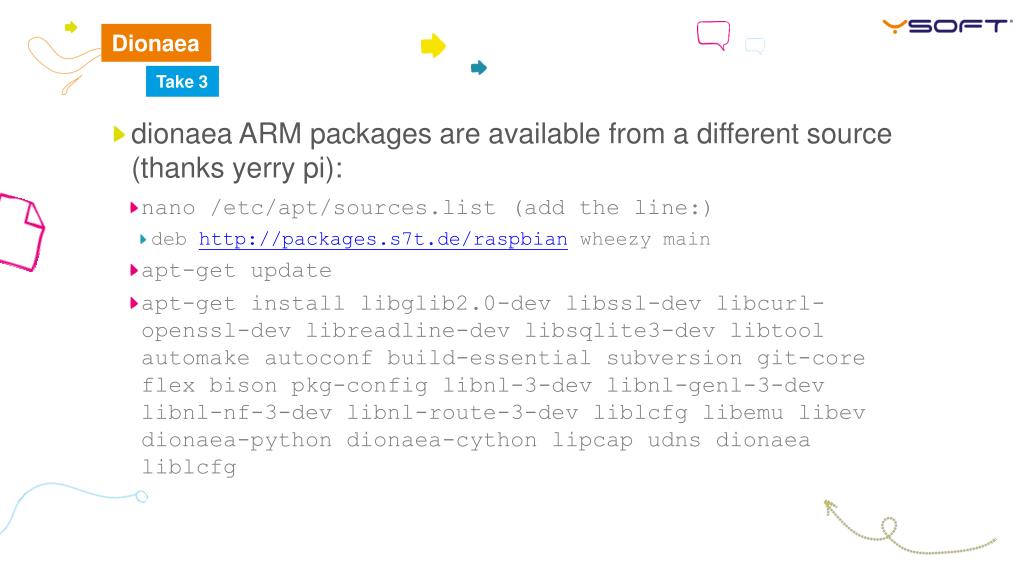

14. dionaea ARM packages are available from a different source (thanks yerry pi): • nano /etc/apt/sources.list (add the line:) • deb http://packages.s7t.de/raspbian wheezy main • apt-get update • apt-get install libglib2.0-dev libssl-devlibcurl-openssl-devlibreadline-dev libsqlite3-dev libtoolautomakeautoconf build-essential subversion git-core flex bison pkg-config libnl-3-dev libnl-genl-3-dev libnl-nf-3-dev libnl-route-3-dev liblcfglibemulibevdionaea-python dionaea-cythonlipcapudnsdionaealiblcfg • Take 3 • Dionaea

15. cp /opt/dionaea/etc/dionaea.conf.dist /opt/dionaea/etc/dionaea.conf • chownnobody:nogroup /opt/dionaea/ -R • dionaea -u nobody -g nogroup -r /opt/dionaea -w /opt/dionaea -p /opt/dionaea/var/dionaea.pid • /opt/dionaea/bin/dionaea –l all,-debug –L ‘*’ –D • nano /opt/dionaea/readlogsqltree (change first line:) • #!/opt/dionaea/bin/python3.2 • Configuration • Dionaea

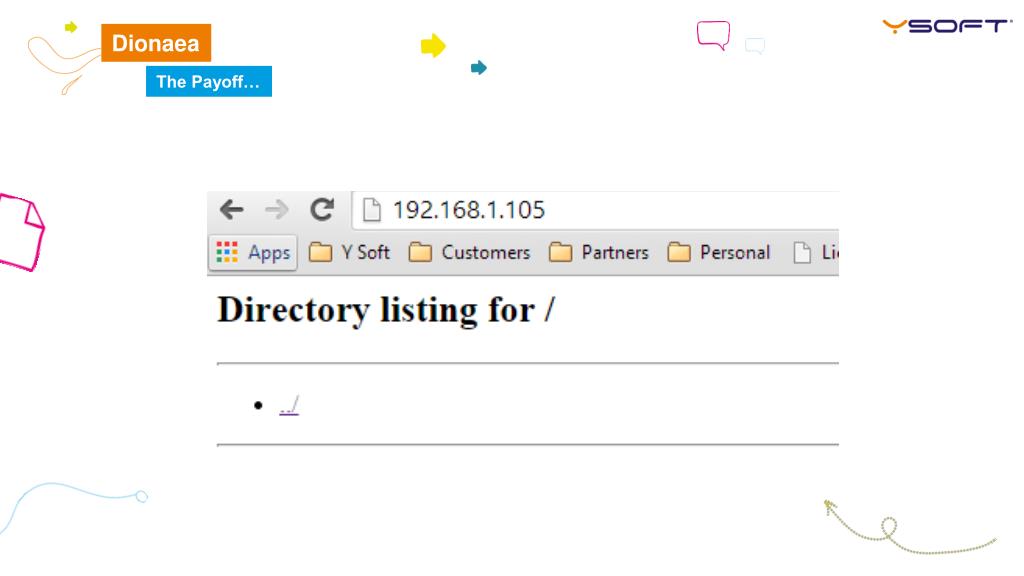

16. The Payoff… Dionaea

17. Access Attempts Dionaea

19. Technical: • Found 3 rogue systems at work (with DEV Kali deployment alone) • 2 in LAN, 1 at HQ • First probe on PROD within 90 minutes of setting up. • First active attack 14 hours later (mssql) • Academic: • Going the long way around, you’ll learn / remember more about C/C++ and makefiles than you wish you could • Social: • When playing Crash and Compile: 1) do it with your own sourcecode; 2) don’t try to beat your old score. • Lessons Learned • Dionaea

20. MSSQL Attack: • http://pastebin.com/4dkmukPp

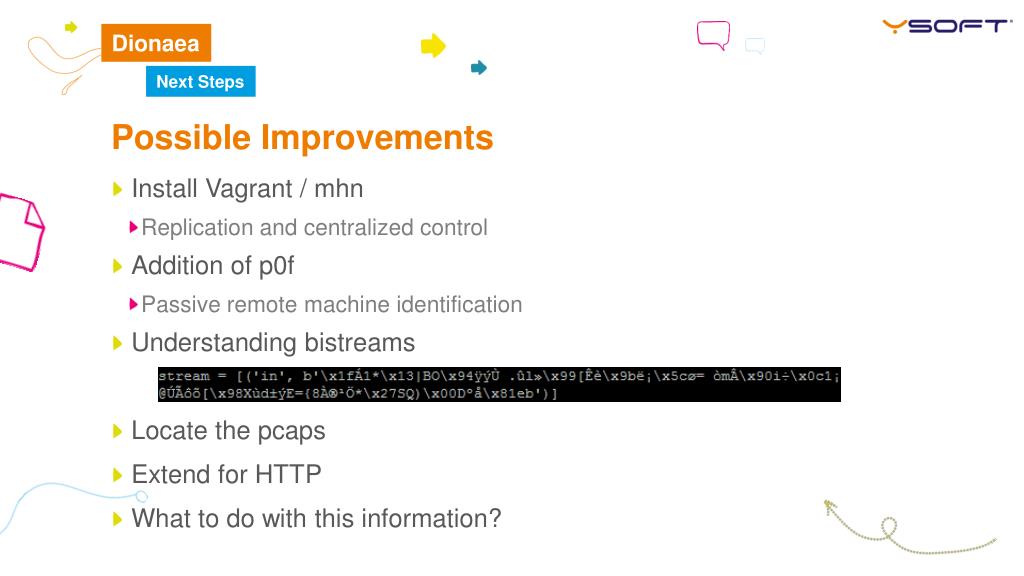

21. Possible Improvements • Install Vagrant / mhn • Replication and centralized control • Addition of p0f • Passive remote machine identification • Understanding bistreams • Locate the pcaps • Extend for HTTP • What to do with this information? • Next Steps • Dionaea

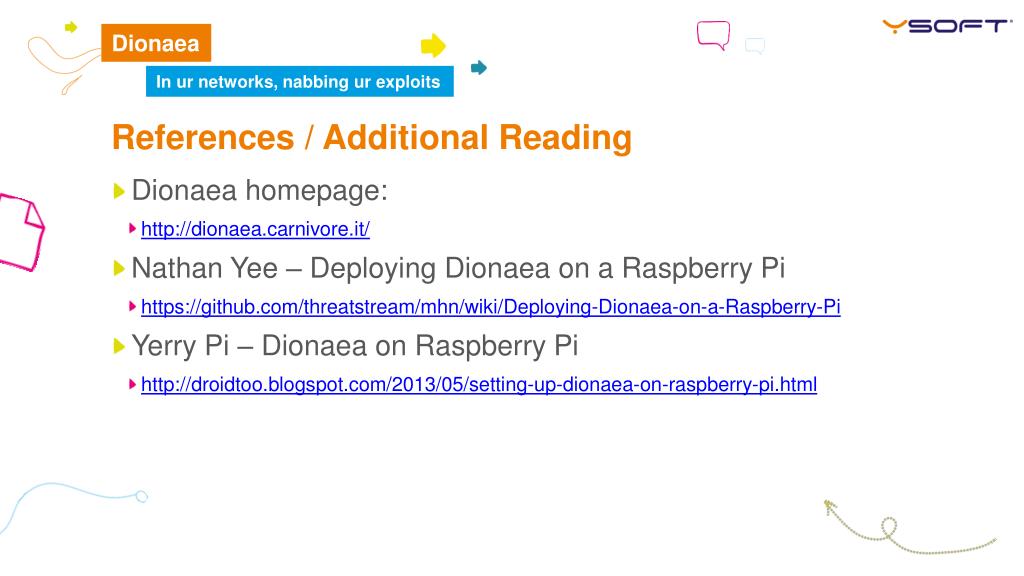

22. References / Additional Reading • Dionaea homepage: • http://dionaea.carnivore.it/ • Nathan Yee – Deploying Dionaea on a Raspberry Pi • https://github.com/threatstream/mhn/wiki/Deploying-Dionaea-on-a-Raspberry-Pi • Yerry Pi – Dionaea on Raspberry Pi • http://droidtoo.blogspot.com/2013/05/setting-up-dionaea-on-raspberry-pi.html • In ur networks, nabbing ur exploits • Dionaea
