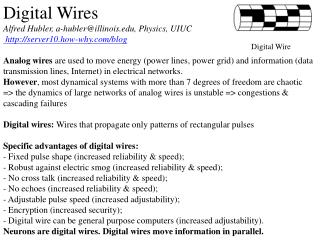

Slide1 l.jpg

  • Digital Wires

  • Alfred Hubler, a-hubler@illinois.edu, Physics, UIUC http://server10.how-why.com/blog

  • Analog wires are used to move energy (power lines, power grid) and information (data transmission lines, Internet) in electrical networks.

  • However, most dynamical systems with more than 7 degrees of freedom are chaotic => the dynamics of large networks of analog wires is unstable => congestions & cascading failures

  • Digital wires: Wires that propagate only patterns of rectangular pulses

  • Specific advantages of digital wires:

  • - Fixed pulse shape (increased reliability & speed);

  • Robust against electric smog (increased reliability & speed);

  • - No cross talk (increased reliability & speed);

  • - No echoes (increased reliability & speed);

  • Adjustable pulse speed (increased adjustability);

  • Encryption (increased security);

  • Digital wire can be general purpose computers (increased adjustability).

  • Neurons are digital wires. Digital wires move information in parallel.

Digital Wire


Slide2 l.jpg

Graphical depiction of a “Digital Wire” formed by imposing circular boundary conditions on a CA. A digital wire implemented by a CA has notable advantages over copper wires, such as isolating defects. By choosing the appropriate rule, the effects of a defect such as a short circuit can be isolated to a single cell site, rather than propagating the defect along the entire wire, as copper wires do.

Digital wires


Slide3 l.jpg

Digital Wires: hardware implementation as a transistor network

Vin

Vout

Cell 1

Cell 2

Cell n

(a)

(b)

(a) A digital wire constructed of resistors and pnp transistors. (b) Experimental measurement of the input-output response of the pnp-transisator digital wire. The sharp transition at 77% of the total supply voltage results in a noise immunity threshold. In order for noise to affect the outcome of a signal, it must exceed this threshold.


Slide4 l.jpg

Digital Wires: network

Hardware implementation as a Boolean network


Slide5 l.jpg

Digital wires: a simple model network

Definition: A digitial wire is a long network of cells. Digital pulses travel along the digital wire, according to the following rule:

Ax+1,y = f (Ax,y-1, Ax,y, Ax,y-1)

-i.e. the state of the cell Ax+1,y =0,1, depends only on the “upstream” neighbors.

Discussion: Digital wires can be viewed as hardware implementations of elementary cellular automata (S. Wolfram). Therefore a digital wire can be a general purpose computer.

Digital Wire

Digital wire (Boolean network, xor rule)


Slide6 l.jpg

Digital Wire network

Data Program

Direction of

pulse

propagation


Slide7 l.jpg

Digital Wire network


Slide8 l.jpg

Digital Wire network


Slide9 l.jpg

Digital Wire network


Slide10 l.jpg

Digital Wire network


Slide11 l.jpg

Digital Wire network

  • Discussion, continued …

  • Digital wires on various scales:

  • -nano- level: thin film transistor networks (parallel , reliable input for CPUs, may replace CPU), quantum dot networks, neurons (brain)

  • Atomic level: electron hopping from atom to atom along a path on a macro molecule (hard ware implementations of neural nets)

  • Microscopic level: transistor networks

  • Mesoscopic level: Boolean networks, Field programmable gate arrays (image processing)

  • Macroscopic level: power lines with phase sensitive switches every 10 miles (no cascading power failures), city traffic

  • Data transmission lines versus power lines:

  • There is energy traveling with every pulse. Computation does not necessarily consume much power (conservative computation).

  • Periodic pulses can produce a lot of power.

  • Pulses that carry information look random.

  • H. Higuraskh, A. Toriumi, F. Yamaguchi, K. Kawamura, A. Hübler, Correlation Tunnel Device, U. S. Patent # 5,679,961 (1997)


Slide12 l.jpg

Digital Wire network

  • Discussion, continued …

  • Different cellular automata rules:

  • -Rule 110: general purpose computer

  • Rule 204: identity rule

  • Rule 30: random number generator

  • Rule 254: self-repairing pulses

  • Rule 0: trivial

  • Merging data from different digital wires:

Given is the state 000111010.

What is the pulse one time step later for rule 0? 000000000

Wire 1

Wire 2


Slide13 l.jpg

  • Summary: Digital Wires network

  • Analog wires are used to move energy (power lines,

  • power grid) and information (data transmission lines,

  • Internet) in electrical networks.

  • -Dynamical systems with more than 7 degrees of freedom are chaotic (Lee Rubel )=> the dynamics of large networks of analog wires are unstable.

  • Digital wires: wires that propagate only patterns of rectangular pulses

  • Specific advantages of digital wires:

  • - Fixed pulse shape (increased reliability)

  • Robust against electric smog (increased reliability)

  • - No cross talk (increased reliability)

  • - No echoes (increased reliability)

  • Adjustable pulse speed (increased adjustability)

  • Encryption (increased security)

  • Digital wire can be general purpose computer s(increased adjustability)

  • Neurons are digital wires.

  • Alfred Hubler, a-hubler@illinois.edu, Physics, UIUC http://server10.how-why.com/blog

Digital Wire
