ga ares digital plan

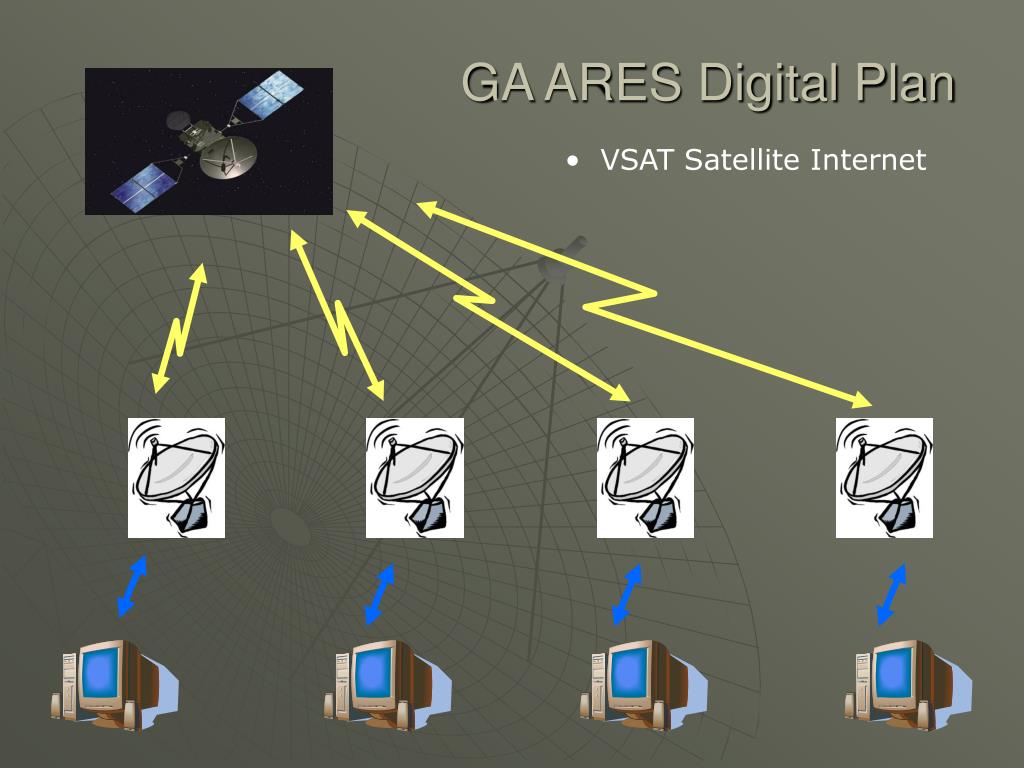

GA ARES Digital Plan
  • VSAT Satellite Internet
slide3
The Ultimate Portable Digital Mode

~ $1500 upfront cost

~ $70 Month

~ $6000 Self pointing dish

~ Manual dish setup requires phone call to verify polarity settings.

digital participation

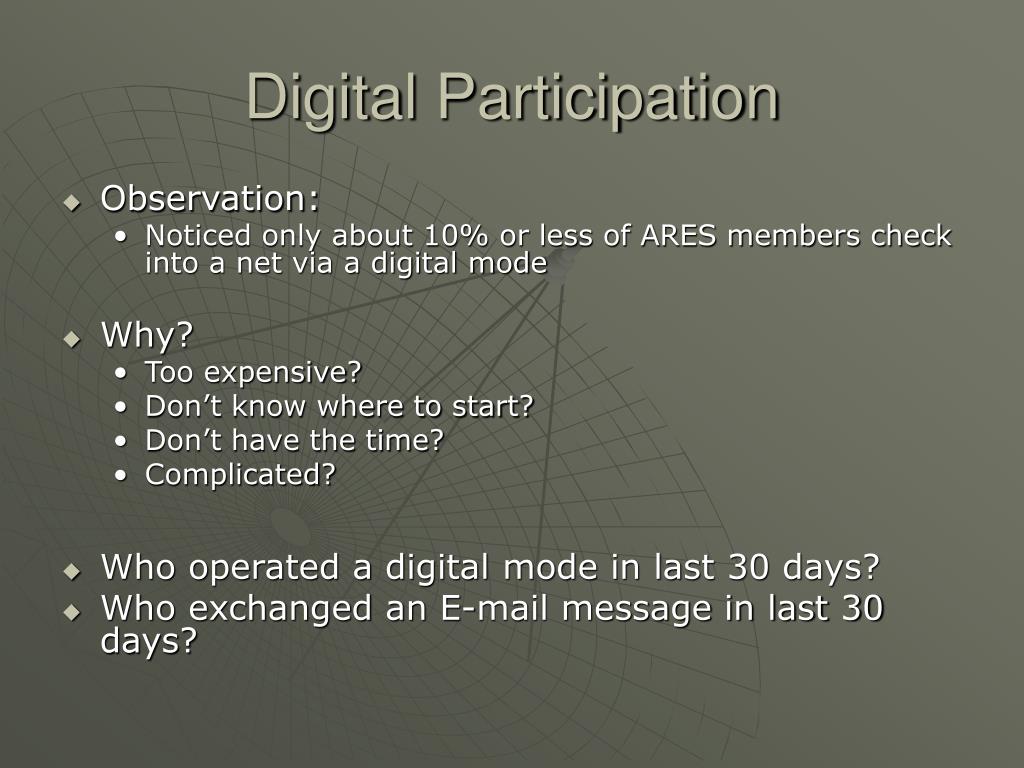

Digital Participation
  • Observation:
    • Noticed only about 10% or less of ARES members check into a net via a digital mode
  • Why?
    • Too expensive?
    • Don’t know where to start?
    • Don’t have the time?
    • Complicated?
  • Who operated a digital mode in last 30 days?
  • Who exchanged an E-mail message in last 30 days?
digital modes
Digital Modes
  • Email IS a digital mode
  • Keyboard to Keyboard
    • BBS, Chat, E-mail, Web Browser
    • E-mail is universal
  • Automatic Position Reporting (APRS)
  • Packet, Pactor
  • SSTV, DIGSSTV
  • VoIP - DV (digital voice)
    • Repeater Linking (IRLP, EchoLink, D-Star)
    • Skype – (remote rig operations)
slide7
BPSK

PSKAM

PACKET

RTTY

AMTOR

THROB

PAX

HELLSCHREIBER

PSK31

MT63

SSTV

QPSK

MFSK

DOMINO

OLIVIA

PACTOR II

HSSM

PACTOR III

GMSK

BPSK63

AX.25

ARQ

FEC

DIGSSTV

ALE

FAX

OFDM

SCAMP

AGWPE

PACTOR I

QAM

DSP

WINDRM

VARICODE

ASCII

CW

JT6M

F6FBB

G-TOR

FDMDV

Q15X25

Chip64

slide8
MMVARI

mmTTY

MultiPSK

DIGIPAN

mixW

psk31Deluxe

trueTTY

Packet Client

HAMSCOPE

NBEMS

WinPack

OUTPOST

UIView

Telpac

WinAPRS

AGWPE

MT63

dominoEX

DIGTRX

PACTERM

FNPSK

Airmail

PaclinkMP

RMS Packet

PSKMail

Stream

DigiTalk

HamPal

slide9
Need more Digital participation in EmComm:
    • Computer is part of every day life
    • Already familiar with E-mail, instant messaging, etc.
    • Should be pretty easy for anyone to operate a digital mode
  • Some Digital modes can be complex:
    • Issues with software configuration
    • Getting the connections right
    • Rig control and audio adjustments
slide10
Elmers:
    • Education and training
      • Help with rig interface
      • Software installation and configuration
    • Practice
      • Get used to the applications
      • Experiment, try things out
    • Share the Knowledge
      • Presentations and Hands on Workshops
winlink 2000

A global system that allows Amateur Radio Operators to send and receive standard internet E-mail with binary attachments via ham radio…

  • …with or without a direct internet connection
  • Also peer to peer messaging via Packet and Pactor
  • Winlink project started in the late 1980’s

Winlink 2000

winlink 200013

Very Flexible

  • Multiple connectivity options:
    • Telnet directly to server using various internet connections
      • Ethernet - DSL / Cable / Satellite / GSM / CDMA
      • Wifi - 802.11a/b/g HSMM
      • D-star - ID-1
      • Use Airmail or Paclink MP (Outlook Express)

Winlink 2000

winlink 200014

Multiple connectivity options: (con’t)

    • Packet (Don’t have to remember commands)
    • Airmail Client
    • Paclink MP (Outlook Express)
    • F6FBB B2 Compression
    • APRSLink
    • Outpost
    • Peer to Peer

Winlink 2000

winlink 200015

Winlink 2000

  • Multiple connectivity options:
    • Pactor 1, 2, 3:
      • Airmail Client
      • Paclink MP (Outlook Express)
      • Through RMS Pactor (PMBO)
      • F6FBB B2 Compression
      • Peer to Peer
winlink 200016

What does Winlink offer the served agency?

Winlink 2000

  • The capability to send and receive written messages with 100% accuracy to/from any individual with an email address
    • Multiple recipients
  • Allows emergency teams in remote areas without internet access to receive email or peer to peer messages in the field
  • Prevents them from having to transcribe, format or modify documents before sending
winlink 200017

System core

Winlink 2000

  • CMS: Central message server. This is the main hub of the system. There are three with full-time redundant mirroring of each other and real-time failover. They are geographically dispersed. Accept connections from PMBOs, Telpac, Paclink, and Airmail via Telnet
  • PMBO: Participating Mail Box Operator/Office. This is the primary hub for user connections. Most support Telnet and many support VHF and HF connections
  • PMBOs will be replaced by RMS Packet, RMS Pactor and RMS Relay
winlink 200018

CMS Halifax

CMS San Diego

CMS Perth

Winlink 2000

Internet

Conventional

Email Users

& Agencies

PMBOs and Radio message Servers

Links:

HF Radio

VHF/UHF Radio

D-Star data radio

WiFi, Telnet, Web

Existing Ham Radio Networks

winlink 200019

The HAM’s applications:

Winlink 2000

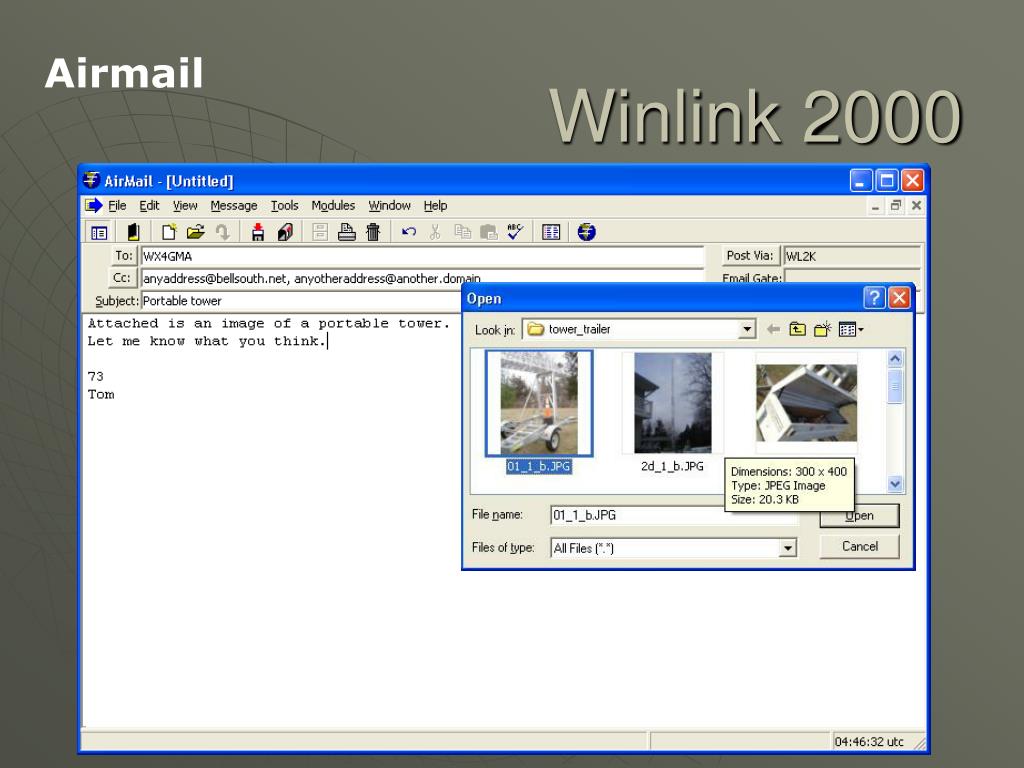

  • Airmail:This is the primary single user client. Connects via Telnet to the CMS similar to the way your favorite email client connects to the internet …
    • … Or, it can connect to a Telpac node via VHF/UHF Packet or directly to a PMBO via HF Pactor.
  • Telpac:The name meansTELnet toPACketbridge. This is exactly what it does. It is the program that allows the ham operator to bridge the “Last Mile” on VHF/UHF. Quickly, easily, and cheaply.
  • Telpac will be replaced by RMS Packet
winlink 200021

The HAM’s applications:

Winlink 2000

  • Paclink:This is a more complex user client with considerably more flexibility.
  • It functions as a stand alone POP/SMTP server for a LAN.
  • Messages are composed/read using popular E-mail programs.
  • It can provide tactical email addressing:
    • GACobbEOC @ winlink .org
    • ARCshelter-1 @ winlink .org
    • All tied to the Ham’s callsign when traversing the Winlink system.
  • Paclink provides multiple transport connections to CMS

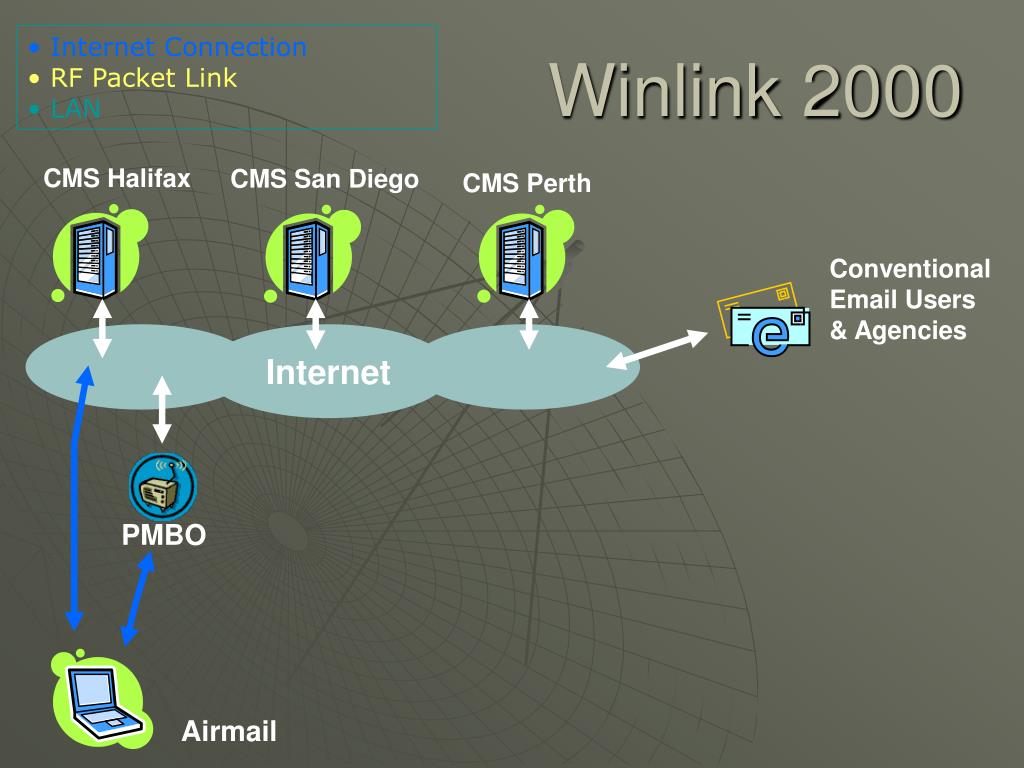

winlink 200022

Internet Connection

  • RF Packet Link
  • LAN

CMS Halifax

CMS San Diego

CMS Perth

Winlink 2000

Conventional

Email Users

& Agencies

Internet

PMBO

Airmail

winlink 200023

Internet Connection

  • RF Packet Link
  • LAN

CMS Halifax

CMS San Diego

CMS Perth

Winlink 2000

Conventional

Email Users

& Agencies

Internet

PMBO / RMS Pactor

HF Pactor

Airmail

winlink 200024

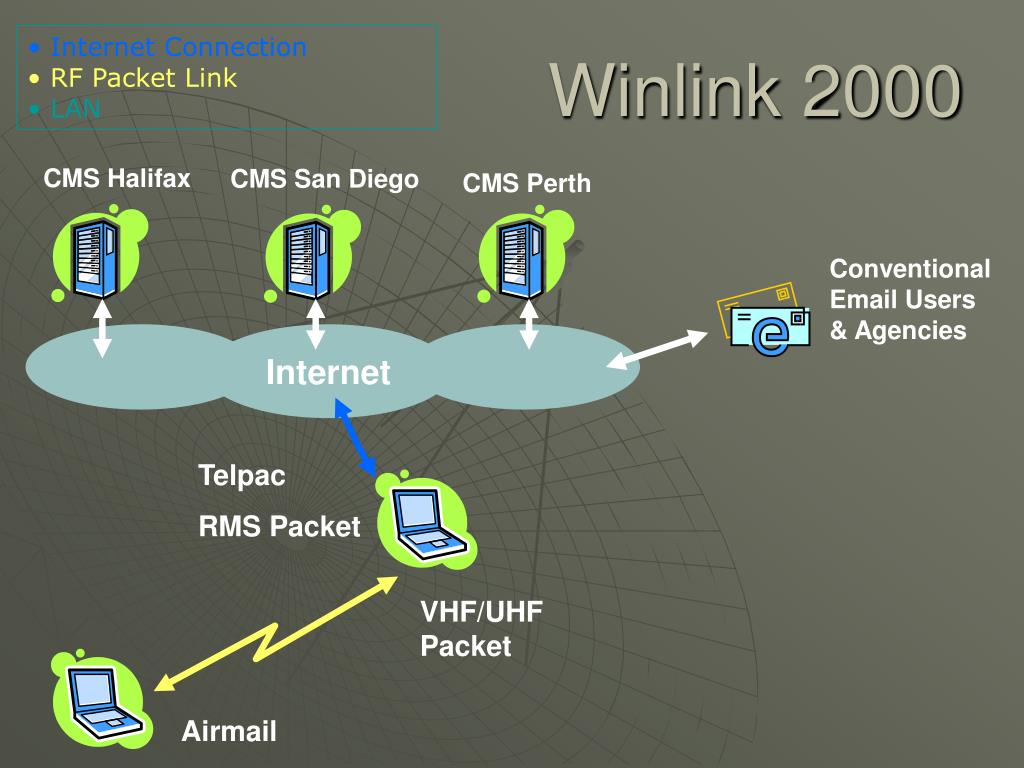

Internet Connection

  • RF Packet Link
  • LAN

CMS Halifax

CMS San Diego

CMS Perth

Winlink 2000

Conventional

Email Users

& Agencies

Internet

Telpac

RMS Packet

VHF/UHFPacket

Airmail

winlink 200025

Internet Connection

  • RF Packet Link
  • LAN

CMS Halifax

CMS San Diego

CMS Perth

Winlink 2000

Conventional

Email Users

& Agencies

Internet

Outlook Express, Thunderbird, etc.

  • Ethernet
  • WiFi
  • D-Star
  • Microwave
  • Any TCP/IP

Paclink

winlink 200026

Internet Connection

  • RF Packet Link
  • LAN

CMS Halifax

CMS San Diego

CMS Perth

Winlink 2000

Conventional

Email Users

& Agencies

Internet

Outlook, Express, Thunderbird, etc.

Telpac

RMS Packet

Paclink

VHF/UHFPacket

Last Mile

winlink 200027

Internet Connection

  • RF Packet Link
  • LAN

CMS Halifax

CMS San Diego

CMS Perth

Winlink 2000

Conventional

Email Users

& Agencies

Internet

Outlook, Express, Thunderbird, etc.

Telpac

PMBO / RMS

Paclink

HF Pactor

VHF/UHFPacket

Airmail

winlink 200034

Winlink 2000

Portable Telpac

N4DQ HF Station at Dobbins ARB

Steve Hicks mobile

winlink 200035

Where do I start to use Winlink?

Winlink 2000

  • Download and use Airmail ( No $$$) www.winlink.org/Client.htm
    • Internet only (telnet to CMS)
    • 2M packet ( KPC3+, 9612)
  • Install Telpac nodes on VHF/UHF Packet
    • Low cost Radio
    • TNC (KPC3+, 9612)
    • Minimum Celeron CPU w/ XP or Win2k
    • Fulltime internet connection
    • Interface with D-Star ID-1 for backup TCP/IP connection
sound card modes

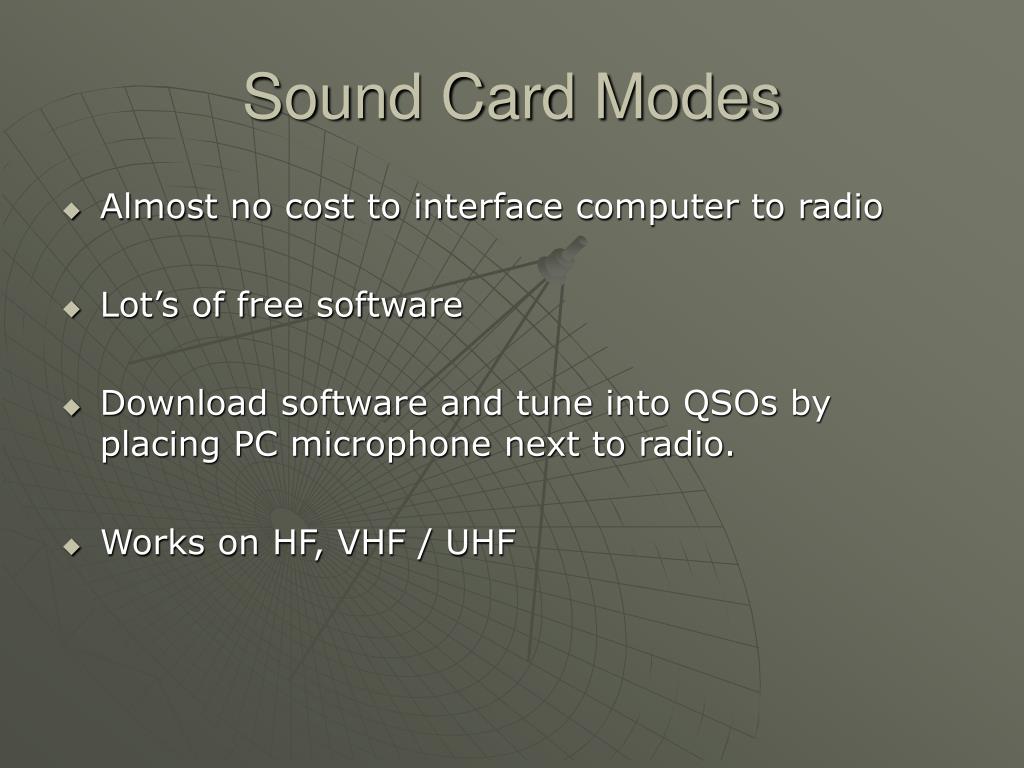

Sound Card Modes
  • Almost no cost to interface computer to radio
  • Lot’s of free software
  • Download software and tune into QSOs by placing PC microphone next to radio.
  • Works on HF, VHF / UHF
psk31
PSK31
  • Soundcard Based
  • Keyboard to Keyboard
  • Narrow bandwidth
  • Approx 50wpm
  • Monitor multiple QSOs (Digipan, psk31Deluxe)
  • Very popular
    • Field Day Favorite
    • Quick to set up
    • Several Software Applications free
    • Pocket PC version available for portability
slide39

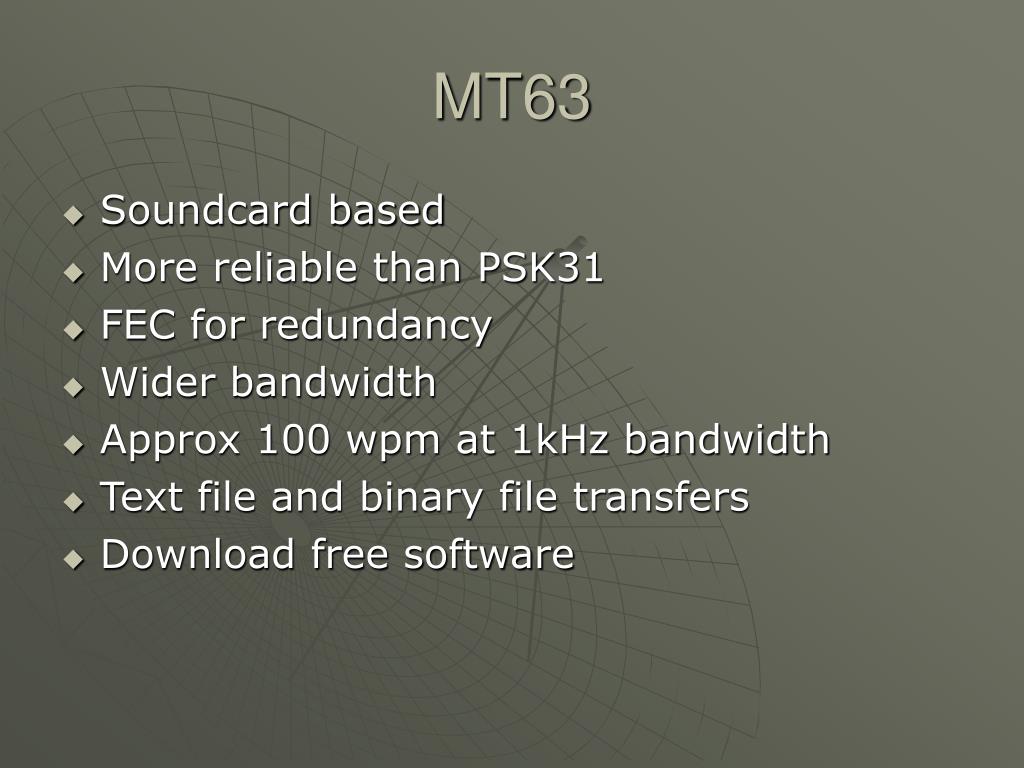

MT63
  • Soundcard based
  • More reliable than PSK31
  • FEC for redundancy
  • Wider bandwidth
  • Approx 100 wpm at 1kHz bandwidth
  • Text file and binary file transfers
  • Download free software
deputation
Deputation
  • Need Liaisons and Relay stations
    • Learn multiple modes
    • Bridge HF to Packet / Internet
      • Copy/paste from MT63 to Airmail etc.
      • Bridge HF messages to D-Star apps
      • Copy/paste psk31 msg to Email/Airmail
    • Packet to Internet
      • Telpac, D-Star
deputation41

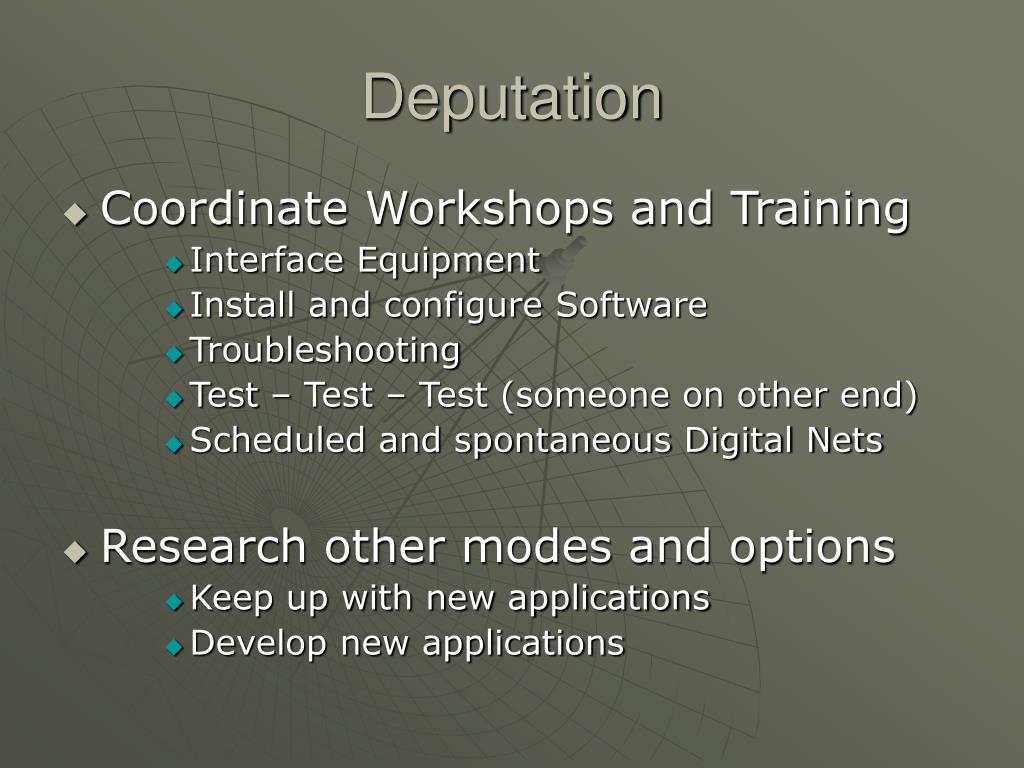

Deputation
  • Coordinate Workshops and Training
      • Interface Equipment
      • Install and configure Software
      • Troubleshooting
      • Test – Test – Test (someone on other end)
      • Scheduled and spontaneous Digital Nets
  • Research other modes and options
      • Keep up with new applications
      • Develop new applications
digital jump kit

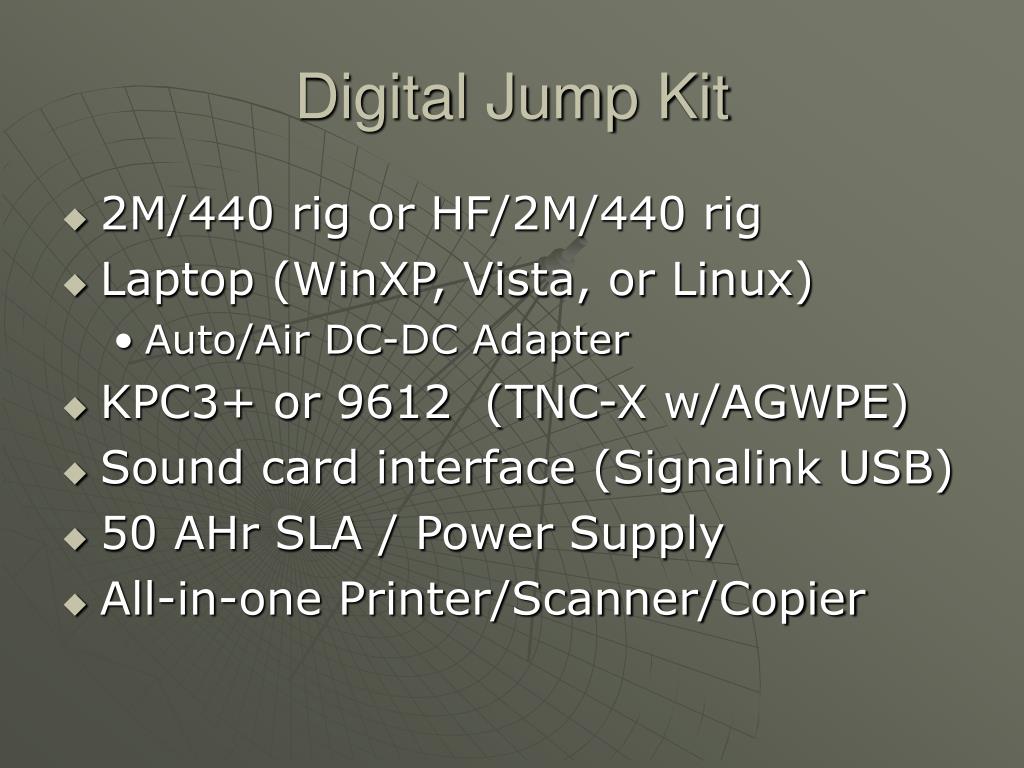

Digital Jump Kit
  • 2M/440 rig or HF/2M/440 rig
  • Laptop (WinXP, Vista, or Linux)
    • Auto/Air DC-DC Adapter
  • KPC3+ or 9612 (TNC-X w/AGWPE)
  • Sound card interface (Signalink USB)
  • 50 AHr SLA / Power Supply
  • All-in-one Printer/Scanner/Copier
slide43
Info on Digital Modes
  • http://signals.taunus.de/DIG_introd.htm
  • http://www.wb8nut.com/digital.html
  • http://www.rac.ca/opsinfo/infodig.htm lots of digi links
  • http://www.ew.usna.edu/~bruninga/aprs.html APRS
  • http://tapr.org/
  • http://www.rv3apm.com/
  • http://bipt106.bi.ehu.es/psk31.html
  • http://hflink.com/emcomm/
  • http://www.ctares.org/packetguide.htm
  • http://www.packetradio.com

Download sites:

  • http://www.qsl.net/hamscope/
  • http://f6cte.free.fr/index_anglais.htm
  • http://mixw.net/
  • http://www.blackcatsystems.com/software/multimode.html for MAC
  • http://www.n0hr.com/PocketDigi/PocketDigi_intro.htm
  • http://www.dxsoft.com
  • http://hrd.ham-radio.ch/
  • http://www.gwinnettares.org/client/
  • http://www.w1fn.org/fnpack/
  • http://xoomer.alice.it/aporcino/
slide44
http://gaares.org/mailman/listinfo/digi_gaares.org

digi @ gaares . org
