Chapter 6.1: Classifying Quadrilaterals

Warmup : True or false: all rhombi are squares. Once warmup is completed, grab a note sheet and copy chart. Chapter 6.1: Classifying Quadrilaterals. LEQ: How do we classify and use properties of quadrilaterals?. Box #1: “Quadrilateral”. A quadrilateral is a 4-sided polygon.

shelly
Download Presentation

Chapter 6.1: Classifying Quadrilaterals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Warmup: True or false: all rhombi are squares. Once warmup is completed, grab a note sheet and copy chart.

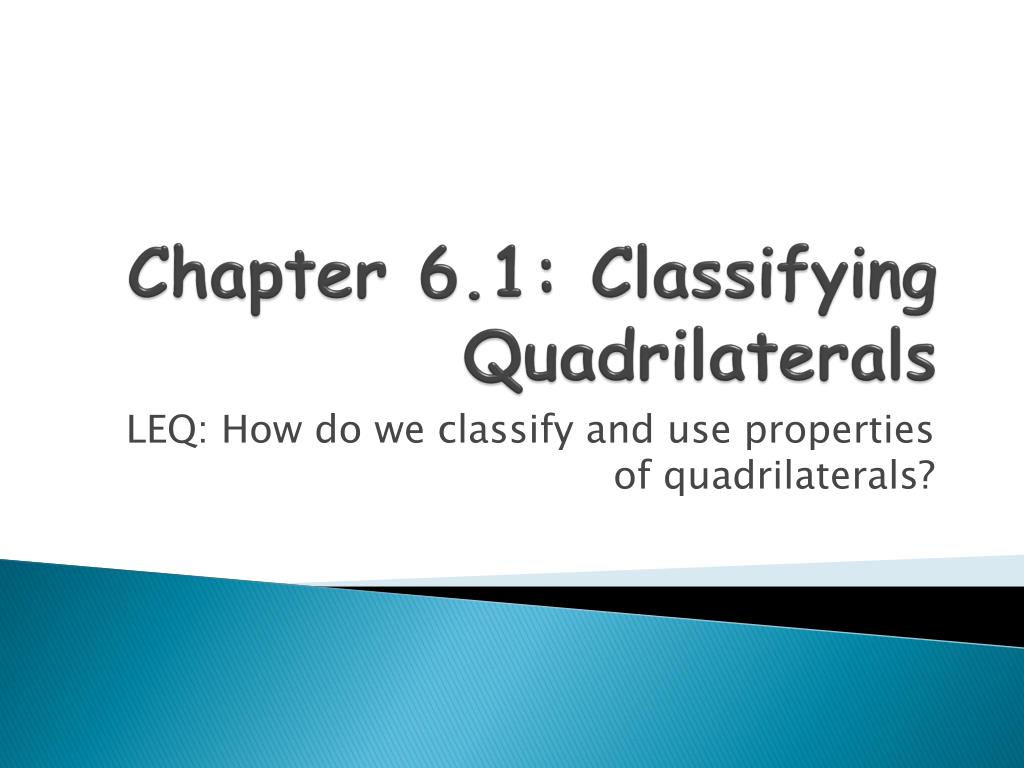

  2. Chapter 6.1: Classifying Quadrilaterals LEQ: How do we classify and use properties of quadrilaterals?

  3. Box #1: “Quadrilateral” • A quadrilateral is a 4-sided polygon.

  4. Box #2: “Kite” • “a quadrilateral with 2 pairs of congruent adjacent sides and no congruent opposite sides.” • No parallel sides

  5. Box #3: “Trapezoid” • “a quadrilateral with exactly one pair of parallel sides.” • Box #4: “Isosceles trapezoid” • Trapezoid who’s nonparallel opposite sides are congruent.

  6. Box #5: “Parallelogram” • “a quadrilateral with exactly 2 pairs of opposite parallel sides. • Why would the definition of trapezoid say “exactly one” pair of parallel opposite sides?

  7. Box #6: “Rectangle” • A parallelogram with a right angle. • Book definition “4 right angles.” Why don’t we need to say all four angles are 90 degrees?

  8. Box #7: “Rhombus” • A parallelogram with 4 congruent sides.

  9. Box #8: Square • A parallelogram with 4 congruent sides and a right angle. • Book defn. “4 right angles”

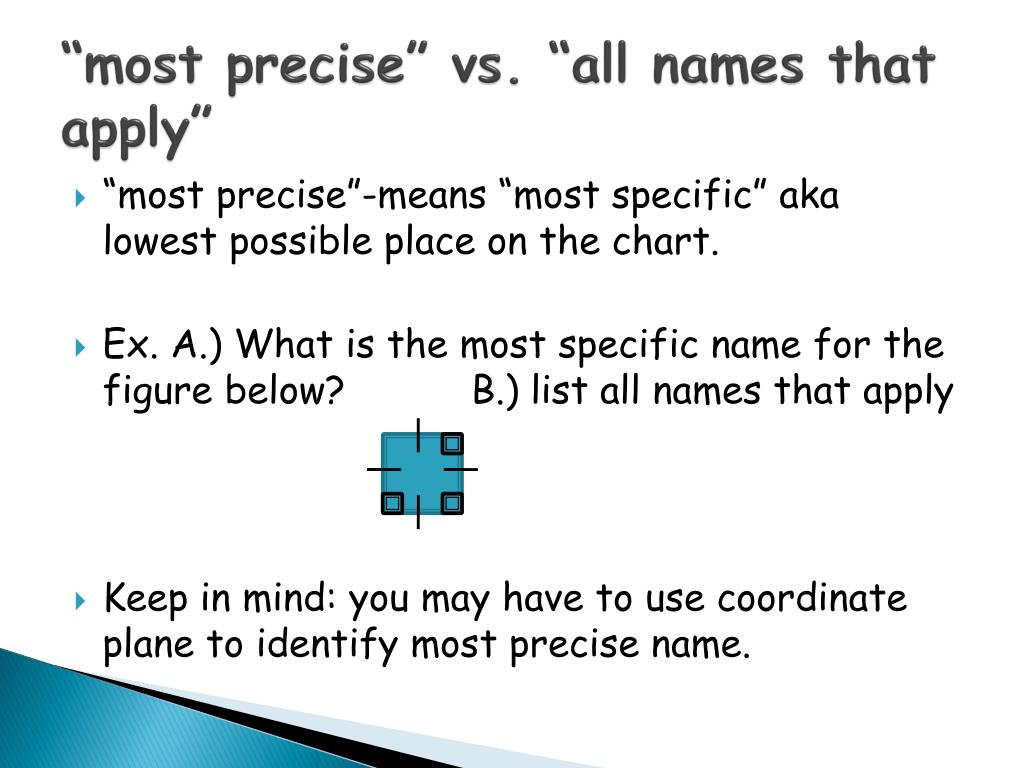

  10. “most precise” vs. “all names that apply” • “most precise”-means “most specific” aka lowest possible place on the chart. • Ex. A.) What is the most specific name for the figure below? B.) list all names that apply • Keep in mind: you may have to use coordinate plane to identify most precise name.

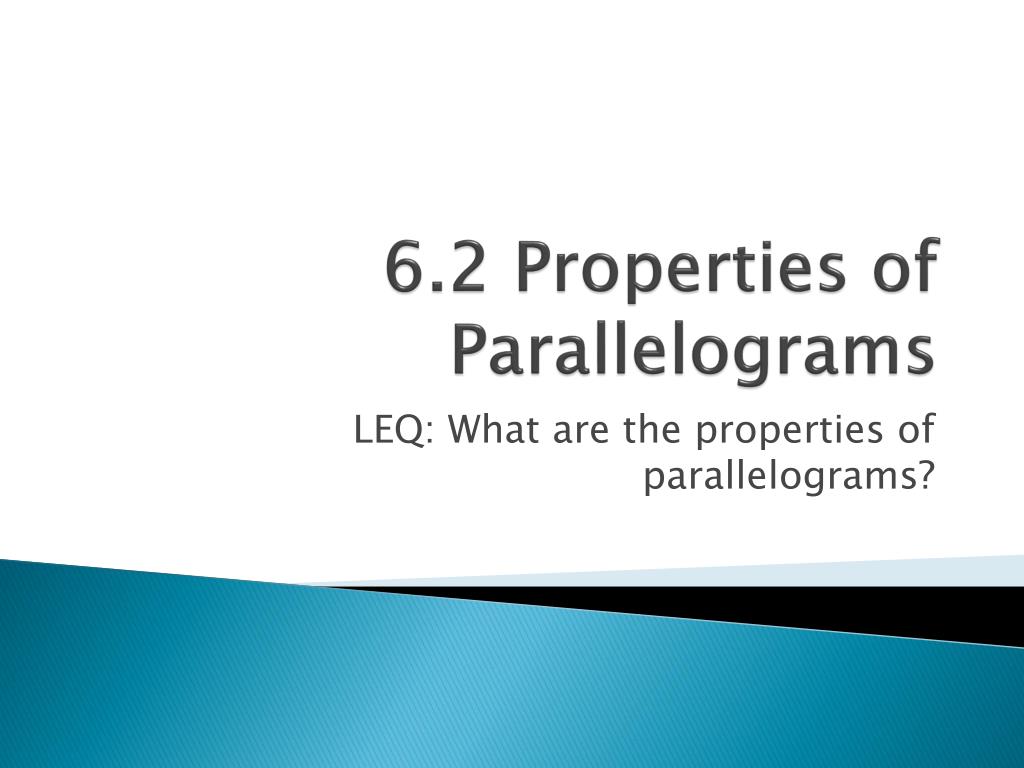

  11. 6.2 Properties of Parallelograms LEQ: What are the properties of parallelograms?

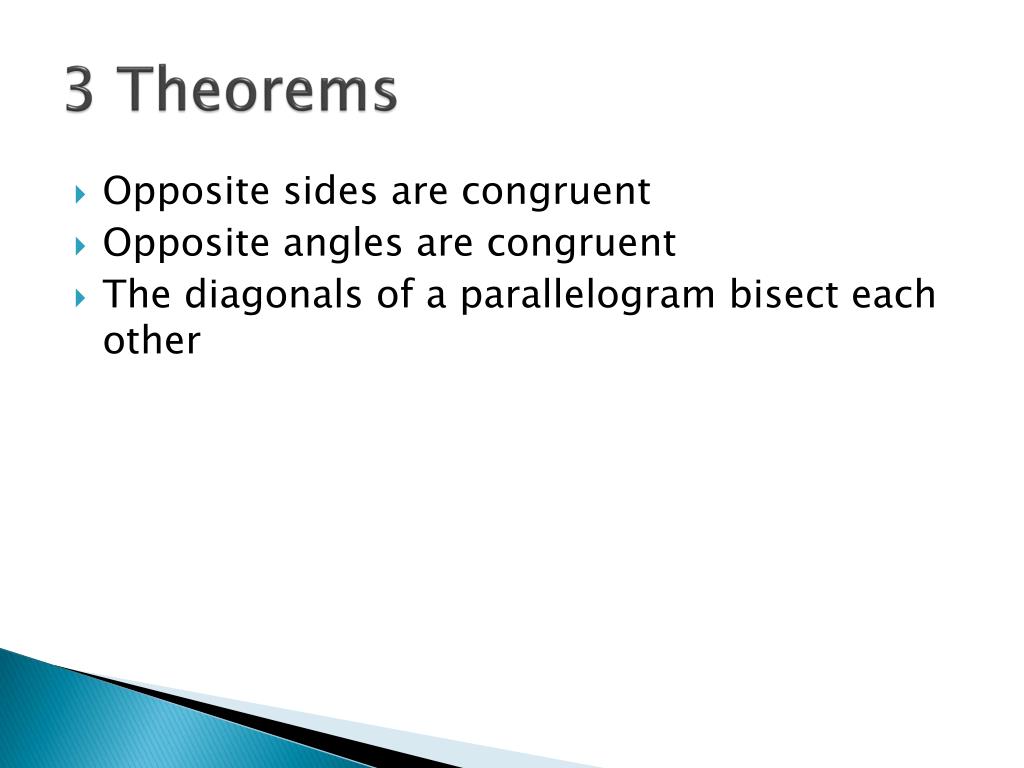

  12. 3 Theorems • Opposite sides are congruent • Opposite angles are congruent • The diagonals of a parallelogram bisect each other

  13. Thm. 6.1 Why should the opposite sides of a parallelogram be congruent? In the triangles below, prove AC=DB and AD=BC A C Statements Reasons 1 3 1.) m<1=m<2 1.) Alt. int. angles 2.) “ “ 2.) m<3=m<4 4 3.) AB=AB 3.) Reflexive 2 B D 4.)ABCBAD 4.) ASA 5.) AC=DB 5.) CPCTC 6.) AD=BC 6.) “ “

  14. Example • In the figure at the right, DH || CG, BF || AE, AB = BC = CD = 2 and EF = 2.5. Find EH. A E B F C G D H
