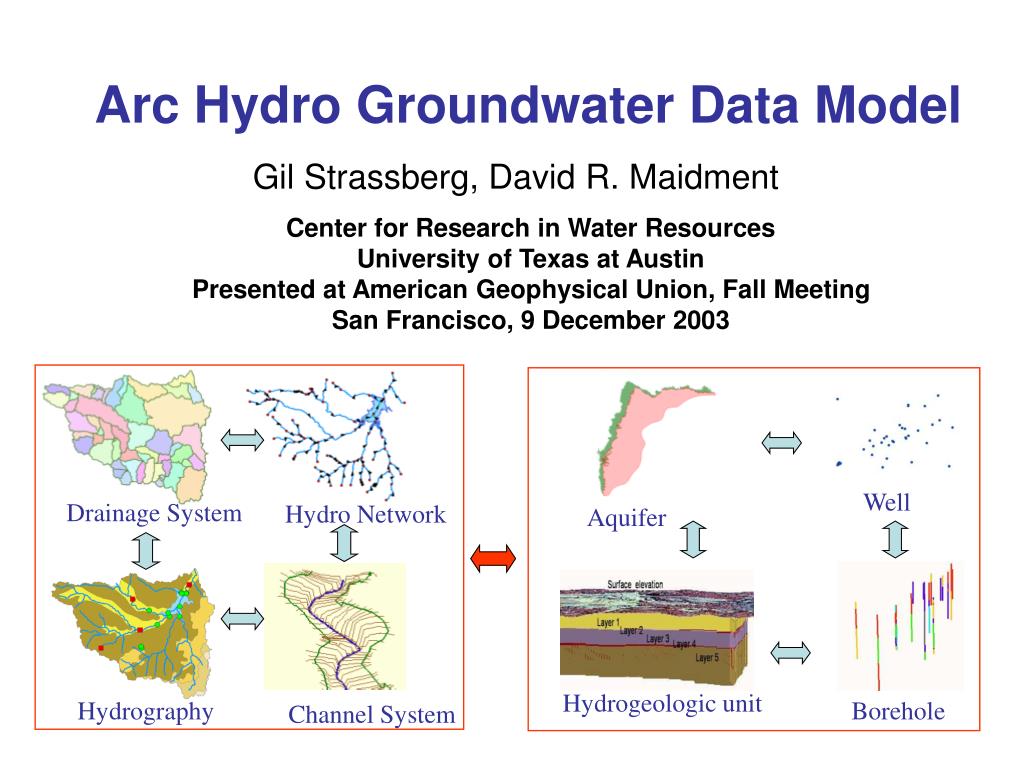

arc hydro groundwater data model

Drainage System

Hydro Network

Well

Aquifer

Hydrography

Channel System

Hydrogeologic unit

Borehole

Arc Hydro Groundwater Data Model

Center for Research in Water Resources

University of Texas at Austin

Presented at American Geophysical Union, Fall Meeting

San Francisco, 9 December 2003

Gil Strassberg, David R. Maidment

slide2
Bringing together these two communities by using a common geospatial data model

Arc Hydro design took 3 years from 1999 – 2002. Groundwater phase II 2002 - 2005.

CRWR

GIS

CRWR

GIS in Water Resources Consortium

Water Resources

slide3

Geographic Data Model

  • Conceptual Model – a set of concepts that describe a subject and allow reasoning about it
  • Mathematical Model – a conceptual model expressed in equations
  • Data Model – a conceptual model expressed in a data structure
  • Geographic Data Model – a data model for describing and reasoning about the world

A model is a simplification of reality

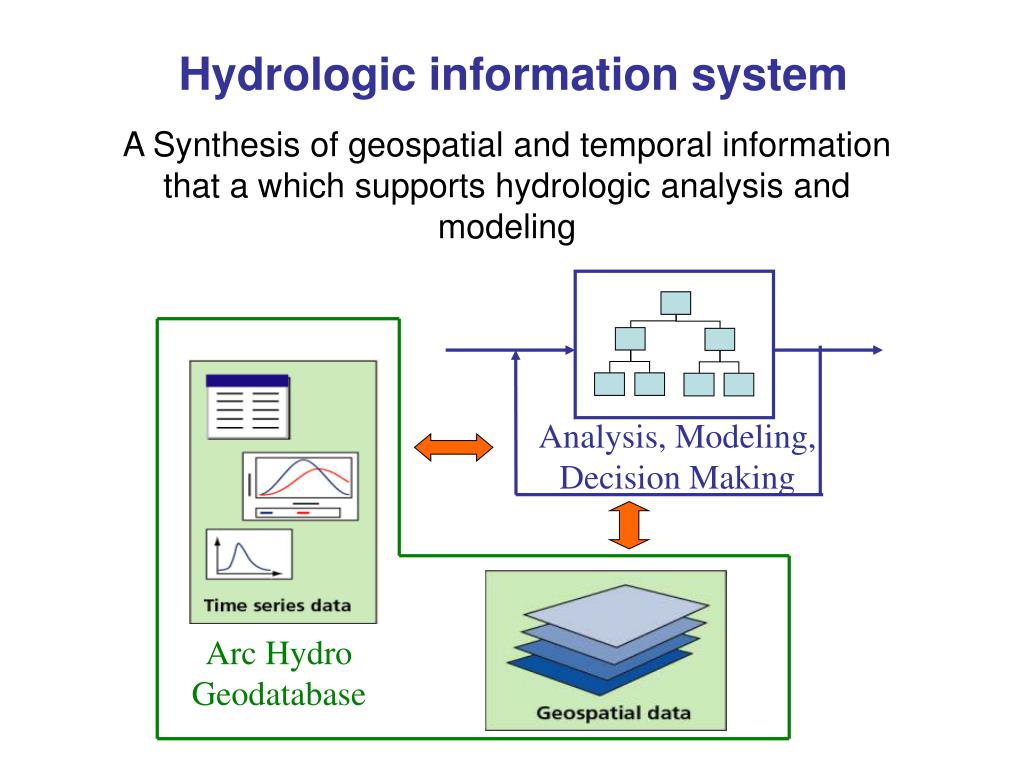

hydrologic information system

Analysis, Modeling,

Decision Making

Arc Hydro

Geodatabase

Hydrologic information system

A Synthesis of geospatial and temporal information that a which supports hydrologic analysis and modeling

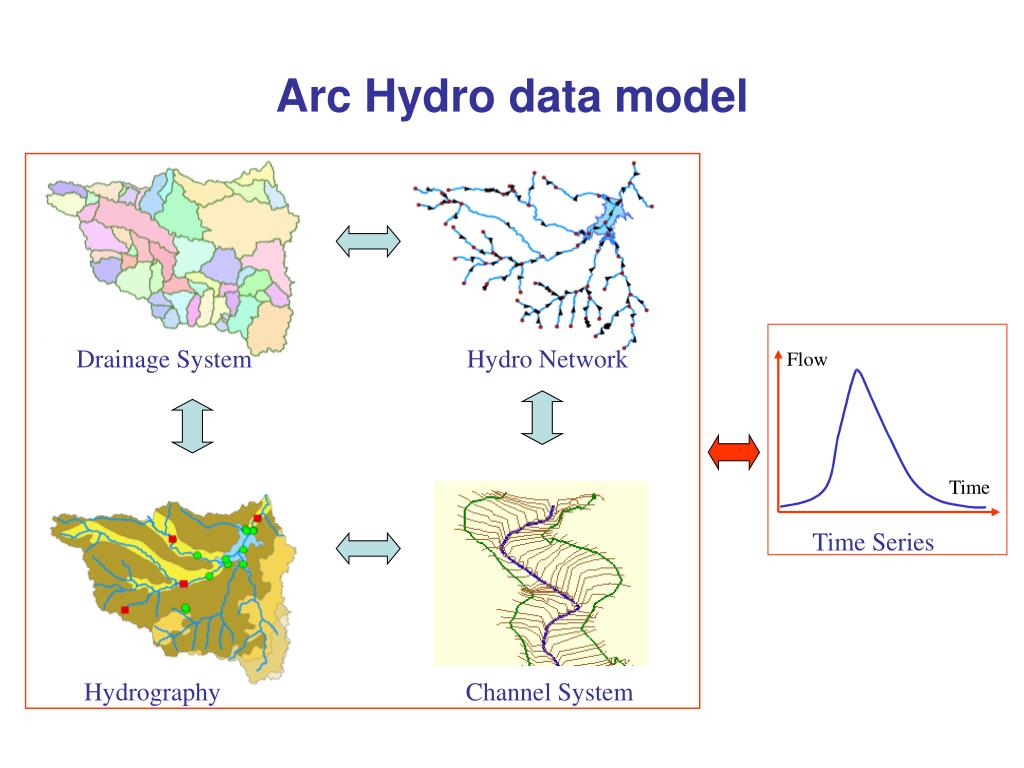

arc hydro data model

Drainage System

Hydro Network

Flow

Time

Time Series

Hydrography

Channel System

Arc Hydro data model
arc hydro groundwater data model6

Time

Drainage System

Hydro Network

Time Series

Hydrography

Channel System

Arc Hydro groundwater data model

Temporal

Surface water

Groundwater

Well

Aquifer

Hydrogeologic unit

Borehole

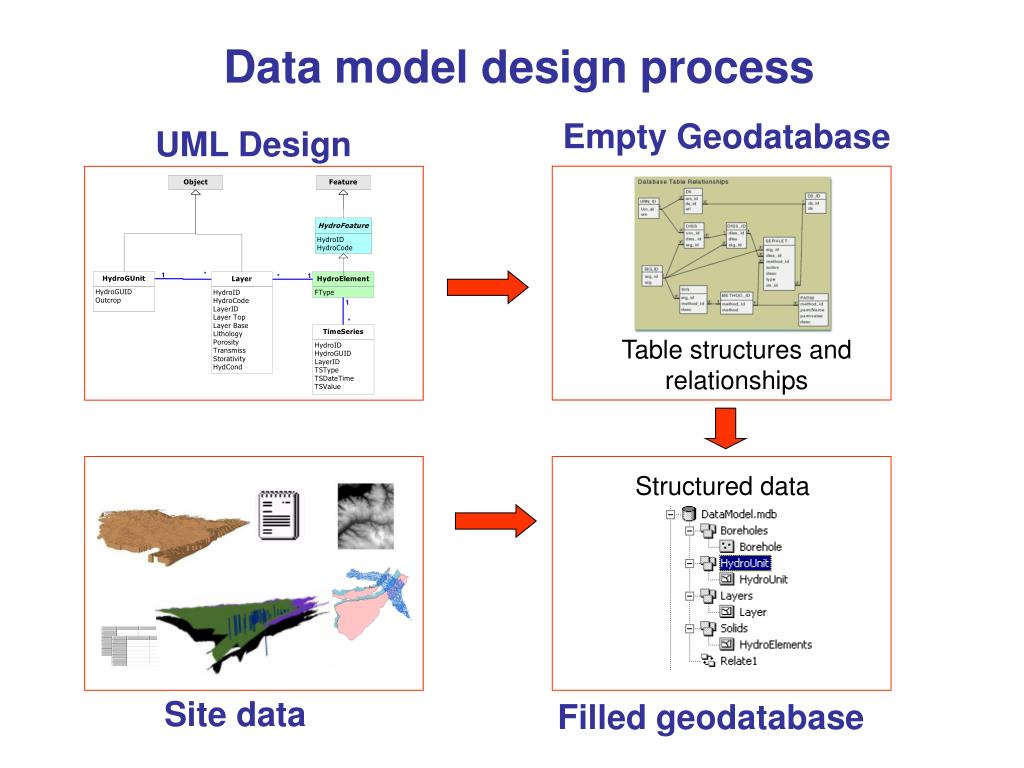

data model design process
Data model design process

Empty Geodatabase

UML Design

Table structures and relationships

Structured data

Site data

Filled geodatabase

arcgis features
ArcGIS features

GIS uses features and tables to describe a simplification of a “system” in this case the hydrological description.

3D features: 3D points, 3D lines and 3D polygons

2D features: Points, lines and polygons

Points - Wells

Polygons - Aquifers

3D points

Lines-

River network

3D lines -Wells

Geodatabase

Tables with information

Time series

3D polygons

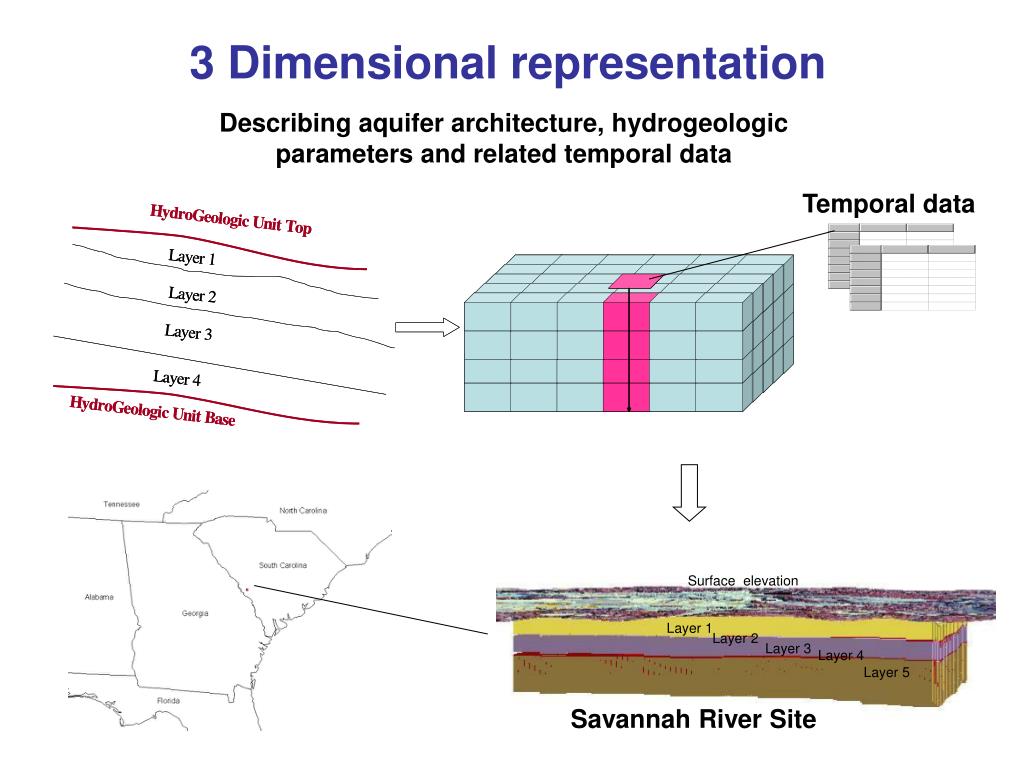

3 dimensional representation
3 Dimensional representation

Describing aquifer architecture, hydrogeologic

parameters and related temporal data

Temporal data

Savannah River Site

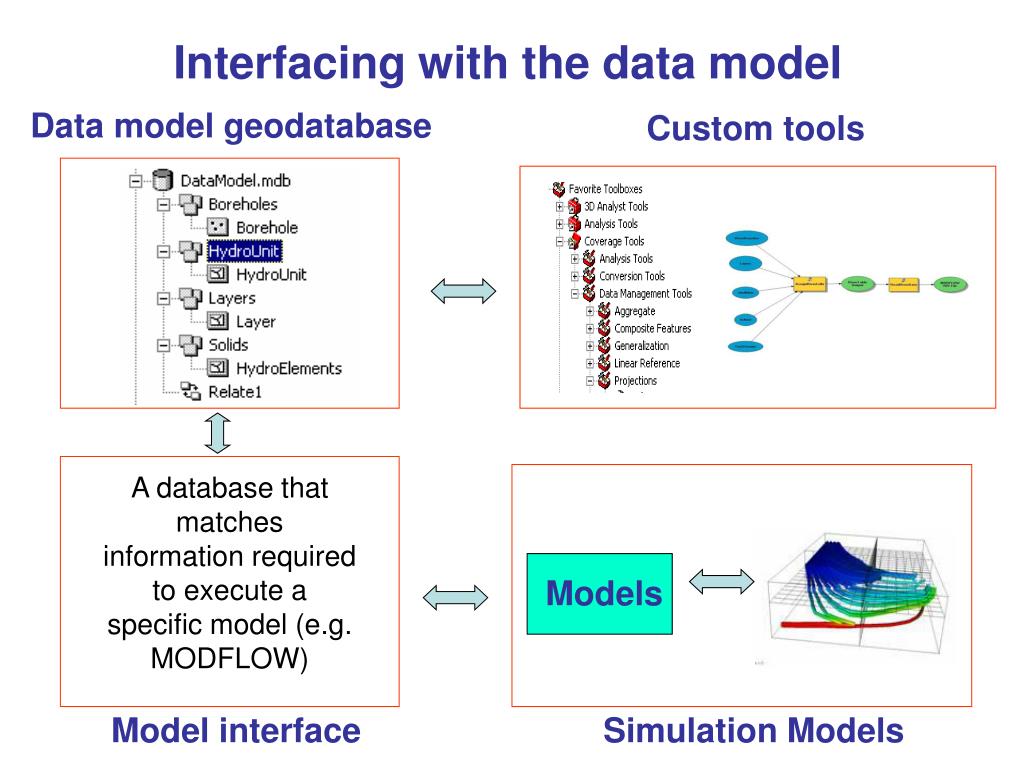

interfacing with the data model
Interfacing with the data model

Data model geodatabase

Custom tools

A database that matches information required to execute a specific model (e.g. MODFLOW)

Models

Model interface

Simulation Models

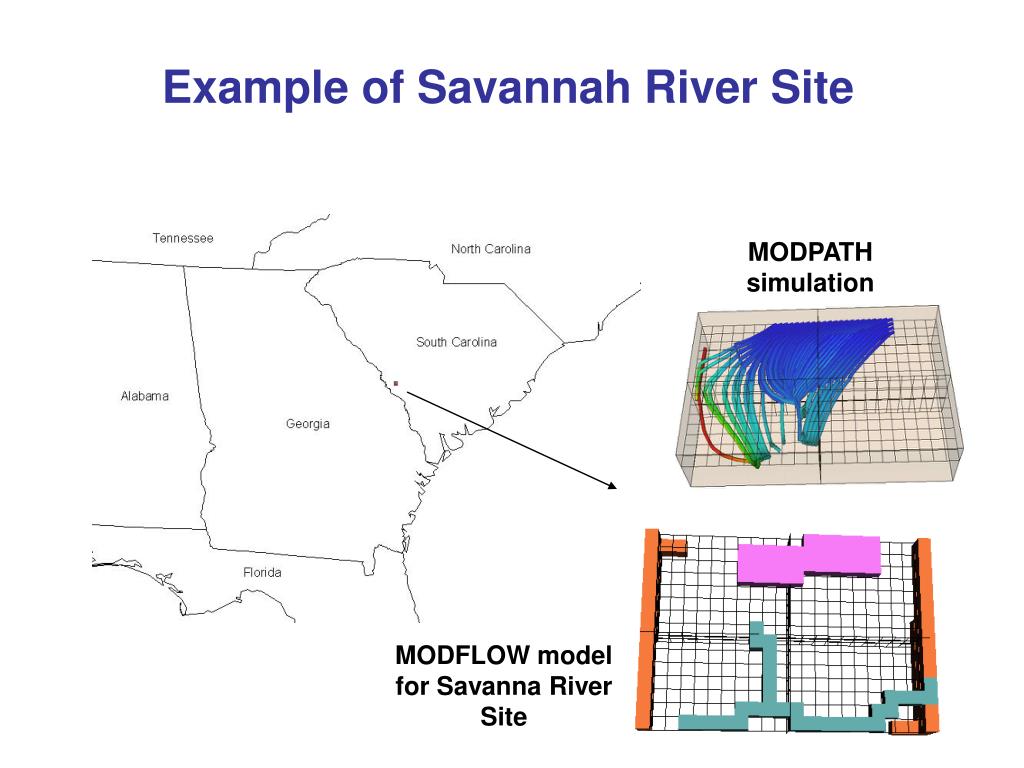

example of savannah river site
Example of Savannah River Site

MODPATH simulation

MODFLOW model for Savanna River Site

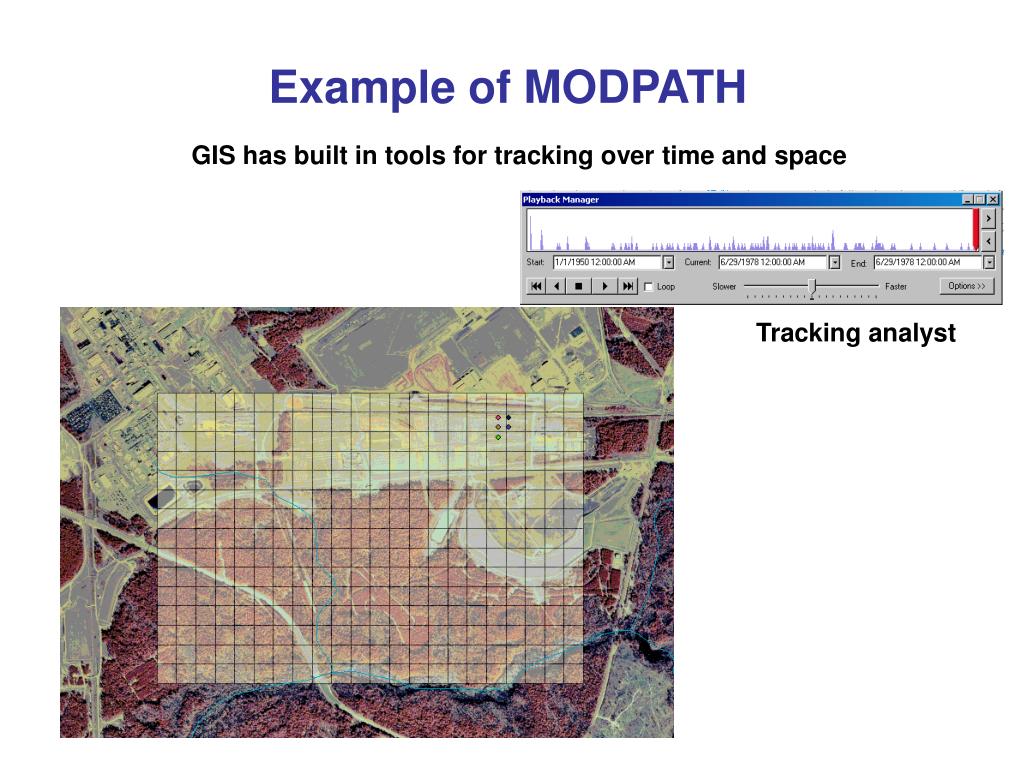

example of modpath
Example of MODPATH

GIS has built in tools for tracking over time and space

Tracking analyst

interfacing surface and groundwater models
Interfacing surface and groundwater models

Arc Hydro data model

Surface water models

Groundwater models

Simulated results

Simulated results

integrated simulation
Integrated simulation

Groundwater simulation

Surface water

simulation

key points
Key points
  • Arc Hydro is a geographic data model – basis for hydrological information system
  • Extended to include the main features of groundwatersystems
  • Provide a data interface between ArcGIS and commonly used groundwater modeling programs
  • Integration of models through the data model.
questions
Questions?

For more information:

Gil Strassberg: gilstras@mail.utexas.edu

David Maidment: maidment@mail.utexas.edu
