    1. DIGITAL PROJECTION RADIOGRAPHYCOMPUTED RADIOGRAPHY

    2. DIGITAL PROJECTION RADIOGRAPHY DEPENDS ON COMPUTER TECHNOLOGY TO PRODUCE DIGITAL RADIOGRAPHIC IMAGE

    3. DIGITAL PROJECTION RADIOGRAPHY COMPUTED RADIOGRAPHY (CR) DIGITAL RADIOGRAPHY (DR)

    4. DIGITAL RADIOGRAPHY vsCOMPUTED RADIOGRAPHY

    5. DR X-RAYS DETECTORS ADC 11011101

    6. CR X-RAYS CR PLATE SCANNER ADC 11011101

    7. COMPUTED RADIOGRAPHY (CR):USES PHOTOSTIMULABLE PLATE (IMAGE PLATE) INSTEAD OF FILM, AS THE IMAGE RECEPTOR.CR USES CASSETTE THAT LOOKS VERY SIMILAR TO CONVENTIONAL RADIOGRAPHIC CASSETTE.

    8. CR PLATE !!!!!DOES NOT USE SCREENS OR FILM ( CONVENTIONAL FILM)

    9. CR PLATE

    10. CASETTE CONSTRUCTION • LIGHTWEIGHT ALUMINUM • PLASTIC • STEEL FRAME FRONT PANEL MADE OF LOW ATTENUATION CARBON FIBER

    11. CR CASSETTES ARE NOT LIGHT-TIGHTIMAGE PLATE IS NOT SENSITIVE TO LIGHT

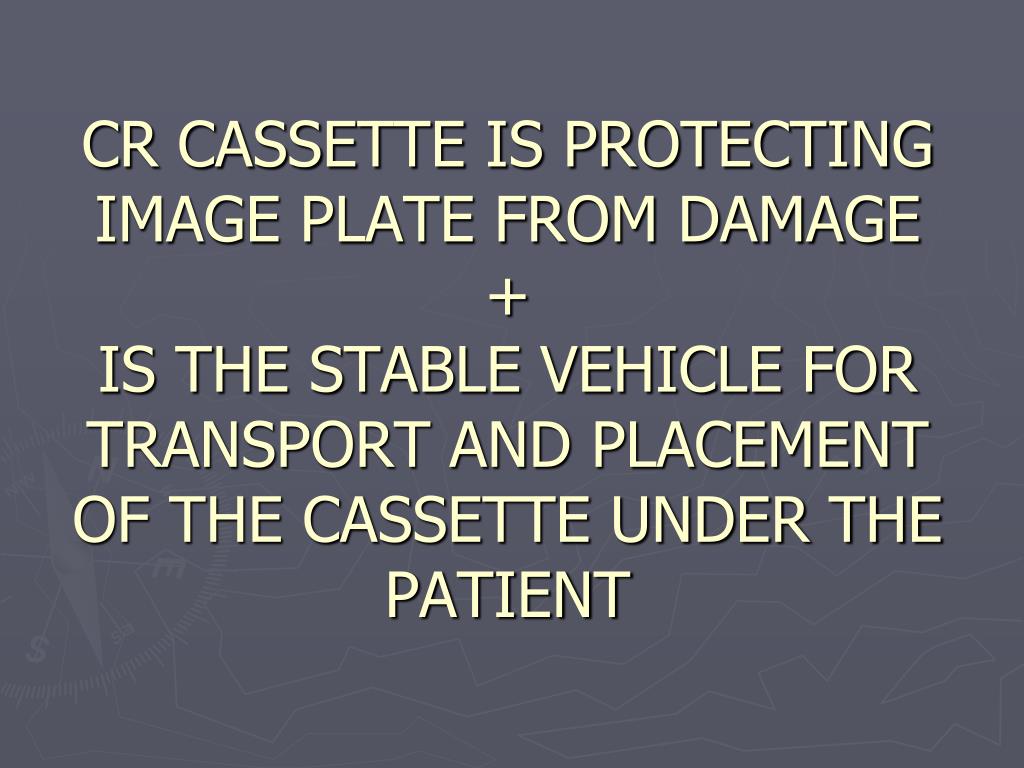

    12. CR CASSETTE IS PROTECTING IMAGE PLATE FROM DAMAGE+IS THE STABLE VEHICLE FOR TRANSPORT AND PLACEMENT OF THE CASSETTE UNDER THE PATIENT

    13. BACK PANEL CONTAINS LEAD FOIL TO PROTECT THE PLATE FROM BACKSCATTER

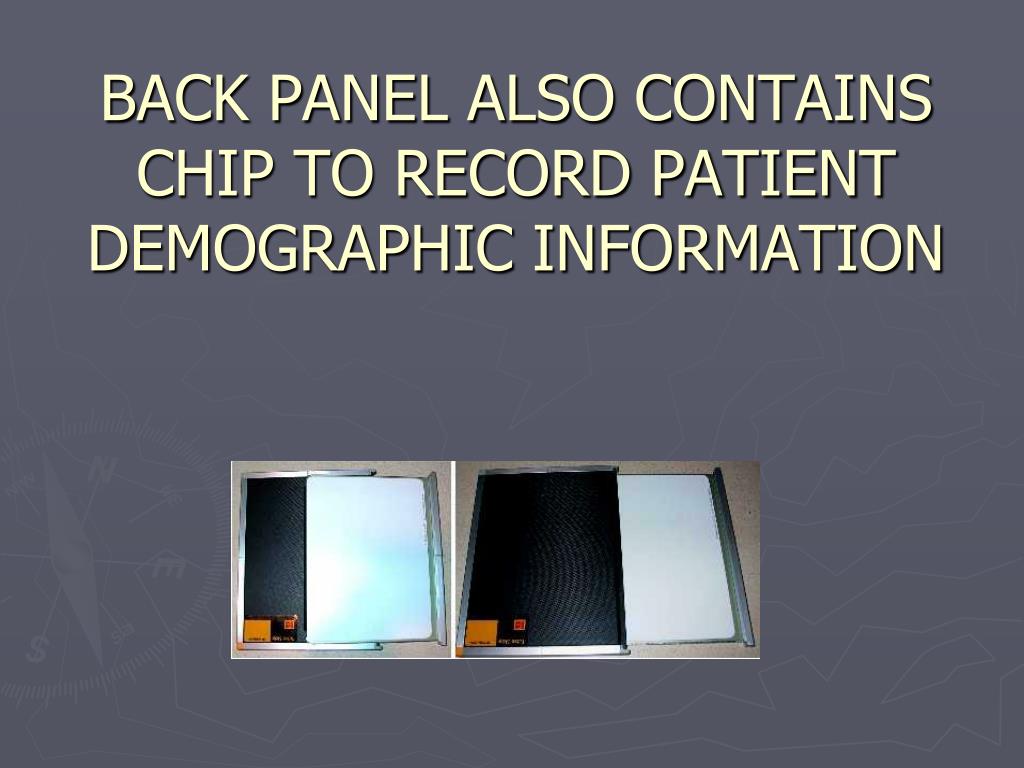

    14. BACK PANEL ALSO CONTAINS CHIP TO RECORD PATIENT DEMOGRAPHIC INFORMATION

    15. REMOTE OPERATOR PANEL

    16. IMAGE PLATE APPROX. 1MM

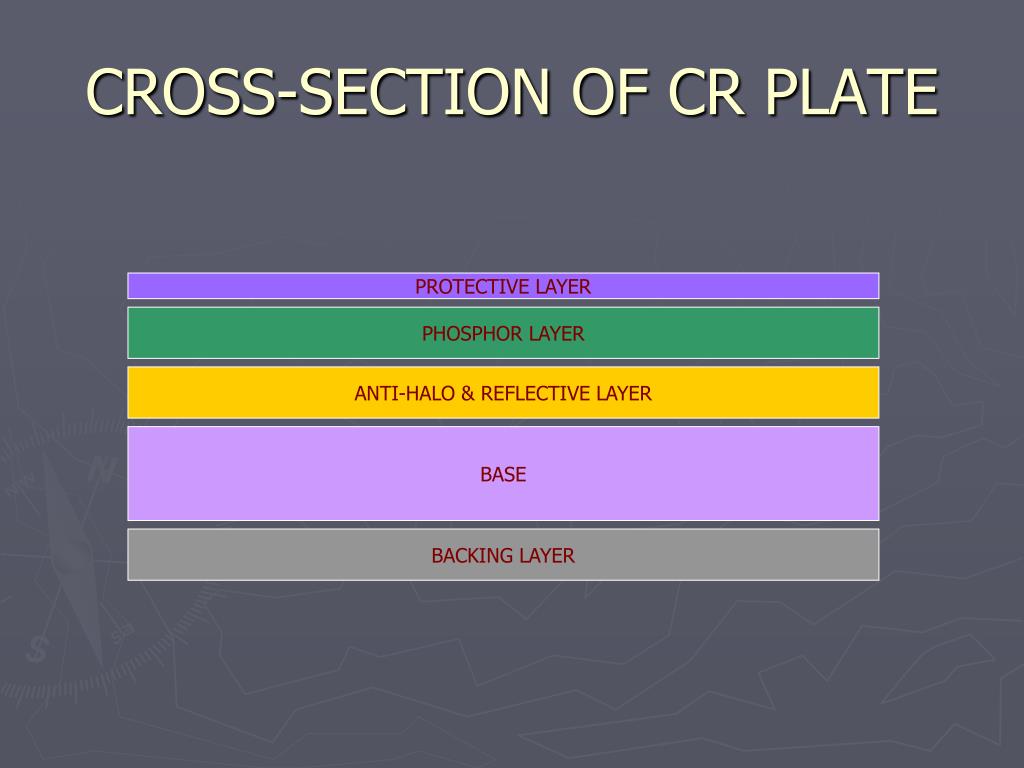

    17. CROSS-SECTION OF CR PLATE PROTECTIVE LAYER PHOSPHOR LAYER ANTI-HALO & REFLECTIVE LAYER BASE BACKING LAYER

    18. BASE • PET- POLYETHYLENE TERAPHTALATE

    19. PHOSPHOR LAYER • Ba FX: Eu +2

    20. PROTECTIVE LAYER • FLUORINATED POLYMER MATERIAL PROTECTS PHOSPHOR LAYER

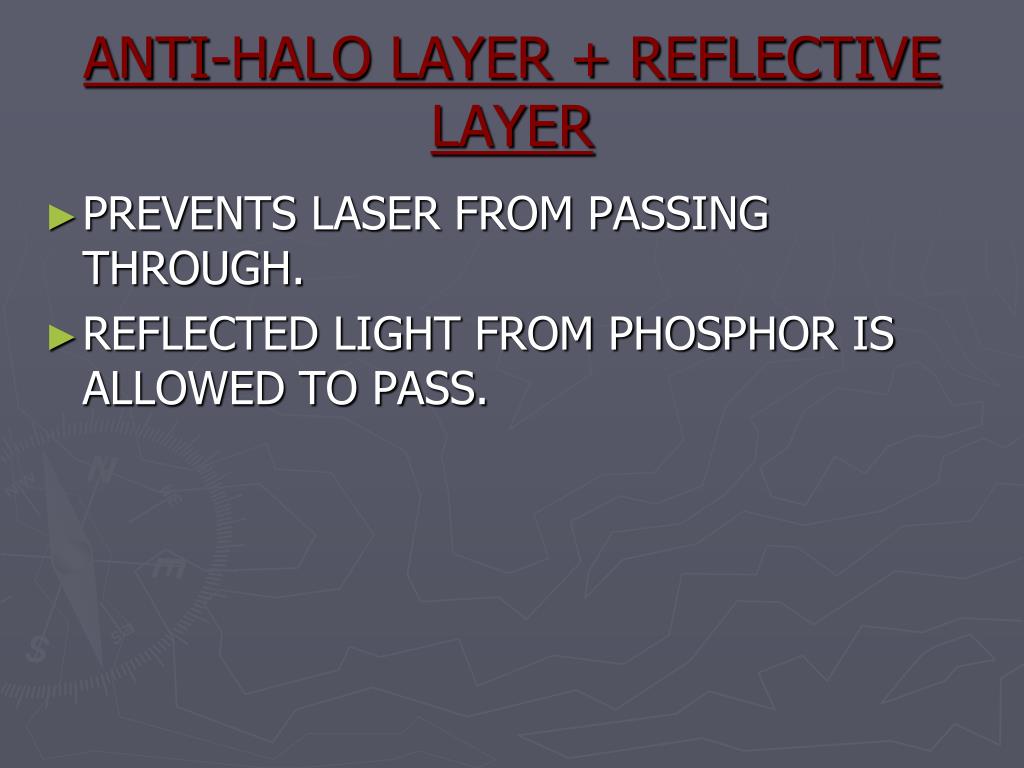

    21. ANTI-HALO LAYER + REFLECTIVE LAYER • PREVENTS LASER FROM PASSING THROUGH. • REFLECTED LIGHT FROM PHOSPHOR IS ALLOWED TO PASS.

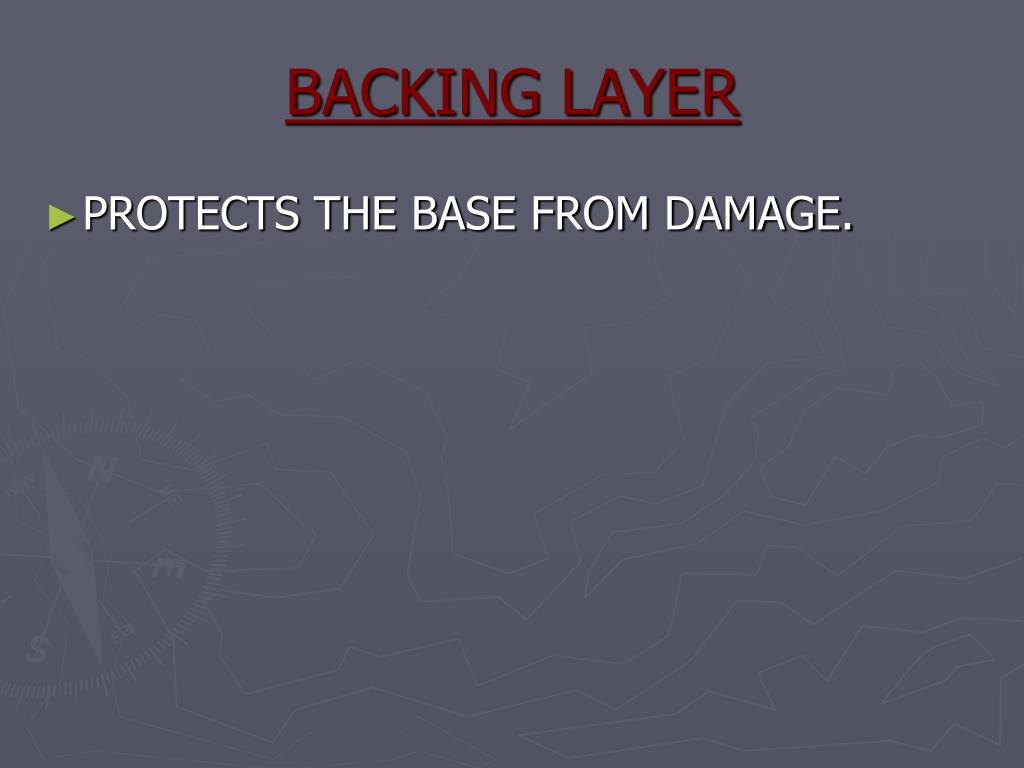

    22. BACKING LAYER • PROTECTS THE BASE FROM DAMAGE.

    23. LEAD COATING SCATTER

    24. The simplest explanation for luminescence is that impurities in the crystal lattice are responsible for luminescence. As the concentration of impurity ions increase the greater the intensity of the luminescence. CR screens use barium fluorohalides doped with europium (europium is the impurity in the crystal).

    25. When phosphors are stimulated with x-ray photon energy electron pair holes are created. In effect, europium is raised to an excited state and upon luminescence it is returned to its ground Eu2+ state. This mechanism holds for both spontaneous luminescence and photostimulated luminescence

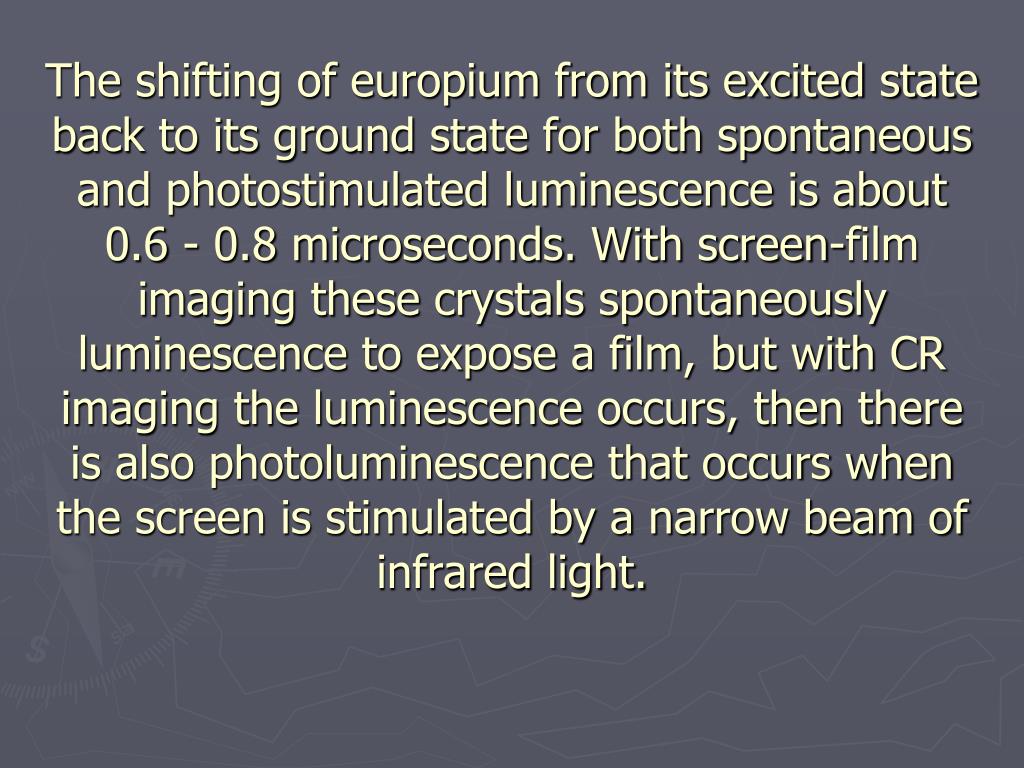

    26. The shifting of europium from its excited state back to its ground state for both spontaneous and photostimulated luminescence is about 0.6 - 0.8 microseconds. With screen-film imaging these crystals spontaneously luminescence to expose a film, but with CR imaging the luminescence occurs, then there is also photoluminescence that occurs when the screen is stimulated by a narrow beam of infrared light.

    27. The holes or vacancies in the lattice are portions of the lattice normally occupied by halogens (fluoride, bromide, or iodine). These vacancies will trap free electrons when irradiated and are called Farbzentren centers or F-centers.

    28. When the photostimulable plate is exposed to high frequency light, usually from a helium laser, the electrons in these F-centers are liberated and cause luminescence at readout.

    29. THE LATENT IMAGE WILL REMAIN STORED FOR 24 HOURS.IT WILL FADE THROUGH PHOSPHORESCENCE

    30. 25% OF STORED ENERGY WITHIN 8 HOURS FADING

    31. CR AFTER EXPOSURE IS INSERTED INTO CR SCANNER

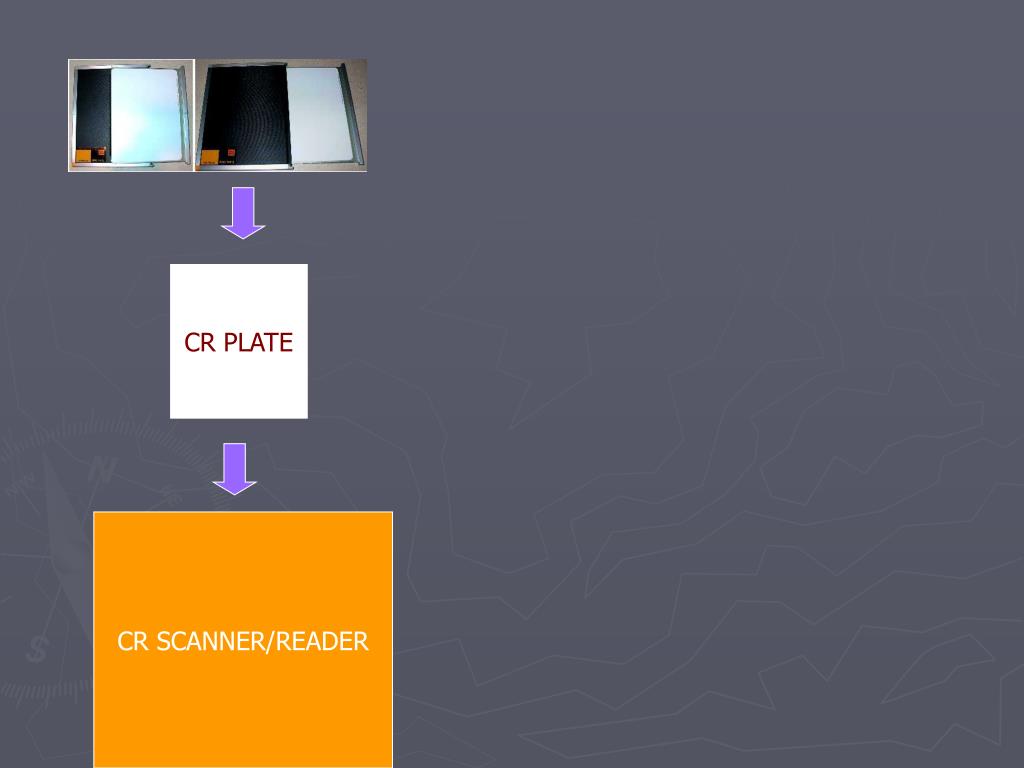

    32. CR PLATE CR SCANNER/READER

    33. THE SCANNER SCANS THE IMAGE PLATE WITH LASER LIGHT AND READS THE LATENT IMAGE FROM THE PHOSPHORREADOUT

    34. LASER LIGHTHELIUM-NEON (633 nm) LASER BEAM SWEEPS THE PLATE IN RASTER FASHION

    35. RASTER

    36. LASER PM TUBE LIGHT GATE AMPLIFIER ADC

    37. SWEEPING OF THE LASER ACROSS THE PLATE • FAST SCAN DIRECTION • SCAN DIRECTION • LASER SCAN DIRECTION

    38. PLATE MOVEMENT IN THE SCANNER • SLOW SCAN DIRECTION • SUB-SCAN DIRECTION • PLATE SCAN DIRECTION

    39. THE SPEED OF THE SCANNING LASER BEAM IS ADJUSTED TO THE LUMINESCENT SIGNAL

    40. LASER 633 nm PHOTOSTIMULABLE LUMINESCENCE 390-400 nm PLATE & F-CENTERS

    41. LASER LASER SPOT SIZE - 100 MICROMETERSPIXEL SIZE - 100 MICROMETERS

    42. P.M. TUBE DETECTION SENSITIVITY MATCHED TO BLUE-PURPLE PSL (390-400 nm)

    43. AFTER SCANNING THE CR PLATE NEED TO BE CLEARED FROM RESIDUAL SIGNALPLATE EXPOSED TO HIGH INTENSITY SODIUM VAPOR OR FLUORESCENT LIGHT

    44. Typical image plate can be reused thousands of times
