hydraulic live swivels

Hydraulic Live Swivels

Inline & 90° Heavy Duty Ball Bearing, Rebuildable Design

Switch Your Swivel!®

the power of fluid power
The Power of Fluid Power
  • Fluid power is energy transmitted and controlled by pressurized fluid (liquid or gas).
    • The term fluid power applies to both hydraulics and pneumatics.
      • Hydraulics uses pressurized liquid.
      • Pneumatics uses compressed air or gases.
      • Fluid power can be combined with other technologies through the use of sensors, transducers and microprocessors.

© Super Swivels - Hydraulic Live Swivels

fluid power applications
Fluid power applications

Some Uses of Fluid Power Include:

  • Mobile:Used to transport, excavating and lifting of materials and to control or power mobile equipment. Industries include construction, agriculture, marine and the military.
    • Applications include:

backhoes, graders, tractors, brakes, suspensions, spreaders, highway maintenance

  • Industrial:Used to provide power transmission and motion control for machines. End use industries range from plastics working to paper production.
    • Applications include :

assembly equipment., automated manipulators, controllers, material handling, metalworking equipment

  • Aerospace:Used for commercial and military aircraft, spacecraft and related support equipment.
    • Applications include:

brakes, flight controls, landing gear, motor controls, cargo loading equipment.

© Super Swivels - Hydraulic Live Swivels

switch your swivel for better hose flow
Switch Your Swivel For Better Hose Flow

Pivoting 90° Swivel

© Super Swivels - Hydraulic Live Swivels

Super Swivels provide many advantages including:

Simplified Connections:

  • Super Swivels can connect directly to hose lines which would do away with adapters.
  • Super Swivels reduce the complexityof hose lines for 90° connections.
  • Less hose is required with Super Swivels live swivels reducing space needs.
switch your swivel for better hose flow5
Switch Your Swivel For Better Hose Flow

Pivoting 90°

Dual-Pane Swivel

© Super Swivels - Hydraulic Live Swivels

Super Swivels provide many advantages including:

Reduced Hose Twisting:

  • Super Swivels live swivel action reduces risk of hose twisting and kinking even in 90° angel connections.

Less System Shock:

  • The increased hose movement allowed by Super Swivels superior design reduces system rigidity and helps absorb some system impulses.
switch your swivel for better hose flow6
Switch Your Swivel For Better Hose Flow

No Hose Kinking

No Hose Twisting

© Super Swivels - Hydraulic Live Swivels

Super Swivels provide many advantages including:

Reduce Maintenance & Downtime:

  • Less hydraulic line congestion, hose kinking, shock damage and twisting means lower maintenance costs and less downtime.

Reduced Cost:

  • Simplified hose configuration, less hose and adapters when combined with reduced repairs and downtime reduce the overall cost of hydraulics.
about super swivels
About Super Swivels
  • Established in 1986
  • A leader in the design and manufacture of hydraulic live swivels
  • Heat treating for higher pressure ratings
  • Manufactures a superior quality live swivels at a competitive price
  • Maintains a large inventory
  • Swivels are available in several different materials and plating options

© Super Swivels - Hydraulic Live Swivels

features

Features

Thread Sizes From 1/8" to 21/2 "

Rated To 10,000 P.S.I. • Heat Treated

Superior Quality Alloy Steel

Chrome Or Stainless Steel Ball Bearings

Withstands Heavy Side Loads

Burnished (Micro Smooth) Barrel Bores

Multiple Seal Options

304 & 440 Stainless Steel (pipe thread only)

Full Flow — Low Pressure Drop

Rebuilding Kits Available

Switch Your Swivel!®

© Super Swivels - Hydraulic Live Swivels

swivel types

Swivel Types

Inline Swivels

Switch Your Swivel!®

© Super Swivels - Hydraulic Live Swivels

swivel types10

Swivel Types

90° Swivels

Switch Your Swivel!®

© Super Swivels - Hydraulic Live Swivels

swivel types11

Swivel Types

Dual Plane Swivels

Switch Your Swivel!®

© Super Swivels - Hydraulic Live Swivels

swivel types12

Swivel Types

BSPP Swivels

Switch Your Swivel!®

© Super Swivels - Hydraulic Live Swivels

swivel types13

Swivel Types

Stainless Steel Swivels

Switch Your Swivel!®

© Super Swivels - Hydraulic Live Swivels

swivel types14

Swivel Types

Car Wash Swivels

Switch Your Swivel!®

© Super Swivels - Hydraulic Live Swivels

cross sectional drawing
Cross Sectional Drawing

90° Swivel

Inline Swivel

© Super Swivels - Hydraulic Live Swivels

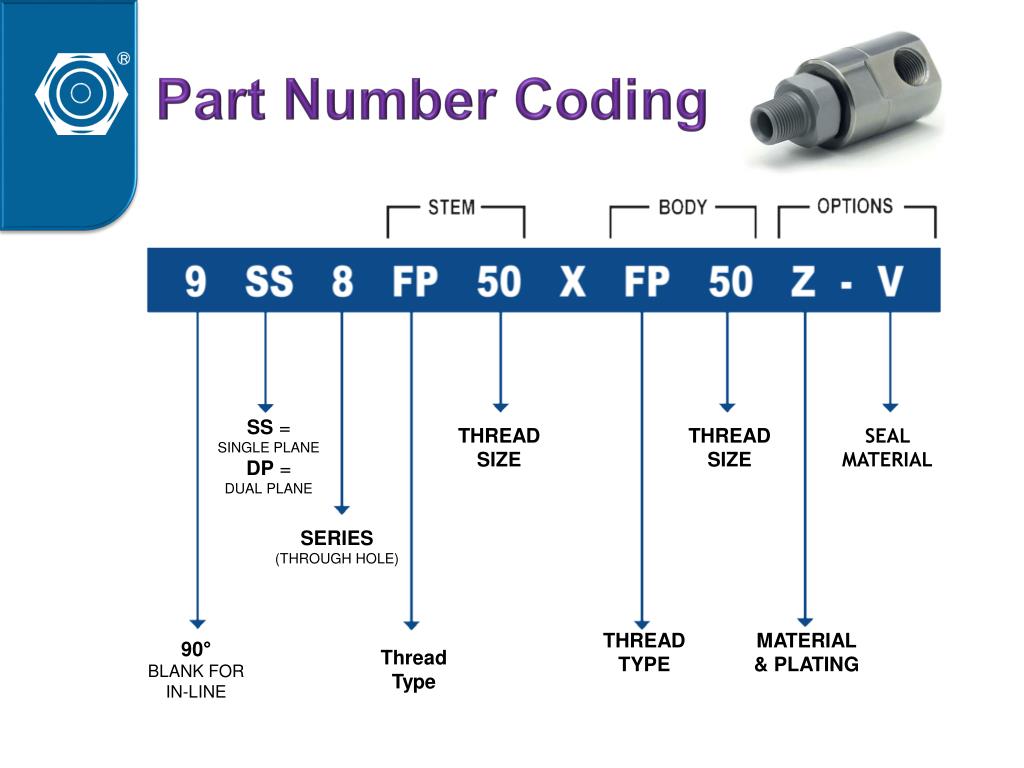

part number coding
Part Number Coding

SS =SINGLE PLANE

DP = DUAL PLANE

THREAD SIZE

THREAD SIZE

SEAL MATERIAL

SERIES

(THROUGH HOLE)

THREAD TYPE

MATERIAL & PLATING

90°

BLANK FOR

IN-LINE

Thread Type

© Super Swivels - Hydraulic Live Swivels

slide17

Base Material and Plating

Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel.Carbon Steel Zinc (Z) Platingis recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.Carbon Steel Nickel (NI) Platingis recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.304 Stainless Steel (304)is recommended for low pressure corrosive environments.440C Stainless Steel (SS)is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.

© Super Swivels - Hydraulic Live Swivels

seal compatibility
Seal Compatibility

Super Swivels Seal Options Include:Viton,®Aflas,® EPR, Buna, & Simriz®

Different Seals are Compatible with a Wide Range of Fluids Including:Automatic transmission fluid , acetone, air, asphalt, benzene, brake fluid (glycol, silicone & mineral), carbon tetrachloride, engine oil (sf, sfcd), ethylene glycol, FREON®, hydraulic fluids (petroleum), hydrochloric acid, methyl ethyl ketone, naphtha, oxygen (gaseous), power steering fluid, salt water, SKYDROL 500 B4®, soap solutions, sulfuric acid, toluene, trichlorethylene, urethane and water

Super Swivels® are not recommended for breathing air.

© Super Swivels - Hydraulic Live Swivels

hydraulic live swivels19

Hydraulic Live Swivels

Inline & 90° Heavy Duty Ball Bearing, Rebuildable Design

Switch Your Swivel!®

www.SuperSwivels.com
