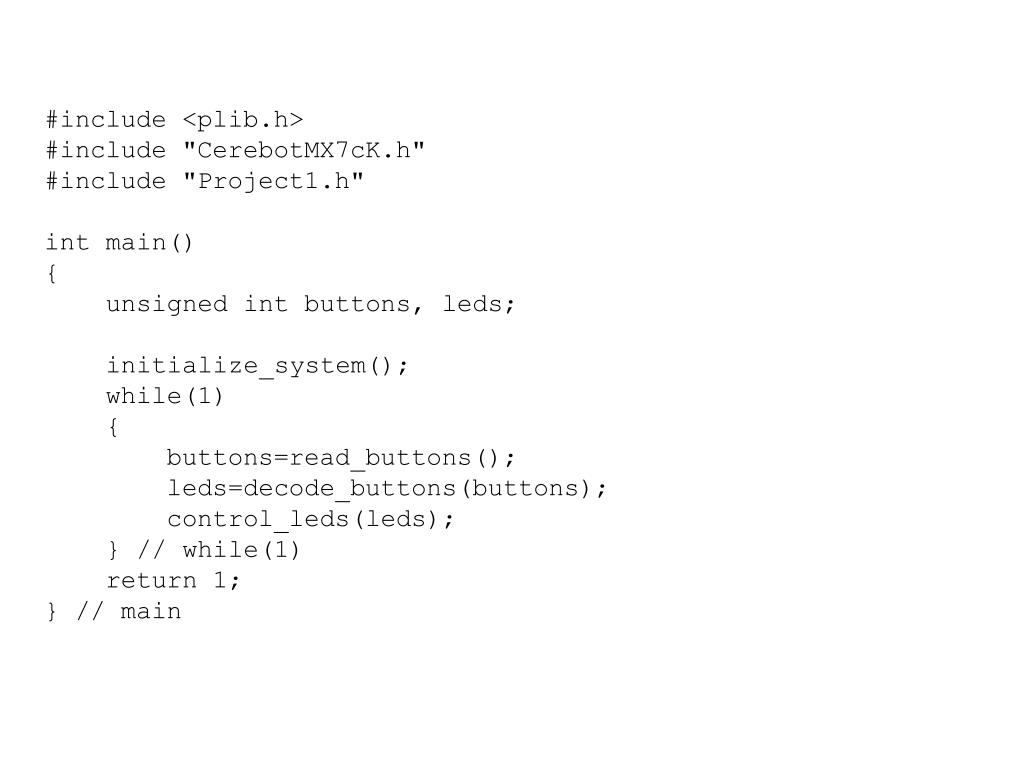

slide1

#include <plib.h>

#include "CerebotMX7cK.h"

#include "Project1.h"

int main()

{

unsigned int buttons, leds;

initialize_system();

while(1)

{

buttons=read_buttons();

leds=decode_buttons(buttons);

control_leds(leds);

} // while(1)

return 1;

} // main

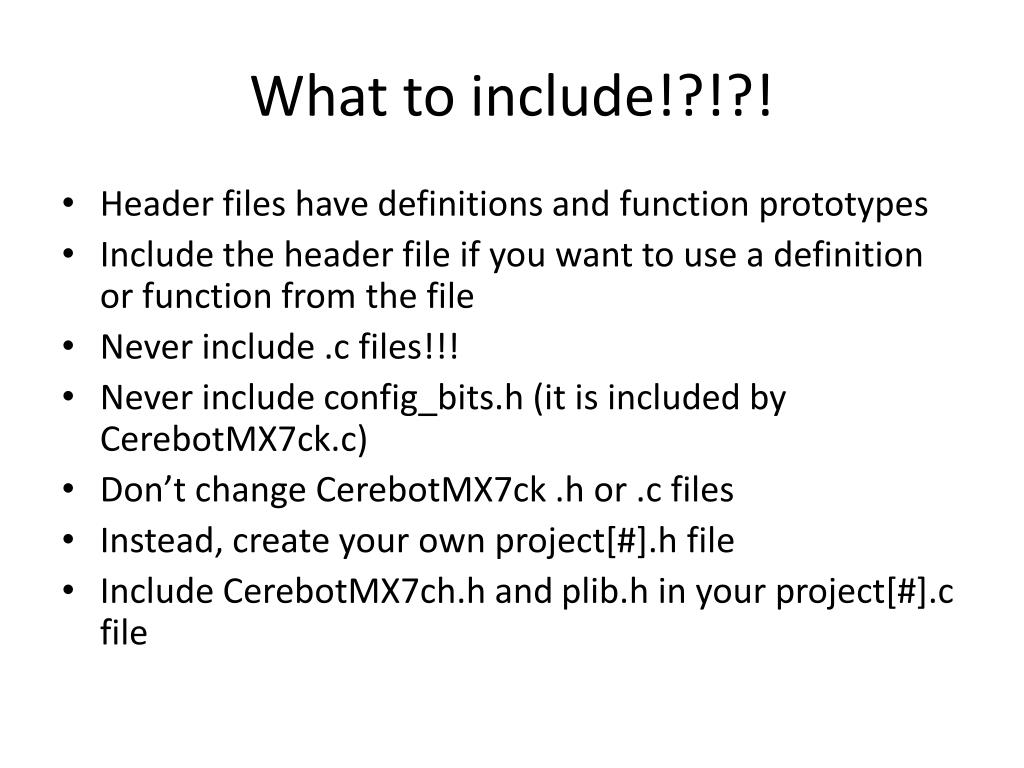

what to include
What to include!?!?!
  • Header files have definitions and function prototypes
  • Include the header file if you want to use a definition or function from the file
  • Never include .c files!!!
  • Never include config_bits.h (it is included by CerebotMX7ck.c)
  • Don’t change CerebotMX7ck .h or .c files
  • Instead, create your own project[#].h file
  • Include CerebotMX7ch.h and plib.h in your project[#].c file

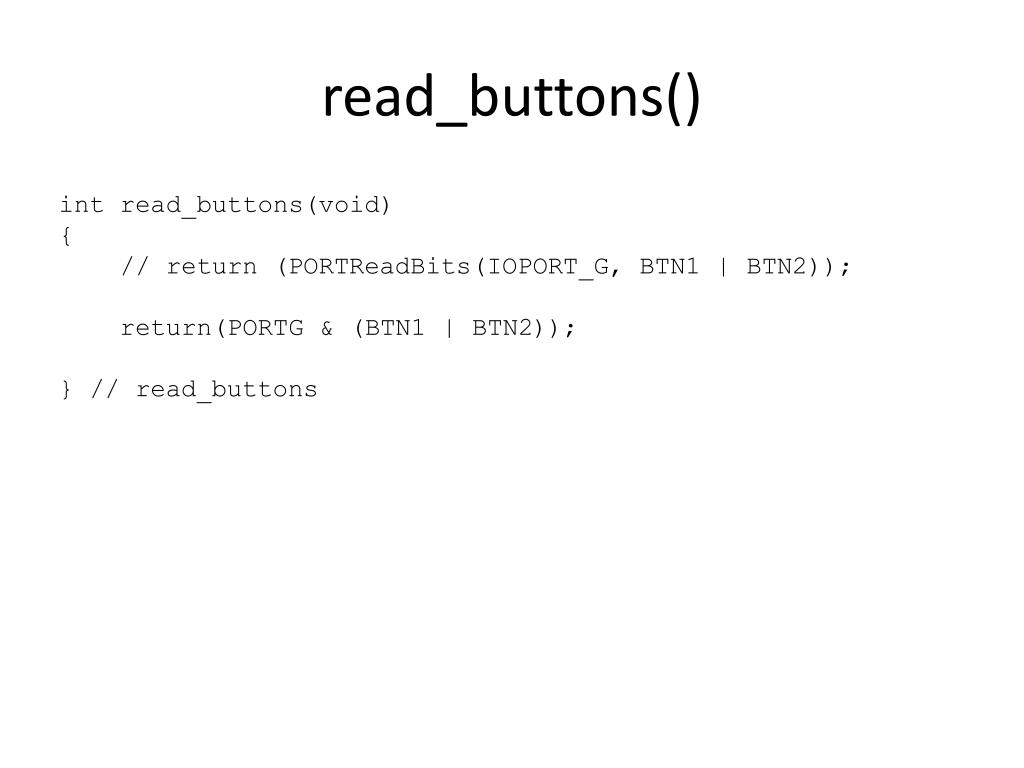

read buttons
read_buttons()

intread_buttons(void)

{

// return (PORTReadBits(IOPORT_G, BTN1 | BTN2));

return(PORTG & (BTN1 | BTN2));

} // read_buttons

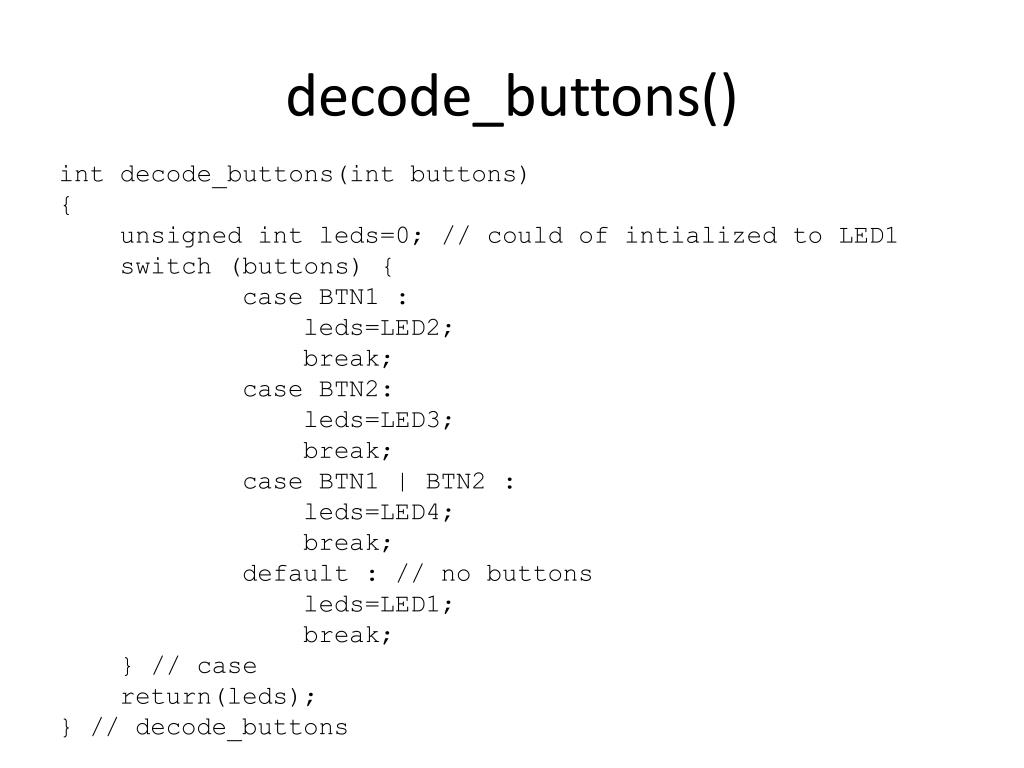

decode buttons
decode_buttons()

intdecode_buttons(int buttons)

{

unsigned intleds=0; // could of intializedto LED1

switch (buttons) {

case BTN1 :

leds=LED2;

break;

case BTN2:

leds=LED3;

break;

case BTN1 | BTN2 :

leds=LED4;

break;

default : // no buttons

leds=LED1;

break;

} // case

return(leds);

} // decode_buttons

control leds
control_leds()

void control_leds(intleds)

{

// PORTWrite(IOPORT_G, leds);

LATG=leds;

} // control_leds
