    1. Part 2Examples of Bridges and Girders(Completed and on-going projects) PBL Group Ltd. 8/11 Soi Viphavadi 44, Viphavadi-Rangsit Road, Lardyao, Jatujak, Bangkok 10900,Thailand. Presentation by Mr. Prapat Boonlualoah CEO, PBL Group Ltd., Bangkok

    2. Thimphuchu Bridge, Bhutan Thimphuchu Bridge, Bhutan for the Royal Government of Bhutan • Steel Arch structure with PT slab • Span = 78.60 m • Strand Type = 0.6” • Anchorage Type M1206 = 8 No. in beams • Anchorage Type SF 206 = 80 No. in slab • Total quantity = 11 Tons

    3. Thimphuchu Bridge, Bhutan Thimphuchu Bridge, Bhutan for the Royal Government of Bhutan • Client  Royal Government of Bhutan • Funded by  Royal Government of Bhutan • Tech. Support  JICA, Japan International Cooperation Agency • Designer  Slaich Bergerman Consultantcy • Supervision  Green Place & Acecoms, AIT Joint-Venture • Contractor  Gaseb, Bhutan & Simplex, India Joint-Venture • Project Value  52,000,000 NU (1,155,555.00 USD)

    4. Thimphuchu Bridge, Bhutan Tendon Layout

    5. Thimphuchu Bridge, Bhutan Sectional Details

    6. Thimphuchu Bridge, Bhutan Section at the Junction of Edge Beam & Cross Beam

    7. Thimphuchu Bridge, Bhutan Laid-out Tendons

    8. Semtokha-Rongchu Bhutan Semtokha-Rongchu Bridge, Bhutan for the Royal Government of Bhutan • 2 nos. Box Girders with 2 webs • Span = 45.00 m • Strand Type = 0.6” • Anchorage Type M2206 = 40 No. in web • Total quantity = 24 Tons

    9. Semtokha-Rongchu Bhutan Semtokha-Rongchu Bridge, Bhutan for the Royal Government of Bhutan • Client  Royal Government of Bhutan • Funded by  Royal Government of Bhutan • Tech. Support  JICA, Japan International Cooperation Agency • Designer  Green Place & Acecoms, AIT Joint-Venture Supervision  Green Place & Acecoms, AIT Joint-Venture • Contractor  Rinson, Bhutan & Gannon, India Joint-Venture • Project Value  27,000,000 NU (600,000.00 USD)

    10. Semtokha-Rongchu Bhutan

    11. Semtokha-Rongchu Bhutan

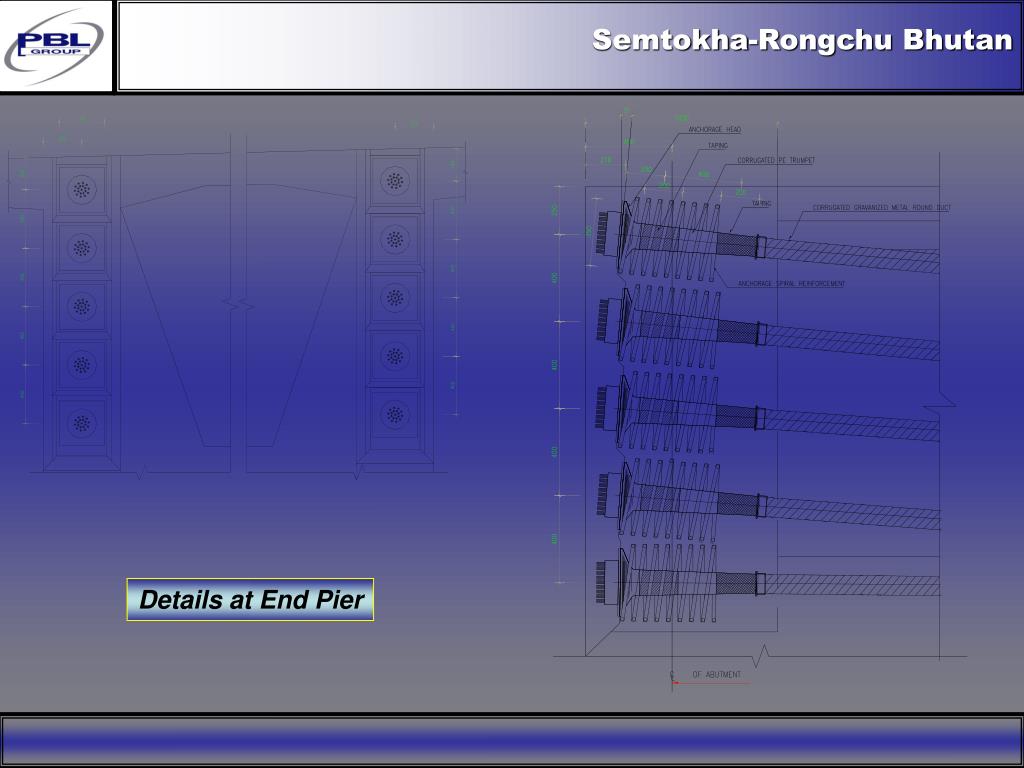

    12. Semtokha-Rongchu Bhutan Details at End Pier

    13. Semtokha-Rongchu Bhutan Cross Section at End Pier Cross Section at Mid-span

    14. Semtokha-Rongchu Bhutan Installation Work in Progress

    15. Semtokha-Rongchu Bhutan Installation Set-up

    16. Semtokha-Rongchu Bhutan Equipment Handling & Operation

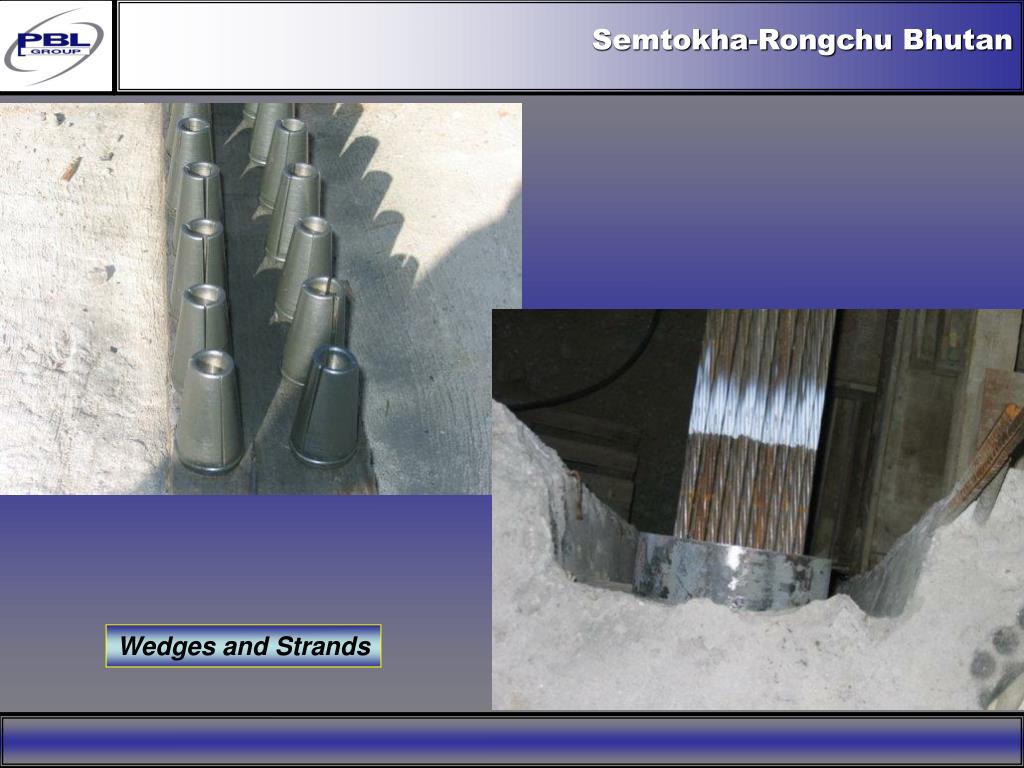

    17. Semtokha-Rongchu Bhutan Wedges and Strands

    18. Semtokha-Rongchu Bhutan De-shuttering

    19. Bang Pakong Bridge, Thailand • 295 Girders • Span = 25.00/35.00 m • Strand Type = 0.5” (12.7mm) • Anchorage Type M1205, M1905

    20. Bang Pakong Bridge, Thailand • Contractor  Vijitpan Construction Co,Ltd. • Owner  Highway Department of Thailand • Supervision Highway Department of Thailand

    21. Bang Pakong Bridge, Thailand Horizontal Plan Vertical Plan I-Girder of Lengths 25 m and 35 m

    22. Bang Pakong Bridge, Thailand Reinforcement Details I-Girder of Lengths 25 m and 35 m

    23. Bang Pakong Bridge, Thailand Sections A-A and B-B I-Girder of Lengths 25 m and 35 m

    24. Bang Pakong Bridge, Thailand Sections C-C and D-D I-Girder of Lengths 25 m and 35 m

    25. Bang Pakong Bridge, Thailand Girder Sections I-Girder of Lengths 25 m and 35 m

    26. Rama VIII Bridge, Bangkok • Owner  Bangkok Metropolitan Administration • Funded by  Royal Thai Government • Designer  Buckland and Taylor (Canada), Asdeco (Thailand) • Consultant  Mott McDonald (UK) • Contractor  KPV, China State, BBR JV

    27. Rama VIII Bridge, Bangkok Cross Beam with Tendon Type M1906

    28. Rama VIII Bridge, Bangkok Anchor and Backspan PT Details

    29. Rama VIII Bridge, Bangkok Anchor and Backspan PT Section Details

    30. Rama VIII Bridge, Bangkok Anchor and Backspan Reinforcement Details

    31. Rama VIII Bridge, Bangkok Anchor and Backspan Reinforcement Details

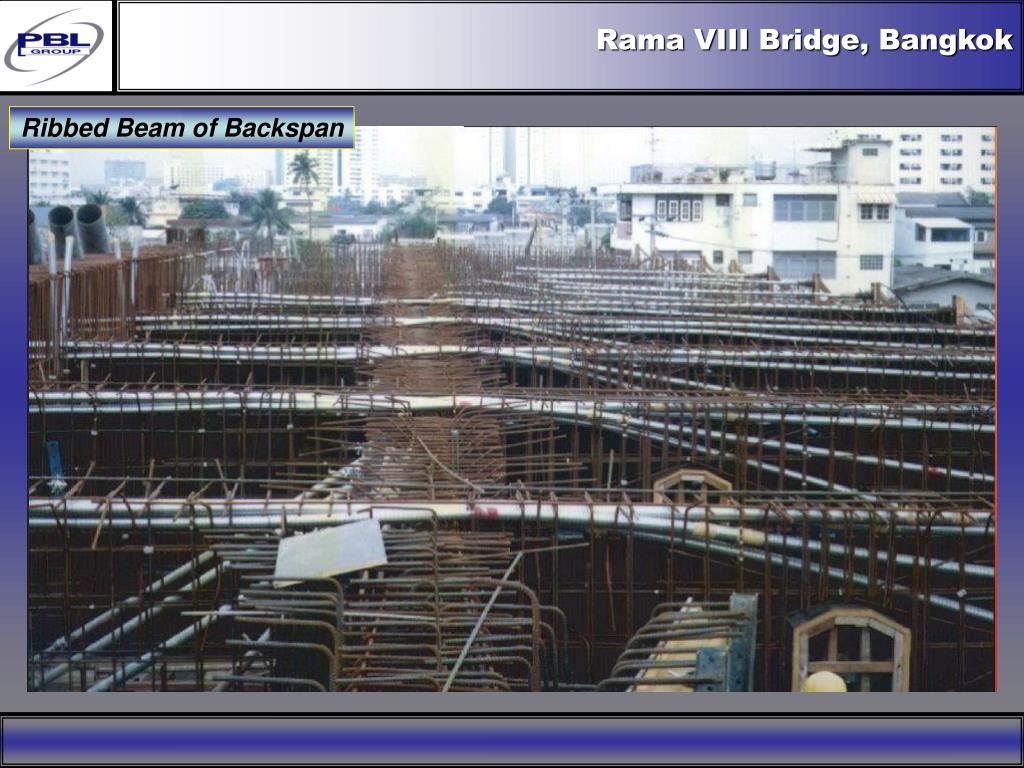

    32. Rama VIII Bridge, Bangkok Ribbed Beam of Backspan

    33. Rama VIII Bridge, Bangkok Post-tension Tie Beam at Main Pylon Pile Cap

    34. Bridge Over Srattani-Poonpin River, Thailand Standard Highway Girder

    35. Namdong Bridge, LAOS PDR I-Girder of 25 m length with PT Type M705

    36. Thai Oil Jetty, Auo Udom, Cholburi, Thailand Precast Double-T Girder of 24.00 m span

    37. Vehicular Bridge over Klong Prapa, Thailand Standard Hollow-Box Beam

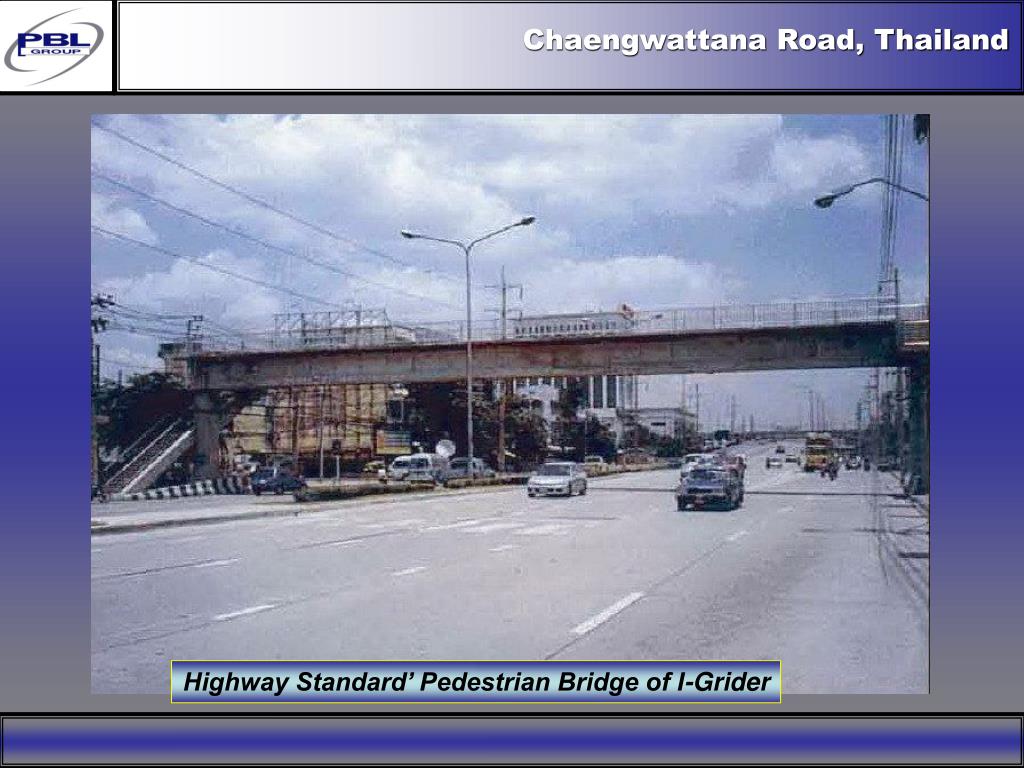

    38. Chaengwattana Road, Thailand Highway Standard’ Pedestrian Bridge of I-Grider

    39. Ground Anchors Production at Factory

    40. Ground Anchors Coil Awaiting Dispatch to Site

    41. General Stressing Equipment Single Strand Stressing Jack Capacity: 200 – 300 kN

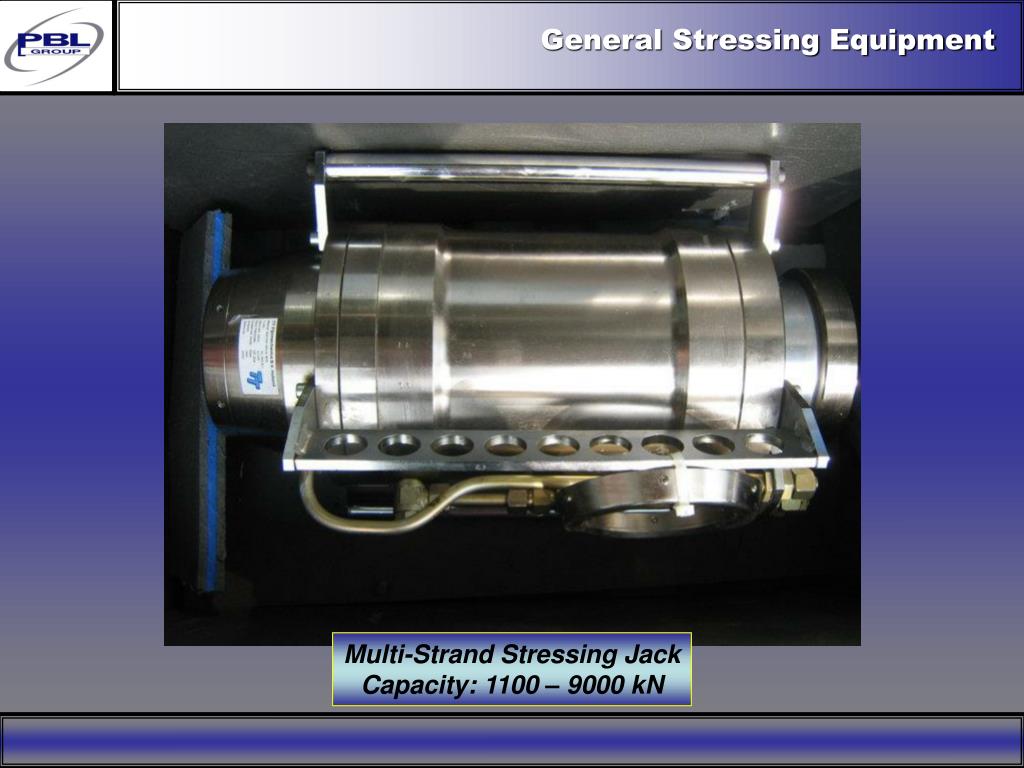

    42. General Stressing Equipment Multi-Strand Stressing Jack Capacity: 1100 – 9000 kN

    43. General Stressing Equipment Technical Data of TT 450 Stressing Jack

    44. General Stressing Equipment Hydraulic Pump

    45. Anchorage and Tendon Data
