  1. Real Application Clusters Trevor Crljenko Emilija Knezevic

  2. Objectives • Background Information • A Working Database • Database Creation and Maintenance • Summary • Q & A

  3. Real Application Clusters • Emilija and Trevor working on the Linux implementation of the RAC

  4. Architectural Characteristics • Each instance has its own: • SGA and background processes • Redo Logs • Undo Tablespaces • Data files and control files are shared • Cache Fusion guarantees cache coherency among cluster nodes

  5. Basic RAC Layout Node 1 Node 2 Instance A Instance B Oracle Cluster Manager Comm Layer Cluster Interconnect Comm Layer Oracle Cluster Manager Shared Disk Driver Shared Disk Driver Shared Disk Subsystem

  6. Oracle Cluster Manager • Operating System dependant • Provides a cluster-wide view of node membership • discovers new nodes • tracks the state of existing nodes • coordinates session tracking when a node fails

  7. Cache Fusion • Enables sharing of database caches among multiple instances to avoid I/O calls • Synchronizes access to the database • Implemented through GCS (Global Cache Services)

  8. The Cluster Interconnect • Supports the cluster and Cache Fusion • Can use: • TCP/IP over Ethernet • User Datagram Protocol (UDP) over Ethernet • Virtual Interface Architecture over a Gigabit network

  9. Limitations? • The use of Transparent Application Failover (also called TAF) has a few limitations: • Uncommitted transactions must be rolled back • Global temporary tables are lost • PL/SQL package states are lost • The effect of ALTER SESSION is lost

  10. A working RAC on the Linux OS A demonstration of a Real Application Cluster Database

  11. The Environment • Node1: TPOL instance: RAC1 • Node2: SCOTTY instance: RAC2 • Database name: RAC1 • Clients: • Referee - runs a heavy query • Scott • Both clients on machine TORRES • The query takes approx. 4 min. to execute by one uninterrupted instance

  12. Scripts Used – gvinstance SELECT inst_id , instance_number inst# , instance_name name , host_name host , startup_time startup , status , parallel , thread# , logins , database_status dbstat , instance_role , active_state state FROM gv$instance

  13. Scripts Used – gvsession SELECT inst_id , sid , username , user# , server , machine , program , logon_time FROM gv$session WHERE username IS NOT NULL

  14. Scripts Used – gvtaf SELECT inst_id , sid , username , machine , failover_type , failover_method , failed_over FROM gv$session WHERE username IS NOT NULL AND username != 'SYS'

  15. Scripts Used – gvbeen_here SELECT bh.inst_id , o.owner , o.object_name , o.object_type , count(distinct bh.block#) "Num. Buffers" FROM dba_objects o , gv$bh bh WHERE o.object_id = bh.objd AND owner != 'SYS' AND owner != 'SYSTEM' GROUP BY o.owner, o.object_name, o.object_type, bh.inst_id ORDER BY 2, 4, 5 DESC

  16. The Demo • Our RAC

  17. TEST CASE Stage1 Setup Stage 3: Load Balance Start Up Two Instances Demonstrate The Load Balancing Connect Client Connect Another Client Start The Query Start Up The Aborted Inst. Shut Down A Instance Stage 2:Availability

  18. Server SCOTTY Server TPOL Real Application Cluster TESTING SETUP User REFEREE

  19. Step 1: Start Up Both INSTANCES - TPOL & SCOTTY Step 2: Connect User REFEREE to INSTANCE SCOTTY SYS@SCOTTY> @ $RAC_SCRIPTS/gvinstance.sql INST INST INST HOST STARTUP STATUS INSTANCE_ROLE STATE ID # NAME NAME ------- ------ --------- --------- --------------------------- --------- ------------------------- --------- 2 2 RAC2 scotty 2004-01-14:10:01:17 OPEN PRIMARY_INSTANCE NORMAL 1 1 RAC1 tpol 2004-01-14:11:21:57 OPEN PRIMARY_INSTANCE NORMAL SYS@TPOL> @ $RAC_SCRIPTS/gvsessiont.sql SYSDATE ------------------- 2004-01-14:12:24:21 INST SYS HOST USER USER# SERVER PROGRAM ID ID NAME NAME ------- ------ --------- --------- ------------ ------------------- ------------------ 1 22 tpol SYS 0 DEDICATED sqlplus@tpol (TNS V1-V3) 1 18 tpol SYS 0 DEDICATED oracle@tpol (P000) • 18 scotty SYS 0 DEDICATED sqlplus@scotty (TNS V1-V3) 2 23 scotty SYS 0 DEDICATED oracle@scotty (P000) 2 23 scottyREFEREE 27 DEDICATED oracle@torres (TNS V1-V3)

  20. Step 3: Start the Query by User REFEREE REFEREE@TORRES> select * 2 from tab 3 / TNAME TABTYPE CLUSTERID ------------------------------------------------------------------------------------------ --------------- CERTIFICATIONS TABLE PERSONS TABLE PERSON_CERTIFICATIONS TABLE REF_ASSIGNMENT_REQUEST_QUEUE TABLE ROLE_APPLICANTS TABLE RUN_TIMES TABLE STATS_CERTS_1 TABLE STATS_CERTS_2 TABLE 8 rows selected REFEREE@TORRES> @ $RAC_SCRIPTS/sysdate SYSDATE ------------------- 2004-01-14:12:37:44

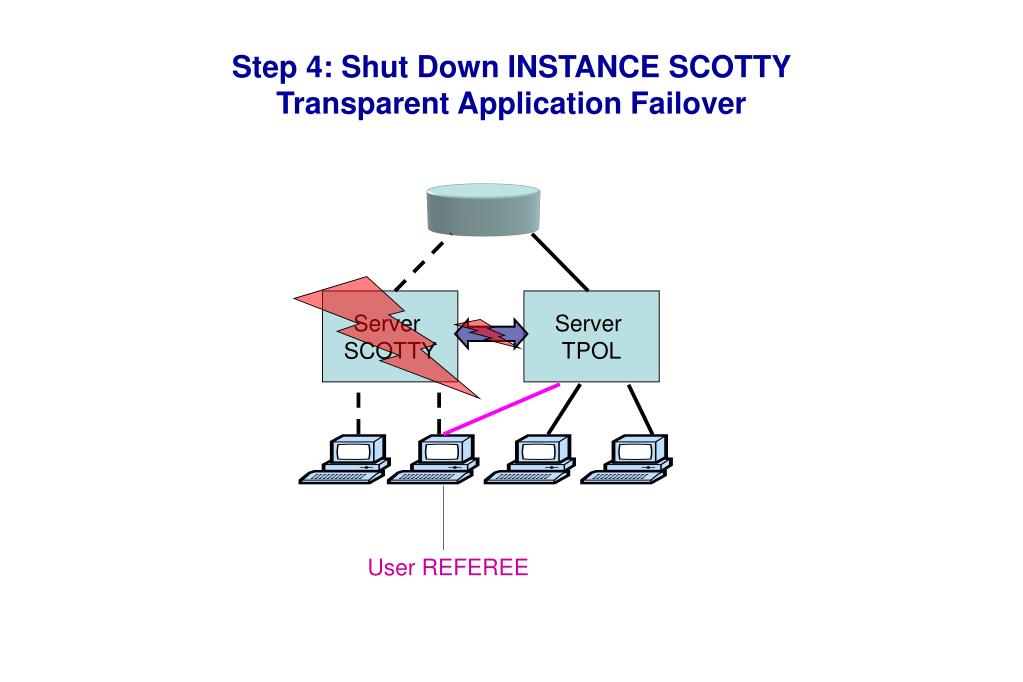

  21. Server SCOTTY Server TPOL Step 4: Shut Down INSTANCE SCOTTY Transparent Application Failover User REFEREE

  22. AFTER Shut Down INSTANCE SCOTTY BEFORE Shut Down INSTANCE SCOTTY SYS@SCOTTY> @ $RAC_SCRIPTS/gvinstance.sql INST INST INST HOST STARTUP STATUS INSTANCE_ROLE STATE ID # NAME NAME ------- ------ --------- --------- --------------------------- --------- ------------------------- --------- 1 1 RAC1 tpol 2004-01-14:11:21:57 OPEN PRIMARY_INSTANCE NORMAL SYS@SCOTTY> @ $RAC_SCRIPTS/inst_no INSTANCE_NUMBER --------------- 2 SYS@SCOTTY> @ $RAC_SCRIPTS/sysdate SYSDATE ------------------- 2004-01-14:12:20:07 2 2 RAC2 scotty 2004-01-14:10:01:17 OPEN PRIMARY_INSTANCE NORMAL

  23. Server SCOTTY Server TPOL Transparent Application Failover SYS@SCOTTY> @ $RAC_SCRIPTS/gvinstance.sql INST INST INST HOST STARTUP STATUS INSTANCE_ROLE STATE ID # NAME NAME ------- ------ --------- --------- --------------------------- --------- ------------------------- --------- 1 1 RAC1 tpol 2004-01-14:11:21:57 OPEN PRIMARY_INSTANCE NORMAL SYS@TPOL> @ $RAC_SCRIPTS/gvsessiont.sql SYSDATE ------------------- 2004-01-14:12:24:21 INST SYS HOST USER USER# SERVER PROGRAM ID ID NAME NAME ------- ------ --------- --------- ------------ ------------------- ------------------ 1 18 tpolREFEREE 27 DEDICATED sqlplus@torres (TNS V1-V3) 1 22 tpol SYS 0 DEDICATED sqlplus@tpol (TNS V1-V3) Referee

  24. STEP 6: Start Up the Aborted INSTANCE SCOTTY SYS@SCOTTY> @ $RAC_SCRIPTS/gvinstance.sql INST INST INST HOST STARTUP STATUS INSTANCE_ROLE STATE ID # NAME NAME ------- ------ --------- --------- --------------------------- --------- ------------------------- --------- 2 2 RAC2 scotty 2004-01-14:12:30:41 OPEN PRIMARY_INSTANCE NORMAL SYS@SCOTTY> @ $RAC_SCRIPTS/gvsessiont.sql INST SYS HOST USER USER# SERVER PROGRAM ID ID NAME NAME ------- ------ ---------- --------- --------- -------------- ------------------------------------- 2 18 scotty SYS 0 DEDICATED sqlplus@scotty (TNS V1-V3)

  25. Server SCOTTY Server TPOL User SCOTT User REFEREE Step 7: Connect User SCOTTLoad Balancing

  26. Step 7: Connect User SCOTT Load Balancing SYS@TPOL> @ $RAC_SCRIPTS/gvsessiont.sql SYSDATE ------------------- 2004-01-14:12:24:21 INST SYS HOST USER USER# SERVER PROGRAM ID ID NAME NAME ------- ------ --------- --------- ------------ ------------------- ------------------ • 18 tpol REFEREE 27 DEDICATED sqlplus@torres (TNS V1-V3) 1 22 tpol SYS 0 DEDICATEDsqlplus@tpol (TNS V1-V3) 1 25 tpol SYS 0 DEDICATED oracle@tpol (P000) • 18 scotty SYS 0 DEDICATED sqlplus@scotty (TNS V1-V3) 2 19 scotty SYS 0 DEDICATEDoracle@scotty (P000) 2 24 scotty SCOTT 26 DEDICATEDsqlplus@torres (TNS V1-V3)

  27. RAC Database Creation • Verify that the shared disks have been configured correctly • Configure the Oracle network services • Start the listeners and test the configuration • Create the database • Add and set up additional instances

  28. Database Creation and Maintenance An example of a Real Application Cluster installed on 3 PC’s using SuSE Linux 8.1

  29. RAC Specific Parameters • In the INIT.ORA file *.db_name=RAC1 *.cluster_database=true *.cluster_database_instances=2 rac1.instance_name='RAC1' rac1.instance_number=1 rac1.thread=1 rac1.undo_tablespace='UNDOTBS1' rac2.instance_name='RAC2' rac2.instance_number=2 rac2.thread=2 rac2.undo_tablespace='UNDOTBS2' rac1.local_listener='(ADDRESS=(PROTOCOL = TCP)(HOST = tpol)(PORT = 1521))' rac1.remote_listener='(ADDRESS=(PROTOCOL = TCP)(HOST = scotty)(PORT = 1521))' rac2.local_listener='(ADDRESS=(PROTOCOL = TCP)(HOST = scotty)(PORT = 1521))' rac2.remote_listener='(ADDRESS=(PROTOCOL = TCP)(HOST = tpol)(PORT = 1521))’

  30. RAC Specific Issues • Preconditions for running the CREATE DATABASE script: • GSD should be running on both nodes • Listeners should be running on both nodes • tnsping was used to verify the network configuration • An UNDO tablespace should be created for each node in the cluster • Cluster redo logs: • Each instance has its own thread of redo log files • There are an equal number of redo log groups for each node • All log files must be placed on the shared storage • Run the catalog scripts for the RAC database: @ $ORACLE_HOME/rdbms/admin/catclust.sql

  31. Add Another Instance • The database should be started using the PFILE • Create a password file, and a PFILE for the next instance • Start the instance RAC2 from the PFILE • Create an SPFILE from the PFILE of RAC1 • In both PFILEs, remove everything but the pointer to the SPFILE • Each instance has its own password file, but they MUST be synchronized across all instances

  32. Configuring Transparent Application Failover (TAF) • TAF instructs Oracle Net to transfer a failed connection to a different listener • A user can continue to work using the new connection • TAF configuration: • tnsnames.ora - on both server and client side • set up the 'Local Listener' and 'Remote Listener' in the init file • Configuration that works: (CONNECT_DATA = (SERVICE_NAME=RAC1.eis.ca) (FAILOVER_MODE = (TYPE = SELECT) (METHOD = BASIC) (RETRIES = 64) (DELAY = 4))))

  33. REDO Logs and Threads SYS@TPOL> @ $RAC_SCRIPTS/gvlog.sql INST_ID GROUP# THREAD# SEQ# BYTES MEMBERS ARC STATUS FIRST_CHAN FIRST_TIME ------- ------ ------- ------ ---------- ---------- --- -------- ---------- --------------- 2 1 1 61 20971520 2 YES INACTIVE 571934296 04-01-14:12:22 2 2 1 62 20971520 2 NO CURRENT 571975370 04-01-14:12:35 2 3 1 60 20971520 2 YES INACTIVE 571810001 04-01-13:06:33 2 4 2 49 20971520 2 YES INACTIVE 571934293 04-01-14:12:22 2 5 2 50 20971520 2 NO CURRENT 571954935 04-01-14:12:31 2 6 2 48 20971520 2 YES INACTIVE 571905460 04-01-14:10:01 1 1 1 61 20971520 2 YES INACTIVE 571934296 04-01-14:12:22 1 2 1 62 20971520 2 NO CURRENT 571975370 04-01-14:12:35 1 3 1 60 20971520 2 YES INACTIVE 571810001 04-01-13:06:33 1 4 2 49 20971520 2 YES INACTIVE 571934293 04-01-14:12:22 1 5 2 50 20971520 2 NO CURRENT 571954935 04-01-14:12:31 1 6 2 48 20971520 2 YES INACTIVE 571905460 04-01-14:10:01 12 rows selected.

  34. Switching from NOARCHIVELOG to ARCHIVELOG mode • There should be only one instance running, and the instance should be mounted in EXCLUSIVE mode • The only way to mount the instance in EXCLUSIVE mode is to set the cluster_database parameter to FALSE)

  35. Archivelog List SYS@TPOL> archive log list Database log mode Archive Mode Automatic archival Enabled Archive destination /var/opt/oracle/RAC1/archive Oldest online log sequence 58 Next log sequence to archive 60 Current log sequence 60 SYS@SCOTTY> archive log list Database log mode Archive Mode Automatic archival Enabled Archive destination /var/opt/oracle/RAC1/archive Oldest online log sequence 45 Next log sequence to archive 47 Current log sequence 47

  36. Backups with RMAN connected to target database: RAC1 (DBID=410737804) Starting backup at 2004-01-13:14:25:44 channel t1: starting full datafile backupset channel t1: specifying datafile(s) in backupset including current controlfile in backupset input datafile fno=00001 name=/var/opt/oracle/RAC1/system/system01.dbf input datafile fno=00002 name=/var/opt/oracle/RAC1/undo/undotbs1.dbf input datafile fno=00005 name=/var/opt/oracle/RAC1/undo/undotbs2.dbf input datafile fno=00004 name=/var/opt/oracle/RAC1/data/users01.dbf channel t1: starting piece 1 at 2004-01-13:14:26:20 channel t1: finished piece 1 at 2004-01-13:15:01:48 piece handle=/var/opt/oracle/RAC1/backup/rman/RAC1_28_1_515341546.bak comment=NONE channel t1: backup set complete, elapsed time: 00:36:02 channel t1: starting full datafile backupset channel t1: specifying datafile(s) in backupset input datafile fno=00003 name=/var/opt/oracle/RAC1/index/index01.dbf channel t1: starting piece 1 at 2004-01-13:15:01:49 channel t1: finished piece 1 at 2004-01-13:15:02:04 piece handle=/var/opt/oracle/RAC1/backup/rman/RAC1_29_1_515343709.bak comment=NONE channel t1: backup set complete, elapsed time: 00:00:15 Finished backup at 2004-01-13:15:02:04

  37. Summary • Architecture components • How does it work in practice? • Creating and Maintaining a Real Application Cluster Database

  38. Additional Sources of Information • Oracle Online Documentation: Real Application Clusters Concepts • Oracle Metalink document # 184821.1: Step-By-Step Installation of 9.2.0.4 RAC on Linux • Linux SuSE 8.1 documentation (http://sdb.suse.de/en/sdb/html/) • Bill Garner, Wally Pereira, Gary Dodge: "Oracle9i Real Application Clusters (RAC) with Red Hat Linux Advanced Server* 2.1 Powered by Intel Itanium 2 Processors", Oracle World, San Francisco, 2003.

  39. Our Thanks • Enterprise Information Systems • OOUG • Contact Information • Emilija Knezevic • emilija_knezevic@yahoo.com • Trevor Crljenko • trevor_crljenko@eis.ca

  40. Questions & Answers
