  1. Propulsion QDR • Scott Bird • Mike Downes • Kelby Haase • Grant Hile • Cyrus Sigari • Sarah Umberger • Jen Watson Propulsion QDR

  2. Preview • Choice of Engine • Redesigning of Propeller • Manufactured Choice • Cruise Conditions Propulsion QDR

  3. Constraining Conditions • SHPconstraint = 4.08 • SHPdesign=5.0 Propulsion QDR

  4. Preliminary Choice for Engine • BME-50 • Power = 5.0 hp • RPM: 1200-9800 • Weight = 3.25 lbs. Propulsion QDR

  5. Propeller Sizing – Sizing for Take-Off • Take-Off Velocity • CLTO C http://www.danspropshop.com/pitch.html Propulsion QDR

  6. Propeller Sizing – Sizing for Take-Off • Lift and Drag @ .7*VTO • Thrust at Take-Off (Brandt et al p. 176) C http://www.danspropshop.com/pitch.html Propulsion QDR

  7. Propeller Sizing – Sizing for Take-Off • Used modified gold.m code • Varied Pitch and Propeller Diameter • Max RPM = 9800 • Velocity Ranged from 5 ft/s to 55 ft/s in 10 ft/s intervals http://www.danspropshop.com/pitch.html Propulsion QDR

  8. Propeller Sizing – Efficiency vs. Power Propulsion QDR

  9. Propeller Sizing – Sizing for Take-Off • With D=18 in., P=6 in. and VTO = 37.72 ft/s • Efficiency = 40 % C http://www.danspropshop.com/pitch.html Propulsion QDR

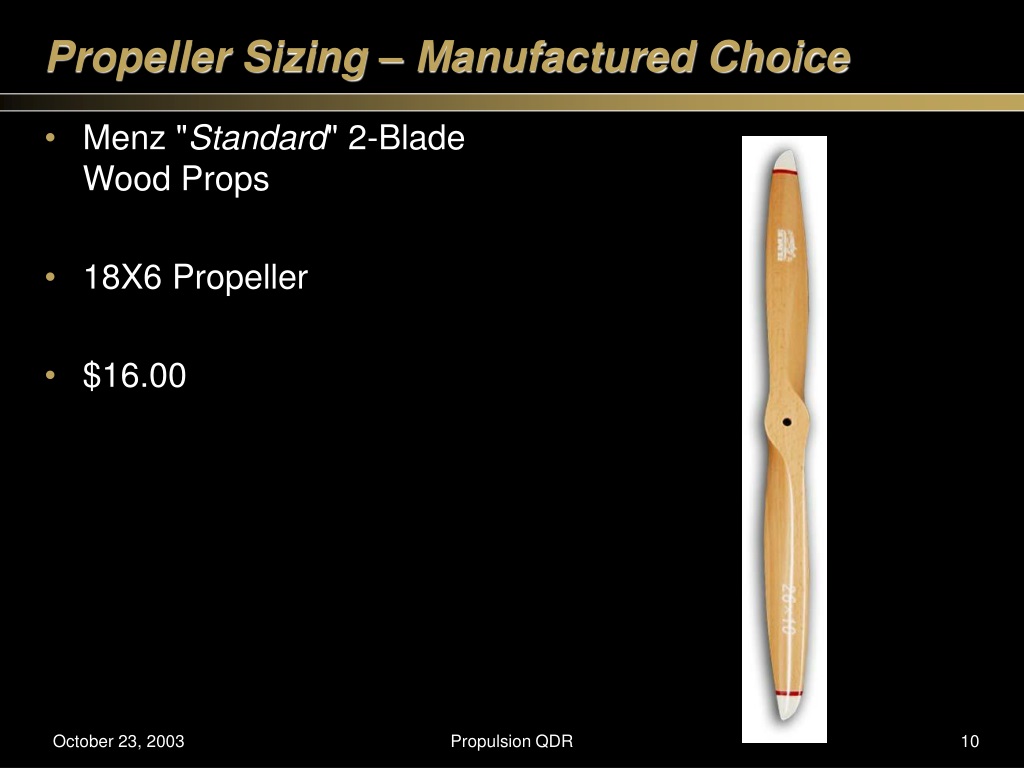

  10. Propeller Sizing – Manufactured Choice • Menz "Standard" 2-Blade Wood Props • 18X6 Propeller • $16.00 Propulsion QDR

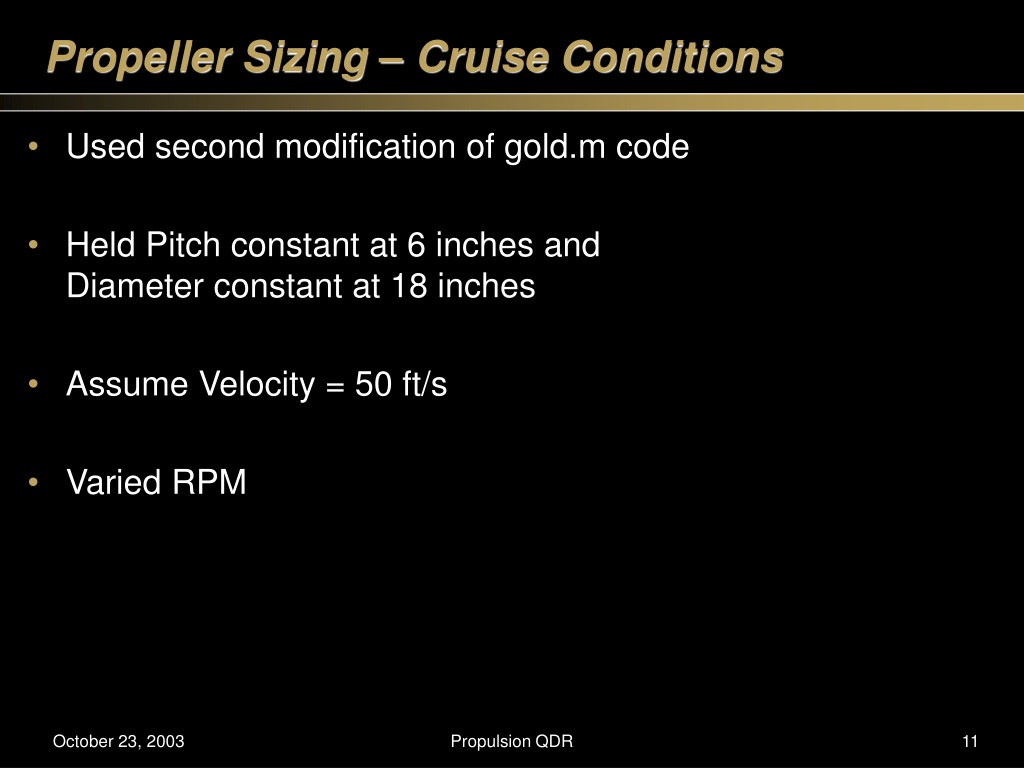

  11. Propeller Sizing – Cruise Conditions • Used second modification of gold.m code • Held Pitch constant at 6 inches and Diameter constant at 18 inches • Assume Velocity = 50 ft/s • Varied RPM Propulsion QDR

  12. Cruise Conditions • Prop=18X6 • Max Efficiency at approx. 4200 RPM • J = .475/rev • CT = .0155 • CP = .01 • Efficiency = 75% Propulsion QDR

  13. Questions? • Questions?? Propulsion QDR
