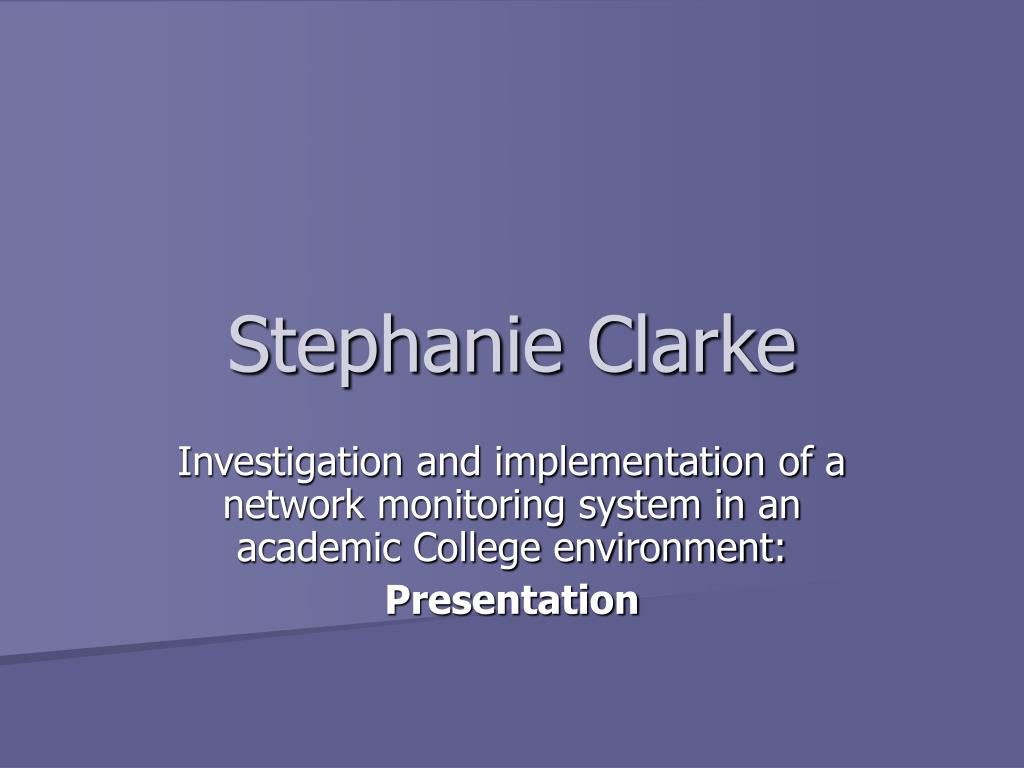

  1. Stephanie Clarke Investigation and implementation of a network monitoring system in an academic College environment: Presentation

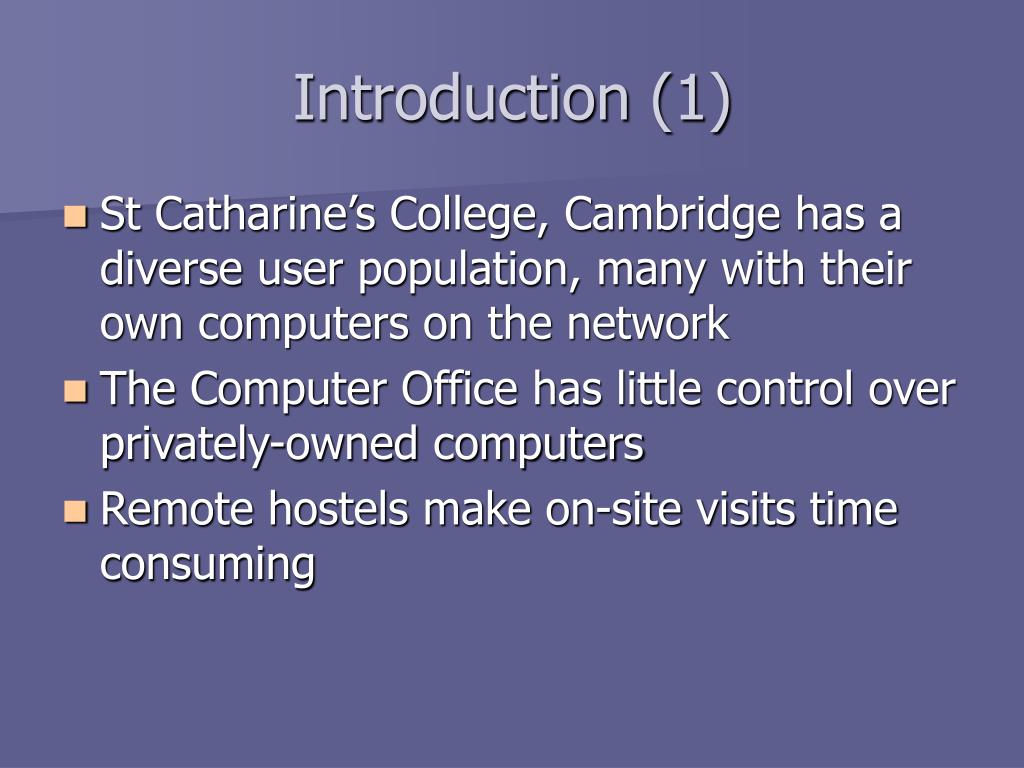

  2. Introduction (1) • St Catharine’s College, Cambridge has a diverse user population, many with their own computers on the network • The Computer Office has little control over privately-owned computers • Remote hostels make on-site visits time consuming

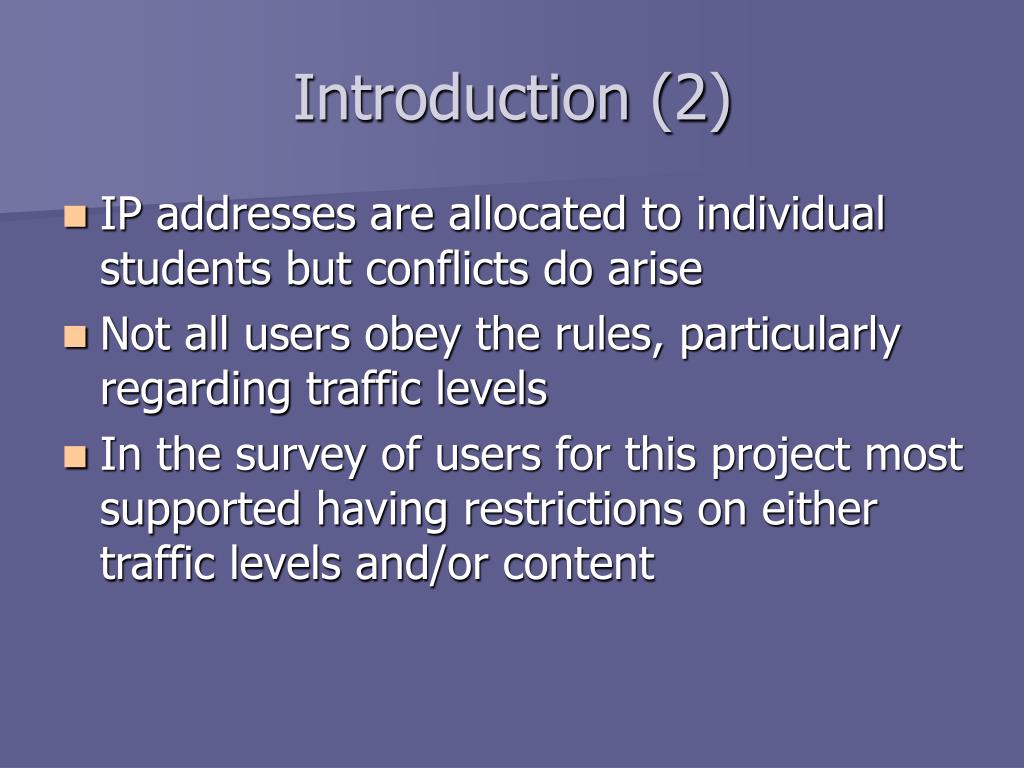

  3. Introduction (2) • IP addresses are allocated to individual students but conflicts do arise • Not all users obey the rules, particularly regarding traffic levels • In the survey of users for this project most supported having restrictions on either traffic levels and/or content

  4. The need for this project • Users need a stable, reliable network • In order to manage the network effectively it is important to obtain timely information about problems • Although some basic information is available there is a need for a system to easily provide access to relevant information

  5. General design options • ‘Monitoring’ is a wide-ranging term • The literature search revealed a variety of options • Commercial and freeware tools are available • Some researchers have written tools aimed at specific tasks • The survey of system administrators for this project revealed that many monitored in some way but there was little consensus about how

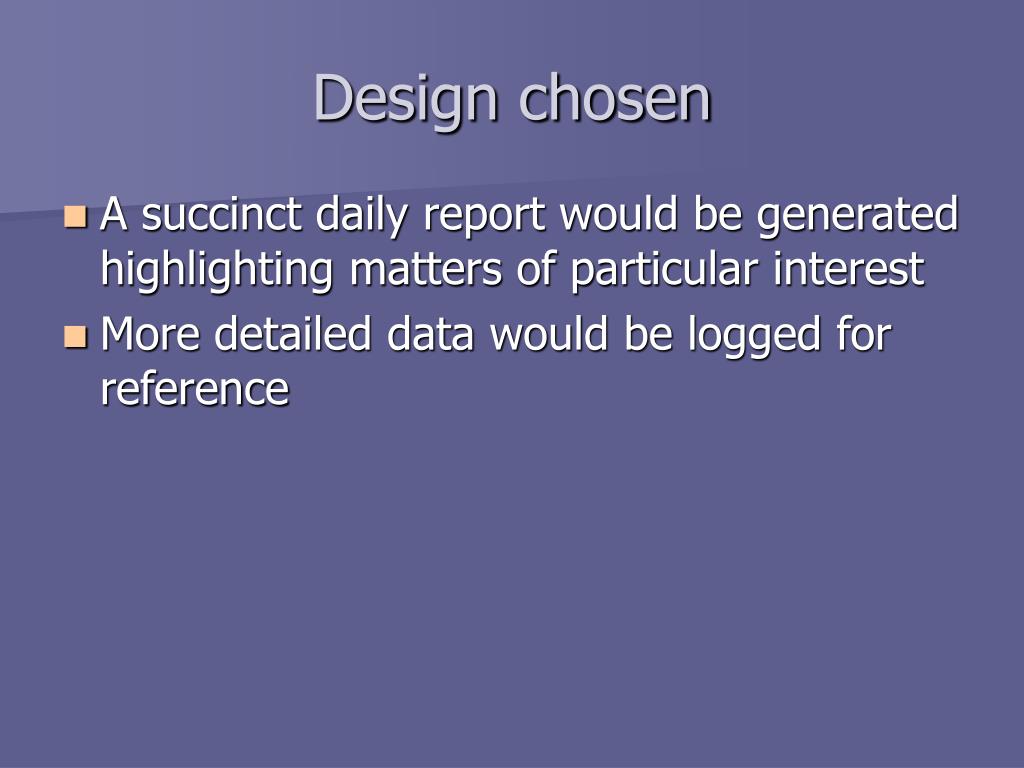

  6. Design chosen • A succinct daily report would be generated highlighting matters of particular interest • More detailed data would be logged for reference

  7. Aspects of the report (1) • The report would include: • Information about users creating more than 500Mb in total (incoming + outgoing) in a day • Information about users in the top 20 traffic generators using KaZaA, Napster or Gnutella • Traffic on certain ports • Warnings about IP conflicts

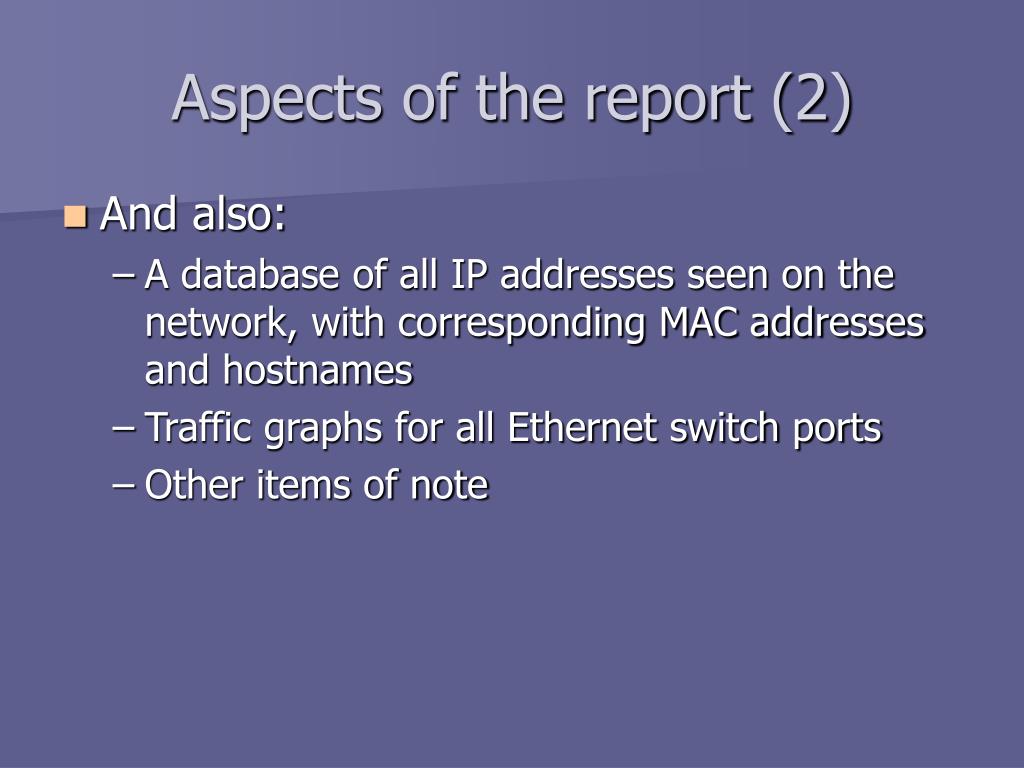

  8. Aspects of the report (2) • And also: • A database of all IP addresses seen on the network, with corresponding MAC addresses and hostnames • Traffic graphs for all Ethernet switch ports • Other items of note

  9. Aspects of the report (3) • The ‘Other items of note’ requirement was open-ended, and ultimately included: • First-time connections seen that day • IP/MAC address pairs reappearing after 6 months or more • MAC address mismatches

  10. Limitations of available options • No available tool would do exactly what was wanted • The solution was to use a selection of tools to gather the data and to write scripts to interrogate this data and generate the reports

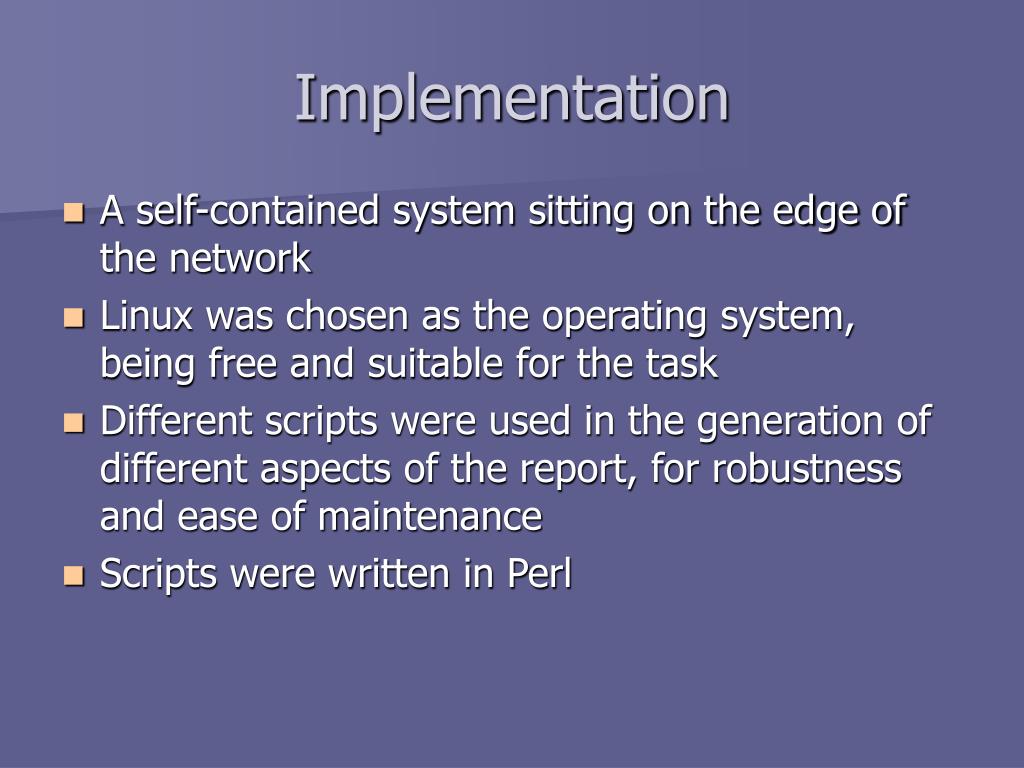

  11. Implementation • A self-contained system sitting on the edge of the network • Linux was chosen as the operating system, being free and suitable for the task • Different scripts were used in the generation of different aspects of the report, for robustness and ease of maintenance • Scripts were written in Perl

  12. Data generation tools (1) • Arpwatch provided the raw data for use in creating the database and the sections on first-time connections, IP conflicts, IP/MAC address pairs reappearing after 6 months or more and MAC address mismatches • Mrtg was used to create the traffic graphs

  13. Data generation tools (2) • Data on the top 20 traffic generators in College - available from the University of Cambridge - was interrogated for details on users creating more than 500Mb, those using KaZaA, Napster or Gnutella, and those using certain ports • The Data Protection Act 1998 prevented more detailed port traffic analysis

  14. User interface • Presented as a password-protected website • Menus added for ease of use • Previous reports can be reached if required

  15. Evaluation • The system provides information in a convenient format that was previously unavailable or difficult and time consuming to obtain • Problem detection and resolution is now much easier • The system has additional benefits beyond those originally envisaged

  16. Unexpected results • The system threw up some surprising information, including: • The number of IP conflicts that arise is higher than was previously supposed • The load varies widely between switches and is not always distributed in the pattern previously supposed

  17. Future possibilities • The system has potential for future expansion • Some tweaks to the system would make it even better, including: • Adding the dates an entry is first seen and most recently seen to the database • Adding the hostname to the ‘first seen’ section of the report

  18. Conclusions • The project resulted in a robust, easy-to-use system • The information it provides makes it a valuable asset to the College • The system will also be of assistance in planning future improvements to the network
