    1. Fabric Switches VSP9000, VSP7000 & VSP4000: Deep Dive Liam Kiely Vice President: Fabrics & Virtual Infrastructure Avaya @Networkingwatch

    2. E2E Infrastructure Strategy TRANSFORMATION Networks : Fabrics DELIVERY Value Propositions CUSTOMERS Market Focus Core Fabrics 1 Application Driven Networks Medium & Large Enterprises Simplicity Full Infrastructure Stack Service Providers Metro & Hosting Economics Top of Rack 2 Fabric: Initiatives Applications : Collaboration Pod Software Defined Networking Fabrics & Virtual Infrastructure Fabric Connect Multitenant & Utility End to End Multicast L2/L3 Virtualization Private Cloud Data Centers Best in Class Experience Multitenant Edge 3 New Segments Competitive Replace Innovation Leadership Revenue and Profit Growth The Enterprise Cloud Scale, Simplicity, Agility Application Driven Networking E2E Virtualization DC – Campus – Branch Collaboration Pods Application Deployment Agility

    3. Fabric Connect Family ERS 8800/8600 VSP7000 C-Pods VSP4000 VSP9010 2 New Jan 2012 ERS4800 VSP9012 Coming soon 3 Coming soon Coming Soon 1 Coming Soon Medium/large Core/Distribution Wiring Closet Small/Medium Core/Distribution Small/medium Access or Distribution Data Center TOR & Distribution Fabric Connect family adds five more platforms in 2013! We will discuss three of them here!

    4. Campus & Data Center Cores • Cloud Computing: • SDN Programmable Fabric • Agile Virtualization • Performance monitoring. • VENA Packet Engine • 400G Network Processor • VENA Switch Clustering • Robust active/active high availability • VENA Fabric Connect • E2E Service abstraction • SDN Service orchestration • High Availability • 99.999% reliability • Deterministic ms failover for IPv4 & IPv6 • High performance resiliency • Simpler design options • Streamlines provisioning • Improves time-to-service Highlights 5

    5. NPU (Network Processing Unit) Provide 200Gbps ingress/egress 400Gbps both directions Line rate DPI, (L4-L7) Any protocol (VXLAN…) Programmable Architecture Inline or Service attach (SDN) Fixed or Modular chassis Programmable (NPU Microcode & FPGA) Services Scale IPv4 and IPv6 scalability: 1M+ FIB MAC Address scalability: 512K+ 64K+ streams/multicast application (IPv4 MC, IPv6 MC, SPB) & millions of packet copies IPFIX scalability: 1M+ Flows High Availability CPU Overload controls HW Failover (Detect/Trigger) Best-in-class clustering performance VENA Packet Engine Highlights • Double 10GE Port Count • Double PPS throughput • Reduced Watts/10GE • Massive Service Scalability

    6. Virtual Services Platform 9010 Highlights • Data Center Optimized • VENA Operating System • Common Line Cards • Chassis Dimensions: • Height: 915,00 (36.1”), • Width: 436,60 (17.19”), • Depth: 857,85 (33.75”) • F2B airflow for I/O & switch fabrics • Full A/B (1+1) dual-power feed • 6 x Switch Fabric slots • VSP 9095SF : 320/640Gbps per slot • 8 x I/O slots for VSP 90xx modules • 2 x Control Processor (VSP 9080CP) • 2 front accessible redundant fan trays • 8 x redundant power supply bays • Support for AC and DC power supplies • LC10Gbps, 40Gbps and 100Gbps I/O VSP9010 Release is To be announced

    7. Modular Core Fabric SwitchesDeployment Considerations • VSP9012: Highest density campus (3/Rack & 10 I/O slots) • VSP9010: Optimized front to back cooling for data centers. • VSP9012 & 9010 : • Identical VOS software • Identical Mgt Tools • Identical Line cards. • New Line Cards • 9048XL 48 port SFP+ • VOS Release 4.0 • Compatible 10/40/100G VSP9012 VSP9010 VSP9010 Release is To be announced 8

    8. Virtual Services Platform 4000Overview & Highlights • Cost effective Fabric Connect • Edge/Small Core Ethernet Switch • 48x1G SFP & 2 x 10G SFP+ ports • Virtualized Routing & Switching • Easy to manage • Service end-point provisioning • Ethernet multi-tenant Apps • Aggregation 1GE to fabric edge • Applications • Multitenant Environments • Tier 3/4 Service Providers as fiber CPE (including FTTH) • Fabric extension, remote branch • Video Surveillance / TV Distribution aggregator solution • Full VOS L2/L3 Virtualization • Edge Form Factor 1GE x 48 • Future Releases: • SPB Multicast • 1GE Fabric Core • SFP / Fiber Access Highlights

    9. VSP 4000 Overview • Hardware Description • Identical to ERS4850 portfolio • USB Flash drive added • VSP 4000 run time software • Upgrade kit for migrations. • SFP & SFP+ transceivers • No stacking support • DC version • Software / Operating System • Carrier Grade Linux based • VOS R3.3+ (VENA Operating System) ERS4800 USBDrive VSP4000

    10. VSP4000: Capabilities • Fabric Connect Edge Ethernet Switch • 48 10/100/1000 & 2 SFP ports plus 2 SFP+ ports • Strong Virtualized Routing and Switching capabilities • Full SPBm edge platform supporting IP shortcuts, L3VSNs, and L2VSNs • E-LAN & E-TREE Services • Phase 1: RIP, OSPF, BGP - demo only • Phase 2: RIP, OSPF, BGP, SPB Multicast, Switch Clustering (SMLT) • Easy to manage – service end-point provisioning • Ability to turn up new services, add tenants, remove tenants • Managed as a component of the SPBm backbone

    11. VSP 4000: Hardware Front View • Array of status LEDs • USB Host Port • RJ-45 Console Port 10G Ports 1G Ports RJ-45 Console Port USB Port* Status LEDs *USB Cover not shown

    12. VSP 4000: Rear View • Dual field replaceable AC & DC power supplies* • No DC power supply for 4850GTS-PWR+ Stacking Ports & Base Unit Switch – disabled, cover not shown PSU 1 PSU 2* * Switch ships with one power supply installed in PSU position 1 and filler panel in position 2. A second power supply can purchased for redundancy or to provide additional PoE+ power budget.

    13. VSP 4000: Modular Power • 300w AC Power Supply • Order code: AL1905?08-E5 • AC Typical Input: 100-240 V~ • AC Frequency: 47-63 Hz • Max Load: 5A • Power cords use the IEC 60320 C16 (High Temperature) • 1000w AC PoE+ Power Supply • Order code: AL1905?21-E6 • AC Typical Input: 100-240 V~ • AC Frequency: 47-63 Hz • Max Load: 12A • Power cords use the IEC 60320 C16 (High Temperature) IEC 60320 C16 connector

    14. VSP 4000: Solutions Phase 1 Phase 2 Phase 3 Solution 1 Solution 2 Solution 3 Solution 4 Solution 5

    15. VSP4000 Target Roles ERS 3500 ERS 4800 ERS 4500 (BEB) VSP 4000 (BCB) VSP 4000/7000 ERS 4800 ERS 5500 MLT IST VSP 4000/7000 (BCB) VSP 4000 (BEB) • SPB Edge • SMLT Edge • L2/L3 VSNs • IP Shortcuts • Multicast • SPB Core • Inter-ISID Routing • SPB Edge • L2 VSNs • Multicast Architectural Goals * VSP4000/7000 * Details under NDA

    16. Virtual Services Platform 7000Overview & Highlights • Fit-for-Purpose for Today • Industry’s fastest virtual backplane makes this product ideal for • Distributed Top-of-Rack • Fixed form factor core • Versatile support for 1 or 10 Gigabit Ethernet • Fabric Connect delivered directly to the Server • Media Dependent Adapter flexibility • Lossless hardware & software architecture • Front-back or back-front cooling • Future-Ready for Tomorrow • Seamless integration of 40 or 100 Gigabit • Data Center Bridging-ready to integrate Fibre Channel • Lightning-fast performance • Flexible connectivity options • Delivering 10 Gigabit today • Future-ready for 40/100 Gigabit & Storage convergence Highlights Note: Text in red indicates new or changed content

    17. VSP 7000 Components Field Replaceable Fan Trays Media Dependant Adapters AC & DC Field-Replaceable PSUs Fabric Interconnect Cables (FIC)

    18. VSP 4850GTS Specifications • Switch Details • 48 10/100/1000 Gigabit Ethernet ports • 2 shared SFP ports • Plus 2 1/10Gigabit SFP+ ports • Ships with set of rack mount brackets • Power and Thermal • Supplied with 1 x 300 watt Field Replaceable AC or DC power supply • Addition of second Field Replaceable AC power supply for redundancy or additional PoE • Maximum Power 95  watts (no PoE Load) • Thermal Rating 323 BTU/hr • System CPU operates at 533 MHz • Switch is configured with 256MB RAM • Console port RJ-45 to serial port • Dimensions • Height: 4.4cm – 1RU, Width: 44.0cm • Depth: 43.68cm (Max) 36.85mm (Minimum) • DB-9 Female for terminal/PC to RJ-45 RJ-45 Console Port SFP+ ports support either 1Gbps or 10Gbps devices.

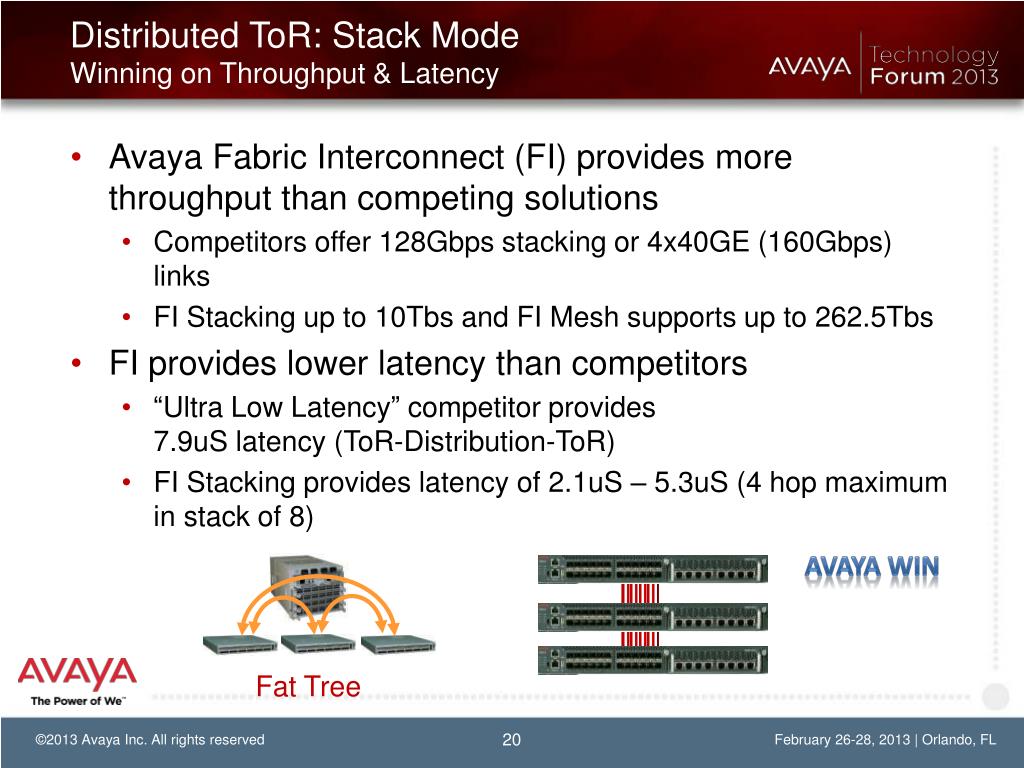

    19. Distributed ToR: Stack ModeWinning on Throughput & Latency • Avaya Fabric Interconnect (FI) provides more throughput than competing solutions • Competitors offer 128Gbps stacking or 4x40GE (160Gbps) links • FI Stacking up to 10Tbs and FI Mesh supports up to 262.5Tbs • FI provides lower latency than competitors • “Ultra Low Latency” competitor provides7.9uS latency (ToR-Distribution-ToR) • FI Stacking provides latency of 2.1uS – 5.3uS (4 hop maximum in stack of 8) Avaya Win Fat Tree

    20. VSP7000 DToR Versus Fat TreeWinning on Value : 4-20 x Lower Cost • Typical Distributed ToR deployment costs with 640Gbps for $6,780 • 4 x 3m FI cables (640Gbps) / VSP 7000 with MSRP $6,780 • FI cables range from $995 for 0.46m to $8,995 for 100m • Competing designs with 160Gbps range from $25,800 - $140,800 • Competing ToR limited to 160Gbps due to 4 x 40GE / ToR • Due to placement of ToR to Core or Distribution switches require longer cable runs • 8 x 40GBASE-SR4 @ $1,100ea + 8 x Fiber @ $250ea = $10,800 • Require 8 modular ports at costs from $1,875 ea to $ 16,250ea • Arista (standalone) $1,875/port • Cisco Nexus 7000: $9,940/port • Juniper (standalone) $2,306/port, QFX3008 $7,226 - $16,250/port Avaya Win 4x40GE Fat Tree Distributed ToR vs Fat Tree ToR

    21. What is the alternative…? VM Evolution: Scale & Flexibility Members of the same VM domain must remain in the same subnet Physical Servers Virtual Servers APPs I-P Per Rack APPs A-H Per Rack APP A APP B Rack 1 Rack 2 Rack 1 While application scale & server utilization is poor, network complexity is simple Server virtualization brings scale and efficiency to applications. VMs become essentially “jailed” and network flexibility is reduced.

    22. VSP7000 Mobility & Flexibility Jailbreak! Put your VMs where you need them. • Fabric Connect provides the VMs & therefore, the applications a “get out of jail free” card. • No longer bound by physical & logical constraints—VMs can be moved anywhere. • This creates the flexibility to improve availability, simplify maintenance and enhance application expansion Row A Row B Row C Rack 1 Rack 2 Rack 3 Rack 4

    23. VSP9000 Scaling Stack-mode DToR Structured Interconnect: 8 Switches 256 10GbE Ports Fabric-mode DToR Flexible Interconnect: up to 200 Switches 6,400 10GbE Ports ERS 8800 VSP 9000 VSP 9000 Fabric Connect Core North-South/Core-ToR Interconnects VSP 7000 Distributed Data Center SDSN Distributed Top-of-Rack SDSN *SDSN : Software Defined Storage Network

    24. VSP7000 Fabric Connect & vMotion… Point & Click “any to any” VM Mobility. L2 or L3 Data Center, City or State.

    25. @Networkingwatch
