  1. A two piece post requiring some assembly using specially designed mounting brackets.

  2. The mounting brackets are shown in SET mode. This maintains a precise spacing between the two post pieces while setting the post(s) in concrete bases.

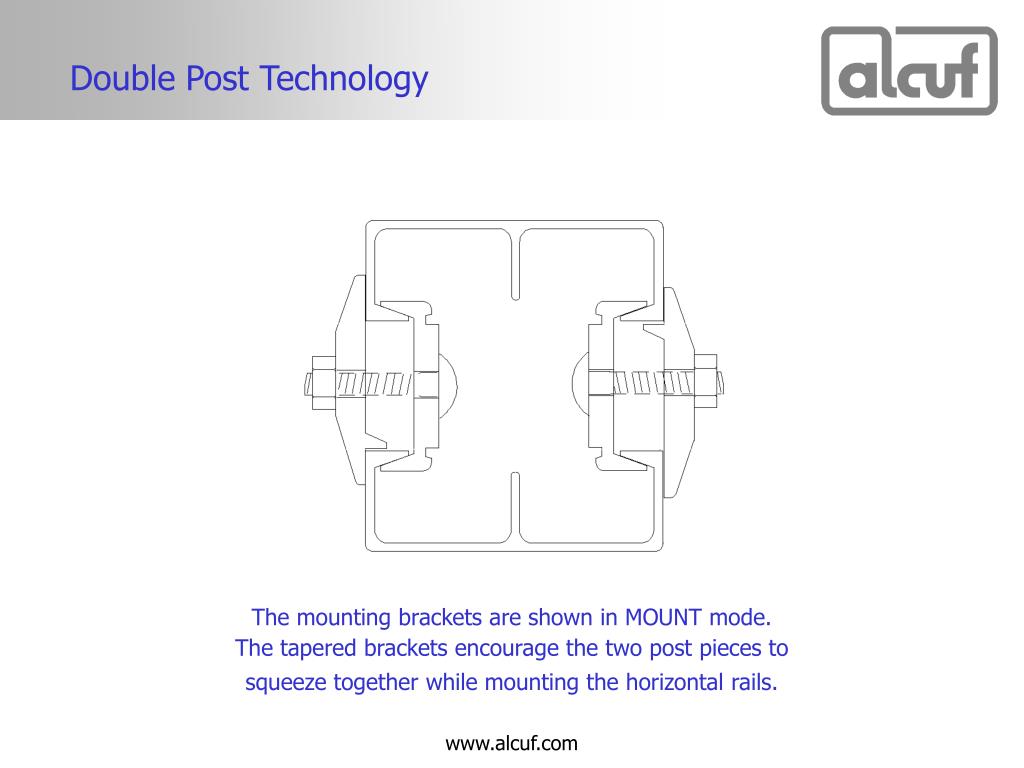

  3. The mounting brackets are shown in MOUNT mode. The tapered brackets encourage the two post pieces to squeeze together while mounting the horizontal rails.

  4. The mounting brackets are shown in MOUNT mode. The horizontal rails are mounted between the two post pieces, then the brackets are tightened.

  5. The mounting brackets are shown in MOUNT mode. As the brackets are tightened, the two post pieces are squeezed together securely mounting the horizontal rails.
