  1. Multi-Piece Rim Assembly Component Matching

  2. DOT Identifications • Found on weather side of each component • Stamped into components • Visually inspect each component to identify markings • Ensure component compatibility using markings found on components & OSHA wall chart

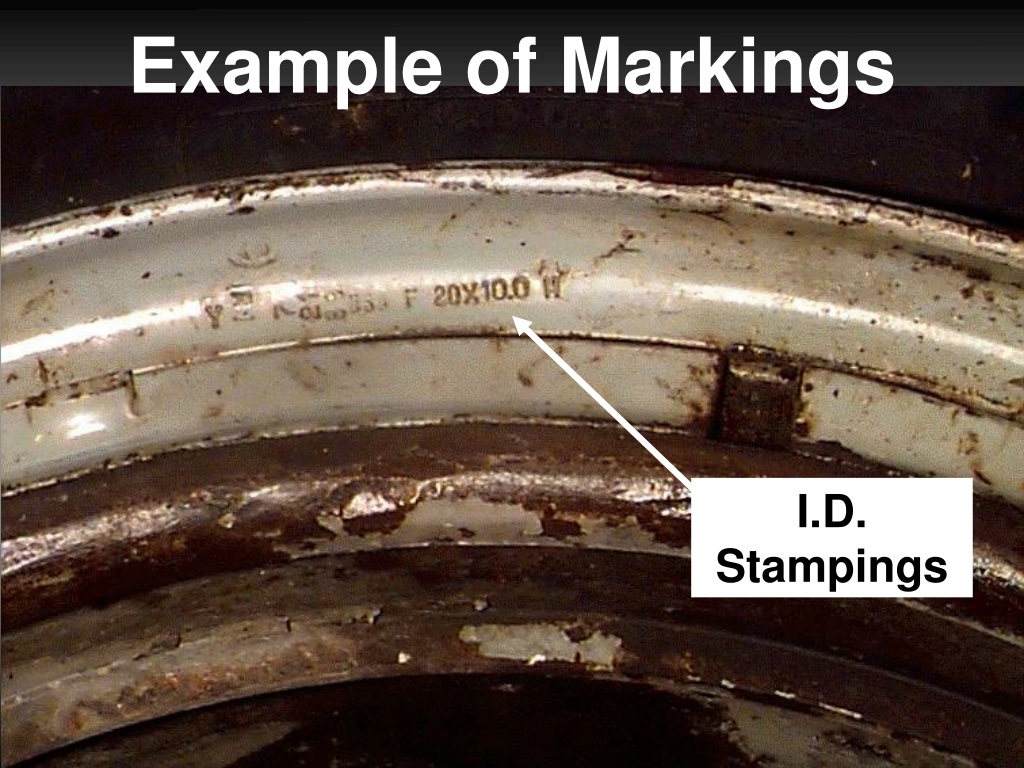

  3. Example of Markings I.D. Stampings

  4. OSHA Wall Chart

  5. MismatchedComponents Identified • Evacuate trajectory zones - do not handle assembly • Immediately report to supervisor

  6. Trajectory Zones

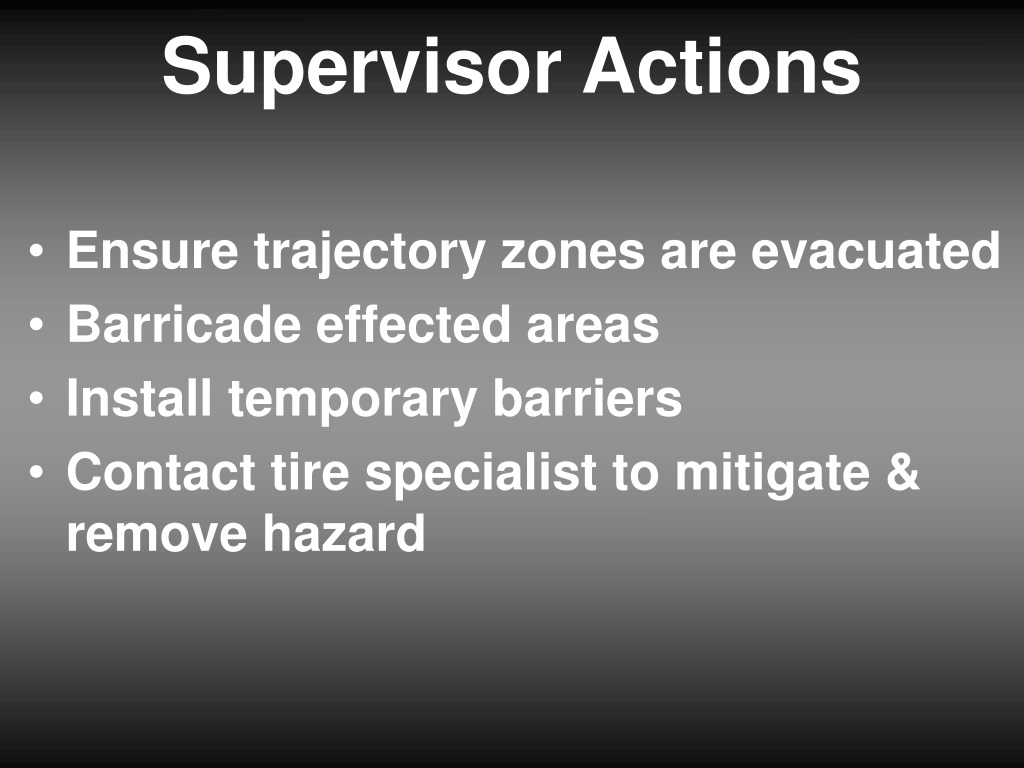

  7. Supervisor Actions • Ensure trajectory zones are evacuated • Barricade effected areas • Install temporary barriers • Contact tire specialist to mitigate & remove hazard
