Presentation Transcript


Structure and Function

angiosperm structure
Angiosperm structure
  • Root system depends on shoot for organic molecules
  • Shoot system depends on root for water andnutrients
  • Organ vs. tissue

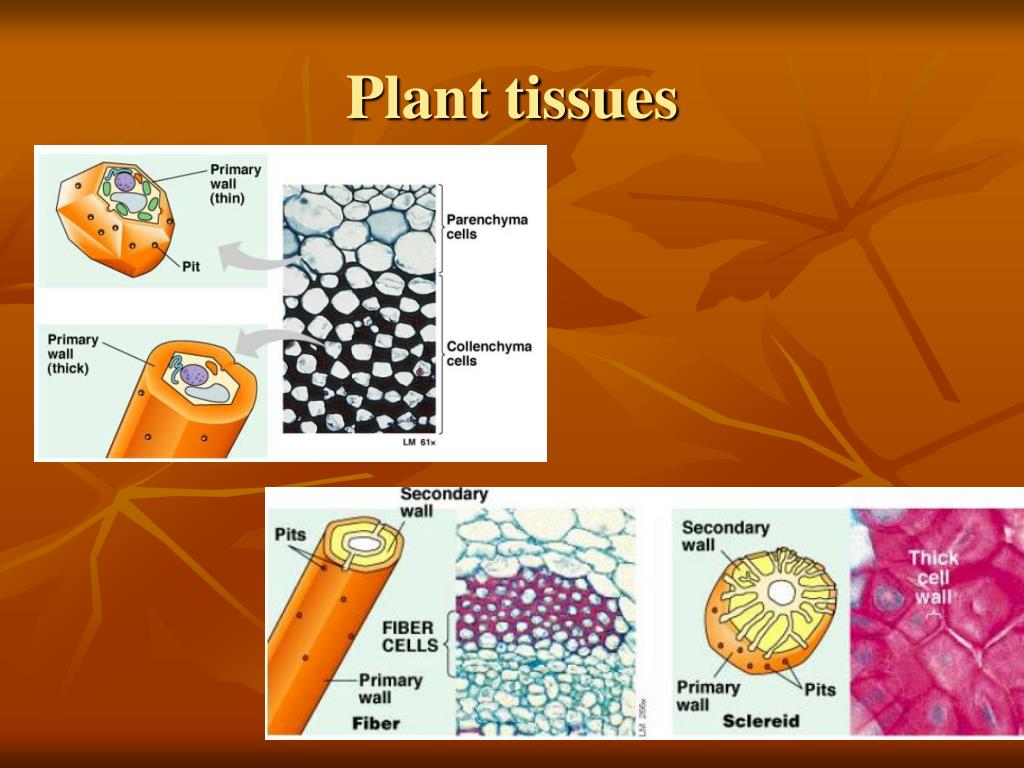

plant tissues

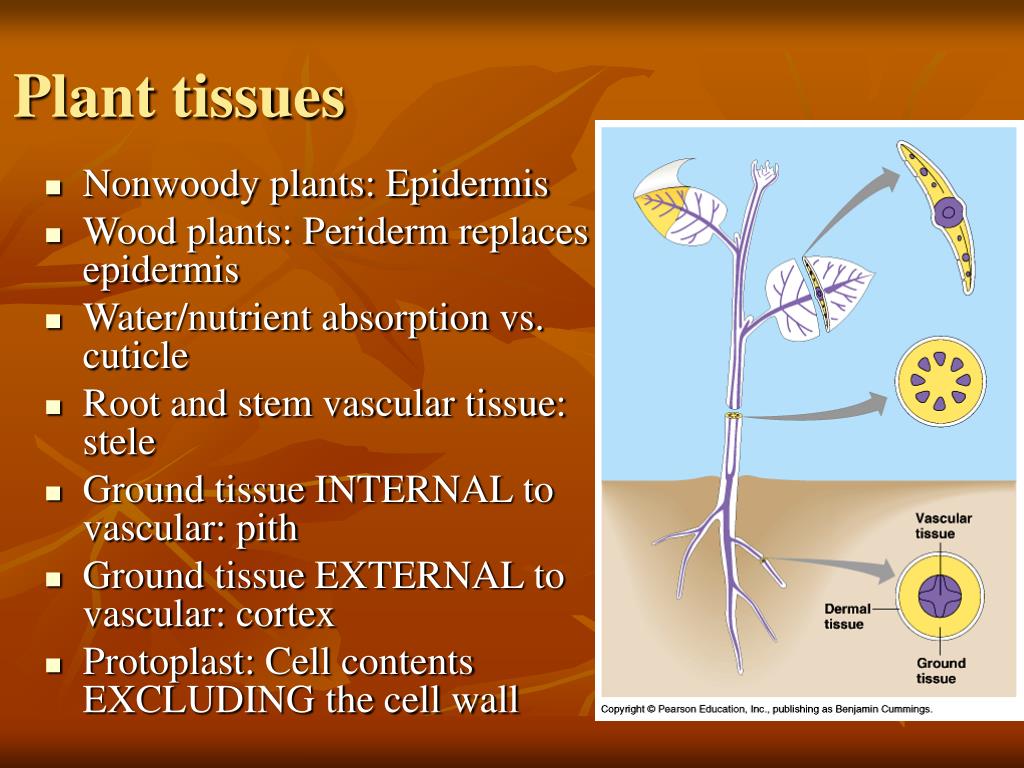

Plant tissues
  • Nonwoody plants: Epidermis
  • Wood plants: Periderm replaces epidermis
  • Water/nutrient absorption vs. cuticle
  • Root and stem vascular tissue: stele
  • Ground tissue INTERNAL to vascular: pith
  • Ground tissue EXTERNAL to vascular: cortex
  • Protoplast: Cell contents EXCLUDING the cell wall
5 – Leaf structure (688)

6- Stem structure (687)

7 - Root structure (685)

1 – Leaf form follows function

2 – Stem form follows function

3 – Root form follows function

For your assigned organ, either list examples of form follows function OR describe the basic structure of it (including tissues and difference between monocot and eudicot). Be prepared to explain

plant growth

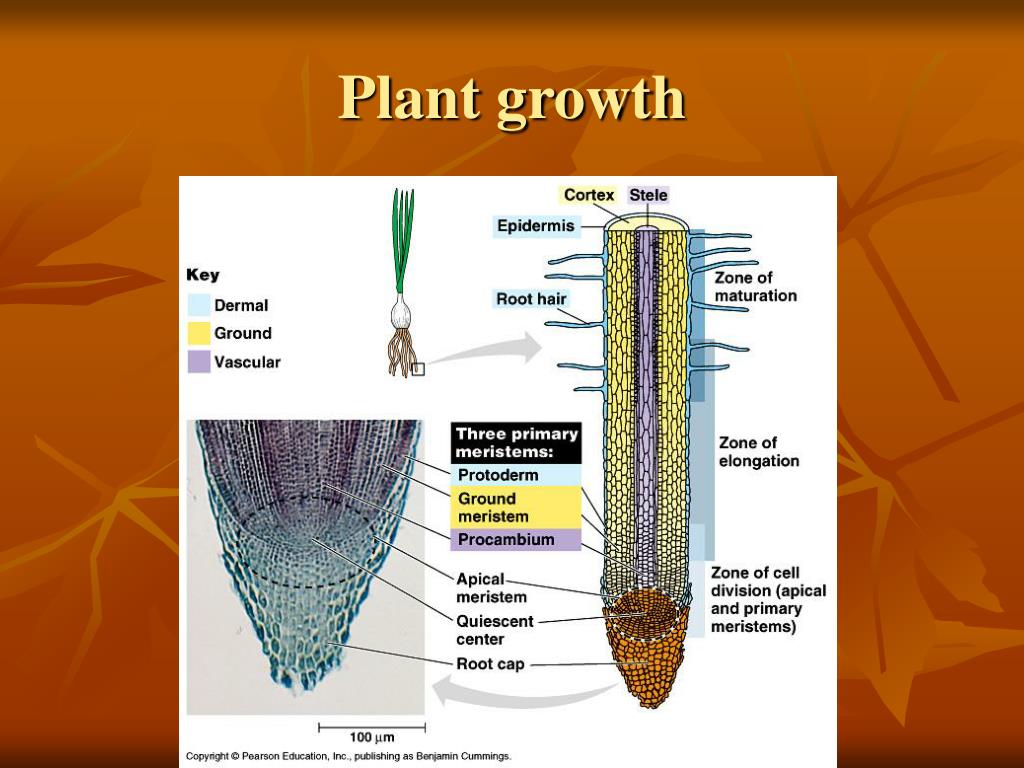

Plant growth
  • Indeterminate vs. determinate growth
  • Annuals vs. biennials vs. perennials
  • Apical meristems  primary growth

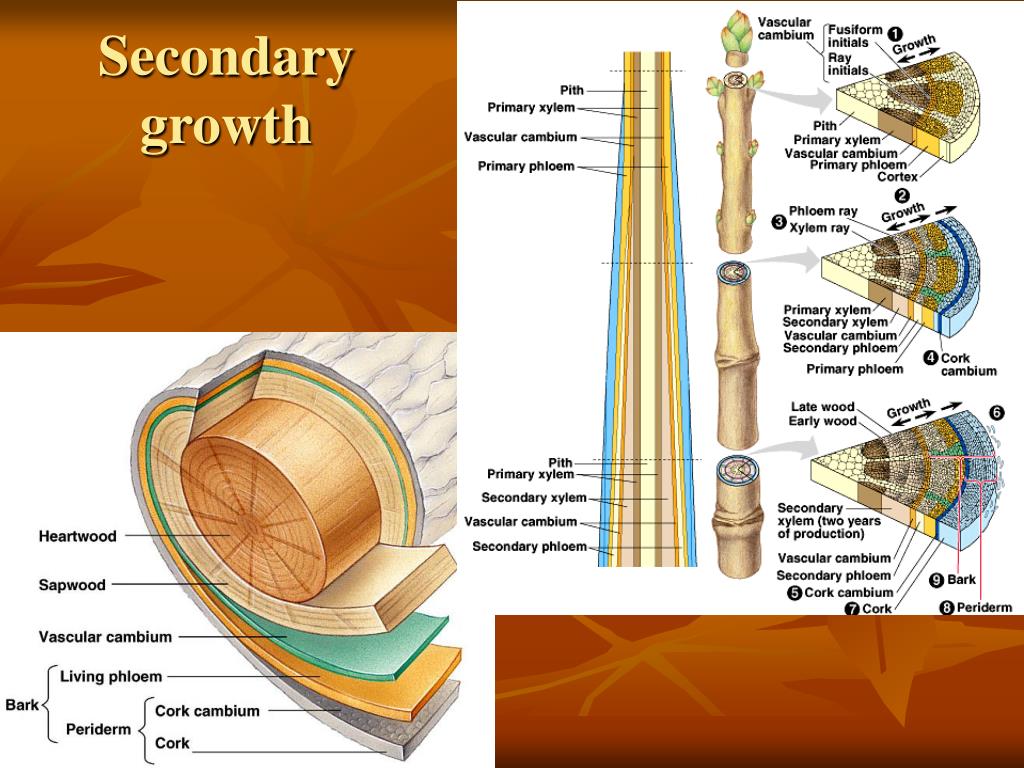

  • Lateral meristems  secondary growth
  • When does growth happen?
plant concept map
Plant concept map
  • Start your concept map with the following categories
  • Think carefully how you want to integrate the diagrams. They can be hand drawn or cut out from the internet. Many terms can be used to label diagram (still need to be connected to 2 other terms with connecting phrase)
  • Over the weekend, write out terms, and begin finding connections between terms


Reproduction Structure Regulation transport

transport regulation root pressure
Transport regulation: Root pressure
  • Aquaporins: Increase the RATE of osmosis
  • Cell membrane vs. vacuolar membrane (tonoplast)
  • Symplast vs. apoplast

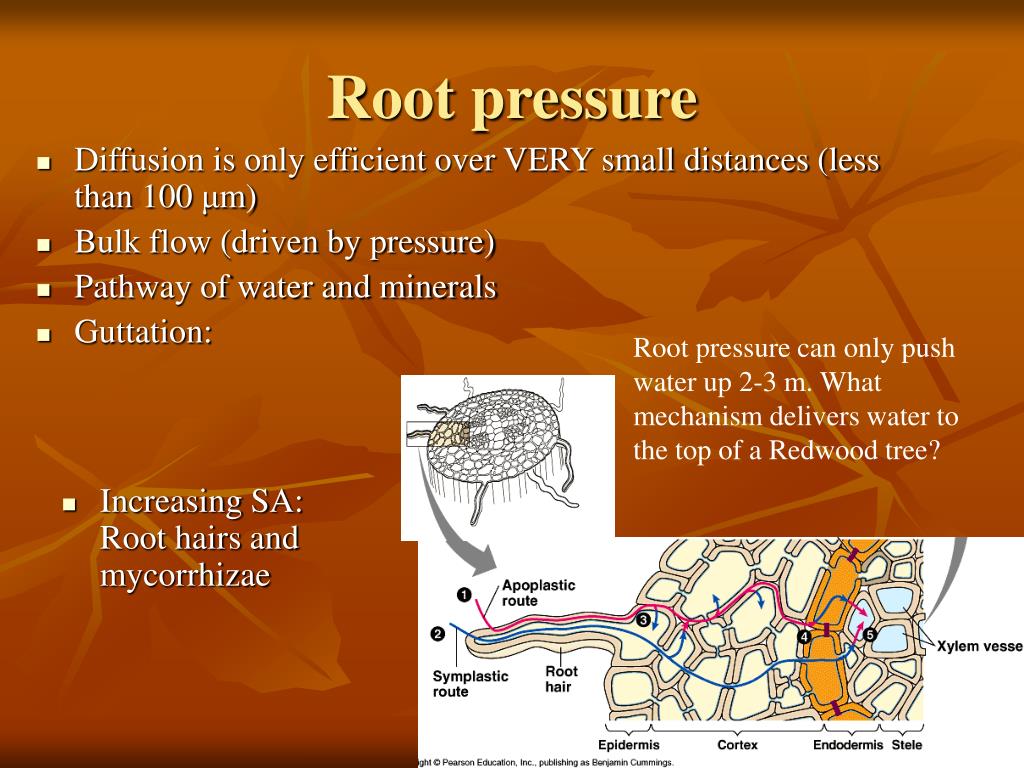

root pressure
Diffusion is only efficient over VERY small distances (less than 100 μm)

Bulk flow (driven by pressure)

Pathway of water and minerals


Increasing SA: Root hairs and mycorrhizae

Root pressure

Root pressure can only push water up 2-3 m. What mechanism delivers water to the top of a Redwood tree?

Push (+ Ψ) or pull (- Ψ)?

Ψ outside leaf < Ψ inside leaf

Direction of water vapor?



How could this allow water to move upward?

Film lining air spaces curves as vapor leaves

↑ radius  ↓ Ψ

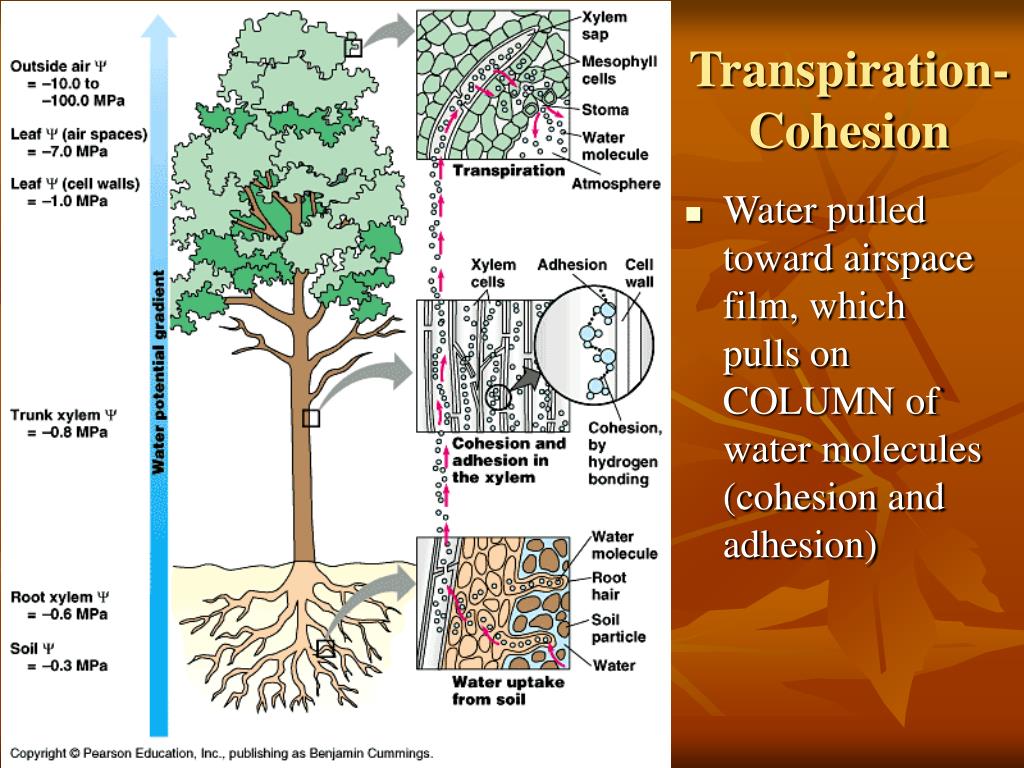

transpiration cohesion
  • Water pulled toward airspace film, which pulls on COLUMN of water molecules (cohesion and adhesion)

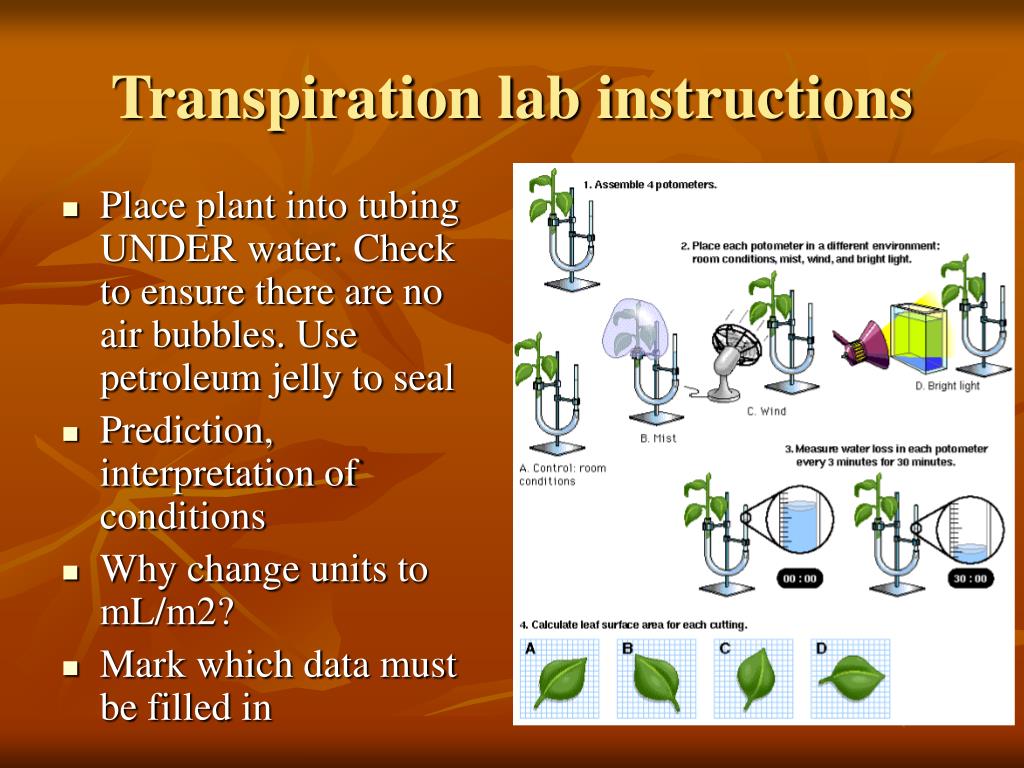

transpiration lab instructions
Transpiration lab instructions
  • Place plant into tubing UNDER water. Check to ensure there are no air bubbles. Use petroleum jelly to seal
  • Prediction, interpretation of conditions
  • Why change units to mL/m2?
  • Mark which data must be filled in

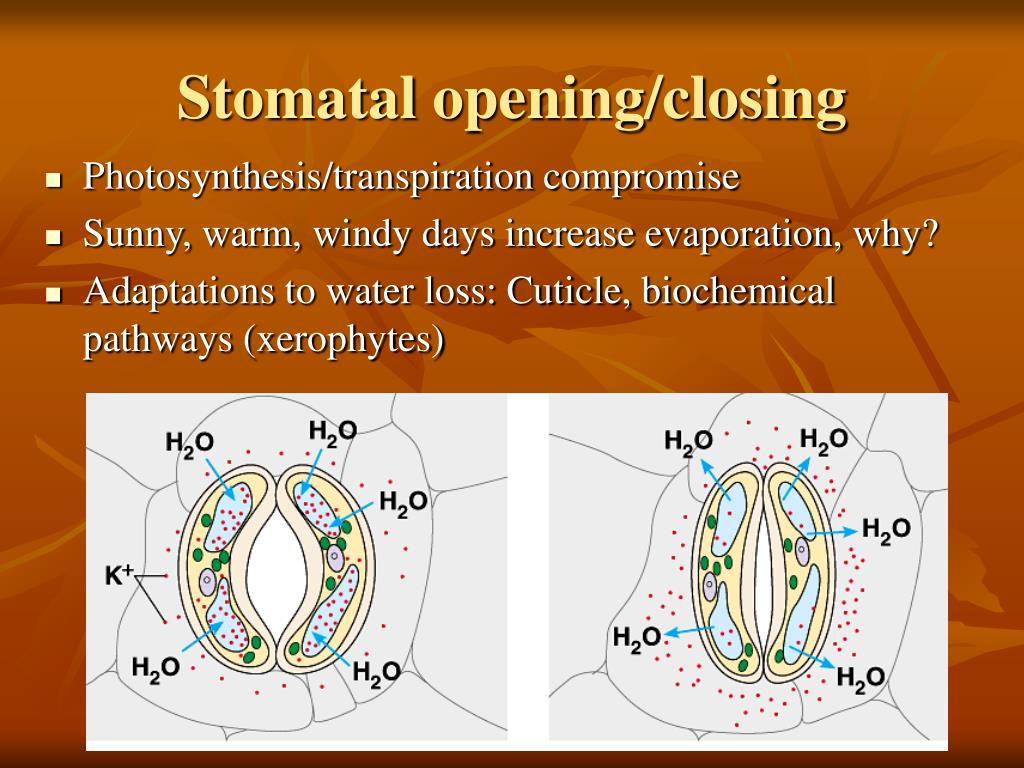

stomatal opening closing
Stomatal opening/closing
  • Photosynthesis/transpiration compromise
  • Sunny, warm, windy days increase evaporation, why?
  • Adaptations to water loss: Cuticle, biochemical pathways (xerophytes)
Light: Stimulates membrane proton pumpsK+ accumulation Osmosis makes guard cells turgid Stomata open
  • Depletion of CO2 stomata open
  • Circadian rhythm,

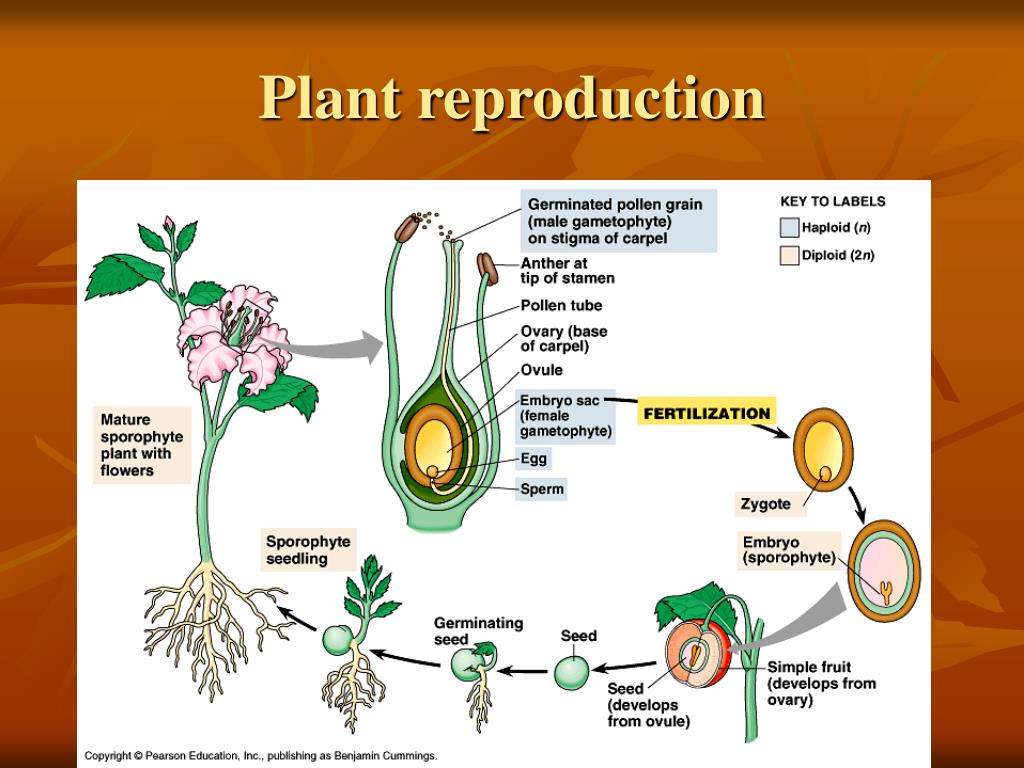

double fertilization
Double fertilization
  • 1 sperm  egg (zygote- 2n)
  • 1 sperm  2 polar nuclei (3n)  endosperm

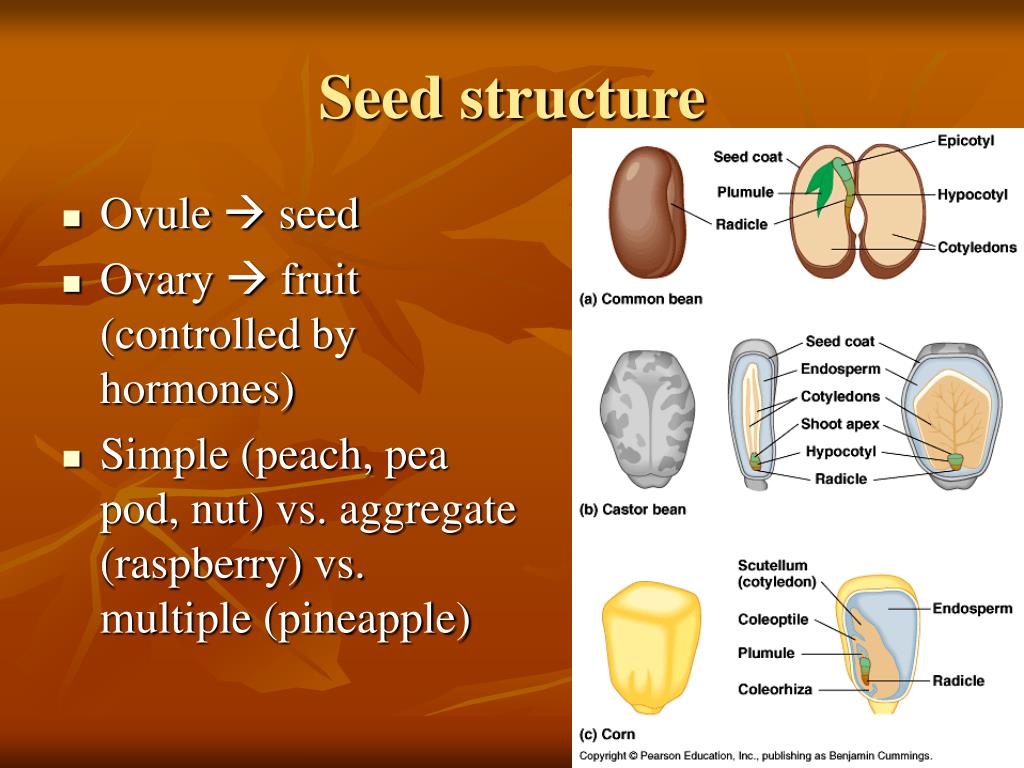

seed structure
Seed structure
  • Ovule  seed
  • Ovary  fruit (controlled by hormones)
  • Simple (peach, pea pod, nut) vs. aggregate (raspberry) vs. multiple (pineapple)

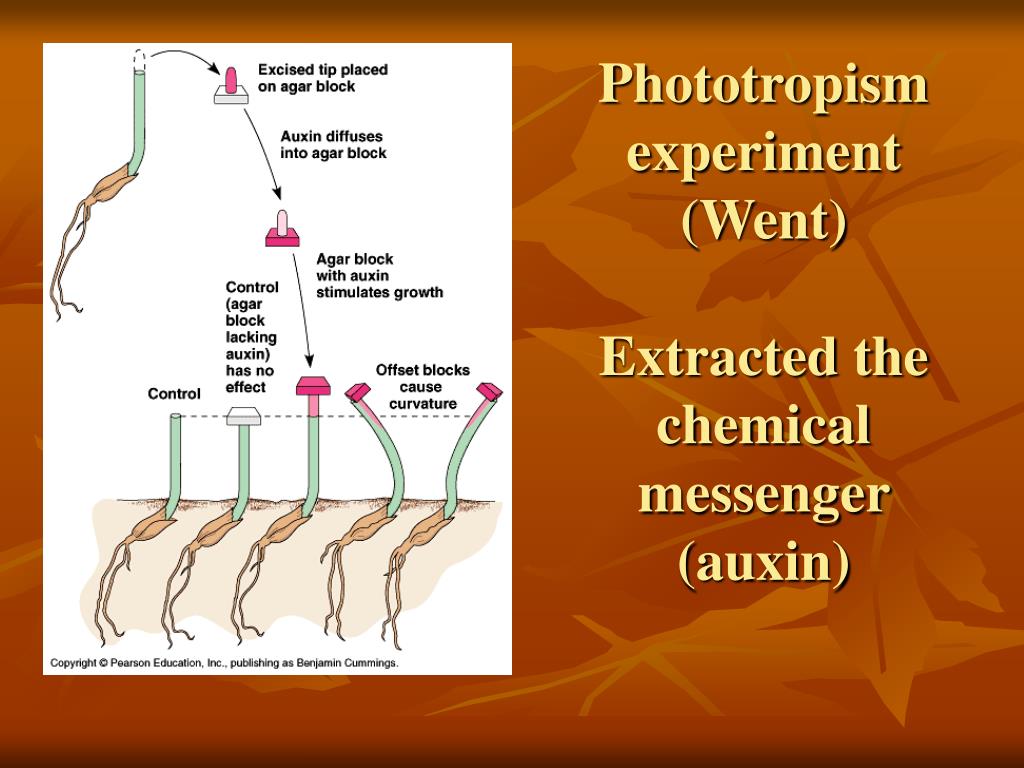

plant hormones
Plant hormones
  • Know table on pg. 794. Auxin, cytokinins, gibberellins, abscisic acid, ethylene
