learning curve and forgetting factor

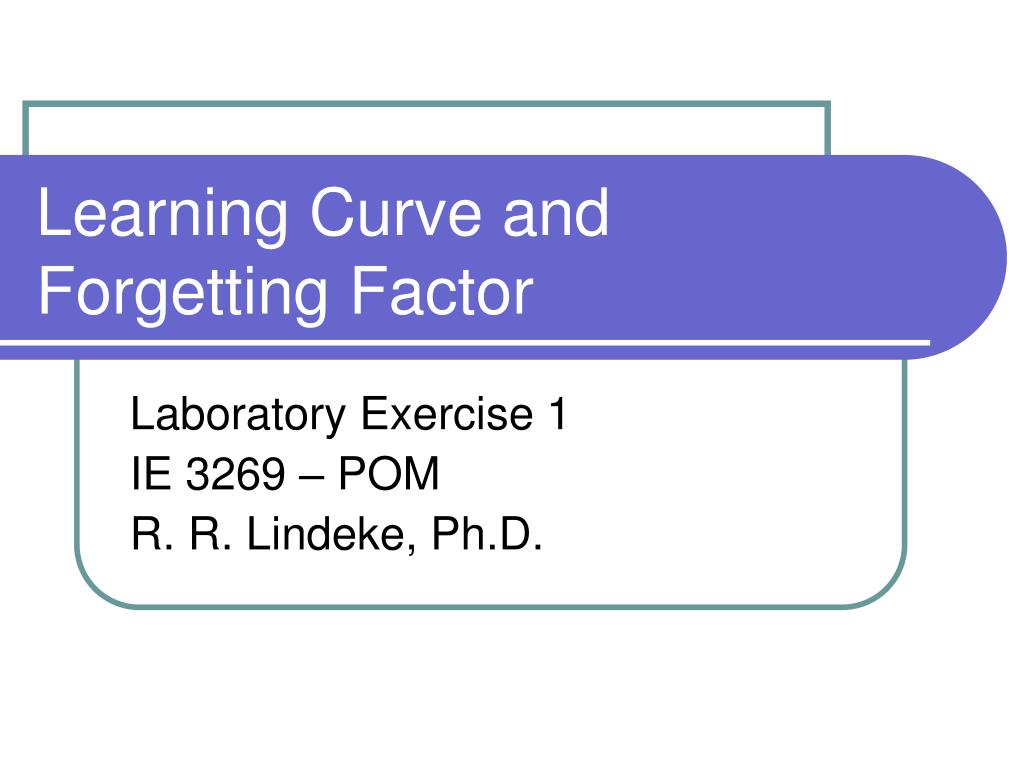

Learning Curve and Forgetting Factor

Laboratory Exercise 1

IE 3269 – POM

R. R. Lindeke, Ph.D.

general ideas on learning

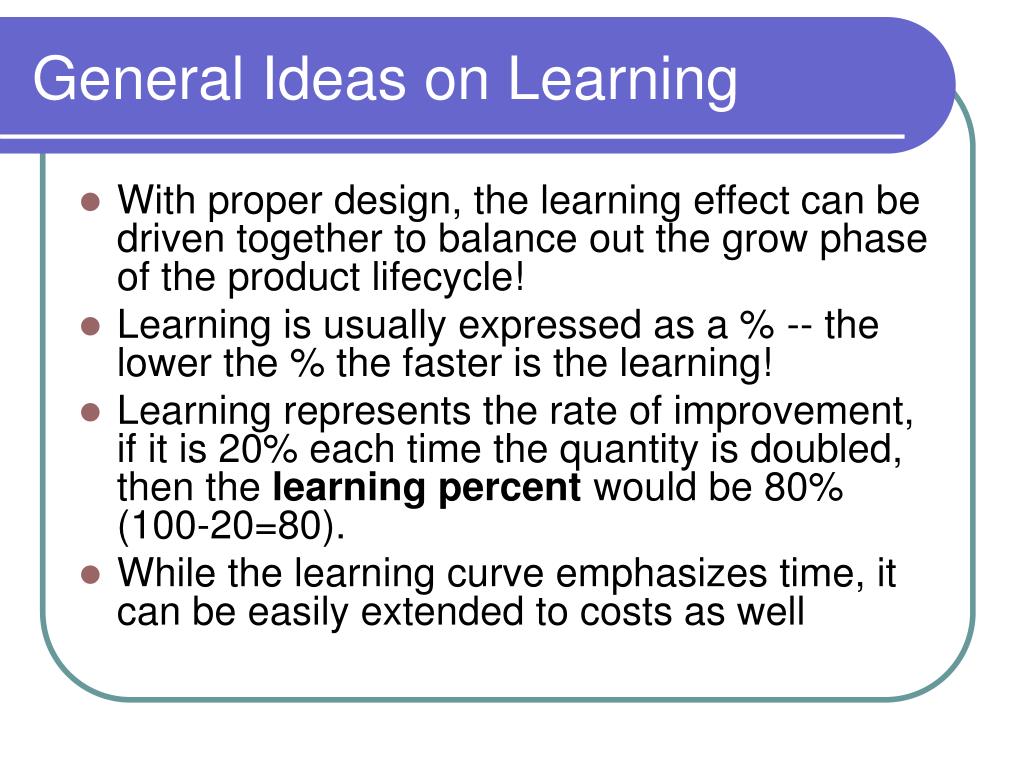

General Ideas on Learning
  • With proper design, the learning effect can be driven together to balance out the grow phase of the product lifecycle!
  • Learning is usually expressed as a % -- the lower the % the faster is the learning!
  • Learning represents the rate of improvement, if it is 20% each time the quantity is doubled, then the learning percent would be 80% (100-20=80).
  • While the learning curve emphasizes time, it can be easily extended to costs as well
modeling learning behavior
Modeling Learning Behavior
  • The learning behavior of systems and individuals is consider to follow this model:
  • b is a decimal value (<1) that relates the improvement seen as repetitions increase

y = axb

y - time to assemble the xth unit

a - time to assemble the 1st unit

b - measure of "Learning Rate"

x - unit number

working with data in the learning experiment
Working with data in the Learning Experiment
  • When building a Learning Curve, we should perform a linearization operation and find a “least squares” regression fit to our experimental data set
  • To linearize our data set, compute the Log (base 10 or base e) of observed times and unit number of repetition
  • The ‘intercept’ of the fitted line (log data plotted on a linear axis!) is the log(a) value for the linear fit (a as defined above)
  • The slope of the fitted line is the b value in the learning curve equation
    • And note: Learning Rate = 10^(b*log2)
computing b by hand uses selected data when observed unit number doubles
Computing ‘b’ – by hand uses selected data when observed unit number doubles
  • Using the learning ideas stated above
    • b = log(time-ratiounits double)/log(2)
  • This equation can be used as a spot check, real slope, and thus real learning rate, is computed by regression using all our observations!
learning in the limit
Learning “In the Limit”
  • Mathematically, we can see that if we are positively learning, the b value is a negative number (indicating a decimal value b<1)
  • Eventually, the time to assembly or perform any learnable task will approach an asymptotic value that is controlled by the time it takes the ideal worker to accomplish all the required steps – this is a number that can be computed using (micro) motion analysis and the various steps needed
  • Our learning curves will eventually fail to predict expected times for performing an activity (they will eventually underestimate actual times)
considering the forgetting factor

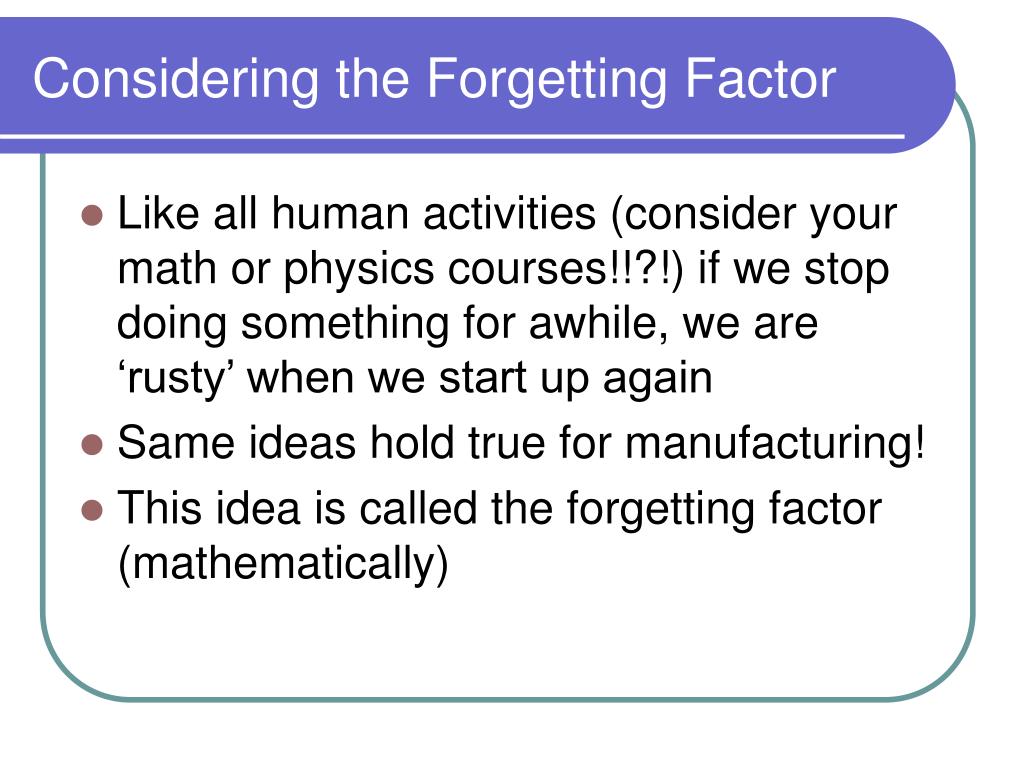

Considering the Forgetting Factor
  • Like all human activities (consider your math or physics courses!!?!) if we stop doing something for awhile, we are ‘rusty’ when we start up again
  • Same ideas hold true for manufacturing!
  • This idea is called the forgetting factor (mathematically)
computing ff effects

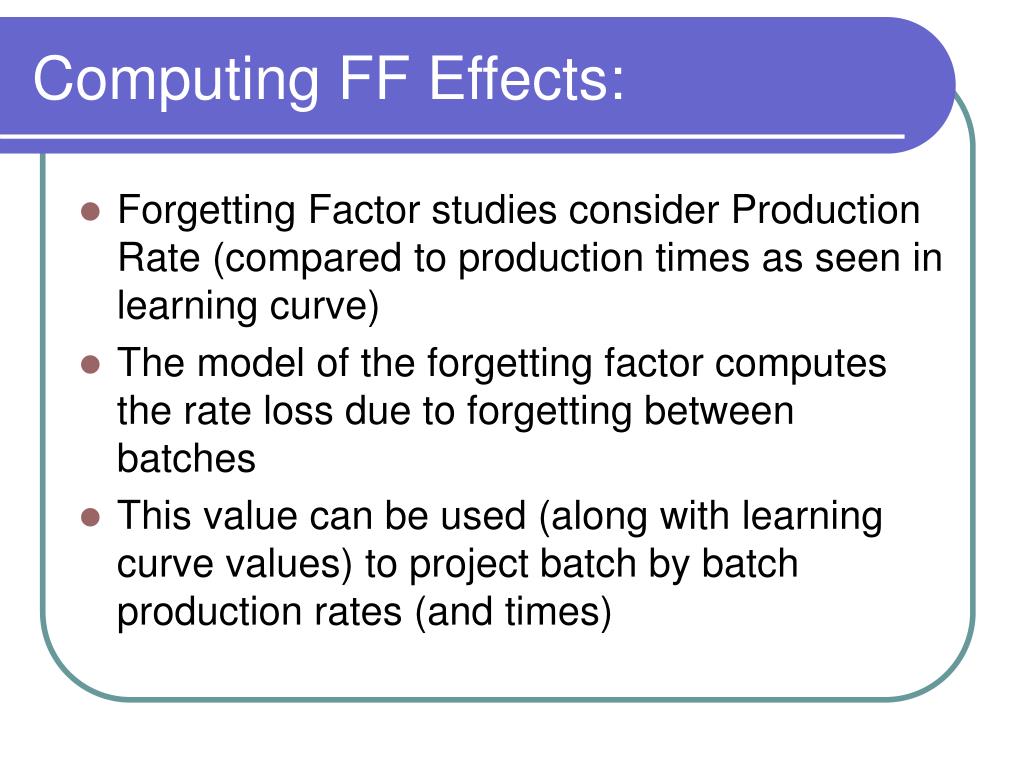

Computing FF Effects:
  • Forgetting Factor studies consider Production Rate (compared to production times as seen in learning curve)

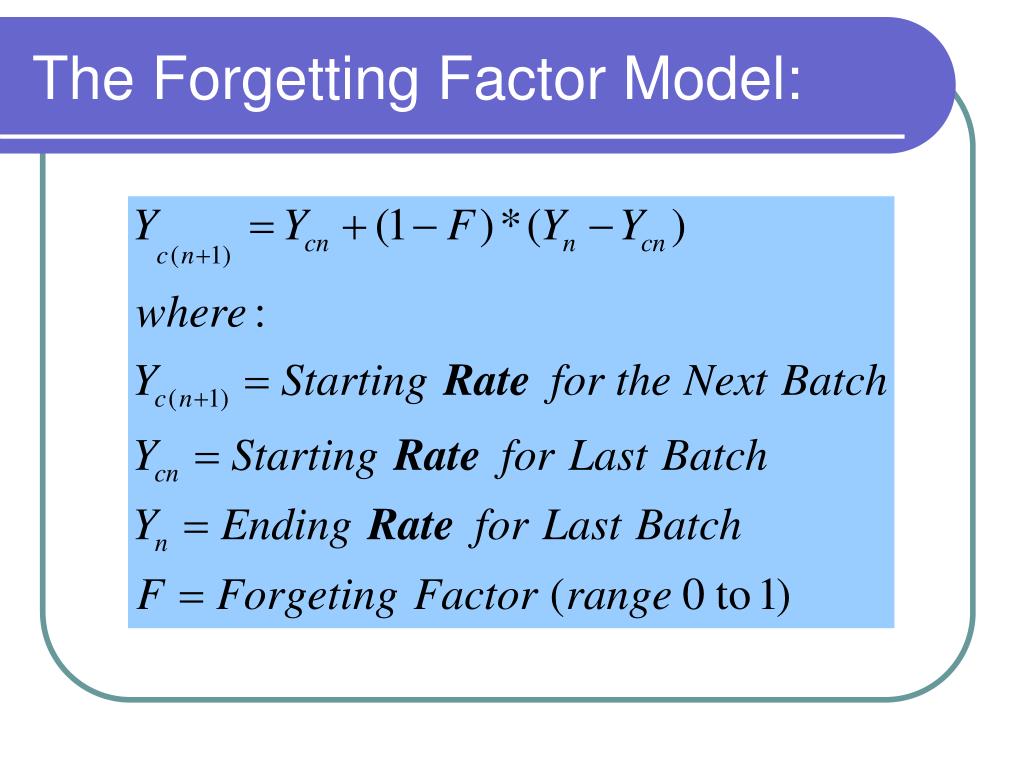

  • The model of the forgetting factor computes the rate loss due to forgetting between batches
  • This value can be used (along with learning curve values) to project batch by batch production rates (and times)
projecting forward to 601 w ff

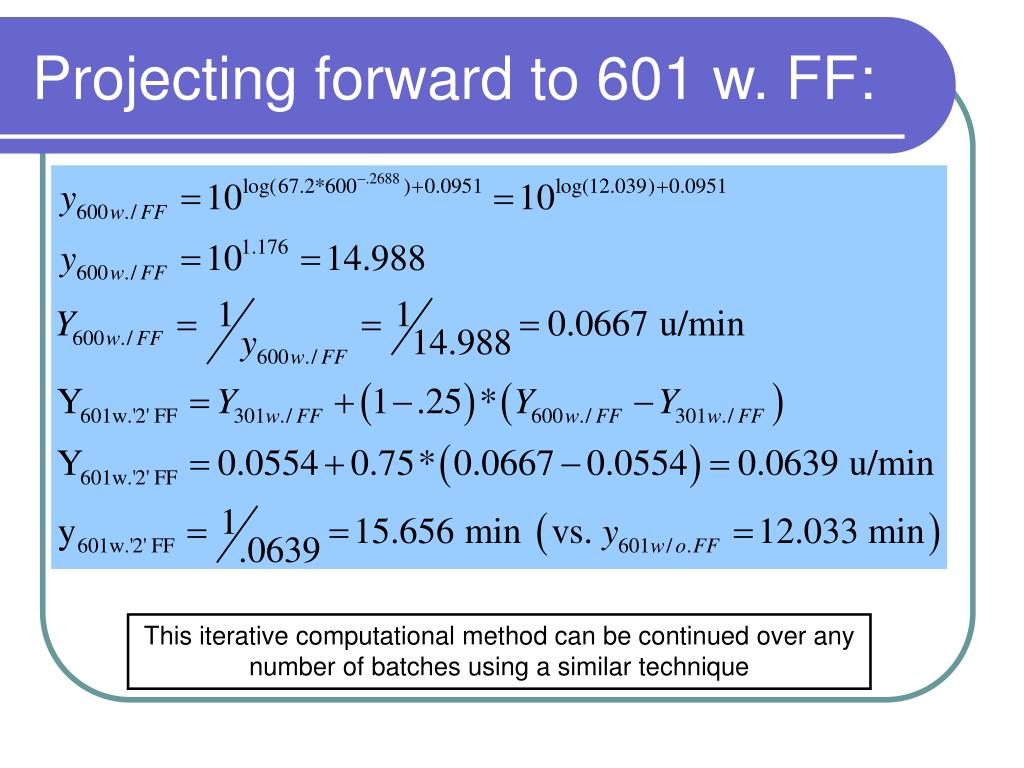

Projecting forward to 601 w. FF:

This iterative computational method can be continued over any number of batches using a similar technique

using batch predictors
Using Batch Predictors:
  • These are effective during interrupted processing
  • They are obsolete once asymptotic times are reached (unit times are a constant)
  • They do not hold if forgetting factors are “in play”

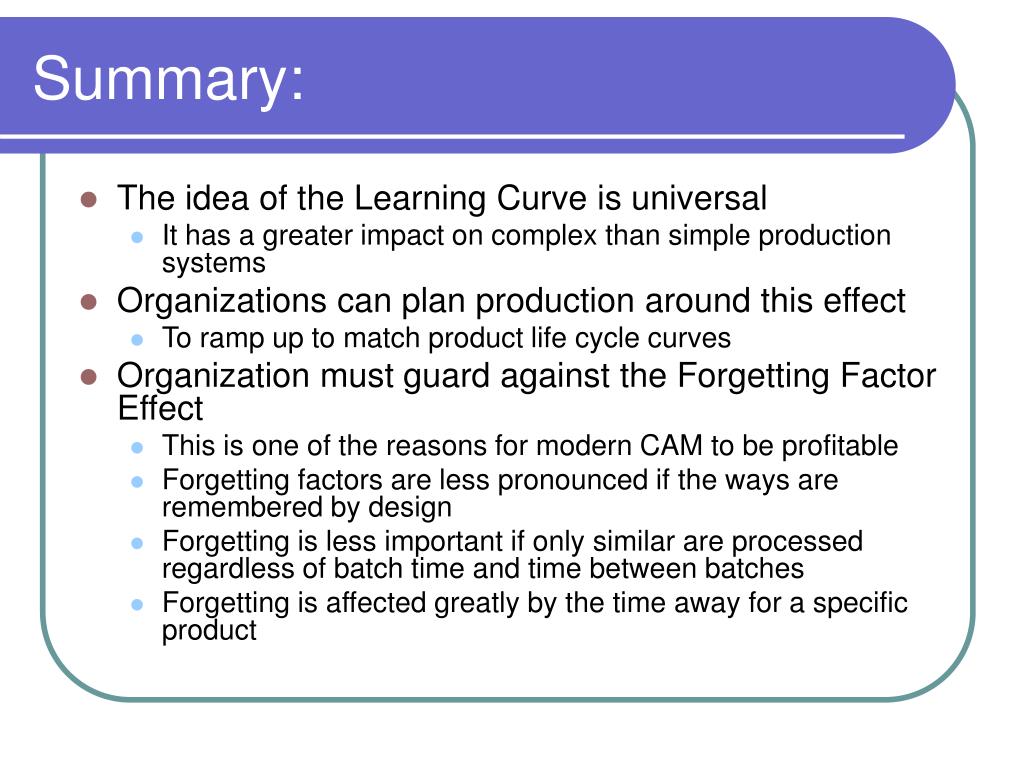

  • The idea of the Learning Curve is universal
    • It has a greater impact on complex than simple production systems
  • Organizations can plan production around this effect
    • To ramp up to match product life cycle curves
  • Organization must guard against the Forgetting Factor Effect
    • This is one of the reasons for modern CAM to be profitable
    • Forgetting factors are less pronounced if the ways are remembered by design
    • Forgetting is less important if only similar are processed regardless of batch time and time between batches
    • Forgetting is affected greatly by the time away for a specific product
summary typical learning rates by operation mix

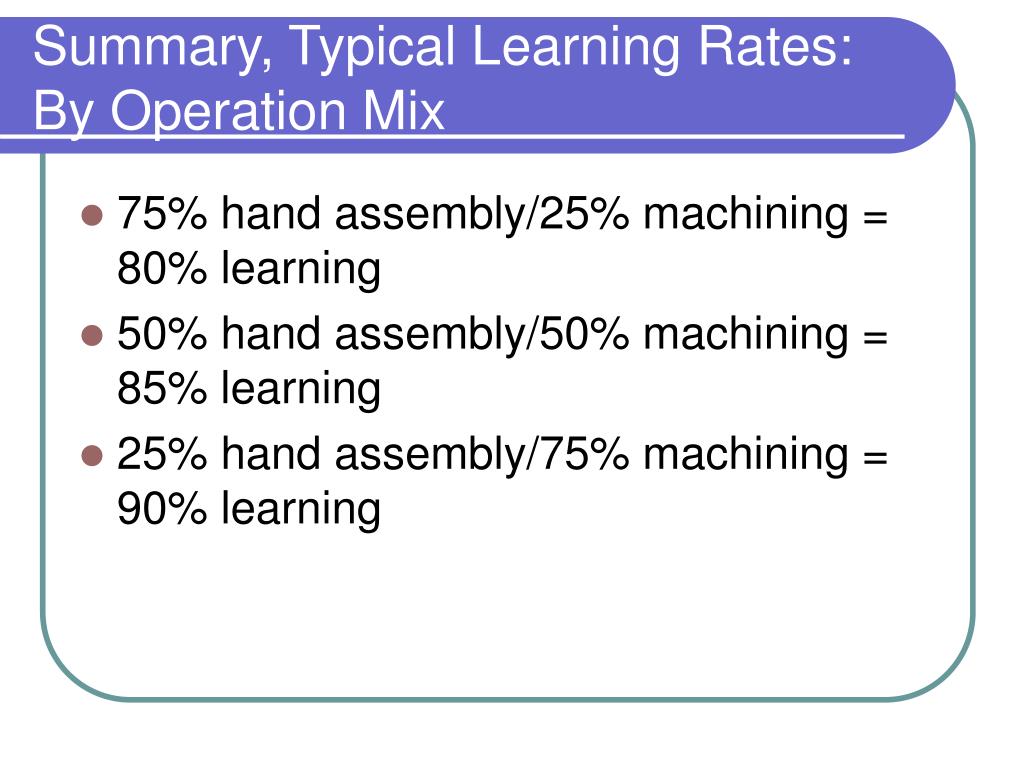

Summary, Typical Learning Rates: By Operation Mix
  • 75% hand assembly/25% machining = 80% learning
  • 50% hand assembly/50% machining = 85% learning
  • 25% hand assembly/75% machining = 90% learning
summary typical learning rates by industry
Summary, Typical Learning Rates: By Industry
  • Aerospace 85%
  • Shipbuilding 80-85%
  • Complex machine tools for new models 75-85%
  • Repetitive electronics manufacturing 90-95%
  • Repetitive machining or punch-press operations 90-95%
  • repetitive electrical operations 75-85%
  • Repetitive welding operations 90%
  • Raw materials 93-96%
  • Purchased Parts 85-88%
