  1. SİMÜLASYON DERS 14 Prof. Dr. Hüseyin BAŞLIGİL

  2. IV. İLERİ PROSES MODÜLLERİ 103 slayt

  3. 1. DELAY 103 slayt

  4. 103 slayt

  5. 2. DROPOFF 103 slayt

  6. 103 slayt

  7. 3. HOLD (TUTMA) 103 slayt

  8. 103 slayt

  9. 103 slayt

  10. 4. MATCH (BİRLEŞTİRME) 103 slayt

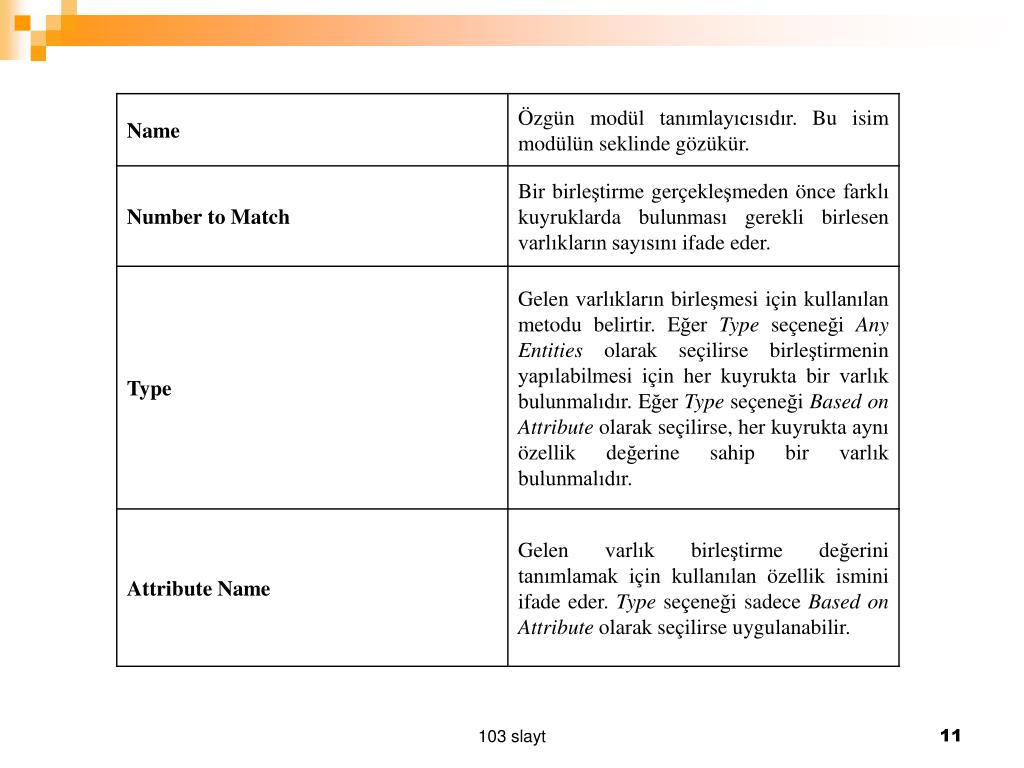

  11. 103 slayt

  12. 5. PICKUP (KALDIRMA) 103 slayt

  13. 103 slayt

  14. 6. READWRITE (VERİ OKUMA) 103 slayt

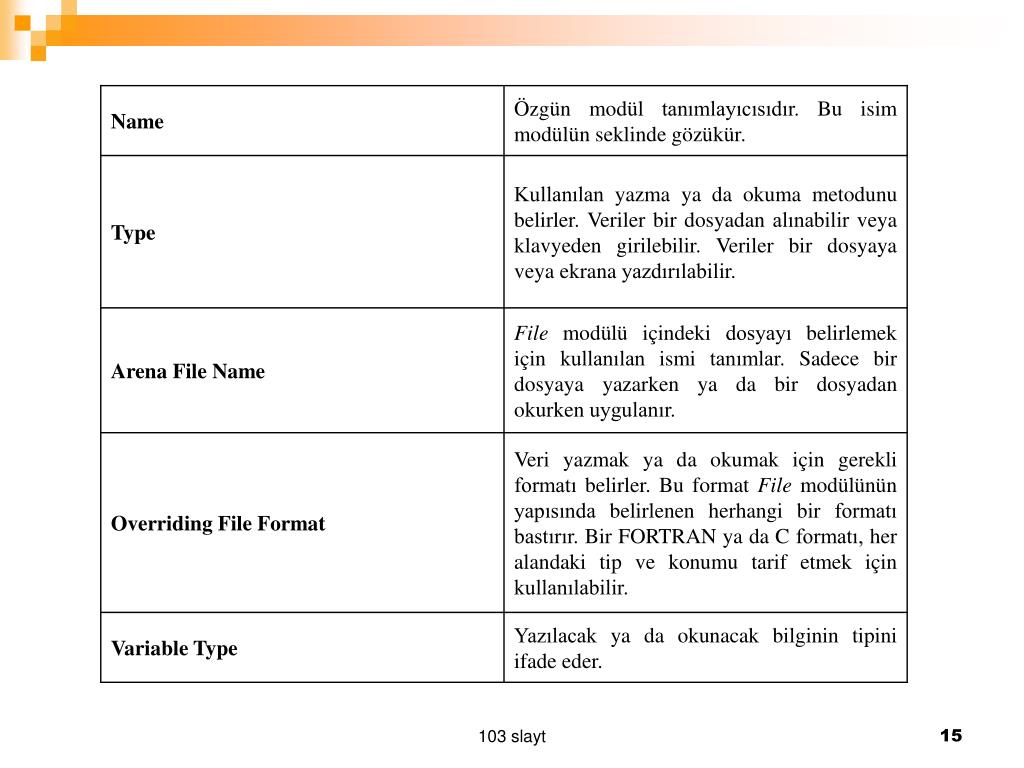

  15. 103 slayt

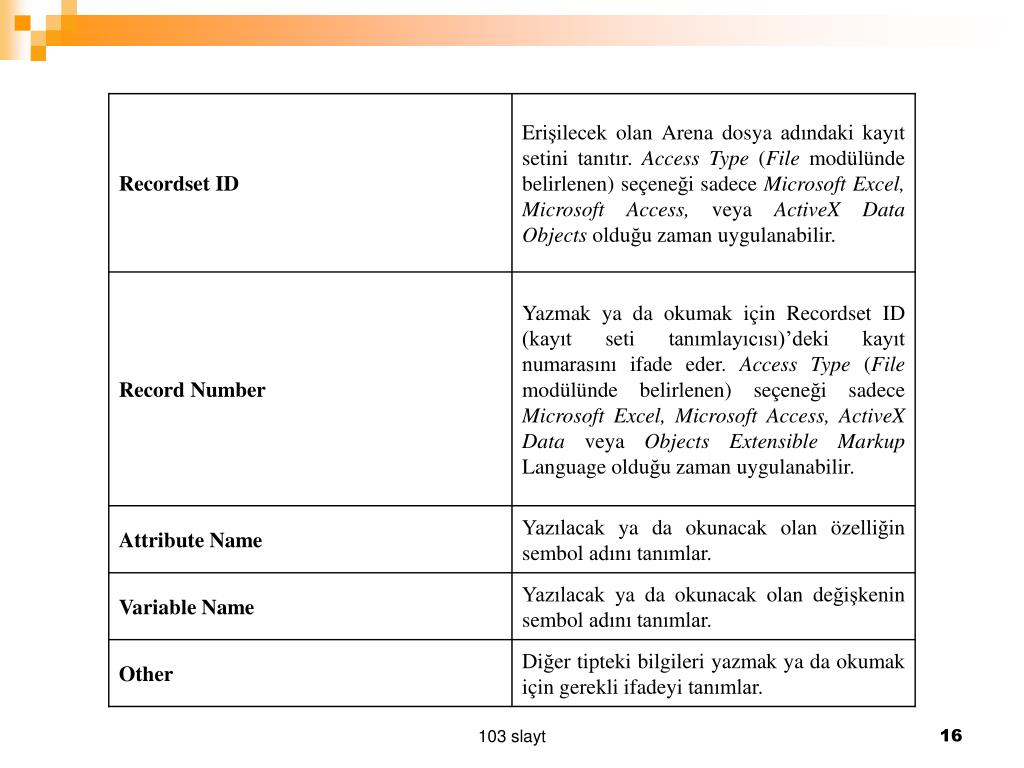

  16. 103 slayt

  17. 7. RELEASE (SERBEST BIRAKMA) 103 slayt

  18. 103 slayt

  19. 8. REMOVE (YERİNİ DEĞİŞTİRME) 103 slayt

  20. 103 slayt

  21. 9. SEIZE (ELE GEÇİRME) 103 slayt

  22. 103 slayt

  23. 103 slayt

  24. 10. SEARCH (ARAMA) 103 slayt

  25. 103 slayt

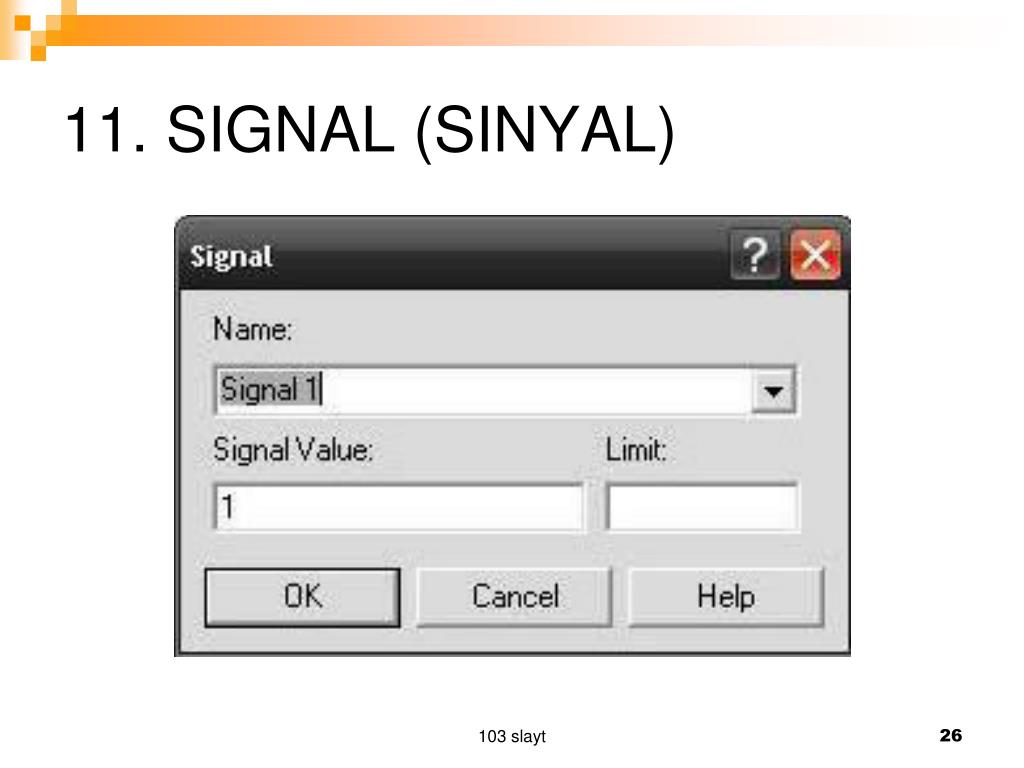

  26. 11. SIGNAL (SINYAL) 103 slayt

  27. 103 slayt

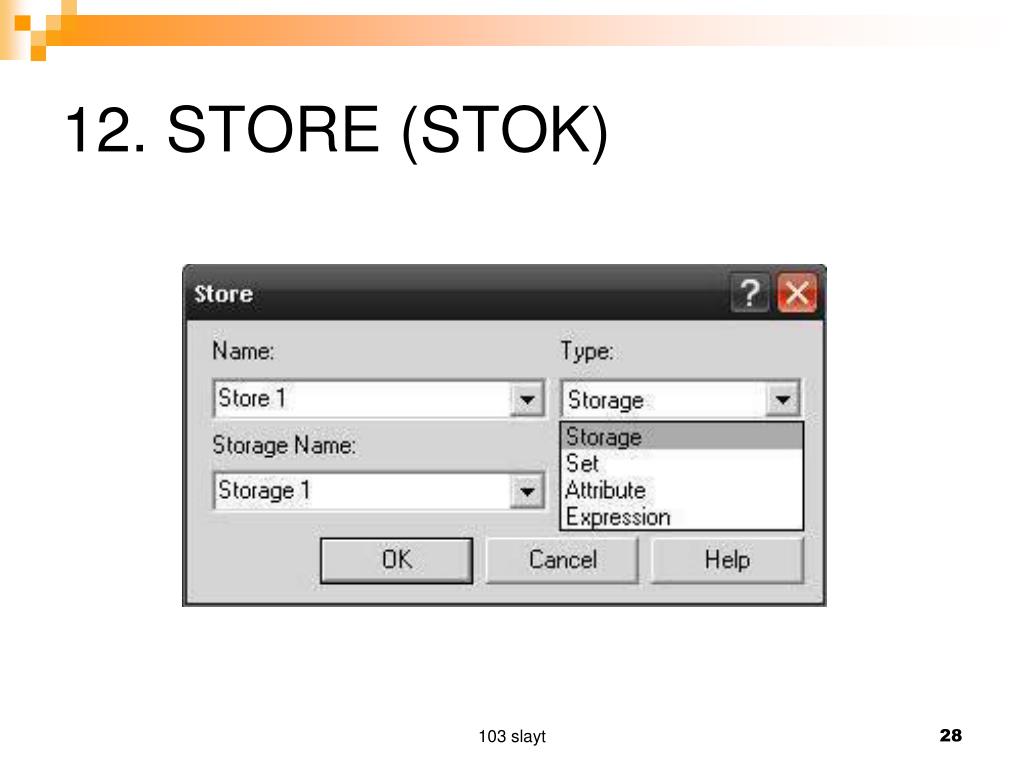

  28. 12. STORE (STOK) 103 slayt

  29. 103 slayt

  30. 13. UNSTORE (STOKTAN AYIRMA) 103 slayt

  31. 103 slayt

  32. 14. ADVANCED SET (İLERİ SET) 103 slayt

  33. 103 slayt

  34. 15. EXPRESSION (ANLATIM) 103 slayt

  35. 103 slayt

  36. 16. FAILURE (BOZUKLUK) 103 slayt

  37. 103 slayt

  38. 17. FILE (DOSYA) 103 slayt

  39. 103 slayt

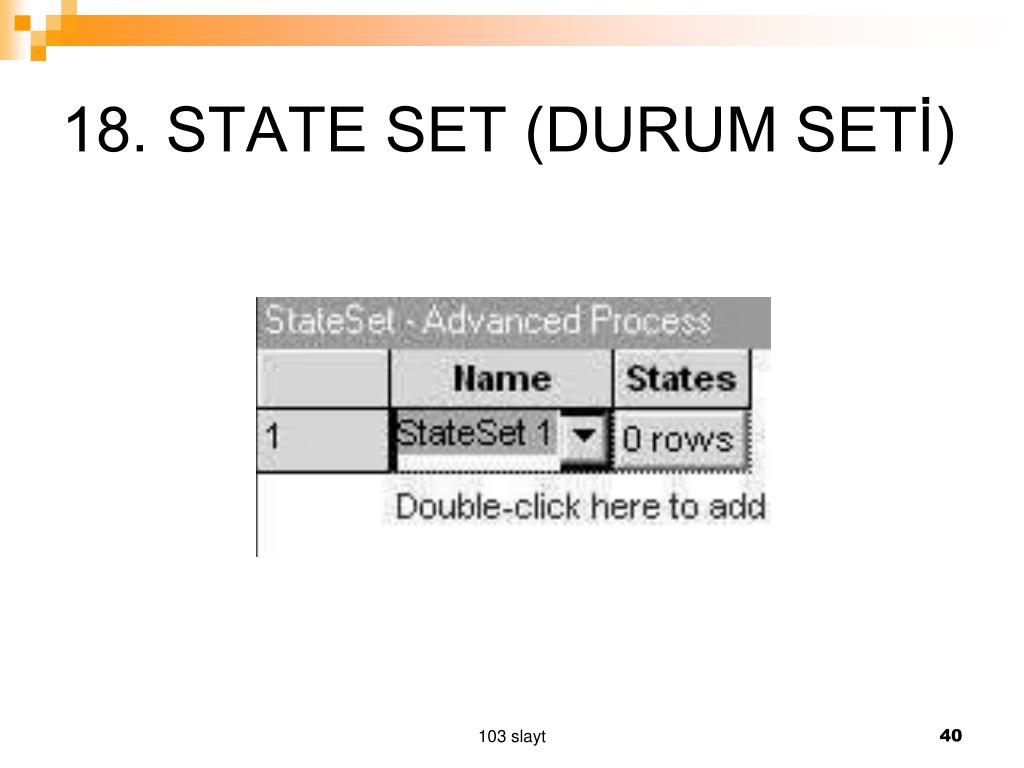

  40. 18. STATE SET (DURUM SETİ) 103 slayt

  41. 103 slayt

  42. 19. STATISTIC (İSTATİSTİK) 103 slayt

  43. 103 slayt

  44. 103 slayt

  45. 103 slayt

  46. 20. STORAGE (STOK) 103 slayt

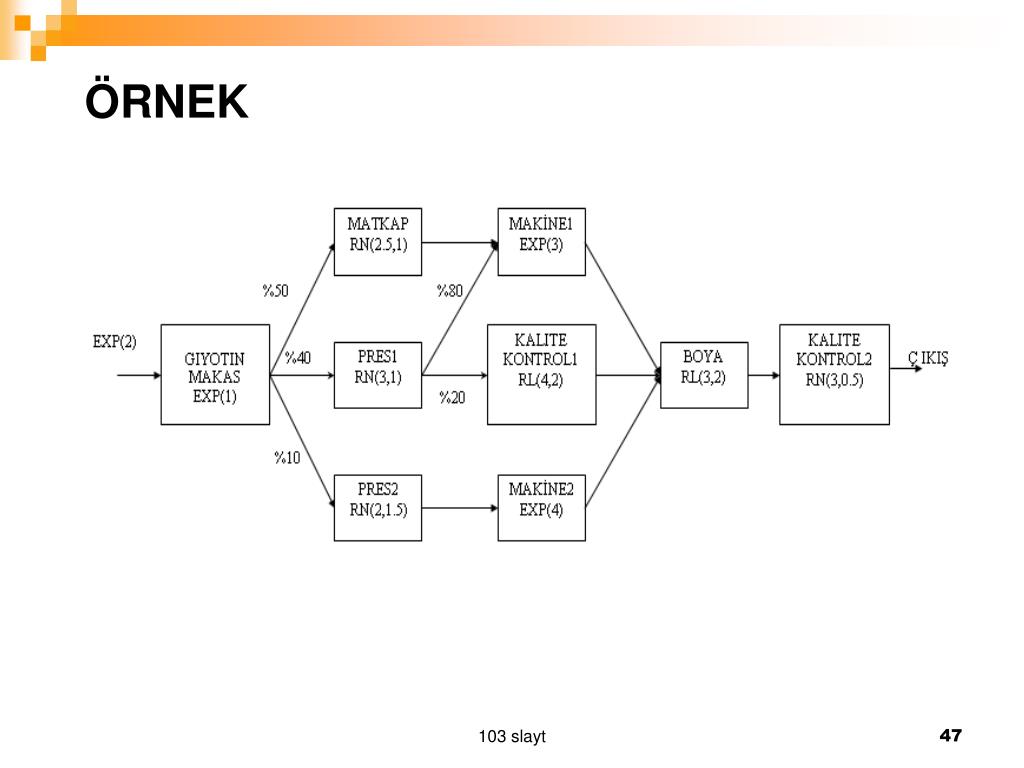

  47. ÖRNEK 103 slayt

  48. BEGIN; CREATE:EX(1,1):MARK(1); ASSIGN:A(2)=1; GYTNMKS QUEUE,1; SEIZE:GIYOTIN; DELAY:EX(2,1); RELEASE:GIYOTIN; BRANCH,3: WITH,.5,MATKAP: WITH,.4,PRES1: WITH,.1,PRES2; PRES2 QUEUE,2; SEIZE:P2; DELAY:RN(3,1); RELEASE:P2; MAKINE2 QUEUE,3; SEIZE:M2; DELAY:EX(4,1); RELEASE:M2:NEXT(BOYA); PRES1 QUEUE,4; SEIZE:P1; DELAY:RN(5,1); RELEASE:P1; BRANCH,2: WITH,.8,MAKINE1: WITH,.2,KK1; Model dosyası 103 slayt

  49. MATKAP QUEUE,5; SEIZE:MTKP; DELAY:RN(6,1); RELEASE:MTKP; MAKINE1 QUEUE,6; SEIZE:M1; DELAY:EX(7,1); RELEASE:M1:NEXT(BOYA); KK1 QUEUE,7; SEIZE:K1; DELAY:RL(8,1); RELEASE:K1; BOYA QUEUE,8; SEIZE:BY; DELAY:RL(9,1); RELEASE:BY; KK2 QUEUE,9; SEIZE:K2; DELAY:RN(10,1); RELEASE:K2; COUNT:1,A(2); TALLY:1,INT(1):DISPOSE; END; 103 slayt

  50. BEGIN; PROJECT,ORNEK2,AYLIN SEN,05/05/2008; DISCRETE,1000,5,20; PARAMETERS:1,2:2,1:3,2,1.5:4,4:5,3,1:6,2.5,1:7,3:8,4,2:9,3,2:10,3,.5; RESOURCES:1,GIYOTIN:2,P2:3,M2:4,P1:5,MTKP:6,M1:7,K1:8,BY:9,K2; TALLIES:1,SISTEM ZAMANI; DSTAT:1,NQ(1),GIYOTIN KUYRUGU: 2,NQ(5),MATKAP KUYRUGU: 3,NQ(4),PRES1 KUYRUGU: 4,NQ(2),PRES2 KUYRUGU: 5,NQ(6),MAKINE1 KUYRUGU: 6,NQ(7),KALITEKON1 KUYRUGU: 7,NQ(3),MAKINE2 KUYRUGU: 8,NQ(8),BOYA KUYRUGU: 9,NQ(9),KALITEKON2 KUYRUGU: 10,NR(1),GIYOTIN KULLANIMI: 11,NR(2),PRES2 KULLANIMI: 12,NR(3),MAKINE2 KULLANIMI: 13,NR(4),PRES1 KULLANIMI: 14,NR(5),MATKAP KULLANIMI: 15,NR(6),MAKINE1 KULLANIMI: 16,NR(7),KALITEKON1 KULLANIMI: 17,NR(8),BOYA KULLANIMI: 18,NR(9),KALITEKON2 KULLANIMI; COUNTERS:1,PARCA SAYISI; REPLICATE,1,0,100; END; Deney dosyası 103 slayt
