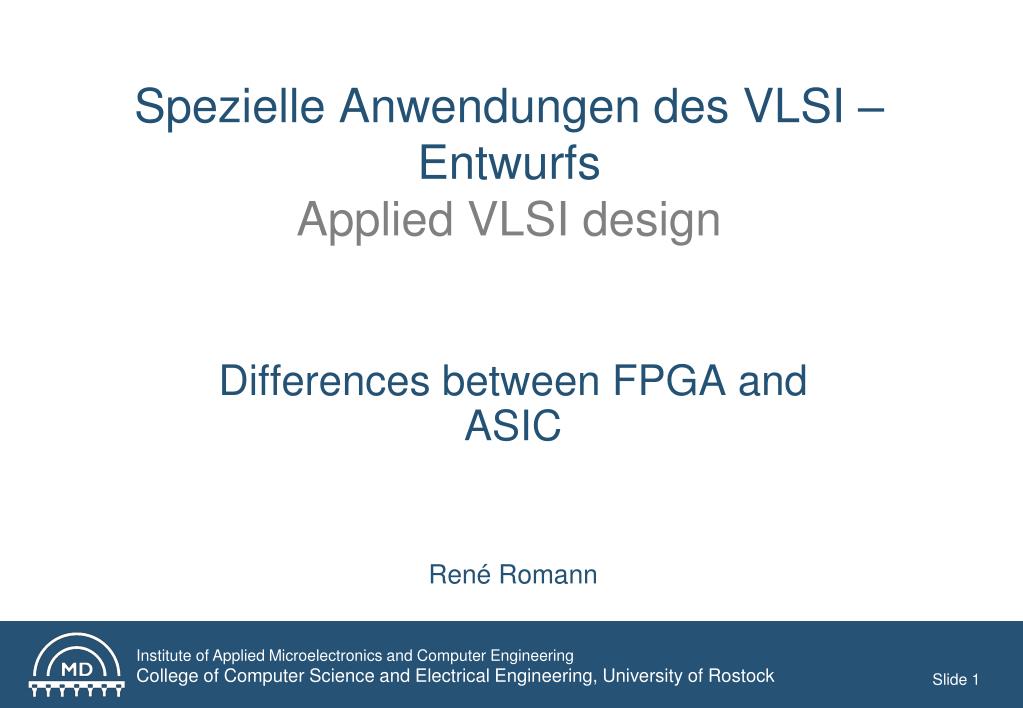

  1. SpezielleAnwendungen des VLSI – EntwurfsApplied VLSI design • Differences between FPGA and ASIC • René Romann Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 1

  2. Overview FPGA vs. ASIC Usage fields Prices Performance differences (on carry-propagate-adders) Summary Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 2

  3. 1. FPGA vs. ASIC • FPGA • FPGA consists of Slices • Slice contains LUTsAND Registers • Slices connected viaInterconnection network(wires & switches) Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 3

  4. 1. FPGA vs. ASIC • FPGA • FPGA consists of Slices • Slice contains LUTsAND Registers • Slices connected viaInterconnection network(wires & switches) • ASIC • Contains standard cells • Cells operate as logic OR register • Cells connected directly via wires (no switching) Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 4

  5. 2. Usage fields • FPGA • For testing series • Cheaper for small series • Can be reprogrammed iffaulty logic was loaded • ASIC • For field production • Cheap if built in mass • No reprogramming possible Faulty logic  waste Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 5

  6. 3. Prices • FPGA • Pricing depends on no. of logic cells and interconnections: • 238 Cells: $8.68 [2] • Virtex5 with 5,455,872 RAM bits: $1,576.00 [3] • Virtex6 with 26,542,080 RAM bits: $23,237.50 [4] • Virtex7 [not released yet]: $54,492.65 [5] • ASIC • Pricing depends on chip size, no. of gates, no. of layers, technology size • Masks for chip production on a wafer cost more than $500.000 [6] • Additional costs for wafer, process… Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 6

  7. 4. Performance differences • FPGA mostly slower than ASICdue to: • Slice/CLB interconnection • Slice distribution • But: • FPGA can contain speed-up resources • e.g. Virtex5 – Carry path (compare picture [1]) Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 7

  8. 4. Performance differences – 32bit adders Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 8

  9. 5. Summary • FPGA for testing and small applications • ASIC for mass production • FPGA mostly slower than ASIC • ASICs have less power consumption Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide 9

  10. Sources [1] Slice-Pictures from Virtex 5, Virtex 5 User Guide, Xilinx, p. 174ffhttp://www.xilinx.com/support/documentation/user_guides/ug190.pdf [2] Price for single SpartanXL chip XCS05XL-4VQG100C, avnet.comhttp://avnetexpress.avnet.com/store/em/EMController/FPGA/Xilinx/XCS05XL-4VQG100C/_/R-1484451/A-1484451/An-0?action=part&catalogId=500201&langId=-1&storeId=500201&listIndex=-1 [3] Price for single FPGA chip – Virtex 5 XC5VFX70T-1FFG1136I, avnet.comhttp://avnetexpress.avnet.com/store/em/EMController/FPGA/Xilinx/XC5VFX70T-1FFG1136I/_/R-8245104/A-8245104/An-0?action=part&catalogId=500201&langId=-1&storeId=500201&listIndex=-1 [4] Price for single FPGA chip – Virtex 6 XC6VLX760-L1FF1760I, avnet.comhttp://avnetexpress.avnet.com/store/em/EMController/FPGA/Xilinx/XC6VLX760-L1FF1760I/_/R-12848106/A-12848106/An-0?action=part&catalogId=500201&langId=-1&storeId=500201&listIndex=-1 [5] Price for single FPGA chip – Virtex 7 XC7VX1140T-G2FL1933E, avnet.comhttp://avnetexpress.avnet.com/store/em/EMController/Xilinx/XC7VX1140T-G2FL1933E/_/R-5002609600522/A-5002609600522/An-0?action=part&catalogId=500201&langId=-1&storeId=500201&listIndex=-1 Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide I

  11. Sources [6] Kosten pro Wafer, Abb. 4.36; Nanotechnologie, BundesamtfürSicherheit in der Informationstechnik, 2007, https://www.bsi.bund.de/SharedDocs/Downloads/DE/BSI/Publikationen/Studien/Nanotechnologie/Nanotechnologie_pdf.pdf?__blob=publicationFile Institute of Applied Microelectronics and Computer Engineering College of Computer Science and Electrical Engineering, University of Rostock Slide II
