  1. Phonation PhysiologyChapter 5 Perry C. Hanavan, AuD

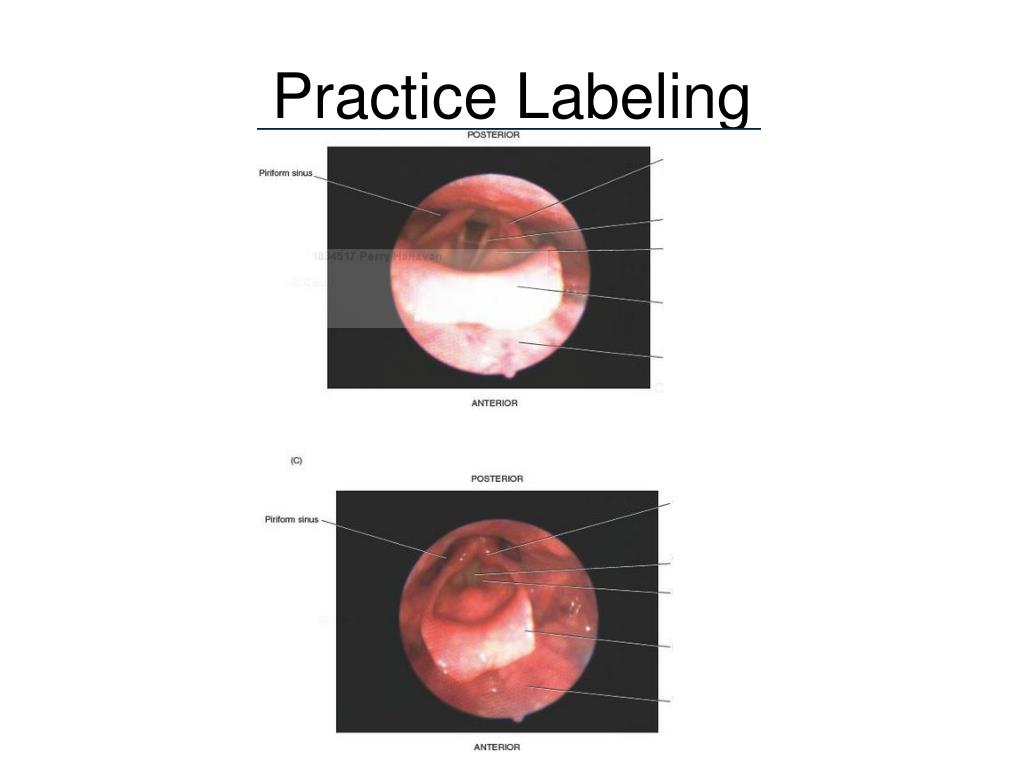

  2. Practice Labeling

  3. Review

  4. Question Which non-speech function is helpful for lifting or pushing heavy objects? • Coughing • Abdominal fixation • Throat clearing • Swallowing reflex • All the above

  5. Larynx: Non-Speech Functions • Coughing • Abdominal fixation • Throat clearing • Swallowing reflex

  6. The Cough

  7. The Cough • Can voluntarily cough • Reflex triggered when irritant stimulates one or more cough receptors • Receptors transmit message to cough center in brain, telling body to cough • Cough begins with deep inhalation, at which point opening between vocal cords at upper part of larynx (glottis) shuts, trapping air in lungs • As diaphragm and other muscles press against lungs, vocal folds suddenly abduct, producing explosive outflow of air at speeds exceeding 100 miles per hour

  8. Question The Cough Reflex Test is a reliable test for • Detecting cancer • Detecting reflux • Detecting aspiration pneumonia in stroke patients • Detecting vocal nodules

  9. Nonspeech Laryngeal Function Cough Reflex • Visceral afferent branch of Vagus Nerve • Response to irritant of tissue of respiratory passageway to irritant or foreign object • Widely abducted vocal folds followed by tight adduction of vocal folds and elevation of larynx • Smokers less sensitive to cough-inducing irritants (which may have important medical implications) • Reflex cough test reliably evaluated the laryngeal cough reflex and the associated risk of developing aspiration pneumonia in stroke patients. • Testing the laryngeal cough reflex may significantly reduce morbidity, mortality, and costs in stroke patients. (Addington et al 1999)

  10. Abdominal Fixation • Process of capturing air in the thorax to provide the muscles with a structure on which to push or pull • i.e., lifting heavy objects, childbirth, etc.

  11. Clearing Throat

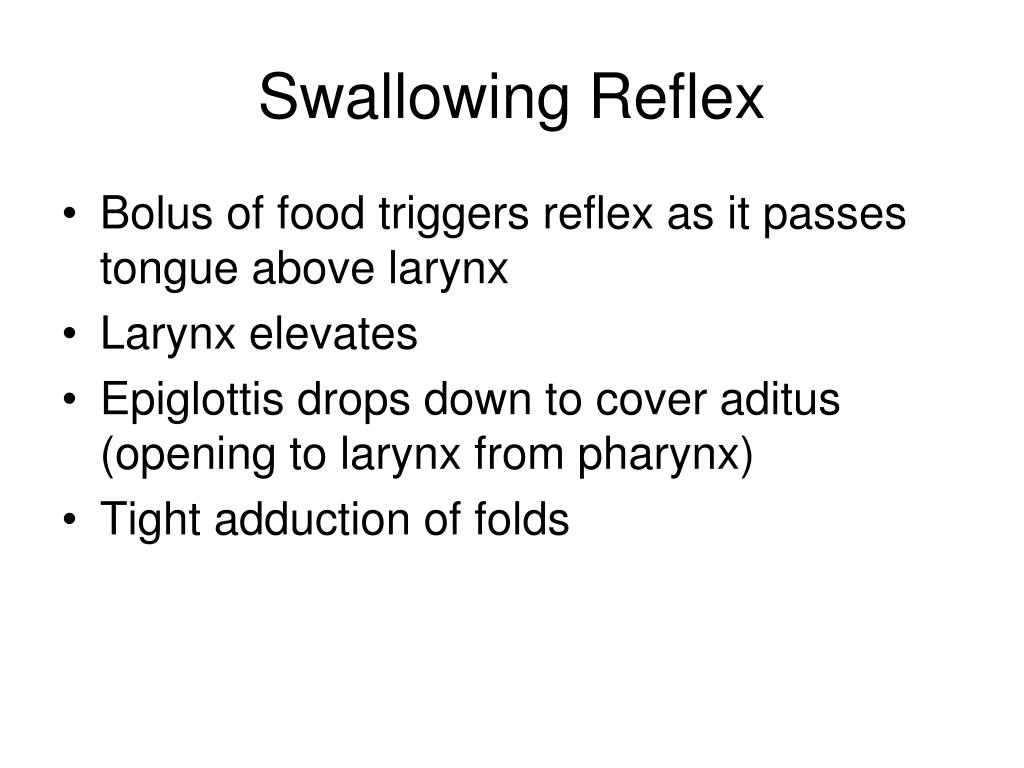

  12. Swallowing Reflex • Bolus of food triggers reflex as it passes tongue above larynx • Larynx elevates • Epiglottis drops down to cover aditus (opening to larynx from pharynx) • Tight adduction of folds

  13. Vocal Fold Functions

  14. Laryngeal Function for Speech • Attack • Simultaneous • Breathy • Glottal • Termination • Sustained phonation • Vocal register • Whispering

  15. Laryngeal Function for Speech • Attack - process of bringing folds together for phonation, requires muscles (three types): • Simultaneous - adduction and onset of exhalation occurs together • Breathy - airflow begins before phonation “hope”, Breathy phonation - failure to completely close folds • Glottal- used when word begins with stressed vowel, normal process (Hard glottal attack – damaging) • Termination - process of fold retraction (abduction) • Sustained phonation - requires maintenance of tonic (sustained tensing) of musculature (actual phonation does not require repeated adduction and abduction)

  16. Speech Function

  17. Vocal Folds • Phonation • Phonation • Fundamental • Harmonics • Habitual pitch • Optimal pitch • Average fundamental frequency

  18. Question Register or pattern of phonation used in daily conversations: • Falsetto • Whistle • Modal • Vocal fry • Whisper

  19. Vocal Register • Vocal register - differences in mode of vibration of vocal folds • Modal register - pattern of phonation used in daily conversations • Glottal fry- (rough voice) vibrating portion flaccid, lateral portion tensed resulting in strong medial compression with short, thick folds and low glottal pressure • Falsetto - long and extremely thin folds • Whistle register- turbulence on edge of vocal folds • Whispering - not actually phonatory because no voicing partially adducted and tensed to produce turbulence, strenuous and fatiguing

  20. Modal Register • Modal register or modal phonation refers to the pattern of phonation used in daily conversation • Example

  21. Vocal Fry

  22. Glottal Fry • Also known as pulse register or Strohbass (straw bass) • Vocal folds vibrate between 30 and 90 Hz • Frying pan sound of eggs frying • Low subglottal pressure • Tension of the vocalis is significantly reduced relative to modal vibration, so that the vibrating margin is flaccid and thick. The lateral portion of folds is tensed creating thick folds • Example

  23. Glottal Fry Vocal Fry

  24. Falsetto • A singing technique that produces sounds that are pitched higher than the singer's normal range • Vocal folds lengthened and become extremely thin • expansion and separation of vocal cords, in which case, only the edges of the vocal cord vibrate, not the entire vocal cord • used by male countertenors to sing in the alto range, before women sang in choirs. • It is a very common technique in soul music, and has also been made popular in heavy metal • How to sing falsetto • Falsetto Voice Phrases

  25. Whistle Register • Register above falsetto • (flageolet register) is the highest register of the human voice • Up to 2500 Hz in females • Product of turbulence on the edge of the vocal fold • Not considered a mode of vibration as product of turbulence • Mariah Carey • Mariah Carey

  26. Whispering • Not a phonatory mode • Voicing removed • Mariah Carey

  27. Question Maintaining childhood pitch despite having passed through puberty… • Aphonia • Puberphonia • Phonia fear • Non-phonia

  28. Puberphonia • Maintenance of the childhood pitch despite having passed through puberty • Puberphonia • Other voice disorders

  29. Gender & Age

  30. Vocal Length Change with Age

  31. Fundamental Frequency & Age

  32. Vocal Intensity vs. Vocal Fold Vibration

  33. 2 Vocal Fold Intensities

  34. Prosodic Feature of Question Form

  35. Laryngeal Stridor

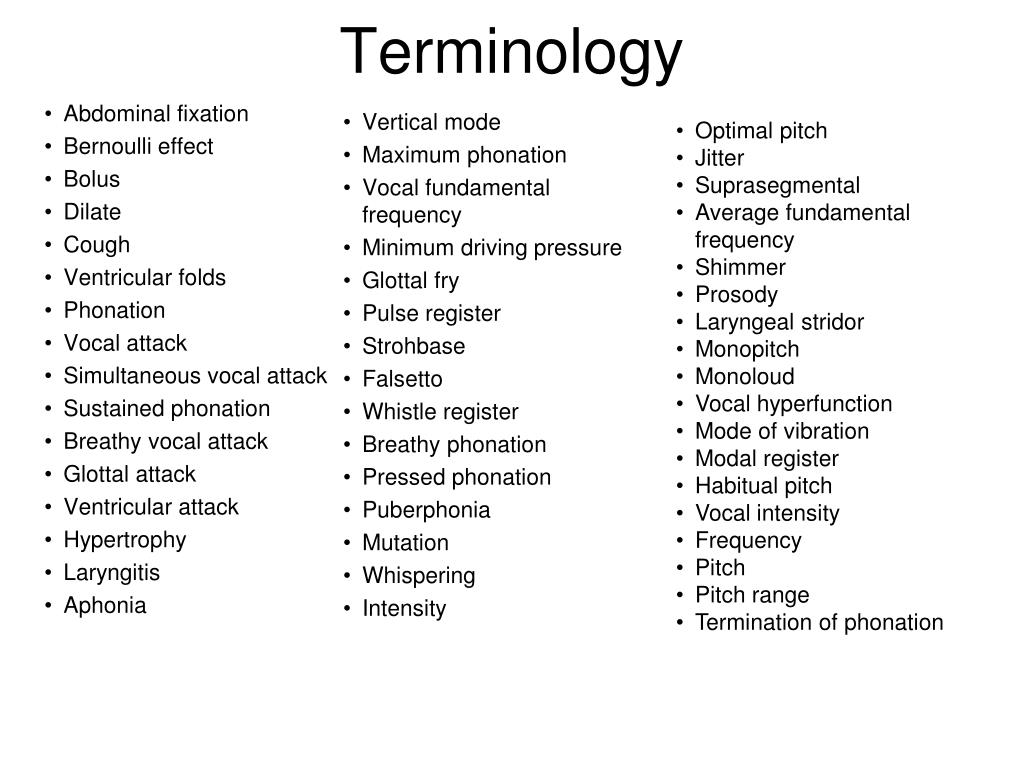

  36. Terminology • Optimal pitch • Jitter • Suprasegmental • Average fundamental frequency • Shimmer • Prosody • Laryngeal stridor • Monopitch • Monoloud • Vocal hyperfunction • Mode of vibration • Modal register • Habitual pitch • Vocal intensity • Frequency • Pitch • Pitch range • Termination of phonation • Abdominal fixation • Bernoulli effect • Bolus • Dilate • Cough • Ventricular folds • Phonation • Vocal attack • Simultaneous vocal attack • Sustained phonation • Breathy vocal attack • Glottal attack • Ventricular attack • Hypertrophy • Laryngitis • Aphonia • Vertical mode • Maximum phonation • Vocal fundamental frequency • Minimum driving pressure • Glottal fry • Pulse register • Strohbase • Falsetto • Whistle register • Breathy phonation • Pressed phonation • Puberphonia • Mutation • Whispering • Intensity

  37. Voice Disorders • Voice Doctor • Voice Disorders • Voice Doctor • Voice Disorders • Functional Voice Disorder • Disorders of the Larynx • Cancer of the Larynx
