Presentation Transcript

Blood is a heterogeneous mixture. It is a COLLOID, and has four main components

Red corpuscles (red

blood cells)

White corpuscles (white blood cells)

Plasma (fluid)


red blood cells
Red Blood Cells

Carry Oxygen and Carbon Dioxide with the help of Hemoglobin

They are produced in the bone marrow

They live only 3-4 months and have no nucleus

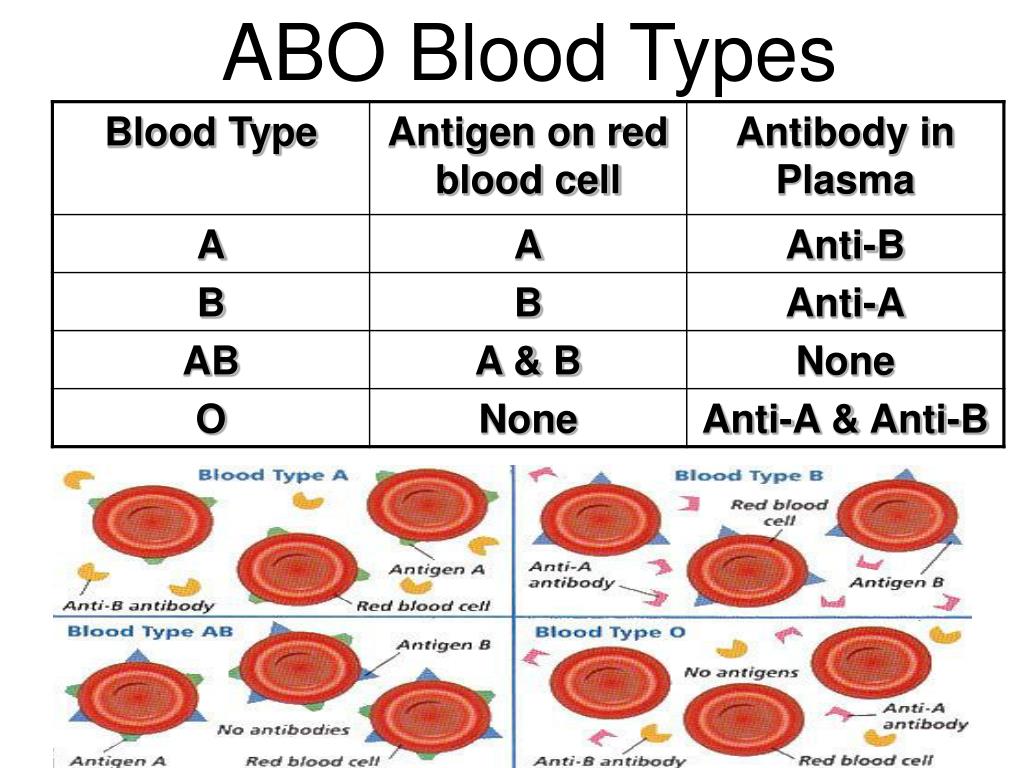

blood types
Blood Types

Red blood cells will have proteins which stick out. They are called Antigens

The opposite of antigens are Antibodies

If an antigen meets it’s antibody, they clump and form clots, which are BAD!!

rh antigen rhesus system
Rh antigen: Rhesus System

Blood, of all types, can also have an Rh antigen on them and there is an antibody for it.

If a person has this antigen, they will have a + next to their blood type (ex: A+ means they have the A and Rh antigen)

If a person does not have this antigen, they will have a – next to their blood type (ex: A- means they only have the A antigen)

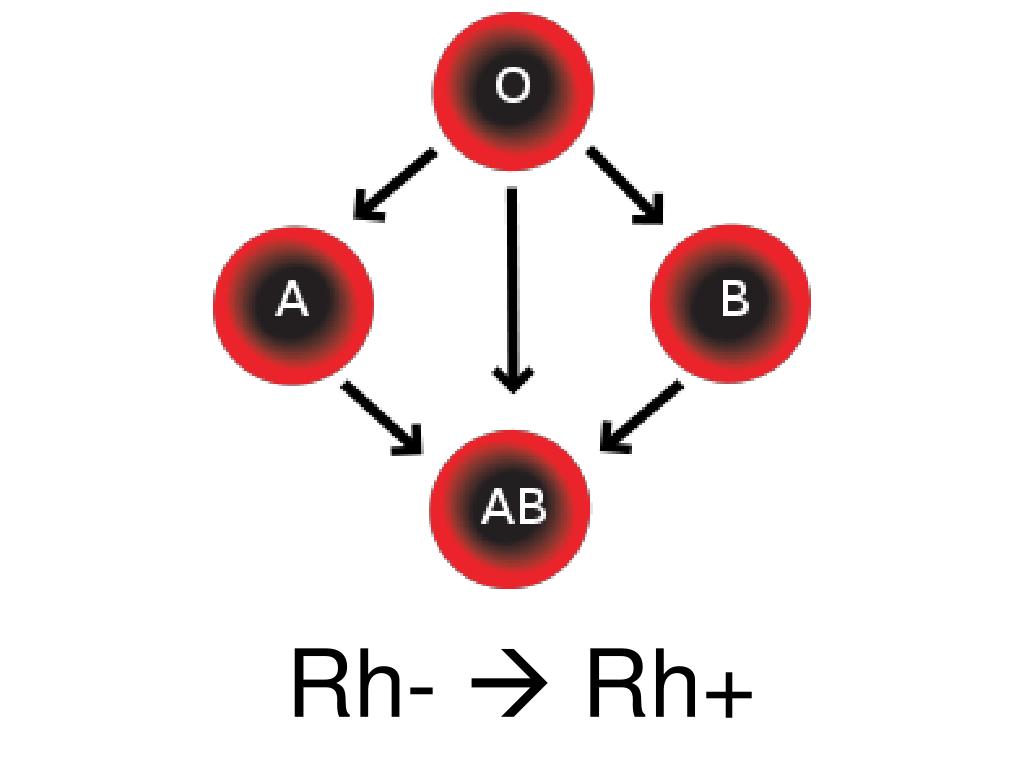

donors recipients

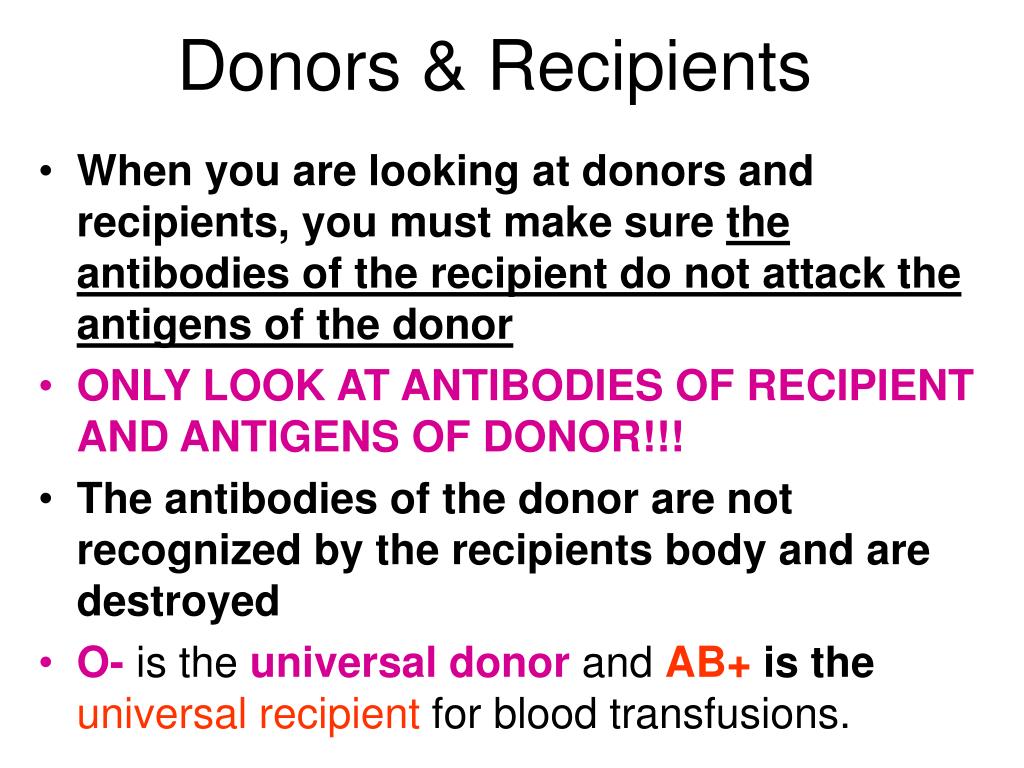

Donors & Recipients
  • When you are looking at donors and recipients, you must make surethe antibodies of the recipient do not attack the antigens of the donor
  • The antibodies of the donor are not recognized by the recipients body and are destroyed
  • O- is the universal donor and AB+is theuniversal recipient for blood transfusions.

It carries Nutrients and Hormones (chemical messages) to the cells

It carries Urea and Carbon dioxide away from the cells.

Plasma suspends red and white blood cells so they can flow through the body. It also has:

- clotting factor

- antibodies and

- carries off solid waste.

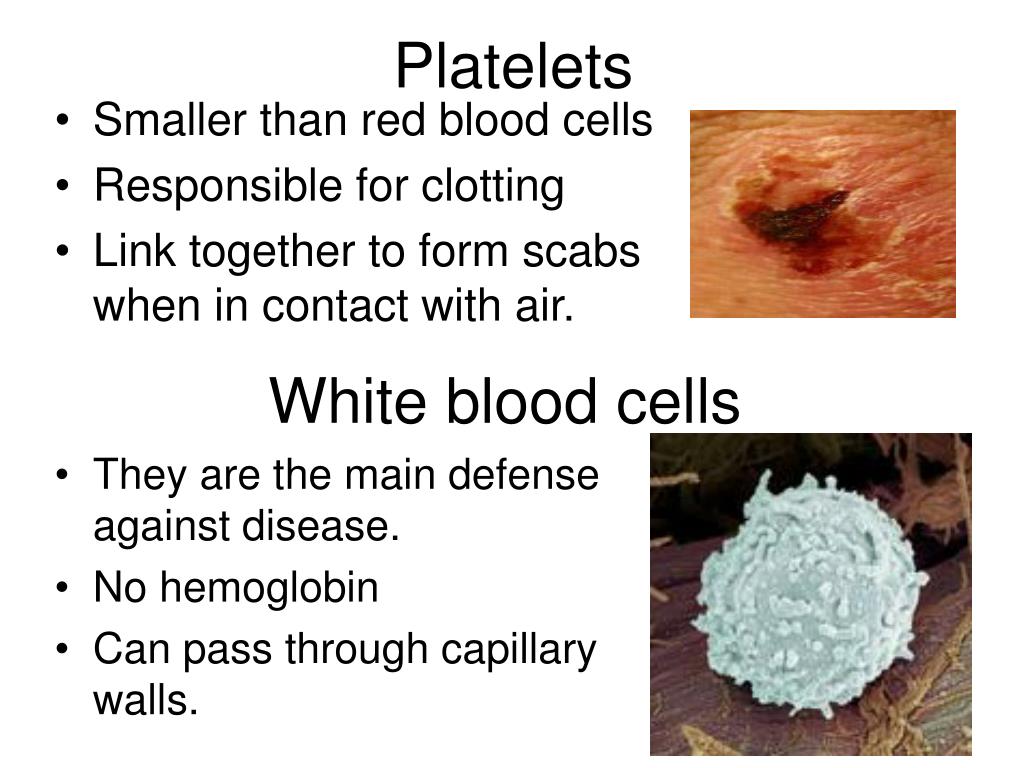

Smaller than red blood cells

Responsible for clotting

Link together to form scabs when in contact with air.

White blood cells

  • They are the main defense against disease.
  • No hemoglobin
  • Can pass through capillary walls.

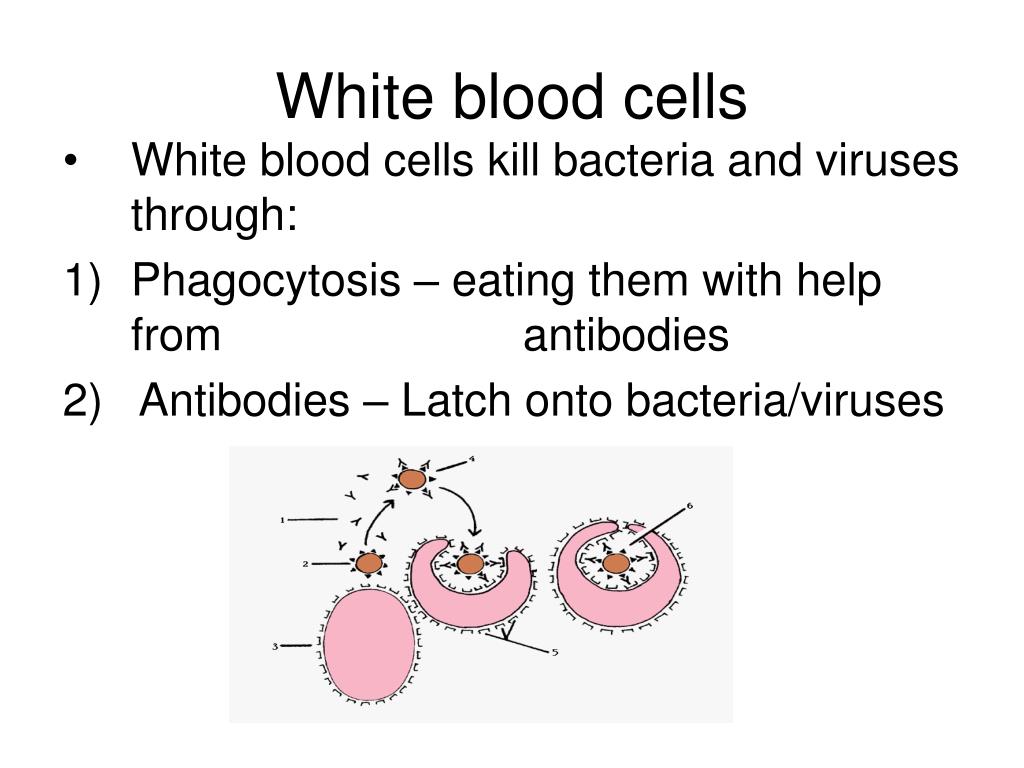

white blood cells
White blood cells

White blood cells kill bacteria and viruses through:

Phagocytosis – eating them with help from antibodies

2) Antibodies – Latch onto bacteria/viruses

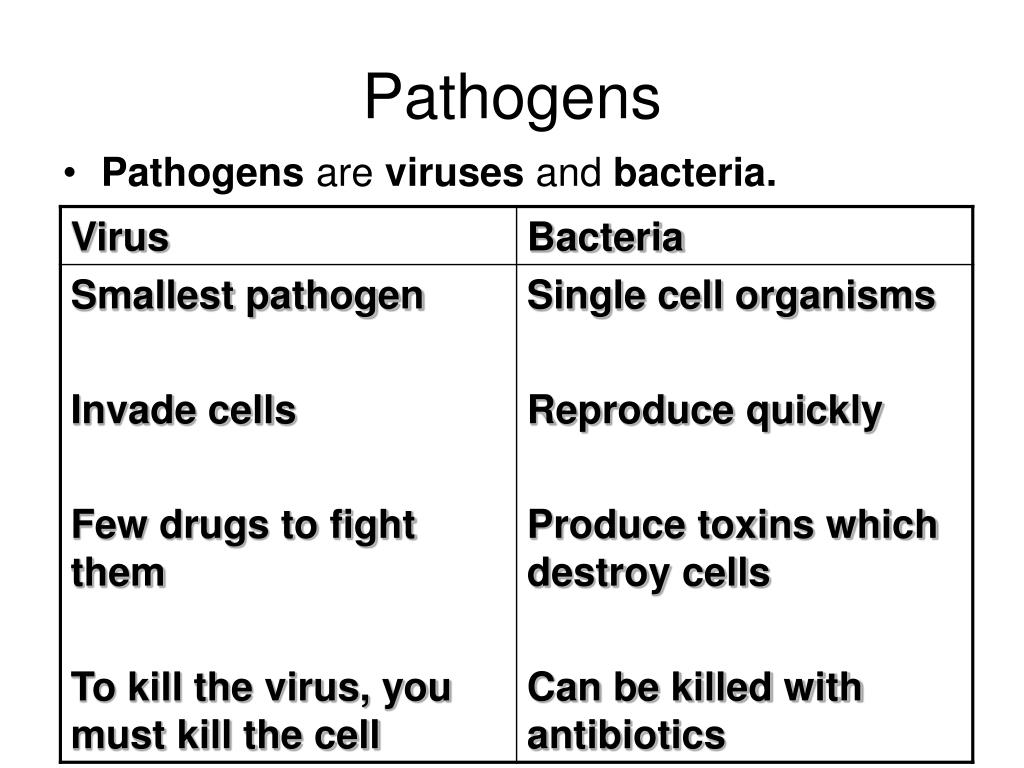

Pathogens are viruses and bacteria.

the circulatory system
The Circulatory System
  • The Circulatory System is the major transportation system in the body.

Pulmonary circulation carries blood that contains carbon dioxide TO THE LUNGS, where it gets rid of the waste and is resupplied with oxygen

Systemic circulation carries the oxygenated blood to cells in the body and supplies them with nutrients as well.

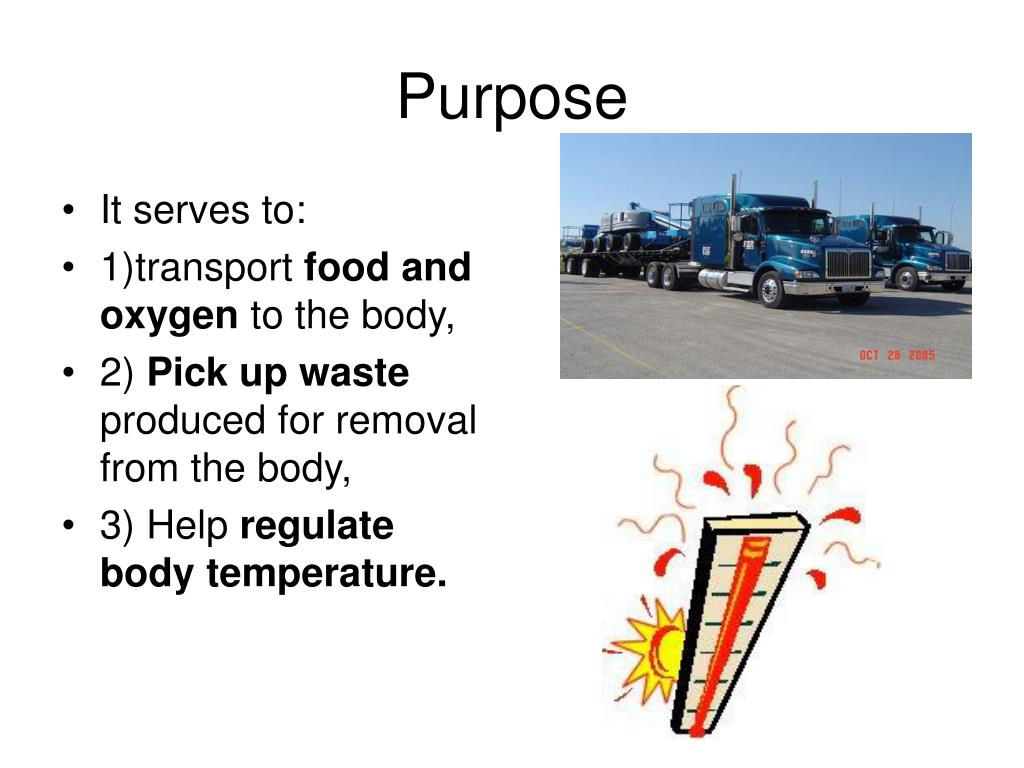

  • It serves to:
  • 1)transport food and oxygen to the body,
  • 2) Pick up waste produced for removal from the body,
  • 3) Help regulate body temperature.
the heart

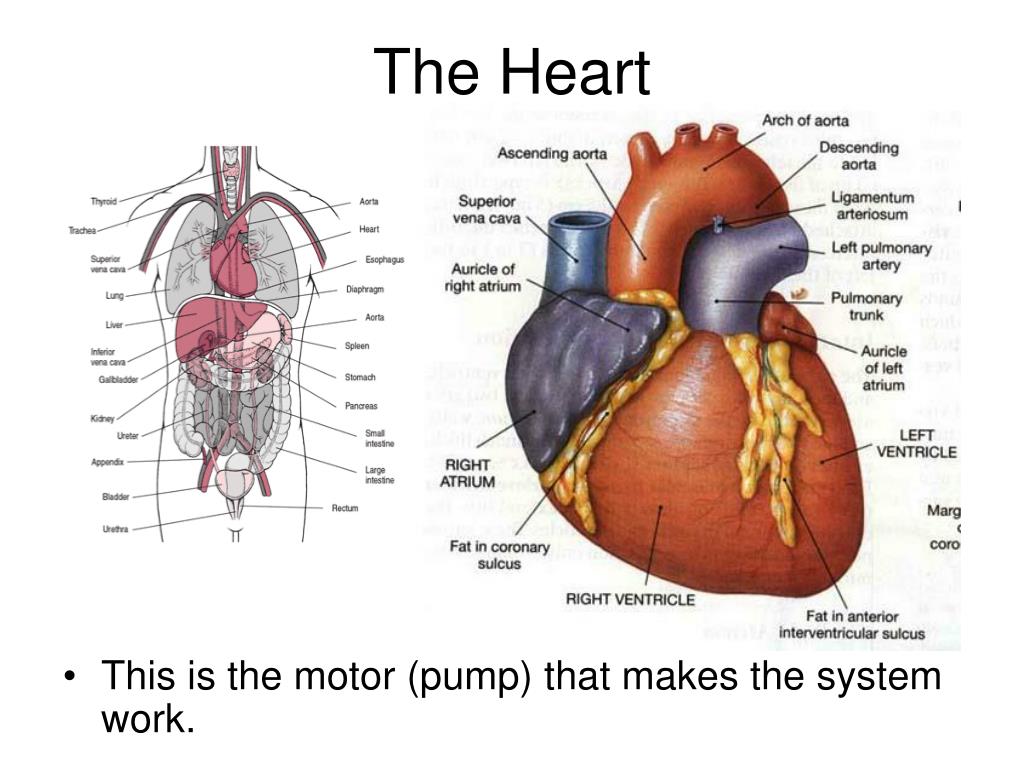

The Heart
  • This is the motor (pump) that makes the system work.
inside the heart

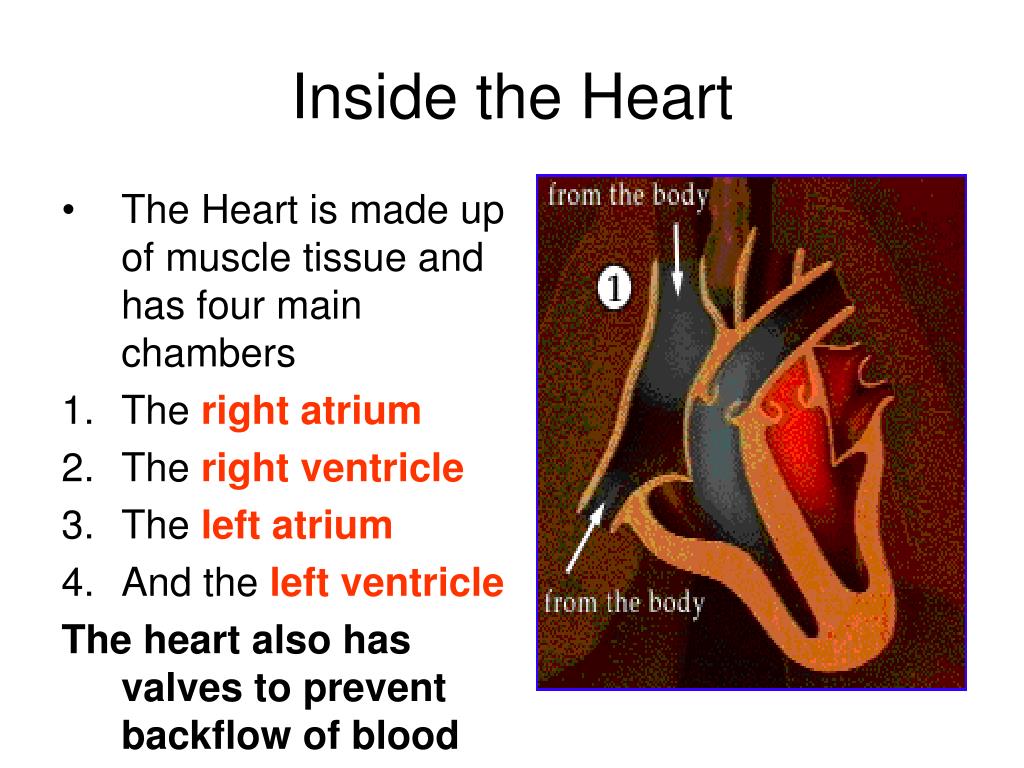

Inside the Heart

The Heart is made up of muscle tissue and has four main chambers

The right atrium

The right ventricle

The left atrium

And the left ventricle

The heart also has valves to prevent backflow of blood

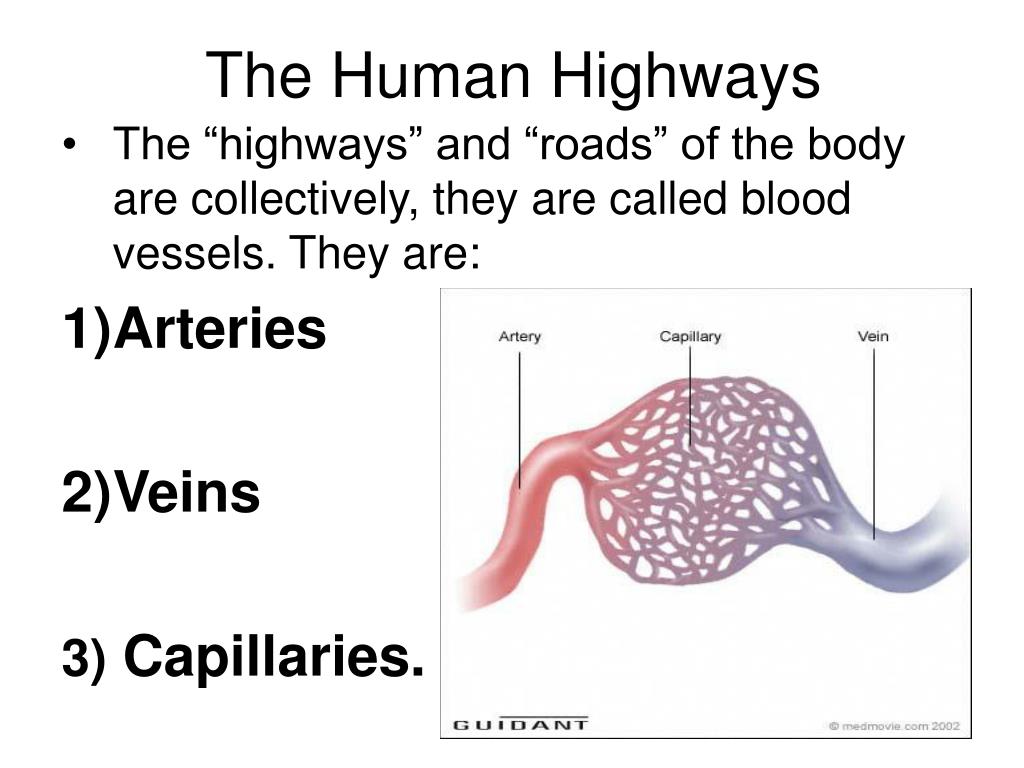

the human highways
The Human Highways
  • The “highways” and “roads” of the body are collectively, they are called blood vessels. They are:
  • Arteries
  • Veins

3) Capillaries.

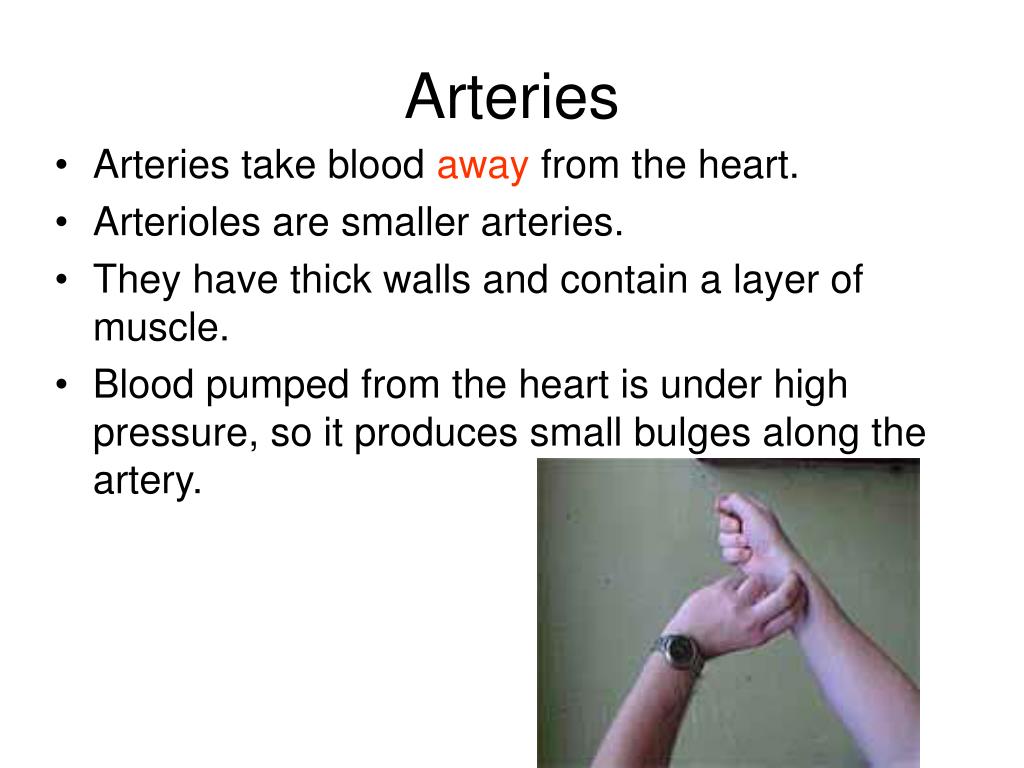

  • Arteries take blood awayfrom the heart.
  • Arterioles are smaller arteries.
  • They have thick walls and contain a layer of muscle.
  • Blood pumped from the heart is under high pressure, so it produces small bulges along the artery.
  • They carry blood to the heart.
  • Venules are smaller veins
  • They have a thinner muscular layer with lower blood pressure.
  • Surrounding muscles help blood to flow though veins
  • They also contain backflow valves.

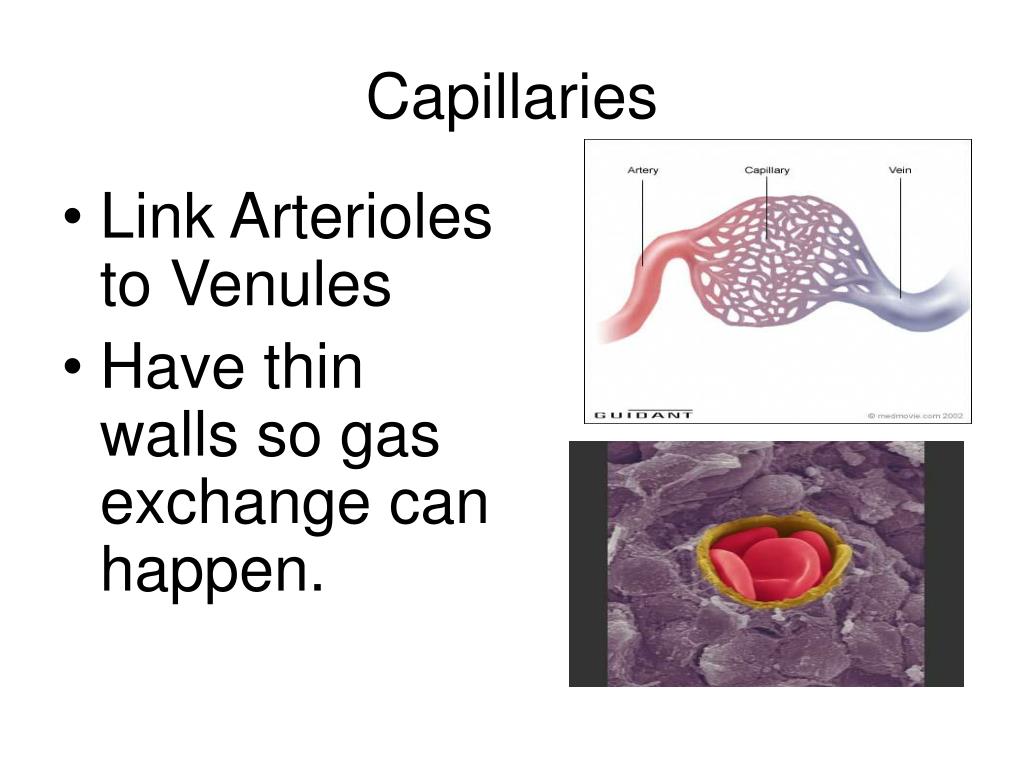

  • Link Arterioles to Venules
  • Have thin walls so gas exchange can happen.

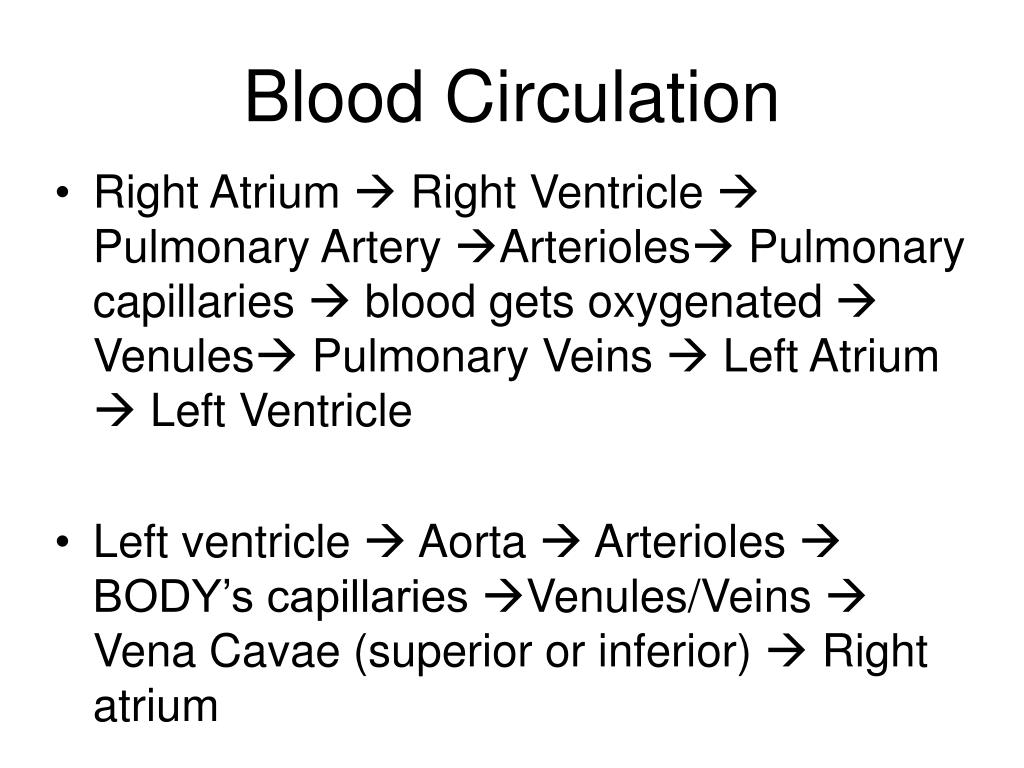

blood circulation
Blood Circulation
  • Right Atrium  Right Ventricle  Pulmonary Artery Arterioles Pulmonary capillaries  blood gets oxygenated  Venules Pulmonary Veins  Left Atrium  Left Ventricle
  • Left ventricle  Aorta  Arterioles  BODY’s capillaries Venules/Veins  Vena Cavae (superior or inferior)  Right atrium

The walls of the left ventricle are thicker (more muscular) than those of the right ventricle because the left ventricle has to push blood into the entire body, whereas the right ventricle only has to push blood as far as the lungs.


blood pressure
Blood Pressure
  • Blood Pressure has two types, Systolic and Diastolic.
  • Systolic pressure is measured when pressure exerted by blood on artery walls is at its maximum (when the ventricles in the heart contact)
  • Diastolic pressure is measured when pressure exerted by blood on artery walls is at its minimum (when ventricles are not contracting)
  • Blood pressure = systolic pressure (bigger #)

diastolic pressure (smaller #)

review pressure
REVIEW: Pressure
  • Mathematically, Pressure (symbol: ‘p') is the force per unit area applied on a surface.

p = F


F= Force

A= Area

The units are N/m2orPaormm of Hg

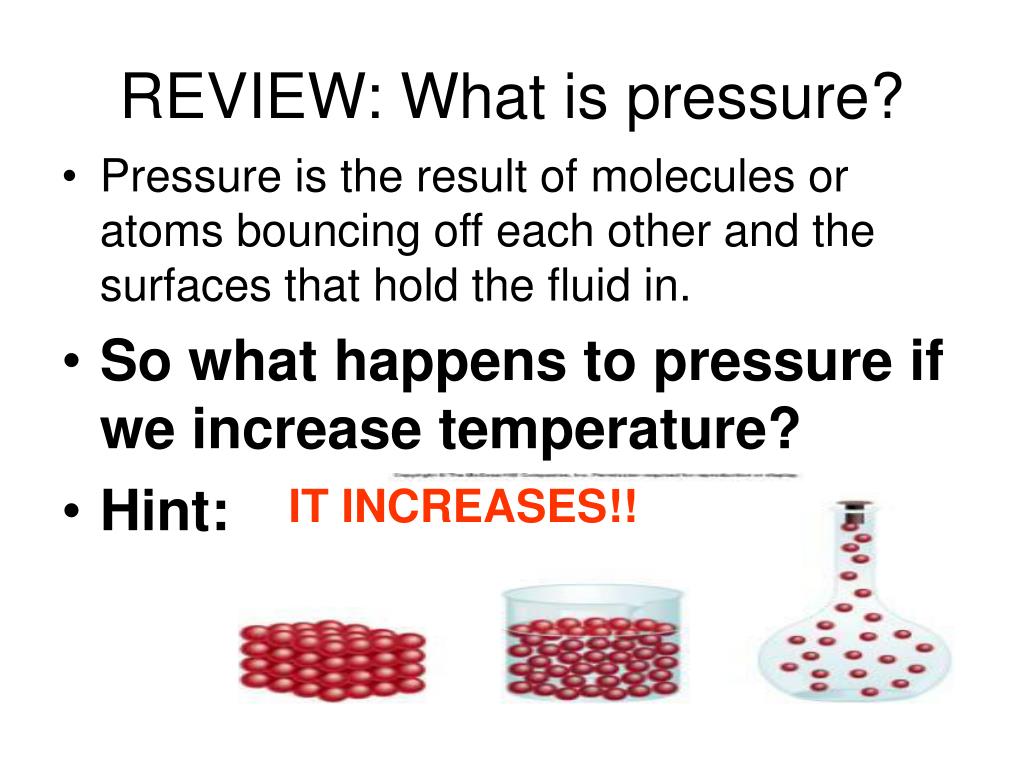

review what is pressure
REVIEW: What is pressure?
  • Pressure is the result of molecules or atoms bouncing off each other and the surfaces that hold the fluid in.
  • So what happens to pressure if we increase temperature?
  • Hint:

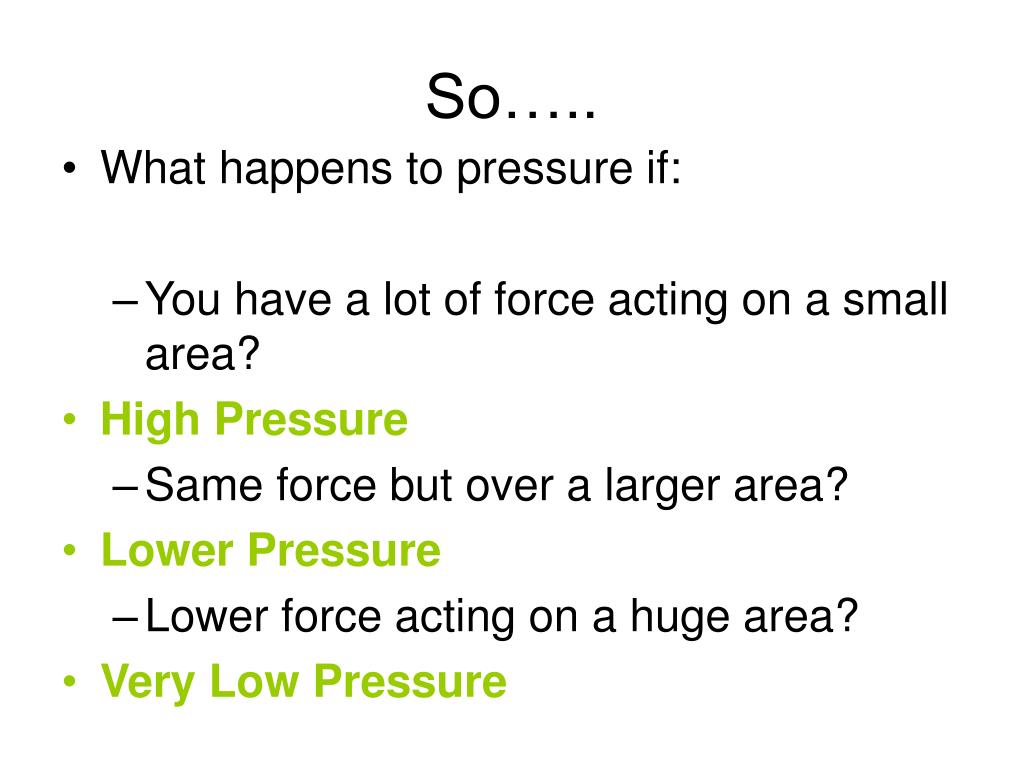

  • What happens to pressure if:
    • You have a lot of force acting on a small area?
  • High Pressure
    • Same force but over a larger area?
  • Lower Pressure
    • Lower force acting on a huge area?
  • Very Low Pressure
area formula

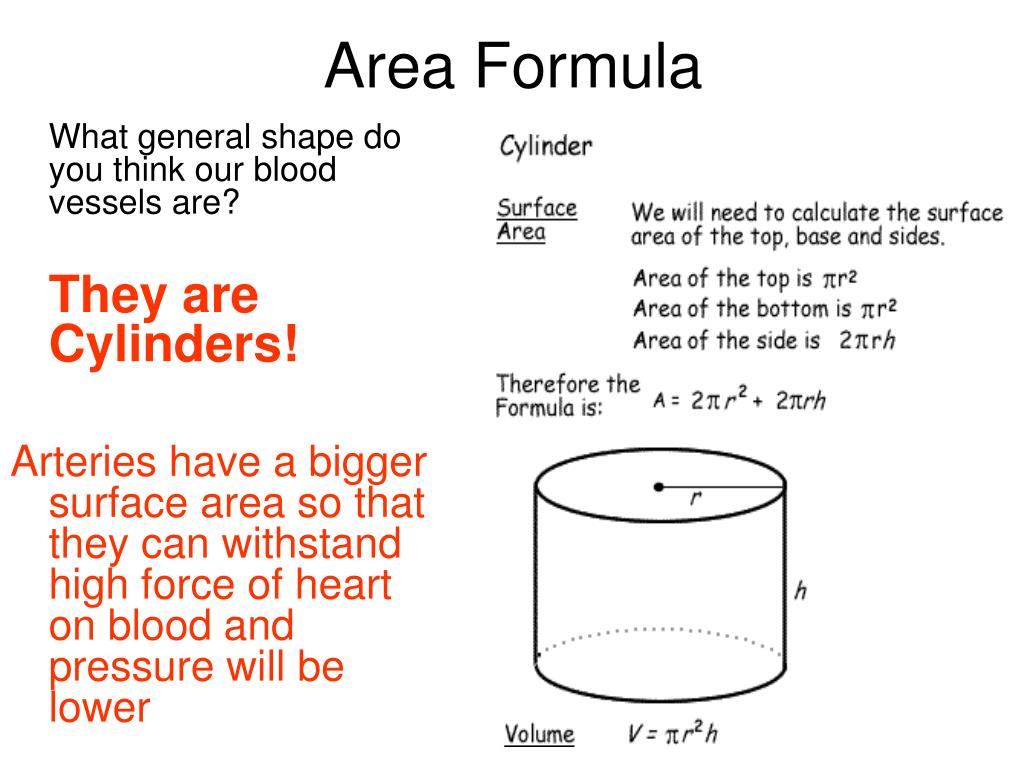

Area Formula

What general shape do you think our blood vessels are?

They are Cylinders!

Arteries have a bigger surface area so that they can withstand high force of heart on blood and pressure will be lower

compressible non compressible fluids

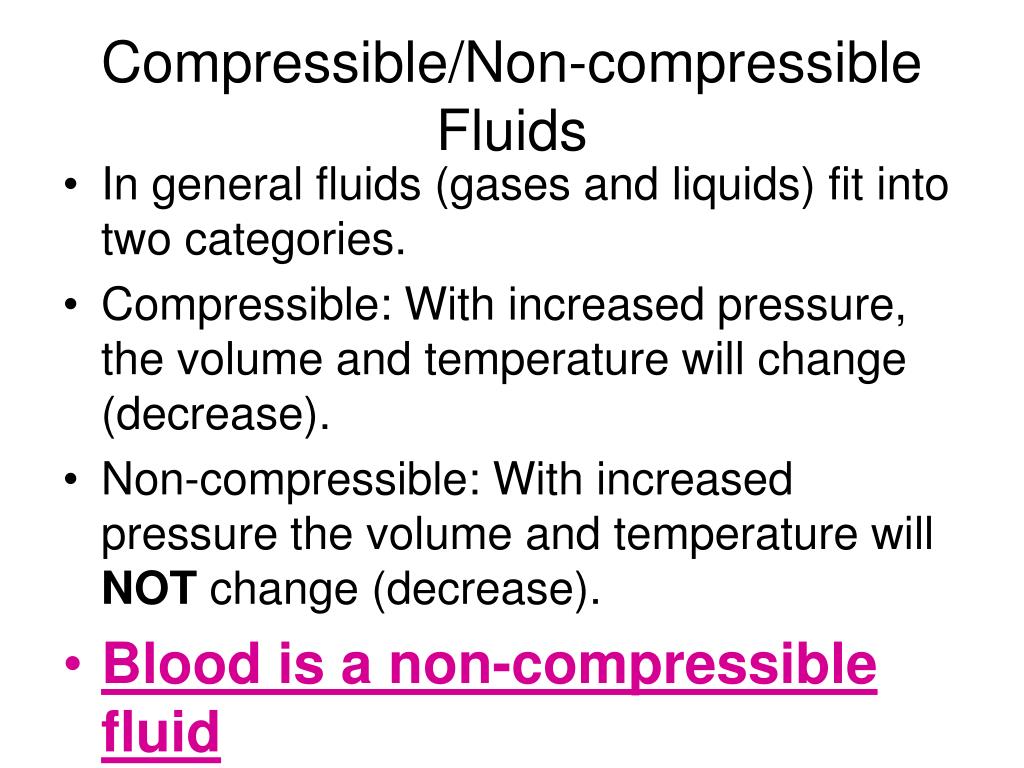

Compressible/Non-compressible Fluids
  • In general fluids (gases and liquids) fit into two categories.
  • Compressible: With increased pressure, the volume and temperature will change (decrease).
  • Non-compressible: With increased pressure the volume and temperature will NOT change (decrease).
  • Blood is a non-compressible fluid

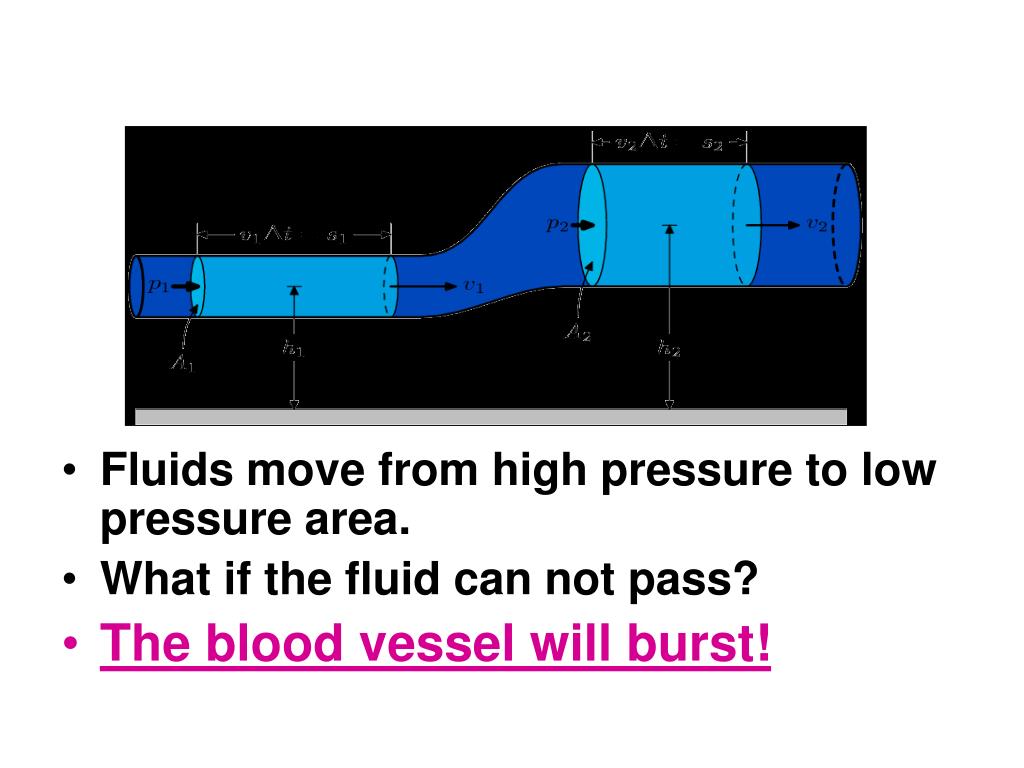

Fluids move from high pressure to low pressure area.
  • What if the fluid can not pass?
  • The blood vessel will burst!
heart health

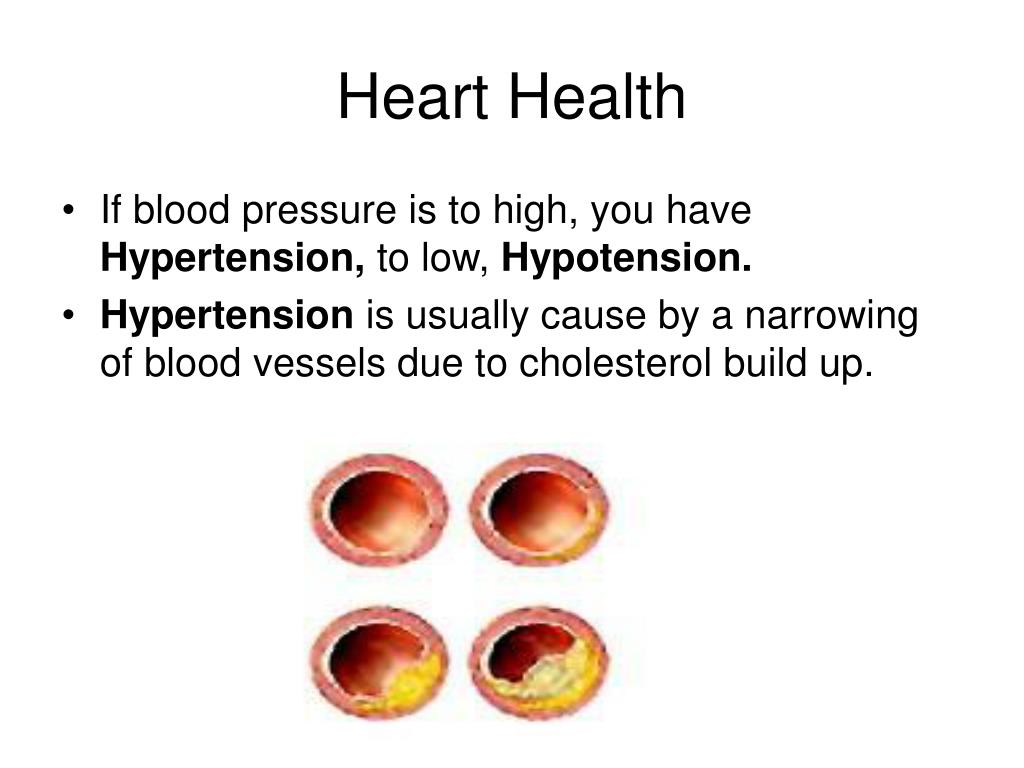

Heart Health
  • If blood pressure is to high, you have Hypertension, to low, Hypotension.
  • Hypertension is usually cause by a narrowing of blood vessels due to cholesterol build up.
