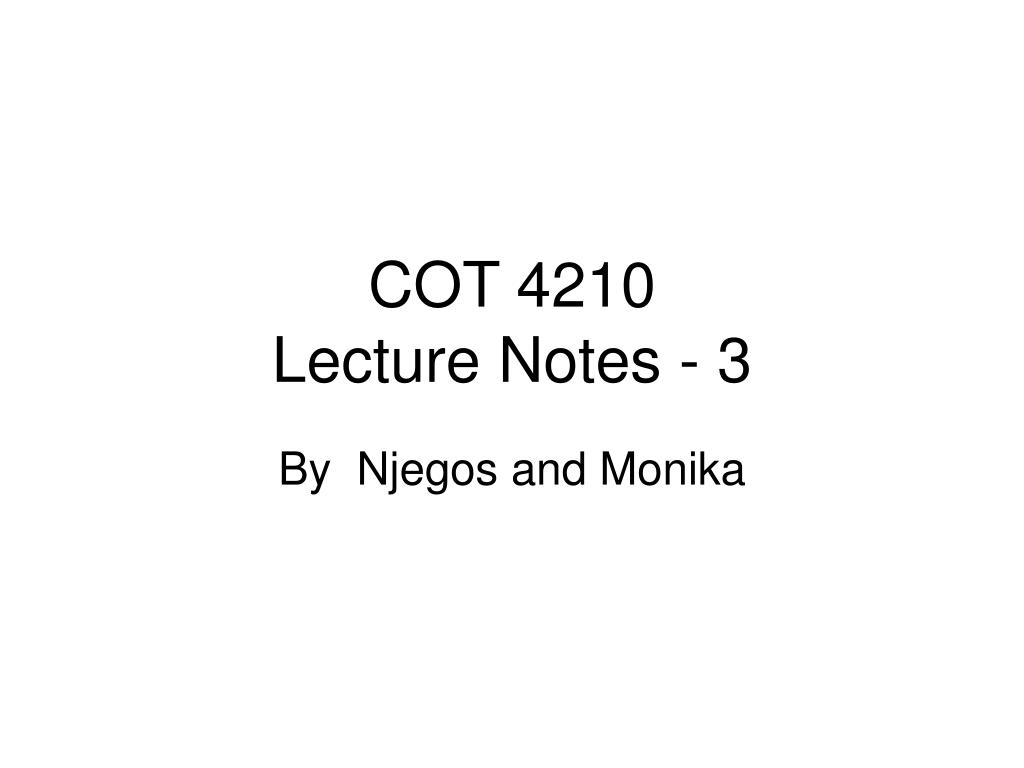

  1. COT 4210 Lecture Notes - 3 By Njegos and Monika

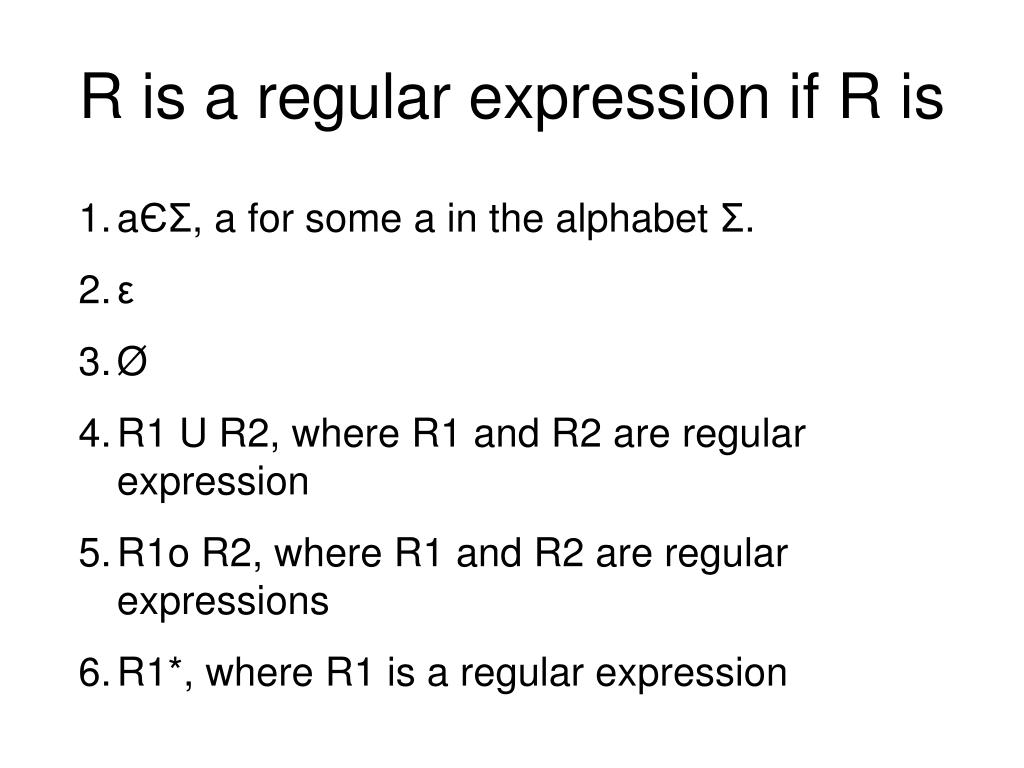

  2. R is a regular expression if R is • aЄΣ, a for some a in the alphabet Σ. • ε • Ø • R1 U R2, where R1 and R2 are regular expression • R1o R2, where R1 and R2 are regular expressions • R1*, where R1 is a regular expression

  3. If A1 and A2 are regular then • A1 U A2 • A1 o A2 • A1* All are regular too.

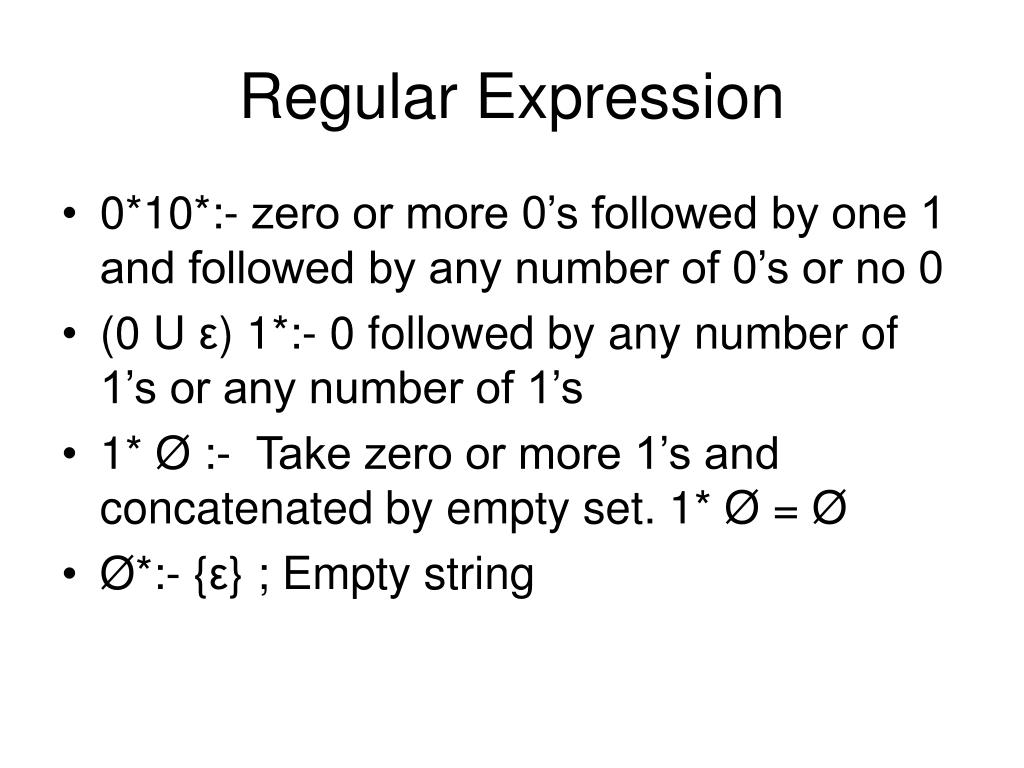

  4. Regular Expression • 0*10*:- zero or more 0’s followed by one 1 and followed by any number of 0’s or no 0 • (0 U ε) 1*:- 0 followed by any number of 1’s or any number of 1’s • 1* Ø :- Take zero or more 1’s and concatenated by empty set. 1* Ø = Ø • Ø*:- {ε} ; Empty string

  5. N1 U N2 N ε N1 ε N2

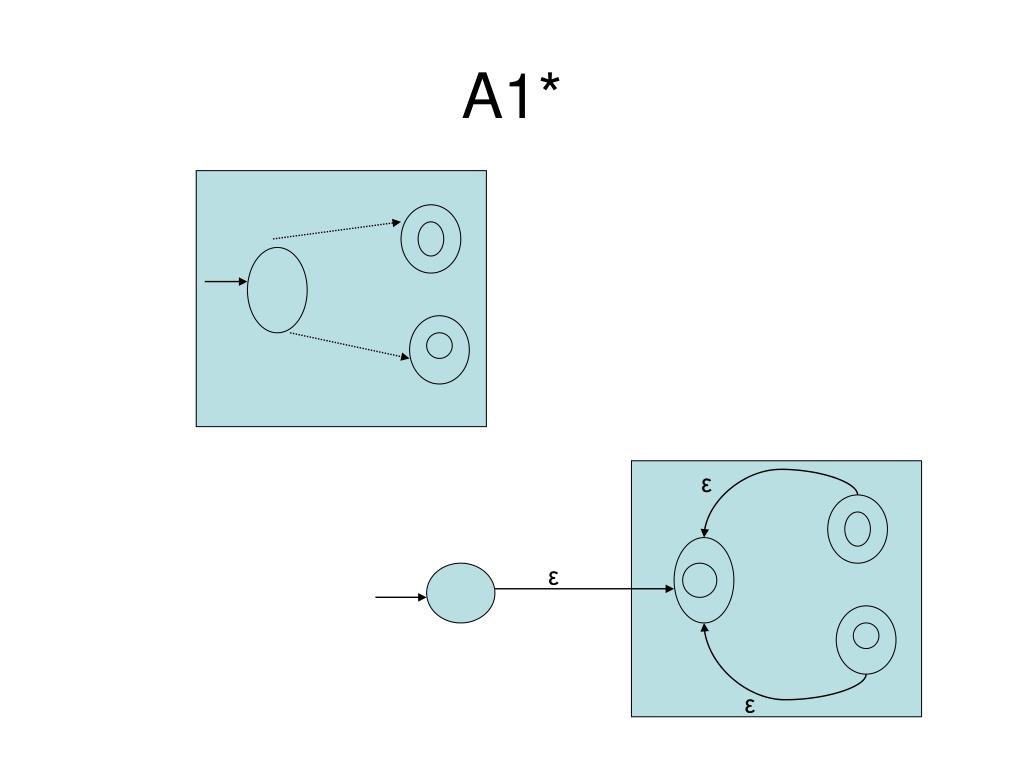

  6. A1* ε ε ε

  7. 0 U 1 0 ε ε 1

  8. (0 U 1)* ε 0 ε ε ε 1 ε

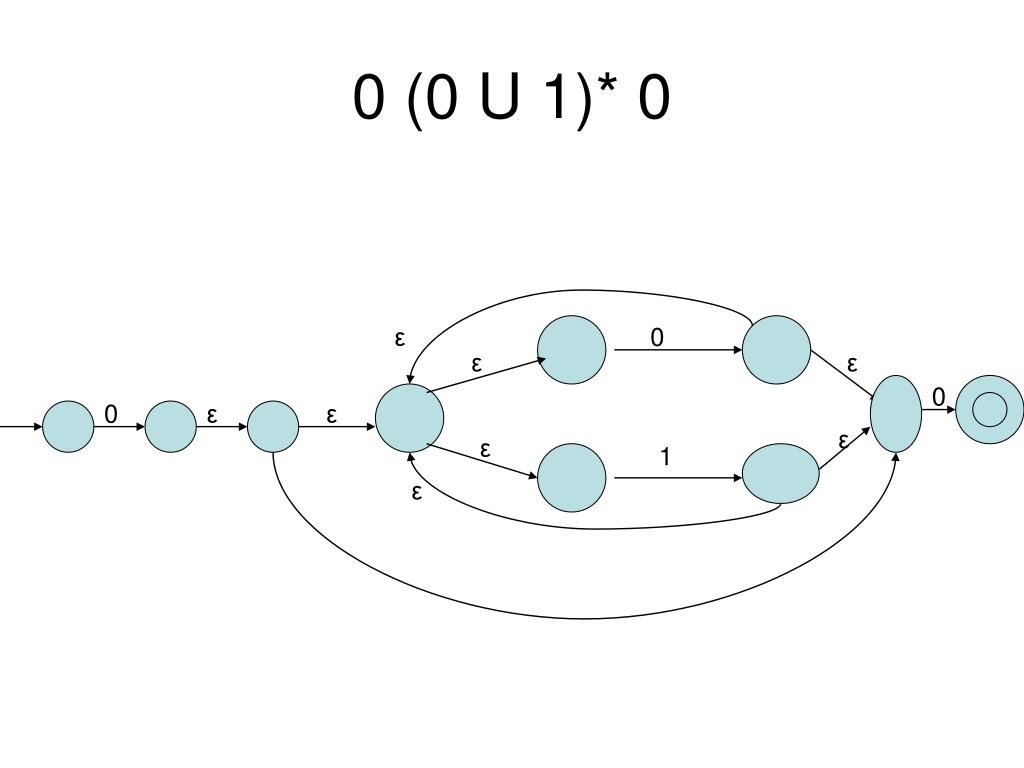

  9. 0 (0 U 1)* 0 ε 0 ε ε 0 0 ε ε ε ε 1 ε

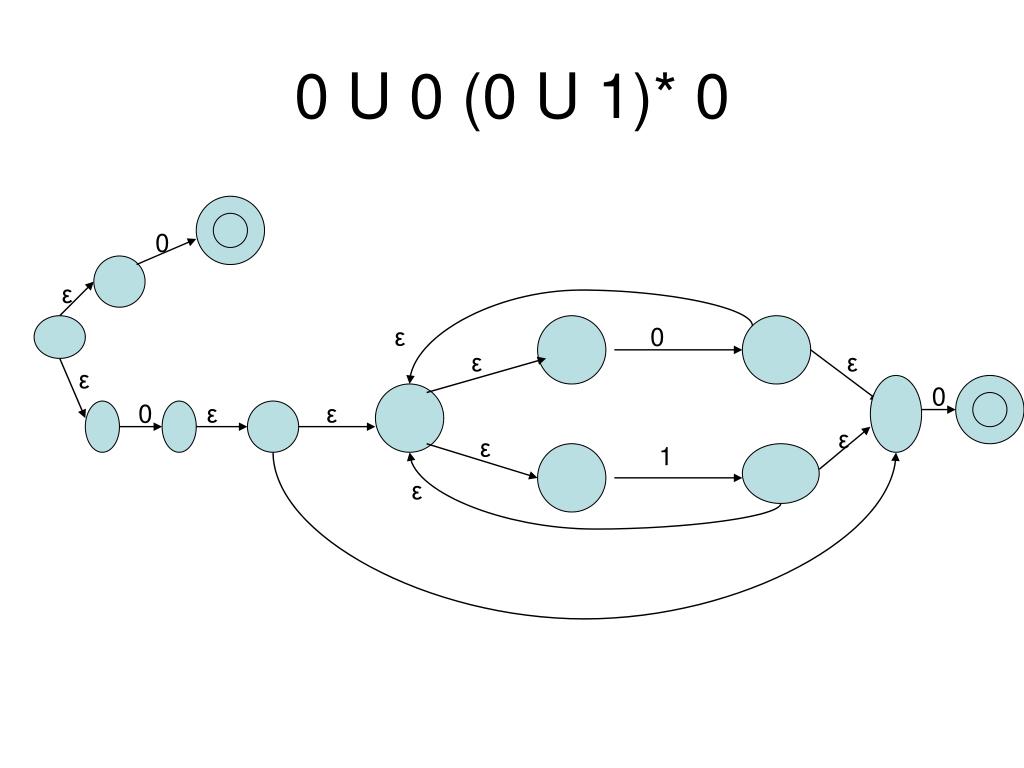

  10. 0 U 0 (0 U 1)* 0 0 ε ε 0 ε ε ε 0 0 ε ε ε ε 1 ε

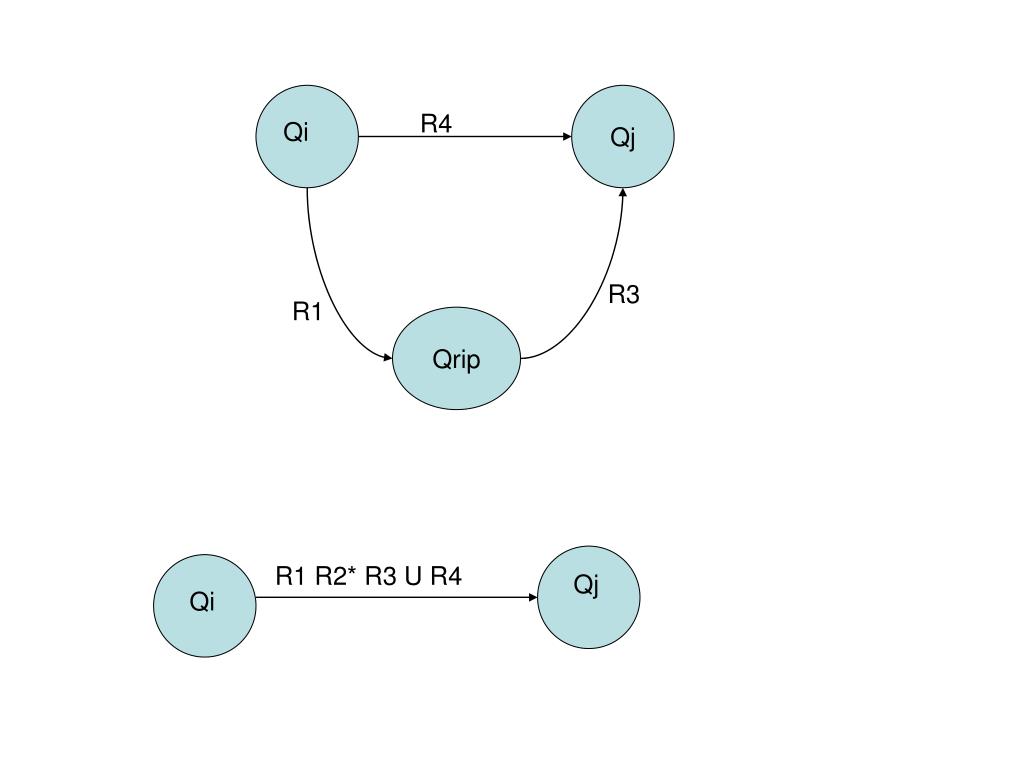

  11. Qj R4 Qi R3 R1 Qrip R1 R2* R3 U R4 Qj Qi

  12. GNFA stands for Generalized Nondeterministic Finite Automaton. GNFA are simply nondeterministic finite automaton wherein the transition arrows may have any regular expressions as labels, instead of only members of the alphabet. GNFA

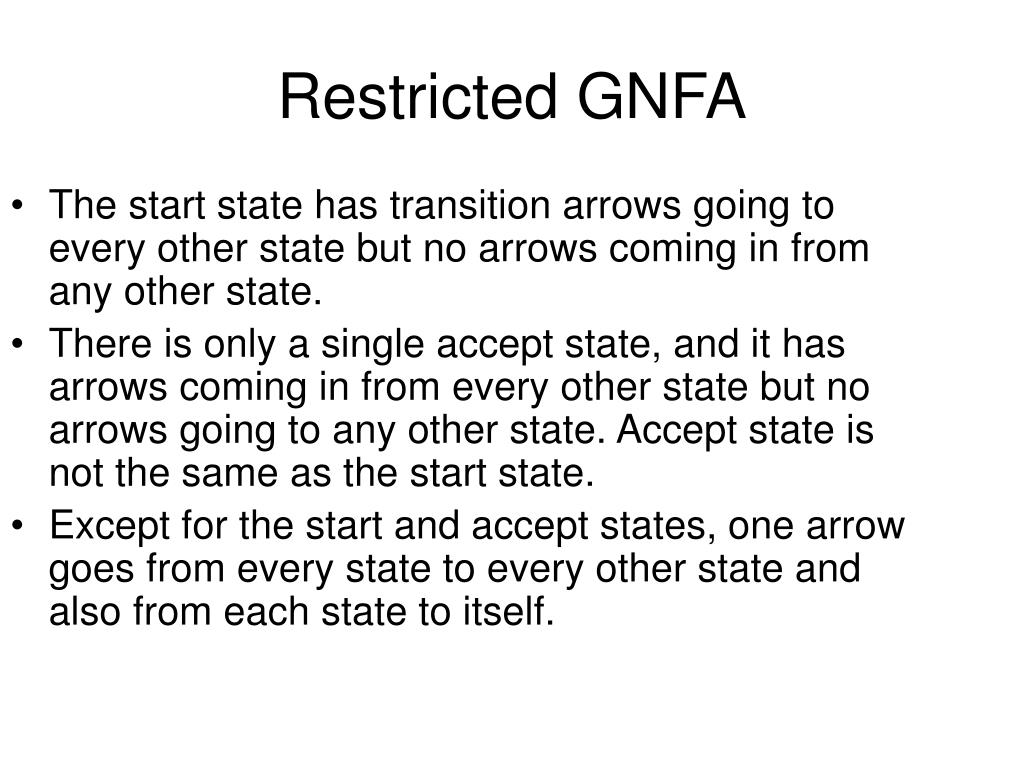

  13. The start state has transition arrows going to every other state but no arrows coming in from any other state. There is only a single accept state, and it has arrows coming in from every other state but no arrows going to any other state. Accept state is not the same as the start state. Except for the start and accept states, one arrow goes from every state to every other state and also from each state to itself. Restricted GNFA

  14. EXAMPLE 0 1 0 1 ε Q2 Q3 S Q1 0 1 ε F

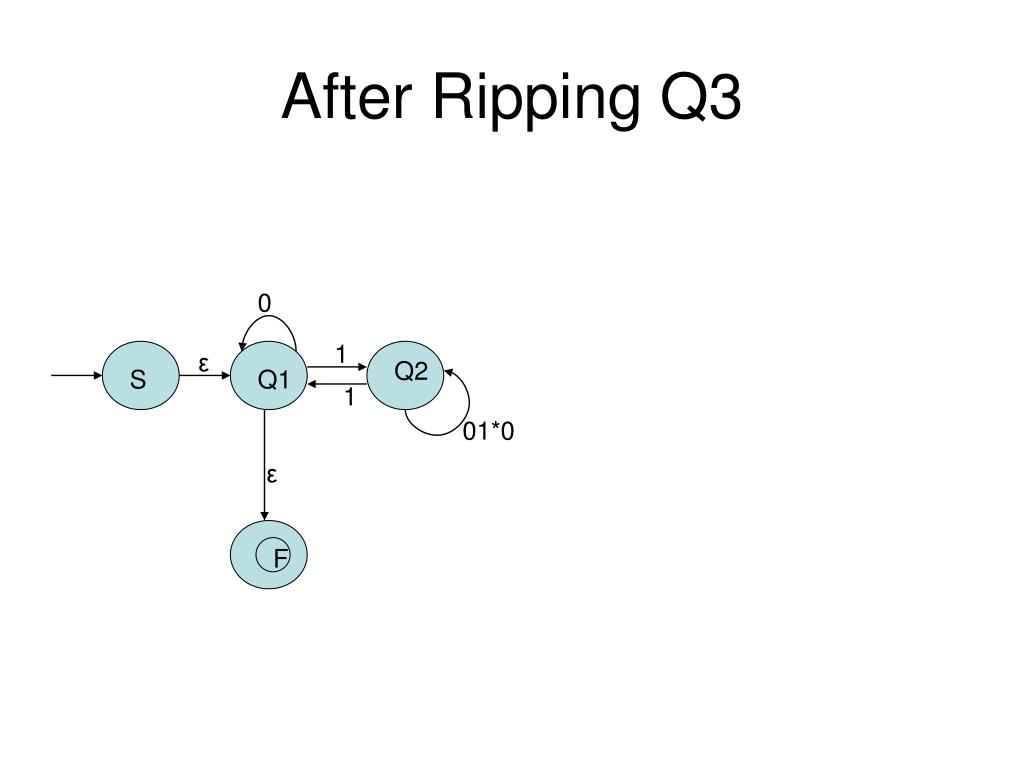

  15. After Ripping Q3 0 1 ε Q2 S Q1 1 01*0 ε F

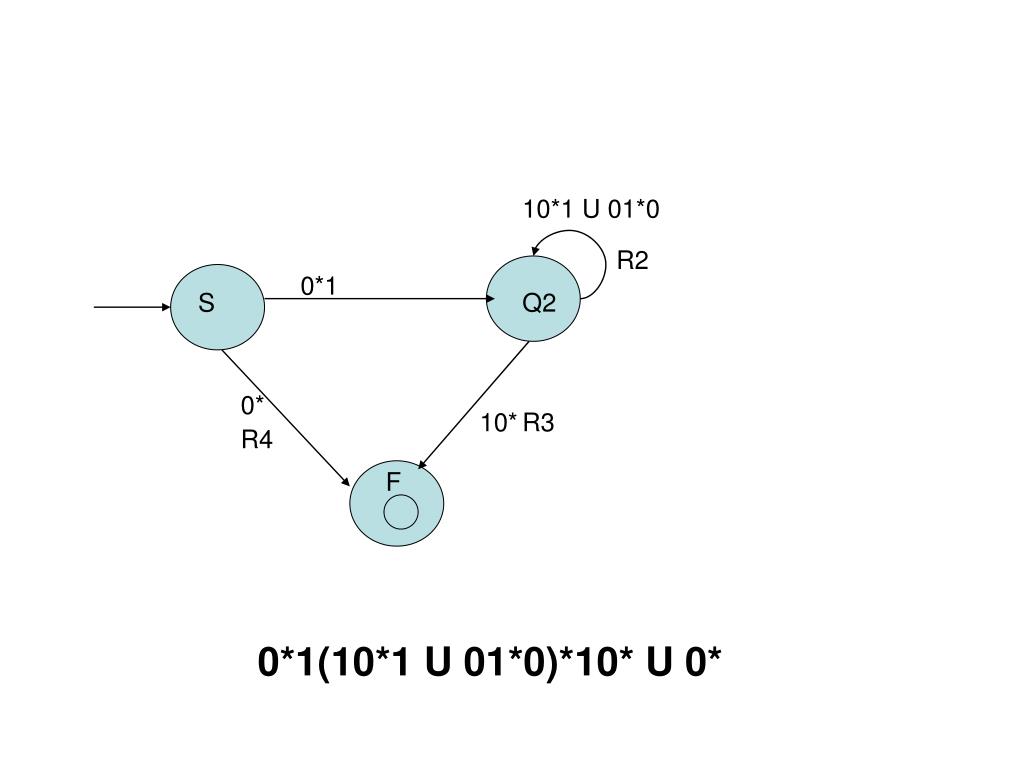

  16. 10*1 U 01*0 R2 0*1 S Q2 0* 10* R3 R4 F 0*1(10*1 U 01*0)*10* U 0*

  17. If we have n states in DFA then restricted GNFA is going to have (n+2) states.
