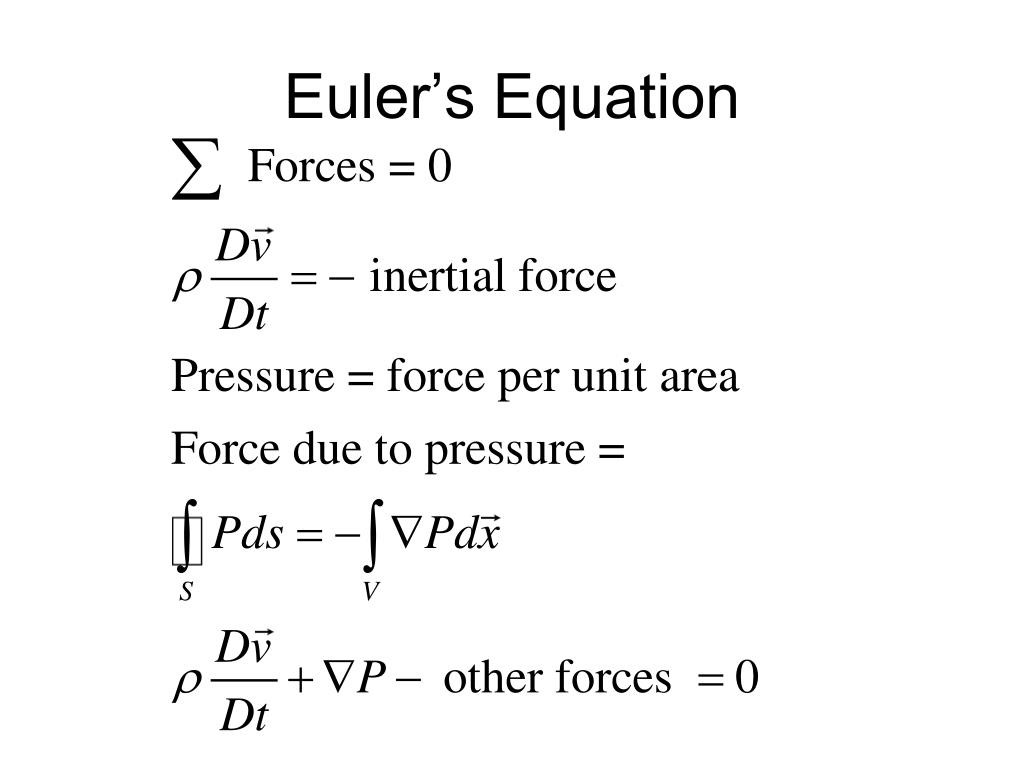

AMS 691 Special Topics in Applied Mathematics Lecture 5. James Glimm Department of Applied Mathematics and Statistics, Stony Brook University Brookhaven National Laboratory. Total time derivatives. Euler’s Equation. Conservation form of equations. Momentum flux. Viscous Stress Tensor.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'AMS 691 Special Topics in Applied Mathematics Lecture 5' - rozalia-meszaros


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
ams 691 special topics in applied mathematics lecture 5

AMS 691Special Topics in Applied MathematicsLecture 5

James Glimm

Department of Applied Mathematics and Statistics,

Stony Brook University

Brookhaven National Laboratory

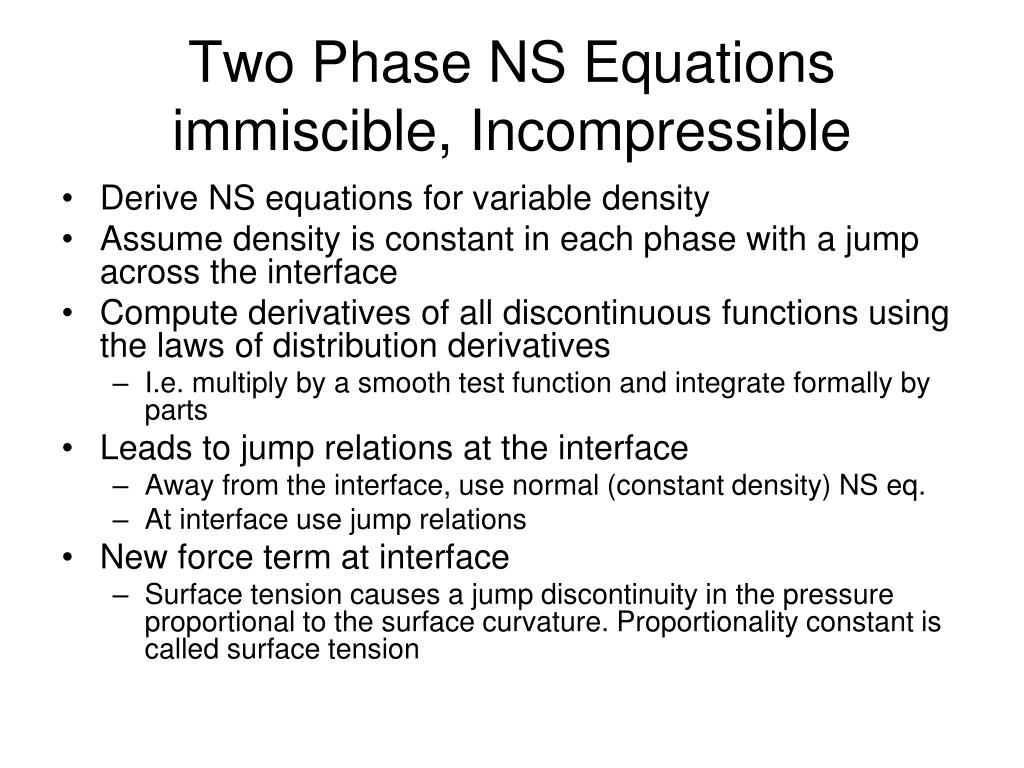

two phase ns equations immiscible incompressible
Two Phase NS Equationsimmiscible, Incompressible
  • Derive NS equations for variable density
  • Assume density is constant in each phase with a jump across the interface
  • Compute derivatives of all discontinuous functions using the laws of distribution derivatives
    • I.e. multiply by a smooth test function and integrate formally by parts
  • Leads to jump relations at the interface
    • Away from the interface, use normal (constant density) NS eq.
    • At interface use jump relations
  • New force term at interface
    • Surface tension causes a jump discontinuity in the pressure proportional to the surface curvature. Proportionality constant is called surface tension

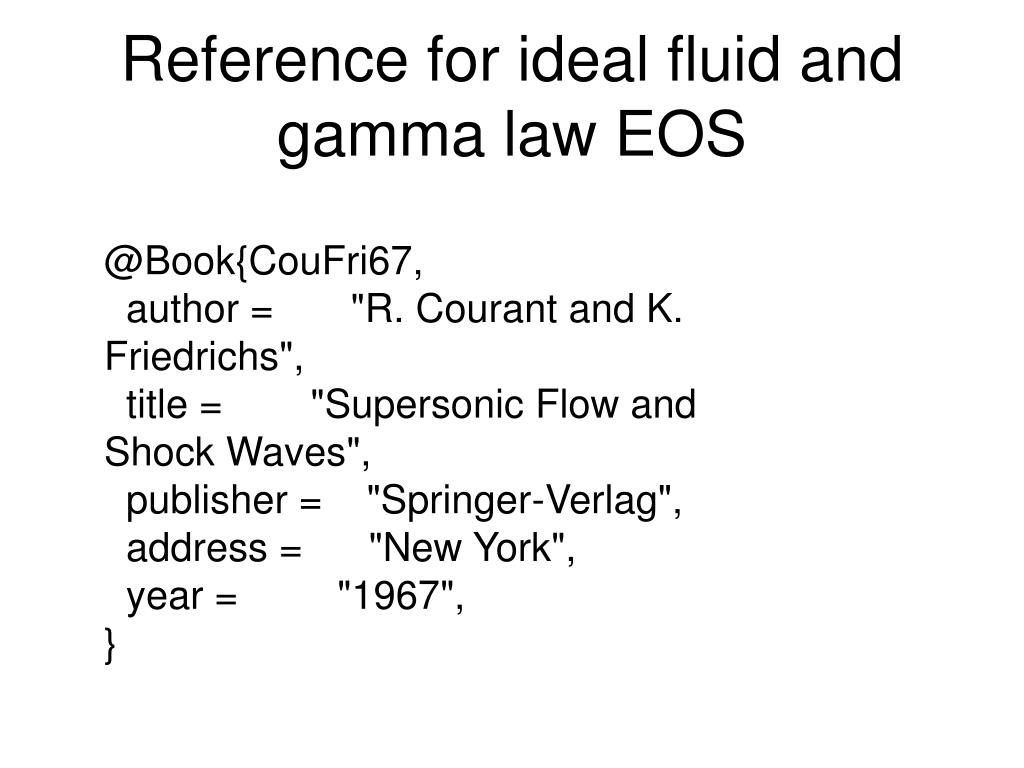

reference for ideal fluid and gamma law eos
Reference for ideal fluid andgamma law EOS

@Book{CouFri67,

author = "R. Courant and K. Friedrichs",

title = "Supersonic Flow and Shock Waves",

publisher = "Springer-Verlag",

address = "New York",

year = "1967",

}

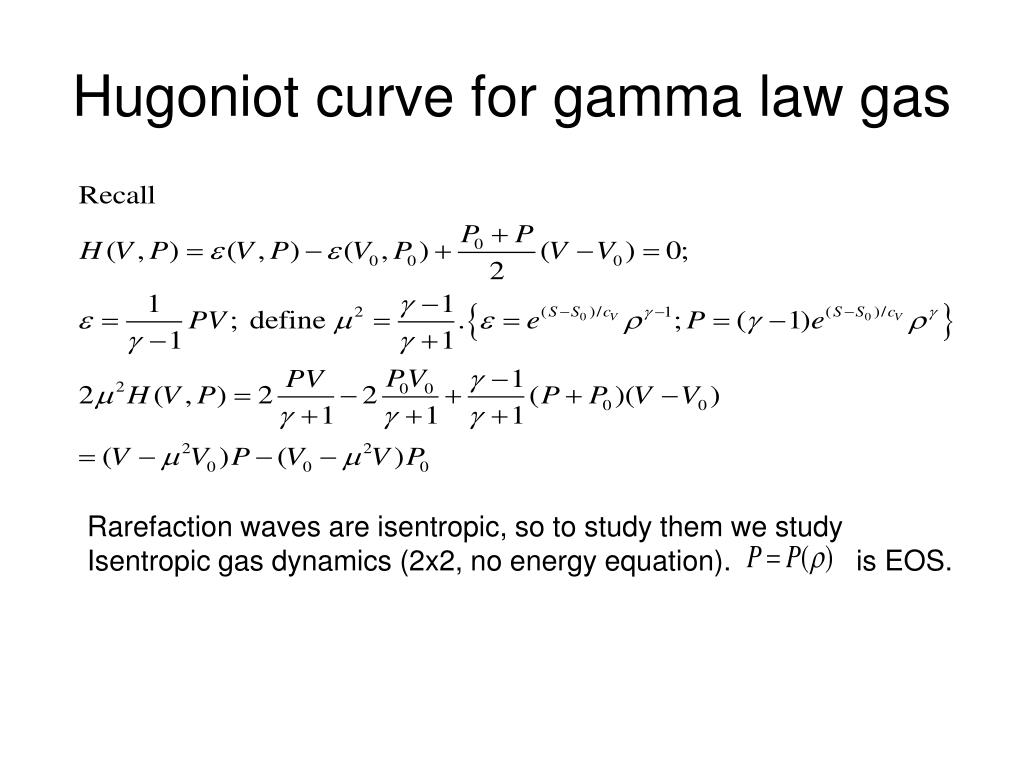

hugoniot curve for gamma law gas
Hugoniot curve for gamma law gas

Rarefaction waves are isentropic, so to study them we study

Isentropic gas dynamics (2x2, no energy equation). is EOS.
