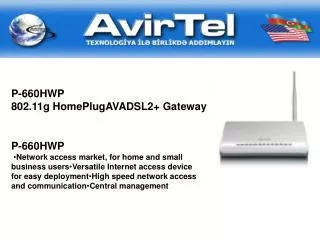

  1. P-660HWP 802.11g HomePlugAVADSL2+ Gateway P-660HWP •Network access market, for home and small business users•Versatile Internet access device for easy deployment•High speed network access and communication•Central management

  2. SwitchPhysical Appearance 3dBi Antenna, non swappable Power On/Off Switch ADSL InterfaceEthernet Reset button Power Line Socket

  3. Key Features and Benefits -1 A.High Transmission data rate up to 200Mbps via Power Line Compliant with the latest HomePlugAV technology, P-660HWP-D1 provides the best solution for file sharing, games, voice and video services which require high bandwidth. The transmission date rate can be up to 200Mbps via power line, which can fully satisfy any kinds of applications. B.Extended LAN Solution through Power Lines The ZyXEL Powerlineis an extended access solution that allows your house or small office to be completely network deployed with existing power lines. Simply connect the P-660HWP-D1 to an existing power socket, it will transform your electrical power lines into a house-wide network infrastructure, then you can get Internet access in other rooms with power line service.

  4. Key Features and Benefits -2 C. Robust Firewall Security The ICSA-certified ZyNOSoperating system ensures state-of-art firewall performance and robust security from the P-660HWP-D1. Based on StatefulPacket Inspection, DoS(Denial of Service) and DDoS(Distributed Denial of Service) features, it provides the first line defense against hackers, network intruders, and other harmful threats. D. Media Bandwidth Management (MBM) The MBM (Media Bandwidth Management) function prioritizes media services, and increases productivity and efficiency in daily operations by tailoring a system to specific demands such as VoIP, video streaming, video-conferencing or interactive games applications.

  5. Key strength points A.High speed data transmissionvia Power Lines -200Mbps data transmission over existing power line; Ideal solution for video conference, file sharing, interactive games which consume great bandwidth. B. ADSL2/2+ Support -ADSL2+ high speed (24Mbps) Internet access. C. Wireless g+ SuperSpeedTechnology -Up to 125Mbps wireless data transmission with the ZyXEL g+ SuperSpeedtechnology. D.MBM -Guarantee the network resource for time-sensitive applications. E. OTIST -Intelligent negotiation for wireless security with only one touch. F.TR-069 -TR-069 HTTPS support for easy central management

  6. PLA-400 Desktop Adapter •Early adapter and powerful user in consumer segment. •Telecom equipment for digital home applications. •PLA-400 is positioned as consumer client device.•High throughput solution supporting Audio and video streaming

  7. PLA-400 Introduction 25 ~ 100 Words of Ad Copy : ZyXEL Power Line is an extended access solution to have your house completely networked with existing power lines. Simply connect the ZyXEL Home Plug PLA-400 to an existing power socket and turn electrical power lines into a house-wide network infrastructure. Take the easy way and get instant home networking capability over with PLA-400.

  8. PLA-400 Key Feature & Benefit 􀂾Up to 200 Mbps 􀂾Stylish Desktop Design with Universal Power Cord 􀂾HomePlugAV Certified 􀂾HomePlug1.0 co-existence 􀂾128-bit AES Protection for Secure Data TransmissionKey Features PLA-400 is a solution to have your house completely networked with existing power lines, which supporting better QoSfor entertainment devices. What can a customer expect from this product: •Access powerlinenetwork •Powerlinenetwork backbone •Network Extension

  9. PLA-400 (2/4) 􀂾Back view System Specification Network Standard: HomePlugAV 200 Mbps data rate compliant Supports up to *64 PLA-devices communicating on a single network Modulation: •OFDM Symbol Modulation•Supports QAM 256/64/16, DQPSK, DBPSK and ROBO Carrier modulation schemes Frequency Band: 2MHZ ~ 30 MHZ Coverage Area: up to 300 meters/984 feet Security: 128-bit AES encryption protect the powerlinenetwork 10/100M Ethernet port for broadband In/Out Power Plug connect to existing power line

  10. PLA-400 (3/4) Hardware Specification 􀂾Interface: RJ-45 compatible 􀂾Power Input: 100-240VAC, 50~60Hz, 0.12A 􀂾LED Display •PWR: Power-Light •LINK: Power-Line Link/ACT •ETHN: Ethernet Connected/Non-Connected Certificate Physical Specification 􀂾Dimensions: 112 (W) ×106(D) ×28.5(H) mm 􀂾Weight: 179g

  11. Application Diagram
