the solid state

The Solid State

Crystals and symmetry

Unit cells and packing

Types of solid

Phase diagrams

solids tend to be regular

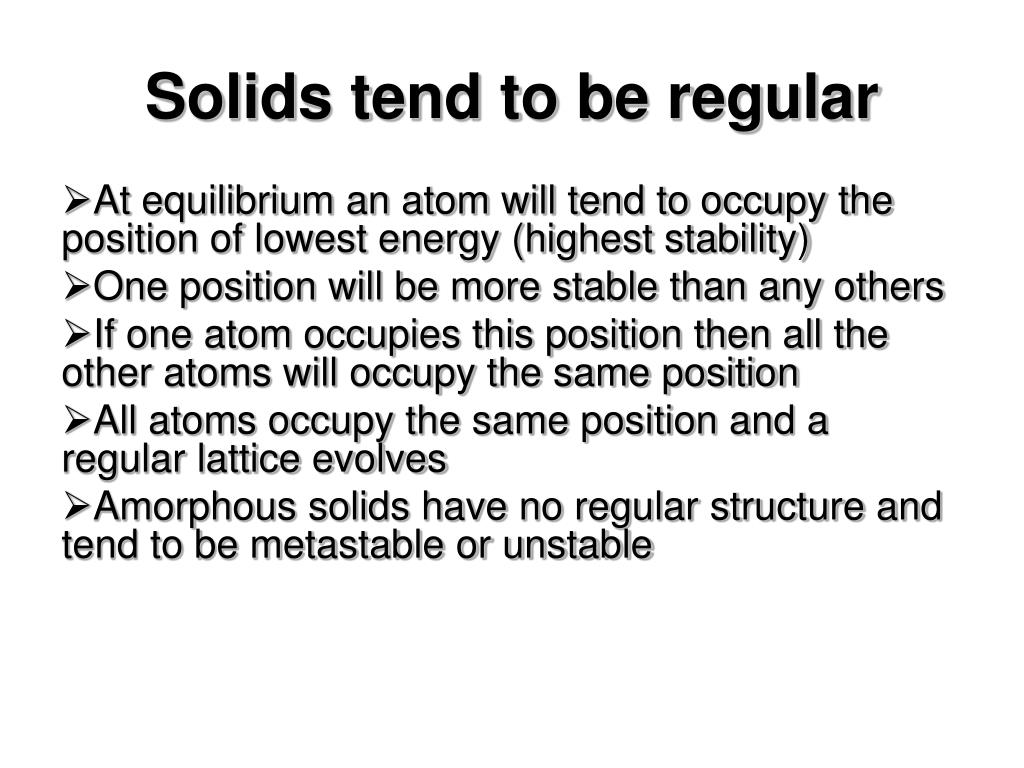

Solids tend to be regular
  • At equilibrium an atom will tend to occupy the position of lowest energy (highest stability)
  • One position will be more stable than any others
  • If one atom occupies this position then all the other atoms will occupy the same position
  • All atoms occupy the same position and a regular lattice evolves
  • Amorphous solids have no regular structure and tend to be metastable or unstable
probing crystal structures
Probing crystal structures
  • Light is scattered by objects that are larger than the wavelength
  • Crystal lattices are too small for visible light
  • X-rays have wavelengths on the order of the interatomic distance in crystals
  • X-rays suffer diffraction by crystals like visible light diffracted by blinds
  • X-ray diffraction is the most powerful structural tool developed
diffraction and interference
Diffraction and interference
  • Diffraction arises by interference of electromagnetic radiation
    • Constructive interference – the waves are in phase – increase in intensity
    • Destructive interference – the waves are out of phase – loss of intensity
  • X-ray beams diffract from a crystal to give a pattern of spots where constructive interference has occurred on a sea of destructive interference
the crystal lattice and bragg scattering

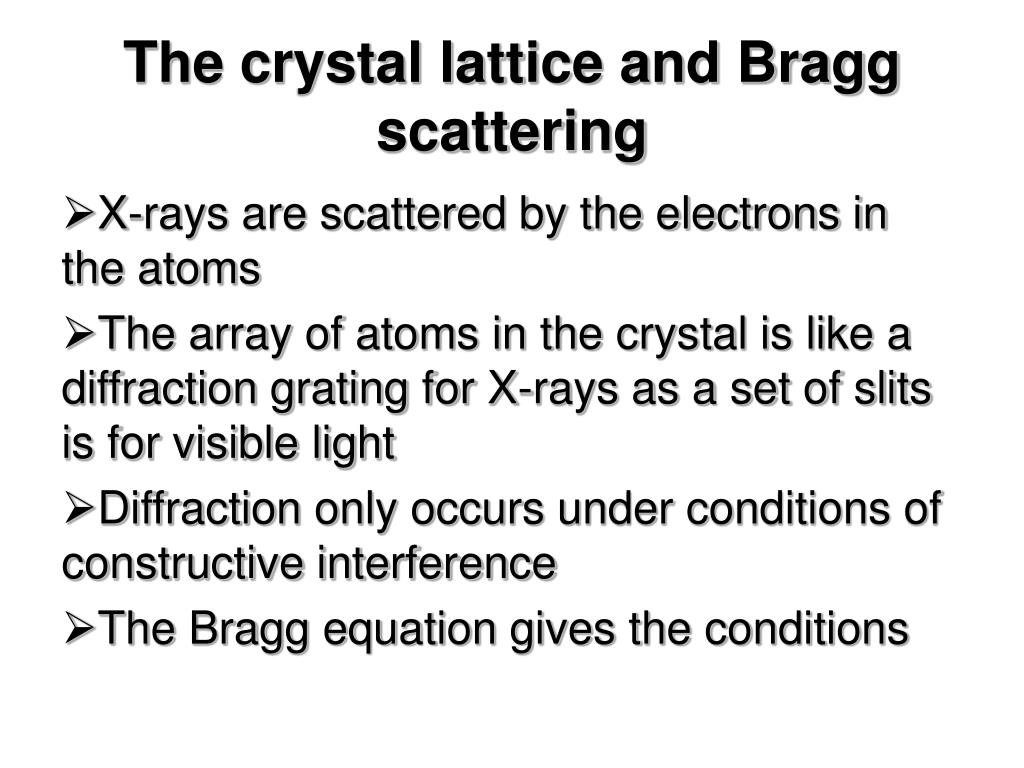

The crystal lattice and Bragg scattering
  • X-rays are scattered by the electrons in the atoms
  • The array of atoms in the crystal is like a diffraction grating for X-rays as a set of slits is for visible light
  • Diffraction only occurs under conditions of constructive interference
  • The Bragg equation gives the conditions
the bragg condition
The Bragg condition
  • Waves reflected from adjacent layers must be in phase
  • The path length difference must then be a whole number of wavelengths
x ray diffraction and data collection

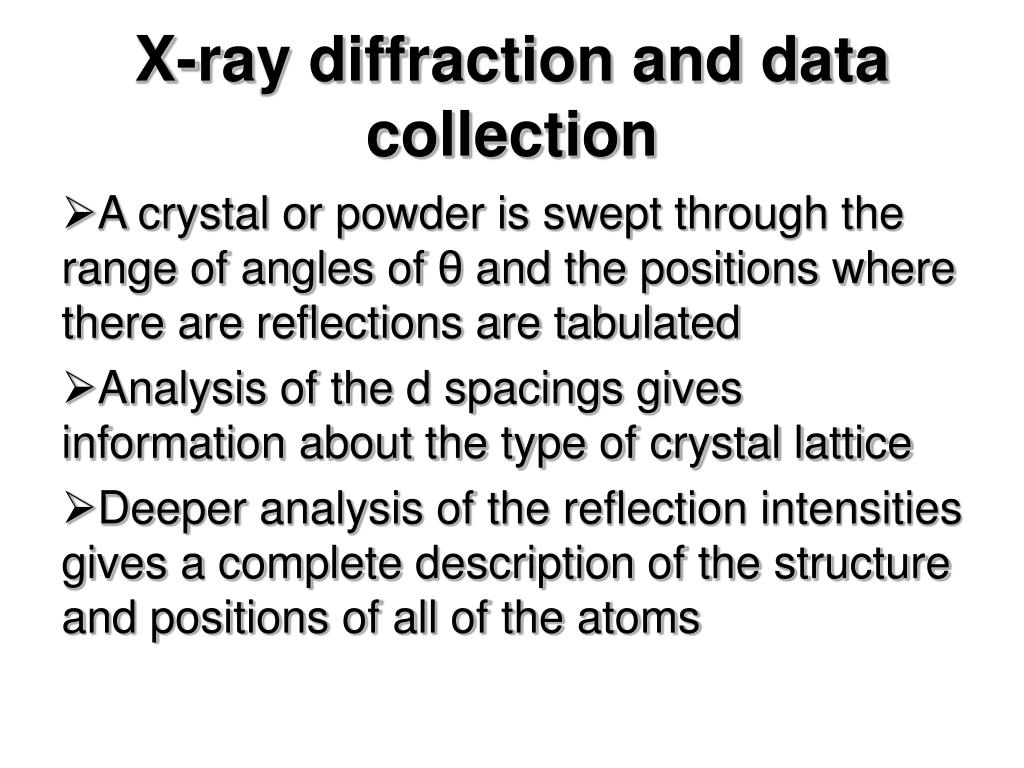

X-ray diffraction and data collection
  • A crystal or powder is swept through the range of angles of θ and the positions where there are reflections are tabulated
  • Analysis of the d spacings gives information about the type of crystal lattice
  • Deeper analysis of the reflection intensities gives a complete description of the structure and positions of all of the atoms
symmetry and crystal structure
Symmetry and crystal structure
  • Symmetry underlies chemistry
    • Arrangements of atoms in crystals
    • Determination of spectra
    • Mixtures of orbitals in bonds
  • Symmetry operators relate the positions of the atoms in the unit cell
common symmetry elements

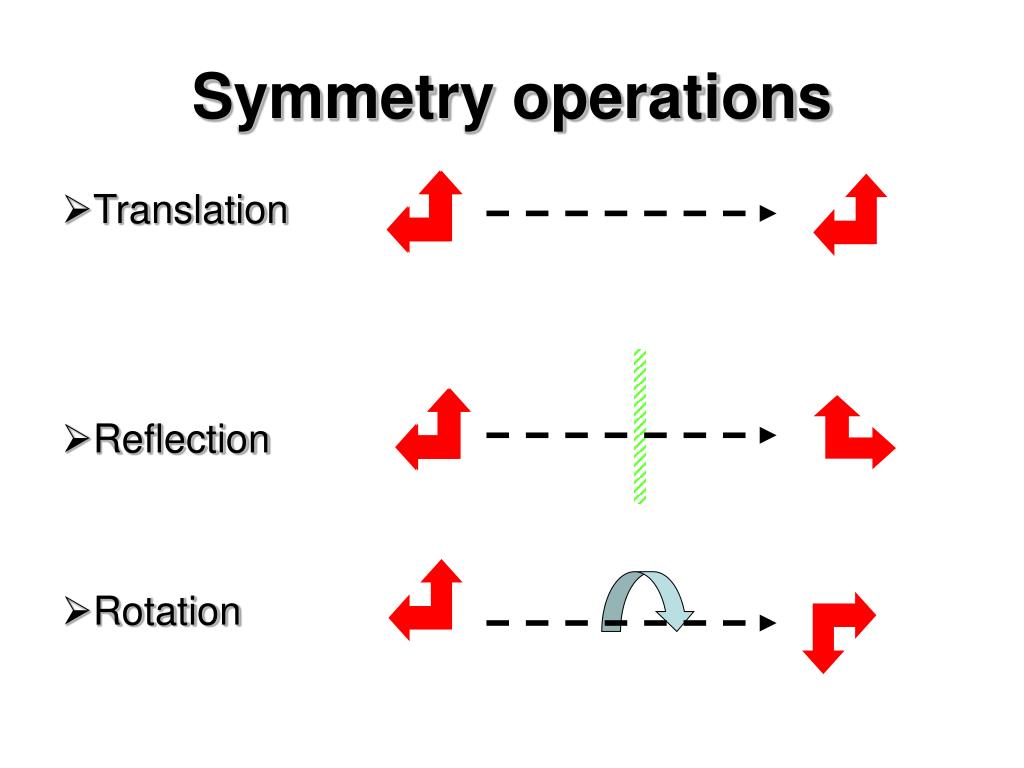

Common symmetry elements
  • Translation
  • Rotation
  • Reflection
  • After application of a symmetry operation to a set of atoms related by symmetry, the system appears unchanged
packing of spheres and simple structures

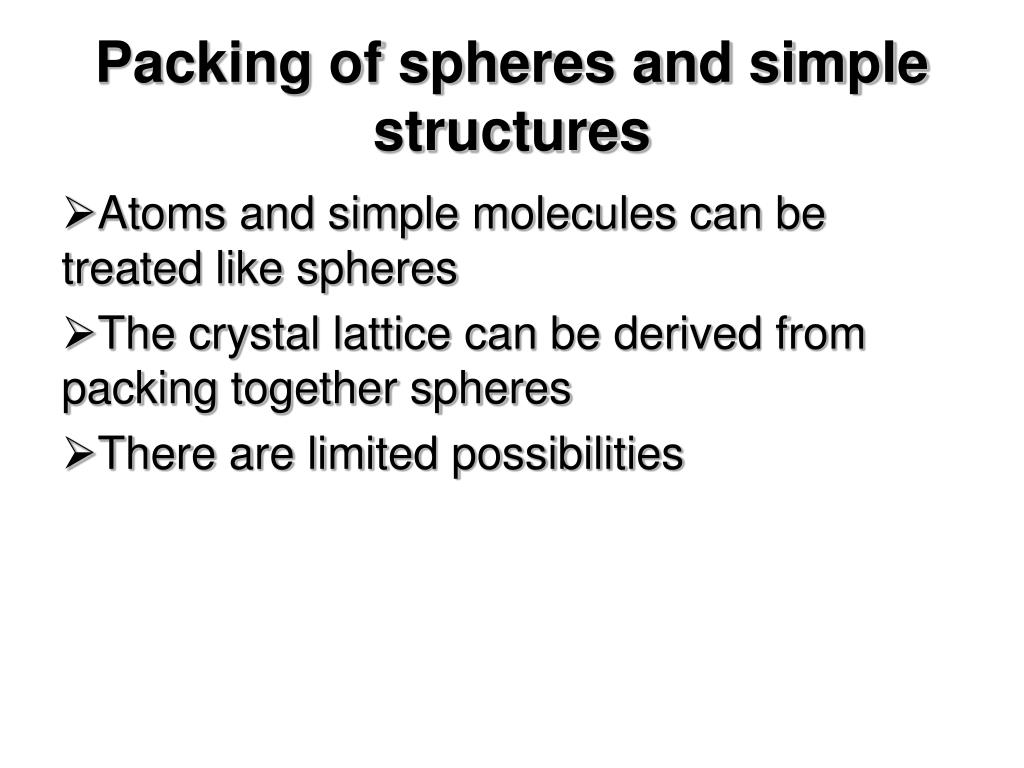

Packing of spheres and simple structures
  • Atoms and simple molecules can be treated like spheres
  • The crystal lattice can be derived from packing together spheres
  • There are limited possibilities
cubic packing

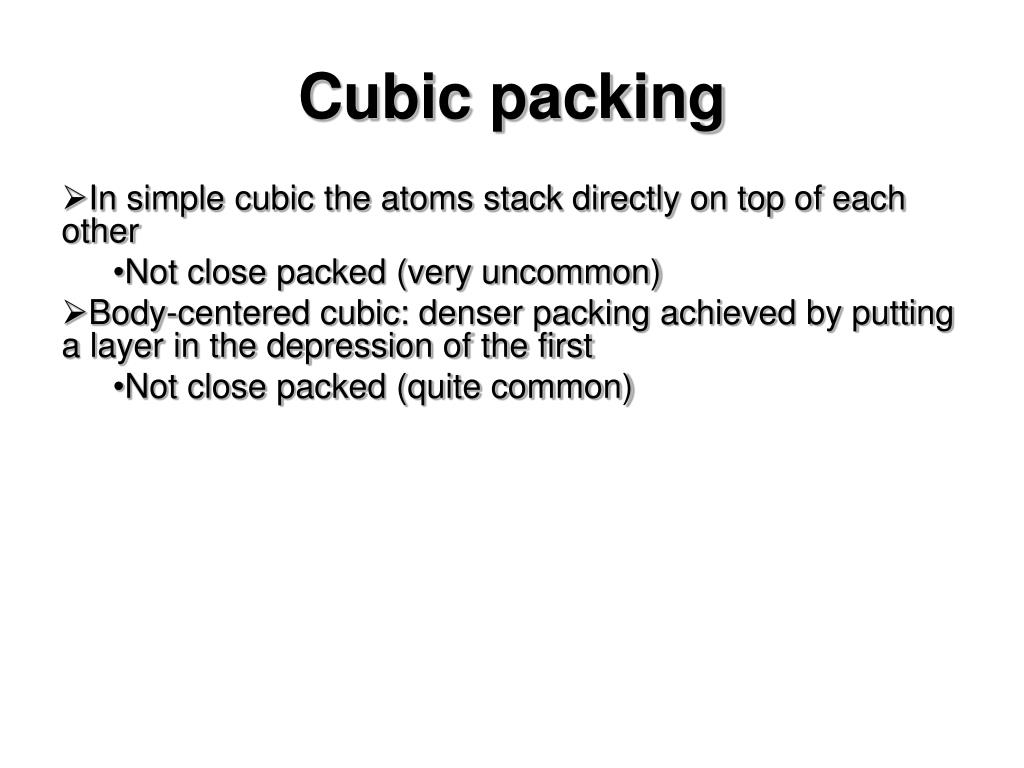

Cubic packing
  • In simple cubic the atoms stack directly on top of each other
    • Not close packed (very uncommon)
  • Body-centered cubic: denser packing achieved by putting a layer in the depression of the first
    • Not close packed (quite common)
close packing
Close packing
  • Two arrangements achieve a higher density
    • Hexagonal close-packed- abab
    • Face-centered cubic – abcabc
  • Both are common for metallic elements

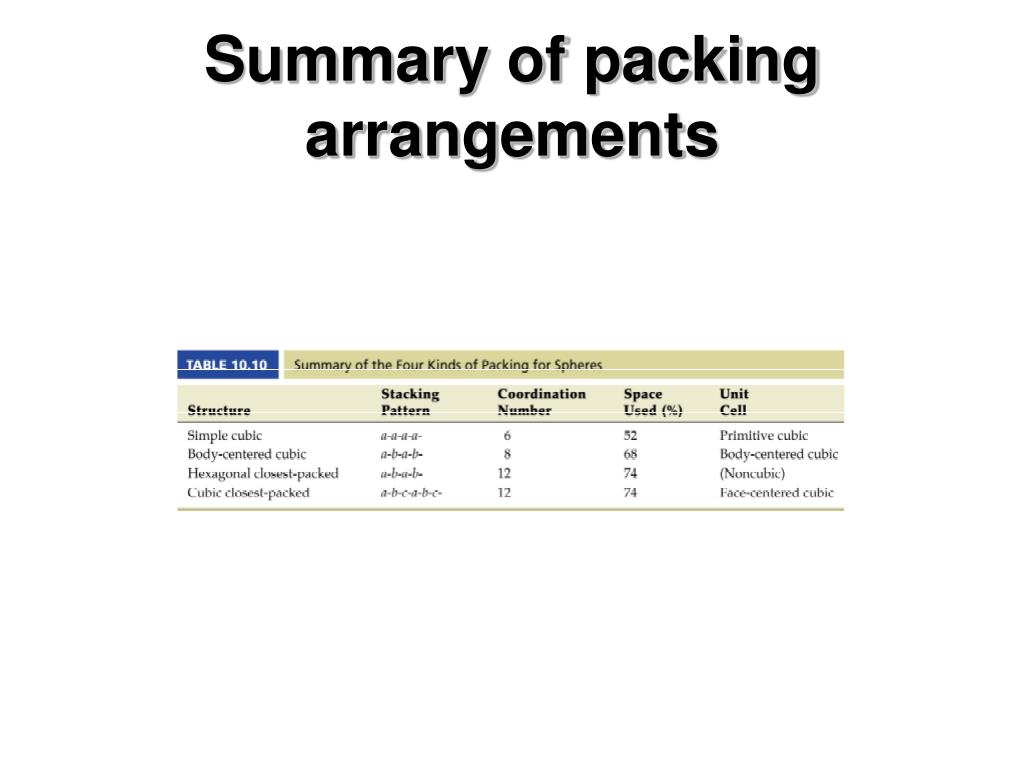

building patterns with unit cells
Building patterns with unit cells
  • A floor is made from a mosaic of tiles
  • A wall is made from stacking of bricks
  • A crystal is made from stacking unit cells
  • In each case one unit contains all of the information required to describe the structure completely without any gaps or deficiencies
counting atoms in a unit cell

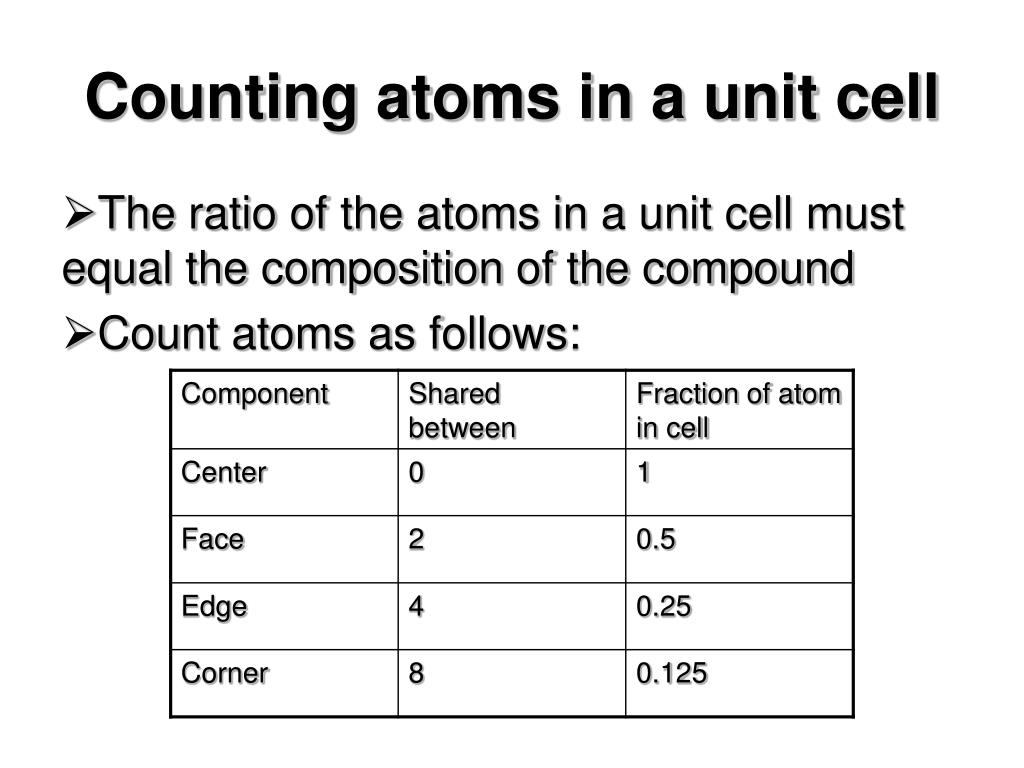

Counting atoms in a unit cell
  • The ratio of the atoms in a unit cell must equal the composition of the compound
  • Count atoms as follows:
primitive and body centered cells
Primitive and body-centered cells
  • Alternate views of the primitive and body-centered cell
  • Primitive:
    • 8 atoms on the corners each contribute 1/8th to the contents – overall cell contents = 1
  • BCC:
    • 8 atoms on the corners contribute 1
    • 1 atom in center contributes 1
    • Overall contents = 2; composition AB
face centered cube
Face-centered cube
  • Two views of the FCC lattice
  • Also viewed along 3-fold axis which is perpendicular to the close-packed layers
  • Contents:
    • 8 at corners = 1
    • 6 on faces = 3
    • Total contents = 4
calculations with unit cells

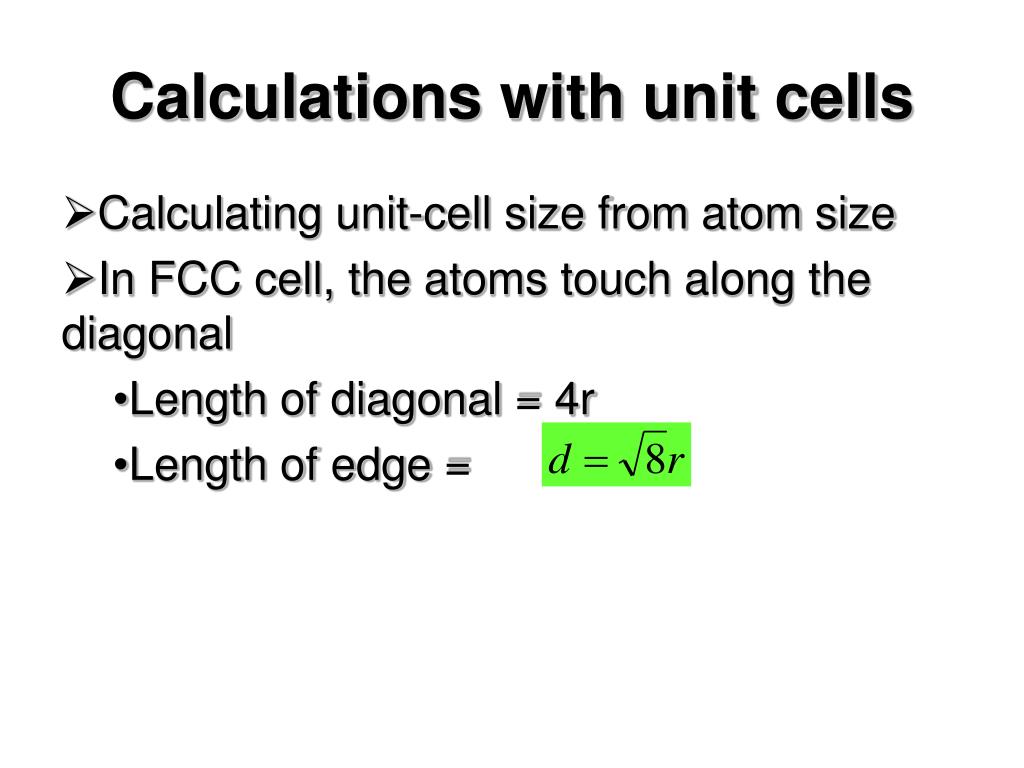

Calculations with unit cells
  • Calculating unit-cell size from atom size
  • In FCC cell, the atoms touch along the diagonal
    • Length of diagonal = 4r
    • Length of edge =
estimate density

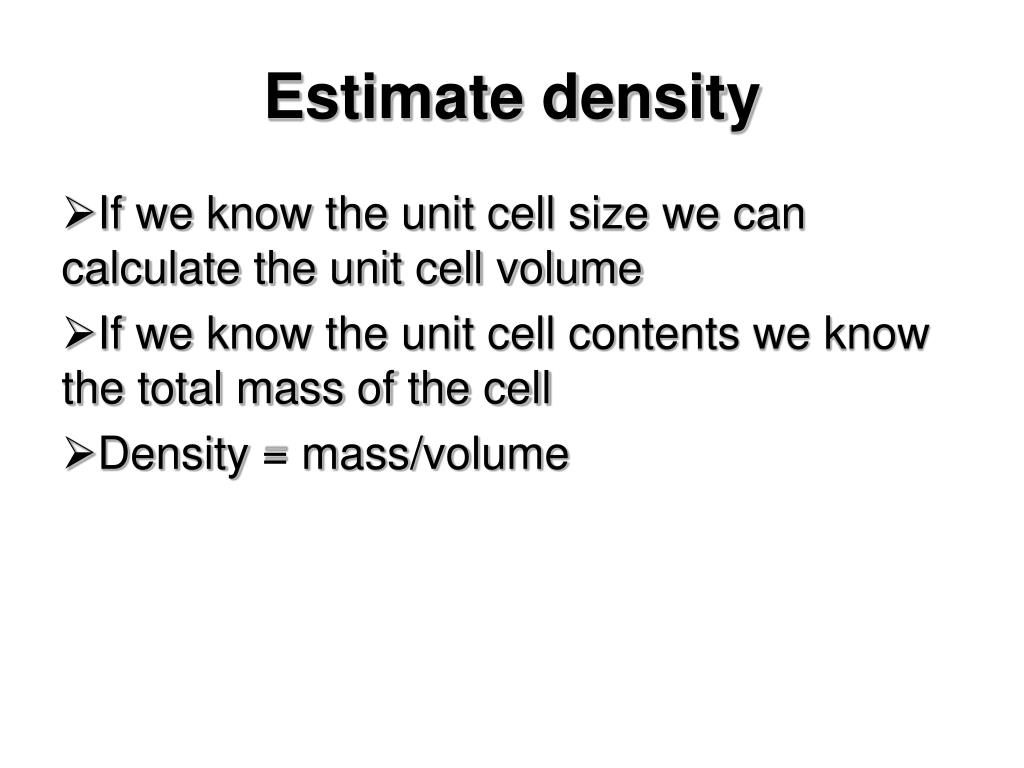

Estimate density
  • If we know the unit cell size we can calculate the unit cell volume
  • If we know the unit cell contents we know the total mass of the cell
  • Density = mass/volume
simple ionic compounds
Simple ionic compounds
  • In general, anions are larger than cations
  • Lattices can be described by close packing of anions with cations occupy regular “holes” in the anion lattice
sodium chloride

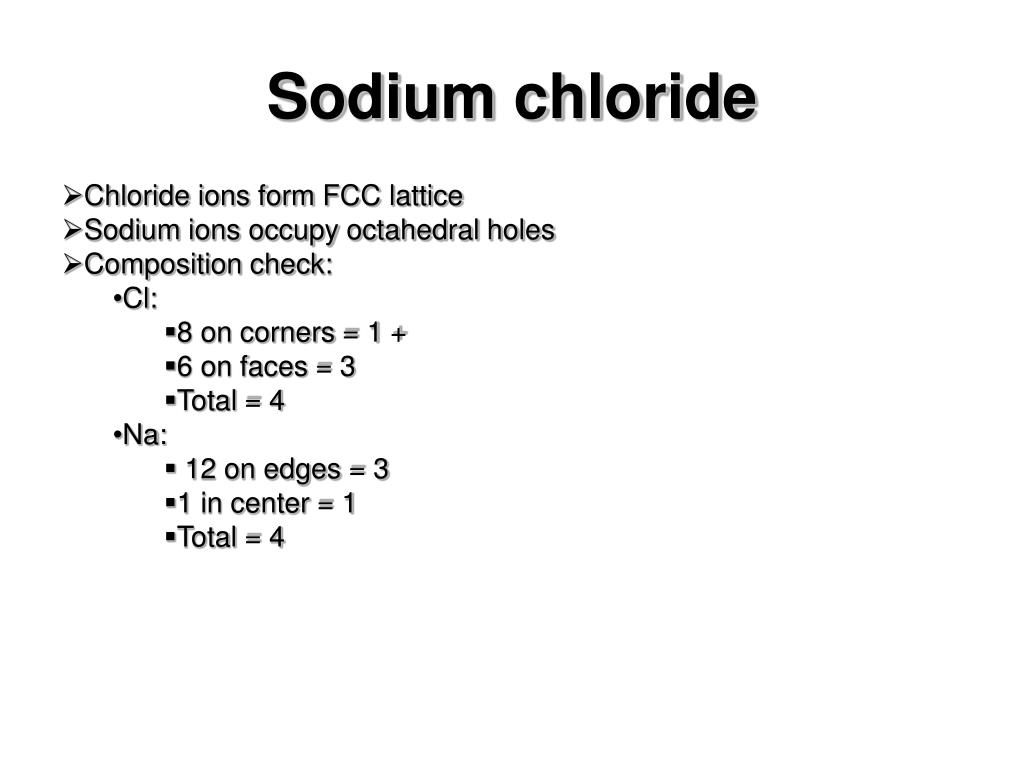

Sodium chloride
  • Chloride ions form FCC lattice
  • Sodium ions occupy octahedral holes
  • Composition check:
    • Cl:
      • 8 on corners = 1 +
      • 6 on faces = 3
      • Total = 4
    • Na:
      • 12 on edges = 3
      • 1 in center = 1
      • Total = 4
covalent networks
Covalent networks
  • Ionic lattices are characterized by high coordination numbers and non-directional bonding
  • Covalent lattices have low coordination numbers and highly directional bonding
  • The bonds are formed from hybridized atomic orbitals to use the valence bond model
diamonds are forever

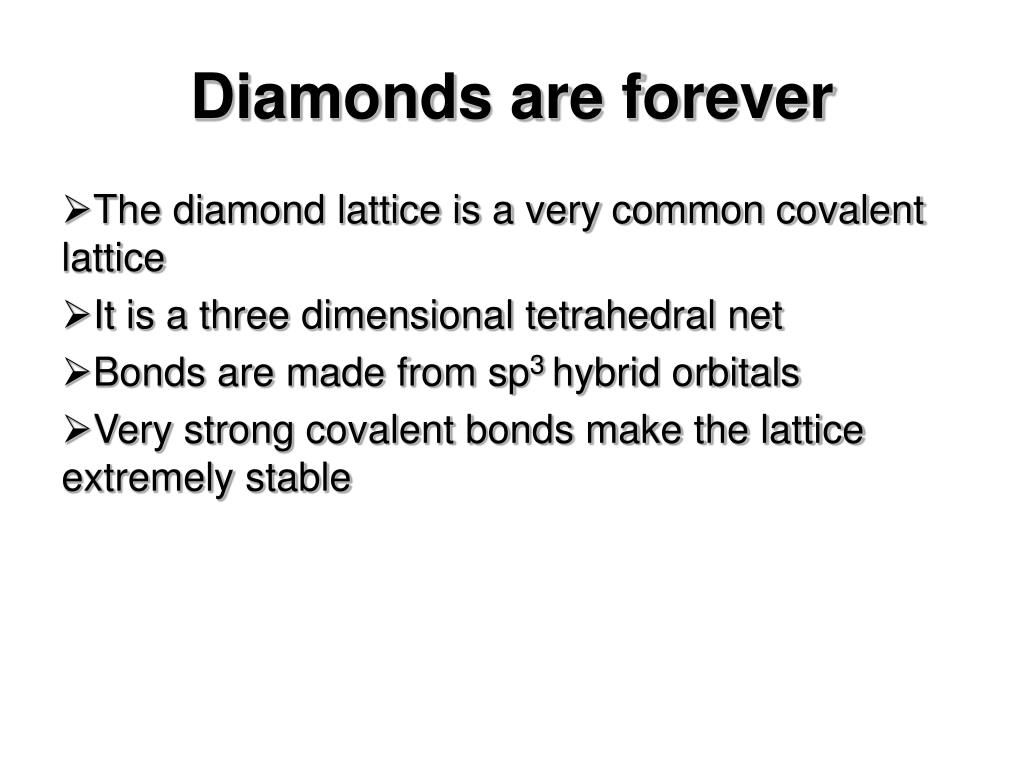

Diamonds are forever
  • The diamond lattice is a very common covalent lattice
  • It is a three dimensional tetrahedral net
  • Bonds are made from sp3 hybrid orbitals
  • Very strong covalent bonds make the lattice extremely stable
compounds also have diamond lattice
Compounds also have diamond lattice
  • In GaAs, the Ga and As atoms alternate in the diamond lattice
  • GaAs is an important semiconductor and laser material
  • Many other similar materials
diamond and graphite

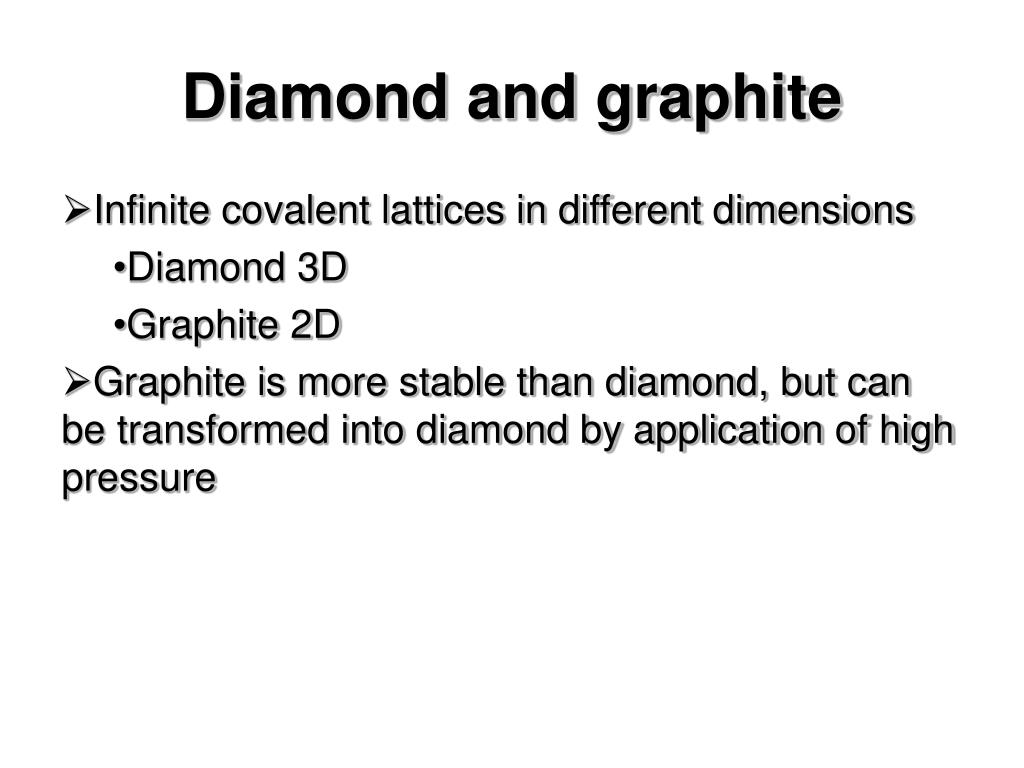

Diamond and graphite
  • Infinite covalent lattices in different dimensions
    • Diamond 3D
    • Graphite 2D
  • Graphite is more stable than diamond, but can be transformed into diamond by application of high pressure
summing it up phase diagrams
Summing it up: phase diagrams
  • Phase diagrams summarize the states of a substance as a function of the pressure and temperature
  • They reveal:
    • The areas where one phase is stable
    • The lines where two phases are in equilibrium
    • The points where three phases are in equilibrium
phase diagram for water
Phase diagram for water
  • A piece of ice at 1 atm pressure will convert to liquid at 0ºC and into gas at 100ºC
  • Below at pressure of 6 x 10-3 atm the ice converts directly into a gas (sublimation)
  • At the triple point the three phases are in equilibrium – a single temperature and pressure
  • Beyond the critical point is the region of supercritical fluid:
    • Cannot be condensed no matter what the pressure (critical temperature)
    • Cannot be vaporized no matter what the temperature (critical pressure)
phase diagrams explain well known phenomena
Phase diagrams explain well known phenomena
  • The slope of the solid-liquid phase boundary for water is negative, while for CO2 it is positive
    • A sample of ice under pressure melts
    • A sample of liquid CO2 under pressure solidifies
  • At 1 atm pressure:
    • Ice melts on heating
    • Solid CO2 sublimes (dry ice)
