### The Crystalline Solid State

Chapter 7

Crystalline Solid State
• Many more “molecules” in the solid state.
• We will focus on crystalline solids composed of atoms or ions.
• Unit cell – structural component that, when repeated in all directions, results in a macroscopic (observable) crystal.
• 14 possible crystal structures (Bravais lattices)
• Discuss positions of atoms in the unit cell.
The Cubic Unit Cell (or Primitive)
• 1 atom per unit cell (how?).
• What is the coordination number? Volume occupied?
• Let’s calculate the length of the edge. What size of sphere would fit into the hole?
The Body-Centered Cubic
• How many atoms per unit cell?
• What is the length of the edge? This is a more complicated systems than the simple cubic.
Close-Packed Structures
• How many atoms is each atom surrounded by in the same plane?
• What is the coordination number?
• Hexagonal close packing (hcp) – discuss the third layer (ABA).
• Cubic close packing (ccp) or face-centered cubic (fcc) – discuss the third layer (ABC).
• Two tetrahedral holes and one octahedral hole per atom. Can you see them?
Close-Packed Structures
• The hcp has hexagonal prisms sharing vertical faces (Figure).
• How many atoms per unit cell in the hcp structure?
• What is the length of the cell edge?
• The unit cell for the ccp or fcc is harder to see.
• Need four close-packed layers to complete the cube.
• What is the length of the cell edge?
• In both close-packed structures, 74.1% of the total volume is occupied.
Ionic Crystals
• The tetrahedral and octahedral holes can have varying occupancies.
• Holes are generally filled by smaller ions.
• Tetrahedral holes
• Octahedral holes
• NaCl structure
Metallic Crystals
• Most crystalize in bcc, ccp, and hcp structures.
• Hard sphere model does not work well.
• Depends on electronic structure.
• Properties
• Conductivity
• Dislocations
Diamond
• Each carbon atom is bonded tetrahedrally to four nearest neighbors (Figure).
• Essentially the same strength in all directions.
Structures of Binary Compounds
• Close-packed structures are generally defined by the larger ions (usually anions). The oppositely-charged ions occupy the holes.
• Two important factors in considering the structure
• Relative number of combining cations and anions.
NaCl Crystal Structure
• Face-centered cubes of both ions offset by a half a unit cell in one direction.
• Many alkali metals have this same geometry.
• What is the coordination number (nearest neighbor)?
CsCl Crystal Structure
• Chloride ions form simple cubes with cesium ions in the center (Figure 7-7).
• The cesium ion is able to fit in to center hole. How?
• Other crystal structures.
TiO2 (the rutile structure)
• Distorted TiO6 octahedra.
• Ti has a C.N. of 6, octahedral coordination
• O has a C.N. of 3
Rationalization of Structure of Crystalline Solids
• Predicting coordination number from radius ratio (r+/r-).
• A hard sphere treatment of the ions.
• Treats bonding as purely ionic.
• Simply, as as the M+ ratio increases, more anions can pack around it.
• Table 7-1.

Let’s look at a few (NaCl, CaF2, and CaCl2).

Thermodynamics of Ionic Crystal Formation
• A compound tends to adopt the crystal structure corresponding to lowest Gibbs energy.

M+(g) + X-(g)  MX(s)

G = H - TS (standard state), 2nd term can be ignored

• Lattice enthalpy

MX(s)  M+(g) + X-(g) HL (standard molar enthalpy change)

Currently, we are interested in lattice formation.

The Born-Haber Cycle
• A special thermodynamic cycle that includes lattice formation as one step.
• The cycle has to sum up to zero if written appropriately.
• Write down values for KCl.
The Born-Haber Cycle
• Calculate the lattice enthalpy for MgBr2.
• A discrepancy between this value and the real value may indicate the degree of covalent character.
• We have assumed Coulombic interactions between ions.
• The actual values for KCl and MgBr2 are 701 and 2406 kJ/mol (versus 720 and 2451).
Lattice Enthalpy Calculations
• Considering only Coulombic contributions
• The electrostatic potential energy between each pair.

zA, zB = ionic charges in electron units

r0 = distance between ion centers

e = electronic charge

4o = permittivity of a vacuum

e2/ 4o = 2.307  10-28 J m

Calculation would be performed on each cation/anion pair (nearest neighbor).

Lattice Enthalpy Calculations
• A more accurate equation depicts the Coulombic interactions over the entire crystal.

A = Madelung’s constant, value specific to a crystal type (in table). This is a sum of all the geometric factors carried out until the interaction become infinitesimal.

Lattice Enthalpy Calculations
• Repulsions between ions in close proximity term.

C’ = constant (will cancel out when finding the minimum)

• = compressibility constant, ~ 30 pm
• Combining terms
Lattice Enthalpy Calculations
• Finding the minimum energy
• dU/dr0 = O
• A negative of this value may be defined as the lattice enthalpy.
Lattice Enthalpy Calculations
• As the polarizability of the resultant ions increase the agreement with this ionic model worsens.
• Polarizibility generally indicates more covalent character.

Calculations

NaCl and CaBr2

Molecular Orbitals in Solids
• A very large number of atoms are used to generate molecular orbitals.
• One-dimensional model.
• Creation of bands that are closely spaced.
• Factors affecting the width of the band.

This would be called an ‘s band’. A similar model can be constructed for the p-orbitals and d-orbitals.

Molecular Orbitals in Solids
• Band gap – separation between bands in which no MOs exist (Figure 7-13).
• Valence band – highest energy band containing electrons.
• Conduction band – the band immediately above the valence band in energy.
Metals and Insulators
• Metals
• Partially filled valence band (e.g. s band)
• Electrons move to slightly higher energy levels by applying a small voltage. Electrons and ‘holes’ are both free to move in the metal.
• Overlapping bands (e.g. s and p bands)
• If the bands are close enough in energy (or overlapping) an applied voltage can cause the electrons to jump into the next band (conduction band).
Density of States
• Concentration of energy levels within a band.
• Helps to describe bonding/reactivity in solids.
Conductivity of Solids Versus Temperature
• Metals – decrease with temperature.
• Semiconductors – increase with temperature.
• Insulators – increase with temperature (if measurable).
Semiconductor Types
• Intrinsic semiconductors – pure material having semiconductive properties.
• Doped semiconductors – semiconductors that are fabricated by adding a small amount of another element with energy levels close to the pure state material.
• n-type semiconductors
• p-type semiconductors (look at figure)
Semiconductors
• Fermi-level (semiconductor) – the energy at which an electron is equally likely to be in each of two levels (Figure).
• Effects of dopants on the Fermi level.
• n-type and p-type.
Diodes (creating p-n junctions)
• Migration of electrons from the n-type material to the p-type material.
• Equilibrium is established due to charge transfer.
• Application of a negative potential to the n-type material and a positive potential to the p-type material.
• Discuss (Figure 7-16).
Superconductivity
• No resistance to flow of electrons.
• Currents started in a loop will continue to flow indefinitely.
• Type I superconductors – expel all magnetic fields below a critical temperature, Tc (Meisner effect).
• Type II superconductors – below a critical temperature exclude all magnetic fields completely. Between this temperature and a second critical temperature, they allow partial penetration by the magnetic field.
• Levitation experiment works well.
Theory of Superconducting
• Cooper pair theory
• Bardeen, Cooper, and Schrieffer
• Electrons travel through the material in pairs.
• The formation and propagation of these pairs is assisted by small vibrations in the lattice.
• discuss
YBa2Cu3O7 High-Temperature Superconductors
• Discovered in 1987 and has a Tc of 93 K.
• N2(l) can be used
• Type II superconductor.
• Difficult to work with.
• Possesses copper oxide planes and chains.
Bonding in Solid State Structures
• The hard-sphere model is too simplistic.
• Deviations are observed in ion sizes.
• Sharing of electrons (or transfer back to the cation) can vary depending upon the polarizability.
• LiI versus NaCl (which structure would exhibit more covalent character?)
Bonding in TiO2
• The crystal has a rutile structure.
• Each titanium has ___ nearest neighbors and each oxygen atom has ___ nearest neighbors.
• There is no effective O···O or Ti···Ti interactions (only Ti···O interactions). Why?
• The structure consists of TiO6 fragments (discuss).
Bonding in TiO2

For a TiO6 monomer (no significant -bonding).

An approximation of the ‘bands in the solid structure.

Bonding in TiO2
• The calculated DOS curve in 3-d space is slightly more complicated.
• The O 2s, O2p, Ti t2g, and eg bands are well separate. The separation predicts that this material has ‘insulator-like’ properties.
Bonding in TiO
• Several of the 3d monoxides illustrate high conductivity that decreases with temperature.
• TiO and VO (positioning in the table).
• TiO adopts the rocksalt structure (NaCl).
• Discuss geometry and consequences on bonding.
Bonding in TiO
• The titanium atoms are close enough to form a ‘conduction’ band.
• Overlap of t2g orbitals of the metal ions in neighboring octahedral sites.
• Illustrated for dxy orbitals.
Bonding in TiO
• The calculated DOS curve for TiO reveals that the bonds aren’t well separated.
• Diffuse bands indicate more conductive behavior.
• Why is TiO2 different than TiO?
Bonding in TiO
• MnO, FeO, CoO, and NiO do not conduct, but they have the same basic structure. Why?
Imperfections in Solids
• All crystalline solids possess imperfections.
• Crystal growth occurring at many sites causes boundaries to form.
• Vacancies and self-interstitials
• Substitutions
• Dislocations
Silicates
• The earth’s crustal rocks (clays, soils, and sands) are composed almost entirely (~95%) of silicate minerals and silica (O, Si, and Al).
• There exist many structural types with widely varying stoichiometries (replacement of Si by Al is common). Consequences?
• Common to all:
• SiO4 tetrahedra units
• Si is coordinated tetrahedrally to 4 oxygens

http://www.soils.wisc.edu/virtual_museum/displays.html

http://mineral.galleries.com/minerals/silicate/class.htm

Structures with the SiO4 Unit
• Discrete structural units which commonly contain cations for charge balance.
• Corner sharing of O atoms into larger units.
• O lattice is usually close-packed (near)
• Charge balance is obtained by presence of cations.

Individual units, chains, multiple chains (ribbons), rings, sheets and 3-d networks.

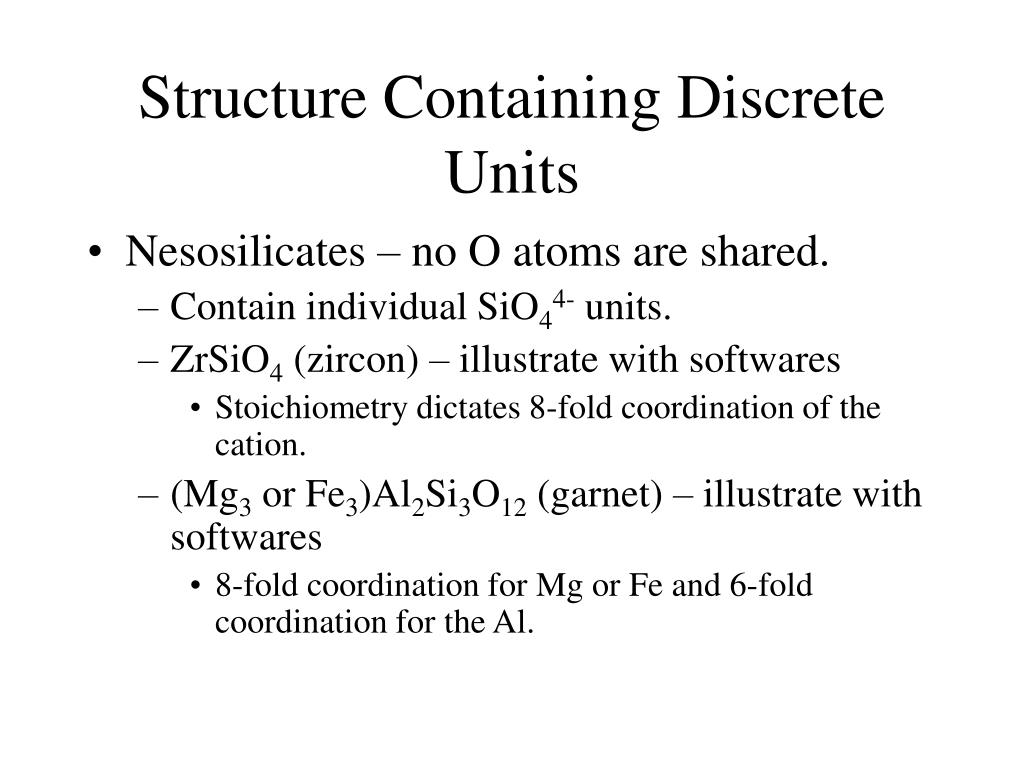

Structure Containing Discrete Units
• Nesosilicates – no O atoms are shared.
• Contain individual SiO44- units.
• ZrSiO4 (zircon) – illustrate with softwares
• Stoichiometry dictates 8-fold coordination of the cation.
• (Mg3 or Fe3)Al2Si3O12 (garnet) – illustrate with softwares
• 8-fold coordination for Mg or Fe and 6-fold coordination for the Al.
Structure Containing Discrete Units
• The sorosilicates (disilicates) – 1 O atom is shared.
• Contain Si2O76- units
• Show Epidote (Ca2FeAl2(SiO4)(Si2O7)O(OH)) with softwares.
• Epidote contains SiO44- and Si2O76- units
• Near linear Si-O-Si bond angle between tetrahedra.
Cyclosilicates (discrete cyclic units)
• Each SiO4 units shares two O atoms with neighboring SiO4 tetrahedra.
• Formula – SiO32- or [(SiO3)n]2n- (n=3-6 are the most common.
• Beryl – six-linked SiO4 tetrahedra (show with softwares).
• Be3Al2(SiO3)6 – contains Si6O1812- cyclic units
• The impurities produce its colors.
• K2ZrSi3O9
Silicates with Chain or Ribbon Structures
• Corner sharing of SiO4 tetrahedra (SiO32-)
• Very common (usually to build up more complicated silicate structures).
• Changes the repeat distance.
• The 2T structure is the most common (long).
Silicates with Chain or Ribbon Structures
• The chains are usually packed parallel to provide sites of 6 and 8 coordination for the cations.
• Illustrate the different repeat units.
• What is the repeat unit?
• Can form double or triple chains/ribbons linked together (or more).
• Depends on the repeat unit in the chain.
• Tremolite [Ca2Mg5(Si4O11)2(OH)2

(illustrate with softwares)

Asbestos mineral (fibrous)

• Triple chain
Phyllosilicates (Silicates with Layer Structures)
• Clay minerals, micas, talc, soapstone.
• Individual layers are formed by sharing 3 of the 4 atoms of each tetrahedron.
• Simplest structure is made up of a 2T network of silicate chains to give a network composition of Si2O52-.
• This is exhibited with kaolinite (illustrate the silicon tetrahedral layer).
Creation of Layers in the Phyllosilicates
• Can be formed by sharing the fourth O atom between pairs of tetrahedra.
• Produces an SiO2 stoichiometry (neutral)
• Replacing Si with Al
• Al2Si2O82-; requires charge balance. The cations connect the double layers.
Creation of Layers in the Phyllosilicates
• Double layers can be produced by interleaving layers of the gibbsite Al(OH)3 or brucite Mg(OH)2 structure.
• Incorporation of gibbsite produces kaolinite, [Al2(OH)4Si2O5] (China clay); illustrate with software the different layers present.
• Placing a SiO layer on the other side of the AlO layer produces pyrophyllite, [Al2(OH)2Si4O10].
• Illustrate both with software.
More Layered Structures
• The Al can be replaced by Mg (2:3) ratio.
• Kaolinite  serpentine asbestos
• Pyrophyllite  talc
• Charged layers can also result by replacing the framework Si with Al or other cations. For charge balance these layers can be interleaved with M(+1) or M(+2) to give micas (illite) or by layers of hydrated cations to give montmorillonite.
• Illustrate both.
The Tectosilicates
• Each oxygen atom is shared by 2 tetrahedra (SiO2 formula).
• Silica (-quartz; one crystalline form)
• Si-O-Si bond angles are ~144 degrees.
• Contains helical chains of SiO4.
• Six combine to form hexagonal shape (illustrate).
The Tectosilicates (Zeolites - aluminosilicates)
• A large fraction of the Si atoms are replaced with Al (other metals can also be used).
• Charge balance will be required (Si,Al)nO2n.
• Contain cavities that allow molecules to enter.
• Able to tailor electronic and physical properties.
• Pore structure and cation exchange.
• Illustrate with software.
