Volume: Prisms and Cylinders

Volume: Prisms and Cylinders. Lesson 10-7 p.538. Volume. The volume of a three-dimensional figure is the amount that fills the figure. The volume is given in cubic units. Volume. Consider this prism. If we cut it into cubic units, it would look like this:. 2 in. 3 in. 4 in. Volume.

ronda
Download Presentation

Volume: Prisms and Cylinders

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

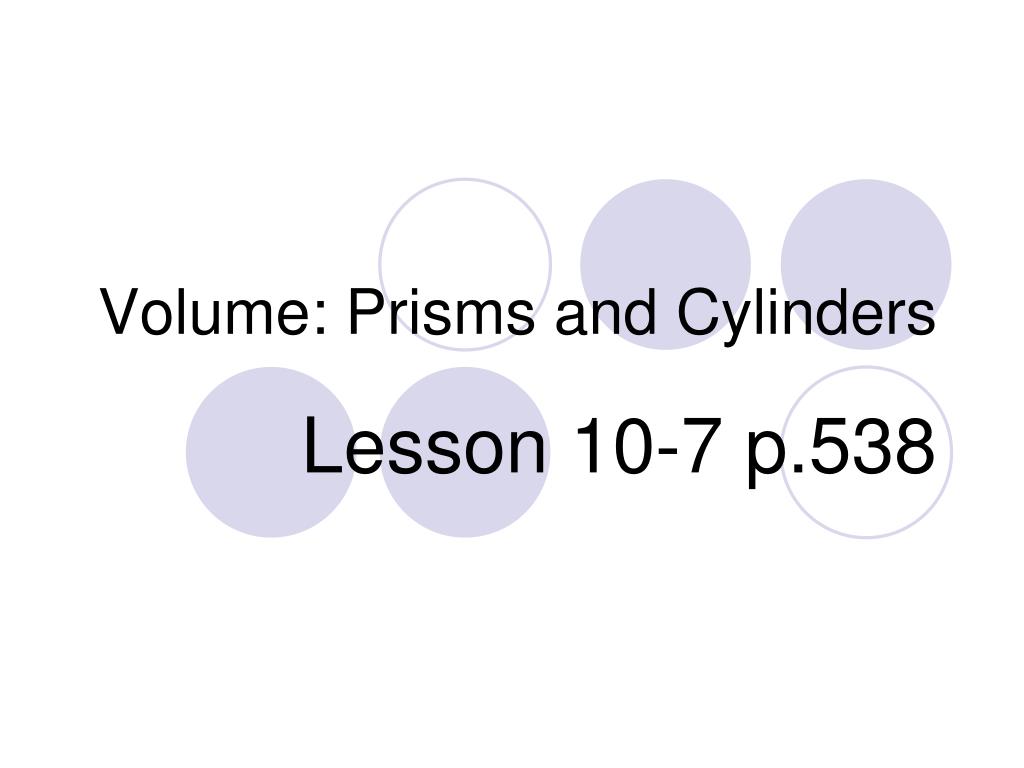

  1. Volume: Prisms and Cylinders Lesson 10-7 p.538

  2. Volume • The volume of a three-dimensional figure is the amount that fills the figure. The volume is given in cubic units.

  3. Volume • Consider this prism. If we cut it into cubic units, it would look like this: 2 in 3 in 4 in

  4. Volume • Consider this prism. If we cut it into cubic units, it would look like this: 2 in 3 in 4 in

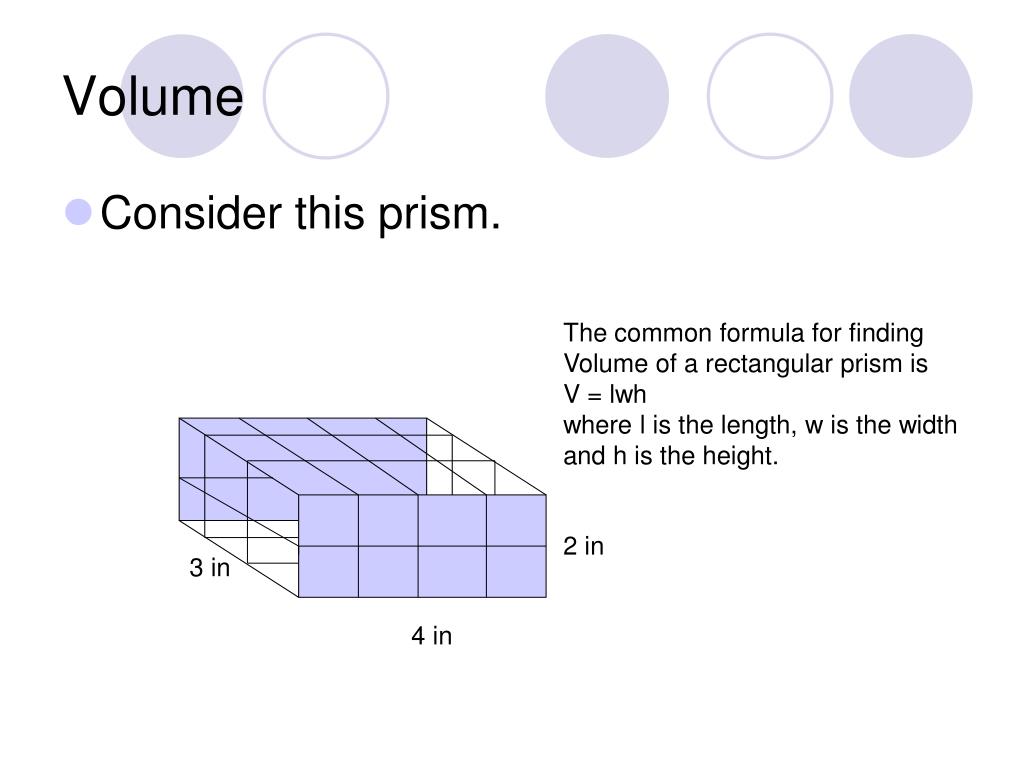

  5. Volume • Consider this prism. The common formula for finding Volume of a rectangular prism is V = lwh where l is the length, w is the width and h is the height. 2 in 3 in 4 in

  6. Volume • Consider this prism. In this example, V = lwh = 4 (3) (2) = 24 cu. in. 2 in 3 in 4 in

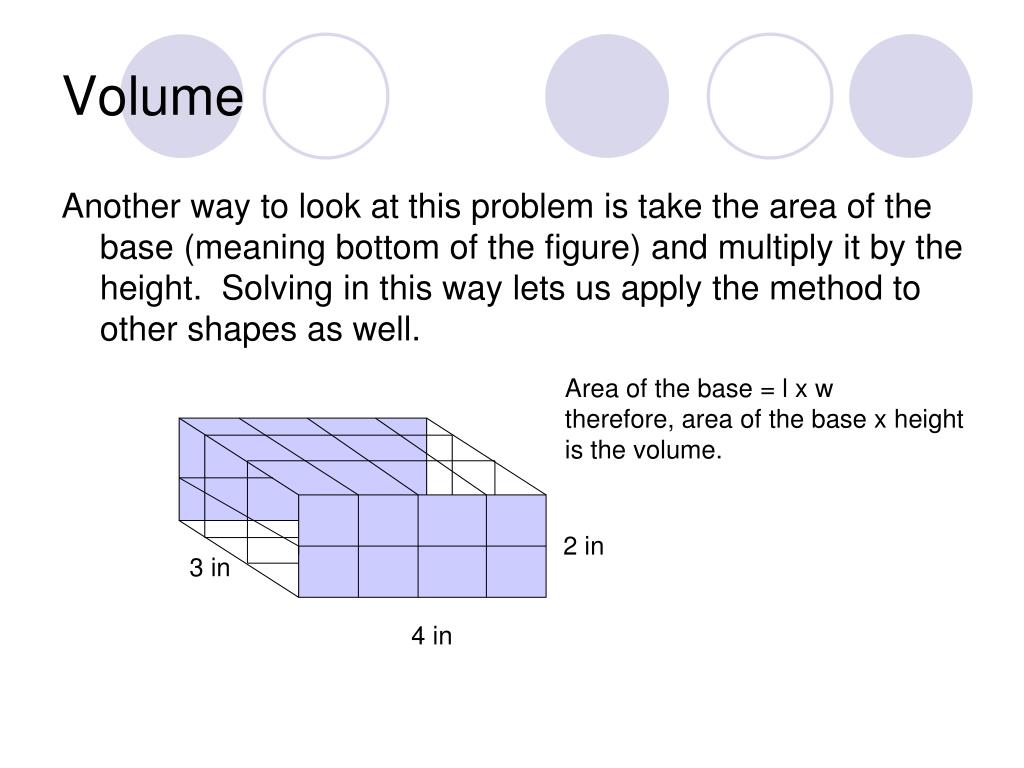

  7. Volume Another way to look at this problem is take the area of the base (meaning bottom of the figure) and multiply it by the height. Solving in this way lets us apply the method to other shapes as well. Area of the base = l x w therefore, area of the base x height is the volume. 2 in 3 in 4 in

  8. Example • Let’s try this method with a triangular prism 6 ft Volume = area of the base x height The base is the triangle. A = bh 2 A = (8) (6) 2 A = 24 sq. ft. Volume = area of the base x height = 24 x 9 = 216 cu. Ft. 9 ft 8 ft

  9. Try This • Find the volume: 4 in 5 in. 4 ft 6 ft 6 in. 3 ft

  10. Try This • Find the volume: 4 in 5 in. 4 ft 6 ft 6 in. 3 ft 120 cu. in.

  11. Try This • Find the volume: 4 in 5 in. 4 ft 6 ft 6 in. 3 ft 120 cu. in. 36 cu. ft.

  12. Example • This works for finding the volume of cylinders also. 3 m Volume = area of the base x height. Area of base = = 3.14 x 32 = 28.26 sq. m Volume = area of base x height. = 28.26 x 5 = 141.3 cu. meters 5 m

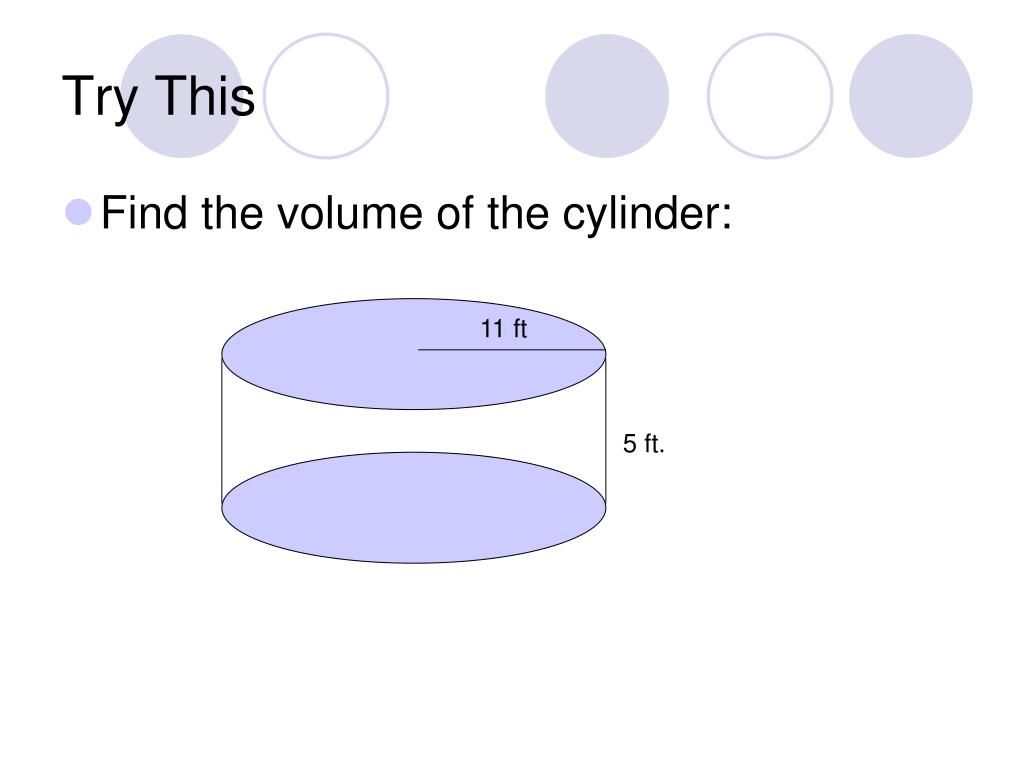

  13. Try This • Find the volume of the cylinder: 11 ft 5 ft.

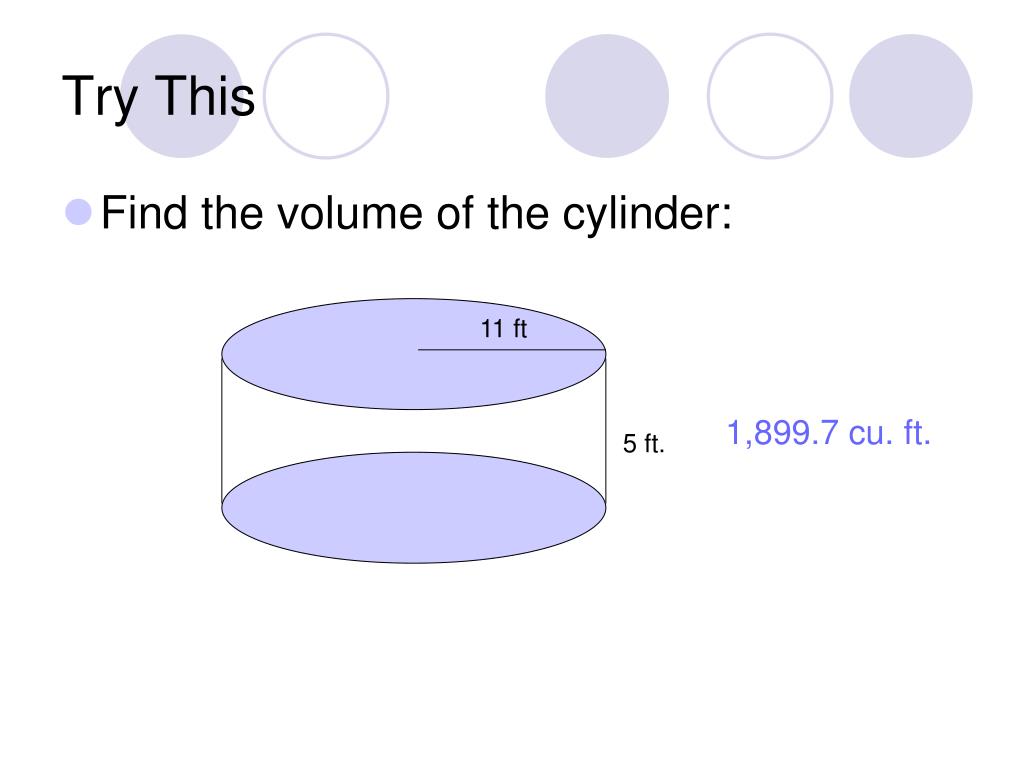

  14. Try This • Find the volume of the cylinder: 11 ft 1,899.7 cu. ft. 5 ft.

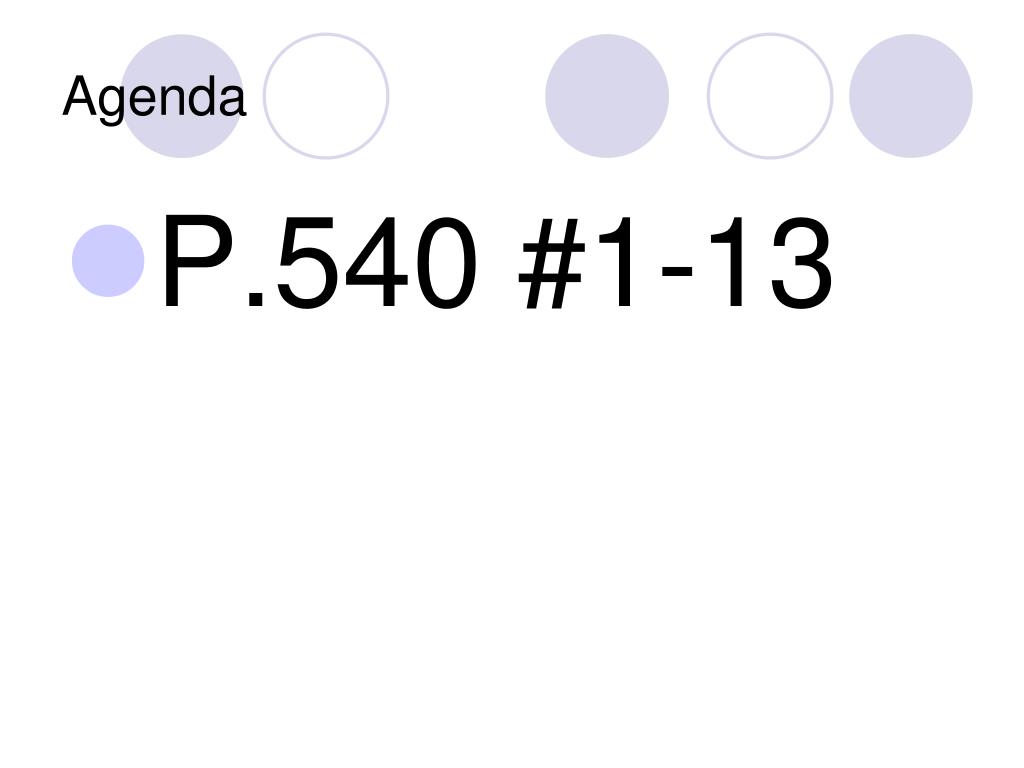

  15. Agenda • P.540 #1-13
