16Bit Microprocessor : 8086. Features of 8086 8086 is a 16bit processor. It’s ALU, internal registers works with 16bit binary word. 8086 has a 16bit data bus. It can read or write data to a memory/port either 16bits or 8 bit at a time.

ronald
Download Presentation

16Bit Microprocessor : 8086

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

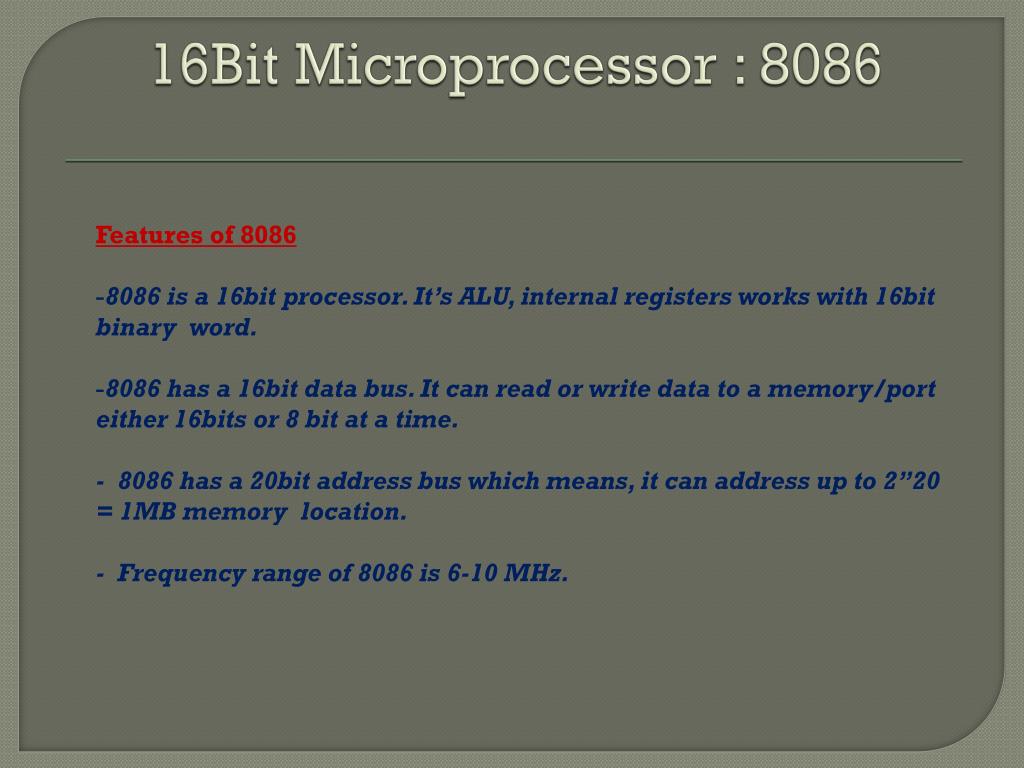

  1. 16Bit Microprocessor : 8086 • Features of 8086 • 8086 is a 16bit processor. It’s ALU, internal registers works with 16bit binary word. • 8086 has a 16bit data bus. It can read or write data to a memory/port either 16bits or 8 bit at a time. • - 8086 has a 20bit address bus which means, it can address up to 2”20 • = 1MB memory location. • - Frequency range of 8086 is 6-10 MHz.

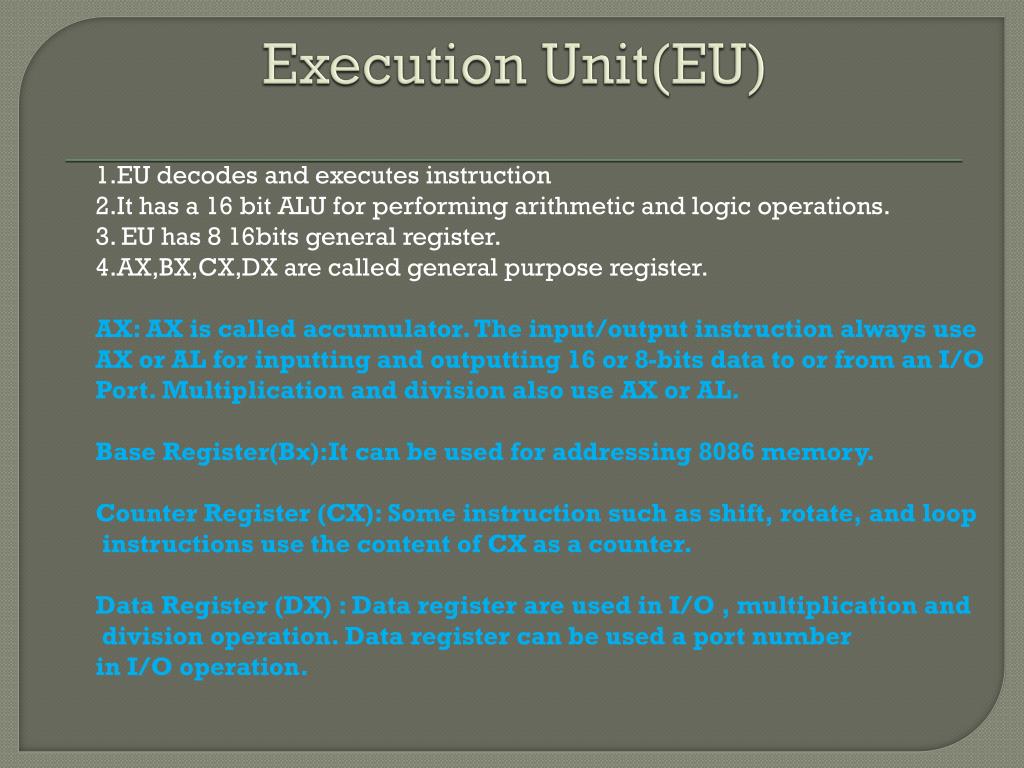

  2. Execution Unit(EU) 1.EU decodes and executes instruction 2.It has a 16 bit ALU for performing arithmetic and logic operations. 3. EU has 8 16bits general register. 4.AX,BX,CX,DX are called general purpose register. AX: AX is called accumulator. The input/output instruction always use AX or AL for inputting and outputting 16 or 8-bits data to or from an I/O Port. Multiplication and division also use AX or AL. Base Register(Bx):It can be used for addressing 8086 memory. Counter Register (CX): Some instruction such as shift, rotate, and loop instructions use the content of CX as a counter. Data Register (DX) : Data register are used in I/O , multiplication and division operation. Data register can be used a port number in I/O operation.
