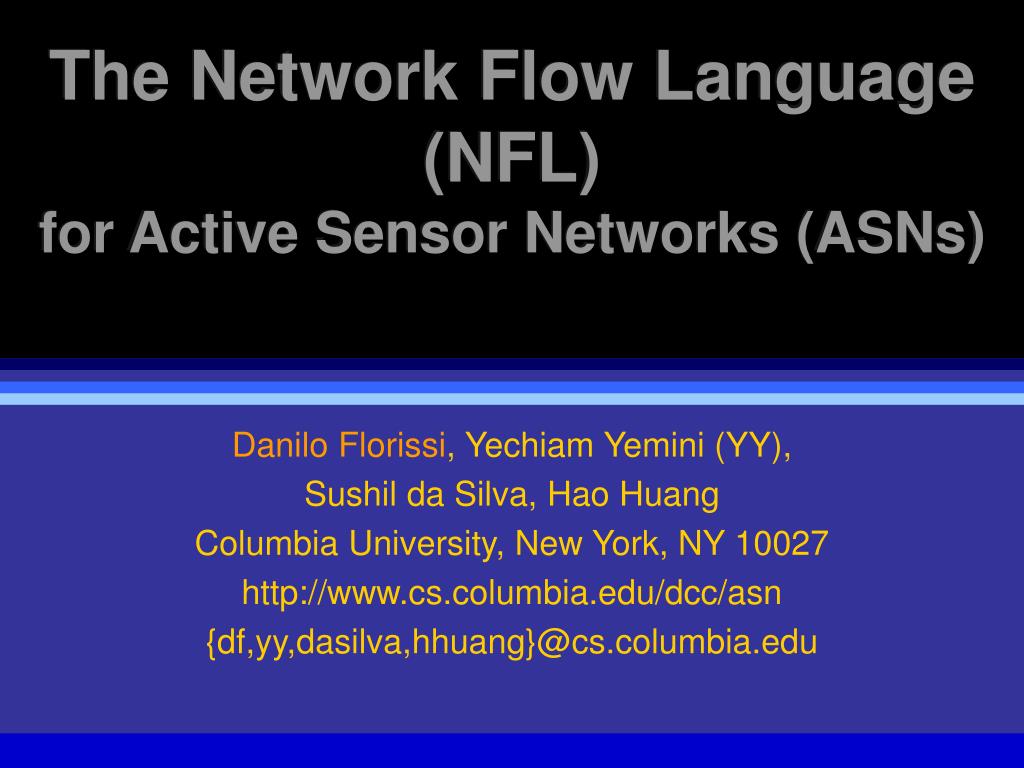

The Network Flow Language (NFL)for Active Sensor Networks (ASNs)

Danilo Florissi, Yechiam Yemini (YY),

Sushil da Silva, Hao Huang

Columbia University, New York, NY 10027

http://www.cs.columbia.edu/dcc/asn

{df,yy,dasilva,hhuang}@cs.columbia.edu

toward programmable adaptive sns
Toward Programmable Adaptive SNs

ASN

User Needs

+ A

Resource Availability

SN

Scenario

  • Key ideas
    • Active Networks (ANets) enable programming of network transport and processing functions
    • SNs need to adapt flexibly to limited resources, changing external conditions, and different foci of user interest
  • Goal: facilitate programmable adaptive SNs through ANet
active networks

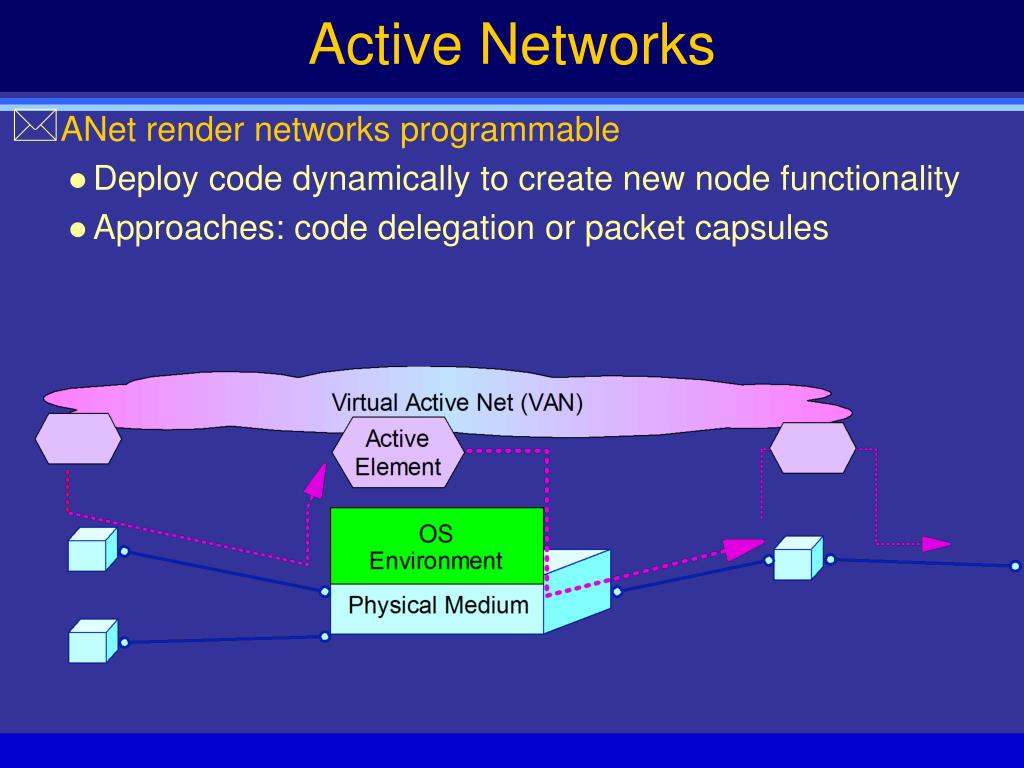

Active Networks
  • ANet render networks programmable
    • Deploy code dynamically to create new node functionality
    • Approaches: code delegation or packet capsules
the netscript language
The NetScript Language
  • Dataflow model:
    • Active element = packet stream processor engine
  • Active elements are composed from boxes (computational channels)
    • Boxes encapsulate computations
    • Composition through interconnection
    • Synchronization of streams motions
    • Allocation of underlying resources
    • Simple model of inter-operability
netscript dataflow model
NetScript Dataflow Model
  • Example: IP stack
    • Dynamic deployment of new stack components
    • On-the-fly change/upgrade of functionality
marks in web documents

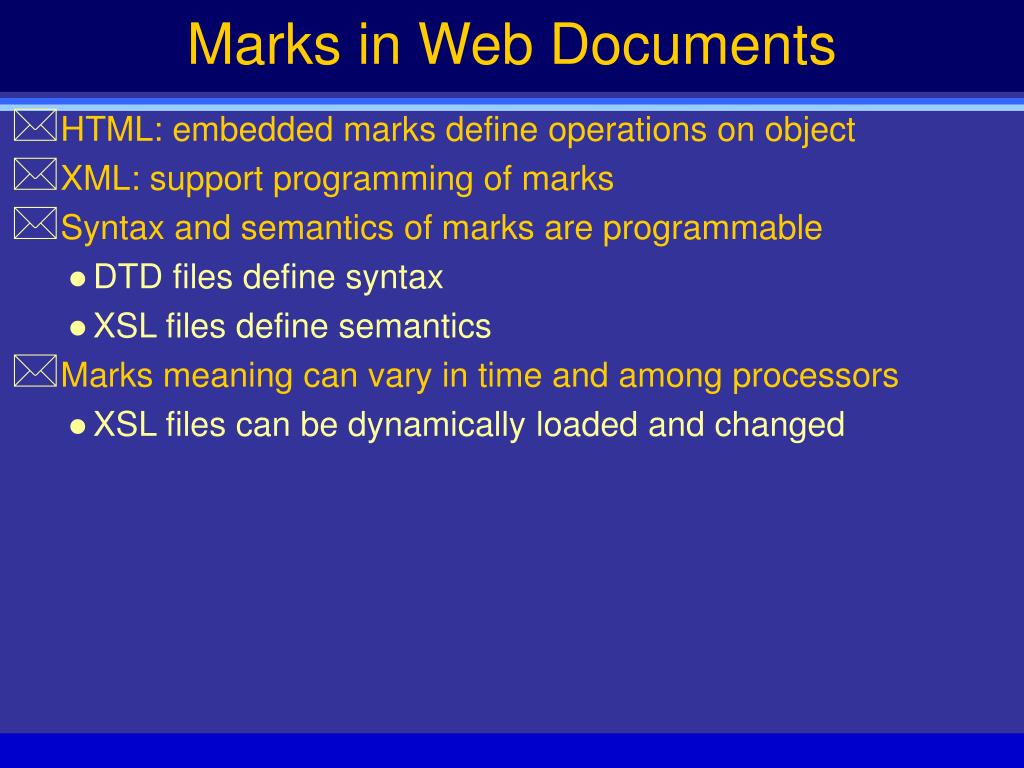

Marks in Web Documents
  • HTML: embedded marks define operations on object
  • XML: support programming of marks
  • Syntax and semantics of marks are programmable
    • DTD files define syntax
    • XSL files define semantics
  • Marks meaning can vary in time and among processors
    • XSL files can be dynamically loaded and changed
nfl language for marked flows

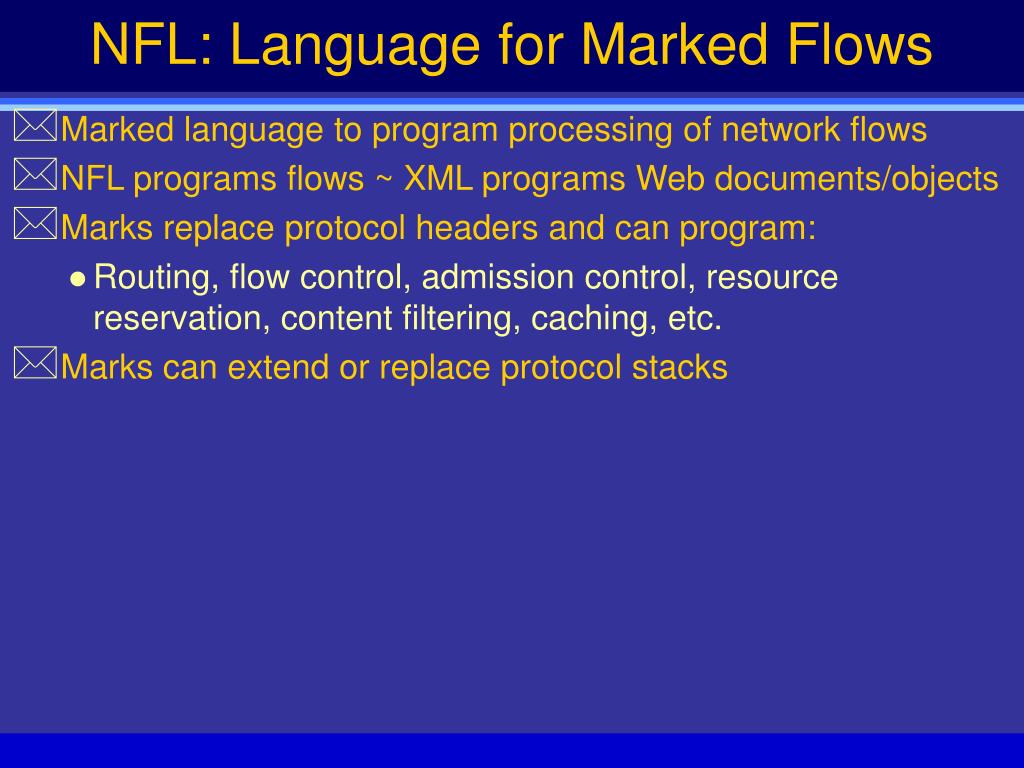

NFL: Language for Marked Flows
  • Marked language to program processing of network flows
  • NFL programs flows ~ XML programs Web documents/objects
  • Marks replace protocol headers and can program:
    • Routing, flow control, admission control, resource reservation, content filtering, caching, etc.
  • Marks can extend or replace protocol stacks
nfl main components

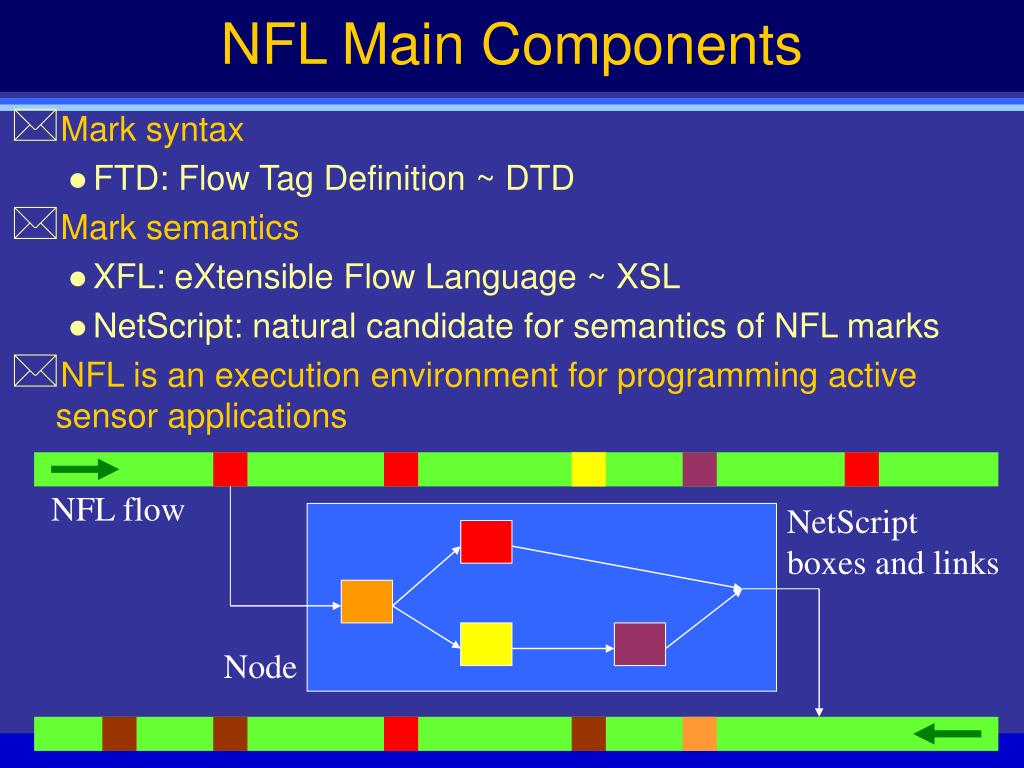

NFL Main Components
  • Mark syntax
    • FTD: Flow Tag Definition ~ DTD
  • Mark semantics
    • XFL: eXtensible Flow Language ~ XSL
    • NetScript: natural candidate for semantics of NFL marks
  • NFL is an execution environment for programming active sensor applications

NFL flow

NetScript

boxes and links

Node

mark processing by nfl

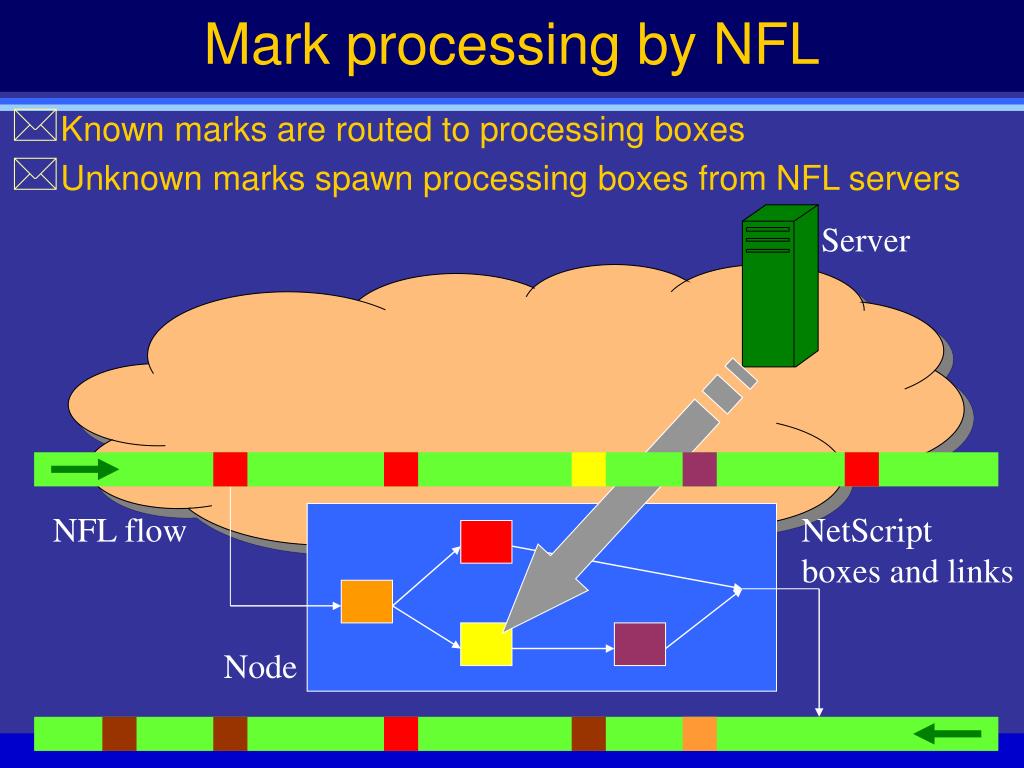

Mark processing by NFL
  • Known marks are routed to processing boxes
  • Unknown marks spawn processing boxes from NFL servers

Server

NFL flow

NetScript

boxes and links

Node

what can you do with marks
What Can You Do With Marks?
  • Create your own protocols
    • Marks replace protocol headers
    • Marks are naturally stacked through nesting
  • Combine networking and computing functions
    • E.g., contents-based routing
    • E.g., contents-based error/QoS control
  • Program a SN dynamically
recent work

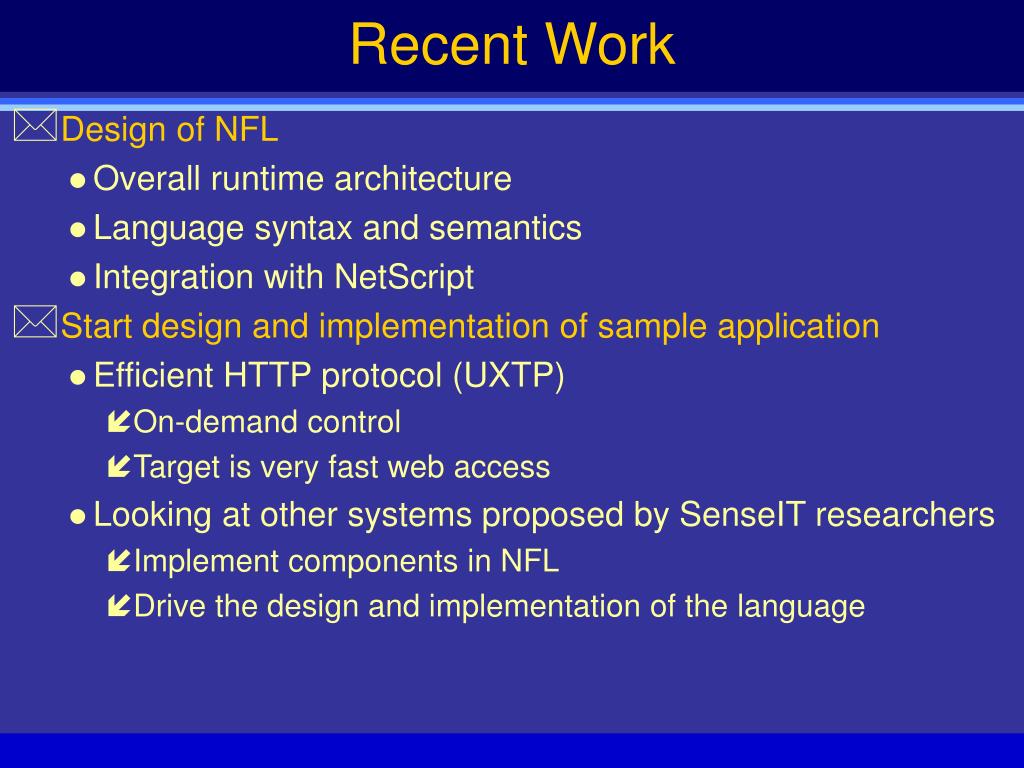

Recent Work
  • Design of NFL
    • Overall runtime architecture
    • Language syntax and semantics
    • Integration with NetScript
  • Start design and implementation of sample application
    • Efficient HTTP protocol (UXTP)
      • On-demand control
      • Target is very fast web access
    • Looking at other systems proposed by SenseIT researchers
      • Implement components in NFL
      • Drive the design and implementation of the language
near future challenges

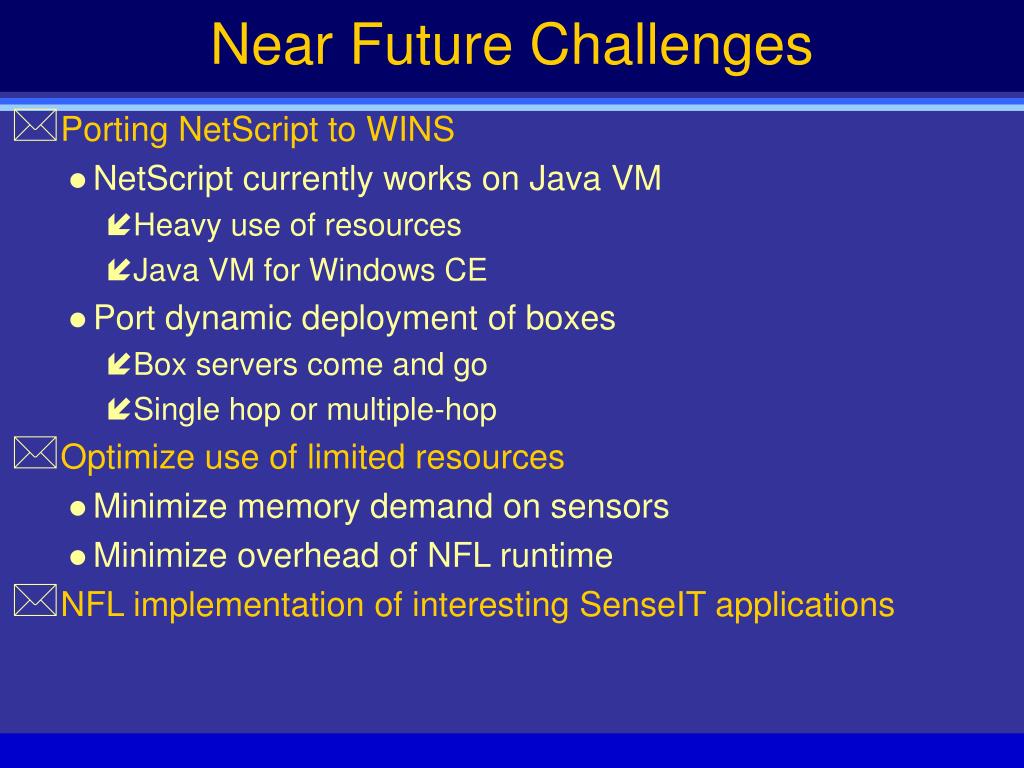

Near Future Challenges
  • Porting NetScript to WINS
    • NetScript currently works on Java VM
      • Heavy use of resources
      • Java VM for Windows CE
    • Port dynamic deployment of boxes
      • Box servers come and go
      • Single hop or multiple-hop
  • Optimize use of limited resources
    • Minimize memory demand on sensors
    • Minimize overhead of NFL runtime
  • NFL implementation of interesting SenseIT applications
example prioritization of samples

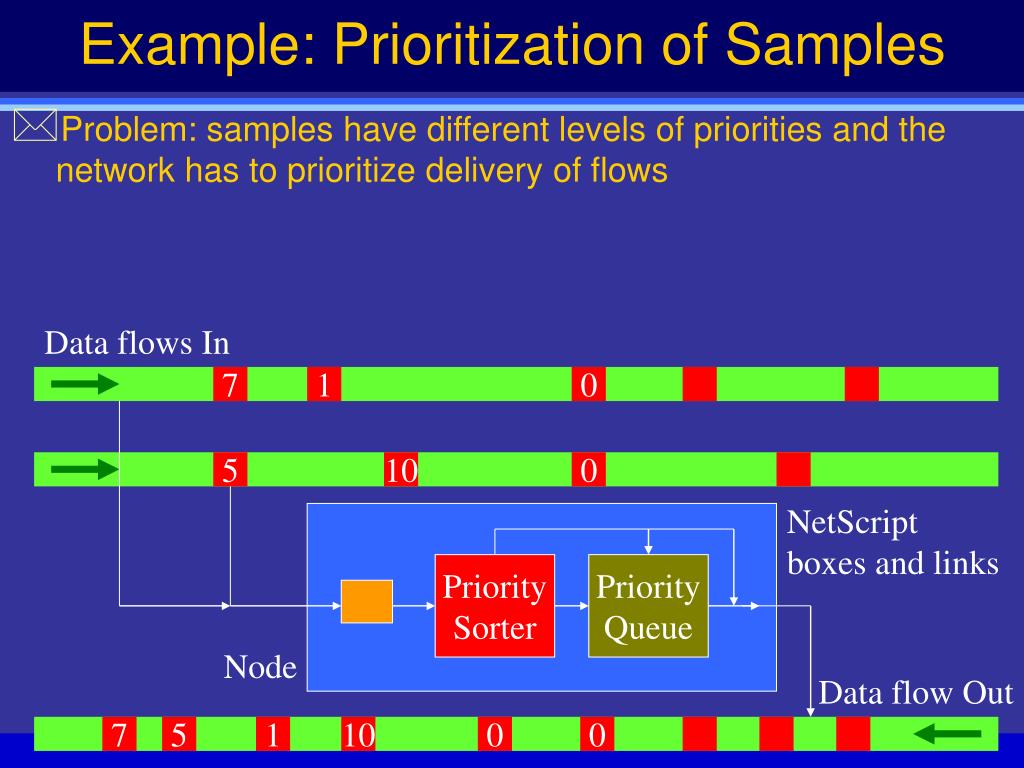

Example: Prioritization of Samples
  • Problem: samples have different levels of priorities and the network has to prioritize delivery of flows

Data flows In

7

1

0

5

10

0

NetScript

boxes and links

Priority

Sorter

Priority

Queue

Node

Data flow Out

7

5

1

10

0

0

code priority in nfl

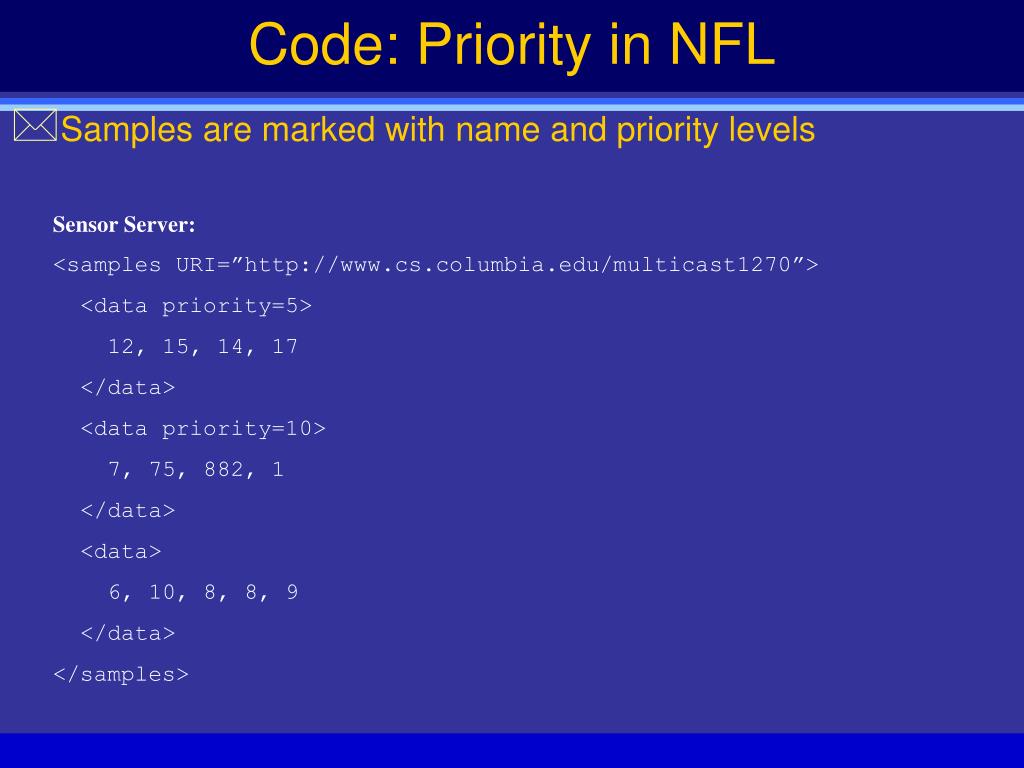

Code: Priority in NFL
  • Samples are marked with name and priority levels

Sensor Server:

<samples URI=”http://www.cs.columbia.edu/multicast1270”>

<data priority=5>

12, 15, 14, 17

</data>

<data priority=10>

7, 75, 882, 1

</data>

<data>

6, 10, 8, 8, 9

</data>

</samples>

example route discovery for wins

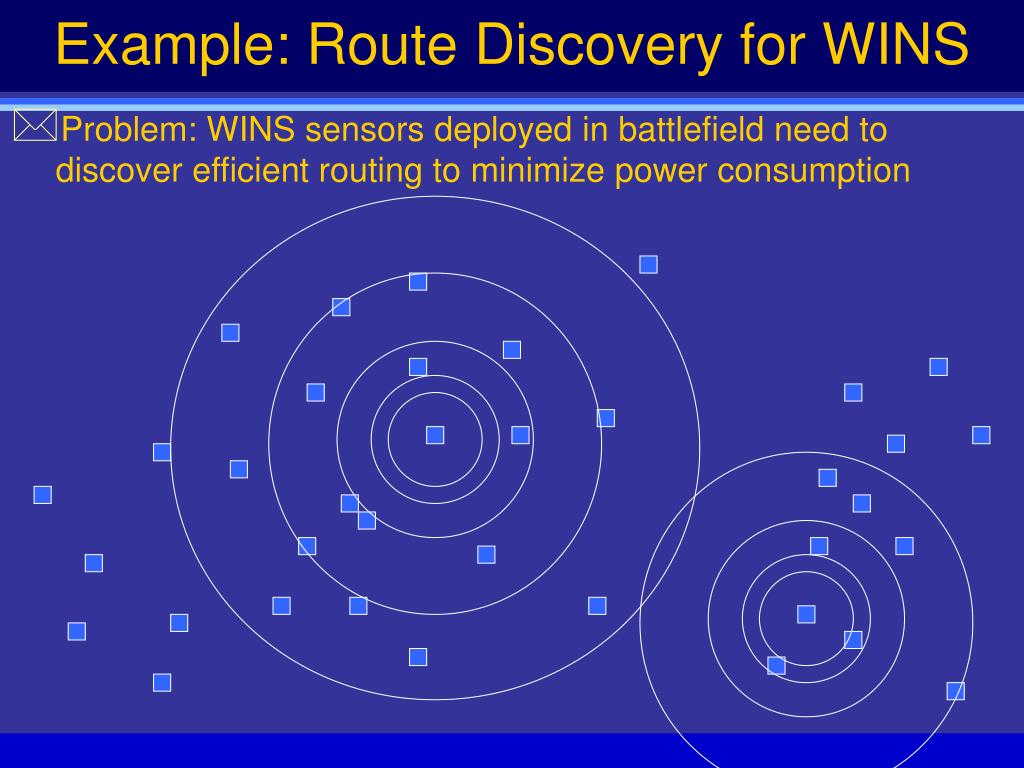

Example: Route Discovery for WINS
  • Problem: WINS sensors deployed in battlefield need to discover efficient routing to minimize power consumption
code route discovery for wins
Code: Route Discovery for WINS
  • Sensors broadcast their known distance to peer sensors
  • Small physical distance ~ less power consumption

Sensor Server:

<announce-name URI=”http://www.sensor16.cs.columbia.edu”>

</announce-name>

Sensor Client:

<announce-routes>

<route-entry>

URI=”http://www.sensor25.cs.columbia.edu” 16 sensor17

</route-entry>

<route-entry>

URI=”http://www.sensor5.cs.columbia.edu” 2 sensor9

</route-entry>

</announce-routes>

example simple diffusion routing i
Example: Simple Diffusion Routing (I)
  • Problem: WINS should route data contents, not individual packets

B

A

B

B

Flow A

Flow

Sorter

Flow B

A

A

A

A

A

example simple diffusion routing ii
Example: Simple Diffusion Routing (II)
  • Problem: handling failures to links and nodes
  • New NetScript boxes are loaded to handle enhanced functions

B

A

A

B

B

Flow A

Flow

Sorter

Diffusion

Criteria

Flow B

A

A

A

A

A

A

code simple diffusion routing

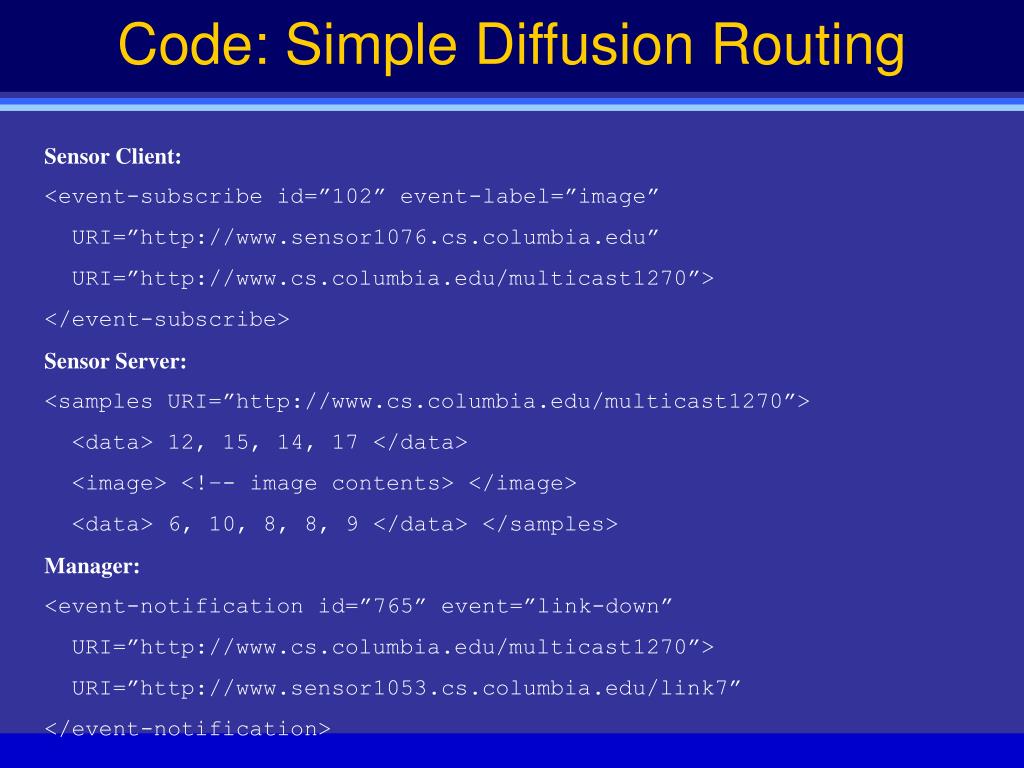

Code: Simple Diffusion Routing

Sensor Client:

<event-subscribe id=”102” event-label=”image”

URI=”http://www.sensor1076.cs.columbia.edu”

URI=”http://www.cs.columbia.edu/multicast1270”>

</event-subscribe>

Sensor Server:

<samples URI=”http://www.cs.columbia.edu/multicast1270”>

<data> 12, 15, 14, 17 </data>

<image> <!–- image contents> </image>

<data> 6, 10, 8, 8, 9 </data> </samples>

Manager:

<event-notification id=”765” event=”link-down”

URI=”http://www.cs.columbia.edu/multicast1270”>

URI=”http://www.sensor1053.cs.columbia.edu/link7”

</event-notification>

example trading processor bandwidth
Example: Trading Processor/Bandwidth
  • Problem: flows should compress or expand to minimize use of stressed resources in each sensor

Sensor Server:

<flow URI=”http://www.display7.cs.columbia.edu”>

<conditional-compress condition=”bandwidth < 1Mbps”>

<image>

<!-- image data>

</image>

</conditional-compress>

</flow>

controlling sn with marks

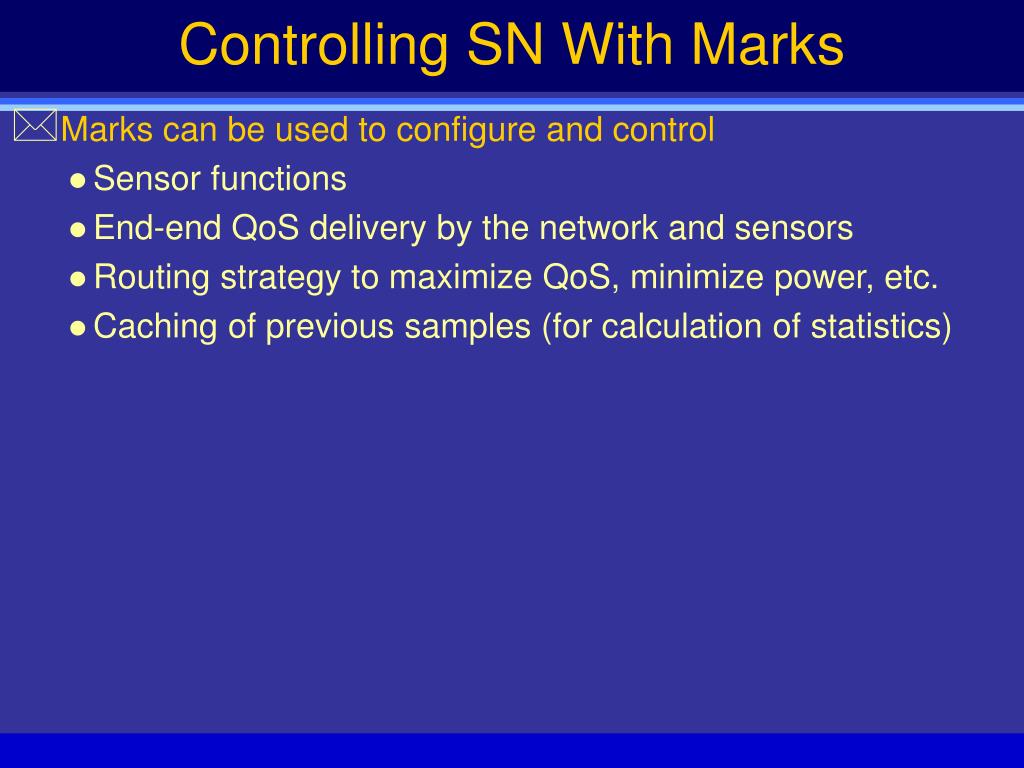

Controlling SN With Marks
  • Marks can be used to configure and control
    • Sensor functions
    • End-end QoS delivery by the network and sensors
    • Routing strategy to maximize QoS, minimize power, etc.
    • Caching of previous samples (for calculation of statistics)
sn event processing with marks
SN Event Processing with Marks
  • Marks can be used to present event data & control processing
    • Specify the type of data (seismic, streaming audio, etc.)
    • The processing of marks at sensors the flow crosses may depend on local conditions (available processor, link bandwidth, etc.)
conclusions plans and schedule
Conclusions, Plans, and Schedule
  • ANet can bring flexibility and simplicity for SN programming
  • NFL marked flow processing paradigm can specify and enhance SN functionality
  • Plans and Tentative Schedule
    • 7/1999: New contract started
    • 8/1999: New SOW
    • 10/1999: Work on design and implementation of NFL
    • 1/2000: Projected first prototype of basic NFL
    • 3/2000: Port to SenseIT devices
    • 6/2000: Implement relevant SenseIT application(s)
    • Interact with SenseIT community to identify key needs
    • Use SenseIT applications to drive design
