  1. Data Memories Attiq ur Rehman

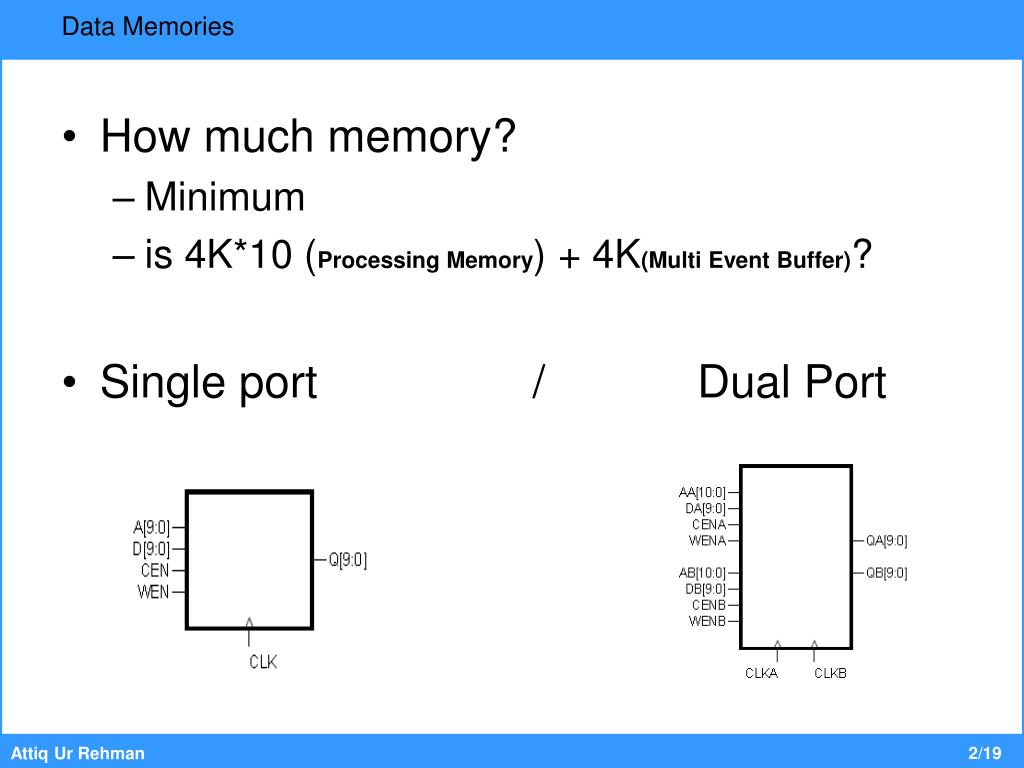

  2. How much memory? Minimum is 4K*10 (Processing Memory) + 4K(Multi Event Buffer)? Single port / Dual Port Data Memories

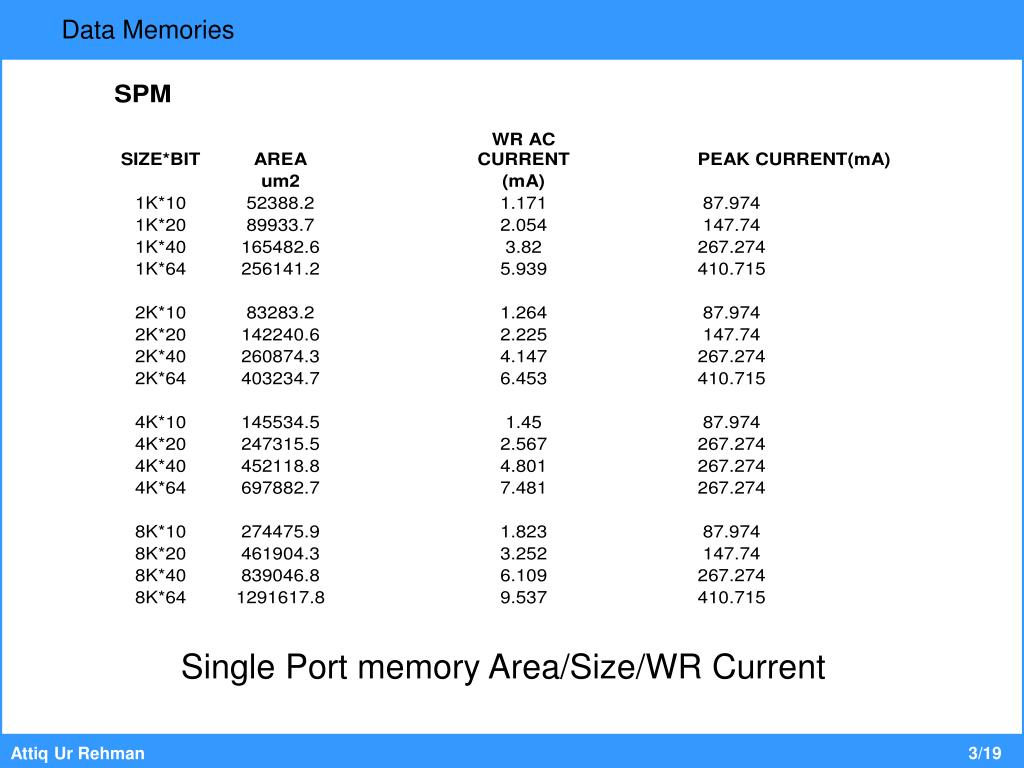

  3. Data Memories Single Port memory Area/Size/WR Current

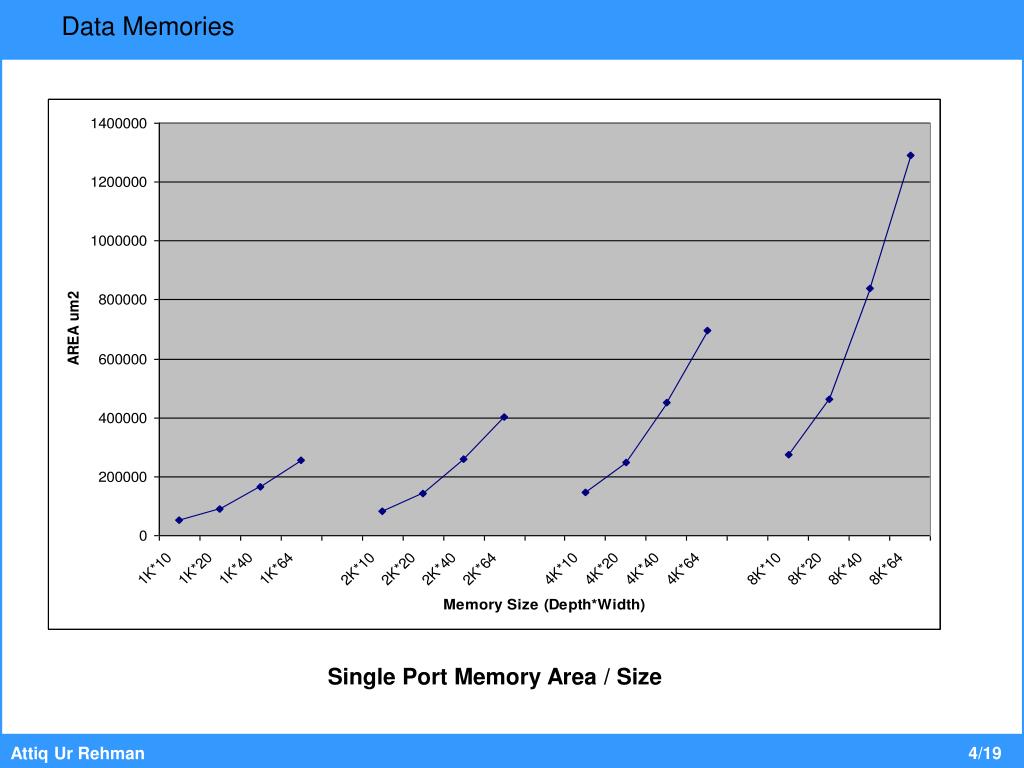

  4. Data Memories Single Port Memory Area / Size

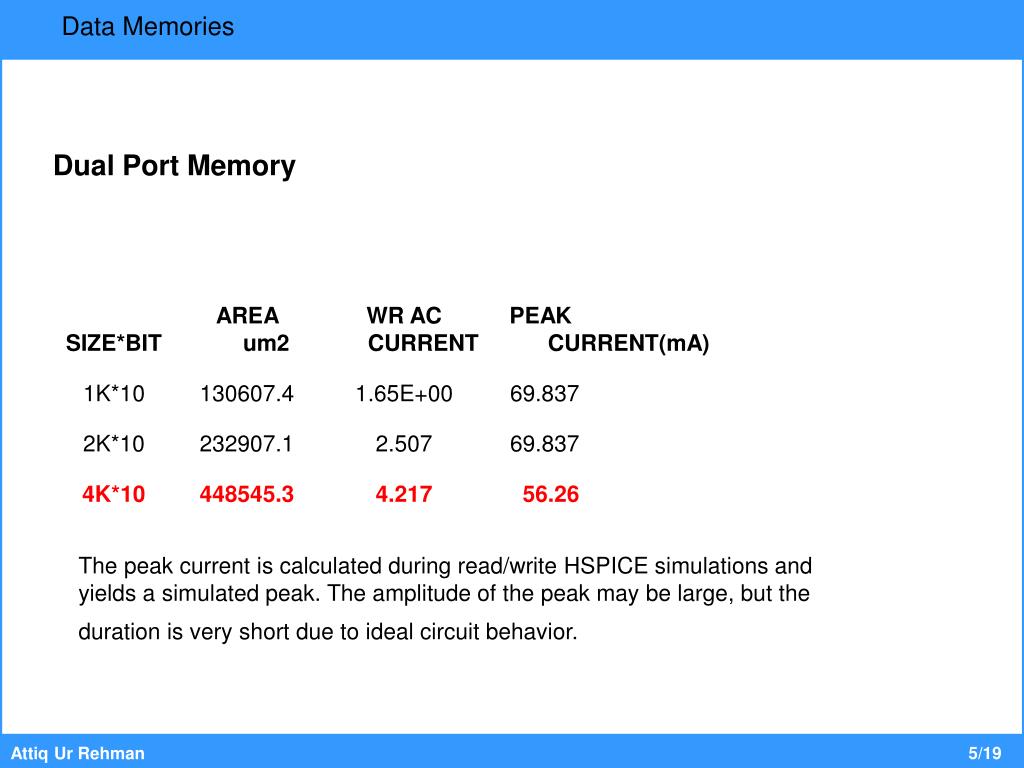

  5. Data Memories The peak current is calculated during read/write HSPICE simulations and yields a simulated peak. The amplitude of the peak may be large, but the duration is very short due to ideal circuit behavior.

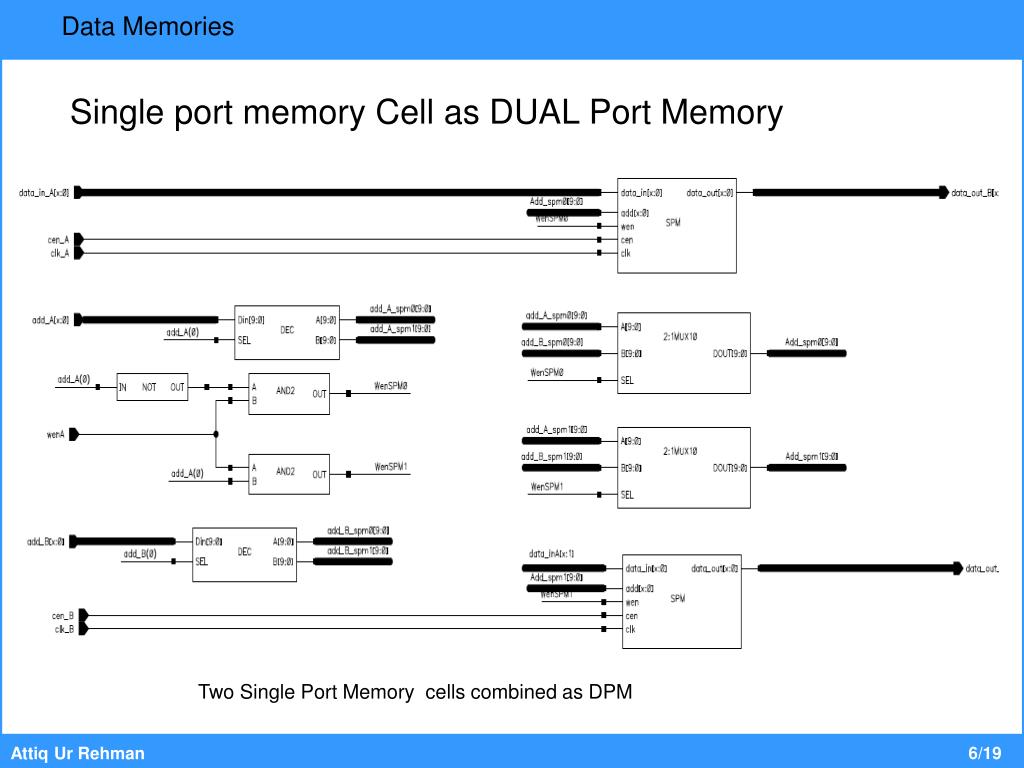

  6. Data Memories Single port memory Cell as DUAL Port Memory Two Single Port Memory cells combined as DPM

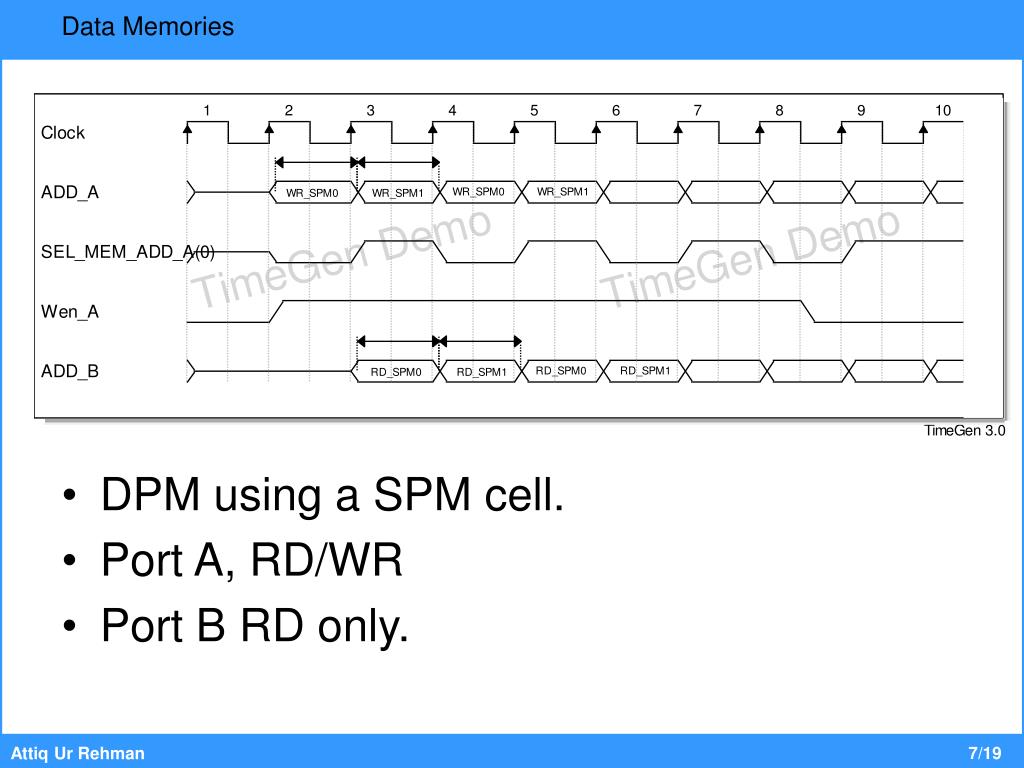

  7. DPM using a SPM cell. Port A, RD/WR Port B RD only. Data Memories
