  1. TPC Very High Voltage Control Status report 20/04/2006 Marco Boccioli

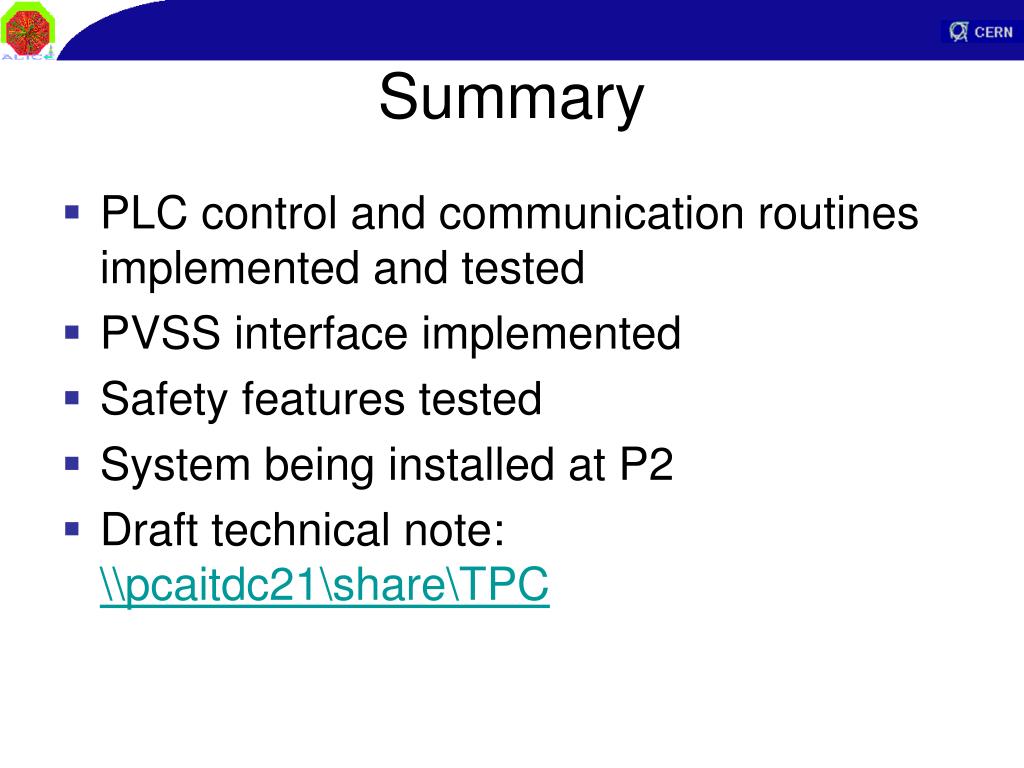

  2. Summary • PLC control and communication routines implemented and tested • PVSS interface implemented • Safety features tested • System being installed at P2 • Draft technical note: \\pcaitdc21\share\TPC

  3. Implementation: devices

  4. Implementation: State Diagram

  5. Implementation

  6. PVSS user interface

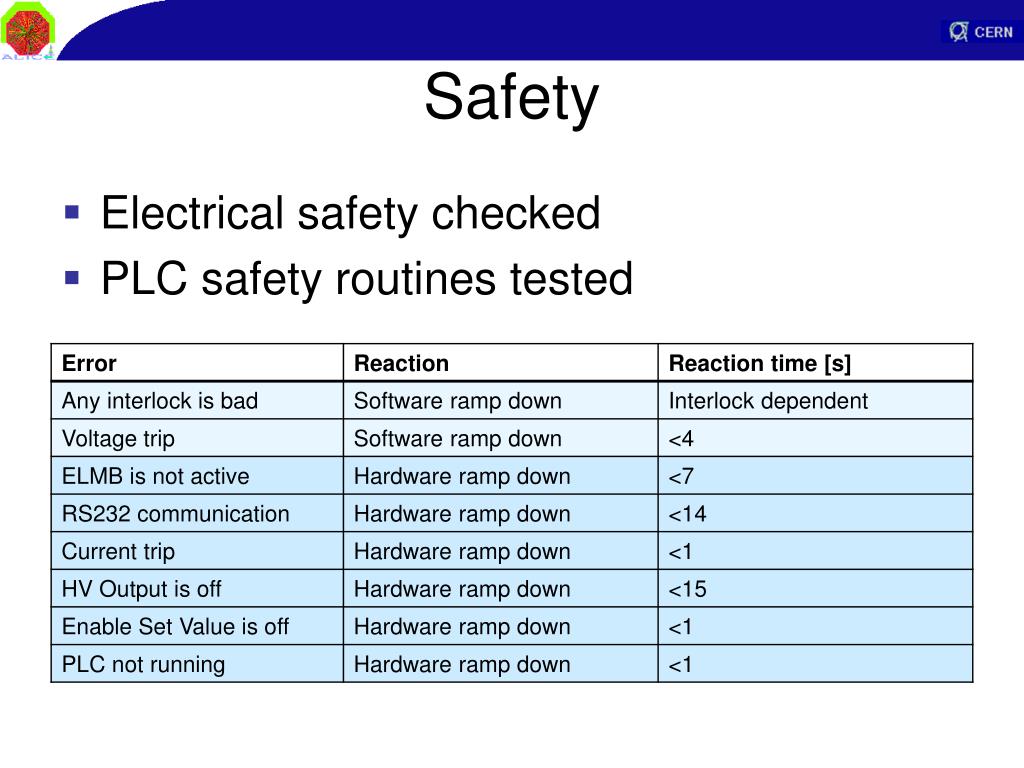

  7. Safety • Electrical safety checked • PLC safety routines tested

  8. Installing the system

  9. Installing the system Supervisory • PVSS with FSM • Schneider OPC server

  10. Installing the system PLC • Schneider Electric Premium P57 5634M

  11. Installing the system Power Supply • Heinzinger PNC 150000

  12. Installing the system ELMB • One for each side

  13. Installing the system Cabling • Seven points for each side

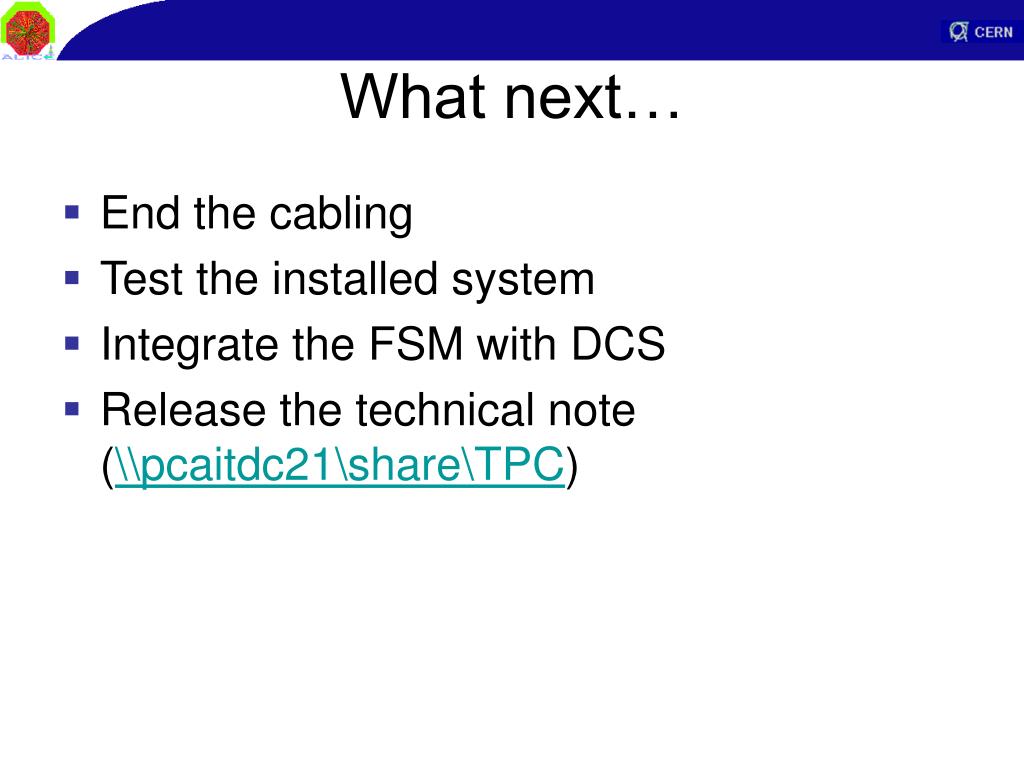

  14. What next… • End the cabling • Test the installed system • Integrate the FSM with DCS • Release the technical note (\\pcaitdc21\share\TPC)
