  1. Full Adder Verilog(HO: wires/regs, always) Section 4.5 (Full adder)

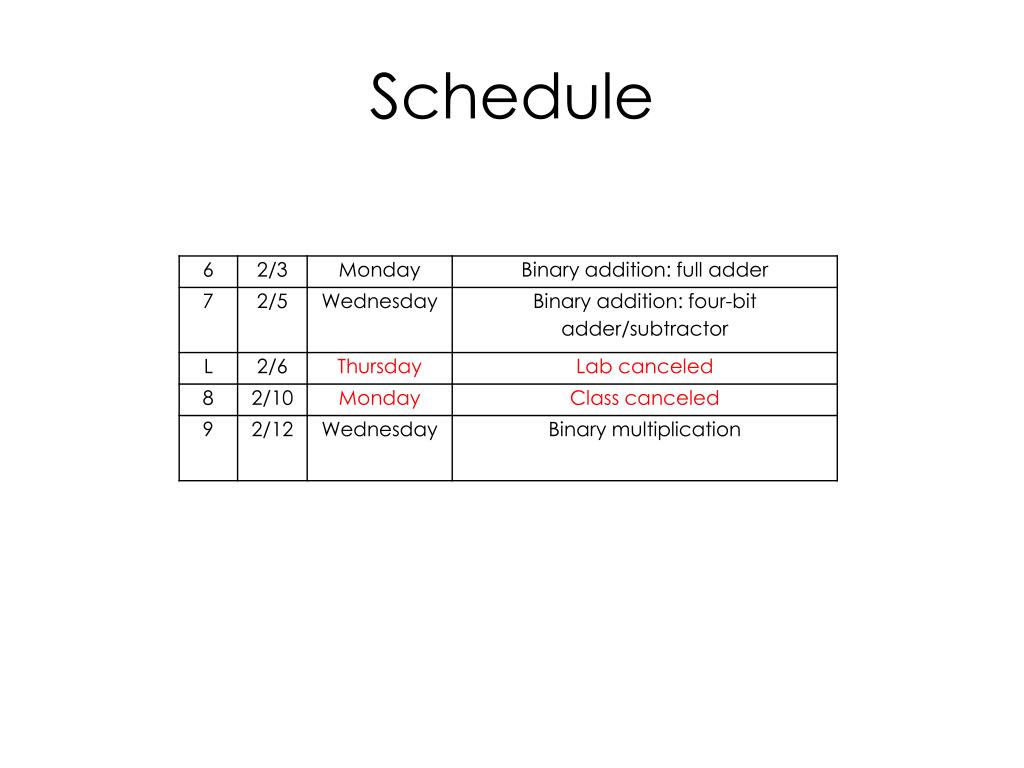

  2. Schedule

  3. Outline • Observations • Wire Versus reg • Using always @() • Blocking statement • Non-Blocking Statement • Full Adder

  4. Observations • VIL,VIH, VOH, VOL • Power Supply of a Chip • Orientation of a chip • Outputs of the test bench • Context of a variable

  5. VIL,VIH, VOH, VOL

  6. Power Supply of a Chip

  7. Orientation of a Chip

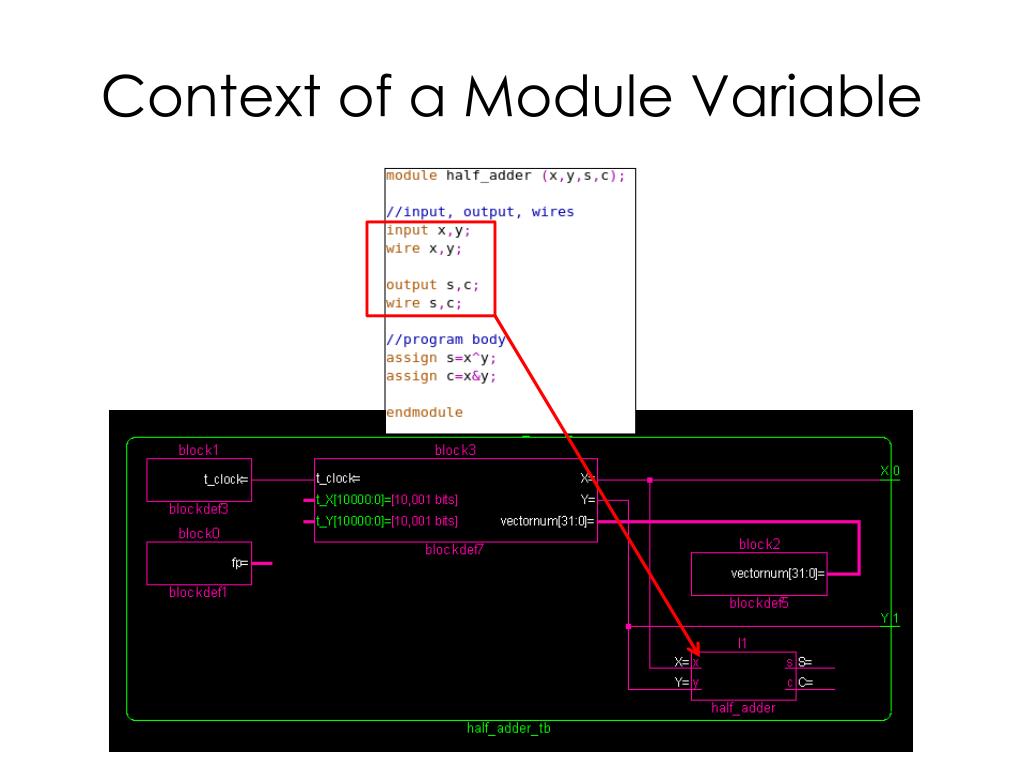

  8. Context of a Module Variable

  9. Context of a Module Variable

  10. Module Template module module_name ( , , ) endmodule Input, output wires reg Program Body

  11. wire

  12. Wires (1): Connect Gates w1 connects the output of G1 to an input of G3.

  13. Wires (2): Connect input/output ports to elements within a module IMPORTANT: wire is the only legal type on the left hand side of = in an assign statement. s and c are both wires in this example.

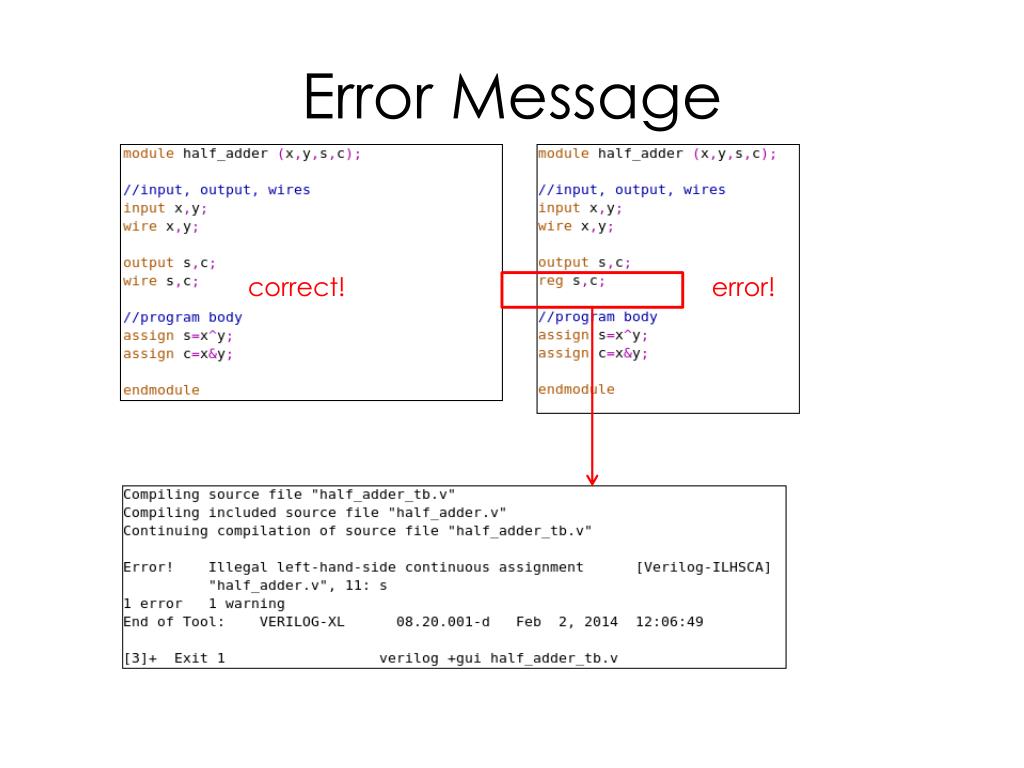

  14. Error Message correct! error!

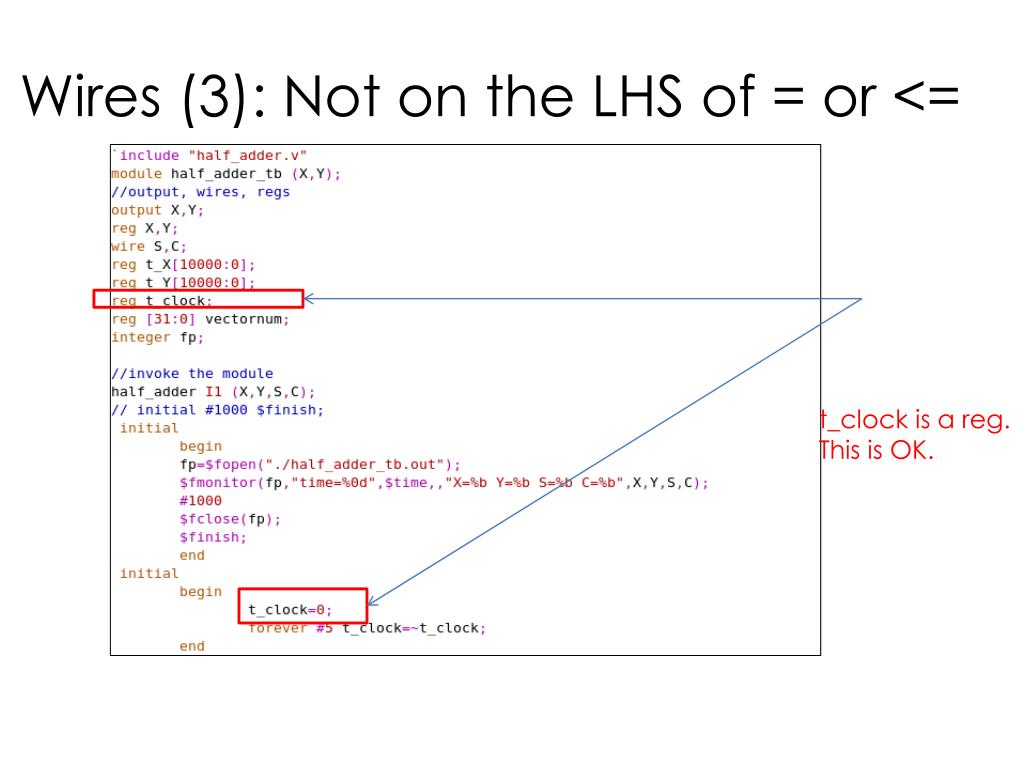

  15. Wires (3): Not on the LHS of = or <= t_clock is a reg. This is OK.

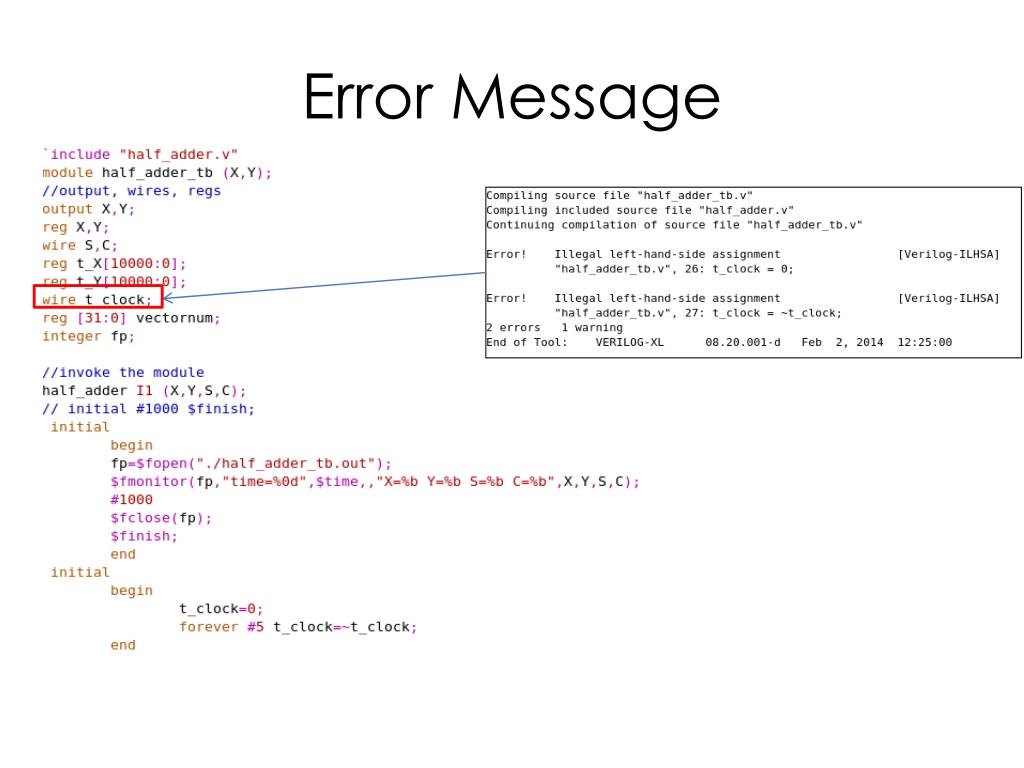

  16. Error Message

  17. Error Message module half_adder_tb (X,Y); //output, wires, regs output X,Y; wire X,Y; wire S,C; regt_X[10000:0]; regt_Y[10000:0]; regt_clock; reg [31:0] vectornum; integer fp; …. always @(negedget_clock) begin X<=t_X[vectornum]; Y<=t_Y[vectornum]; vectornum<=vectornum+1; end ….. endmodule

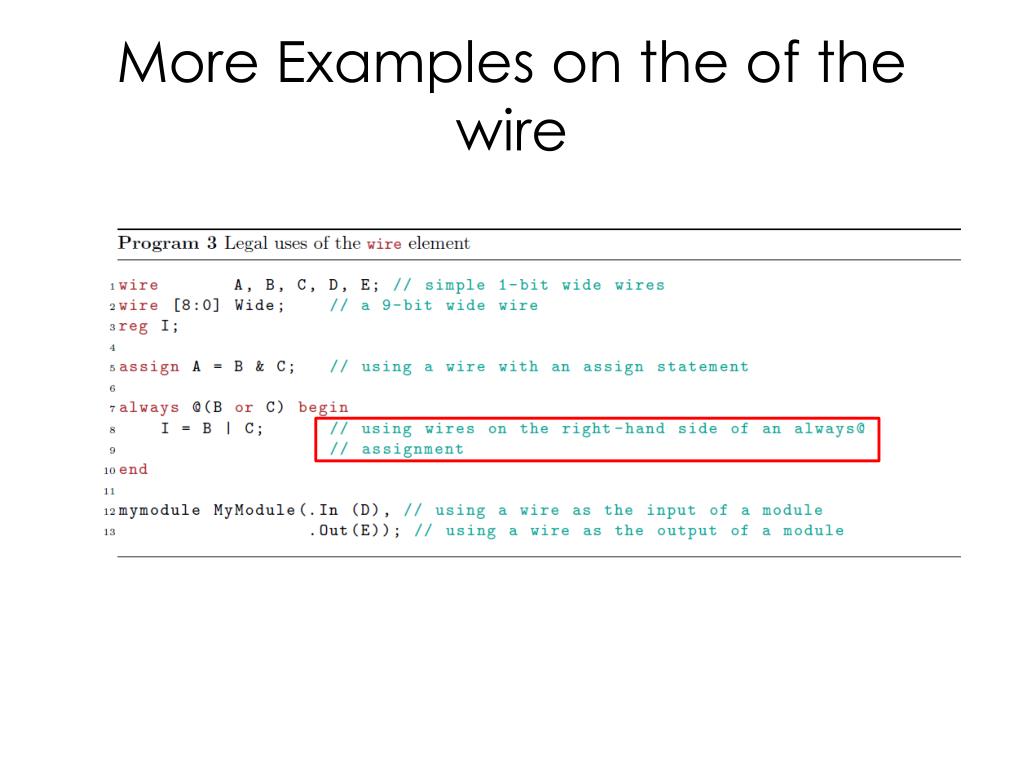

  18. More Examples on the of the wire

  19. reg • All outputs generated by the always block must be declared to be of type reg. • reg is used to suggest that the values behaves like a variable that might be stored in a register.

  20. reg

  21. A,B, C are connected to the input ports of fig3p37 module.

  22. module....endmodule module fig3p37 (A,B,C,D,E); output D,E; input A,B,C; wire w1; and G1(w1,A,B); not G2(E,C); or G3(D,w1,E); endmodule Always start the verilog program with the keyword pair module…endmodule The keyword module must always be terminated by the keyword endmodule.

  23. module half_adder_tb (X,Y); //output, wires, regs output X,Y; reg X,Y; wire S,C; regt_X[10000:0]; regt_Y[10000:0]; regt_clock; reg [31:0] vectornum; integer fp; …. always @(negedget_clock) begin X<=t_X[vectornum]; Y<=t_Y[vectornum]; vectornum<=vectornum+1; end ….. endmodule

  24. Legal Uses of reg

  25. wire and regare sometimes Interchangable

  26. always statement The sensitivity list contains a list of all signals that will affect the outputs generated by the always block.

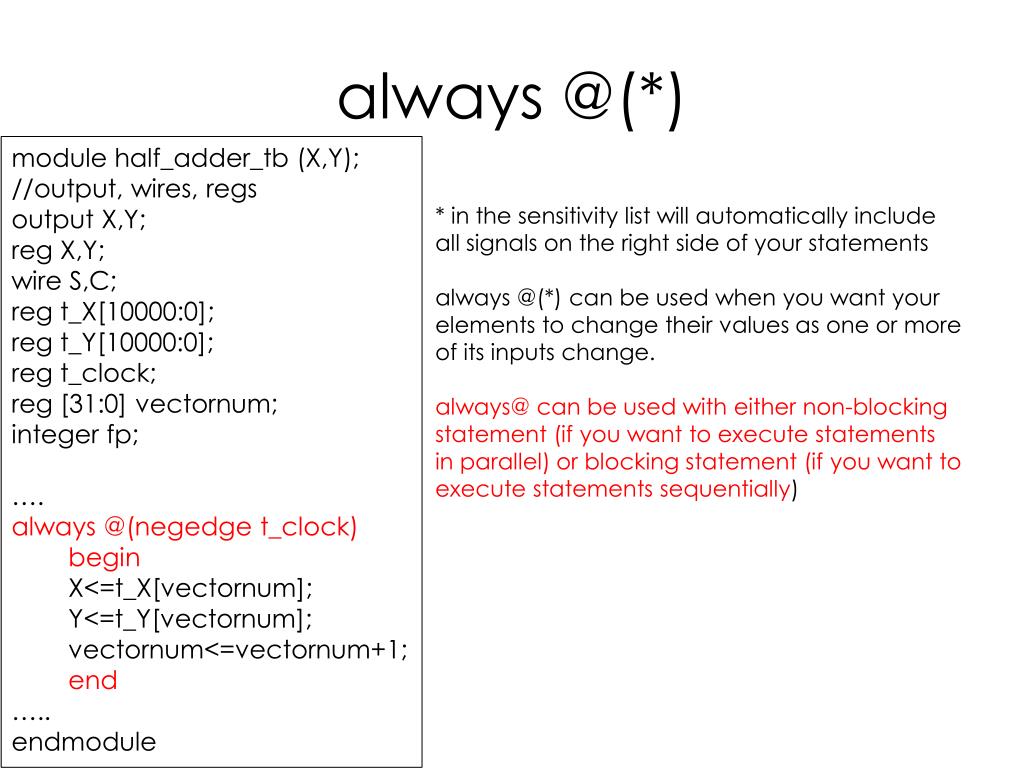

  27. always @(*) module half_adder_tb (X,Y); //output, wires, regs output X,Y; reg X,Y; wire S,C; regt_X[10000:0]; regt_Y[10000:0]; regt_clock; reg [31:0] vectornum; integer fp; …. always @(negedget_clock) begin X<=t_X[vectornum]; Y<=t_Y[vectornum]; vectornum<=vectornum+1; end ….. endmodule * in the sensitivity list will automatically include all signals on the right side of your statements always @(*) can be used when you want your elements to change their values as one or more of its inputs change. always@ can be used with either non-blocking statement (if you want to execute statements in parallel) or blocking statement (if you want to execute statements sequentially)

  28. Why using always @(*) (incorrect!) (Desirable)

  29. Blocking (=)Statements “when the sensitivity list is satisfied, B gets A, C gets B, and D gets C.” But, by the time C gets B, B has been set to A. Likewise, by the time D gets C, C has been set to B, which, as we stated above, has been set to A. Important: Statements with = executes sequentially.

  30. (<=) Non-Blocking Statements Important: B gets A’s value, C gets B’s old value, and D gets C’s old value

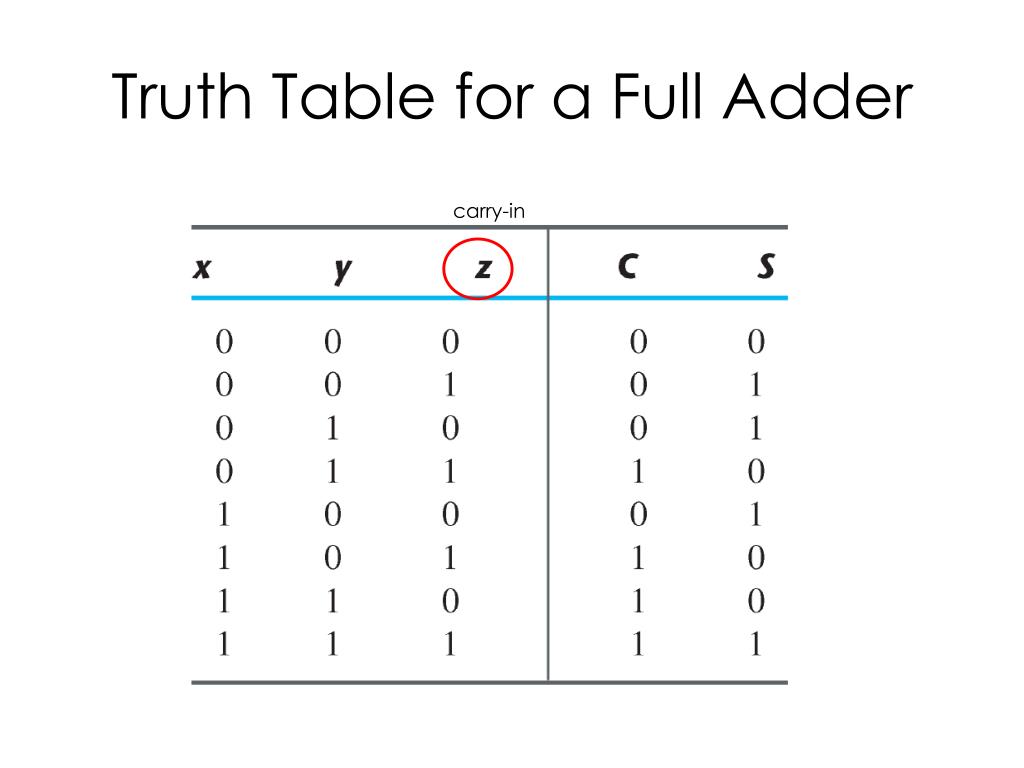

  31. Truth Table for a Full Adder carry-in

  32. Karnaugh Map For the Sum Bit(ES112 Review) = = =

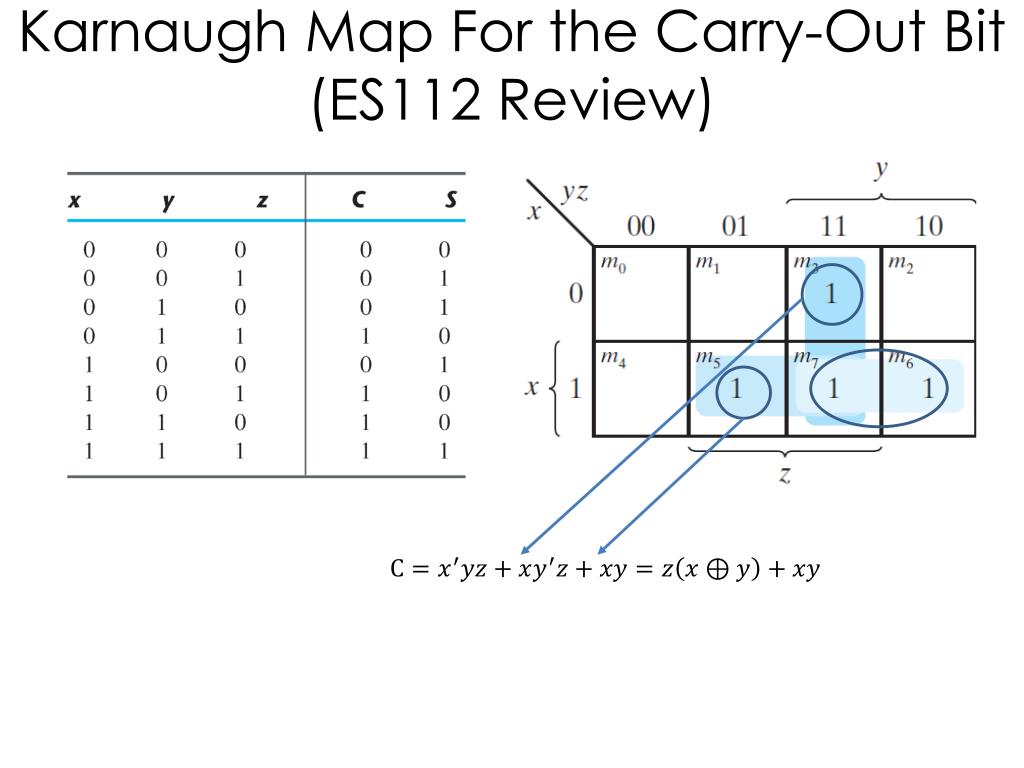

  33. Karnaugh Map For the Carry-Out Bit(ES112 Review)

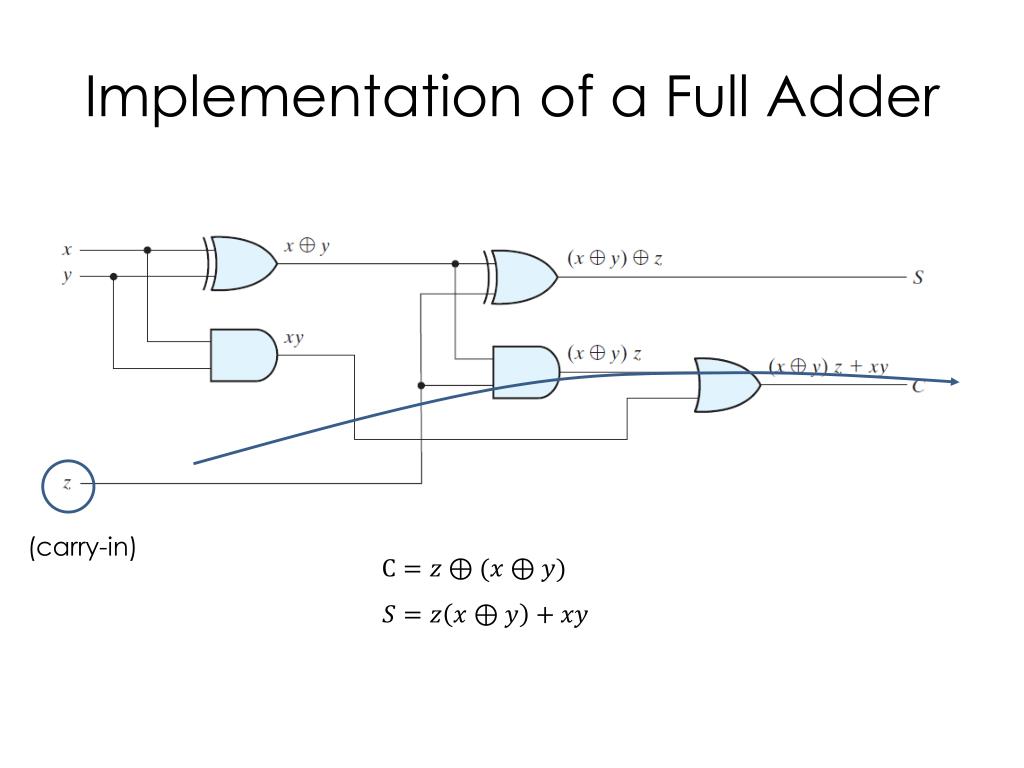

  34. Implementation of a Full Adder (carry-in)
