  1. The EISCAT Radar Facilities Ian McCrea STFC RAL

  2. What is EISCAT? • International Scientific Association • Established agreeement since 1975 • First observations in 1981 • HQ in Sweden

  3. EISCAT’s Mission Statement EISCAT aims to make available the necessary knowledge and techniques: • To understand the various forms of coupling between the Sun, the terrestrial magnetosphere and the upper atmosphere of the high-latitude regions • To understand the plasma physics and dynamics responsible for these interactions • To investigate the effects of natural and anthropogenic forcing on the upper atmosphere • To facilitate the better monitoring and prediction of these processes

  4. Incoherent Scatter • Electrons re-radiate the radar signal with random phase • Electron motion follows the thermal fluctuations in the ion gas. • If the probing wavelength is longer than the Debye length, the fluctuations dominate the scatter. • Radar pick outs towards and away propogating ion-acoustic waves satisfying the Bragg condition

  5. EISCAT Facilities: Mainland UHF • Three identical fully steerable dishes, frequencies ~ 928 MHz. • Transmit at T, receive at T, K, S • Additional reception at 1.42 GHz • Increasing problems with mobile phones at remotes • Tromsø guaranteed to end of 2013

  6. EISCAT Facilities: Mainland VHF • Frequency ~224 MHz. • Cylindrical paraboloid antenna 120m x 40m • Dish in four independent sections • Steerable in meridian plane • Limited beam-steering in zonal direction • Two very large klystrons, only one working

  7. EISCAT Facilities: ESR • Frequency ~500 MHz. • Two dishes: one steerable, one fixed field-aligned • Share common transmitter • Small “TV Tx” style klystrons • Third (Chinese) ESR dish by 2014?

  8. EISCAT Facilities: Heater & Dynasondes • Heater Frequency 4-8 MHz • Two Tx arrays • ERP up to 1.2 GW • Advanced ionosondes at Tromsø and ESR

  9. Rules of the Road

  10. Original Science Motivation:“The Seven Wonders of EISCAT” Seven initial objectives of EISCAT (as defined by EISCAT Scientific Advisory Committee, 1979) • Detailed mapping of auroral arcs • High-resolution D and E-region response to precipitation • Understanding of association between auroralelectrojets and gravity waves • Clear detection of the polar wind

  11. Original Science Motivation:“The Seven Wonders of EISCAT” Seven initial objectives of EISCAT (as defined by EISCAT Scientific Advisory Committee, 1979) • Measurement of polar cap convection patterns • Ionospheric images of polar cleft, plasmapause and plasma sheet • Detailed measurements of the polar mesosphere

  12. Future Science:Whole Atmosphere Coupling

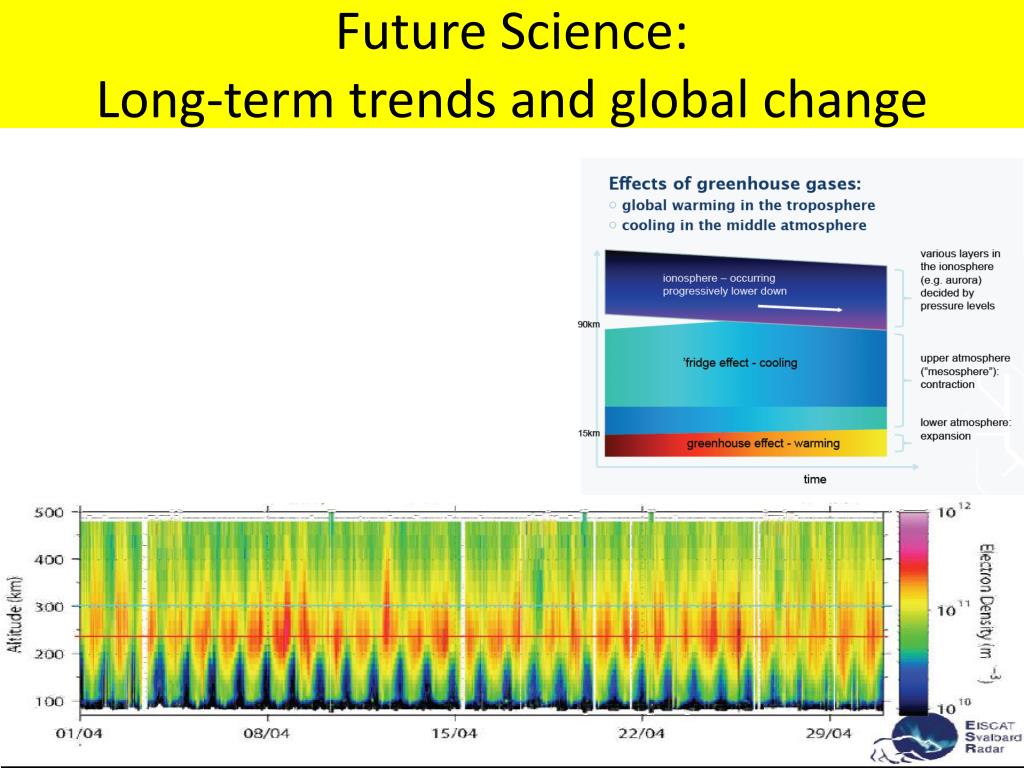

  13. Future Science:Long-term trends and global change

  14. Future Science:Energy flow and large-scale structure

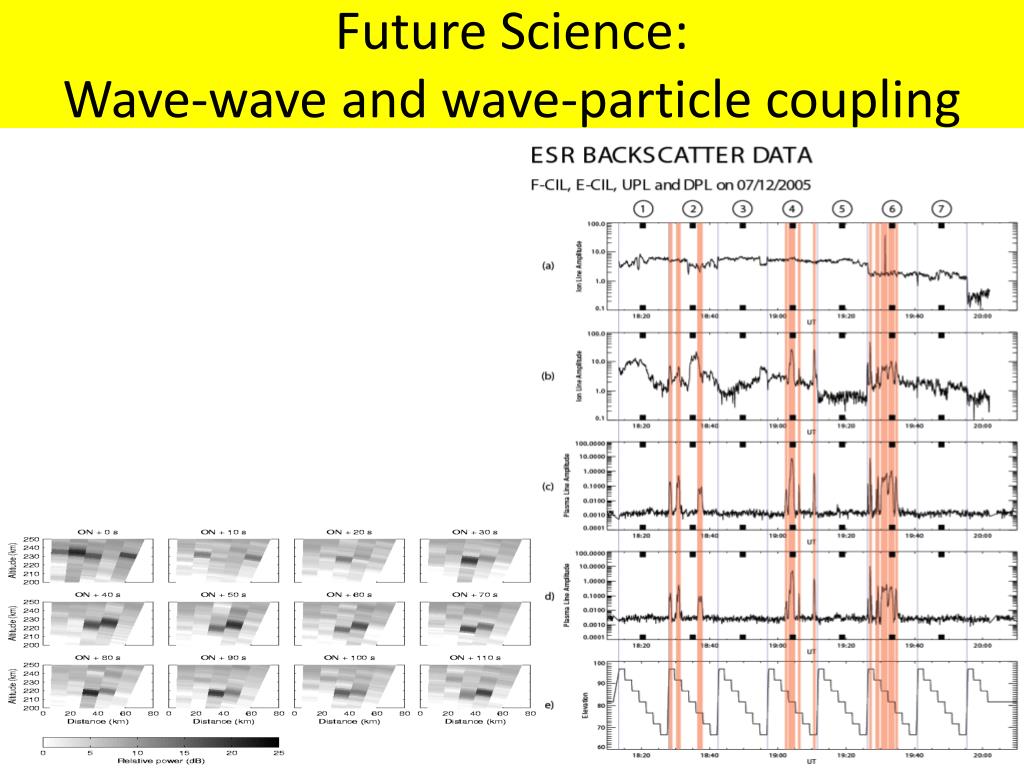

  15. Future Science:Wave-wave and wave-particle coupling

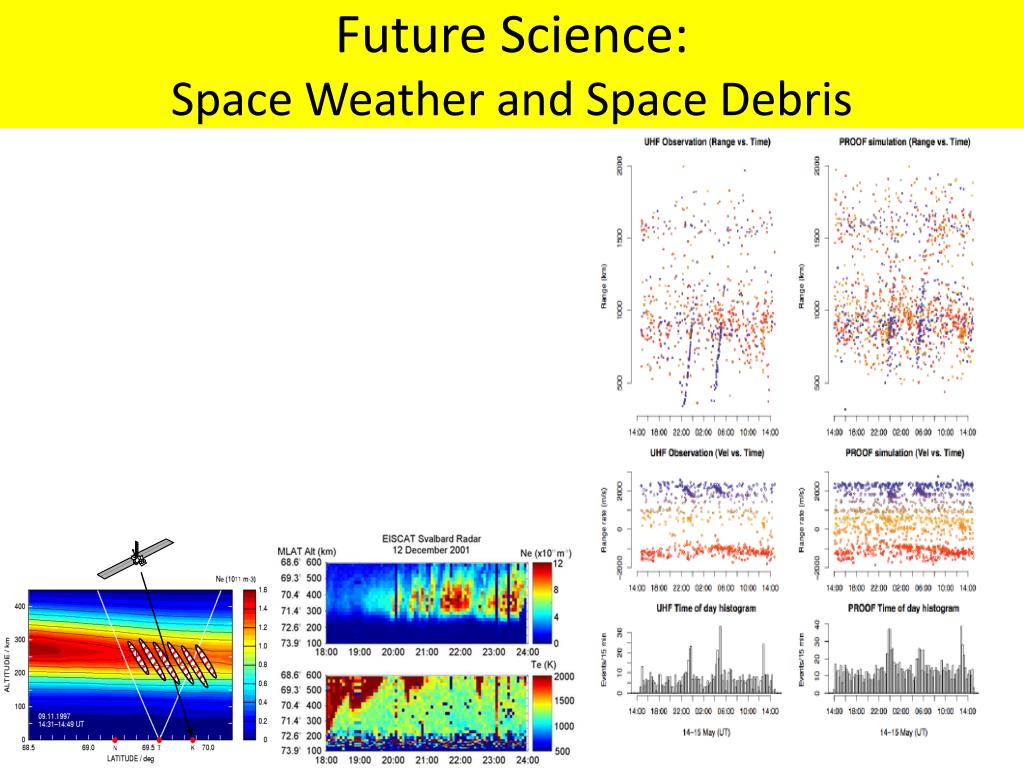

  16. Future Science:Space Weather and Space Debris

  17. Future Science:Solar System Physics

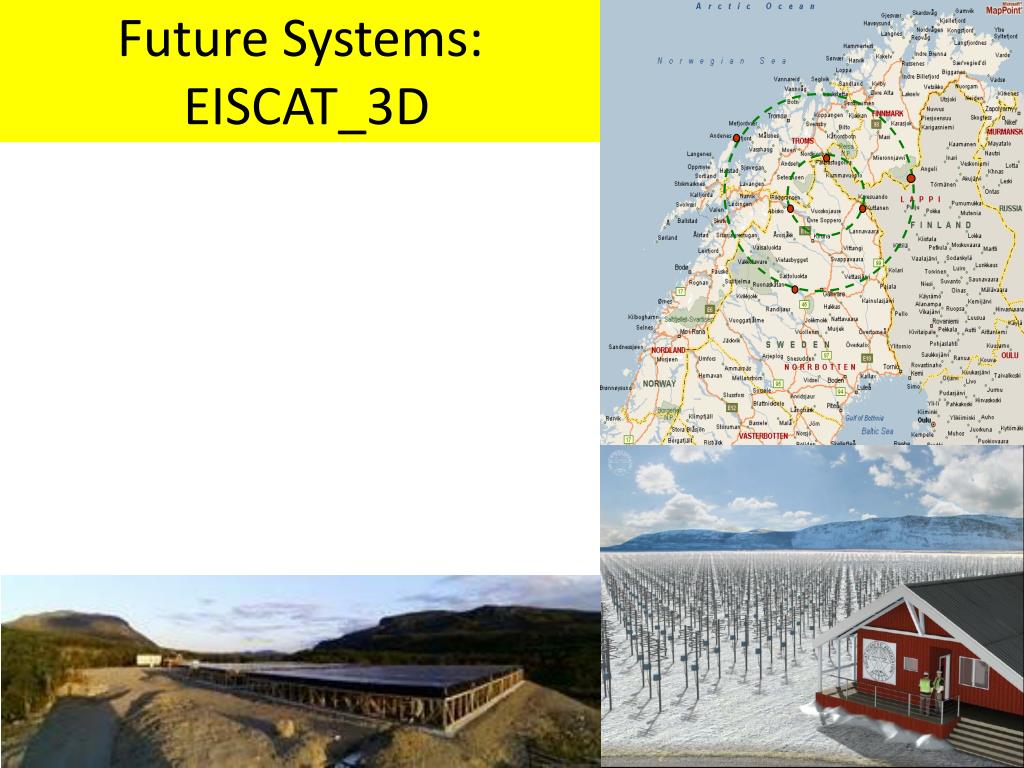

  18. Future Systems: EISCAT_3D

  19. Future Systems: MAISR • Proposal of NSF Office of Polar Programs • Study differences between Northern and Southern hemispheres • Different magnetic field, different topography, different vortex • Could be ready for deployment in 2015 • US will fund 80% of facility – looking for international partners for the other 20%

  20. The UK EISCAT Community

  21. UK Synergy and Co-ordination

  22. ESFRI Projects for Env. Sciences IAGOS-ERI EURO-ARGO SIOS Status 2009 EUFAR-COPAL AURORA BOREALIS LIFEWATCH EISCAT-3D EPOS EMSO ICOS
