  1. DDG 51 Bridge Team Training Simulator

  2. WaveLore is the world’s first affordable multi-user bridge crew training simulation suite. It combines stunning presentation with high-resolution 3D content, an energy spectral density sea surface displacement, and real-time platform dynamics to provide an exceptional virtual training environment for Sea Warrior education.

  3. Features • Six training roles • P2P Multi-team networking • High-resolution DDG CAD geometry with bridge interior • GPS synched CAD geometry of Manzanillo harbor • Instructor controlled contacts • Energy spectrum based sea surface displacement • Day and night modes • Real-time ship dynamics • Commercial Off-the-Shelf Technology & Modular Architecture

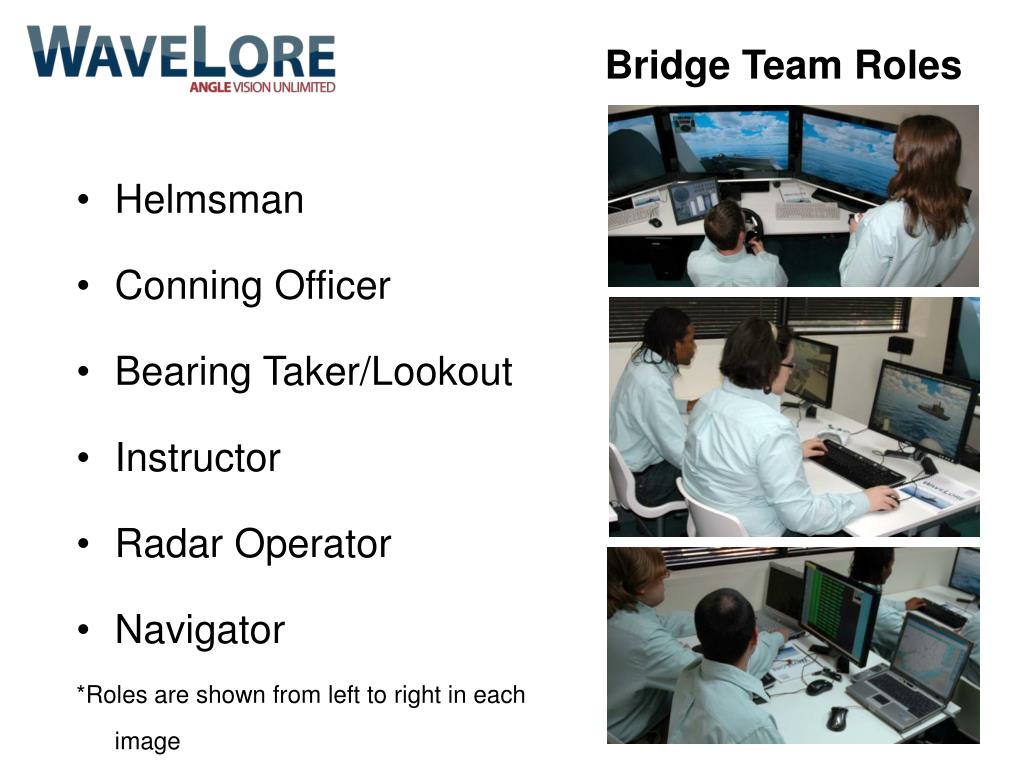

  4. Bridge Team Roles • Helmsman • Conning Officer • Bearing Taker/Lookout • Instructor • Radar Operator • Navigator *Roles are shown from left to right in each image

  5. Conning Officer • Free-roaming in pilothouse and on bridgewings • Panoramic view w/ three-display setup • Alongside distance verification • Alidade and binocular modes

  6. Helmsman Touch screen • Engine and propeller pitch controls • Independent propulsor and rudder controls • Swivel display for different compass and indicator arrangements Steering wheel • Controls rudder angle

  7. Radar Operator • Tracking and identification of contacts • True north or ship’s head up modes • 2, 5, 10, or 20 nautical mile range settings

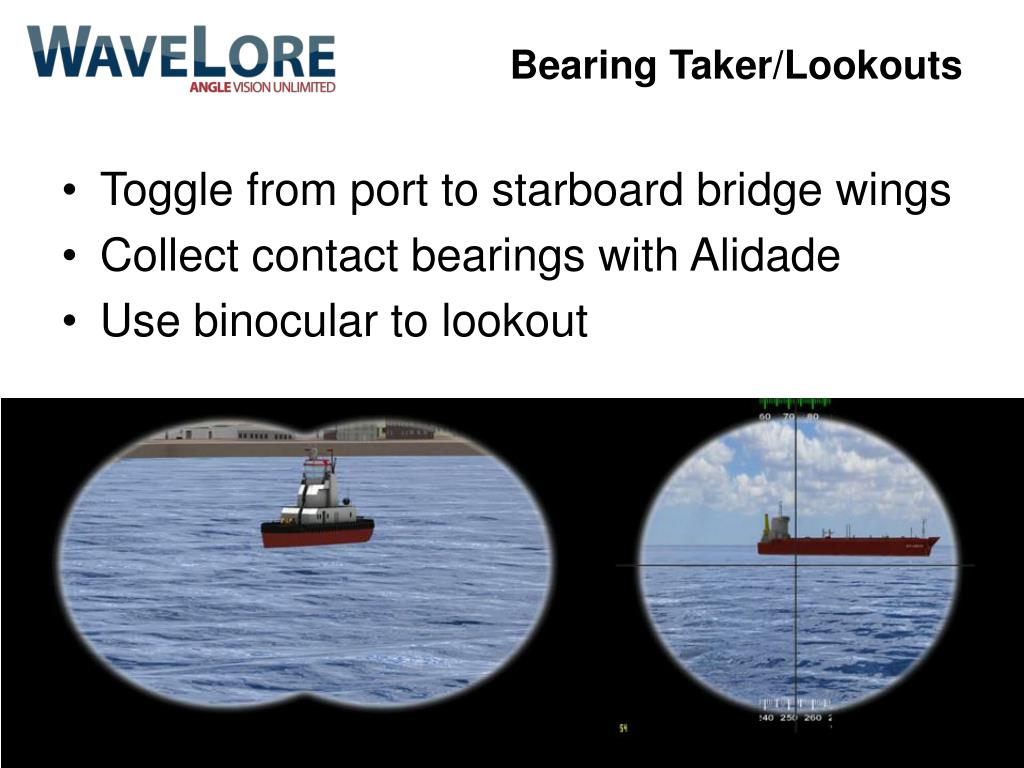

  8. Bearing Taker/Lookouts • Toggle from port to starboard bridge wings • Collect contact bearings with Alidade • Use binocular to lookout

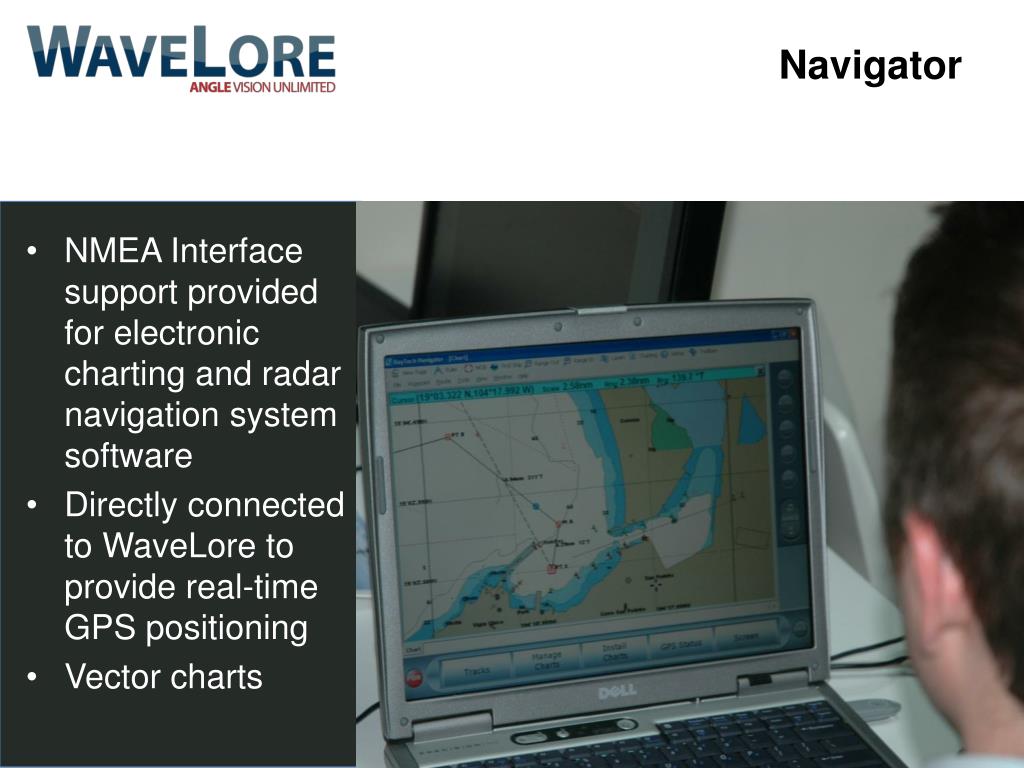

  9. Navigator • NMEA Interface support provided for electronic charting and radar navigation system software • Directly connected to WaveLore to provide real-time GPS positioning • Vector charts

  10. Instructor • Customize the scenario • Wind and sea state • Day and night modes • Drag and drop contacts • Omniscient perspective • Save and re-load scenario settings and sea state

  11. Manzanillo Harbor • Registered with electronic vector charts and satellite imagery • Buoys • Topographical features • Navigation aids and lights

  12. Configurable Sea-State • Real-time surface displacement • Wave height and motion reacts to wind speed and direction • Based on Joint North Sea Wave Project (JONSWAP) 10 Knot Wind/Sea State 2 25 Knot Wind/Sea State 5

  13. Platform Dynamics • Real-time physics engine • Physics and hydrodynamics based maneuvering model calculates platform motion. • Platform buoyancy, lift, and drag forces • Validated against real world ship performance data

  14. Contacts Tugboat • DDG-51 Class Destroyer • Shenzen Destoyer • Supply Ship • Freighter • Tanker

  15. Current Hardware Profile • 2 PCs with Windows® OS, Intel® Core™ i7 CPU, 500 GB HDD, 4GB RAM • NVIDIA ® GeForce 470 video card (Conning Officer) • NVIDIA GeForce 250 video card (Instructor) • 3 PCs with Windows OS, Intel Core 2 Duo CPU, 500 GB HDD, 4GB RAM • NVIDIA GeForce 200-series video card or better • 4 Wide screen displays & 1 touch screen monitor • 2 Xbox® 360 controllers and Logitech® G25 racing wheel • Keyboards, mice, and peripherals

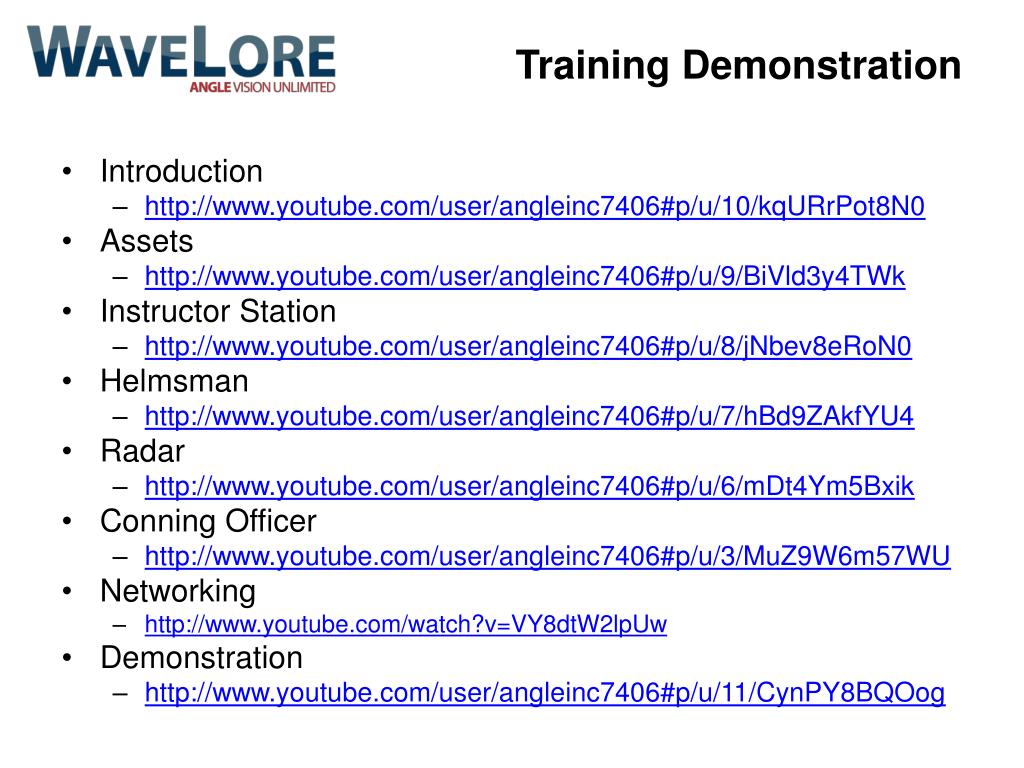

  16. Training Demonstration • Introduction • http://www.youtube.com/user/angleinc7406#p/u/10/kqURrPot8N0 • Assets • http://www.youtube.com/user/angleinc7406#p/u/9/BiVld3y4TWk • Instructor Station • http://www.youtube.com/user/angleinc7406#p/u/8/jNbev8eRoN0 • Helmsman • http://www.youtube.com/user/angleinc7406#p/u/7/hBd9ZAkfYU4 • Radar • http://www.youtube.com/user/angleinc7406#p/u/6/mDt4Ym5Bxik • Conning Officer • http://www.youtube.com/user/angleinc7406#p/u/3/MuZ9W6m57WU • Networking • http://www.youtube.com/watch?v=VY8dtW2lpUw • Demonstration • http://www.youtube.com/user/angleinc7406#p/u/11/CynPY8BQOog

  17. Customization to support your specific needs Ukraine Japan Brazil US NROTC US Coast Guard Argentina

  18. Proposed Enhancements for Localized Support • Development of geometries for selected local ships • Integrate platform physics • Build local port(s) • Localize software

  19. Integration of Your Ship(s) • Developing geometry for your specific ship(s) • Integration of physics parameters and properties

  20. Construction of CAD geometry for your Selected Port(s) and Surrounding Coastline • Registered with electronic vector charts and satellite imagery • Buoys • Topographical features • Navigation aids and lights

  21. Localize WaveLore Software Language localization for: • Commands and User Menu System • Instruction Manual translated

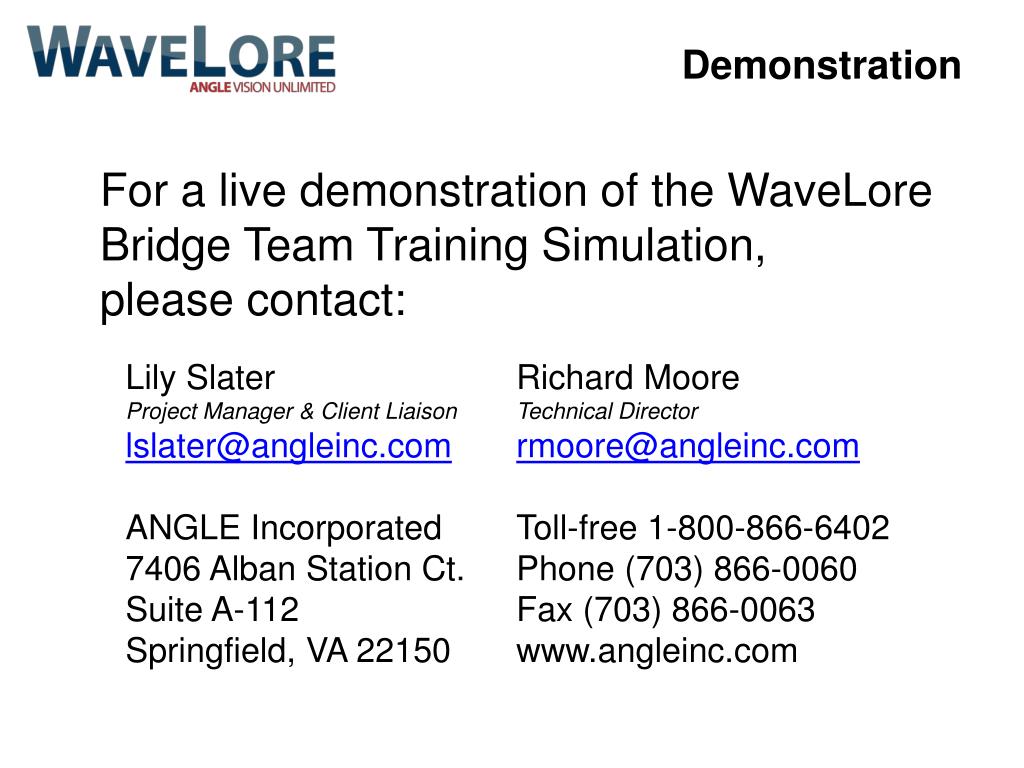

  22. Demonstration For a live demonstration of the WaveLore Bridge Team Training Simulation, please contact: Lily SlaterProject Manager & Client Liaison lslater@angleinc.com ANGLE Incorporated 7406 Alban Station Ct. Suite A-112 Springfield, VA 22150 Richard Moore Technical Director rmoore@angleinc.com Toll-free 1-800-866-6402 Phone (703) 866-0060 Fax (703) 866-0063 www.angleinc.com
