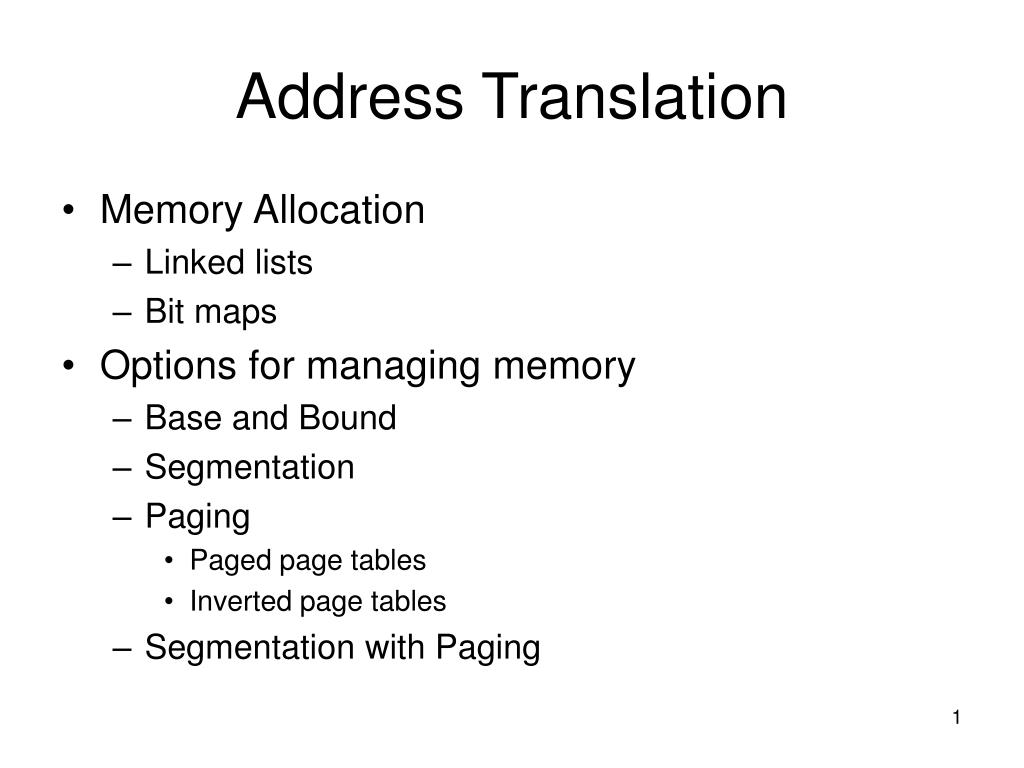

Address Translation • Memory Allocation • Linked lists • Bit maps • Options for managing memory • Base and Bound • Segmentation • Paging • Paged page tables • Inverted page tables • Segmentation with Paging
Memory Management with Linked Lists • Hole – block of available memory; holes of various size are scattered throughout memory. • When a process arrives, it is allocated memory from a hole large enough to accommodate it. • Operating system maintains two linked lists for a) allocated partitions b) free partitions (hole) OS OS OS OS process 5 process 5 process 5 process 5 process 9 process 9 process 8 process 10 process 2 process 2 process 2 process 2

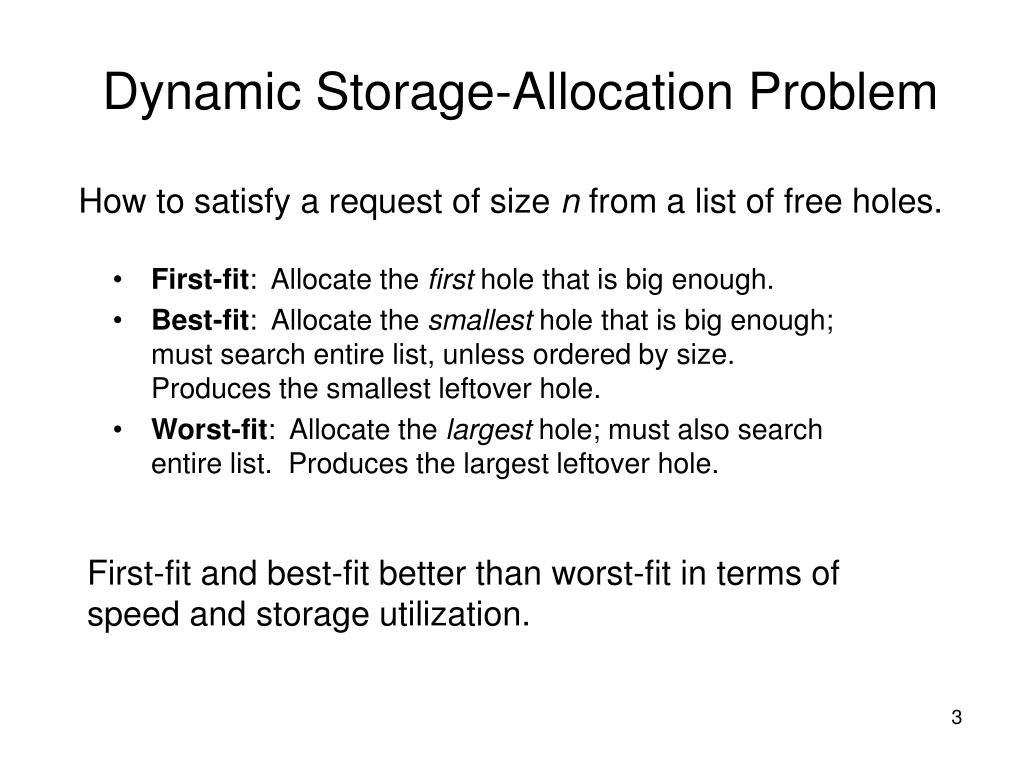

Dynamic Storage-Allocation Problem How to satisfy a request of size n from a list of free holes. • First-fit: Allocate the first hole that is big enough. • Best-fit: Allocate the smallest hole that is big enough; must search entire list, unless ordered by size. Produces the smallest leftover hole. • Worst-fit: Allocate the largest hole; must also search entire list. Produces the largest leftover hole. First-fit and best-fit better than worst-fit in terms of speed and storage utilization.

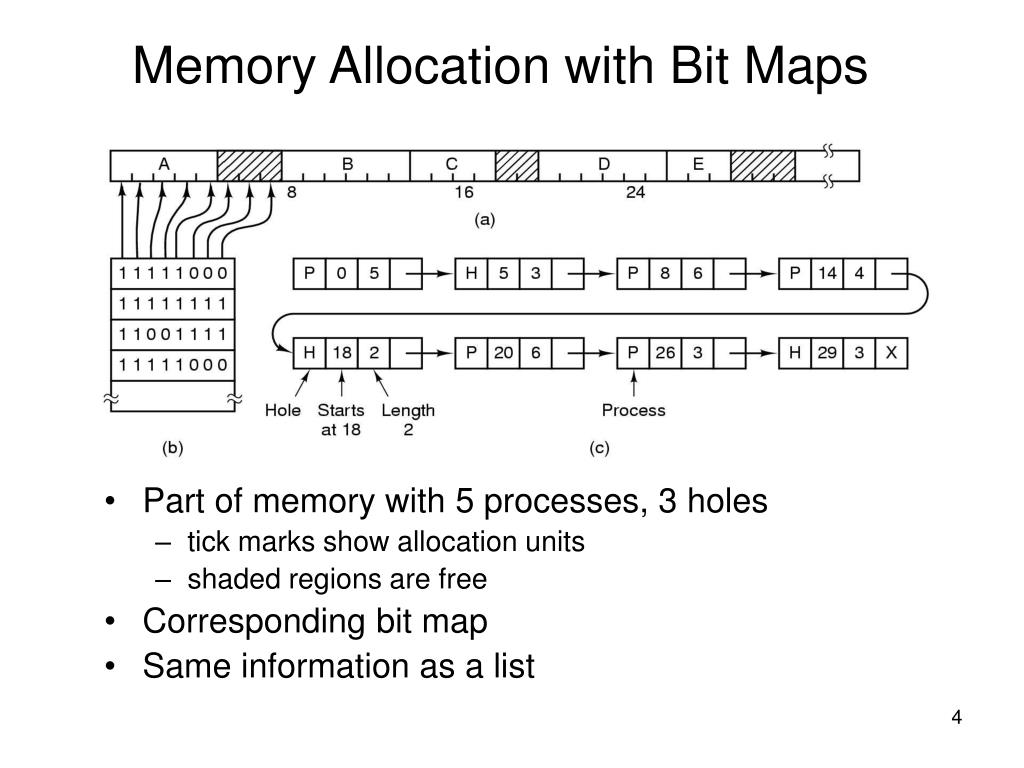

Memory Allocation with Bit Maps • Part of memory with 5 processes, 3 holes • tick marks show allocation units • shaded regions are free • Corresponding bit map • Same information as a list

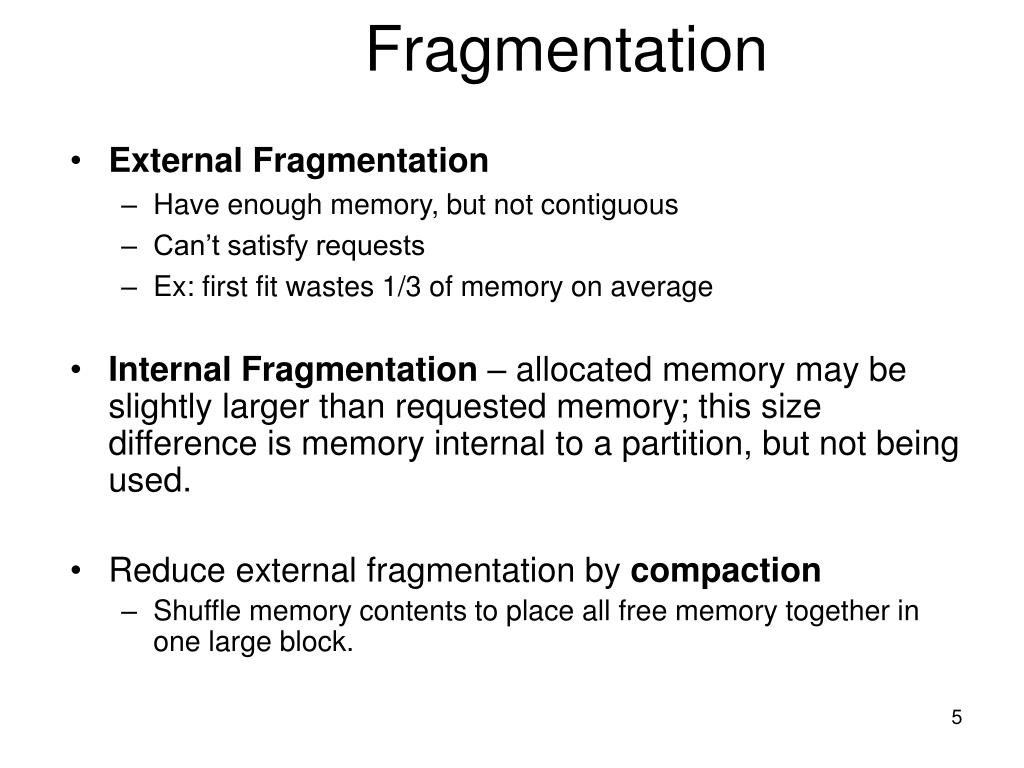

Fragmentation • External Fragmentation • Have enough memory, but not contiguous • Can’t satisfy requests • Ex: first fit wastes 1/3 of memory on average • Internal Fragmentation – allocated memory may be slightly larger than requested memory; this size difference is memory internal to a partition, but not being used. • Reduce external fragmentation by compaction • Shuffle memory contents to place all free memory together in one large block.
Segmentation • A segment is a region of logically contiguous memory. • Idea is to generalize base and bounds, by allowing a table of base&bound pairs. • Break virtual memory into segments • Use contiguous physical memory per segment • Divide each virtual address into: • segment number • segment offset • Note: compiler does this, not hardware
Segmentation – Address Translation • Use segment # to index into segment table • segment table is table of base/limit pairs • Compare to limit, Add base • exactly the same as base/bound scheme • If greater than limit (or illegal access) • the segmentation fault
For example, what does it look like with this segment table, in virtual memory and physical memory? Assume 2 bit segment ID, and 12 bit segment offset
virtual memory physical memory 0 0 4ff 6ff 1000 14ff 2000 2fff 3000 3fff 4000 46ff
Segmentation (cont.) • This should seem a bit strange: the virtual address space has gaps in it! Each segment gets mapped to contiguous locations in physical memory, but may be gaps between segments. • But, a correct program will never address gaps; if it does, trap to kernel and then core dump. • Minor exception: stack, heap can grow. In UNIX, sbrk() increase size of heap segment. For stack, just take fault, system automatically increase size of stack. • Detail: Need protection mode in segmentation table. For example, code segment would be read-only. Data and stack segment would be read-write.
Segmentation Pros & Cons • Efficient for sparse address spaces • Can keep segment table in registers • Easy to share whole segments (for example, code segment) • Easy for address space to grow • Complicated Memory allocation: still need first fit, best fit, etc., and re-shuffling to coalesce free fragments, if no single free space is big enough for a new segment How do we make memory allocation simple and easy?
Paging • Allocate physical memory in terms of fixed size chunks of memory, or pages. • Simpler, because allows use of a bitmap. What is a bitmap? 001111100000001100 Each bits represents one page of physical memory – 1 means allocated, 0 means unallocated. Lots simpler than base & bounds or segmentation • OS controls mapping: any page of virtual memory can go anywhere in physical memory

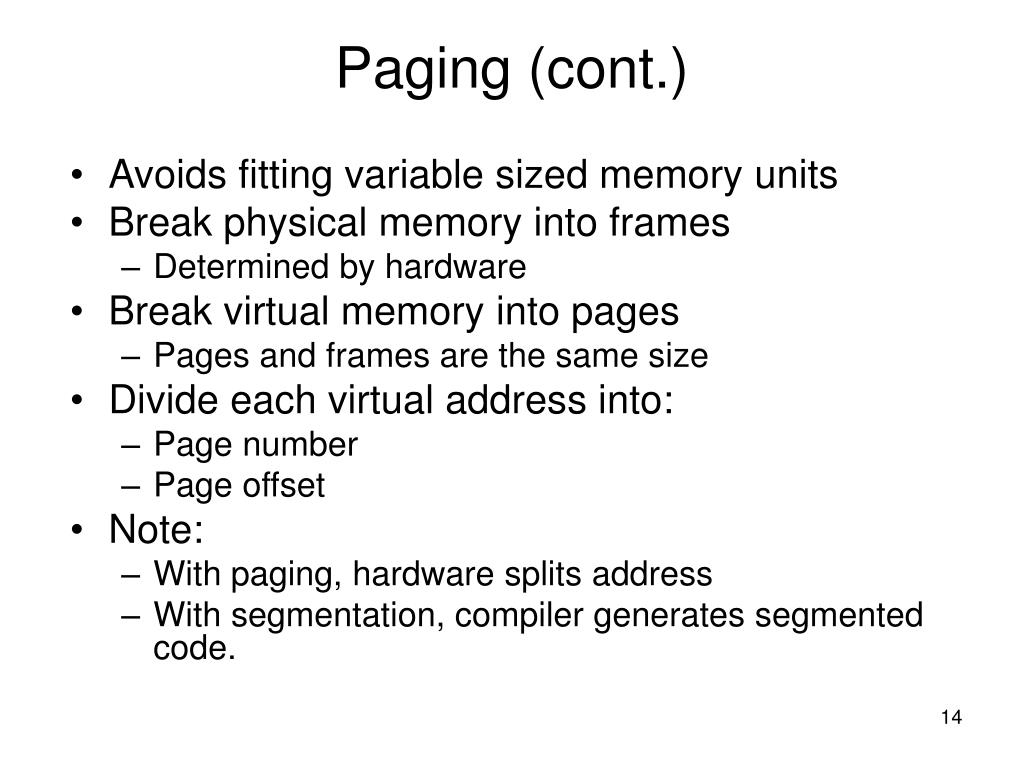

Paging (cont.) • Avoids fitting variable sized memory units • Break physical memory into frames • Determined by hardware • Break virtual memory into pages • Pages and frames are the same size • Divide each virtual address into: • Page number • Page offset • Note: • With paging, hardware splits address • With segmentation, compiler generates segmented code.

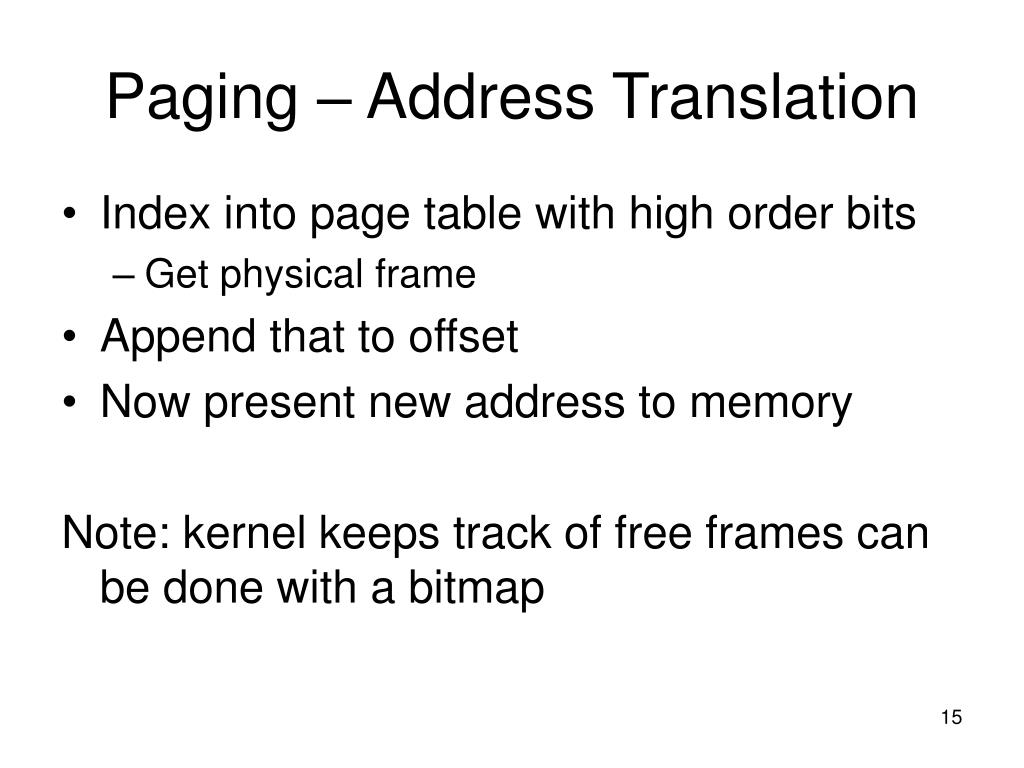

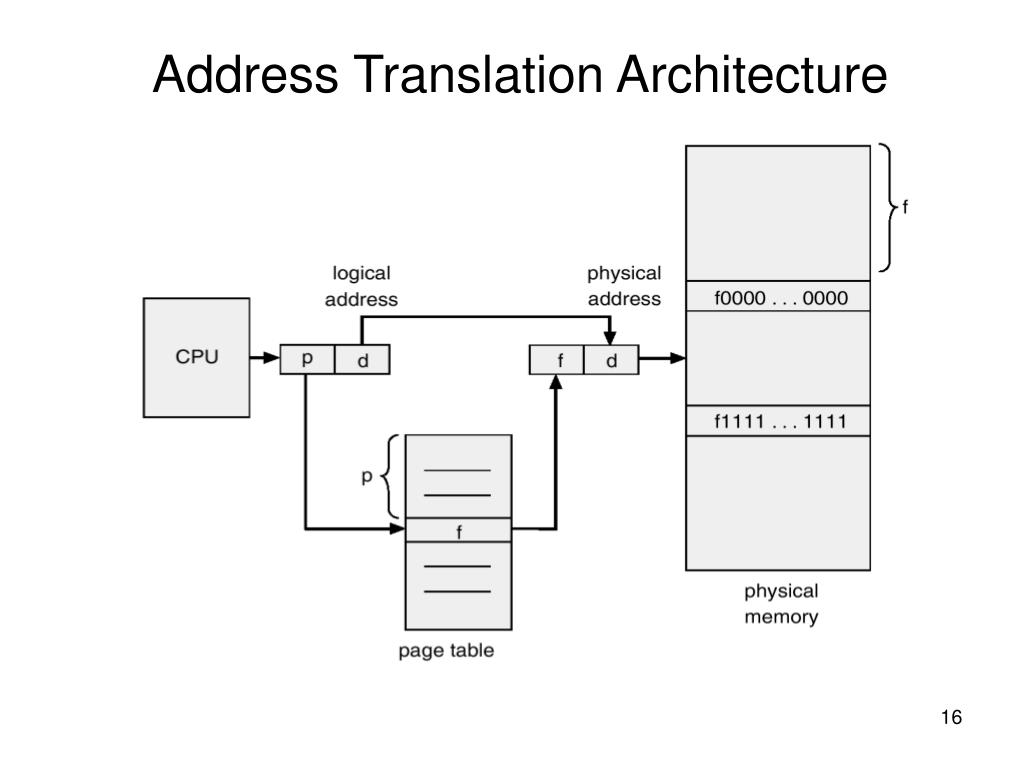

Paging – Address Translation • Index into page table with high order bits • Get physical frame • Append that to offset • Now present new address to memory Note: kernel keeps track of free frames can be done with a bitmap
Paging Example physical memory virtual memory Page table Where is virtual address 6? 9? Note: Page size is 4 bytes
Paging Issues • Fragmentation • Page Size • Protection and Sharing • Page Table Size • What if page table too big for main memory?
Fragmentation and Page Size • Fragmentation • No external fragmentation • Page can go anywhere in main memory • Internal fragmentation • Average: ½ page per address space • Page Size • Small size? • Reduces (on average) internal fragmentation • Large size? • Better for page table size • Better for disk I/O • Better for number of page faults • Typical page sizes: 4K, 8K, 16K
Protection and Sharing • Page protection – use a bit • code: read only • data: read/write • Sharing • Just “map pages in” to your address space • Ex: if “vi” is at frames 0 through 10, all processes can adjust their page tables to “point to” those frames.

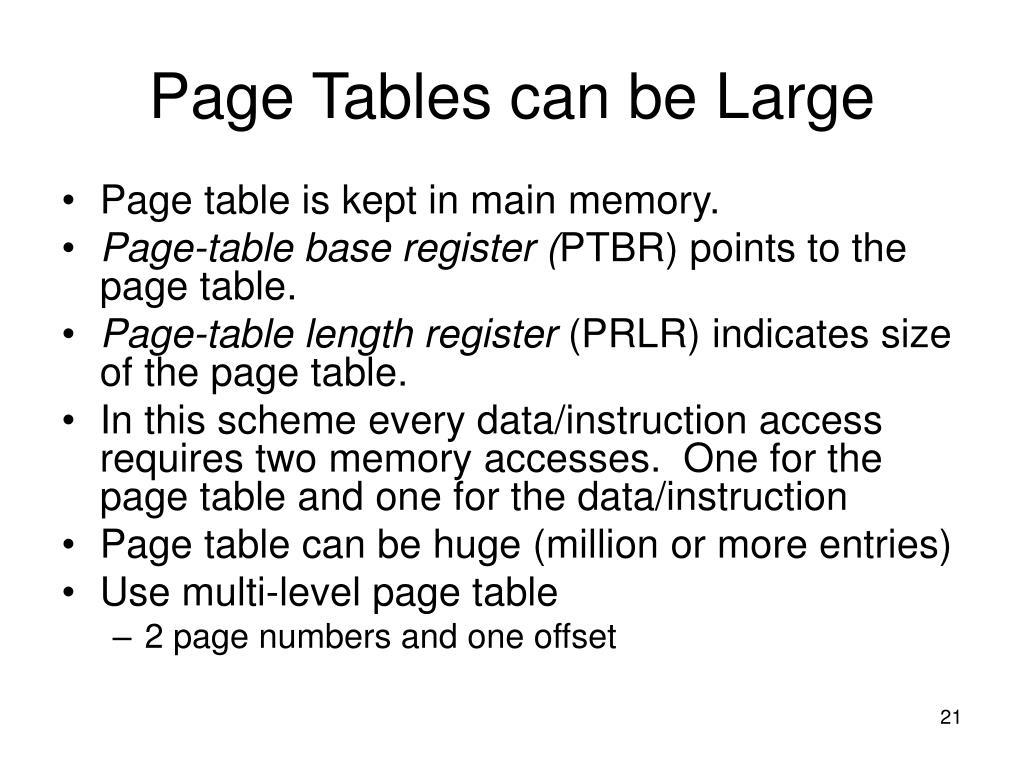

Page Tables can be Large • Page table is kept in main memory. • Page-tablebase register (PTBR) points to the page table. • Page-table length register (PRLR) indicates size of the page table. • In this scheme every data/instruction access requires two memory accesses. One for the page table and one for the data/instruction • Page table can be huge (million or more entries) • Use multi-level page table • 2 page numbers and one offset
Two-Level Paging Example • A logical address (on 32-bit machine with 4K page size) is divided into: • a page number consisting of 20 bits. • a page offset consisting of 12 bits. • Since the page table is paged, the page number is further divided into: • a 10-bit page number. • a 10-bit page offset. • Thus, a logical address is as follows:where pi is an index into the outer page table, and p2 is the displacement within the page of the outer page table. page number page offset p2 pi d 10 12 10
Address-Translation Scheme • Address-translation scheme for a two-level 32-bit paging architecture
Inverted Page Table (“Core Map”) • One entry for each real page of memory. • Entry consists of the virtual address of the page stored in that real memory location, with information about the process that owns that page. • Decreases memory needed to store each page table, but increases time needed to search the table when a page reference occurs. • Use hash table to limit the search to one — or at most a few — page-table entries. • Good for page replacement
Paging the Segments • Divide address into three parts • Segment number • Page number • Offset • Segment table contains addr. of page table • Use that and page # to get frame # • Combine frame number and offset

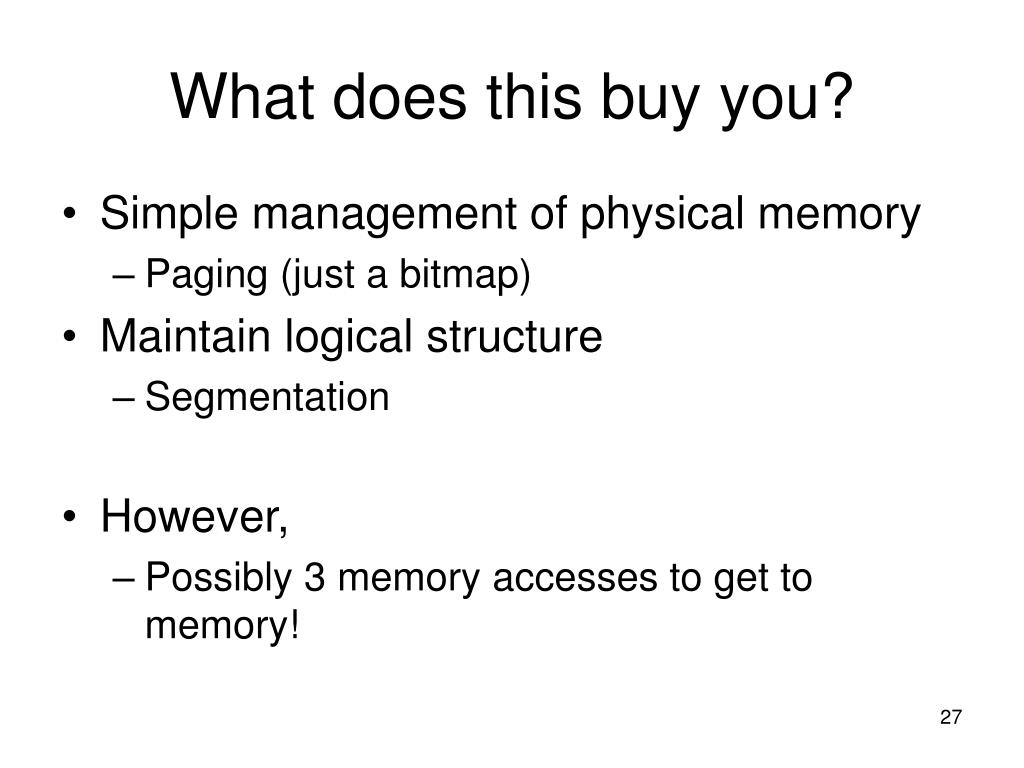

What does this buy you? • Simple management of physical memory • Paging (just a bitmap) • Maintain logical structure • Segmentation • However, • Possibly 3 memory accesses to get to memory!
