Presentation Transcript
Chapter 2 motion in one dimension examples l.jpg

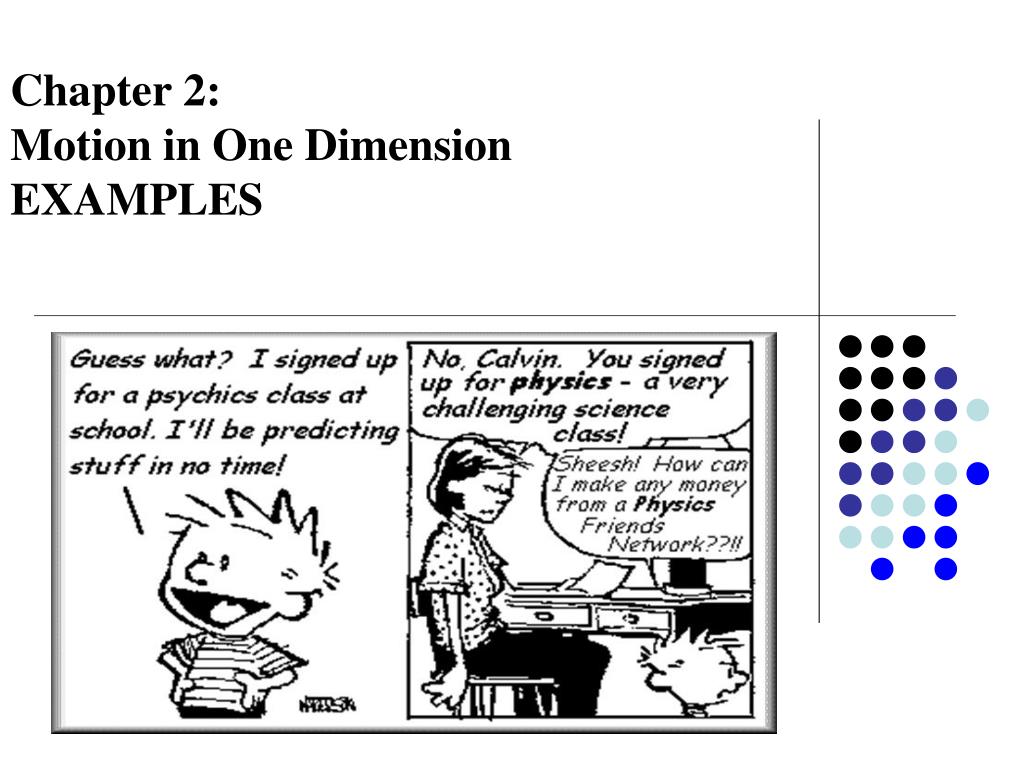

Chapter 2:Motion in One DimensionEXAMPLES


Example 2 1 displacement l.jpg
Example 2.1Displacement

  • x1 = 30 m x2 = 10 m

  • Displacement is a VECTOR


Example 2 2 average velocity speed l.jpg
Example 2.2 Average Velocity & Speed

  • Suppose the person walks during 50 seconds.

  • Displacement

    Distance (d) = 100m

  • Average velocity:

  • Average Speed:

Xi

Xf


Example 2 3 instantaneous average velocities l.jpg
Example 2.3 Instantaneous & average velocities

  • If an objects moves at uniform velocity (constant), then: Instantaneous velocity and average velocity at any instant (t) are the same.

Instantaneous = average


Example 2 4 instantaneous average velocities l.jpg
Example 2.4 Instantaneous & average velocities

  • Are Instantaneous velocity and Average velocity at any instant t the same? NOT ALWAYS!!!!

  • Example: A car starts from rest, speed up to 50km/h, remains at that speed for a time. Slow down to 20 km/hr in a traffic jam, the finally stops. Traveling a total of 15 km in 30 min (0.5 hr).




Example 2 5 average acceleration l.jpg
Example 2.5 Average Acceleration

  • ax (+), vx(+) Speeding Up!!

  • ax (), vx() Speeding Up!!


Example 2 6 average acceleration l.jpg
Example 2.6 Average Acceleration

  • ax (+), vx() Slowing Down!!

  • ax (), vx(+) Slowing Down!!


Example 2 7 conceptual question l.jpg
Example 2.7 Conceptual Question

  • Velocity and acceleration are both vectors (they have magnitude & direction).

  • Are the velocity and the acceleration always in the same direction?

NO WAY!!


Example 2 8 conceptual question l.jpg
Example 2.8 Conceptual Question

  • Velocity and acceleration are both vectors (they have magnitude & direction).

  • Is it possible for an object to have a zero acceleration and a non-zero velocity?

YES!!!

Drive 65 miles/h on

the Freeway


Example 2 0 conceptual question l.jpg
Example 2.0 Conceptual Question

  • Velocity and acceleration are both vectors (they have magnitude & direction).

  • Is it possible for an object to have a zero velocity and a non-zero acceleration?

YES!!!

Start your car!!!


Slide13 l.jpg

Material for the Midterm

  • Examples to Read!!!

    • Example 2.5 (Text book Page 31)

    • Example 2.8 (Text book Page 37)



Example 2 10 free fall example l.jpg
Example 2.10 Free Fall Example

  • Initial velocity at A is upward (+) and acceleration is g (– 9.8 m/s2)

  • At B, the velocity is 0 and the acceleration is g (– 9.8 m/s2)

  • At C, the velocity has the same magnitude as at A, but is in the opposite direction

  • The displacement is – 50.0 m (it ends up 50.0 m below its starting point)


Example 2 10 cont l.jpg

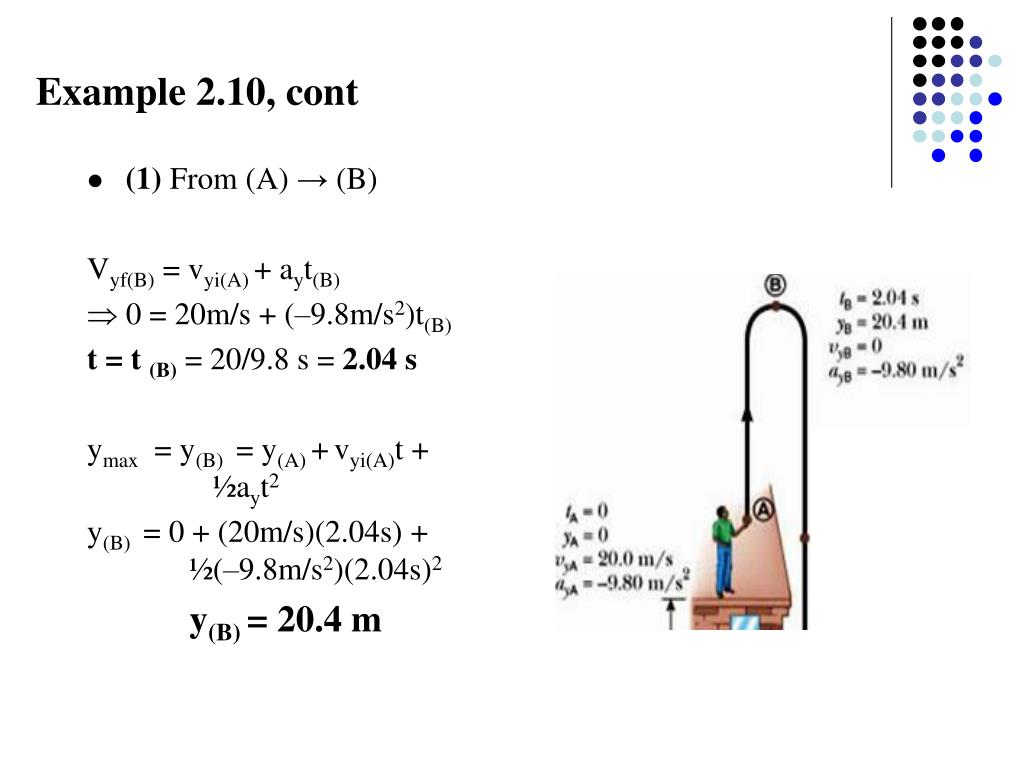

Example 2.10, cont

  • (1) From (A) → (B)

    Vyf(B) = vyi(A) + ayt(B)

     0 = 20m/s + (–9.8m/s2)t(B)

    t = t (B) = 20/9.8 s = 2.04 s

    ymax = y(B) = y(A) +vyi(A)t + ½ayt2

    y(B) = 0 + (20m/s)(2.04s) + ½(–9.8m/s2)(2.04s)2

    y(B) = 20.4 m


Example 2 10 cont17 l.jpg
Example 2.10, cont

  • (2)From (B) → (C): y(C) = 0

    y(C) = y(A)+ vyi(A) t – ½ayt2

  • 0 = 0 + 20.0t – 4.90t2

    (Solving for t): t(20 – 4.9t) = 0

  • t = 0 or t(C) = t = 4.08 s

    vyf(C) = vyi(A) + ayt (C)

  • vyf(C) = 20m/s + (– 9.8m/s2)(4.08 s)

  • vyf(C) = –20.0 m/s


Example 2 10 cont18 l.jpg

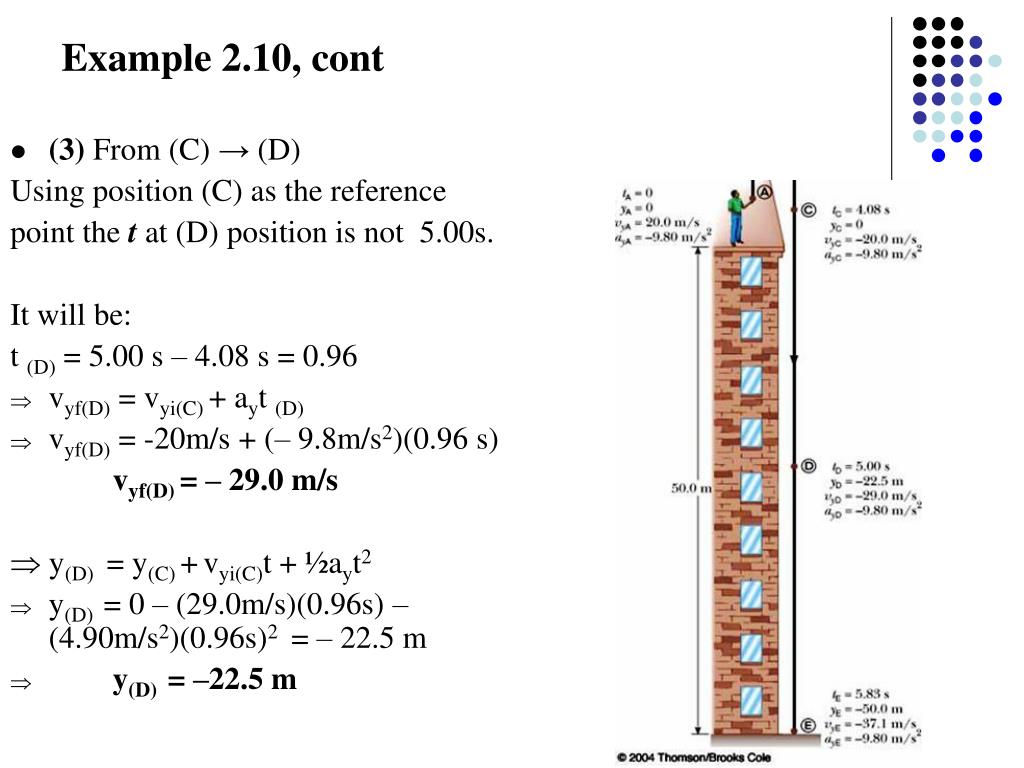

Example 2.10, cont

  • (3) From (C) → (D)

    Using position (C) as the reference

    point the tat (D) position is not 5.00s.

    It will be:

    t (D) = 5.00 s – 4.08 s = 0.96

  • vyf(D) = vyi(C) + ayt (D)

  • vyf(D) = -20m/s + (– 9.8m/s2)(0.96 s)

    vyf(D) = – 29.0 m/s

     y(D) = y(C) +vyi(C)t + ½ayt2

  • y(D) = 0 – (29.0m/s)(0.96s) – (4.90m/s2)(0.96s)2 = – 22.5 m

  • y(D) = –22.5 m


Example 2 11 problem 66 page 54 l.jpg
Example 2.11 (Problem #66 page 54)

  • From the free fall of the rock the distance will be:

  • From the sound de same distance will be:

  • But: t1 + t2 = 2.40s  t1 = 2.40 – t2

  • Replacing (t1 ) into the first equation and equating to the second:

.


Example 2 12 objective question 13 l.jpg
Example 2.12 Objective Question #13

  • A student at top of the building of height h throws one ball upward with speed vi and then throws a second ball downward with the same initial speed, vi . How do the final velocities of the balls compare when they reach the ground?

    After Ball 1 reaches maximum height it falls back downward passing the student with velocity –vi . This velocity is the same as Ball 2 initial velocity, so after they fall through equal height h, their impact speeds will also be the same!!!

BALL 2

BALL 1

+vi

- vi

- vi

h

h


Slide21 l.jpg

Material for the Midterm

  • Material from the book to Study!!!

    • Objective Questions: 2-13-16

    • Conceptual Questions: 6-7-9

    • Problems: 3-6-11-16-17-20-29-42-44
