What is GFS?

Global Forecast System (GFS) is often mislabeled or misunderstood.

Global Forecast System is the full global scale numerical weather prediction system – It includes both the global analysis and forecast components

However, the term GFS has also been used to imply that it is the NCEP global spectral model.

Therefore, we may use the term GFS to imply both the atmospheric model as well as the whole forecast system

NCEP Global Spectral model Horizontal Representation

- Spectral (spherical harmonic basis functions) with transformation to a Gaussian grid for calculation of nonlinear quantities and physics
- Horizontal resolution
- > Operational version - T574 up to 192 hours and T190 to 384 hours
- > Supported resolutions – T574, T382, T254, T190, T170, T126 and T62

- Initialization
- Digital filter initialization with 3 hour window.
Time integration scheme:

- Leapfrog for nonlinear advection terms
- Semi-implicit for gravity waves and zonal advection of vorticity and specific humidity.
- Asselin (1972) time filter to control computational mode
- Time split physics adjustments with implicit treatment when possible

- Digital filter initialization with 3 hour window.

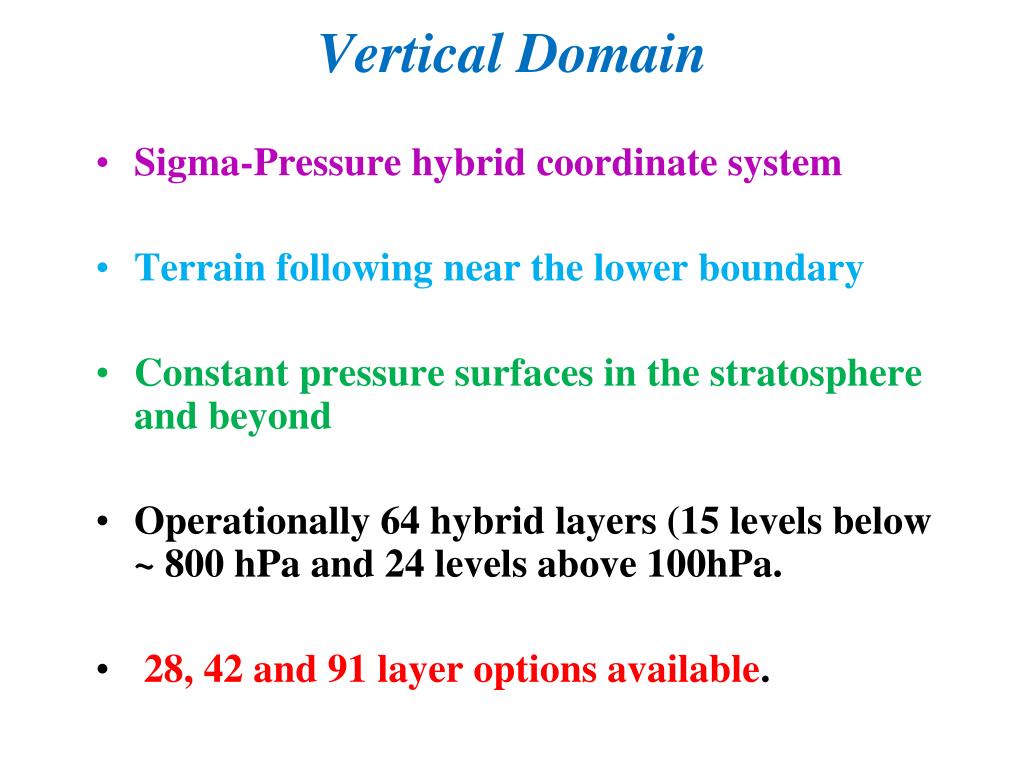

Vertical Domain

- Sigma-Pressure hybrid coordinate system
- Terrain following near the lower boundary
- Constant pressure surfaces in the stratosphere and beyond
- Operationally 64 hybrid layers (15 levels below ~ 800 hPa and 24 levels above 100hPa.
- 28, 42 and 91 layer options available.

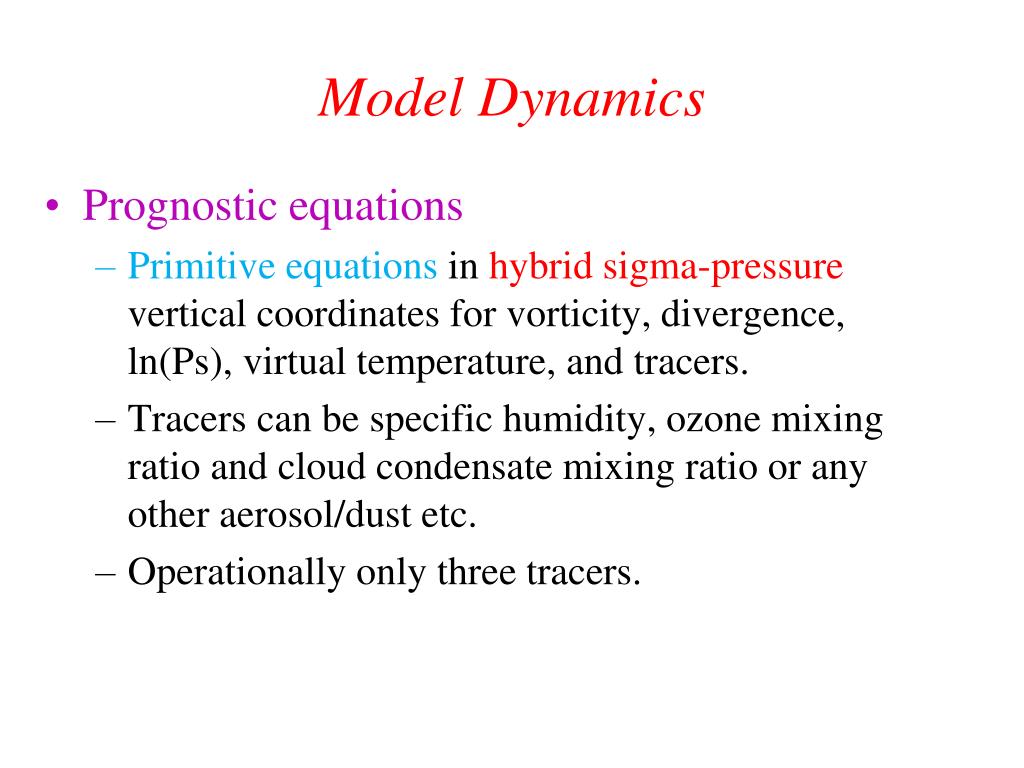

Model Dynamics

- Prognostic equations
- Primitive equations in hybrid sigma-pressure vertical coordinates for vorticity, divergence, ln(Ps), virtual temperature, and tracers.
- Tracers can be specific humidity, ozone mixing ratio and cloud condensate mixing ratio or any other aerosol/dust etc.
- Operationally only three tracers.

Vertical Advection

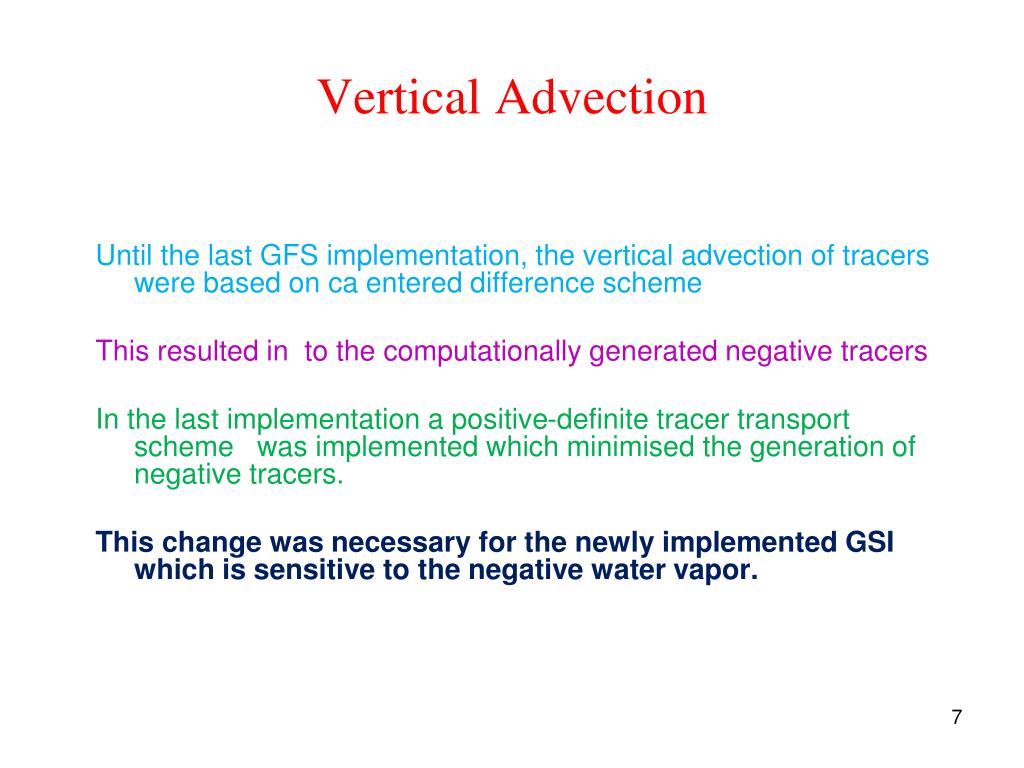

Until the last GFS implementation, the vertical advection of tracers were based on ca entered difference scheme

This resulted in to the computationally generated negative tracers

In the last implementation a positive-definite tracer transport scheme was implemented which minimised the generation of negative tracers.

This change was necessary for the newly implemented GSI which is sensitive to the negative water vapor.

Vertical Advection of Tracers: previous GFS Scheme

Flux form conserves mass

Current GFS uses central differencing in space and leap-frog in time.

The scheme is not positive definiteand may produce negative tracers.

Sources of Negative Water Vapor

DataVertical advection

assimilation

Spectral transform

Borrowing by cloud water

SAS Convection

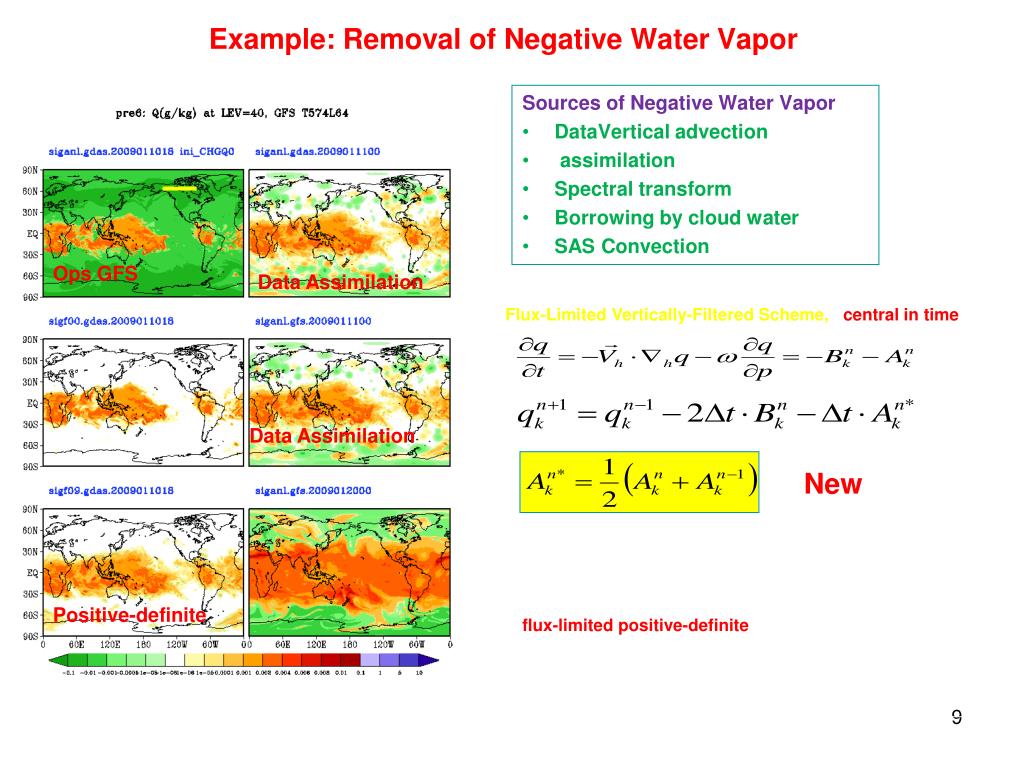

Example: Removal of Negative Water Vapor_

Ops GFS

Data Assimilation

Flux-Limited Vertically-Filtered Scheme,central in time

Data Assimilation

New

B: horizontal advection, computed in spectral form with central differencing in space

A: vertical advection, computed in finite-difference form with flux-limited positive-definite scheme in space

Positive-definite

Fanglin Yang et al., 2009: On the Negative Water Vapor in the NCEP GFS: Sources and Solution. 23rd Conference on Weather Analysis and Forecasting/19th Conference on Numerical Weather Prediction, 1-5 June 2009, Omaha, NE

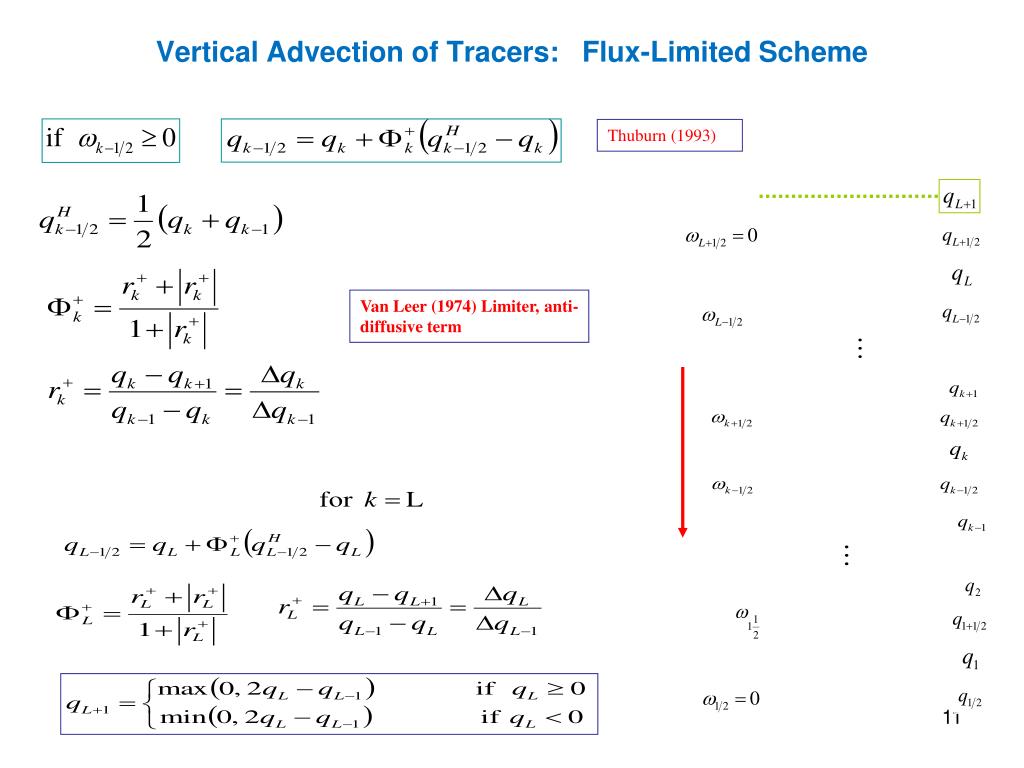

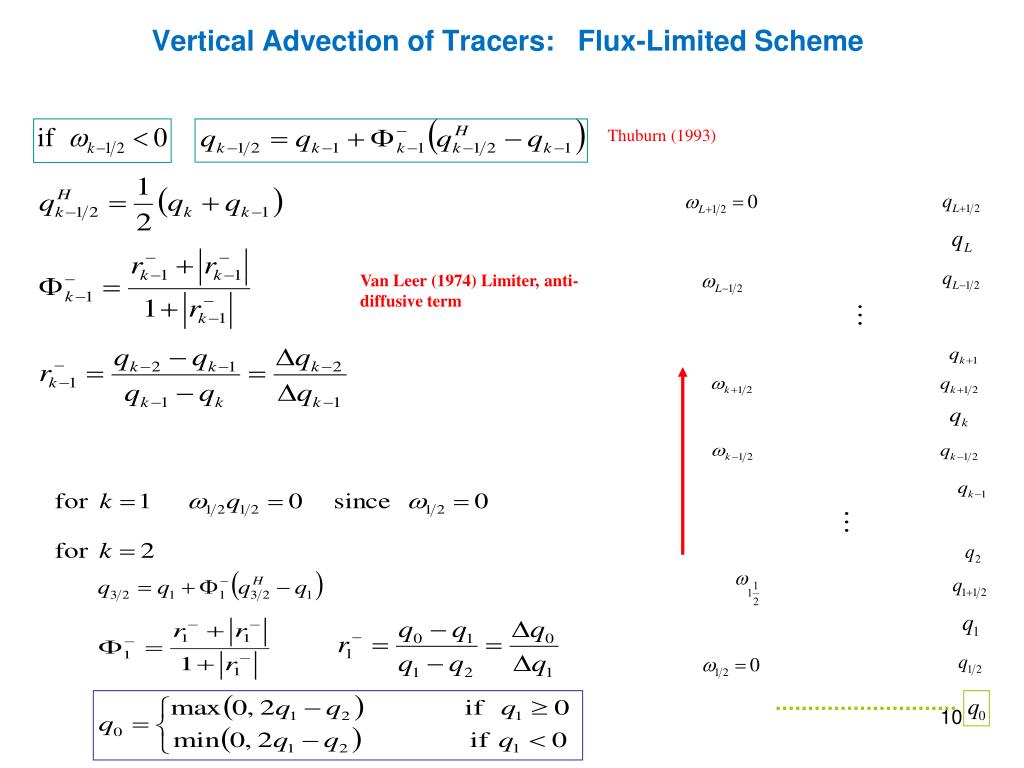

Vertical Advection of Tracers: Flux-Limited Scheme

Thuburn (1993)

Van Leer (1974) Limiter, anti-diffusive term

Special boundary conditions

Vertical Advection of Tracers: Flux-Limited Scheme

Thuburn (1993)

Van Leer (1974) Limiter, anti-diffusive term

Special boundary condition

Vertical Advection of Tracers: Idealized Case Study

wind

Upwind (diffusive)

Flux-Limited

Initial condition

GFS Central-in-Space

Horizontal Diffusion

- Scale selective 8th order diffusion of Divergence, vorticity, virtual, temperature, specific humidity, ozone and cloud condensate.
- Temperature diffusion in done on quasi-pressure surfaces

Algorithm of the GFS Spectral Model

One time step loop is divided into :

- Computation of the tendencies of divergence, log of surface pressure and virtual temperature and of the predicted values of the vorticity and moisture (grid)
- Semi-implicit time integration
- Time filter does not require the predicted variables
- Time split physics (transform grid)
- Damping to simulate subgrid dissipation
- Completion of the time filter

GFS Parallelism Spectral

- Spectral fields separated into their real and imaginary parts to remove stride problems in the transforms
- Hybrid 1-D MPI with OpenMP threading
- Spectral space 1-D MPI distributed over zonal wave numbers (l's). Threading used on variables x levels
- Cyclic distribution of l's used for load balancing the MPI tasks due to smaller numbers of meridional points per zonal wave number as the wave number increases. For example for 4 MPI tasks the l's would be distributed as 12344321

- Spectral space 1-D MPI distributed over zonal wave numbers (l's). Threading used on variables x levels

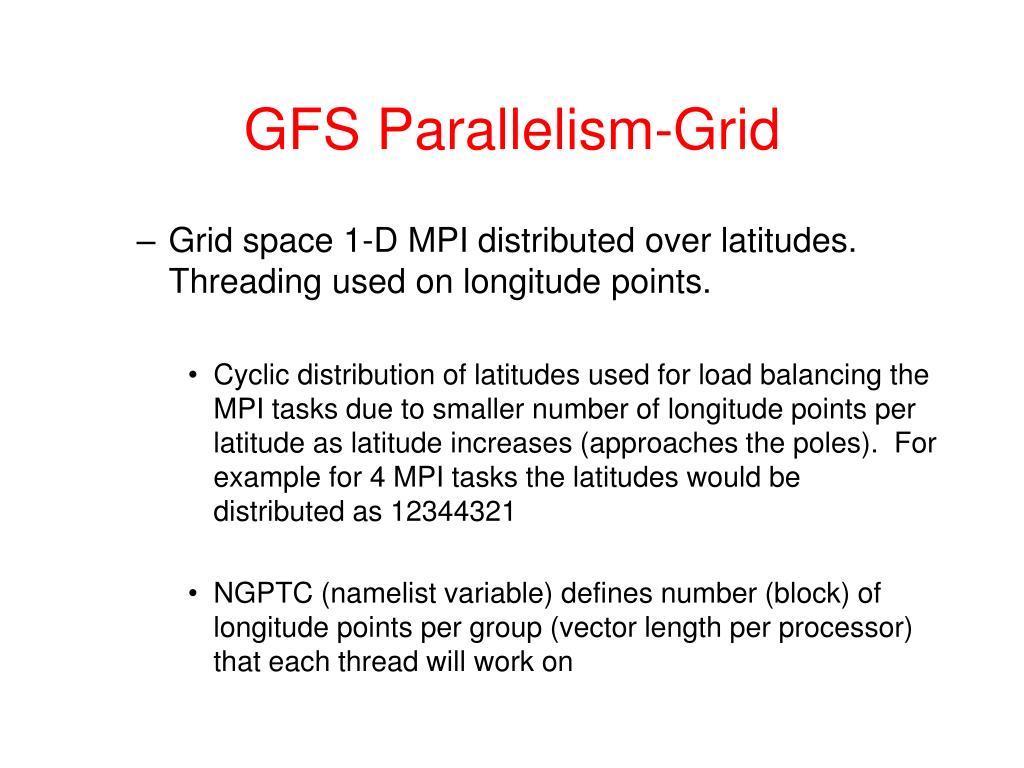

GFS Parallelism-Grid

- Grid space 1-D MPI distributed over latitudes. Threading used on longitude points.
- Cyclic distribution of latitudes used for load balancing the MPI tasks due to smaller number of longitude points per latitude as latitude increases (approaches the poles). For example for 4 MPI tasks the latitudes would be distributed as 12344321
- NGPTC (namelist variable) defines number (block) of longitude points per group (vector length per processor) that each thread will work on

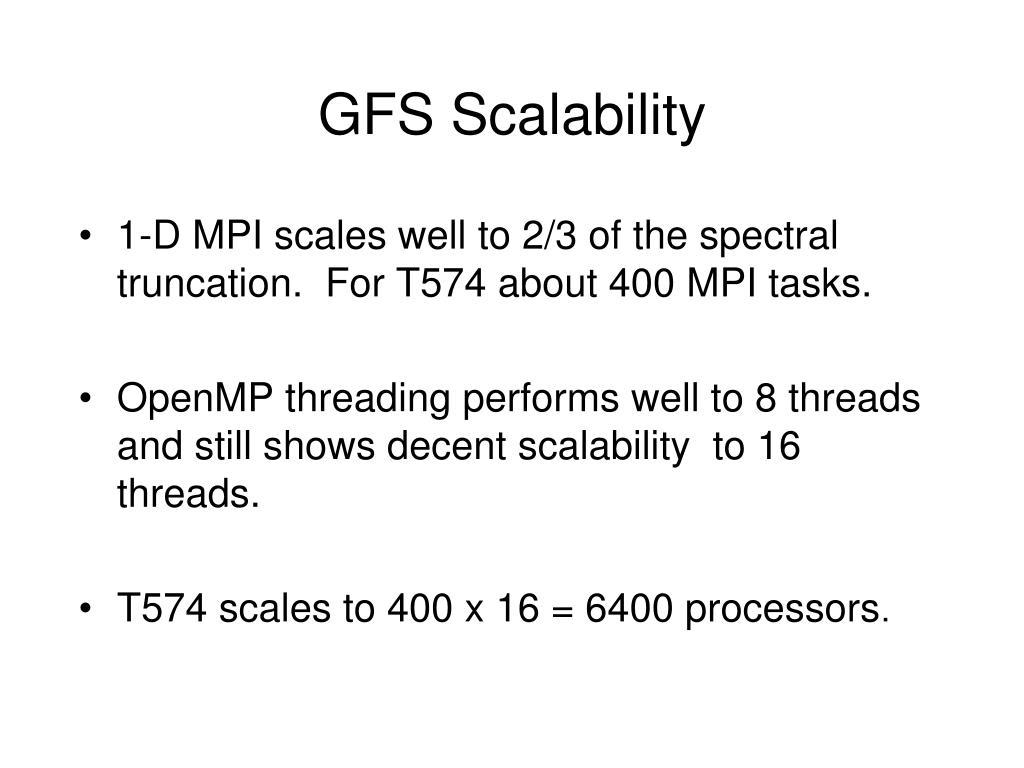

GFS Scalability

- 1-D MPI scales well to 2/3 of the spectral truncation. For T574 about 400 MPI tasks.
- OpenMP threading performs well to 8 threads and still shows decent scalability to 16 threads.
- T574 scales to 400 x 16 = 6400 processors.

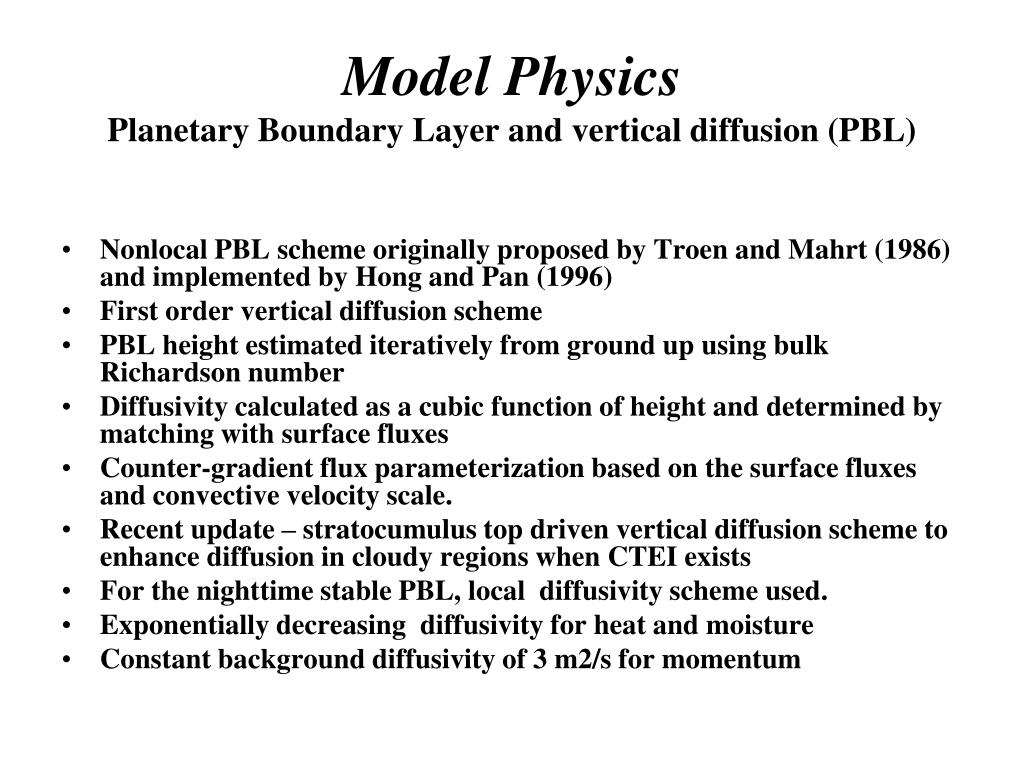

Model PhysicsPlanetary Boundary Layer and vertical diffusion (PBL)

- Nonlocal PBL scheme originally proposed by Troen and Mahrt (1986) and implemented by Hong and Pan (1996)
- First order vertical diffusion scheme
- PBL height estimated iteratively from ground up using bulk Richardson number
- Diffusivity calculated as a cubic function of height and determined by matching with surface fluxes
- Counter-gradient flux parameterization based on the surface fluxes and convective velocity scale.
- Recent update – stratocumulus top driven vertical diffusion scheme to enhance diffusion in cloudy regions when CTEI exists
- For the nighttime stable PBL, local diffusivity scheme used.
- Exponentially decreasing diffusivity for heat and moisture
- Constant background diffusivity of 3 m2/s for momentum

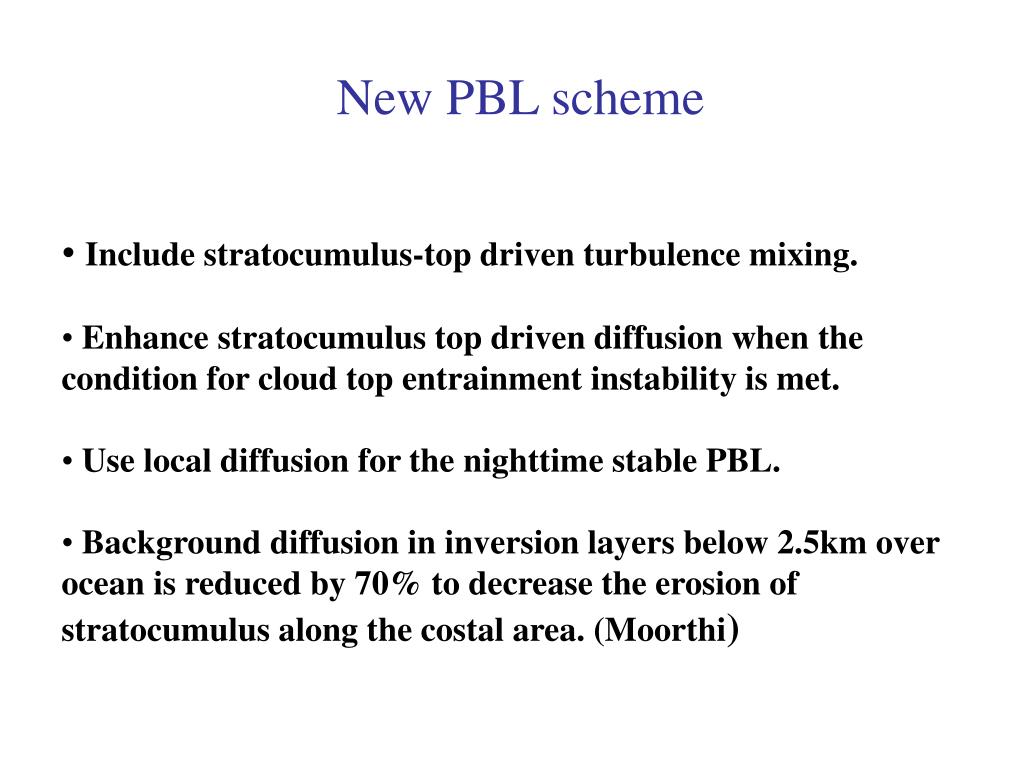

- Include stratocumulus-top driven turbulence mixing.
- Enhance stratocumulus top driven diffusion when the condition for cloud top entrainment instability is met.
- Use local diffusion for the nighttime stable PBL.
- Background diffusion in inversion layers below 2.5km over ocean is reduced by 70% to decrease the erosion of stratocumulus along the costal area. (Moorthi)

Diffusion in stable boundary layer

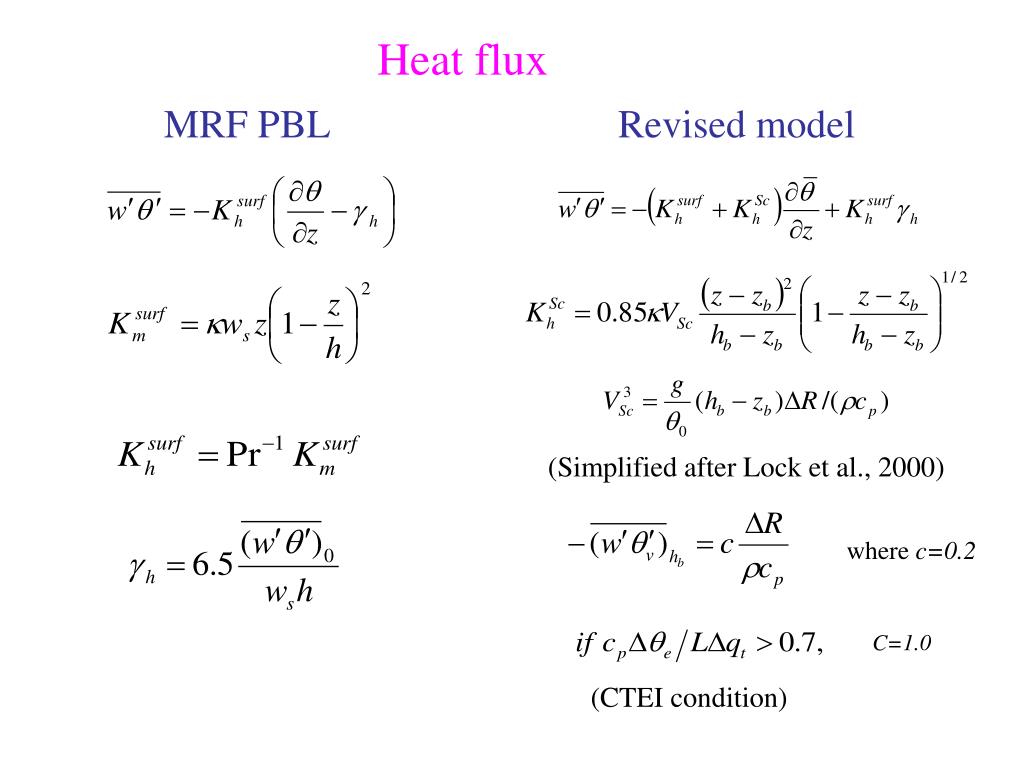

MRF PBL Revised model

Local diffusion scheme (Louis, 1979)

l0 = 150 m for unstable condition

30 m for stable condition

Rbcr=0.25

* Use local diffusion scheme above PBL for both MRF and new models

MRF PBL Revised model

(Simplified after Lock et al., 2000)

where c=0.2

C=1.0

(CTEI condition)

Sub-grid scale gravity wave drag and mountain blocking

Correction of model bias from sub-grid scale parameterization is an

on-going process.

Atmospheric flow is significantly influenced by orography, creating lift and

frictional forces

The unresolved sub-grid scale orography has significant impact on the

evolution of the model atmosphere and must be parameterized.

Sub-grid scale orography generates vertically propagating gravity waves

transferring momentum aloft.

Gravity wave Drag, implemented in 1987, and 1997

Mountain Blocking, implemented 2004

- Mountain blocking of wind flow around sub-gridscale orography is a process that retards motion at various model vertical levels near or in the boundary layer.
- Flow around the mountain encounters larger frictional forces by being in contact with the mountain surfaces for longer time as well as the interaction of the atmospheric environment and vortex shedding which is shown to occur in numerous observations and tank simulations.
- Snyder, et al., 1985, observed the behavior of flow around or over obstacles and used a dividing streamline to analyze the level where flow goes around a barrier or over it.

- Lott and Miller (1997) incorporated the dividing streamline into the ECMWF global model, as a function of the stable stratification, where above the dividing streamline, gravity waves are potentially generated and propagate vertically, and below, the flow is expected to go around the barrier with increased friction in low layers.

- An augmentation to the gravity wave drag scheme in the NCEP global forecast system (GFS), following the work of Alpert et al., (1988, 1996) and Kim and Arakawa (1995), is incorporated from the Lott and Miller (1997) scheme with minor changes and including the dividing streamline.

• global forecast system (GFS), following the work of Alpert et al., (1988, 1996) and Kim and Arakawa (1995), is incorporated from the Lott and Miller (1997) scheme with minor changes and including the dividing streamline. The idea of a dividing streamline at some level, hd, as in Snyder et al. (1985) and Etling, (1989), dividing air parcels that go over the mountain from those forced around an obstacle is used to parameterize mountain blocking effects.

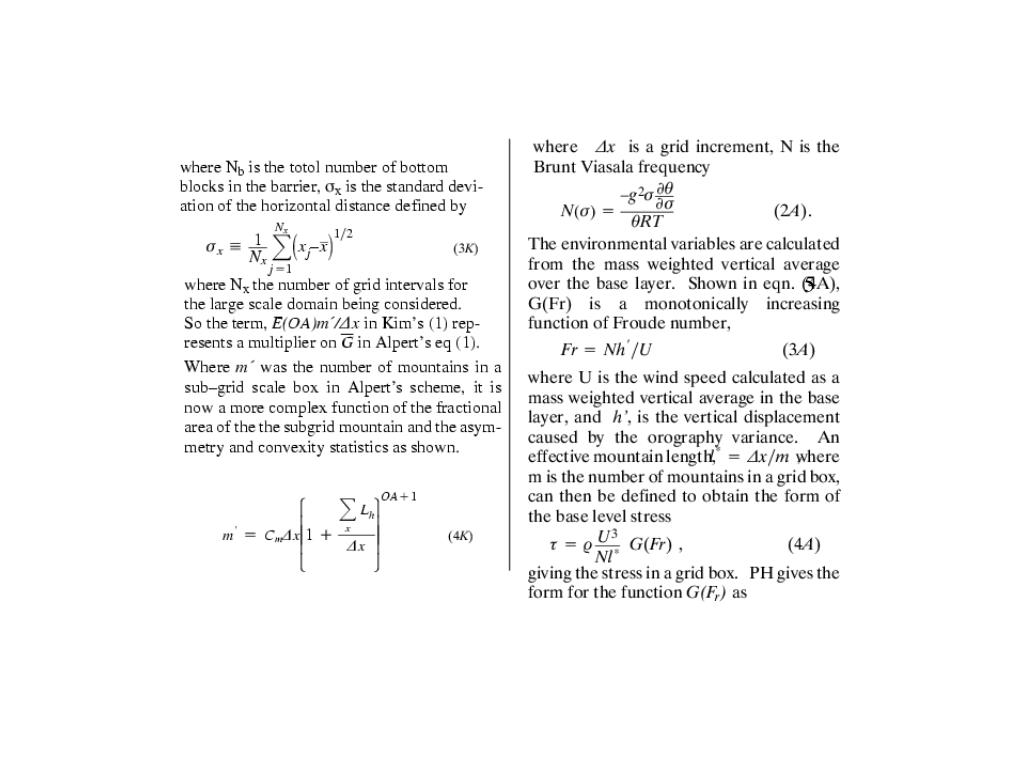

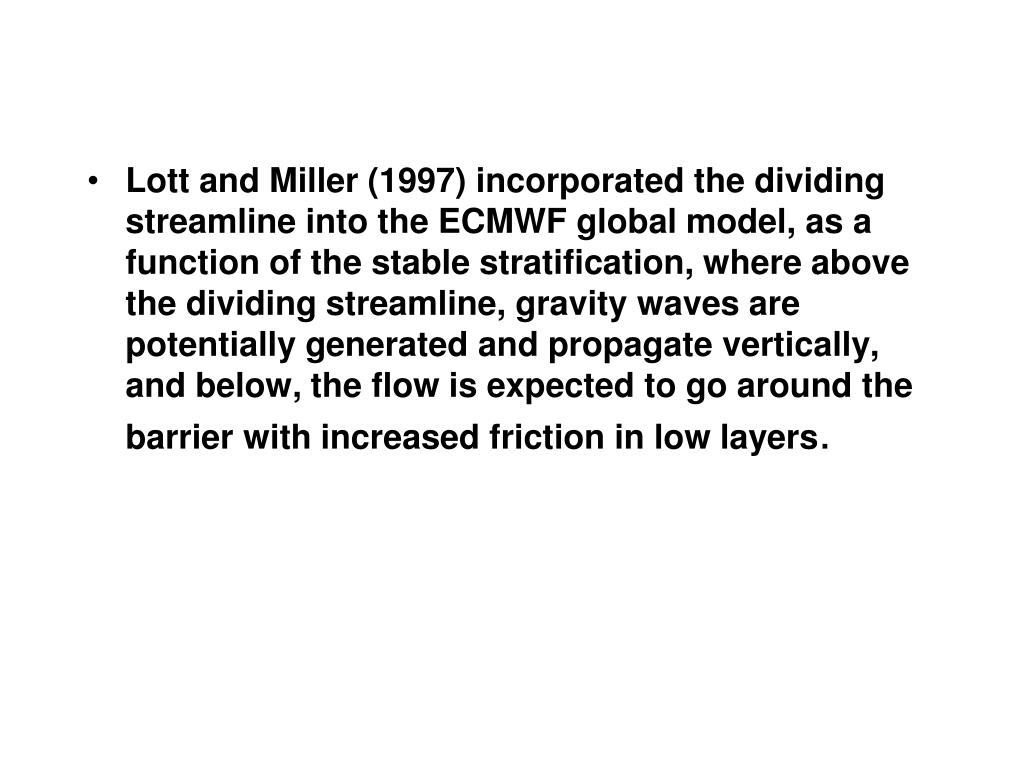

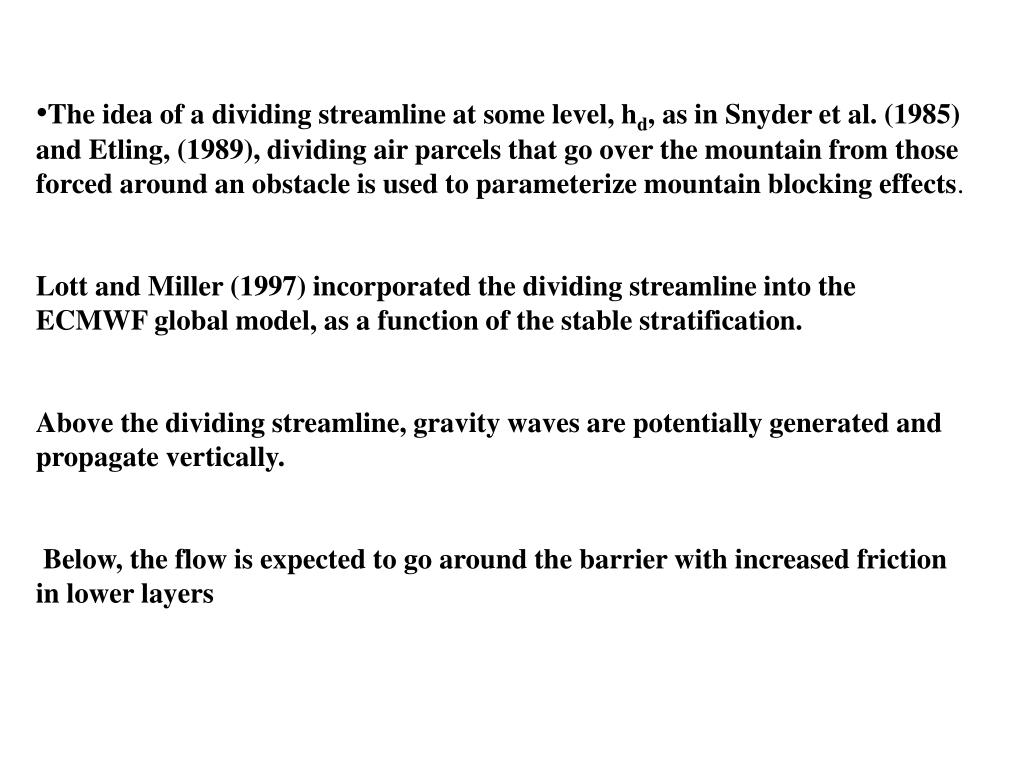

Lott and Miller (1997) incorporated the dividing streamline into the ECMWF global model, as a function of the stable stratification.

Above the dividing streamline, gravity waves are potentially generated and propagate vertically.

Below, the flow is expected to go around the barrier with increased friction in lower layers

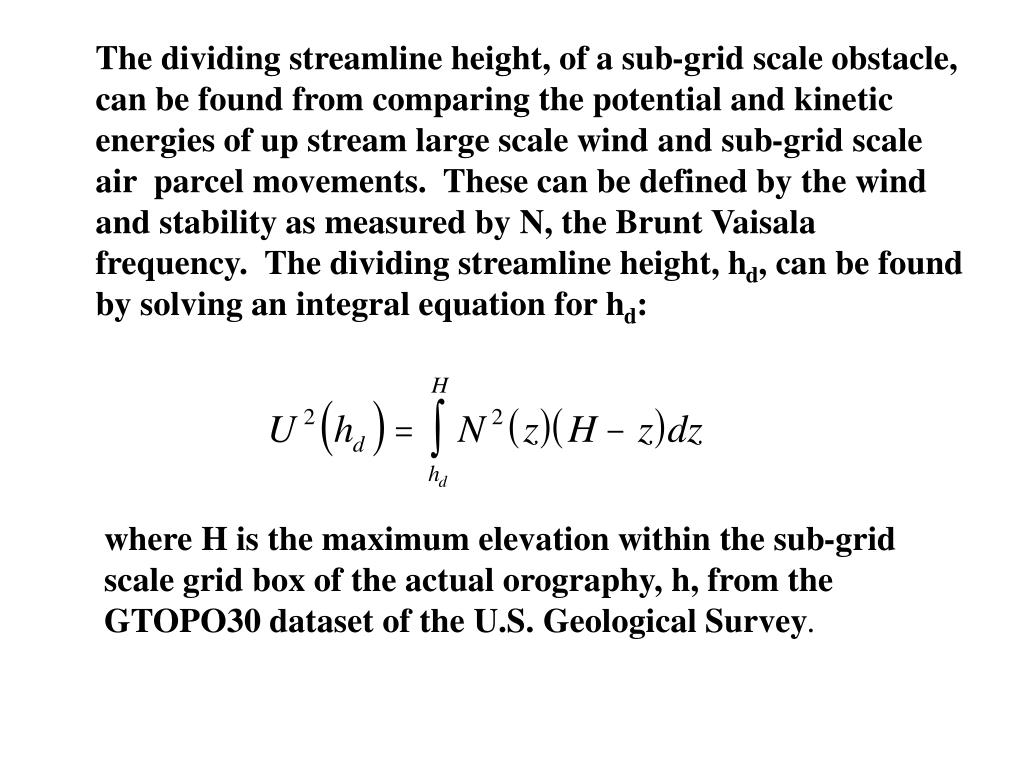

The dividing streamline height, of a sub-grid scale obstacle, can be found from comparing the potential and kinetic energies of up stream large scale wind and sub-grid scale air parcel movements. These can be defined by the wind and stability as measured by N, the Brunt Vaisala frequency. The dividing streamline height, hd, can be found by solving an integral equation for hd:

where H is the maximum elevation within the sub-grid scale grid box of the actual orography, h, from the GTOPO30 dataset of the U.S. Geological Survey.

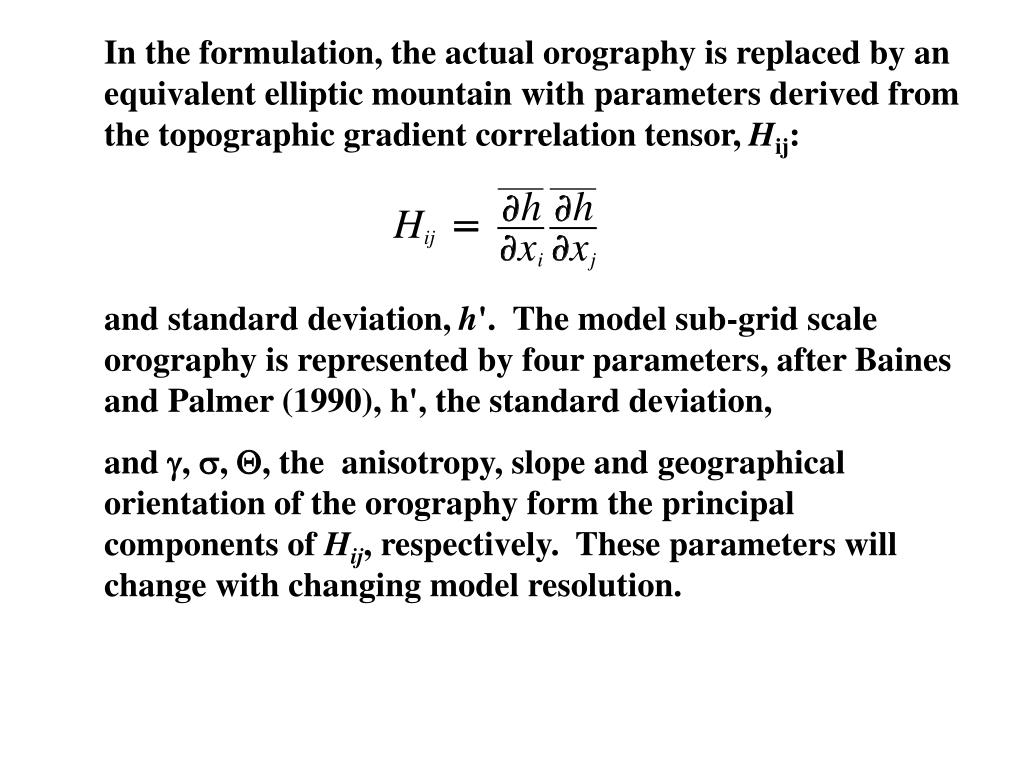

In the formulation, the actual orography is replaced by an equivalent elliptic mountain with parameters derived from the topographic gradient correlation tensor, Hij:

and standard deviation, h'. The model sub-grid scale orography is represented by four parameters, after Baines and Palmer (1990), h', the standard deviation,

and g, s, Q, the anisotropy, slope and geographical orientation of the orography form the principal components of Hij, respectively. These parameters will change with changing model resolution.

In each model layer below the dividing streamline a drag from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

where l(z) is the length scale of the effective contact length of the obstacle on the sub grid scale at the height z and constant Cd ~ 1.

l(z) = F(z, hd, h‘, g, s, Q, )

Where = Q -, the geographical orientation of the

orography minus the low level wind vector direction angle, .

The function from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):l(z) according to Lott and Miller:

(1)

(2)

(3)

Term (1) relates the the eccentricity parameters, a,b, to the sub-grid scale orography parameters, a ~ h‘/s and a/b =g and allows the drag coefficient, Cd to vary with the aspect ratio of the obstacle as seen by the incident flow since it is twice as large for flow normal to an elongated obstacle compared to flow around an isotropic obstacle. Term (2) accounts for the width and summing up a number of contributions of elliptic obstacles, and Term (3) takes into account the flow direction in one grid region.

5 from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

Model Physics from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):Shallow convection parameterization

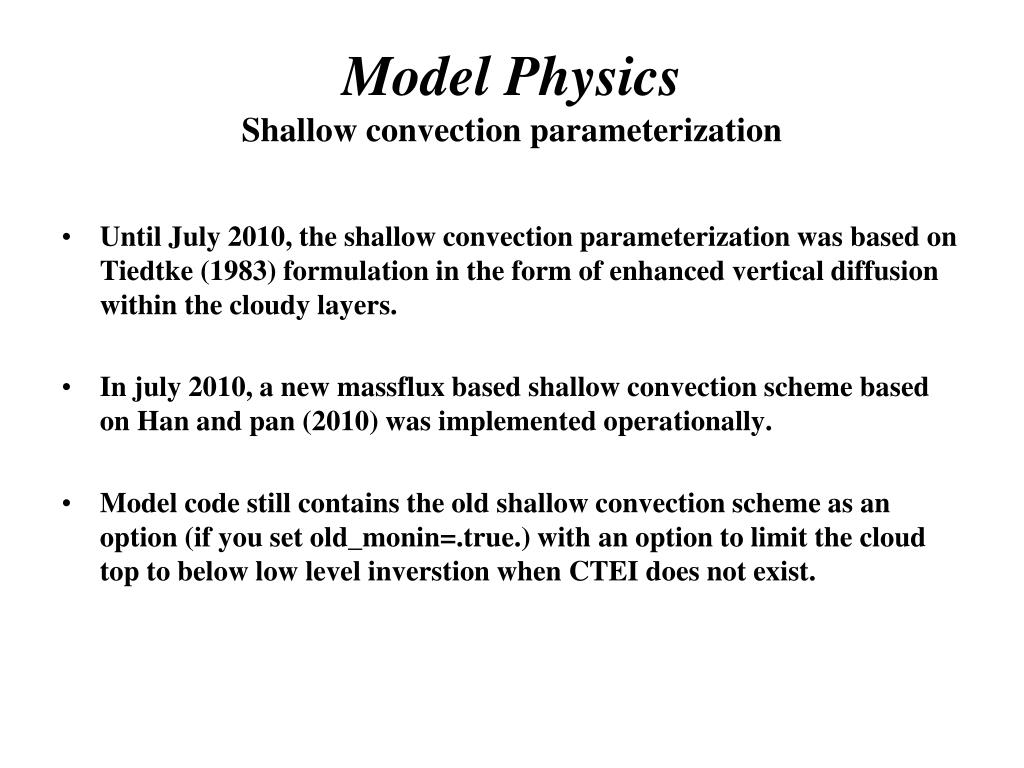

- Until July 2010, the shallow convection parameterization was based on Tiedtke (1983) formulation in the form of enhanced vertical diffusion within the cloudy layers.
- In july 2010, a new massflux based shallow convection scheme based on Han and pan (2010) was implemented operationally.
- Model code still contains the old shallow convection scheme as an option (if you set old_monin=.true.) with an option to limit the cloud top to below low level inverstion when CTEI does not exist.

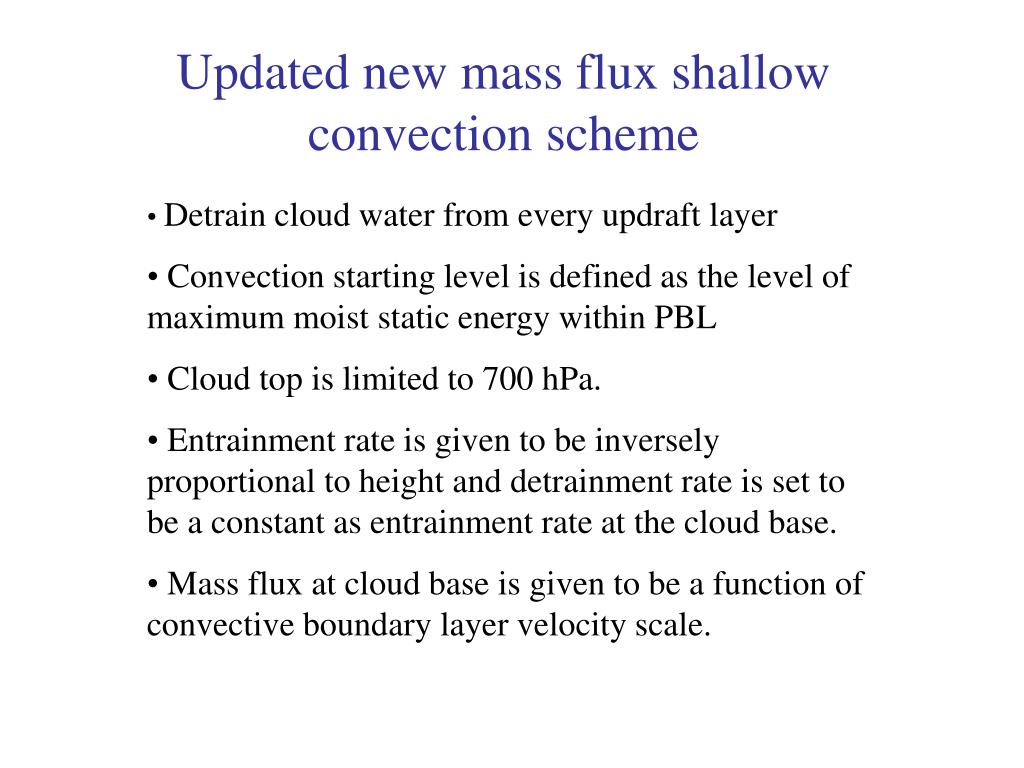

Updated new mass flux shallow convection scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

- Detrain cloud water from every updraft layer
- Convection starting level is defined as the level of maximum moist static energy within PBL
- Cloud top is limited to 700 hPa.
- Entrainment rate is given to be inversely proportional to height and detrainment rate is set to be a constant as entrainment rate at the cloud base.
- Mass flux at cloud base is given to be a function of convective boundary layer velocity scale.

Updated new shallow convection scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

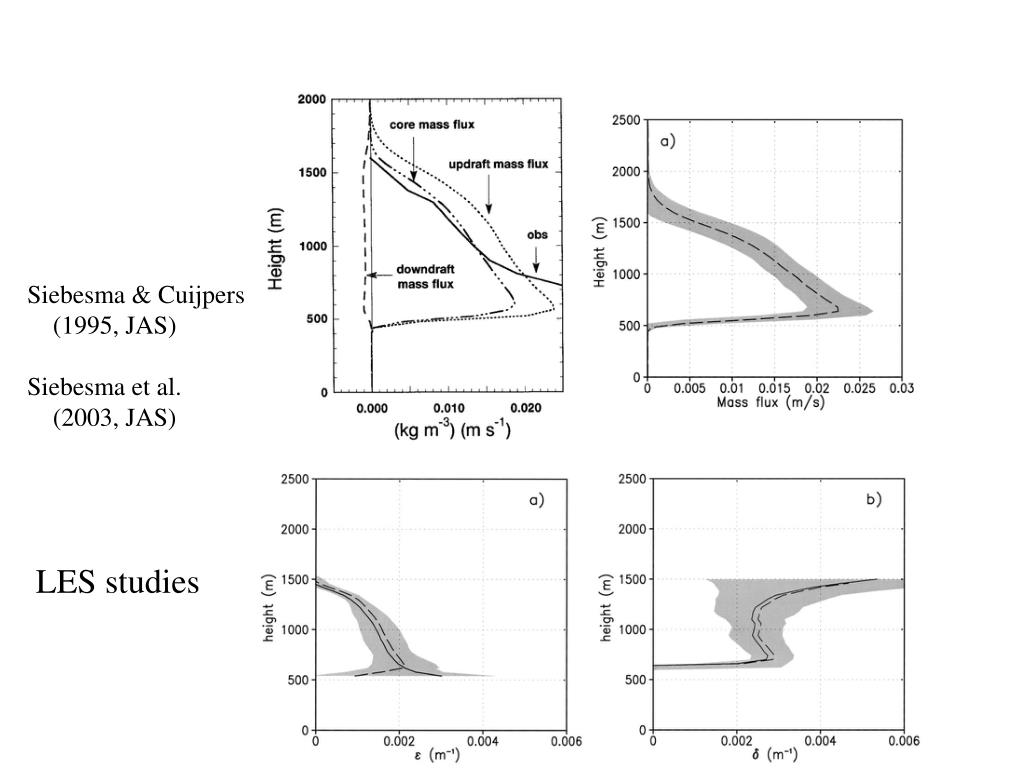

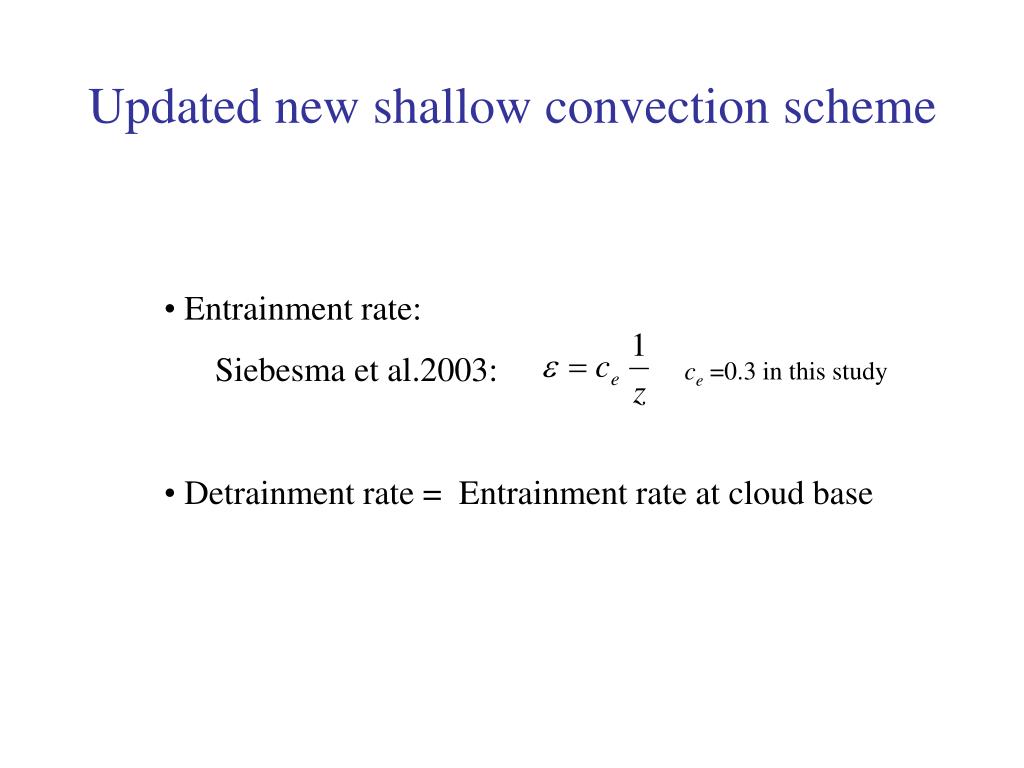

- Entrainment rate:
- Siebesma et al.2003:

- Detrainment rate = Entrainment rate at cloud base

ce =0.3 in this study

Siebesma & Cuijpers from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

(1995, JAS)

Siebesma et al.

(2003, JAS)

LES studies

Updated new shallow convection scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

Mass flux at cloud base:

Mb=0.03 w* (Grant, 2001)

(Convective boundary layer velocity scale)

Model Physics from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):Deep convection parameterization

- Simplified Arakawa Schubert (SAS) scheme is used operationally in GFS (Pan and Wu, 1994, based on Arakawa-Schubert (1974) as simplified by Grell (1993))
- Includes saturated downdraft and evaporation of precipitation
- One cloud-type per every time step
- Until July 2010, random clouds were invoked.
- Significant changes to SAS were made during July 2010 implementation which helped reduce excessive grid-scale precipitation occurrences.

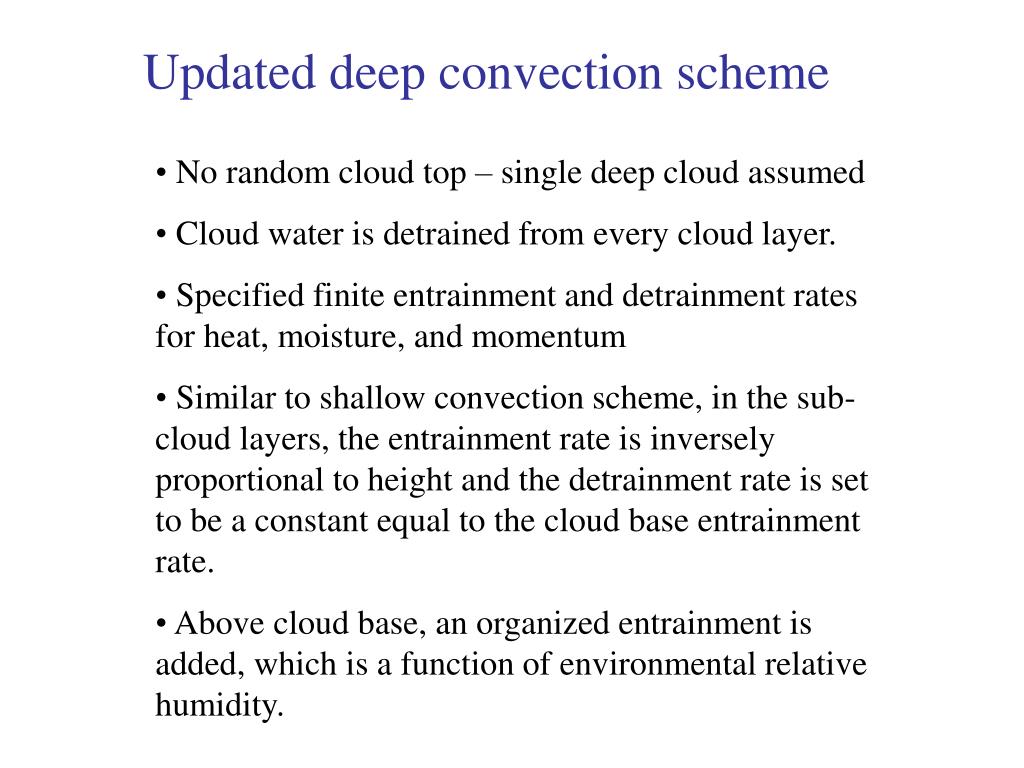

Updated deep convection scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

- No random cloud top – single deep cloud assumed
- Cloud water is detrained from every cloud layer.
- Specified finite entrainment and detrainment rates for heat, moisture, and momentum
- Similar to shallow convection scheme, in the sub-cloud layers, the entrainment rate is inversely proportional to height and the detrainment rate is set to be a constant equal to the cloud base entrainment rate.
- Above cloud base, an organized entrainment is added, which is a function of environmental relative humidity.

SAS convection scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

Updraft mass flux

CTOP

Entrainment

Downdraft mass flux

DL

1.0

1.0

hs

h

LFC

150mb

Entrainment

Detrainment

SL

0.5

Environmental moist static energy

0.05

Updated deep convection scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

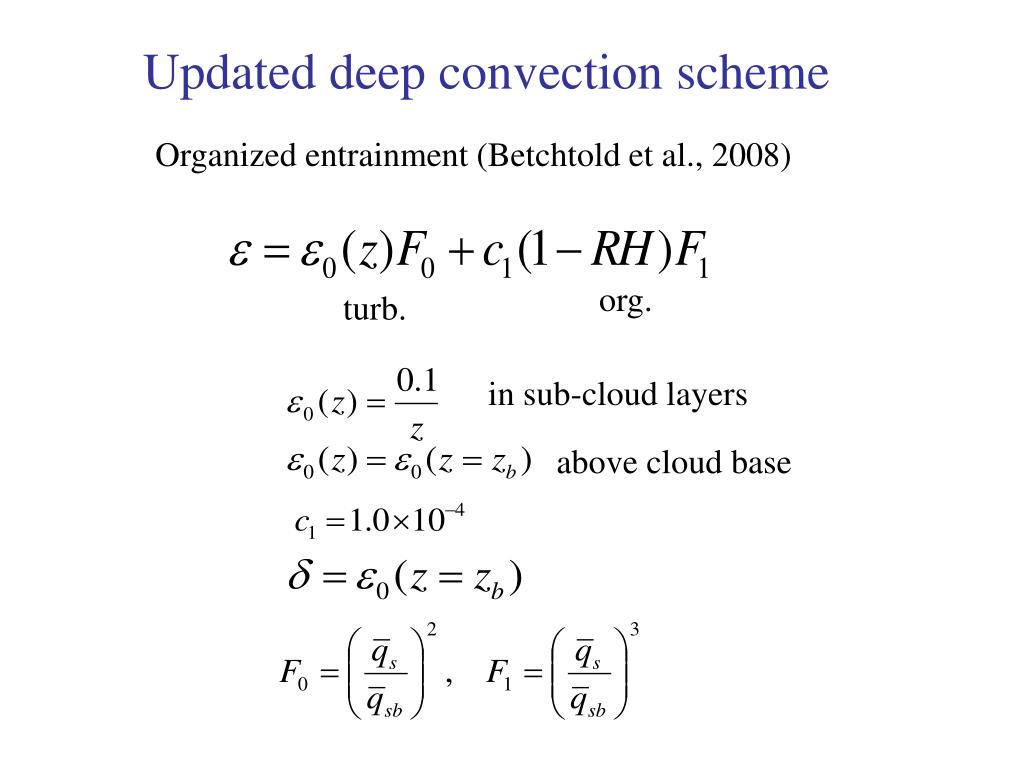

Organized entrainment (Betchtold et al., 2008)

org.

turb.

in sub-cloud layers

above cloud base

Updated deep convection scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

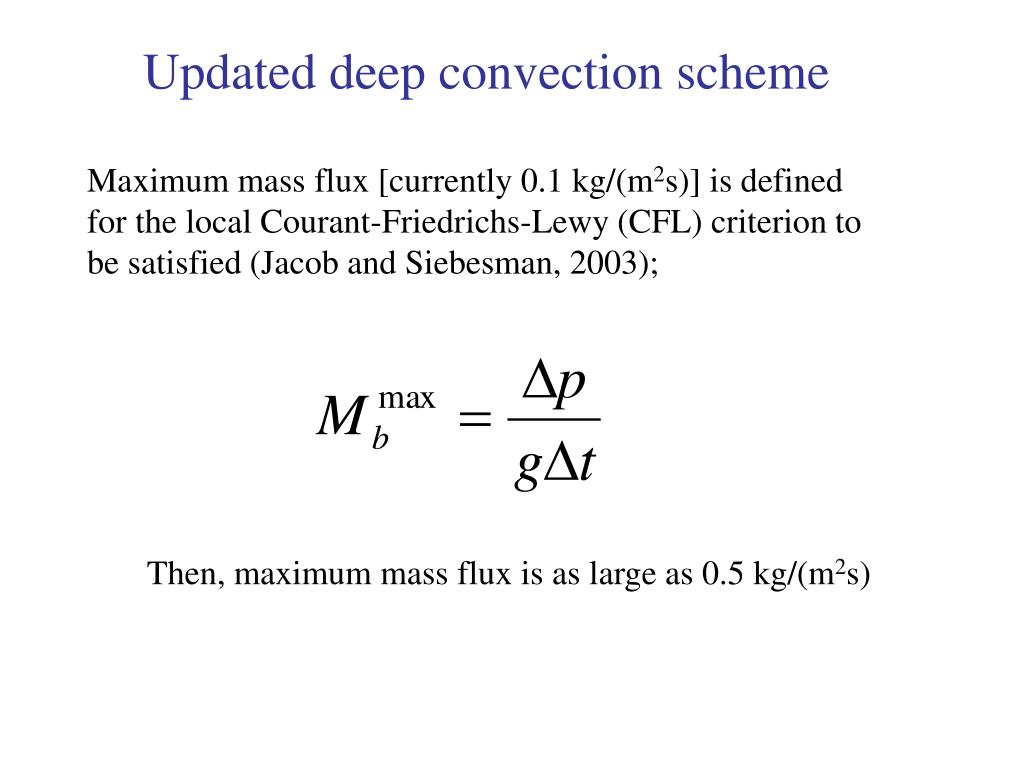

Maximum mass flux [currently 0.1 kg/(m2s)] is defined for the local Courant-Friedrichs-Lewy (CFL) criterion to be satisfied (Jacob and Siebesman, 2003);

Then, maximum mass flux is as large as 0.5 kg/(m2s)

Modification to deep convection(SAS) scheme from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

- Include the effect of convection-induced pressure gradient force in momentum transport (Han and Pan, 2006)

c: effect of convection-induced pressure gradient force

c=0.0 in operational SAS

c=0.55 in modified SAS following Zhang and Wu (2003)

* Note that this effect also changes updraft and downdraft properties inside the SAS scheme and thus, one should not simply reduce momentum change by convection outside the scheme.

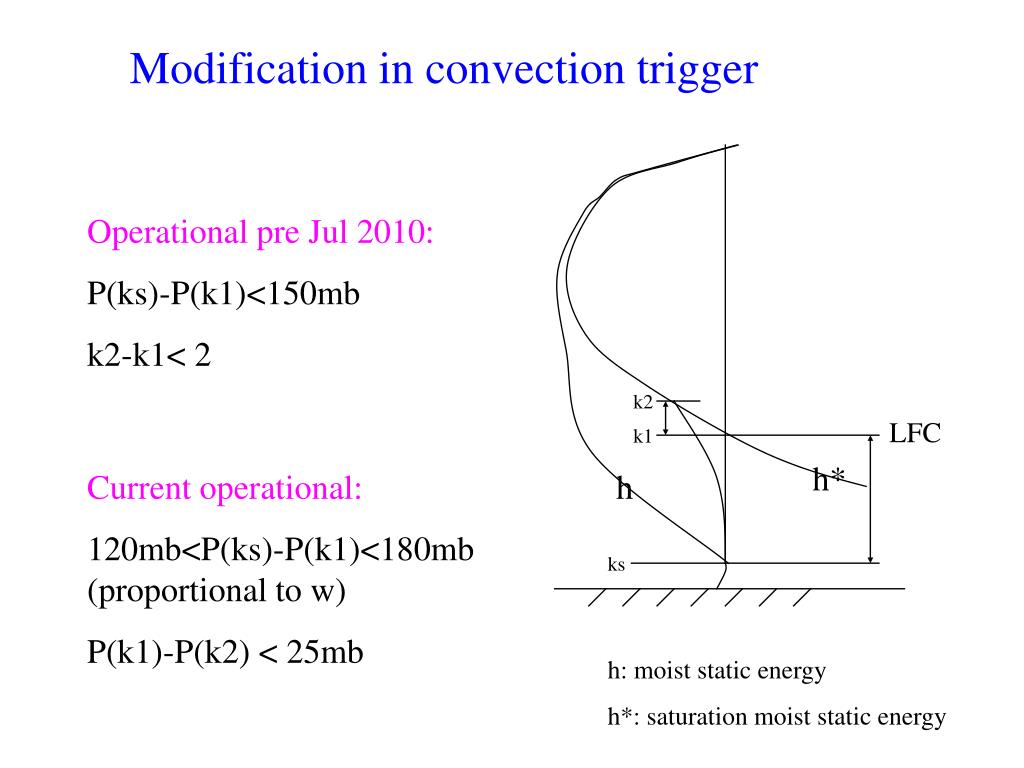

Modification in convection trigger from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

Operational pre Jul 2010:

P(ks)-P(k1)<150mb

k2-k1< 2

k2

LFC

k1

h*

Current operational:

120mb<P(ks)-P(k1)<180mb (proportional to w)

P(k1)-P(k2) < 25mb

h

ks

h: moist static energy

h*: saturation moist static energy

ISCCP from the blocked flow is exerted by the obstacle on the large scale flow and is calculated as in Lott and Miller (1997):

Opr. GFS

New package

70% reduced backgroud diffusion in inversion layers below 2.5km over ocean

With original background diffusion

Grid Point Storm 2.5km over ocean

24 h accumulated precip ending 12 UTC 14 July 2009

Observed

48 h GFS Forecast

Grid Point Storm 2.5km over ocean

24 h accumulated precip ending 12 UTC 15 July 2009

Observed

72 h GFS Forecast

Model Physics 2.5km over ocean Large-scale condensation and precipitation

- The large-scale condensation and precipitation is parameterized following Zhao and Carr (1997) and Sundqvist et al (1989)
- This was implemented in GFS along with prognostic cloud condensate in 2001 (Moorthi et al, 2001)
- Partitioning between cloud water and ice is made based on the temperature.
- Convective cloud detrainment is a source of cloud condensate which can either be precipitated or evaporated through large scale cloud microphysics.

Model Physics 2.5km over ocean Radiation

Unified Radiation Package in NCEP models 2.5km over ocean

Features::

Standardized component modules,General plug-in compatible, Simple to

use, Easy to upgrade, Efficient, and Flexible in future expansion.

- References:
- Hou et al. (2011): NCEP Office Note (in preparation)
- Hou et al. (2002): NCEP Office Note 441 (ref for clouds, aerosols, and surface albedo processes)
- Mlawer and Clough (1998): Shortwave and longwave enhancements in the rapid radiative transfer model, in Proceedings of the 7th Atmospheric Radiation Measurement (ARM) Science Team Meeting.
- Mlawer and Clough (1997): On the extension of rapid radiative transfer model to the shortwave region, in Proceedings of the 6th Atmospheric Radiation Measurement (ARM) Science Team Meeting.
- Mlawer et al. (1997): RRTM, a validated correlated-k model for the longwave, JGR.

Overview Module Structures: 2.5km over ocean

Driver Module - prepares atmospheric profiles incl. aerosols,

gases, clouds, and surface conditions, etc.

Astronomy Module - obtains solar constant, solar zenith angles

Aerosol Module - establishes aerosol profiles and optical properties

Gas Module - sets up absorbing gases’ profiles (O3, CO2, rare gases, etc.)

Cloud module - prepares cloud profiles incl. fraction, ice/water

paths, and effective size parameters, etc.

Surface module - sets up surface albedo and emissivity

SW radiation module - computes SW fluxes and heating rates (contains three parts: parameters, data tables, and main program)

LW radiation module - computes LW fluxes and heating rates (contains three parts: parameters, data tables, and main program)

Schematic Radiation Module Structure 2.5km over ocean

Driver Module

Astronomy Module

Gases Module

Cloud Module

initialization

initialization

initialization

initialization

solar params

ozone

prog cld1

main driver

mean coszen

co2

prog cld2

rare gases

diag cld

SW Param Module

LW Param Module

Aerosol Module

SW Data Table Module

LW Data Table Module

initialization

clim aerosols

SW Main Module

LW Main Module

initialization

initialization

GOCART aerosols

Derived Type :

aerosol_type

sw radiation

lw radiation

Outputs :

total sky heating rates

surface fluxes (up/down)

toa atms fluxes (up/down)

Optional outputs:

clear sky heating rates

spectral band heating rates

fluxes profiles (up/down)

surface flux components

Outputs :

total sky heating rates

surface fluxes (up/down)

toa atms fluxes (up/down)

Optional outputs:

clear sky heating rates

spectral band heating rates

fluxes profiles (up/down)

Surface Module

initialization

SW albedo

LW emissivity

Derived Type :

sfcalb_type

Radiation_Astronomy Module 2.5km over ocean

Solar constant value : (Cntl parm - ISOL)

- ISOL=0: use prescribed solar constant (for NWP models)
- most recent cited value = 1366 w/m2 (2002)
- ISOL=1: use prescribed solar constant with 11-year cycle (for climate models)
- variation range: 1365.7 – 1370 w/m2
- obsv data range: 1944 -2006 **tabulated by H. Vandendool

Radiation_Gases Module 2.5km over ocean

CO2 Distribution : (Cntrol parameter- ICO2)

ICO2=0: use prescribed global annual mean value (currently set as 380ppmv)

ICO2=1: use observed global annual mean value

ICO2=2: use observed monthly 2-d data table in 15° horizontal resolution

O3 Distribution : interactive or climatology

Rare Gases : (currently use global mean climatology values)

CH4 - 1.50 x 10-6 N2O - 0.31 x 10-6 O2 - 0.209

CO - 1.50 x 10-8 CF11 - 3.52 x 10-10 CF12- 6.36 x 10-10

CF22 - 1.50 x 10-10 CF113- 0.82 x 10-10 CCL4- 1.40 x 10-1

** all units are in ppmv

Radiation_Clouds Module 2.5km over ocean

Cloud prediction scheme:

Prognostic 1: based on Zhao/Moorthi microphysics

Prognostic 2: based on Ferrier/Moorthi microphysics

Diagnostic : legacy diagnostic scheme based on RH-table lookups

Cloud overlapping method: (Cntl parm - IOVR)

IOVR = 0: randomly overlapping vertical cloud layers

IOVR = 1: maximum-random overlapping vertical cloud layers

Sub-grid cloud approximation: (CFS Cntl parm - ISUBC)

ISUBC=0: without sub-grid cloud approximation

ISUBC=1: with McICA sub-grid approximation (test mode with prescribed

permutation seeds)

ISUBC=2: with McICA sub-grid approximation (random permutation seeds)

(This option used in CFSV2 fore/hindcast model)

Radiation_aerosols Module 2.5km over ocean

Aerosol distribution: (Cntl parm - IAER)

Troposphere: monthly global aerosol climatology in 15° horizontal resolution

(GOCART interactive aerosol scheme under development)

Stratosphere: historical recorded volcanic forcing in four zonal mean bands (1850-2000)

IAER – 3-digit integer flag for volcanic, lw, sw, respectively

IAER = 000: no aerosol effect in radiation calculations

IAER = 001: sw tropospheric aerosols + background stratospheric

IAER = 010: lw tropospheric aerosols + background stratospheric

IAER = 011: sw+lw tropospheric aerosols + background stratospheric

IAER = 100: sw+lw stratospheric volcanic aerosols only

IAER = 101: sw tropospheric aerosol + stratospheric volcanic forcing

IAER = 110: lw tropospheric aerosol + stratospheric volcanic forcing

IAER = 111: sw+lw tropospheric aerosol + stratospheric volcanic forcing

Radiation_surface Module 2.5km over ocean

SW surface albedo: (Cntl parm - IALB)

IALB = 0: vegetation type based climatology scheme (monthly data in 1° horizontal resolution)

IALB = 1: MODIS retrievals based monthly mean climatology

LW surface emissivity: (CFS Cntl parm - IEMS)

IEMS = 0: black-body emissivity (=1.0)

IEMS = 1: monthly climatology in 1° horizontal resolution

LW Radiation 2.5km over ocean

GFS CFS

- NCEP version: RRTM1 RRTM3
- crpnd AER version: RRTMG_LW_2.3 RRTMG_LW_4.82
- No. of bands: 16 16
- No. of g-points: 140 140
- Absorbing gases: H2O, O3, CO2, CH4, N2O, O2, CO, CFCs
- Aerosol effect: yes yes
- Cloud overlap: max-rand max-rand
- Sub-grid clouds: no McICA

SW Radiation 2.5km over ocean

GFS CFS

- NCEP version: RRTM2 RRTM3
- crpnd AER version: RRTMG_SW_2.3 RRTMG_SW_3.8
- No. of bands: 14 14
- No. of g-points: 112 112
- Absorbing gases: --- H2O, O3, CO2, CH4, N2O, O2 ---
- Aerosol effect: yes yes
- Cloud overlap: max-rand max-rand
- Sub-grid clouds: no McICA

McICA sub-grid cloud approximation 2.5km over ocean

where Fk are spectral corresponding fluxes, and the

total number, Κ, depends on different RT schemes

- General expression of 1-D radiation flux calculation:

Independent column approximation (ICA):

where N is the number of total sub-columns in

each model grid

That leads to a double summation:

that is too expensive for most applications!

Monte-Carlo independent column approximation (McICA):

In a correlated-k distribution (CKD) approach, if the number of quadrature points (g-points) are sufficient large and evenly treated, then one may apply the McICA to reduce computation time.

≈

where k is the number of randomly generated

sub-columns

McICA is a complete separation of optical characteristics from RT solver and is proved to be

unbiased against ICA (Barker et al. 2002, Barker

and Raisanen 2005)

McICA Distributions of Maximum-Random 2.5km over ocean Overlapped Multi-layer clouds

Instance 1

Instance 2

McICA Distribution of Maximum-Random 2.5km over ocean Overlapping Very Thick Cloud

Instance 1

Instance 2

Model Lower Boundary 2.5km over ocean Ocean

- SST from the OI analysis at the initial condition time relaxed to climatology with e-folding time of 90 days

Model Lower Boundary 2.5km over ocean Land surface model (LSM)

Shrinivas Moorthi, Michael Ek 2.5km over ocean

and the EMC Land-Hydrology Team

Environmental Modeling Center (EMC)

National Centers for Environmental Prediction (NCEP)

5200 Auth Road, Room 207

Suitland, Maryland 20732 USA

National Weather Service (NWS)

National Oceanic and Atmospheric Administration (NOAA)

Land modeling at NCEPApril 2011, Indian Institute of Tropical Meteorology, Pune, India

NCEP-NCAR unified 2.5km over ocean

Uncoupled

“NLDAS”

(drought)

Forecast

NOAH Land Surface Model

Noah Land Model Connections in NOAA’s NWS Model Production SuiteOceans

HYCOM

WaveWatch III

Climate

CFS

2-Way Coupled

Hurricane GFDL

HWRF

MOM3

1.7B Obs/Day

Satellites

99.9%

Dispersion

ARL/HYSPLIT

Regional NAM

WRF NMM

(including NARR)

Global

Forecast

System

Global Data

Assimilation

Severe Weather

Regional Data

Assimilation

WRF NMM/ARW

Workstation WRF

Short-Range

Ensemble Forecast

North American Ensemble Forecast System

WRF: ARW, NMM

ETA, RSM

Air Quality

GFS, Canadian Global Model

NAM/CMAQ

Rapid Update

for Aviation (ARW-based)

Noah land-surface model 2.5km over ocean

• Surface energy (linearized) & water budgets; 4 soil layers.

• Forcing: downward radiation, precip., temp., humidity, pressure, wind.

• Land states: Tsfc, Tsoil*, soil water* and soil ice, canopy water*, snow depth and snow density. *prognostic

• Land data sets: veg. type, green vegetation fraction, soil type, snow-free albedo & maximum snow albedo.

• Noah model is coupled with the NCEP Global Forecast System (GFS, medium-range), and Climate Forecast System (CFS, seasonal), & other NCEP models.

Land Data Sets 2.5km over ocean

Max.-Snow Albedo

(1-deg, Robinson)

Vegetation Type

(1-deg, UMD)

Soil Type

(1-deg, Zobler)

Jan

July

Jan

July

Green Vegetation Fraction

(monthly, 1/8-deg, NESDIS/AVHRR)

Snow-Free Albedo

(seasonal, 1-deg,

Matthews)

Prognostic Equations 2.5km over ocean

Soil Moisture ():

• “Richard’s Equation”; D (soil water diffusivity) and K (hydraulic conductivity), are nonlinear functions of soil moisture and soil type (Cosby et al 1984); F is a source/sink term for precipitation/evapotranspiration.

Soil Temperature (T):

• CT (thermal heat capacity) and KTsoil thermal conductivity; Johansen 1975), are nonlinear functions of soil moisture and soil type.

Canopy water (Cw):

• P (precipitation) increases Cw, while Ec (canopy water evaporation) decreases Cw.

seasonal storage 2.5km over ocean

Atmospheric Energy Budget

• Noah land model closes the surface energy budget, & provides surface boundary condition to GFS & CFS.

Surface Energy Budget 2.5km over ocean

Rnet = H + LE + G + SPC

Rnet = Net radiation = S - S + L - L

S = incoming shortwave (provided by atmos. model)

S = reflected shortwave (snow-free albedo () provided

by atmos. model; modified by Noah model over snow)

L = downward longwave (provided by atmos. model)

L = emitted longwave = Ts4(=surface emissivity,

=Stefan-Boltzmann const., Ts=surface skin temperature)

H = sensible heat flux

LE = latent heat flux (surface evapotranspiration)

G = ground heat flux (subsurface soil heat flux)

SPC = snow phase-change heat flux (melting snow)

• Noah model provides: , L, H, LE, G and SPC.

Hydrological Cycle 2.5km over ocean

• Noah land model closes the surface water budget, & provides surface boundary condition to GFS & CFS.

Surface Water Budget 2.5km over ocean

S = P – R – E

S = change in land-surface water

P = precipitation

R = runoff

E = evapotranspiration

P-R = infiltration of moisture into the soil

• S includes changes in soil moisture, snowpack (cold season), and canopy water (dewfall/frostfall and intercepted precipitation, which are small).

• Evapotranspiration is a function of surface, soil and vegetation characteristics: canopy water, snow cover/ depth, vegetation type/cover/density & rooting depth/ density, soil type, soil water & ice, surface roughness.

• Noah model provides: S, R and E.

LE 2.5km over ocean p = Rnet-G + cpChUe

+

Potential Evaporation

(Penman)

open water surface

= slope of saturation vapor pressure curve

Rnet-G = net radiation

= air density

cp = specific heat

Ch = surface-layer turbulent exchange coefficient

U = wind speed

e = atmos. vapor pressure deficit (humidity)

= psychrometric constant, fct(pressure)

Surface Latent Heat Flux 2.5km over ocean

LE = LEc + LEt + LEd

(Evapotranspiration)

Canopy Water

Evap. (LEc)

Transpiration

(LEt)

Bare Soil

Evaporation (LEd)

canopy water

canopy

soil

LEc = function(canopy water %saturation) & LEp

LEt = function(Jarvis-Stewart “big-leaf” canopy

conductance with vegetation parameters for S,

atmos. temp., e & soil moisture avail.,) & LEp

LEd= fct(soil type, near-surface soil %sat.) & LEp

Latent Heat Flux over Snow 2.5km over ocean

LE (shallow snow)

<

LE (deep snow)

Sublimation (LEsnow)

LEsnow = LEp

LEsnow = LEp

snowpack

LEns < LEp

LEns = 0

soil

Shallow/Patchy SnowSnowcover<1

Deep snow

Snowcover=1

• LEns = “non-snow” evaporation (evapotranspiration terms).

• 100% snowcover a function of vegetation type, i.e. shallower for grass & crops, deeper for forests.

• Soil ice = fct(soil type, soil temp., soil moisture).

H = 2.5km over ocean cpChU(Tsfc-Tair)

Surface Sensible Heat Flux

(from canopy/soil

snowpack surface)

canopy

bare soil

snowpack

soil

, cp = air density, specific heat

Ch = surface-layer turbulent exchange coeff.

U = wind speed

Tsfc-Tair = surface-air temperature difference

• “effective” Tsfc for canopy, bare soil, snowpack.

Ground (Subsurface Soil) Heat Flux 2.5km over ocean

G = (KT/z)(Tsfc-Tsoil)

(to canopy/soil/snowpack surface)

canopy

bare soil

snowpack

soil

KT = soil thermal conductivity (function of soil type: larger for moister soil, larger for clay soil; reduced through canopy, reduced through snowpack)

z = upper soil layer thickness

Tsfc-Tsoil = surface-upper soil layer temp. difference

• “effective” Tsfc for canopy, bare soil, snowpack.

Model Lower Boundary 2.5km over ocean seaice

Outline 2.5km over ocean

- Sea Ice
- Sea Ice in the Weather and Climate System
- Sea Ice in the NCEP Forecast System
- - Analysis/Assimilation
- - Forecast: GFS, CFS
- Sea Ice in the CFS Reanalysis

Shrinivas Moorthi

Sea Ice 2.5km over ocean

Sea ice is a thin skin of frozen water covering the polar oceans. It is a highly variable feature of the earth’s surface.

Pancake Ice

Nilas & Leads

First-Year Ice

Greece Ice

Multi-Year Ice

Melt Pond

Snow-Ice

Rafting

Shrinivas Moorthi

Sea ice affects climate and weather related processes 2.5km over ocean

- Sea ice amplifies any change of climate due to its “positive feedback” (coupled climate model concern):
Sea ice is white and reflects solar radiation back to space. More sea ice cools the Earth, less of it warms the Earth. A cooler Earth means more sea ice and vice versa.

- Sea ice restricts the exchange of heat/water between the air and ocean (NWP concern)

- Sea ice modifies air/sea momentum transfer, ocean fresh water balance and ocean circulation:
The formation of sea ice injects salt into the ocean which makes the water heavier and causes it to flow downwards to the deep waters and drive a massive ocean circulation

Shrinivas Moorthi

- Issues related to sea ice forecast 2.5km over ocean
- Data assimilation
- Initial conditions
- Sea ice models and coupling

Shrinivas Moorthi

- Data assimilation issues 2.5km over ocean
- Sea ice concentration data are available but velocity data lack to real time
- Lack of sea ice and snow thickness data

- Initial condition issues
- Sea ice concentration data are available but velocity data lack to real time
- Sea ice and snow thickness data are based on model spin-up values or climatology

Shrinivas Moorthi

- Sea ice model and coupling issues 2.5km over ocean
- Ice thermodynamics
- Ice dynamics
- Ice model coupling to the atmosphere
- Ice model coupling to the ocean

Shrinivas Moorthi

NCEP Sea Ice Analysis 2.5km over ocean Algorithm

- 5 minutes latitude-longitude grid from the 85GHz SSMI information based on NASA Team Algorithm
- Half degrees version of the product is used in GFS (as initial condition).

Courtesy: Robert Grumbine

Shrinivas Moorthi

Ice Model: Thermodynamics 2.5km over ocean

- Based on the principle of the conservation of energy, determine:
- Ice formation
- Ice growth
- Ice melting
- Ice temperature structure

Shrinivas Moorthi

Sea Ice 2.5km over ocean

in the NCEP Global Forecast System

- A three-layer thermodynamic sea ice model was embedded into GFS (May 2005).
- It predicts sea ice/snow thickness, the surface temperature and ice temperature structure.
- In each model grid box, the heat and moisture fluxes and albedo are treated separately for ice and open water.

Shrinivas Moorthi

Sea Ice in the NCEP GFS (cont.) 2.5km over ocean

Atmospheric model

Ice

Fraction

SW

Heat Flux

LW

Heat Flux

Turbulent

Heat Flux

Snow

Rate

Ice

Fraction

Ice/Snow

Thickness

Ice/Snow

Thickness

3-layer

thermodynamics

Ice model

Ice

Temperature

Ice

Temperature

surface

Temperature

Surface

Temperature

Salinity

Oceanic

Heat Flux

Fresh Water

Ocean model

Shrinivas Moorthi

Download Presentation

Connecting to Server..
