reducing harvest losses combine calibration

Reducing Harvest LossesCombine Calibration

John Nowatzki

Extension Ag Machine Systems Specialist

North Dakota State University

keeping harvest losses low
Keeping Harvest Losses Low
  • Where Losses Occur
  • How to Measure Losses
  • Yield Monitor Calibration
  • Machine Adjustments (Dealers)
where do losses occur
Where Do Losses Occur?
  • Pre-harvest loss
    • Uncontrollable by Operator
  • Header loss
  • Combine cylinder loss
  • Combine separation loss
how are losses measured
How Are Losses Measured?
  • Pre-harvest Loss
  • Header Loss
  • Threshing and Separation Loss
  • Total Loss
seeds per sq ft loss per acres
Seeds per Sq. Ft. = Loss per Acres

Canola: 4 seeds = 1 pound per acre

Wheat: 16 seeds = 1 bushel

Barley: 15 seeds = 1 bushel

Soybeans: 4 seeds = 1 bushel

Corn: 2 seeds = 1 bushel

Oats: 9 seeds = 1 bushel

Wheat 700,000

Barley 650,000

Oats 400,000

Soybeans 150,000

Corn 80,000

150,000 seeds per lb.

150,000/43,560 = 3.5/sq. ft. for 1 lb.

pre harvest loss

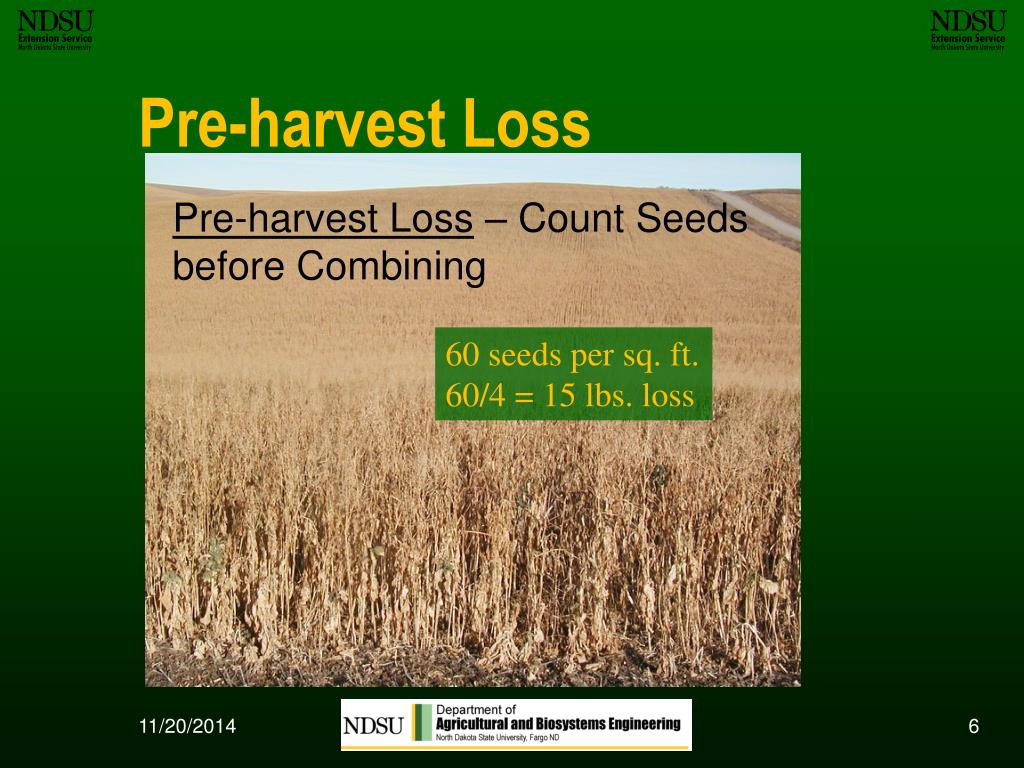

Pre-harvest Loss

Pre-harvest Loss – Count Seeds before Combining

60 seeds per sq. ft.

60/4 = 15 lbs. loss

header losses
Header Losses

Swather – 30’

Swath – 6’

30’ / 6’ = 5

  • Back up Combine Several Feet
    • Count Seeds on Ground (200 per sq. ft.)
    • Subtract Pre-harvest (60 seeds) 200 – 60 = 140)
    • Account for Swather Width (140 / 5 = 28 per sq. ft.) (28 seeds / 4 = 7 lbs. per acre)
threshing and separation losses

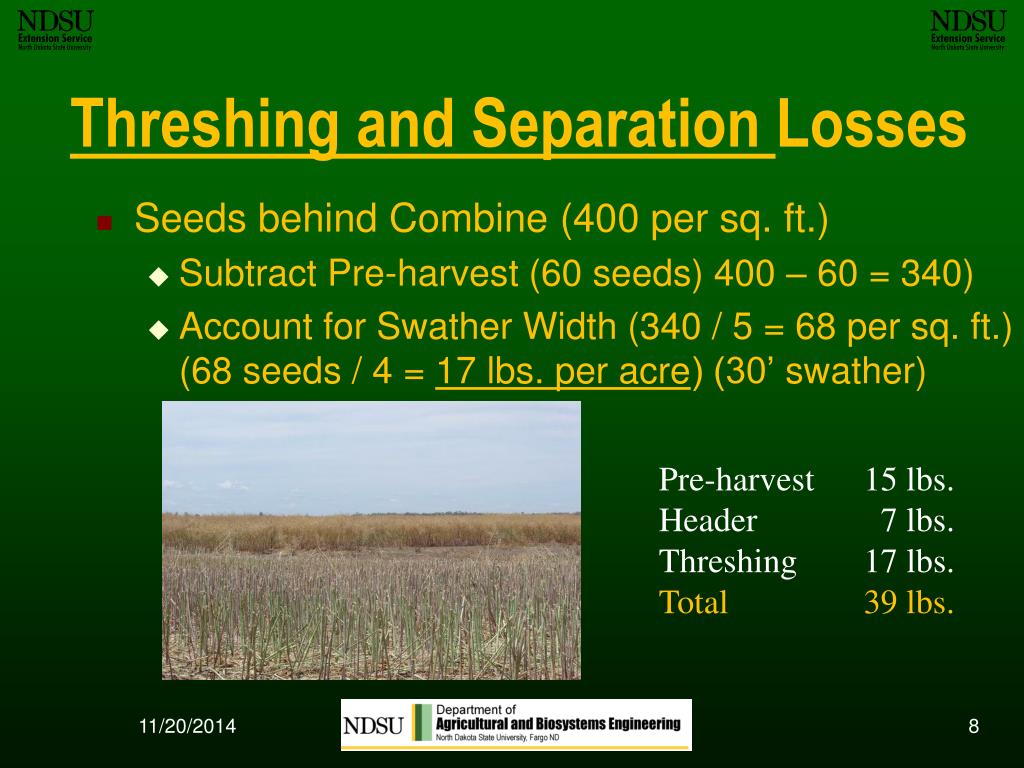

Threshing and Separation Losses
  • Seeds behind Combine (400 per sq. ft.)
    • Subtract Pre-harvest (60 seeds) 400 – 60 = 340)
    • Account for Swather Width (340 / 5 = 68 per sq. ft.) (68 seeds / 4 = 17 lbs. per acre) (30’ swather)

Pre-harvest 15 lbs.

Header 7 lbs.

Threshing 17 lbs.

Total 39 lbs.

yield monitoring field crops

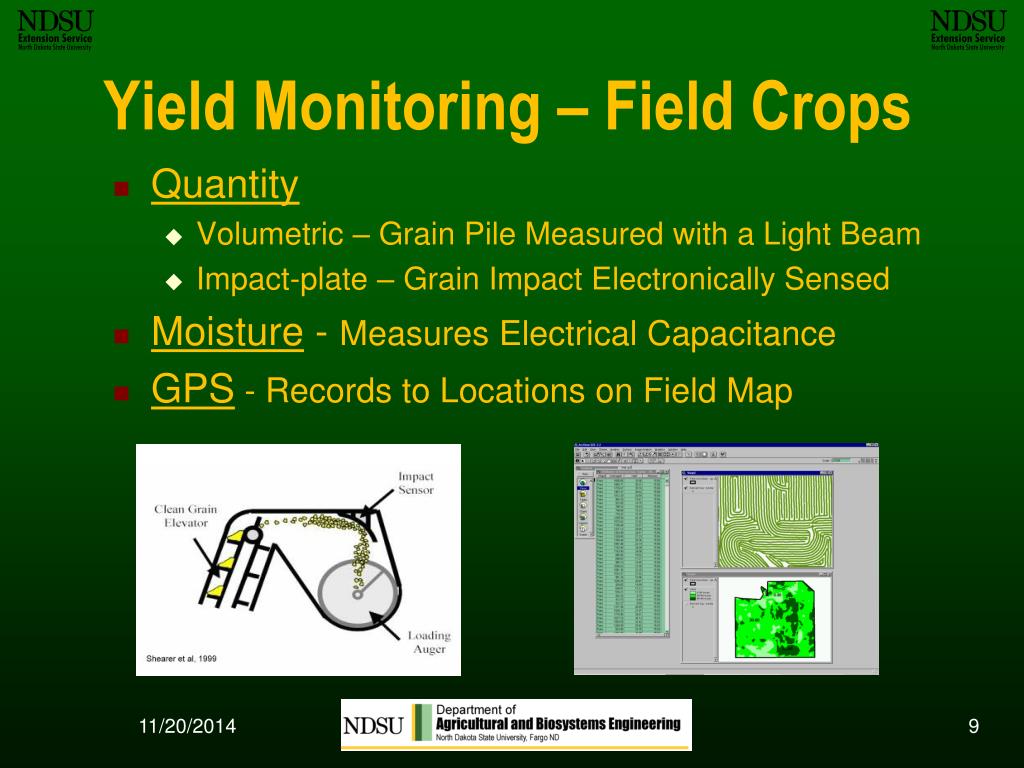

Yield Monitoring – Field Crops
  • Quantity
    • Volumetric – Grain Pile Measured with a Light Beam
    • Impact-plate – Grain Impact Electronically Sensed
  • Moisture - Measures Electrical Capacitance
  • GPS - Records to Locations on Field Map
yield monitor calibration

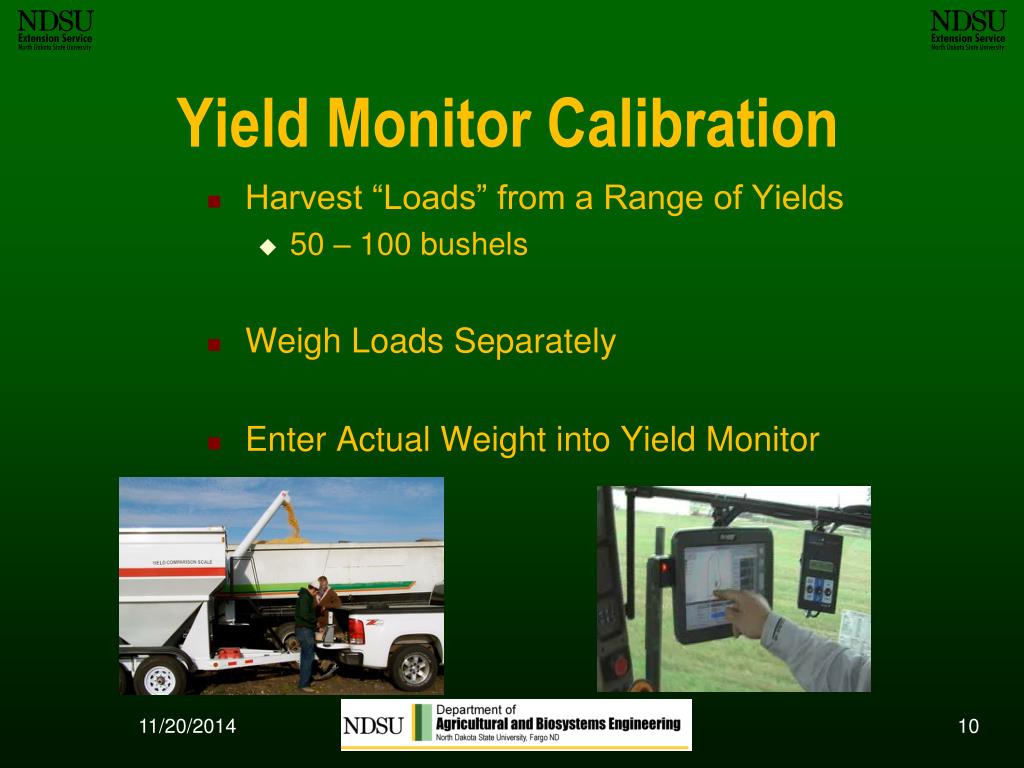

Yield Monitor Calibration
  • Harvest “Loads” from a Range of Yields
    • 50 – 100 bushels
  • Weigh Loads Separately
  • Enter Actual Weight into Yield Monitor
more information
More Information
  • John Nowatzki
  • Extension Ag Machine Systems Specialist
  • North Dakota State University
      • Telephone: 701-231-8213
      • Email: John.Nowatzki@ndsu.edu
      • http://www.ag.ndsu.edu/agmachinery
