  1. Idaho Water IssuesBackground and ScienceFocus: Snake River Plain Aquifer Dr. Gary S. Johnson Dr. Donna M. Cosgrove Mr. Bryce A. Contor Dr. John Tracy Idaho Water Resources Research Institute University of Idaho

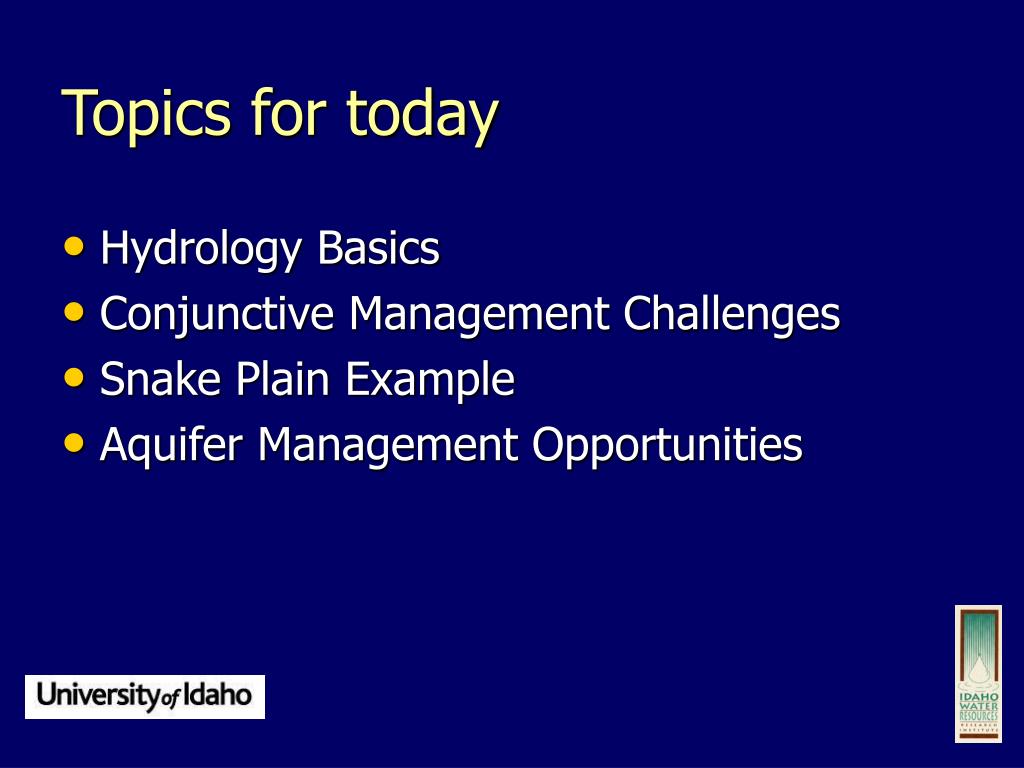

  2. Topics for today • Hydrology Basics • Conjunctive Management Challenges • Snake Plain Example • Aquifer Management Opportunities

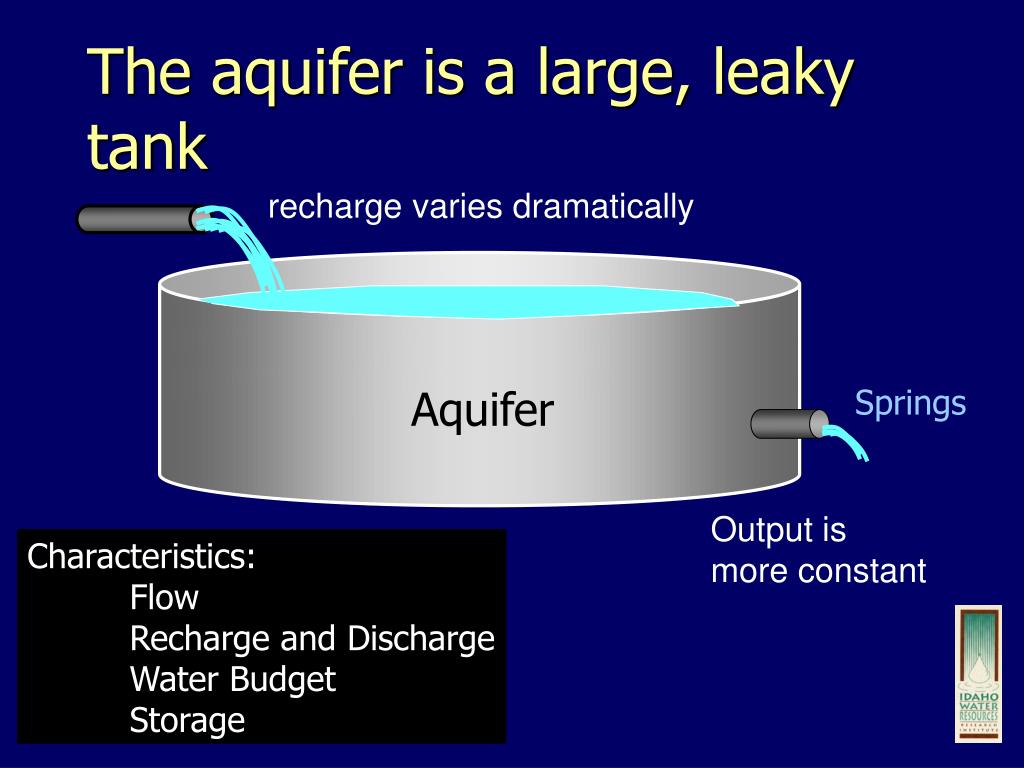

  3. The aquifer is a large, leaky tank recharge varies dramatically Aquifer Springs Output is more constant Characteristics: Flow Recharge and Discharge Water Budget Storage

  4. Aquifer Flow

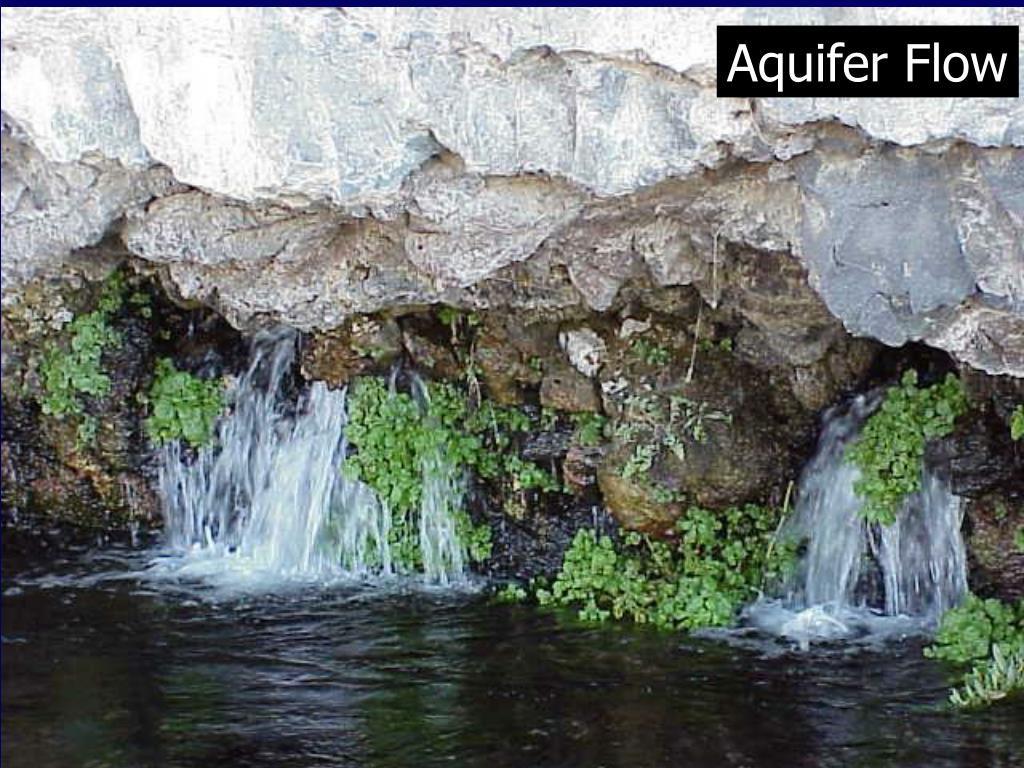

  5. Aquifer Flow

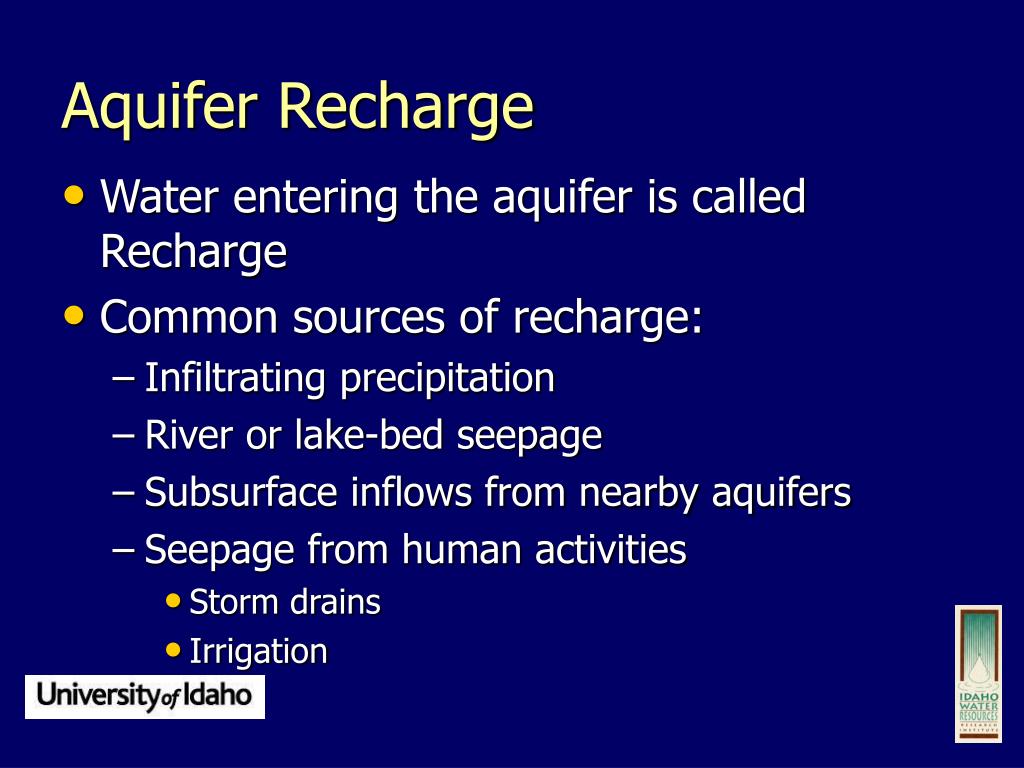

  6. Aquifer Recharge • Water entering the aquifer is called Recharge • Common sources of recharge: • Infiltrating precipitation • River or lake-bed seepage • Subsurface inflows from nearby aquifers • Seepage from human activities • Storm drains • Irrigation

  7. Aquifer Discharge • Water leaving the aquifer is called Discharge • Common sources of discharge: • Spring discharge • Seepage to rivers or lakes • Wetlands • Subsurface outflows to adjacent aquifers • Ground-water pumping • Note that rivers can be a source of recharge or discharge

  8. Aquifer Water Budget • Since we cannot create or destroy water, a basic law exists • Inflow = Outflow +/- Change in Storage • It is like a bank account, if we spend more money than we make, our account balance goes down

  9. Aquifer Storage • Aquifer storage is the volume of water stored in the aquifer • We can detect increases in aquifer storage by rising aquifer water levels • Changes in storage impact connected surface water • Long term decreases in storage indicate aquifer mining

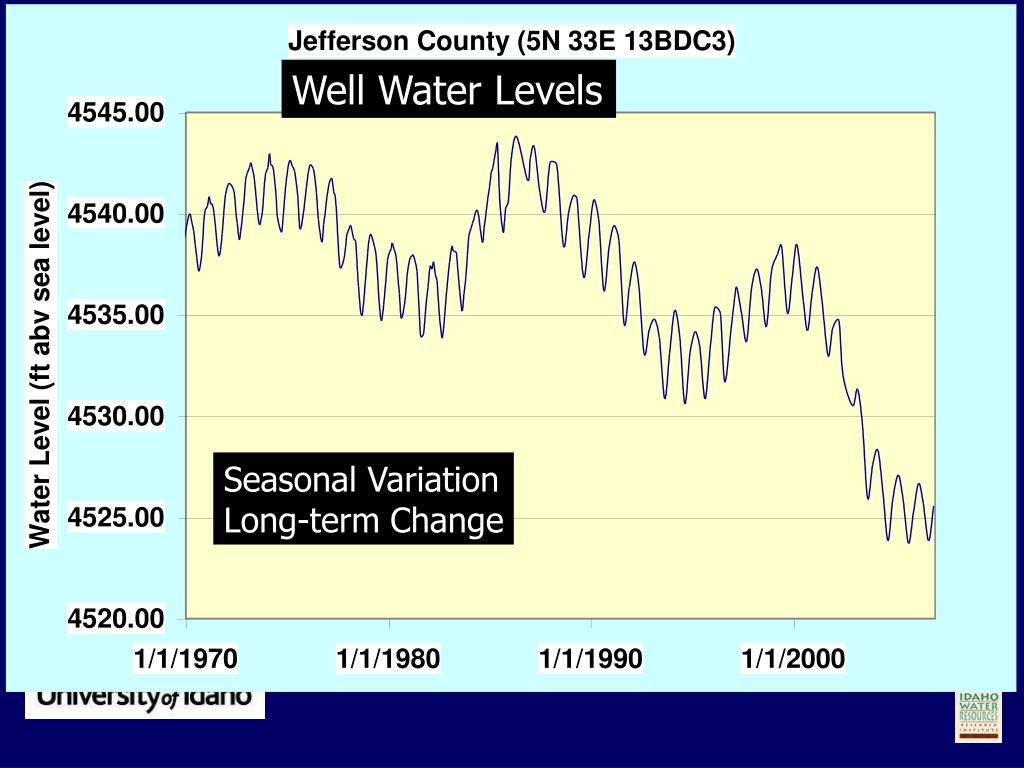

  10. Well Water Levels Seasonal Variation Long-term Change

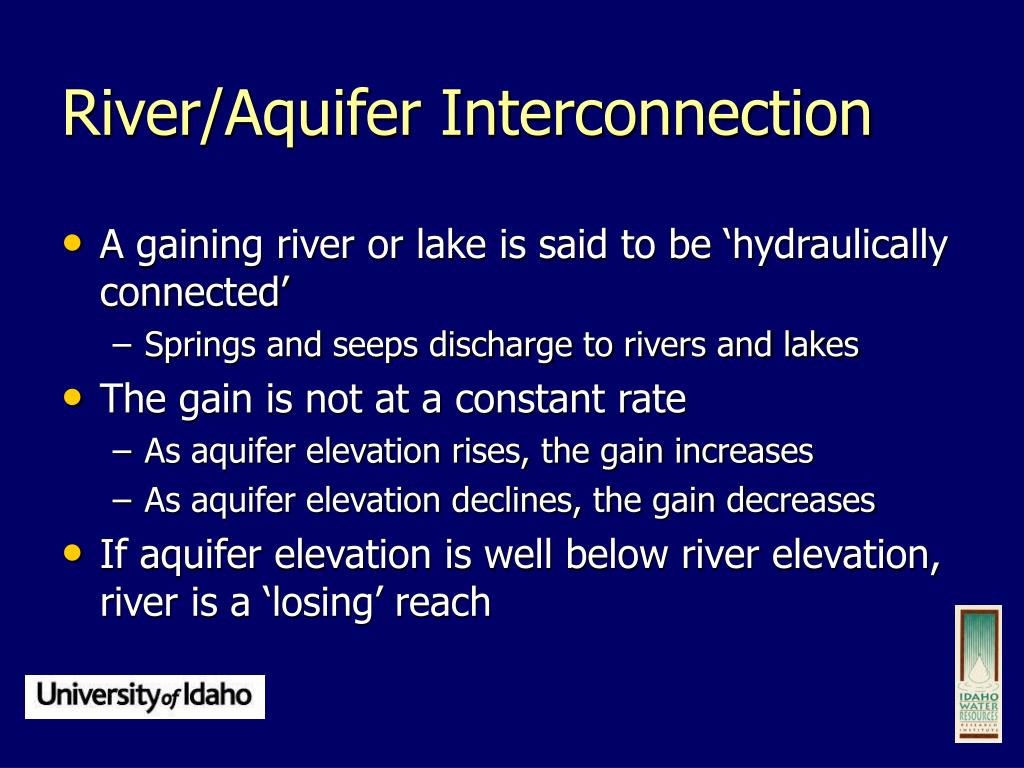

  11. River/Aquifer Interconnection • A gaining river or lake is said to be ‘hydraulically connected’ • Springs and seeps discharge to rivers and lakes • The gain is not at a constant rate • As aquifer elevation rises, the gain increases • As aquifer elevation declines, the gain decreases • If aquifer elevation is well below river elevation, river is a ‘losing’ reach

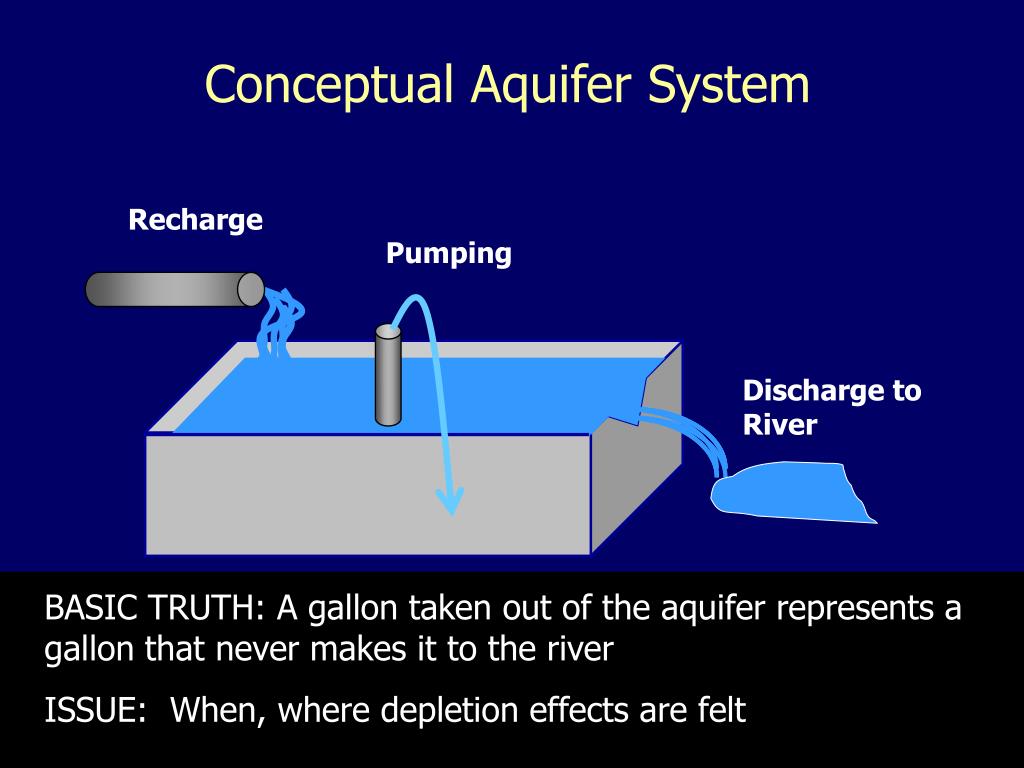

  12. Conceptual Aquifer System Recharge Pumping Discharge to River BASIC TRUTH: A gallon taken out of the aquifer represents a gallon that never makes it to the river ISSUE: When, where depletion effects are felt

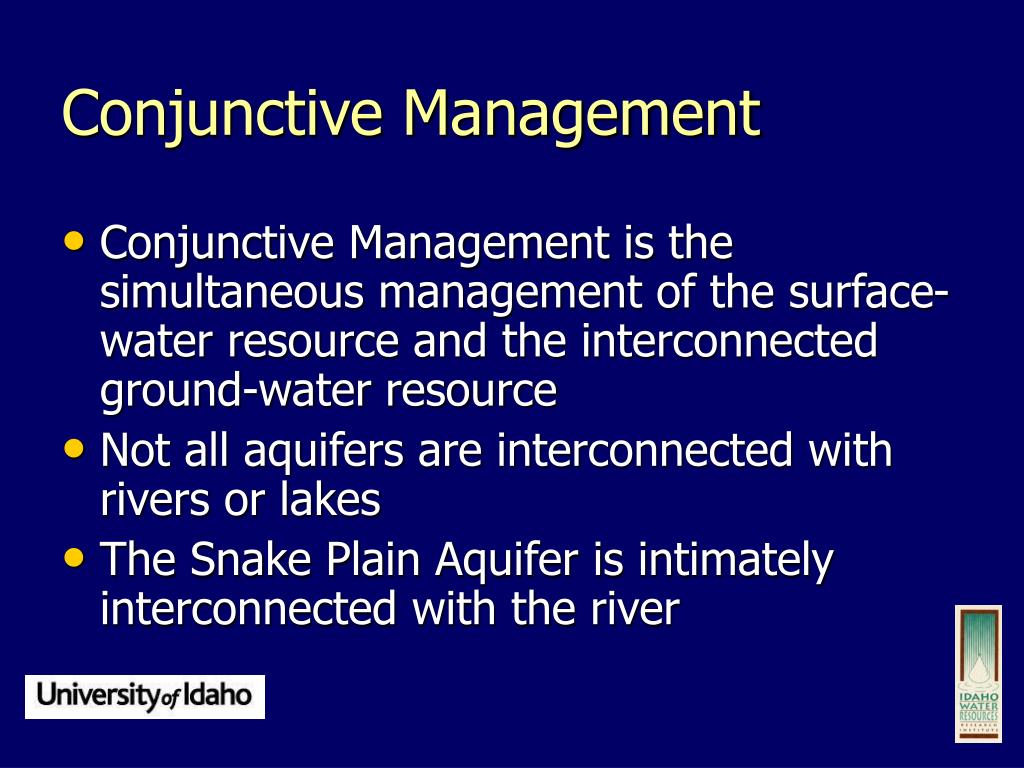

  13. Conjunctive Management • Conjunctive Management is the simultaneous management of the surface-water resource and the interconnected ground-water resource • Not all aquifers are interconnected with rivers or lakes • The Snake Plain Aquifer is intimately interconnected with the river

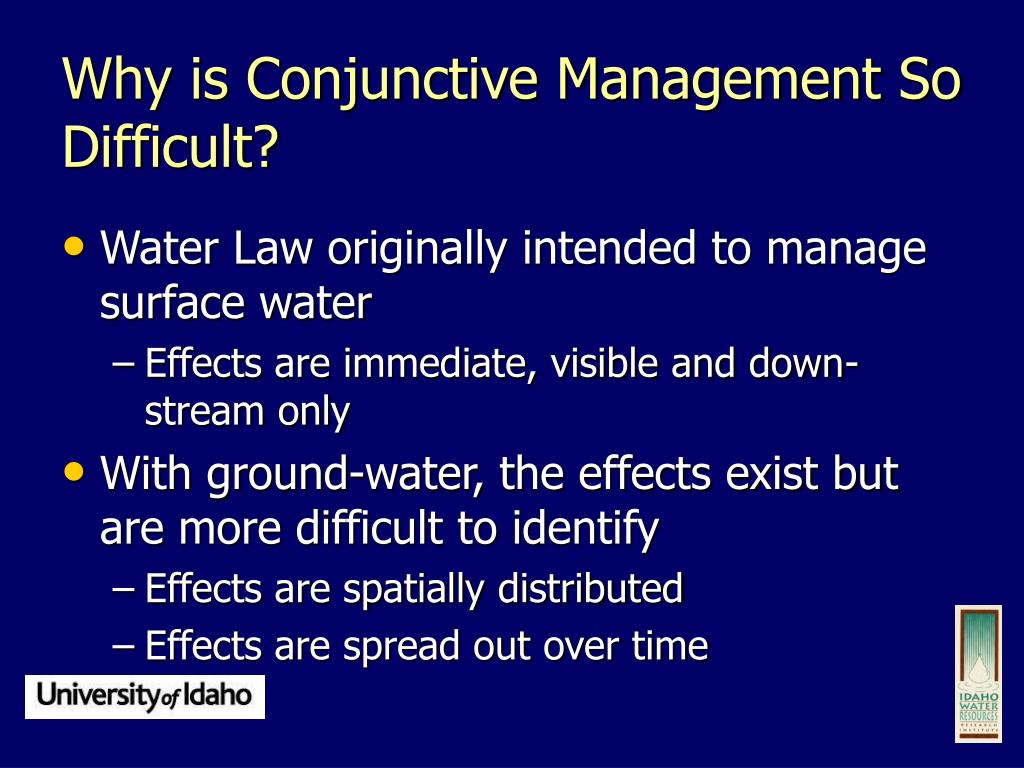

  14. Why is Conjunctive Management So Difficult? • Water Law originally intended to manage surface water • Effects are immediate, visible and down-stream only • With ground-water, the effects exist but are more difficult to identify • Effects are spatially distributed • Effects are spread out over time

  15. COMPLICATION NO. 1

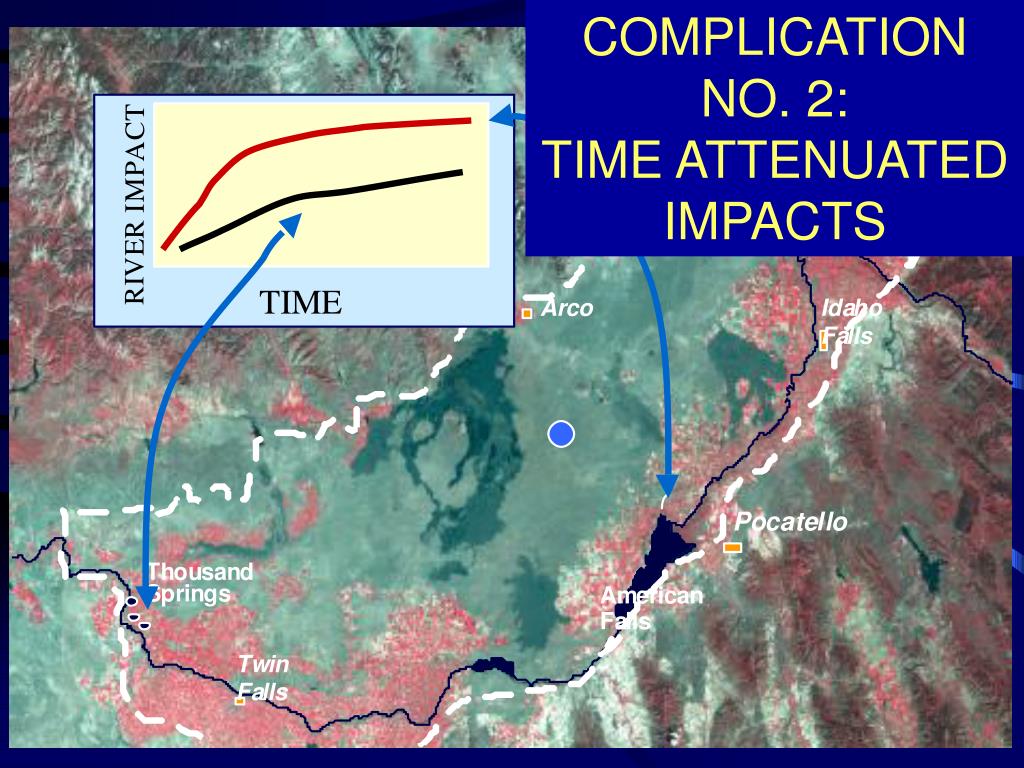

  16. COMPLICATION NO. 2: TIME ATTENUATED IMPACTS

  17. How do we sort this out? • Ground-water model can predict the timing and location of impacts • Identify arrival time of impacts • Identify arrival locations • Ground-water model is a numerical representation of a physical system • Example: Snake Plain Aquifer Model

  18. Some Snake Plain Background

  19. Tributary Underflow Evapotranspiration Major Sources of Recharge and Discharge Precipitation Surface Irrigation Spring Discharge

  20. Snake Plain Aquifer Water Budget

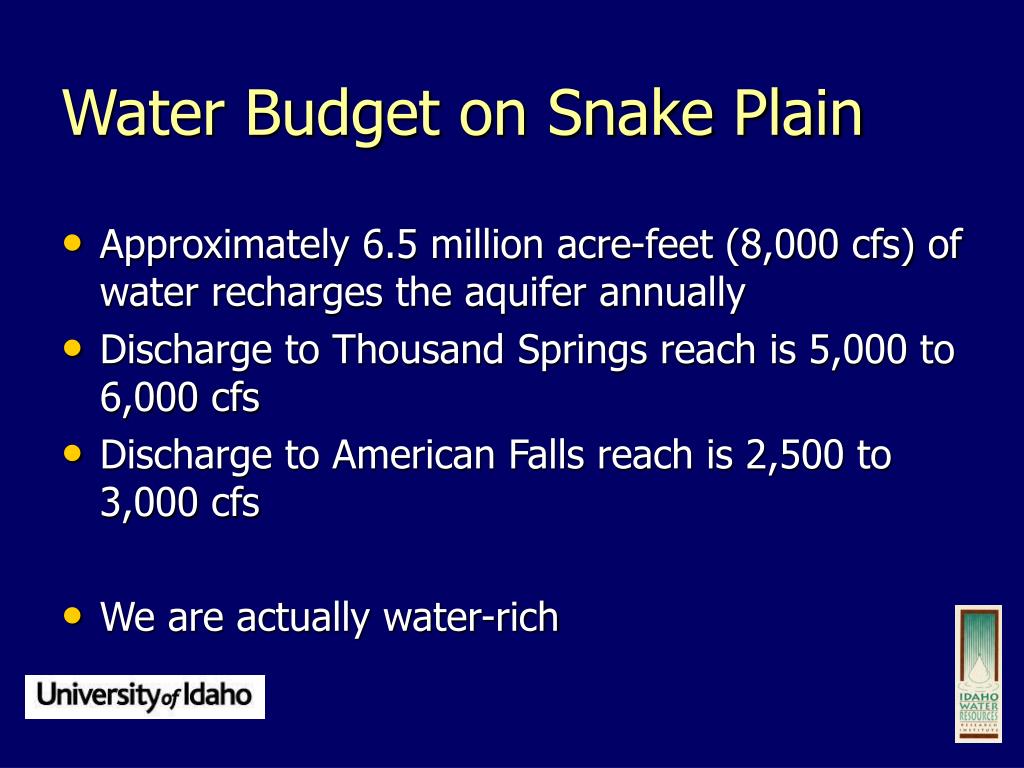

  21. Water Budget on Snake Plain • Approximately 6.5 million acre-feet (8,000 cfs) of water recharges the aquifer annually • Discharge to Thousand Springs reach is 5,000 to 6,000 cfs • Discharge to American Falls reach is 2,500 to 3,000 cfs • We are actually water-rich

  22. History of Irrigation on Snake Plain • Surface water irrigation started around 1890s • Water table rose 10s to 100s of feet • New springs emerged • Earliest claims on spring flow in Thousand Springs started around 1920s • Ground-water pumping introduced in 1950s • Rural electrification • Deep pump technology

  23. Water levels on Plain peaked in 1950s • Primarily declining since then • Impacts of ground-water pumping • Conversion from flood irrigation to more efficient sprinkler systems • Enlargement of irrigated areas • Drought • The aquifer seems to be very responsive to drought

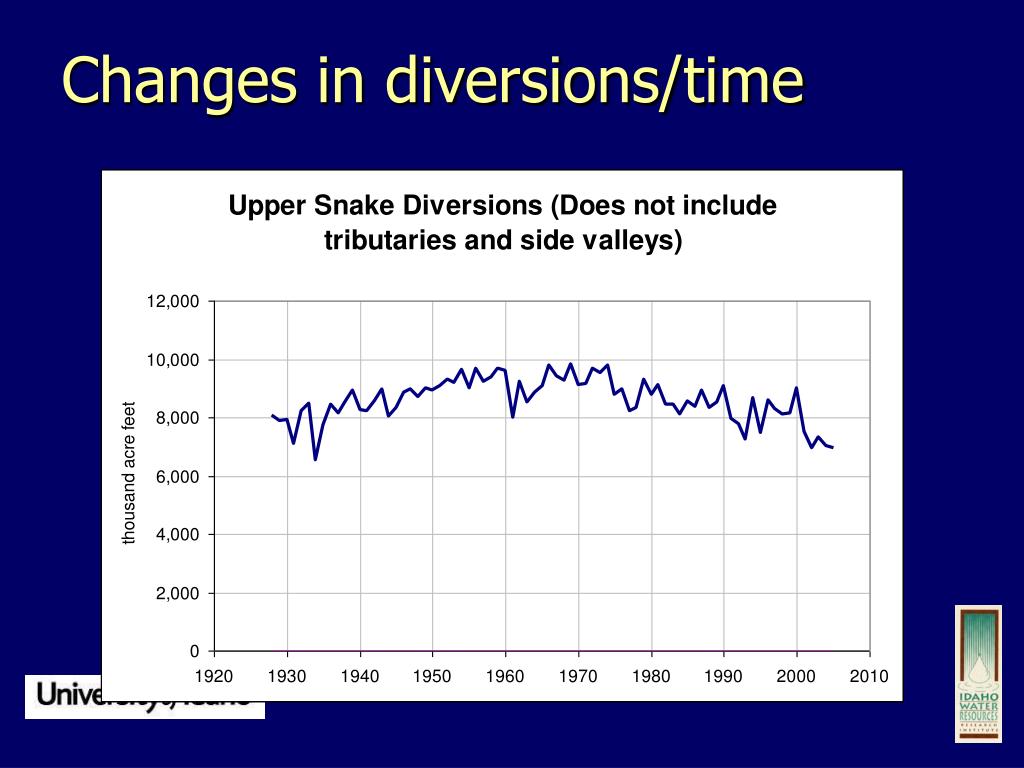

  24. Changes in diversions/time

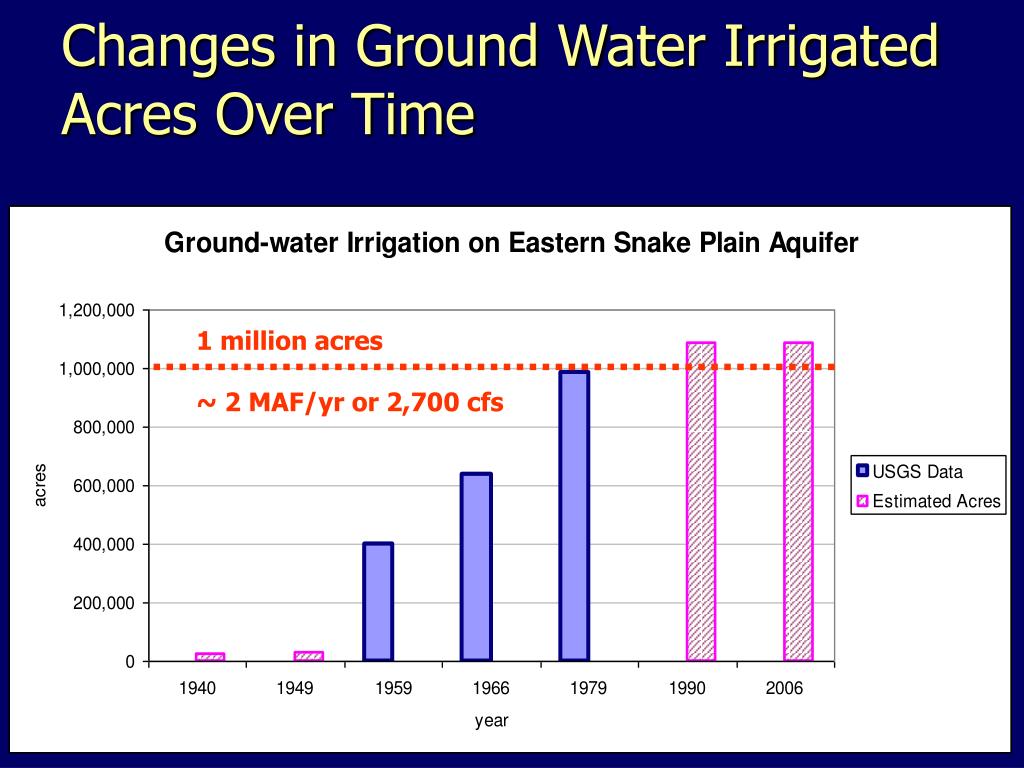

  25. Changes in Ground Water Irrigated Acres Over Time 1 million acres ~ 2 MAF/yr or 2,700 cfs

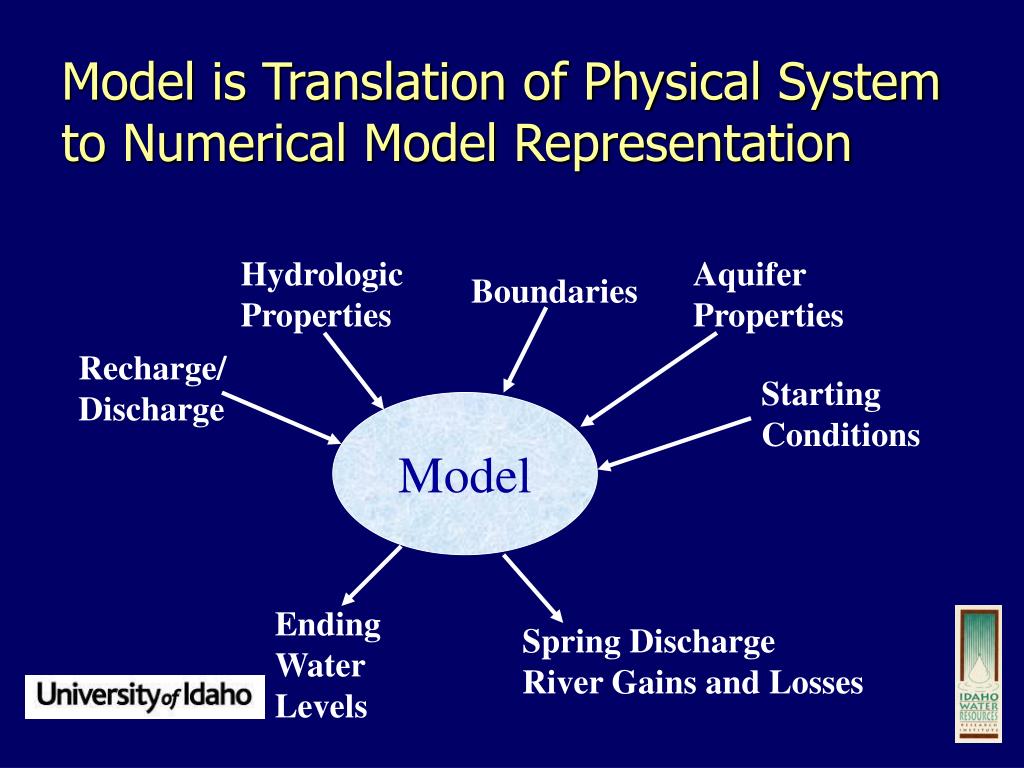

  26. Model is Translation of Physical System to Numerical Model Representation Hydrologic Properties Aquifer Properties Boundaries Recharge/ Discharge Starting Conditions Model Ending Water Levels Spring Discharge River Gains and Losses

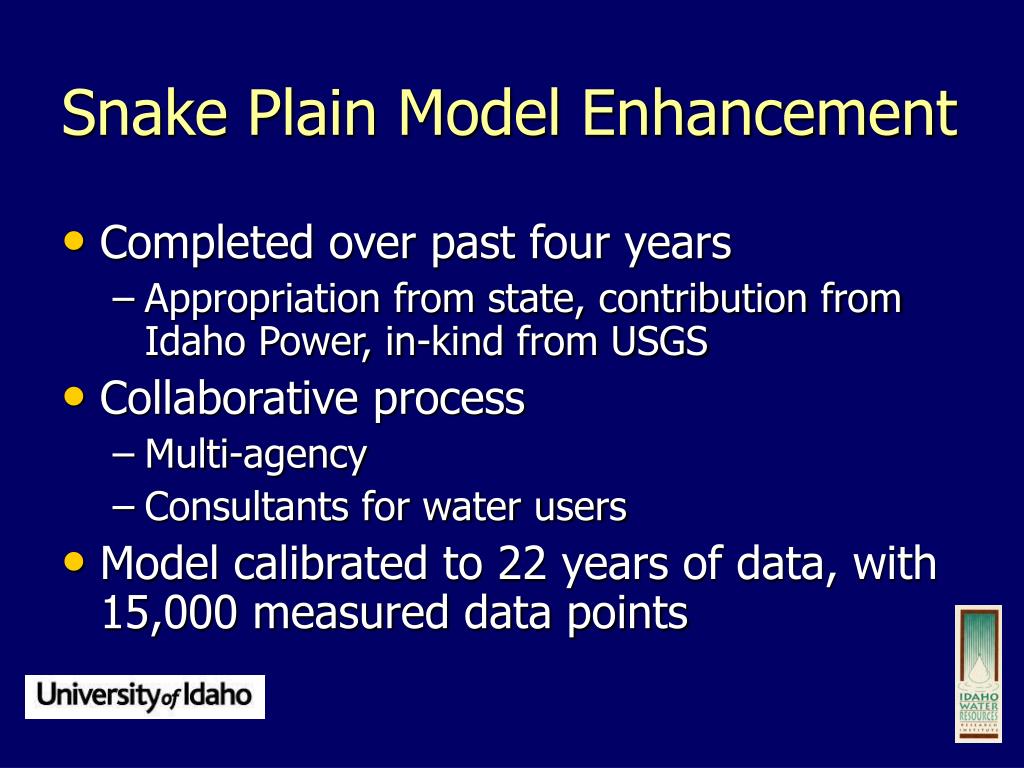

  27. Snake Plain Model Enhancement • Completed over past four years • Appropriation from state, contribution from Idaho Power, in-kind from USGS • Collaborative process • Multi-agency • Consultants for water users • Model calibrated to 22 years of data, with 15,000 measured data points

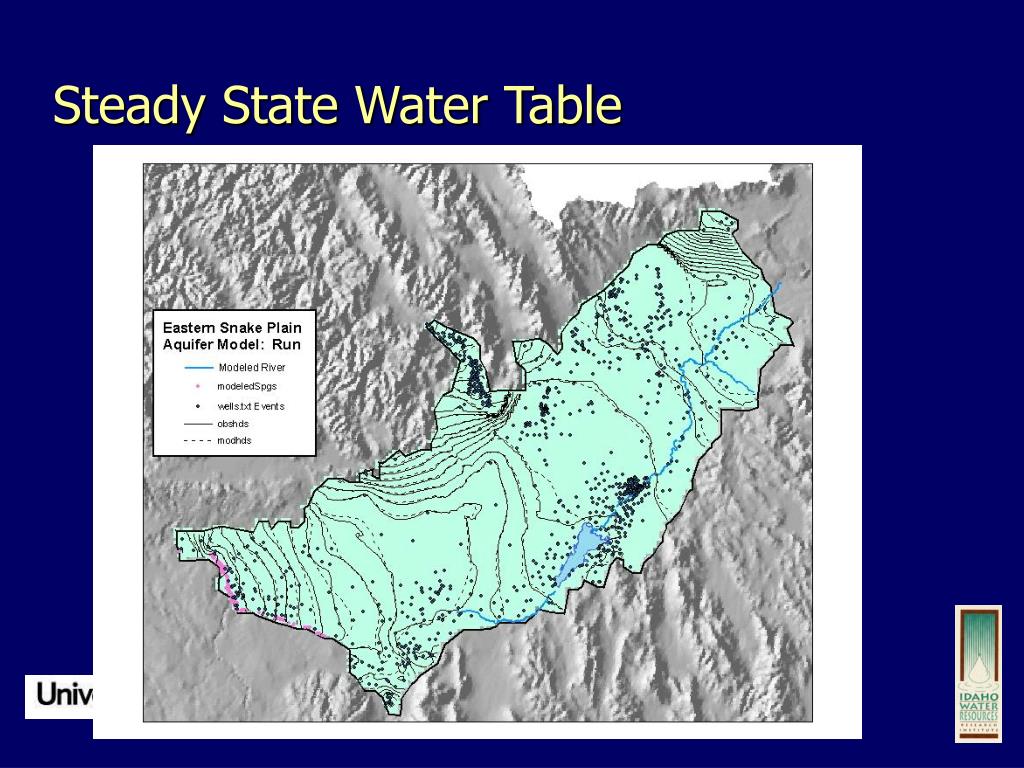

  28. Steady State Water Table

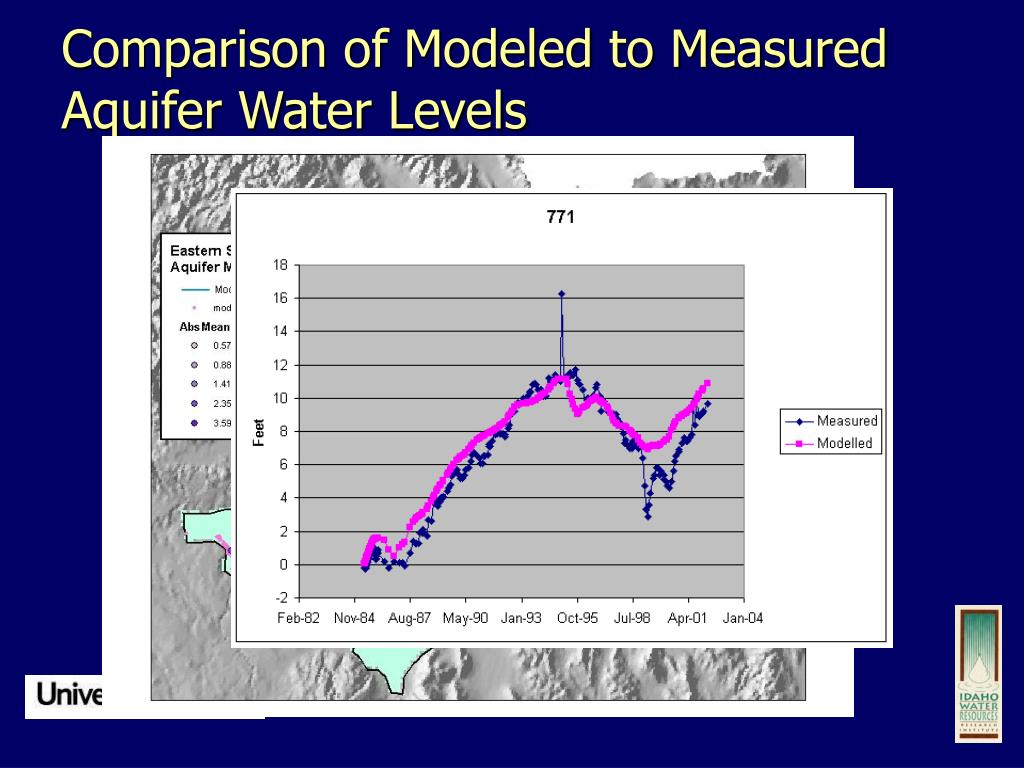

  29. Comparison of Modeled to MeasuredAquifer Water Levels

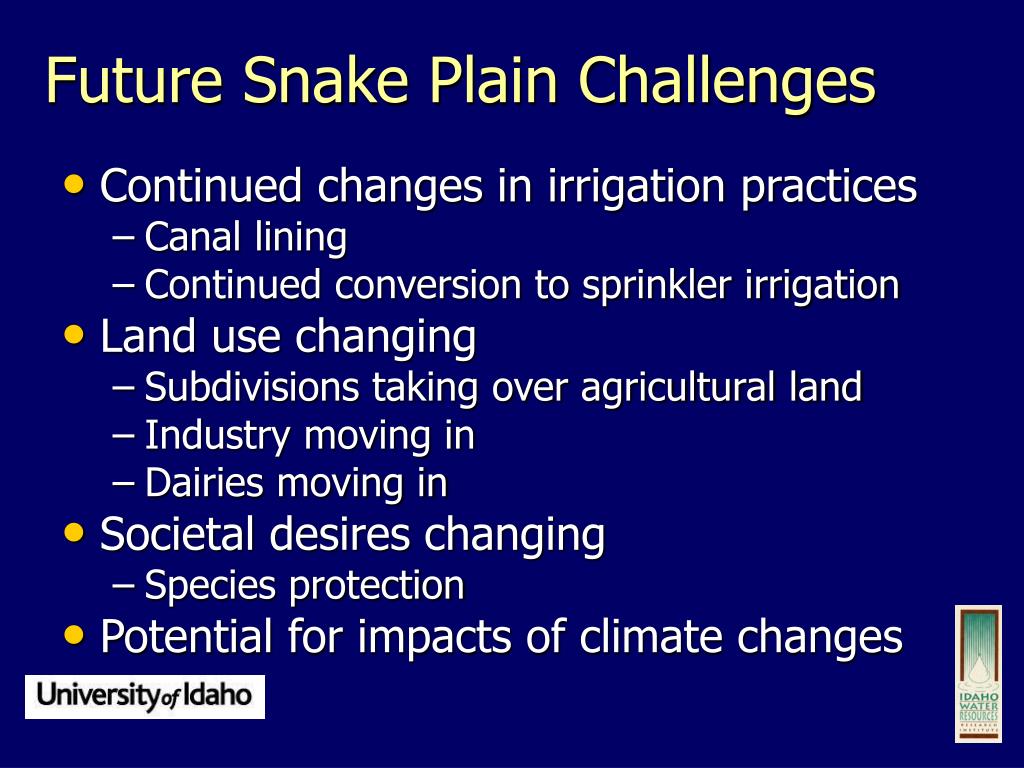

  30. Future Snake Plain Challenges • Continued changes in irrigation practices • Canal lining • Continued conversion to sprinkler irrigation • Land use changing • Subdivisions taking over agricultural land • Industry moving in • Dairies moving in • Societal desires changing • Species protection • Potential for impacts of climate changes

  31. Is this just an Eastern Idaho Problem? • Snake Plain may be ahead of other basins in facing these challenges • How we sort out the problems in the Snake Plain will have far-reaching impacts throughout the state • Bear River Drainage • Spokane Valley/Rathdrum Prairie Aquifer • Treasure Valley Aquifer

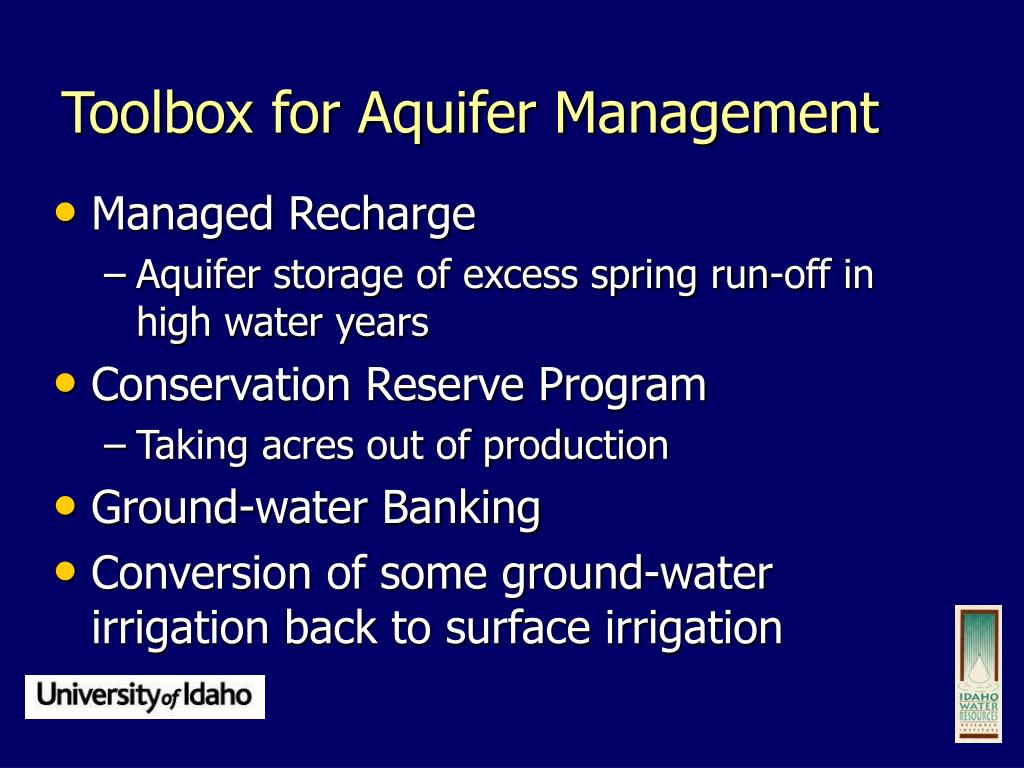

  32. Toolbox for Aquifer Management • Managed Recharge • Aquifer storage of excess spring run-off in high water years • Conservation Reserve Program • Taking acres out of production • Ground-water Banking • Conversion of some ground-water irrigation back to surface irrigation

  33. Toolbox for Aquifer Management (cont’d) • Partial or full curtailment of use during low water years • Buy-out of some threatened water rights

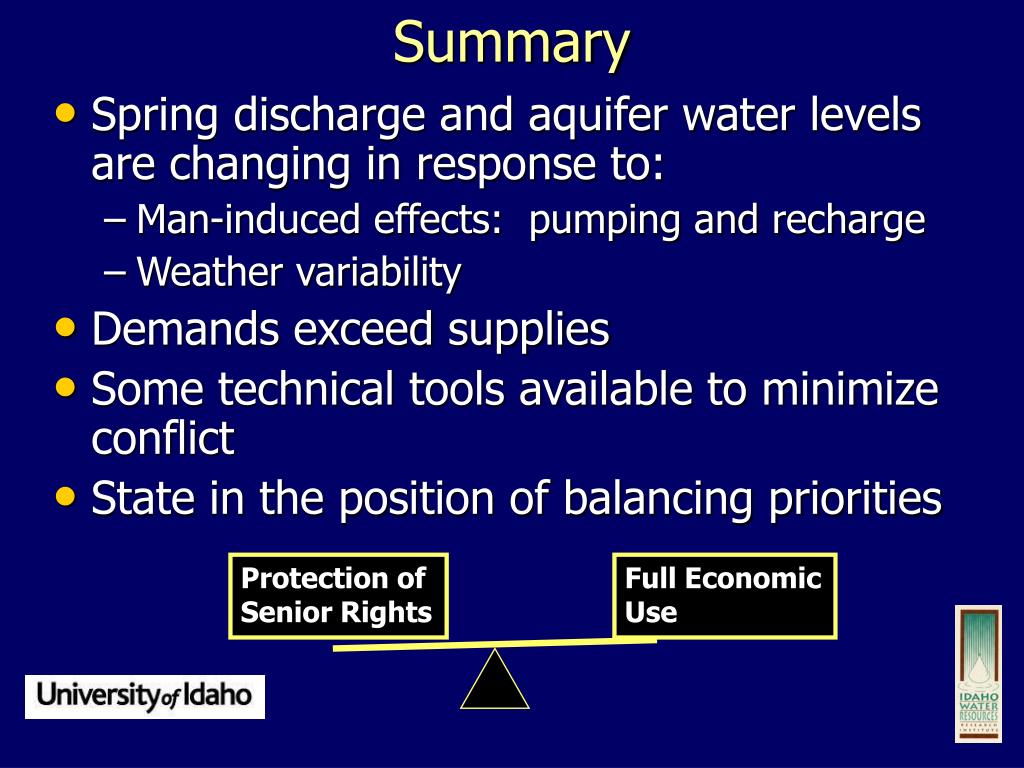

  34. Summary • Spring discharge and aquifer water levels are changing in response to: • Man-induced effects: pumping and recharge • Weather variability • Demands exceed supplies • Some technical tools available to minimize conflict • State in the position of balancing priorities Protection of Senior Rights FullEconomic Use

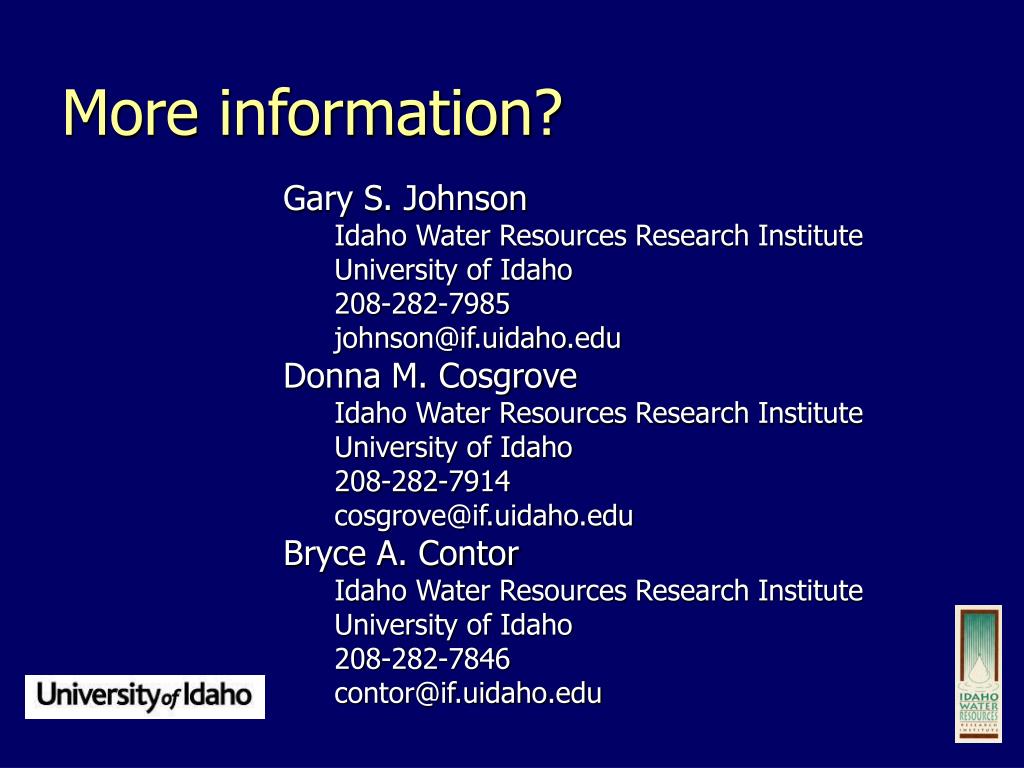

  35. More information? Gary S. Johnson Idaho Water Resources Research Institute University of Idaho 208-282-7985 johnson@if.uidaho.edu Donna M. Cosgrove Idaho Water Resources Research Institute University of Idaho 208-282-7914 cosgrove@if.uidaho.edu Bryce A. Contor Idaho Water Resources Research Institute University of Idaho 208-282-7846 contor@if.uidaho.edu
