  1. Robust Sender AnonymityTamara Rezk FMCrypto (work in progress) G.Barthe, A.Hevia, Z.Luo, T.Rezk, B.Warinschi April, 28th – Campinas, Brazil

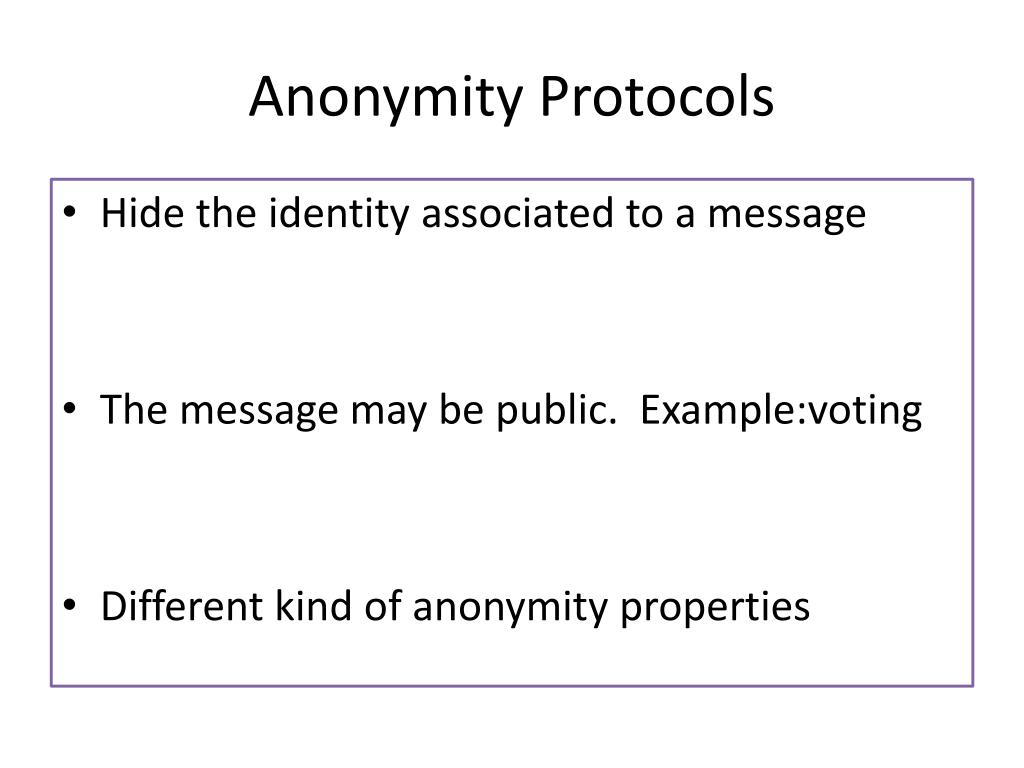

  2. Anonymity Protocols • Hide the identity associated to a message • The message may be public. Example:voting • Different kind of anonymity properties

  3. Anonymity Properties • Receiver anonymity • Sender Unlinkability (SUL) • Receiver Unlinkability (RUL) • Sender-Receiver Unlinkability (UL) • Sender Anonymity (SA) • Strong Sender Anonymity (SA*) • Receiver Anonymity (RA) • Strong Receiver Anonymity (RA*) • Sender-Receiver Anonymity (SRA) • Unobservability (UO) • Sender Unlinkability (SUL) • Receiver Unlinkability (RUL) • Sender-Receiver Unlinkability (UL) • Sender Anonymity (SA) • Strong Sender Anonymity (SA*) • Receiver Anonymity (RA) • Strong Receiver Anonymity (RA*) • Sender-Receiver Anonymity (SRA) • Unobservability (UO)

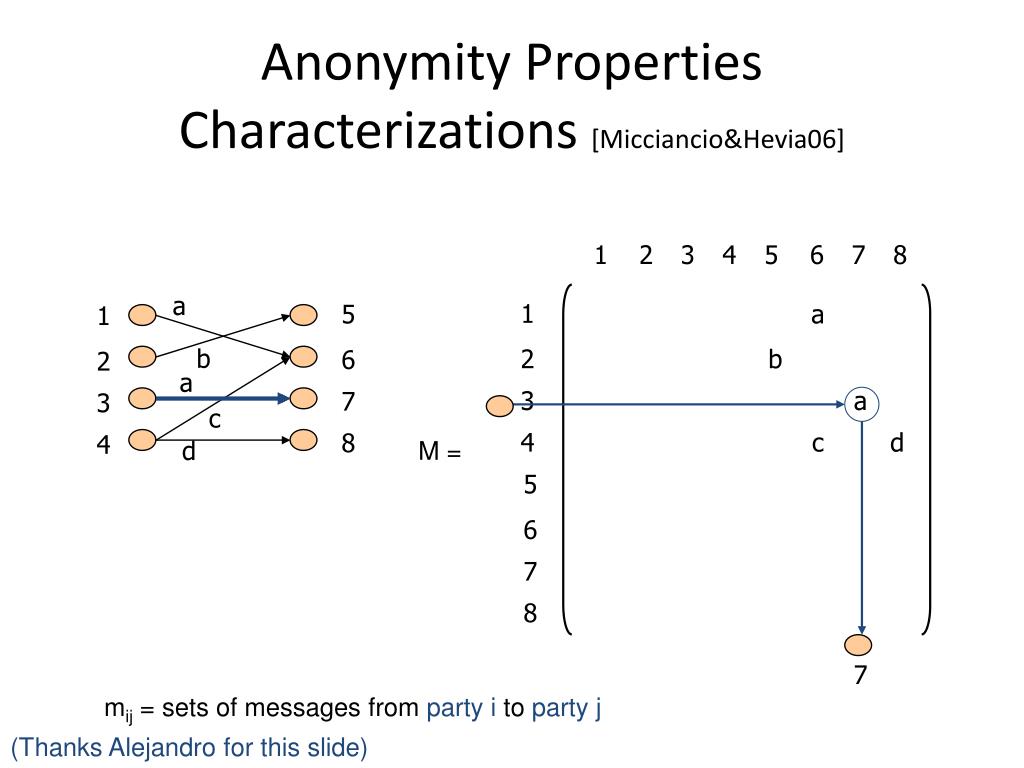

  4. 7 Anonymity Properties Characterizations [Micciancio&Hevia06] 1 2 3 4 5 6 7 8 a 1 5 a 1 b 2 b 6 2 a 3 a 7 3 c 4 c d 8 4 d M = 5 6 7 8 mij = sets of messages from party i to party j (Thanks Alejandro for this slide)

  5. = multiset c d for each row i d c M0 M1 Capturing information leaks • By restricting the matrix pair M0,M1 • Let f(M) be the information leaked • Requirement: f(M0) = f(M1) • Example of leaked information: (Thanks Alejandro for this slide)

  6. The anonymity property for protocol PHypothesis: f(M0) = f(M1) CA:=b := {0,1}; if (b = 0) then {m := M0} else {m := M1}; S  P(m) g A(S,f(m)) | Pr[CA; g = b] - ½ | is negligible on the security parameter

  7. Motivation • Anonymity in the case of active adversaries • Case study: DC-Nets

  8. Motivation • Anonymity in the case of active adversaries • Case study: DC-Nets • Robustness was not what we expected it to be • Work: definition of robustness

  9. Robust anonymous protocol • A protocol that is anonymous (it does not leak the identity of the participants)

  10. Robust anonymous protocol • A protocol that is anonymous even if some of the participants are corrupt

  11. Robust anonymous protocol • A protocol that is anonymous even if some of the participants are corrupt • Honest messages can be delivered even if dishonest participants do not follow the protocol

  12. Robust anonymous protocol • Anonymity property for active adversaries • Robustness property

  13. The anonymity property for protocol Pfor active adversariesHypothesis: f(M0) = f(M1) CRA:=b := {0,1}; if (b = 0) then {m := M0} else {m := M1}; gA[P(m)] (f(m)) | Pr[CRA; g = b] - ½ | is negligible on the security parameter

  14. Dinning Cryptographers:all started in a restaurant …

  15. Dinning Cryptographers Protocol (DC-nets) • Bitwise XOR [Chaum88] • Not robust • Bilinear Maps [GolleJuels04] • Robust What does exactly the word “robust” assure?

  16. The robust DC-nets protocol 1/4 inizialization • In this phase: • a non-degenerate pairing e : G1 x G1  G2 • generators g, h of a cyclic group G1 • a hash function H: {0,1}*  G1 • a private key xi and public key yi = g^xi (secret xi is (t,n)-shared ) • a common reference string

  17. The robust DC-nets protocol 2/4 inizialization transmission In this phase: each participant computes a vector that contains a “padding” and a unique message that cannot be distinguished from the padding.

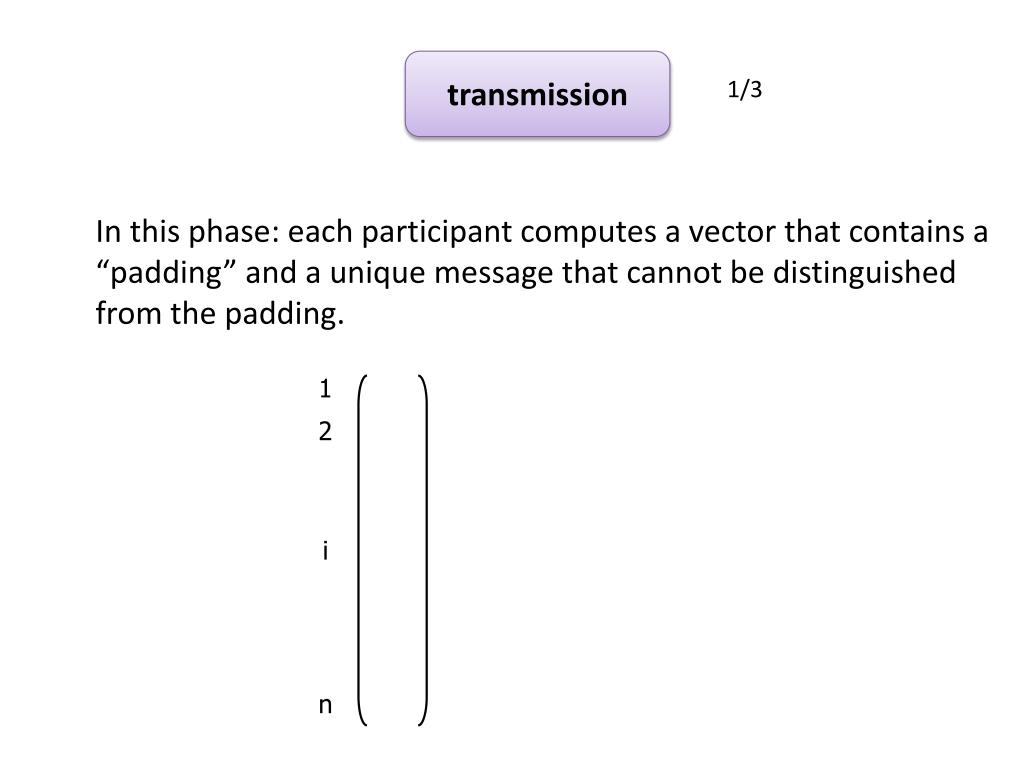

  18. transmission 1/3 In this phase: each participant computes a vector that contains a “padding” and a unique message that cannot be distinguished from the padding. 1 2 i n

  19. transmission 2/3 In this phase: each participant computes a vector that contains a “padding” and a unique message that cannot be distinguished from the padding. 1 • e(H(s||2), yj)^xi*c • ji 2 i n

  20. transmission 3/3 In this phase: each participant computes a vector that contains a “padding” and a unique message that cannot be distinguished from the padding. 1 • e(H(s||2), yj)^xi*c • ji 2 Padding participant i. Coefficient c is 1 if i<j or -1 otherwise. i n

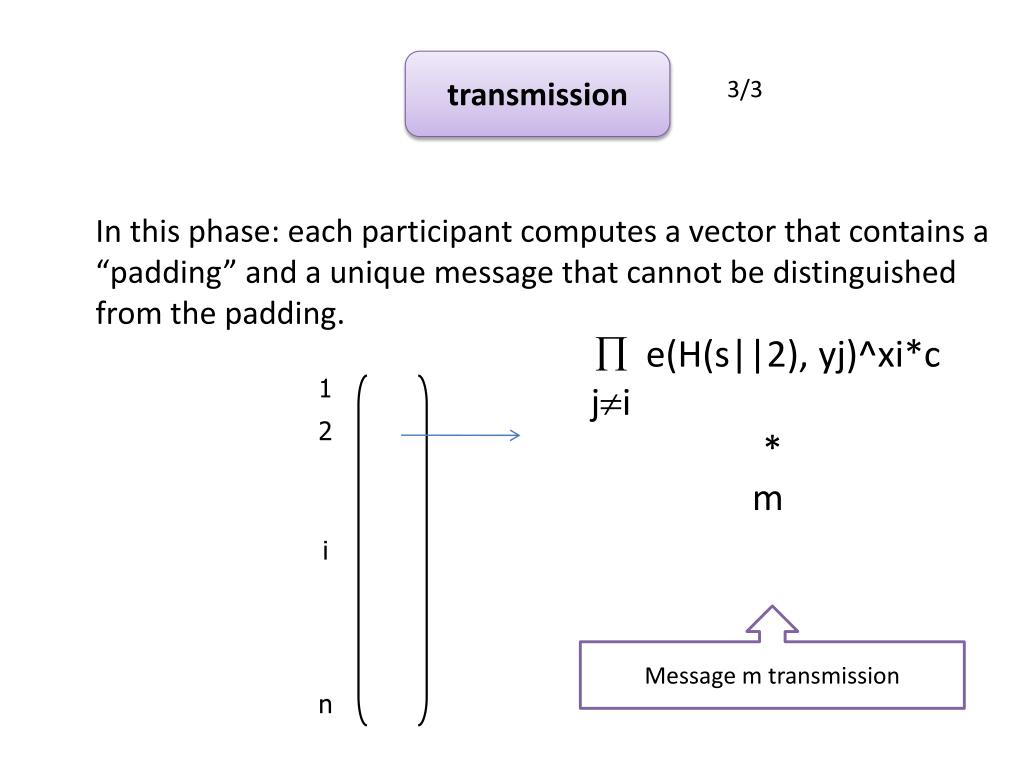

  21. transmission 3/3 In this phase: each participant computes a vector that contains a “padding” and a unique message that cannot be distinguished from the padding. • e(H(s||2), yj)^xi*c • ji • * • m 1 2 i Message m transmission n

  22. transmission If each participant transmits exactly one message without collisions then multiplication of vectors yields the messages. Vector Party 1 Vector Party n 1 1 1 1 m1 m2 … mn 2 2 2 2 = * * … n n n n

  23. transmission Example for 2 paticipants: n=2 1/9

  24. transmission Example for 2 paticipants: n=2 2/9 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 1 2 Vector Party 1

  25. transmission Example for 2 paticipants: n=2 3/9 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 1 1 2 2 Vector Party 1 Vector Party 2

  26. transmission Example for 2 paticipants: n=2 4/9 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 m1 m2 1 1 1 = * 2 2 2 Vector Party 1 Vector Party 2 transmission result

  27. transmission Example for 2 paticipants: n=2 5/9 e(H(s||1), y2)^x1 * e(H(s||1), y1)^-x2 * m1 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 m1 m2 1 1 1 = * 2 2 2 Vector Party 1 Vector Party 2 transmission result

  28. transmission Example for 2 paticipants: n=2 6/9 e(H(s||1), y2)^x1 * e(H(s||1), y1)^-x2 * m1 = {public key inlining} e(H(s||1), x2g)^x1 * e(H(s||1), x1g)^-x2 * m1 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 m1 m2 1 1 1 = * 2 2 2 Vector Party 1 Vector Party 2 transmission result

  29. transmission Example for 2 paticipants: n=2 7/9 e(H(s||1), y2)^x1 * e(H(s||1), y1)^-x2 * m1 = {public key inlining} e(H(s||1), x2g)^x1 * e(H(s||1), x1g)^-x2 * m1 = {bilinearity} e(H(s||1), x1x2g) * e(H(s||1), x2x1g)^-1 * m1 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 m1 m2 1 1 1 = * 2 2 2 Vector Party 1 Vector Party 2 transmission result

  30. transmission Example for 2 paticipants: n=2 8/9 e(H(s||1), y2)^x1 * e(H(s||1), y1)^-x2 * m1 = {public key inlining} e(H(s||1), x2g)^x1 * e(H(s||1), x1g)^-x2 * m1 = {bilinearity} e(H(s||1), x1x2g) * e(H(s||1), x2x1g)^-1 * m1 = {conmutativity} e(H(s||1), x1x2g) * e(H(s||1), x1x2g)^-1 * m1 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 m1 m2 1 1 1 = * 2 2 2 Vector Party 1 Vector Party 2 transmission result

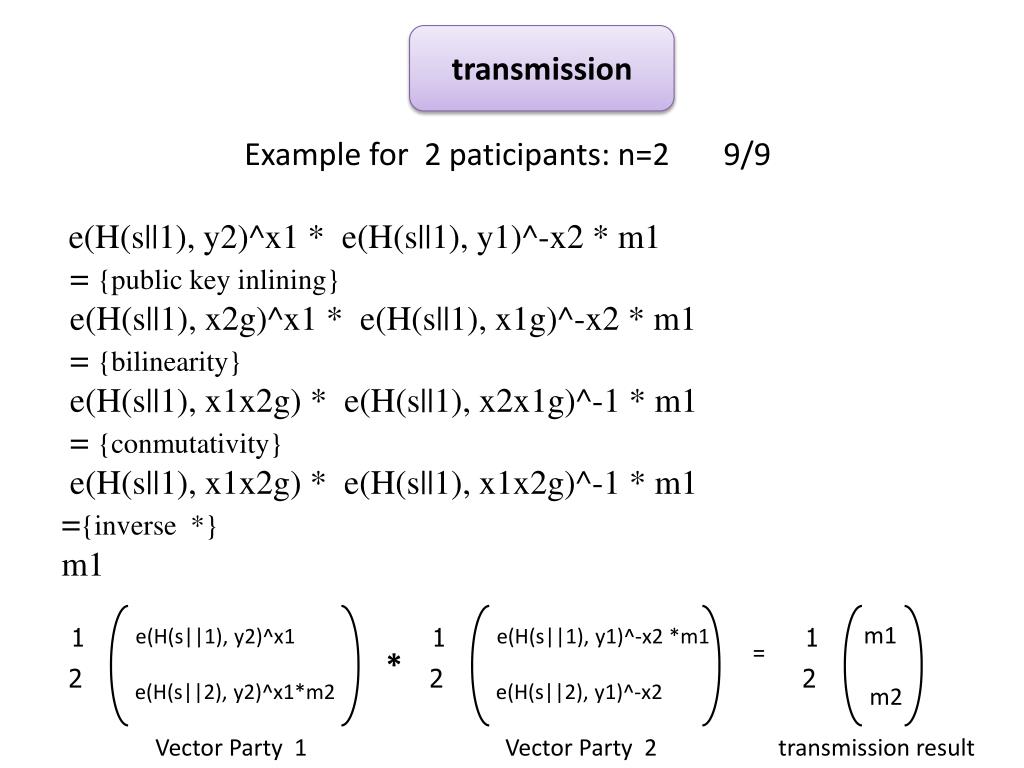

  31. transmission Example for 2 paticipants: n=2 9/9 e(H(s||1), y2)^x1 * e(H(s||1), y1)^-x2 * m1 = {public key inlining} e(H(s||1), x2g)^x1 * e(H(s||1), x1g)^-x2 * m1 = {bilinearity} e(H(s||1), x1x2g) * e(H(s||1), x2x1g)^-1 * m1 = {conmutativity} e(H(s||1), x1x2g) * e(H(s||1), x1x2g)^-1 * m1 ={inverse *} m1 e(H(s||1), y2)^x1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 m1 m2 1 1 1 = * 2 2 2 Vector Party 1 Vector Party 2 transmission result

  32. transmission If there is a collision, or the padding is incorrect, or there is more than one message in the vector, recuperation of messages fail! Vector Party 1 Vector Party n 1 1 1 1 m1 m2 … mn 2 2 2 2 = * * … n n n n

  33. transmission Vectors are transmitted with a proof of knowledge (zkpk) For all positions in the vector there is a valid padding, except for at most one position.

  34. The robust DC-nets protocol 3/4 inizialization transmission reconstruction In this phase: each participant computes a vector that contains a “padding” and a unique message that cannot be distinguished from the padding.

  35. reconstruction In this phase: if a proof of knowledge does not verify then the vector of the dishonest participant is reconstructed using trheshold cryptography After this phase, we are left with a set of valid vectors , that is : For all positions in the vector there is a valid padding, except for at most one position.

  36. The robust DC-nets protocol 4/4 inizialization transmission reconstruction recuperation

  37. recuperation In this phase: All vectors are correct (honest participants or recovered vectors). Messages are recuperated by multiplication. Vector Party 1 Vector Party n 1 1 1 1 m1 m2 … mn 2 2 2 2 = * * … n n n n

  38. What does exactly the word “robust” assure? • If the vector is correct, then there is a unique message in the vector • An adversary may violate the slot reservation protocol to intentionally produce a collision • For each collision, one honest message is not delivered

  39. We propose to state this formally by definning a: Robustness property

  40. Sender robustness, t-n SR:= M,N  A0 m := M++N; SP[A](m) if (#(MПS) < 2t-n) then b’:=1 else b’:=0 |Pr[SR; b’=1] is negligible on the security parameter

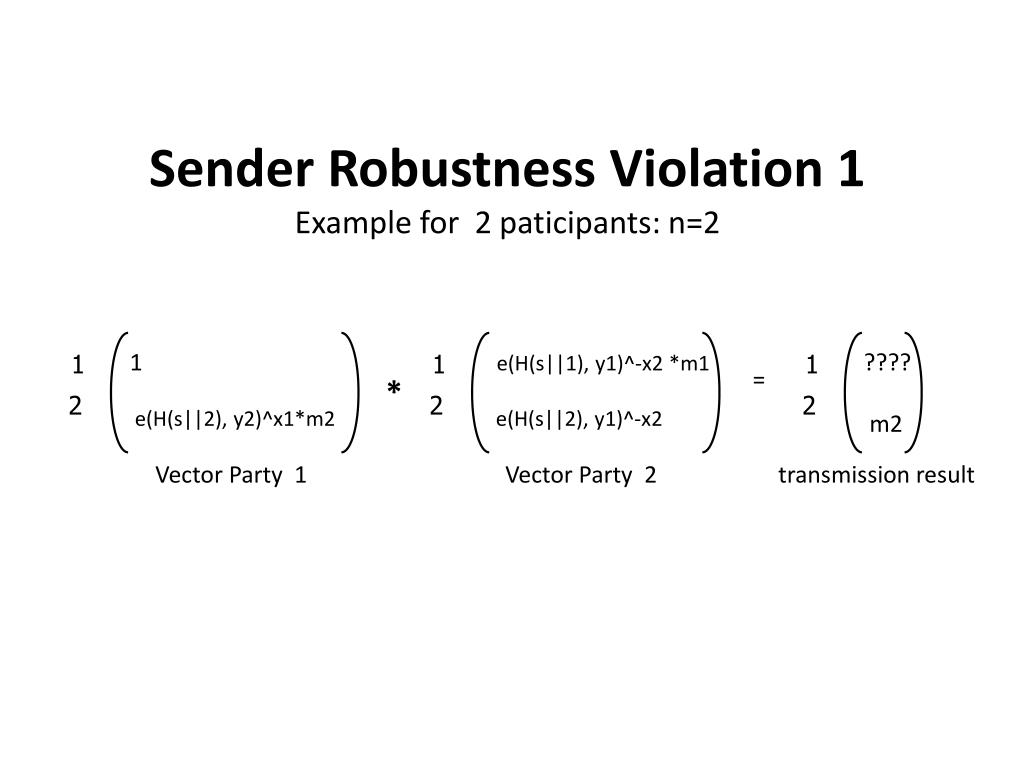

  41. Sender Robustness Violation 1 Example for 2 paticipants: n=2 ???? m2 1 = * 2 Vector Party 1 Vector Party 2 transmission result 1 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 1 1 2 2

  42. Sender Robustness Violation 2 Example for 2 paticipants: n=2 ???? m2 1 = * 2 Vector Party 1 Vector Party 2 transmission result e(H(s||2), y2)^x1*m2 e(H(s||2), y2)^x1*m2 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 1 1 2 2

  43. Sender Robustness Example for 2 paticipants: n=2 m1*m2 m2 1 = * 2 Vector Party 1 Vector Party 2 transmission result This is considered secure! e(H(s||2), y2)^x1*m2 e(H(s||2), y2)^x1 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 1 1 2 2

  44. A stronger robustness propertyConfusion resistant t-n CR:= M,N  A0 m := M++N; SP[A(m)] if honest received < honest-dishonest then b’:=1 else b’:=0 |Pr[CR; b’=1] is negligible on the security parameter

  45. A stronger robustness propertyConfusion resistant t-n CR:= M,N  A0 m := M++N; SP[A(m)] if honest not received+dishonest received > dishonest. then b’:=1 else b’:=0 |Pr[CR; b’=1] is negligible on the security parameter

  46. A stronger robustness propertyConfusion resistant t-n CR:= M,N  A0 m := M++N; SP[A(m)] if (#(S\M) + #(M\S) > n-t) then b’:=1 else b’:=0 |Pr[CR; b’=1] is negligible on the security parameter

  47. Confussion Resistant Violation Example for 2 paticipants: n=2 m1*m2 m2 1 = * 2 Vector Party 1 Vector Party 2 transmission result e(H(s||2), y2)^x1*m2 e(H(s||2), y2)^x1 e(H(s||1), y1)^-x2 *m1 e(H(s||2), y1)^-x2 1 1 2 2

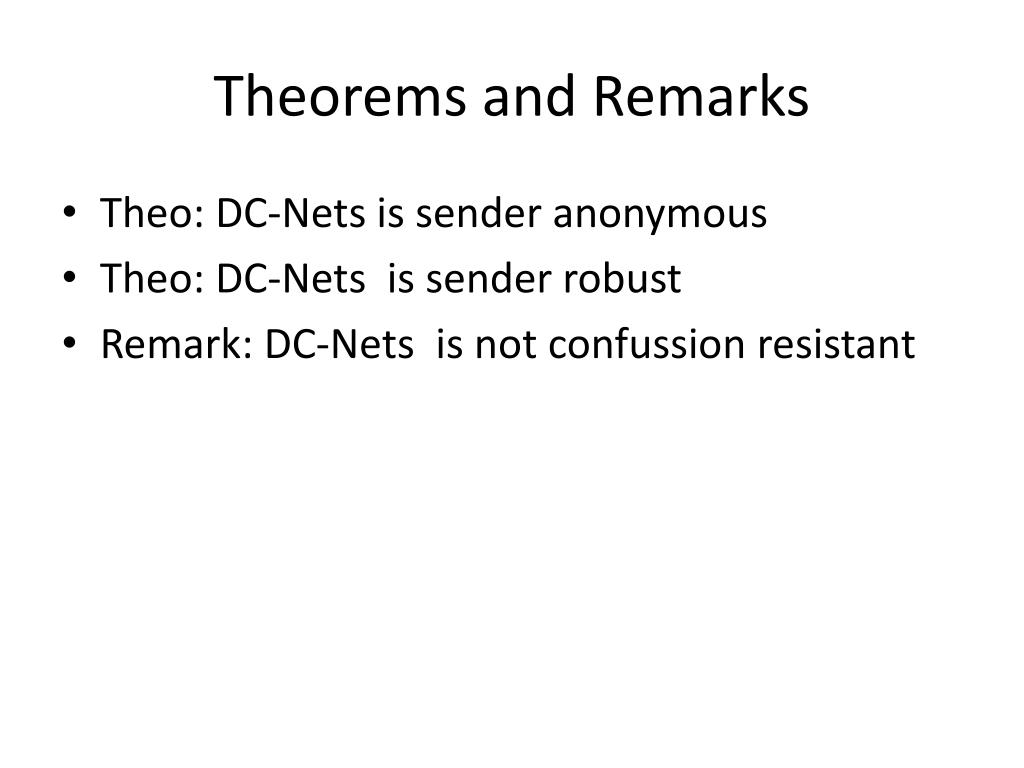

  48. Theorems and Remarks • Theo: DC-Nets is sender anonymous • Theo: DC-Nets is sender robust • Remark: DC-Nets is not confussion resistant

  49. Theorems and Remarks • Theo: DC-Nets is sender anonymous • Theo: DC-Nets is sender robust • Remark: DC-Nets is not confussion resistant Solution? : messages should be “sealed” in such a way that multiplication of two seals produces another seal only with negligible probability

  50. Conclusions • We have a proposed 2 properties to formally specify robustness of sender anonymous protocols • We have detected GJ protocol satisfies only a weak form of robustness, and proposed a stronger version of the protocol • Open questions: how to implement the stronger GJ?, how all these definitions extend to other forms of anonymity? generic conversion to stronger robustness?
