Criteria For Selecting a Suitable Hydraulic Valve

The main purpose of writing this article is to share with you the basic criteria. That needs to be followed by flow application engineers. And so, when they are considering the systematic selection of hydraulic products like hydraulic valves and flow control equipment on thermodynamic installations. Thus, it follows an instructive interest along with the sequential parameters of key observation.

proall
Download Presentation

Criteria For Selecting a Suitable Hydraulic Valve

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. www.proallusarefurbish.com

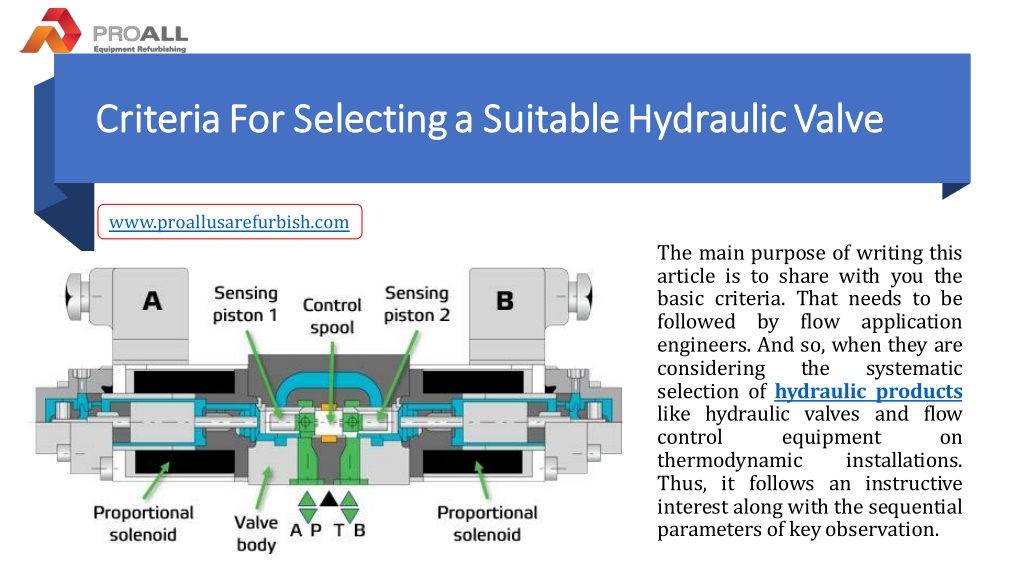

  2. Criteria For Selecting a Suitable Hydraulic Valve Criteria For Selecting a Suitable Hydraulic Valve www.proallusarefurbish.com The main purpose of writing this article is to share with you the basic criteria. That needs to be followed by flow engineers. And so, when they are considering the selection of hydraulic products like hydraulic valves and flow control equipment thermodynamic Thus, it follows an instructive interest along with the sequential parameters of keyobservation. application systematic on installations.

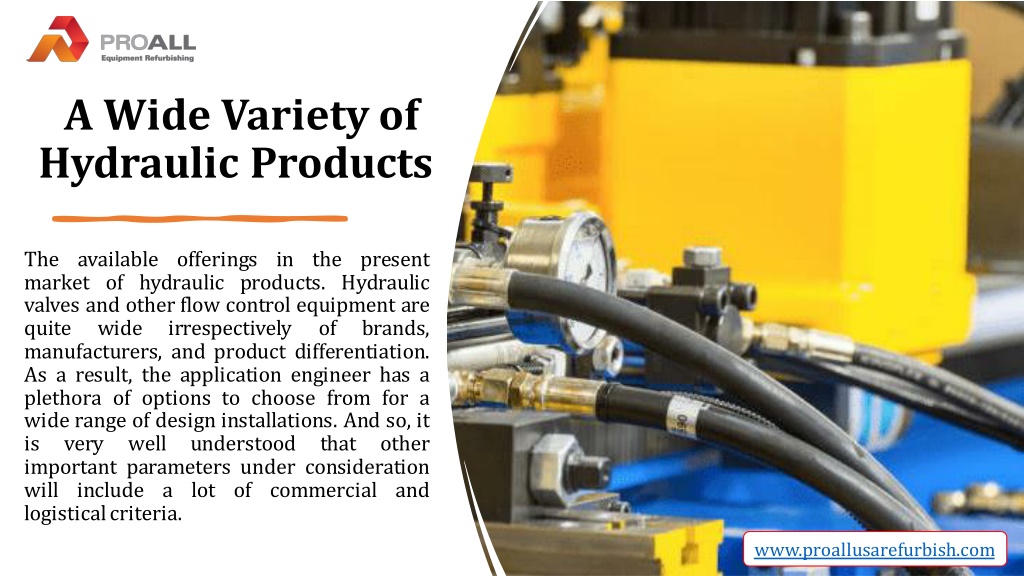

  3. A Wide Variety of Hydraulic Products The available offerings in the present market of hydraulic products. Hydraulic valves and other flow control equipment are quite wide irrespectively manufacturers, and product differentiation. As a result, the application engineer has a plethora of options to choose from for a wide range of design installations. And so, it is very well understood important parameters under consideration will include a lot of commercial and logisticalcriteria. of brands, that other www.proallusarefurbish.com

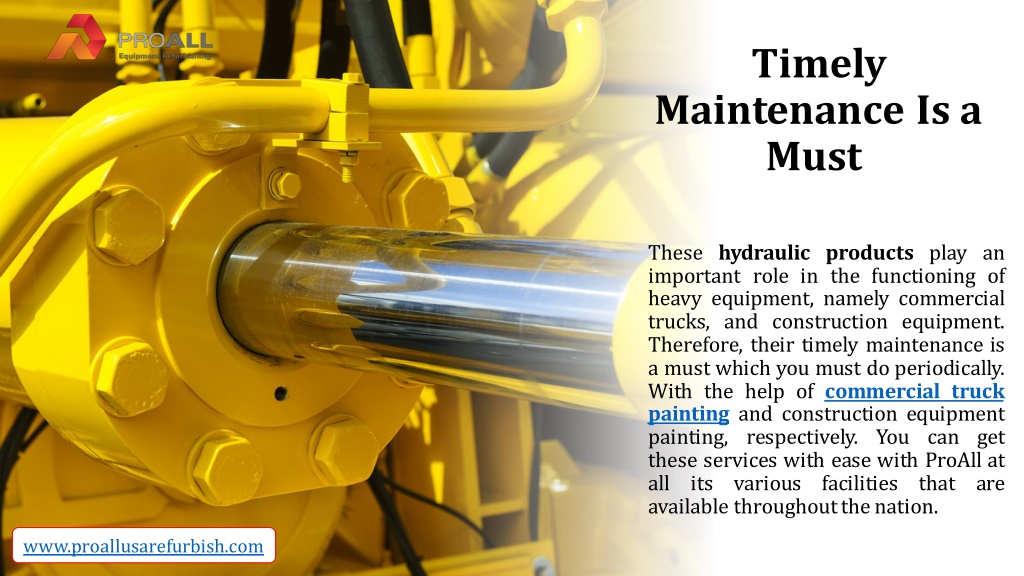

  4. Timely Maintenance Is a Must These hydraulic products play an important role in the functioning of heavy equipment, namely commercial trucks, and construction equipment. Therefore, their timely maintenance is a must which you must do periodically. With the help of commercial truck painting and construction equipment painting, respectively. You can get these services with ease with ProAll at all its various facilities available throughoutthenation. that are www.proallusarefurbish.com

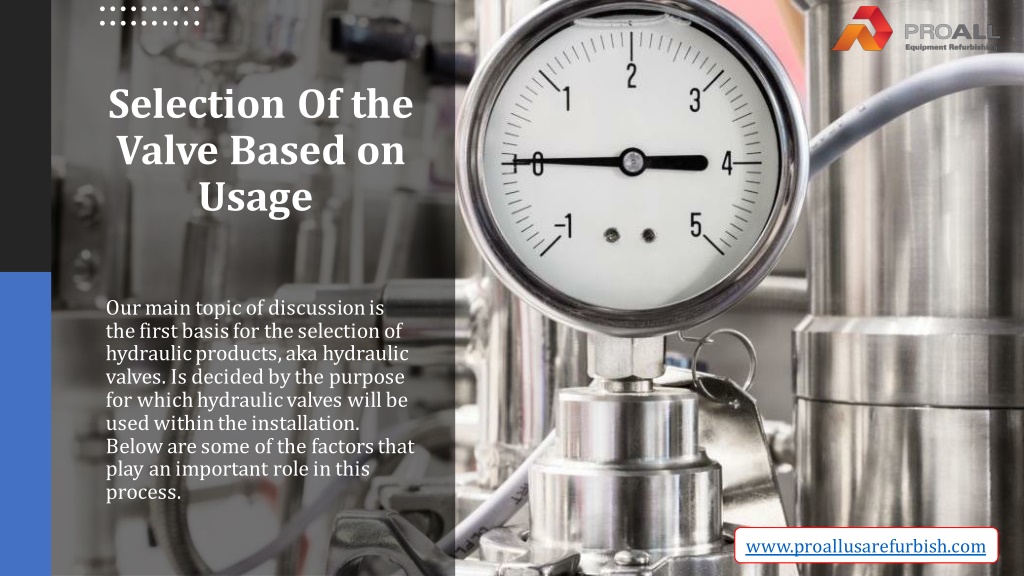

  5. Selection Of the Valve Based on Usage Our main topic of discussion is the first basis for the selection of hydraulic products, aka hydraulic valves. Is decided by the purpose for which hydraulic valves will be used within the installation. Below are some of the factors that play an important role in this process. www.proallusarefurbish.com

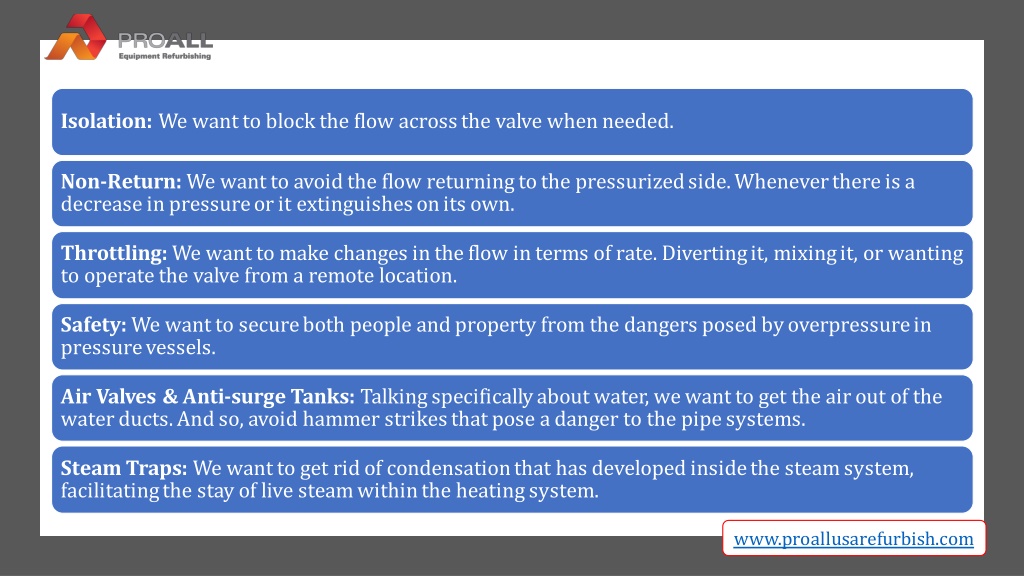

  6. Isolation: We want to block the flow across the valve when needed. Non-Return: We want to avoid the flow returning to the pressurized side. Whenever there is a decrease in pressure or it extinguishes on its own. Throttling:We want to make changes in the flow in terms of rate. Diverting it, mixing it, or wanting to operate the valve from a remote location. Safety: We want to secure both people and property from the dangers posed by overpressure in pressure vessels. Air Valves & Anti-surge Tanks: Talking specifically about water, we want to get the air out of the water ducts. And so, avoid hammer strikes that pose a danger to the pipe systems. Steam Traps: We want to get rid of condensation that has developed inside the steam system, facilitating the stay of live steam within the heating system. www.proallusarefurbish.com

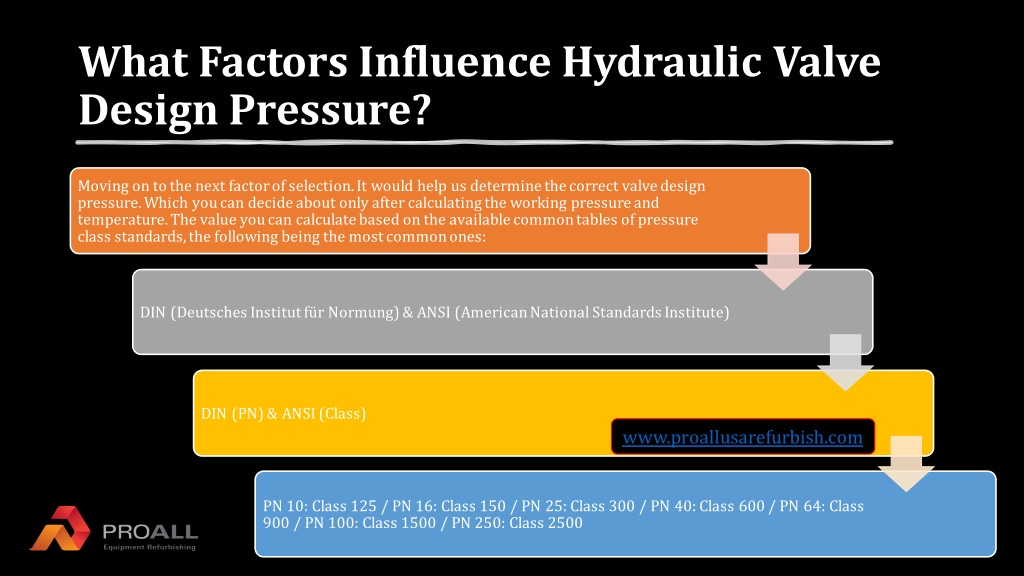

  7. What Factors Influence Hydraulic Valve Design Pressure? Moving on to the next factor of selection. It would help us determine the correct valve design pressure. Which you can decide about only after calculating the working pressure and temperature. The value you can calculate based on the available common tables of pressure class standards, the following being the most common ones: DIN (DeutschesInstitutfür Normung) & ANSI (American National Standards Institute) DIN (PN) & ANSI (Class) www.proallusarefurbish.com PN 10: Class 125 / PN 16: Class 150 / PN 25: Class 300 / PN 40: Class 600 / PN 64: Class 900 / PN 100: Class 1500 / PN 250: Class 2500

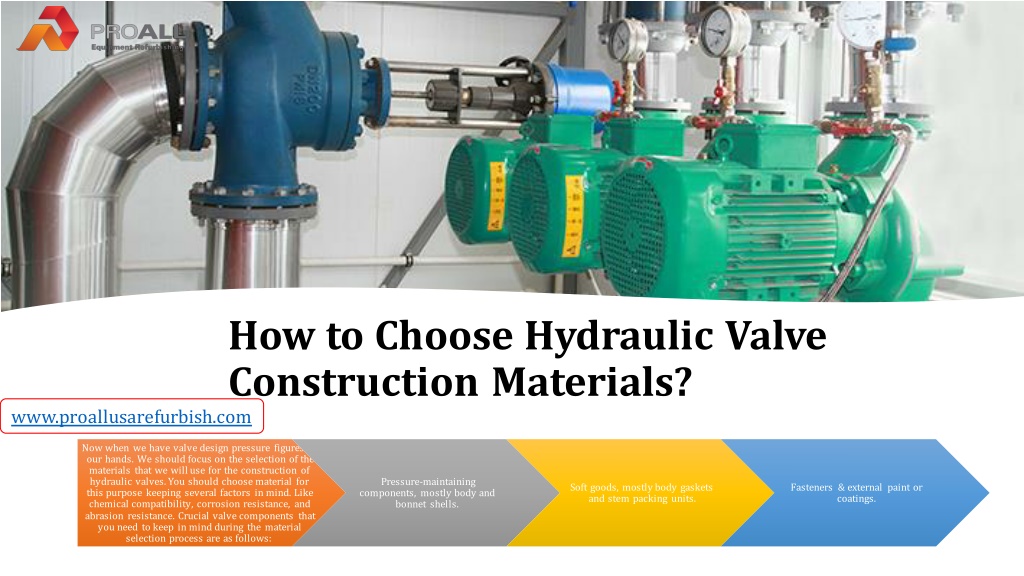

  8. How to Choose Hydraulic Valve Construction Materials? www.proallusarefurbish.com Now when we have valve design pressure figures in our hands. We should focus on the selection of the materials that we will use for the construction of hydraulic valves. You should choose material for this purpose keeping several factors in mind. Like chemical compatibility, corrosion resistance, and abrasion resistance. Crucial valve components that you need to keep in mind during the material selection process are as follows: Pressure-maintaining components, mostly body and bonnet shells. Soft goods, mostly body gaskets and stem packing units. Fasteners & external paint or coatings.

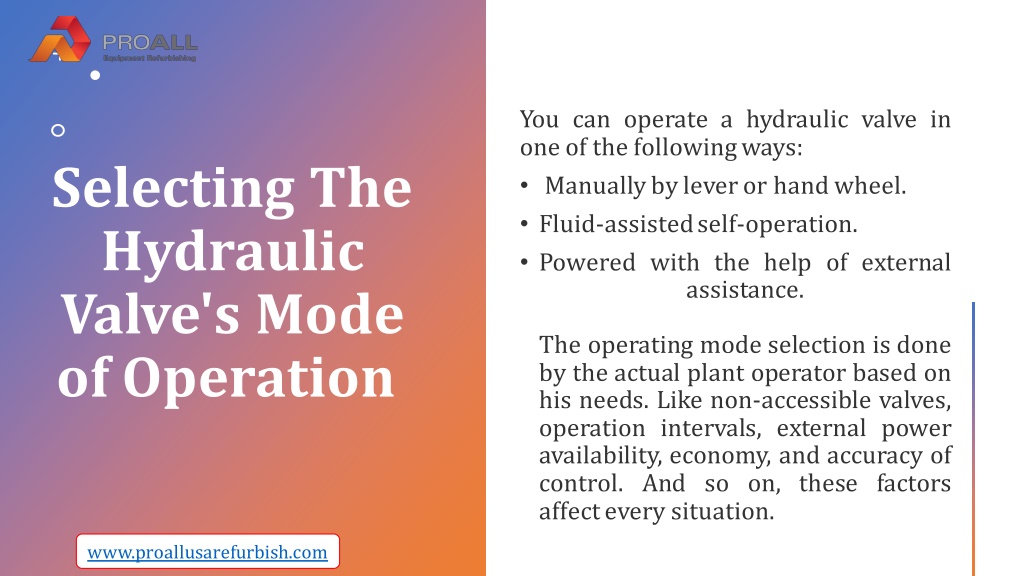

  9. Selecting The Hydraulic Valve's Mode of Operation www.proallusarefurbish.com

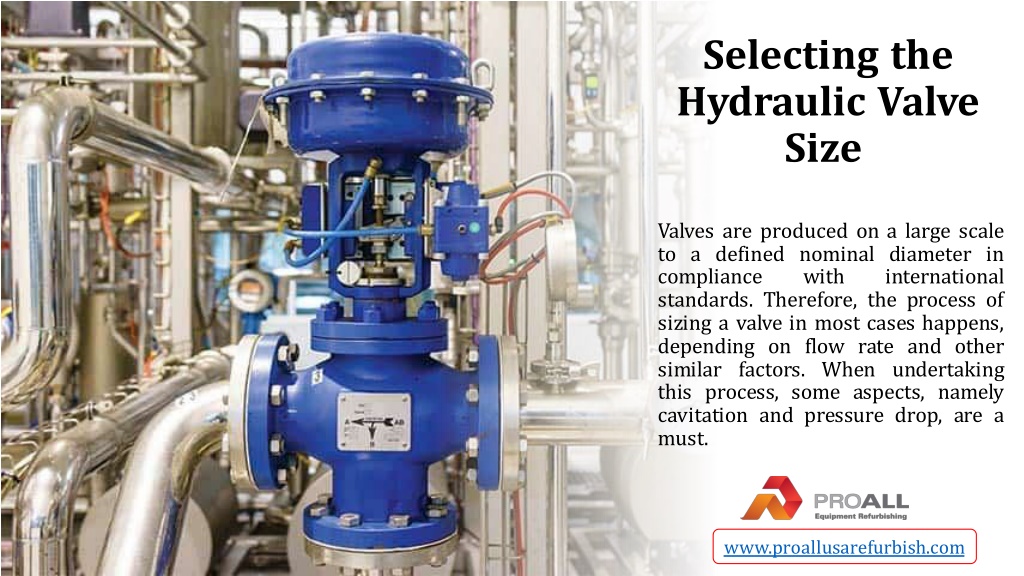

  10. Selecting the Hydraulic Valve Size Valves are produced on a large scale to a defined nominal diameter in compliance with standards. Therefore, the process of sizing a valve in most cases happens, depending on flow rate and other similar factors. When undertaking this process, some aspects, namely cavitation and pressure drop, are a must. international www.proallusarefurbish.com

  11. www.proallusarefurbish.com
