ICA-based Clustering of Genes from Microarray Expression Data Su-In Lee 1 , Serafim Batzoglou 2 silee@stanford.ed, 1 Department of Electrical Engineering, 2 Department of Computer Science, Stanford University. Ribosome Biosynthesis.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'ICA-based Clustering of Genes from Microarray Expression Data' - prince

Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

ICA-based Clustering of Genes from

Microarray Expression Data

Su-In Lee1, Serafim Batzoglou2silee@stanford.ed,

1Department of Electrical Engineering, 2Department of Computer Science, Stanford University

Ribosome Biosynthesis

Gene 1 Gene 2 Gene 3 Gene 4 Gene 5 Gene 6 Gene 7 Gene 8 Gene 9

Oxidative Phosphorylation

Gene 1Gene 2 Gene 3 Gene 4 Gene 5 Gene 6 Gene 7 Gene 8 Gene 9

Cell Cycle Regulation

Gene 1 Gene 2 Gene 3 Gene 4 Gene 5 Gene 6 Gene 7 Gene 8 Gene 9

Oxidative Phosphorylation

In an Experimental Condition

Cell Cycle Regulation

Ribosome Biosynthesis

Gene 1 Gene 2 Gene 3 Gene 4 Gene 5 Gene 6 Gene 7 Gene 8 Gene 9

Unknown Mixing System

Ribosome Biogenesis

Heat Shock


Oxidative Phosphorylation

Cell Cycle Regulation

Hyper-Osmotic Shock

Genomic Expression Programs of Biological Processes

Genomic Expression Pattern in Certain Experimental Conditions

GO 2

GO 1

GO m

GO i

Cluster i

GO j

k genes

g: # of genes in all clusters and GOs

f: # of genes in the GO j

n: # of genes in the Cluster i

k: # of genes GO j and Cluster i share

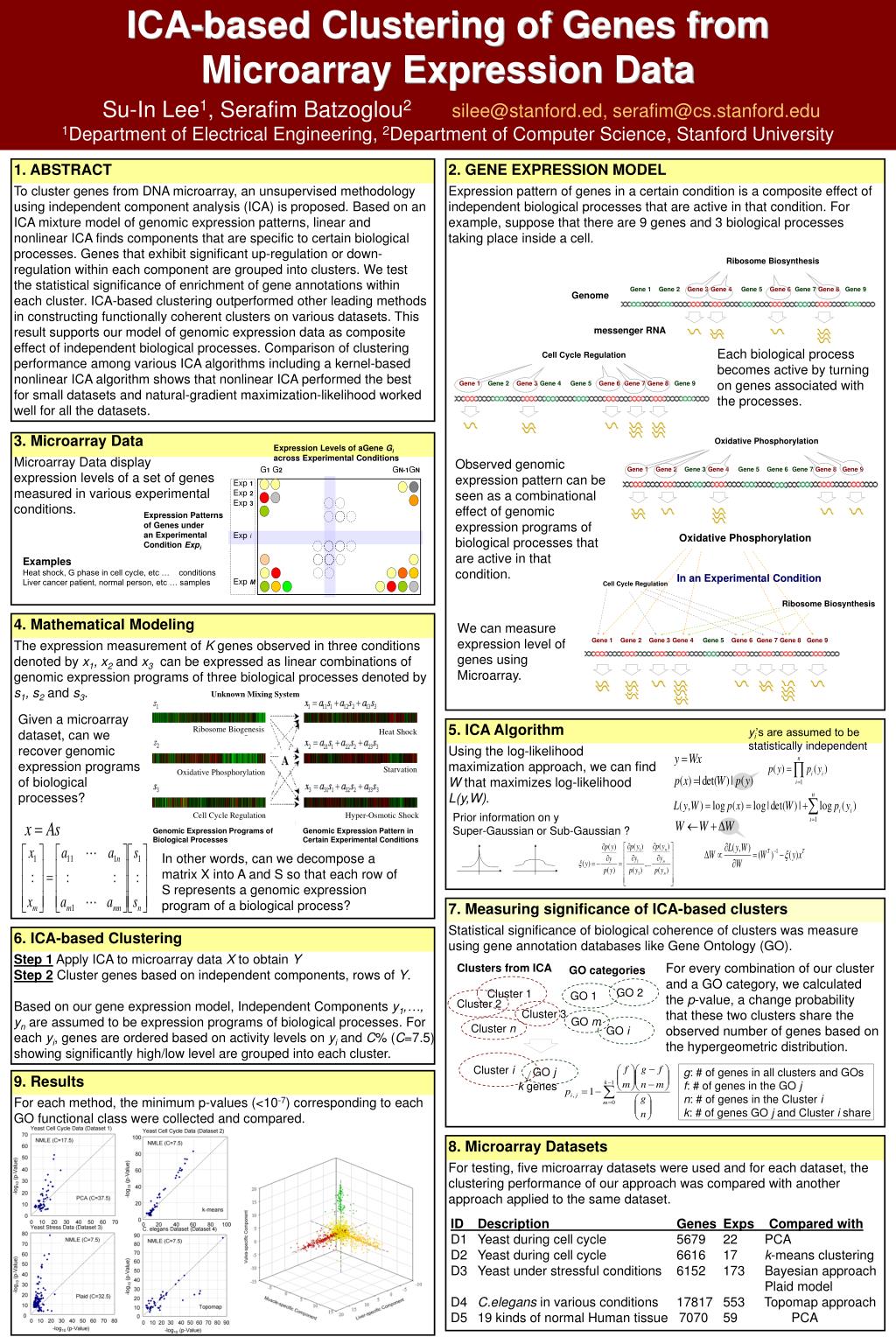

To cluster genes from DNA microarray, an unsupervised methodology using independent component analysis (ICA) is proposed. Based on an ICA mixture model of genomic expression patterns, linear and nonlinear ICA finds components that are specific to certain biological processes. Genes that exhibit significant up-regulation or down-regulation within each component are grouped into clusters. We test the statistical significance of enrichment of gene annotations within each cluster. ICA-based clustering outperformed other leading methods in constructing functionally coherent clusters on various datasets. This result supports our model of genomic expression data as composite effect of independent biological processes. Comparison of clustering performance among various ICA algorithms including a kernel-based nonlinear ICA algorithm shows that nonlinear ICA performed the best for small datasets and natural-gradient maximization-likelihood worked well for all the datasets.


Expression pattern of genes in a certain condition is a composite effect of independent biological processes that are active in that condition. For example, suppose that there are 9 genes and 3 biological processes taking place inside a cell.


messenger RNA

Each biological process becomes active by turning on genes associated with the processes.

3. Microarray Data

Microarray Data display expression levels of a set of genes measured in various experimental conditions.

Expression Levels of aGene Gi across Experimental Conditions

Observed genomic expression pattern can be seen as a combinational effect of genomic expression programs of biological processes that are active in that condition.


Exp 1

Exp 2

Exp 3


Expression Patterns

of Genes under

an Experimental Condition Expi


Heat shock, G phase in cell cycle, etc … conditions

Liver cancer patient, normal person, etc … samples

Exp M

4. Mathematical Modeling

The expression measurement of K genes observed in three conditions denoted by x1, x2 and x3 can be expressed as linear combinations of genomic expression programs of three biological processes denoted by s1, s2 and s3.

We can measure expression level of genes using Microarray.

Given a microarray dataset, can we recover genomic expression programs of biological processes?

5. ICA Algorithm

Using the log-likelihood maximization approach, we can find W that maximizes log-likelihood L(y,W).

yi’s are assumed to be statistically independent

Prior information on y

Super-Gaussian or Sub-Gaussian ?

In other words, can we decompose a matrix X into A and S so that each row of S represents a genomic expression program of a biological process?

7. Measuring significance of ICA-based clusters

Statistical significance of biological coherence of clusters was measure using gene annotation databases like Gene Ontology (GO).

6. ICA-based Clustering

Step 1 Apply ICA to microarray data X to obtain Y

Step 2 Cluster genes based on independent components, rows of Y.

Based on our gene expression model, Independent Components y1,…, yn are assumed to be expression programs of biological processes. For each yi, genes are ordered based on activity levels on yi and C% (C=7.5) showing significantly high/low level are grouped into each cluster.

For every combination of our cluster and a GO category, we calculated the p-value, a change probability that these two clusters share the observed number of genes based on the hypergeometric distribution.

Clusters from ICA

GO categories

Cluster 1

Cluster 2

Cluster 3

Cluster n

9. Results

For each method, the minimum p-values (<10-7) corresponding to each GO functional class were collected and compared.

8. Microarray Datasets

For testing, five microarray datasets were used and for each dataset, the clustering performance of our approach was compared with another approach applied to the same dataset.

ID Description Genes Exps Compared with

D1 Yeast during cell cycle 5679 22 PCA

D2 Yeast during cell cycle 6616 17 k-means clustering

D3 Yeast under stressful conditions 6152 173 Bayesian approach

Plaid model

D4 C.elegans in various conditions 17817 553 Topomap approach

D5 19 kinds of normal Human tissue 7070 59 PCA
