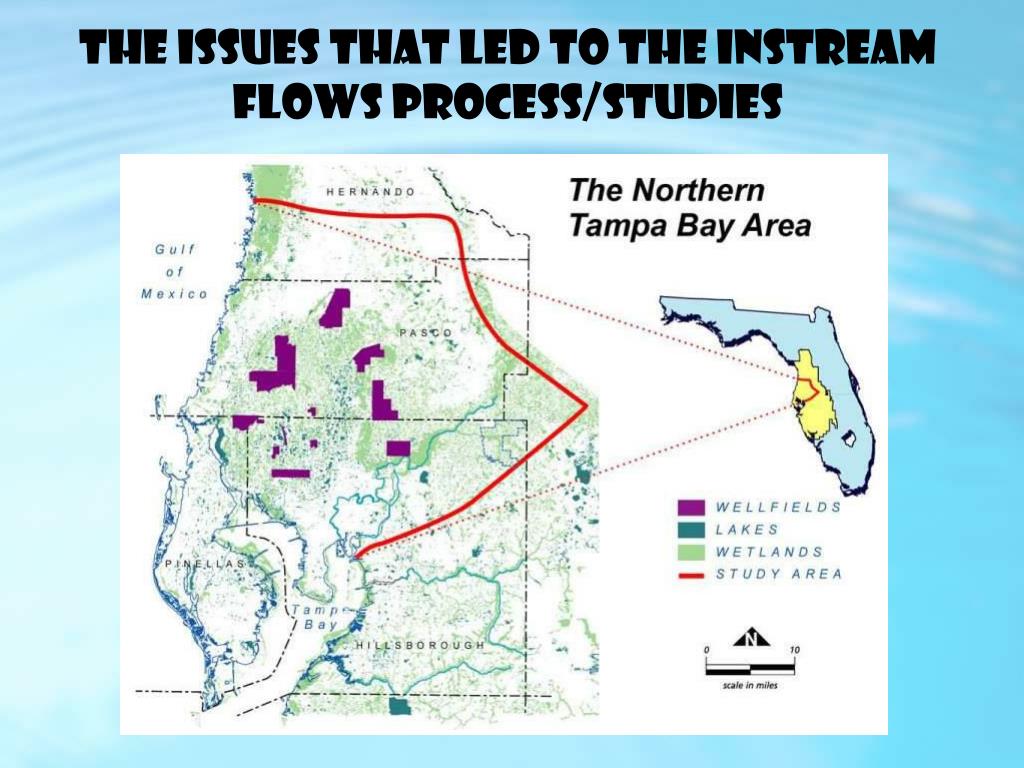

Minimum Flows and Levels for the Peace River. FLOW 2008 October, 2008 Marty Kelly http://www.swfwmd.state.fl.us/projects/mfl/. The Issues that Led to the Instream flows Process/Studies. The Policy Context. Minimum Flows and Levels - Florida Statutes, Section 373.042 -.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Minimum Flows and Levels for the Peace River' - primavera-ruiz


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

Minimum Flows and Levels for the Peace River

FLOW 2008

October, 2008

Marty Kelly http://www.swfwmd.state.fl.us/projects/mfl/

minimum flows and levels florida statutes section 373 042

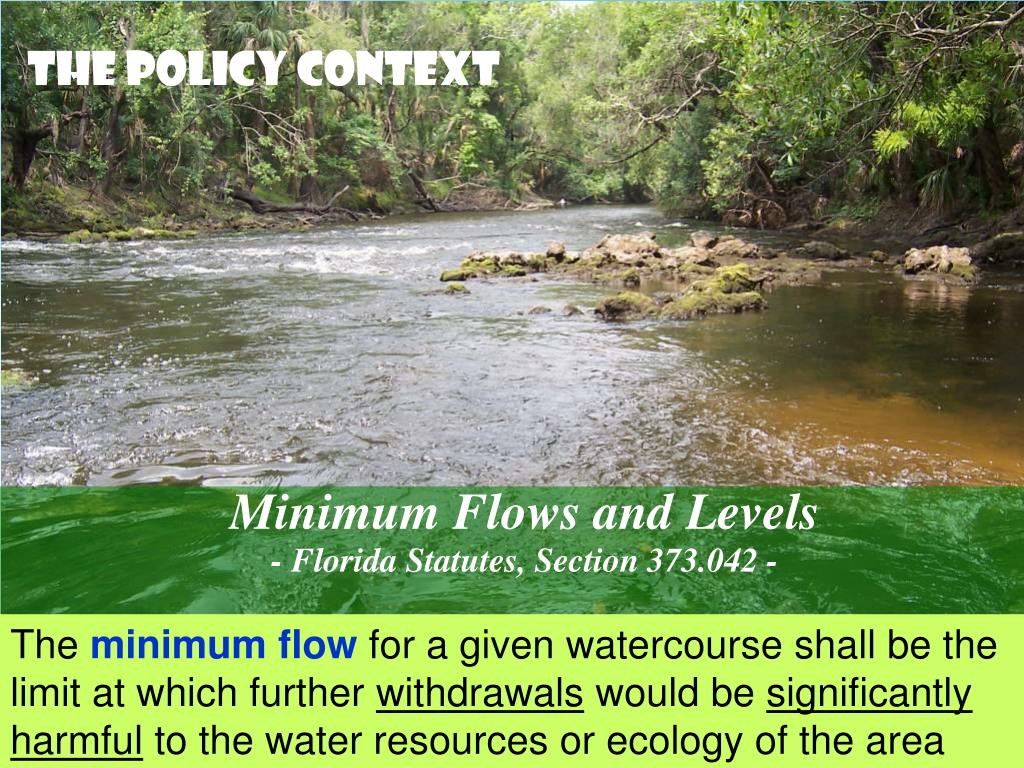

The Policy Context

Minimum Flows and Levels- Florida Statutes, Section 373.042 -

The minimum flow for a given watercourse shall be the limit at which further withdrawals would be significantly harmful to the water resources or ecology of the area

slide6

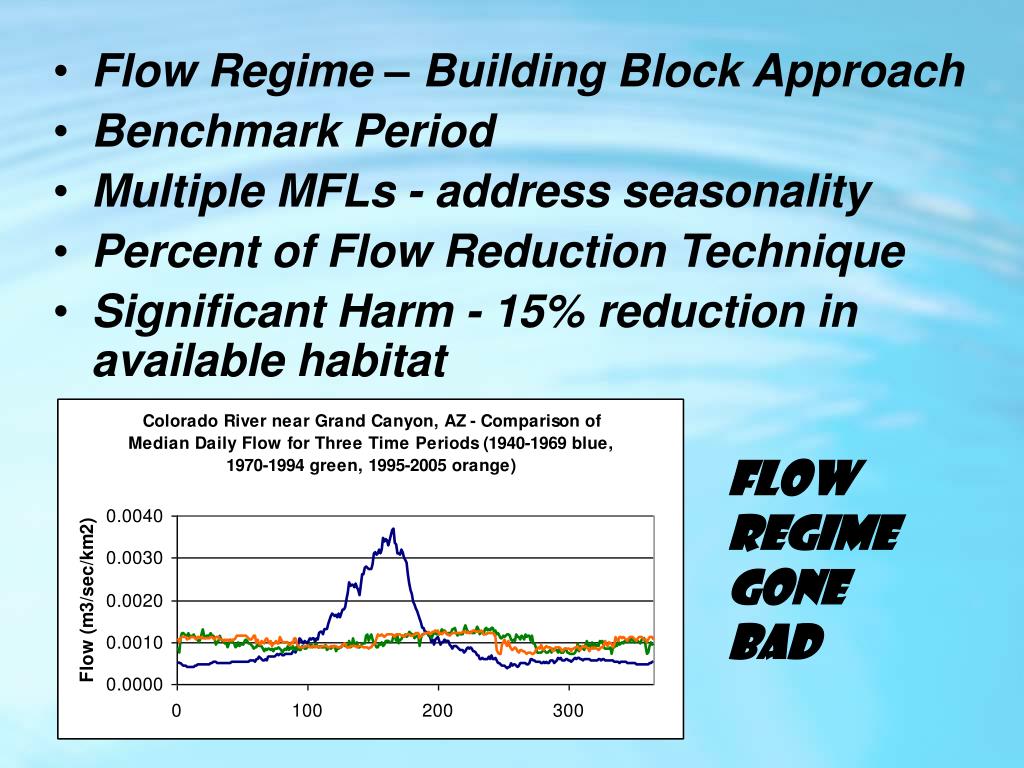

Flow Regime – Building Block Approach
  • Benchmark Period
  • Multiple MFLs - address seasonality
  • Percent of Flow Reduction Technique
  • Significant Harm - 15% reduction in available habitat

Flow Regime gone Bad

slide7

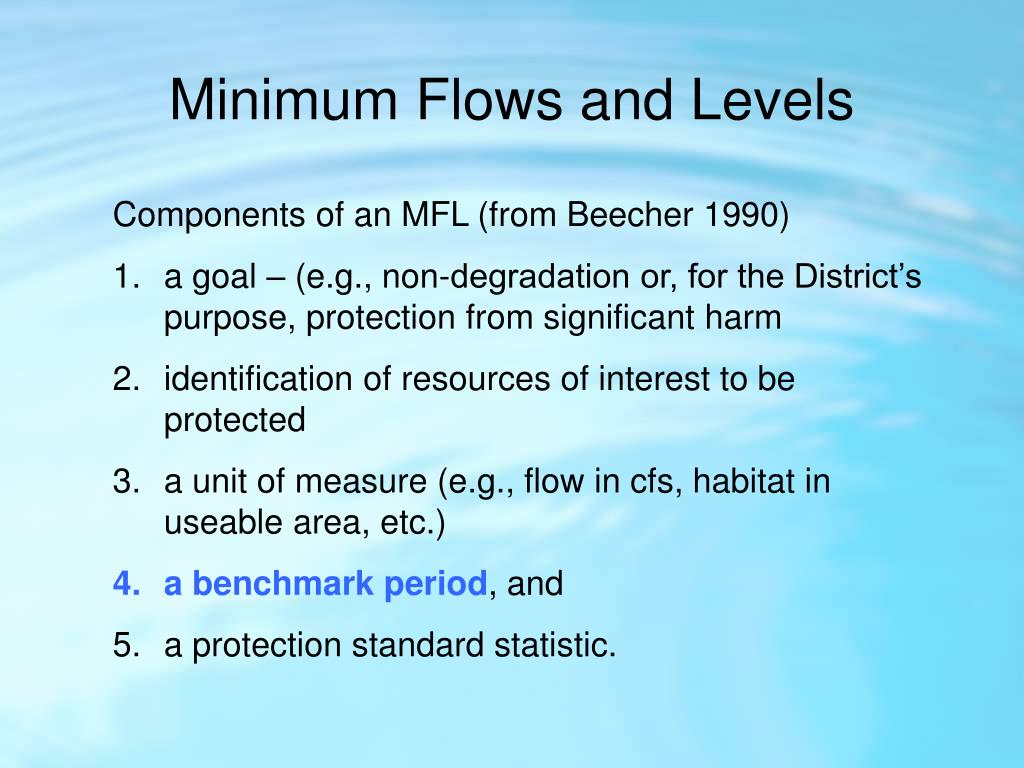

Minimum Flows and Levels

  • Components of an MFL (from Beecher 1990)
  • a goal – (e.g., non-degradation or, for the District’s purpose, protection from significant harm
  • identification of resources of interest to be protected
  • a unit of measure (e.g., flow in cfs, habitat in useable area, etc.)
  • a benchmark period, and
  • a protection standard statistic.
slide8

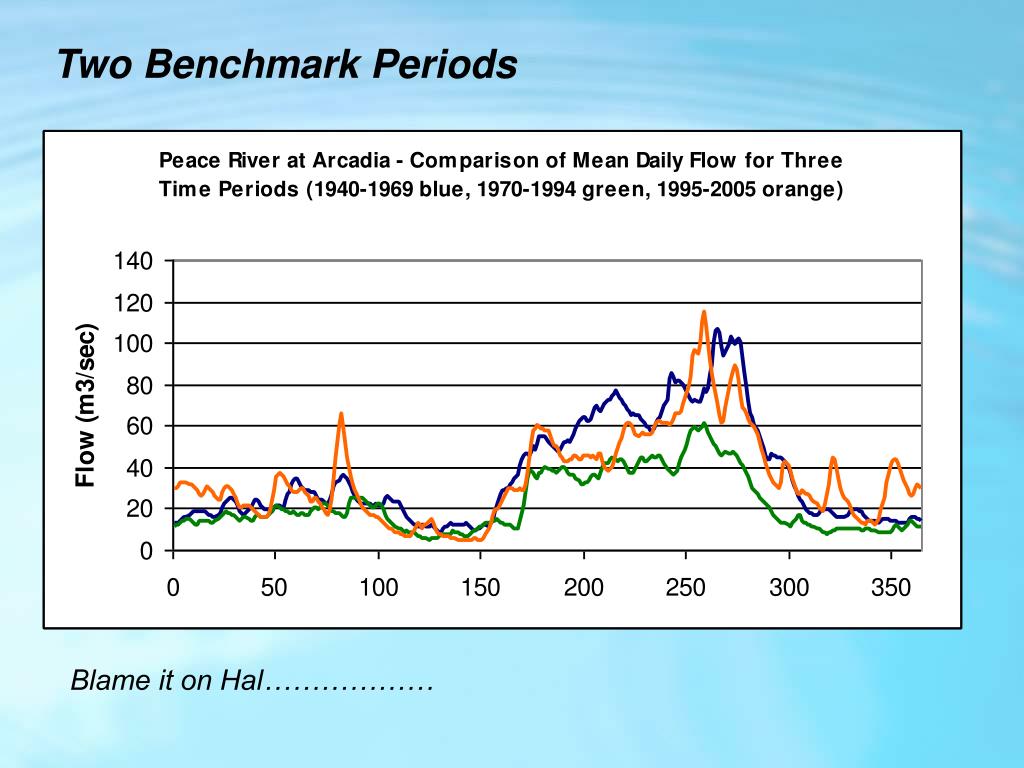

Two Benchmark Periods

Blame it on Hal………………

slide9

15%

In their peer review report on the Upper Peace River, Gore et al. (2002) stated,

“in general, instream flow analysts consider a loss of more than 15% habitat, as compared to undisturbed or current conditions, to be a significant impact on that population or assemblage."

slide12

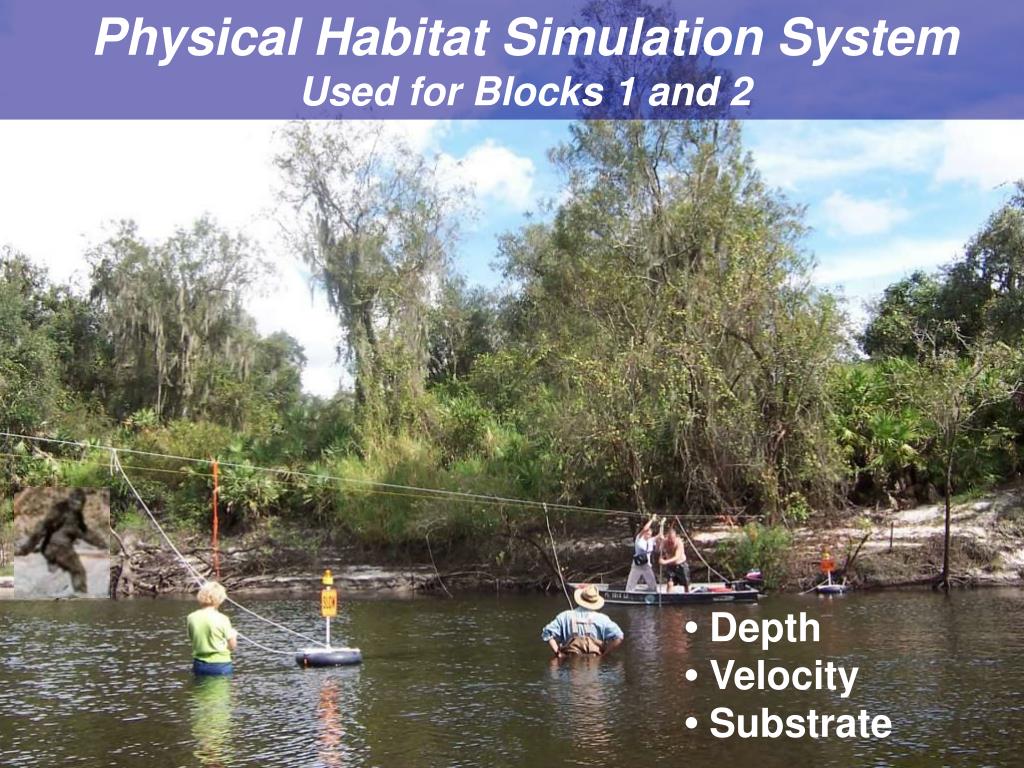

Physical Habitat Simulation System

Used for Blocks 1 and 2

• Depth

•Velocity

•Substrate

slide13

Long-Term Inundation Analysis

Used for Blocks 2 and 3

Floodplain

Exposed Roots

Snags

slide14

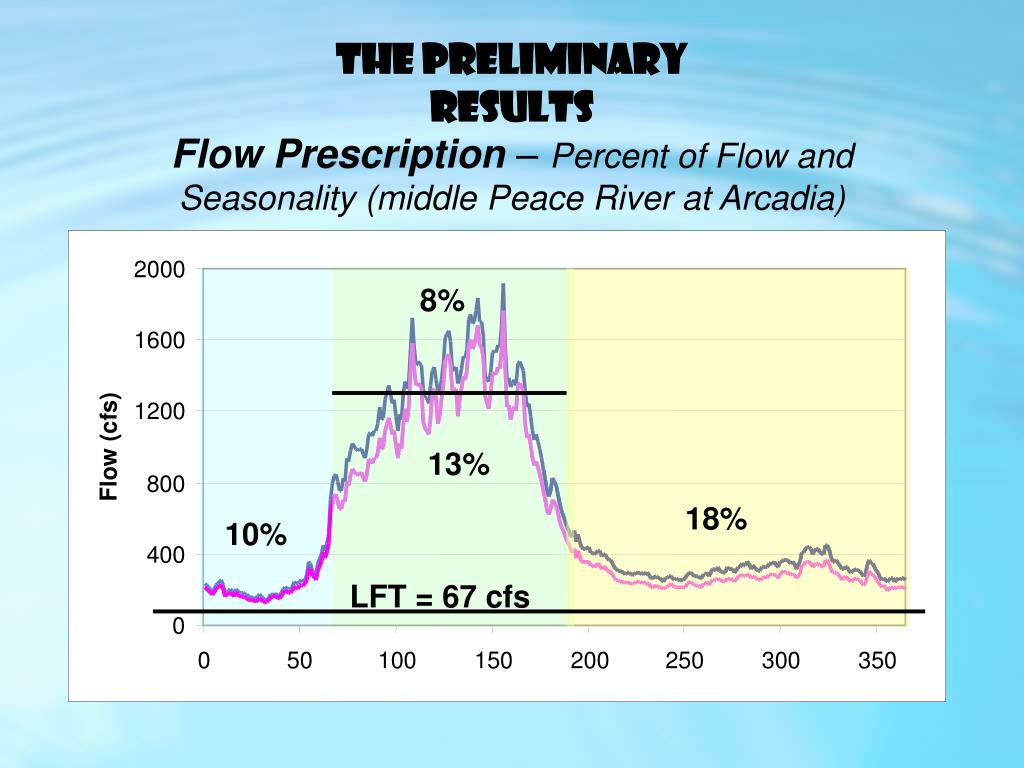

The PreliminaryResultsFlow Prescription – Percent of Flow and Seasonality (middle Peace River at Arcadia)
slide16

Establishment of an MFL requires identification of a critical biologically-relevant variable that can be defensibly and quantitatively related to variation in freshwater flows.

  • The volume of water in the system less than a given salinity – e.g. available fish habitat in given salinity zone
  • The bottom area in the system less than a given salinity – e.g. benthic invertebrate habitat
  • The shoreline length in the system less than a given salinity – e.g. amount of shoreline vegetation
analytical tools

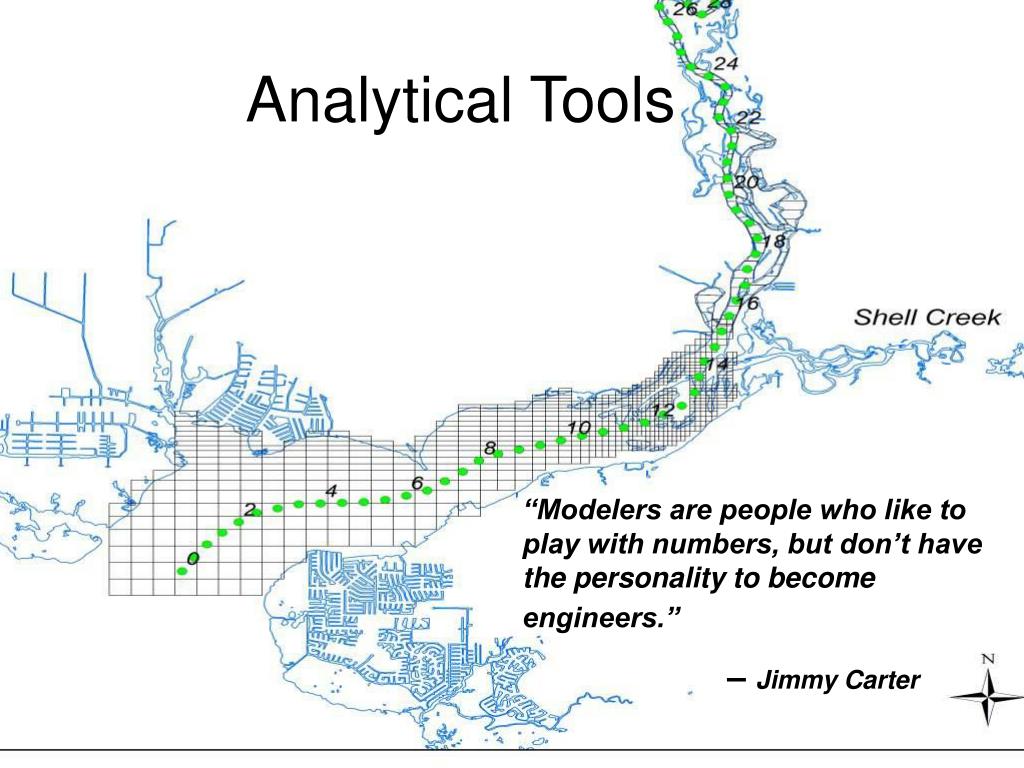

Analytical Tools

“Modelers are people who like to play with numbers, but don’t have the personality to become engineers.”

– Jimmy Carter

the public dialogue

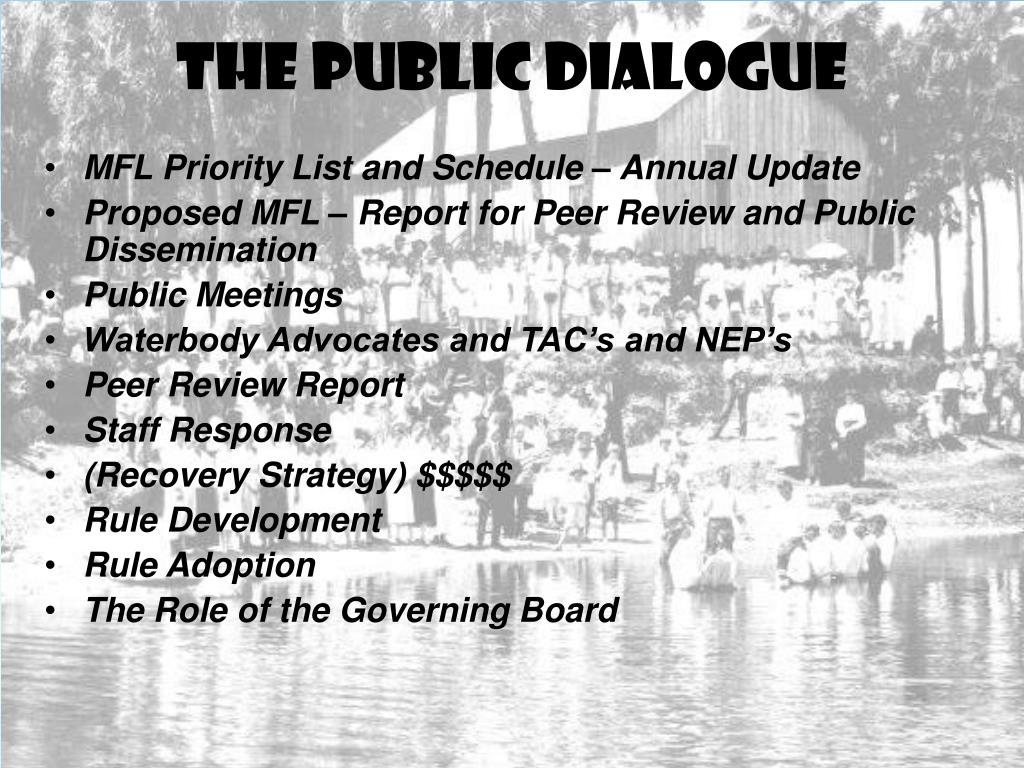

The Public Dialogue
  • MFL Priority List and Schedule – Annual Update
  • Proposed MFL – Report for Peer Review and Public Dissemination
  • Public Meetings
  • Waterbody Advocates and TAC’s and NEP’s
  • Peer Review Report
  • Staff Response
  • (Recovery Strategy) $$$$$
  • Rule Development
  • Rule Adoption
  • The Role of the Governing Board
recommendations for others lessons learned

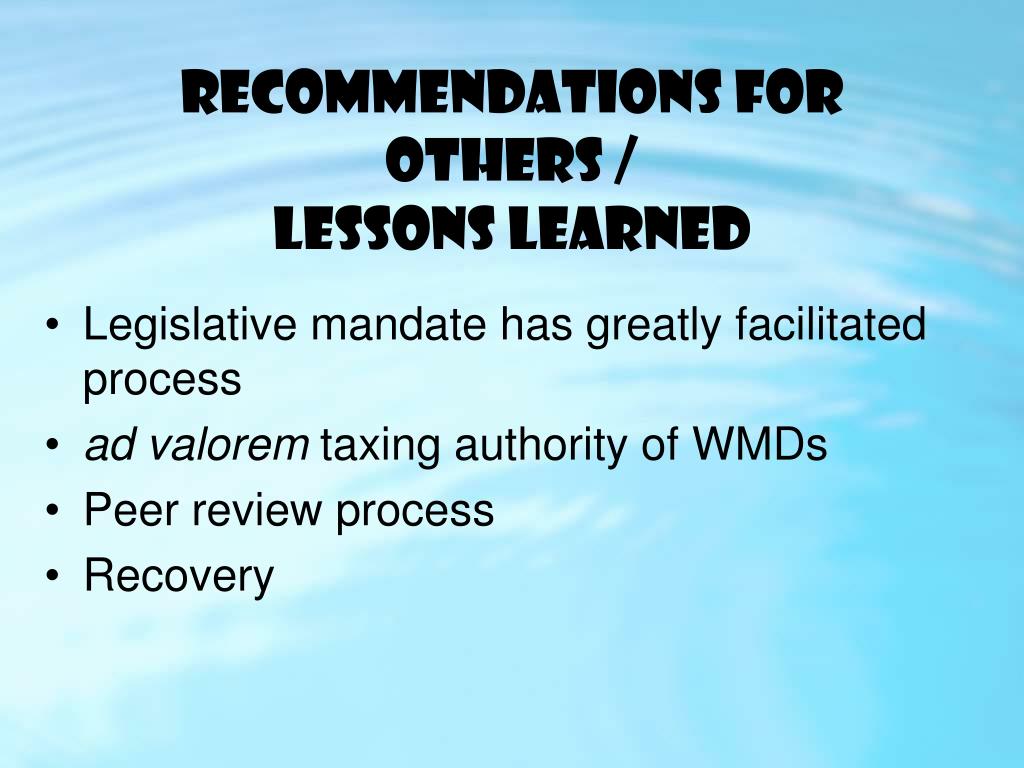

Recommendations for Others /Lessons Learned
  • Legislative mandate has greatly facilitated process
  • ad valorem taxing authority of WMDs
  • Peer review process
  • Recovery
slide21

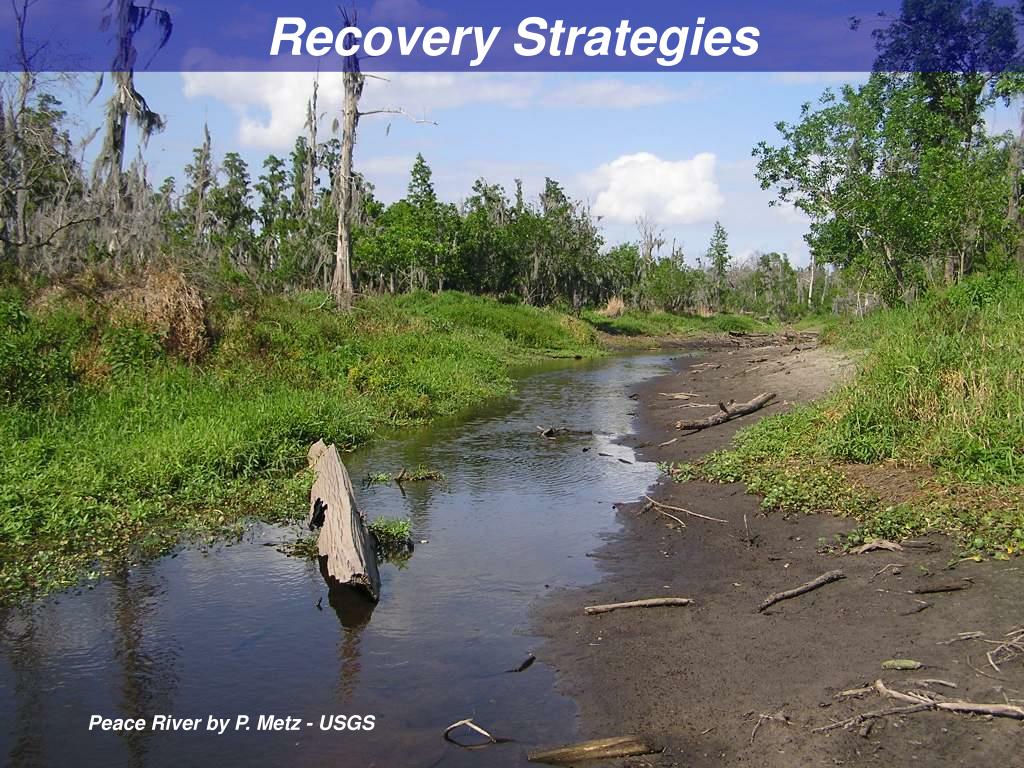

Recovery Strategies

Peace River by P. Metz - USGS

slide22

Questions

Photo: Richard Gant – Silver River 2007

Florida photographic collection
