IO Multiplexing

1. IO Multiplexing IO Models select()

2. I/O Models Blocking Non-Blocking IO Multiplexing Signal-driven IO Asynchronous IO

3. IO Models Two phases Waiting for the data Copying the data

4. Blocking I/O application kernel System call recvfrom No datagram ready Wait for data Process blocks in a call to recvfrom Datagram ready copy datagram Copy data from kernel to user Return OK Process datagram Copy complete

5. Nonblocking I/O application kernel System call recvfrom No datagram ready EWOULDBLOCK System call recvfrom No datagram ready Wait for data EWOULDBLOCK Process repeatedly call recvfrom wating for an OK return (polling) System call recvfrom datagram ready copy datagram Copy data from kernel to user Return OK Process datagram application

6. I/O multiplexing(select and poll) application kernel System call select Process block in a call to select waiting for one of possibly many sockets to become readable No datagram ready Wait for data Return readable Datagram ready copy datagram System call recvfrom Copy data from kernel to user Process blocks while data copied into application buffer Return OK Process datagram Copy complete

7. signal driven I/O(SIGIO) application kernel Sigaction system call Establish SIGIO Process continues executing Signal handler Return Wait for data Deliver SIGIO Signal handler Datagram ready copy datagram System call recvfrom Copy data from kernel to user Process blocks while data copied into application buffer Return OK Process datagram Copy complete

8. asynchronous I/O application kernel System call aio_read No datagram ready Return Wait for data Process continues executing Datagram ready copy datagram Copy data from kernel to user Delever signal Signal handler Process datagram Copy complete Specified in aio_read

9. Comparison of the I/O Models asynchronous I/O I/O multiplexing signal-driven I/O blocking nonblocking initiate check check initiate check check wait for data blocked check check check ready initiate notification initiate blocked blocked blocked copy data from kernel to user notification complete complete complete complete ist phase handled differently, 2nd phase handled the same handles both phases

10. select() int select( int maxfd, fd_set *readset, fd_set *writeset, fd_set *excepset, const struct timeval *timeout); maxfd : highest number assigned to a descriptor. weadset: set of descriptors we want to read from. writeset: set of descriptors we want to write to. excepset: set of descriptors to watch for exceptions. timeout: maximum time select should wait

11. struct timeval struct timeval { long tv_usec; /* seconds */ long tv_usec; /* microseconds */ } struct timeval max = {1,0};

12. Condition of select function Wait forever : return only when descriptor is ready (timeval = NULL) wait up to a fixed amount of time: Do not wait at all : return immediately after checking the descriptors (timeval = 0)

13. Readset descriptor for checking readable Writeset descriptor for checking writable Exceptset descriptor for checking two exception conditions arrival of out of band data for a socket the presence of control status information to be read from the master side of a pseudo terminal Select Function

14. Descriptor sets fd_set: an array of integers, with each bit in each integer corresponding to a descriptor. Void FD_ZERO(fd_set *fdset); /* clear all bits in fdset */ Void FD_SET(int fd, fd_set *fdset); /* turn on the bit for fd in fdset */ Void FD_CLR(int fd, fd_set *fdset); /* turn off the bit for fd in fdset*/ int FD_ISSET(int fd, fd_set *fdset);/* is the bit for fd on in fdset ? */

15. Example of Descriptor sets fd_set rset; FD_ZERO(&rset);/*all bits off : initiate*/ FD_SET(1, &rset);/*turn on bit fd 1*/ FD_SET(4, &rset); /*turn on bit fd 4*/ FD_SET(5, &rset); /*turn on bit fd 5*/

16. specifies the number of descriptors to be tested. Its value is the maximum descriptor to be tested, plus one example: fd 1,2,5 maxfdp1= 6 constant FD_SETSIZE defined by including <sys/select.h>, is the number of descriptors in the fd_set datatype.(1024) Maxfdp1

17. When is the descriptor ready for reading? Number of bytes in socket receive buffer > low-water mark of the socket. It defaults to 1 for TCP and UDP sockets The read half of the connection is closed (i.e., a TCP connection that has received a FIN) The socket is a listening socket and the number of completed connections is nonzero. A socket error is pending. A read operation on the socket will not block and will return an error (–1) with errno set to the specific error condition. These pending errors can also be fetched and cleared by calling getsockopt and specifying the SO_ERROR socket option.

18. When the socket is ready for writing? The number of bytes of available space in the socket send buffer is greater than or equal to the current size of the low-water mark for the socket send buffer and eit The write half of the connection is closed. A write operation on the socket will generate SIGPIPE A socket using a non-blocking connect has completed the connection, or the connect has failed A socket error is pending. A write operation on the socket will not block and will return an error (–1) with errno set to the specific error condition. These pending errors can also be fetched and cleared by calling getsockopt with the SO_ERROR socket option.

19. When is the socket descriptor returned in exception list? A socket has an exception condition pending if there is out-of-band data for the socket or the socket is still at the out-of-band mark

20. Condition that cause a socket to be ready for select Condition Readable? writable? Exception? Data to read read-half of the connection closed new connection ready for listening socket • • • Space available for writing write-half of the connection closed • • Pending error • • TCP out-of-band data •

21. Condition handled by select in str_cli client select() for readability on either standard input or socket Data of EOF • stdin Socket • error EOF TCP RST data FIN

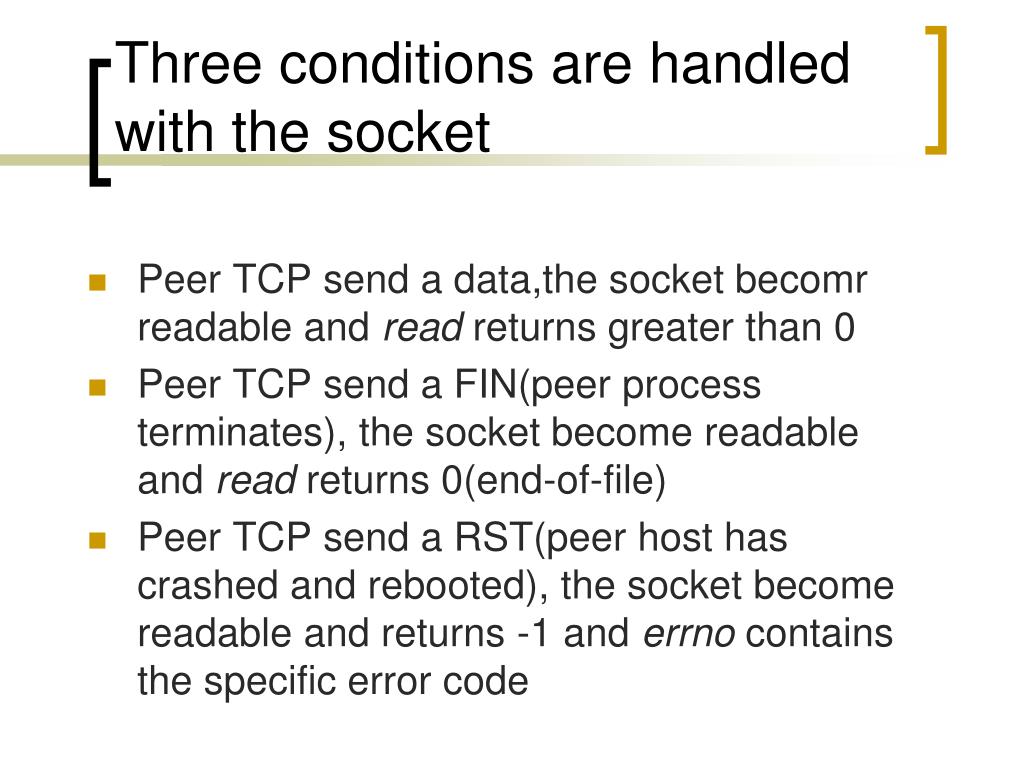

22. Three conditions are handled with the socket Peer TCP send a data,the socket becomr readable and read returns greater than 0 Peer TCP send a FIN(peer process terminates), the socket become readable and read returns 0(end-of-file) Peer TCP send a RST(peer host has crashed and rebooted), the socket become readable and returns -1 and errno contains the specific error code

23. Implimentation of str_cli function using select Void str_cli(FILE *fp, int sockfd) { int maxfdp1; fd_set rset; char sendline[MAXLINE], recvline[MAXLINE]; FD_ZERO(&rset); for ( ; ; ) { FD_SET(fileno(fp), &rset); FD_SET(sockfd, &rset); maxfdp1 = max(fileno(fp), sockfd) + 1; Select(maxfdp1, &rset, NULL, NULL, NULL); Continue….. if (FD_ISSET(sockfd, &rset)) { /* socket is readable */ if (Readline(sockfd, recvline, MAXLINE) == 0) err_quit("str_cli: server terminated prematurely"); Fputs(recvline, stdout); } if (FD_ISSET(fileno(fp), &rset)) { /* input is readable */ if (Fgets(sendline, MAXLINE, fp) == NULL) return; /* all done */ Writen(sockfd, sendline, strlen(sendline)); } }//for }//str_cli

24. Stop and waitsends a line to the server and then waits for the reply request request request request server reply server reply reply reply client time0 time1 time2 time3 time4 time5 time6 time7

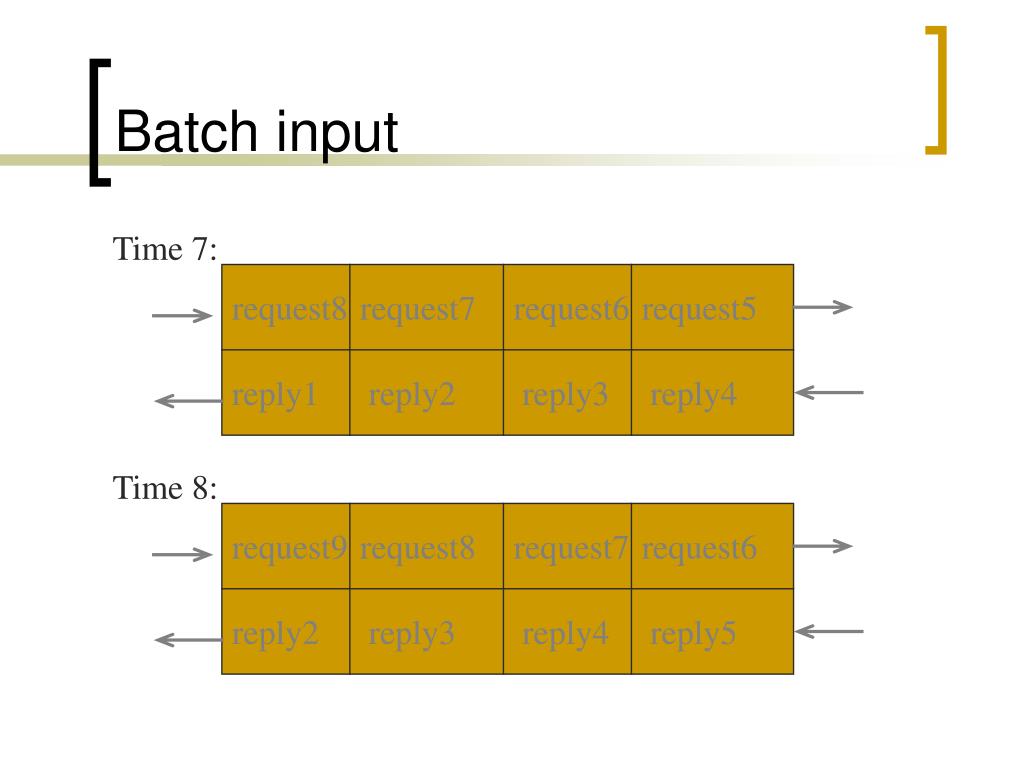

25. Batch input Time 7: request8 request7 request6 request5 reply1 reply2 reply3 reply4 Time 8: request9 request8 request7 request6 reply2 reply3 reply4 reply5

26. Handling batch input The problem with our revised str_cli function After the handling of an end-of-file on input, the send function returns to the main function, that is, the program is terminated. However, in batch mode, there are still other requests and replies in the pipe. A way to close one-half of the TCP connection send a FIN to the server, telling it we have finished sending data, but leave the socket descriptor open for reading <= shutdown function

27. Shutdown function Close one half of the TCP connection Close function : decrements the descriptor’s reference count and closes the socket only if the count reaches 0, terminate both directions of data transfer(reading and writing) Shutdown function closes just one of them (reading or writing)

28. client server data write data Read returns > 0 write shutdown Read returns > 0 FIN Read returns 0 Ack of data and FIN write data write data Read returns > 0 close FIN Read returns > 0 Ack of data and FIN Read returns 0 Calling shutdown to close half of a TCP connection

29. #include<sys/socket.h> int shutdown(int sockfd, int howto); /* return : 0 if OK, -1 on error */ howto argument SHUT_RD : read-half of the connection closed. No more reads can be issued SHUT_WR : write-half of the connection closed. Also called half-close. Buffered data will be sent followed by termination sequence. SHUT_RDWR : both closed Shutdown function

30. Str_cli function using select and shutdown #include "unp.h" void str_cli(FILE *fp, int sockfd) { int maxfdp1, stdineof; fd_set rset; char sendline[MAXLINE], recvline[MAXLINE]; stdineof = 0; FD_ZERO(&rset); for ( ; ; ) { if (stdineof == 0) // select on standard input for readability FD_SET(fileno(fp), &rset); FD_SET(sockfd, &rset); maxfdp1 = max(fileno(fp), sockfd) + 1; Select(maxfdp1, &rset, NULL, NULL, NULL); Continue…..

31. Str_cli function using select and shutdown if (FD_ISSET(sockfd, &rset)) { /* socket is readable */ if (Readline(sockfd, recvline, MAXLINE) == 0) { if (stdineof == 1) return; /* normal termination */ else err_quit("str_cli: server terminated prematurely"); } Fputs(recvline, stdout); } if (FD_ISSET(fileno(fp), &rset)) { /* input is readable */ if (Fgets(sendline, MAXLINE, fp) == NULL) { stdineof = 1; Shutdown(sockfd, SHUT_WR); /* send FIN */ FD_CLR(fileno(fp), &rset); continue; } Writen(sockfd, sendline, strlen(sendline)); } } }

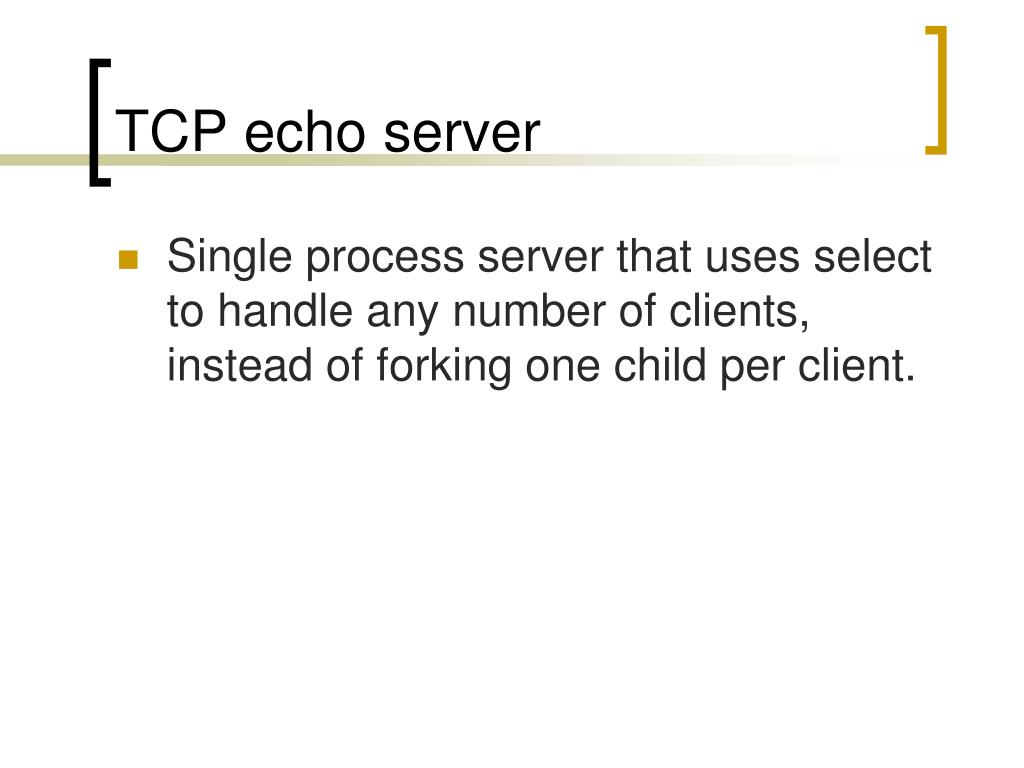

32. TCP echo server Single process server that uses select to handle any number of clients, instead of forking one child per client.

33. Data structure TCP server(1) Before first client has established a connection Client[] fd0 fd1 fd2 fd3 [0] -1 rset: 0 0 0 1 [1] -1 Maxfd + 1 = 4 [2] -1 fd:0(stdin),1(stdout),2(stderr) fd:3 => listening socket fd [FD_SETSIZE -1] -1

34. Data structure TCP server(2) After first client connection is established Client[] fd0 fd1 fd2 fd3 fd4 [0] 4 rset: 0 0 0 1 1 [1] -1 Maxfd + 1 = 5 [2] -1 * fd3 => listening socket fd [FD_SETSIZE -1] -1 *fd4 => client socket fd

35. Data structure TCP server(3) After second client connection is established Client[] fd0 fd1 fd2 fd3 fd4 fd5 [0] 4 rset: 0 0 0 1 1 1 [1] 5 Maxfd + 1 = 6 [2] -1 * fd3 => listening socket fd [FD_SETSIZE -1] -1 * fd4 => client1 socket fd * fd5 => client2 socket fd

36. Data structure TCP server(4) After first client terminates its connection Client[] fd0 fd1 fd2 fd3 fd4 fd5 [0] -1 rset: 0 0 0 1 0 1 [1] 5 Maxfd + 1 = 6 [2] -1 *Maxfd does not change * fd3 => listening socket fd [FD_SETSIZE -1] -1 * fd4 => client1 socket fd deleted * fd5 => client2 socket fd

37. TCP echo server using single process #include "unp.h" int main(int argc, char **argv) { int i, maxi, maxfd, listenfd, connfd, sockfd; int nready, client[FD_SETSIZE]; ssize_t n; fd_set rset, allset; char line[MAXLINE]; socklen_t clilen; struct sockaddr_in cliaddr, servaddr; listenfd = Socket(AF_INET, SOCK_STREAM, 0); bzero(&servaddr, sizeof(servaddr)); servaddr.sin_family = AF_INET; servaddr.sin_addr.s_addr = htonl(INADDR_ANY); servaddr.sin_port = htons(SERV_PORT); Bind(listenfd, (SA *) &servaddr, sizeof(servaddr)); Listen(listenfd, LISTENQ);

38. maxfd = listenfd; /* initialize */ maxi = -1; /* index into client[] array */ for (i = 0; i < FD_SETSIZE; i++) client[i] = -1; /* -1 indicates available entry */ FD_ZERO(&allset); FD_SET(listenfd, &allset); for ( ; ; ) { rset = allset; /* structure assignment */ nready = Select(maxfd+1, &rset, NULL, NULL, NULL); if (FD_ISSET(listenfd, &rset)) { /* new client connection */ clilen = sizeof(cliaddr); connfd = Accept(listenfd, (SA *) &cliaddr, &clilen); for (i = 0; i < FD_SETSIZE; i++) if (client[i] < 0) { client[i] = connfd; /* save descriptor */ break;} if (i == FD_SETSIZE) err_quit("too many clients"); FD_SET(connfd, &allset); /* add new descriptor to set */ if (connfd > maxfd) maxfd = connfd; /* maxfd for select */ if (i > maxi) maxi = i; /* max index in client[] array */ if (--nready <= 0) continue; /* no more readable descriptors */ }

39. for (i = 0; i <= maxi; i++) { /* check all clients for data */ if ( (sockfd = client[i]) < 0) continue; if (FD_ISSET(sockfd, &rset)) { if ( (n = Readline(sockfd, line, MAXLINE)) == 0) { /*connection closed by client */ Close(sockfd); FD_CLR(sockfd, &allset); client[i] = -1; } else Writen(sockfd, line, n); if (--nready <= 0) break; /* no more readable descriptors */ } } } }

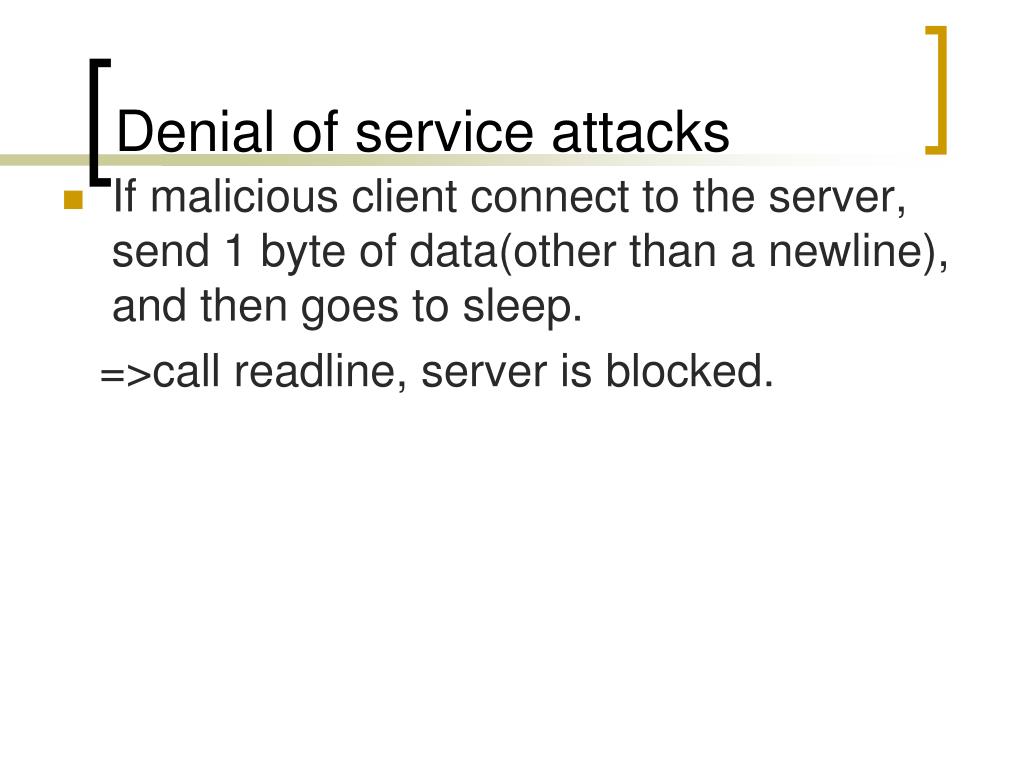

40. Denial of service attacks If malicious client connect to the server, send 1 byte of data(other than a newline), and then goes to sleep. =>call readline, server is blocked.

41. Denial of service attacks Solution use nonblocking I/O have each client serviced by a separate thread of control (spawn a process or a thread to service each client) place a timeout on the I/O operation

42. pselect function #include <sys/select.h> #include <signal.h> #include <time.h> int pselect(int maxfdp1, fd_set *readset, fd_set *writeset, fd_set *exceptset, const struct timespec *timeout, const sigset_t *sigmask) pselect function was invented by Posix.1g.

43. pselect function struct timespec{ time_t tv_sec; /*seconds*/ long tv_nsec; /* nanoseconds */ sigmask => pointer to a signal mask.

44. Poll function Similar to select, but provide additional information when dealing with streams devices #include <poll.h> int poll(struct pollfd *fdarray, unsigned long nfds, int timeout); /*return : count of ready descriptors, 0 on timeout, -1 on error*/ Self study
