Multiplexing

Multiplexing. Multiplexing is the set of techniques that allows multiple signal transmission across a single medium at the same time (simultaneously). It can be applied when the bandwidth of a medium connecting two devices is greater than the bandwidth needs of the devices.

caia
Download Presentation

Multiplexing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Multiplexing • Multiplexing is the set of techniques that allows multiple signal transmission across a single medium at the same time (simultaneously). • It can be applied when the bandwidth of a medium connecting two devices is greater than the bandwidth needs of the devices. • As such, the use of the medium is maximised. Physical Layer

  2. Figure 6.1Dividing a link into channels

  3. Multiplexing (Continued…) • Multiplexing techniques can be divided into three categories: • Frequency division multiplexing (FDM) • Wave division multiplexing (WDM) • Time division multiplexing (TDM) Physical Layer

  4. FDM • FDM is used when the bandwidth of the medium is greater than the combined bandwidths of the signals to be transmitted across it. • Signals generated by each device modulate different carrier frequencies. • The modulated signals are combined into a single composite signal and transported across the medium (link). Physical Layer

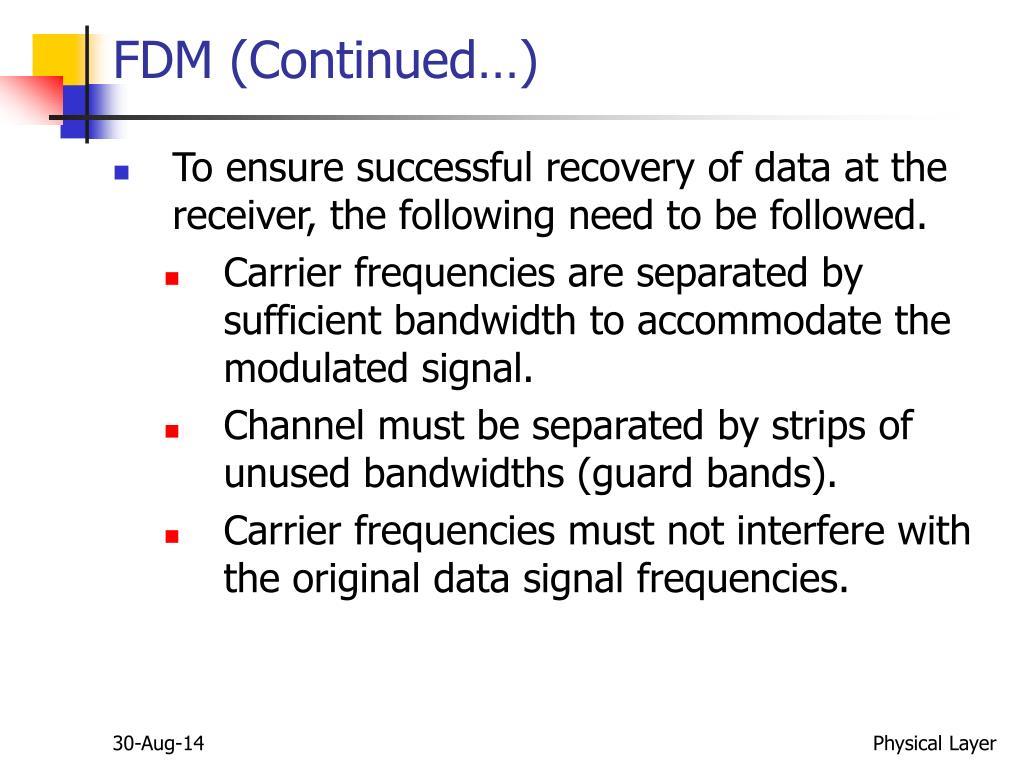

  5. FDM (Continued…) • To ensure successful recovery of data at the receiver, the following need to be followed. • Carrier frequencies are separated by sufficient bandwidth to accommodate the modulated signal. • Channel must be separated by strips of unused bandwidths (guard bands). • Carrier frequencies must not interfere with the original data signal frequencies. Physical Layer

  6. Figure 6.3FDM

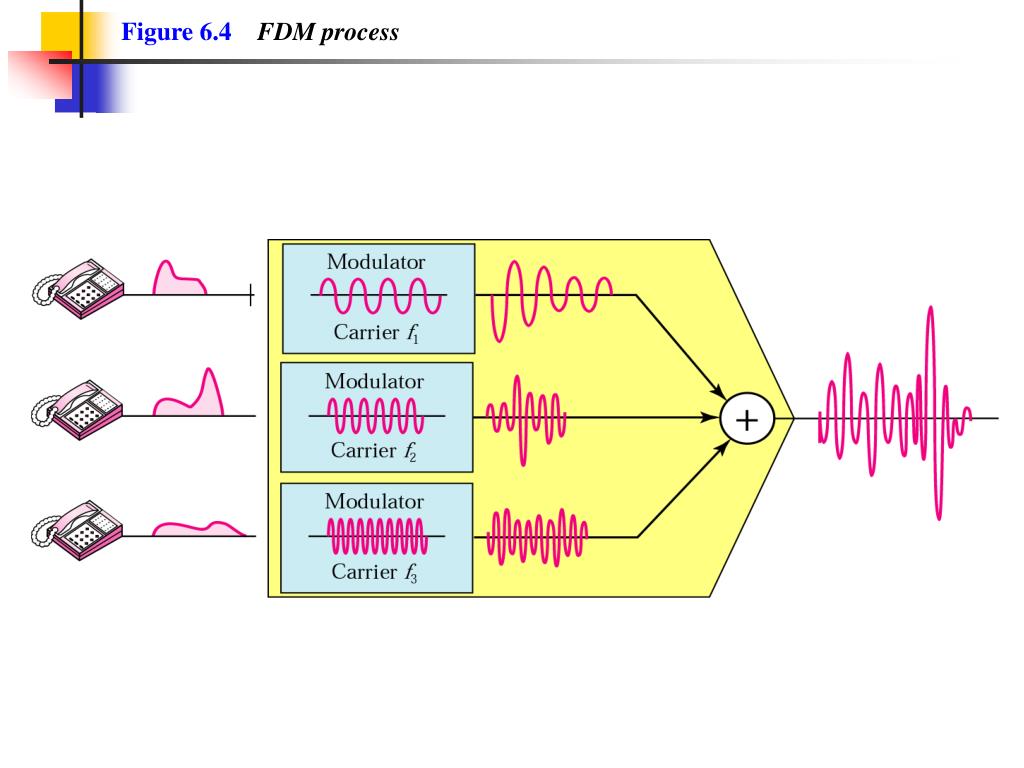

  7. Figure 6.4FDM process

  8. Figure 6.5FDM demultiplexing example

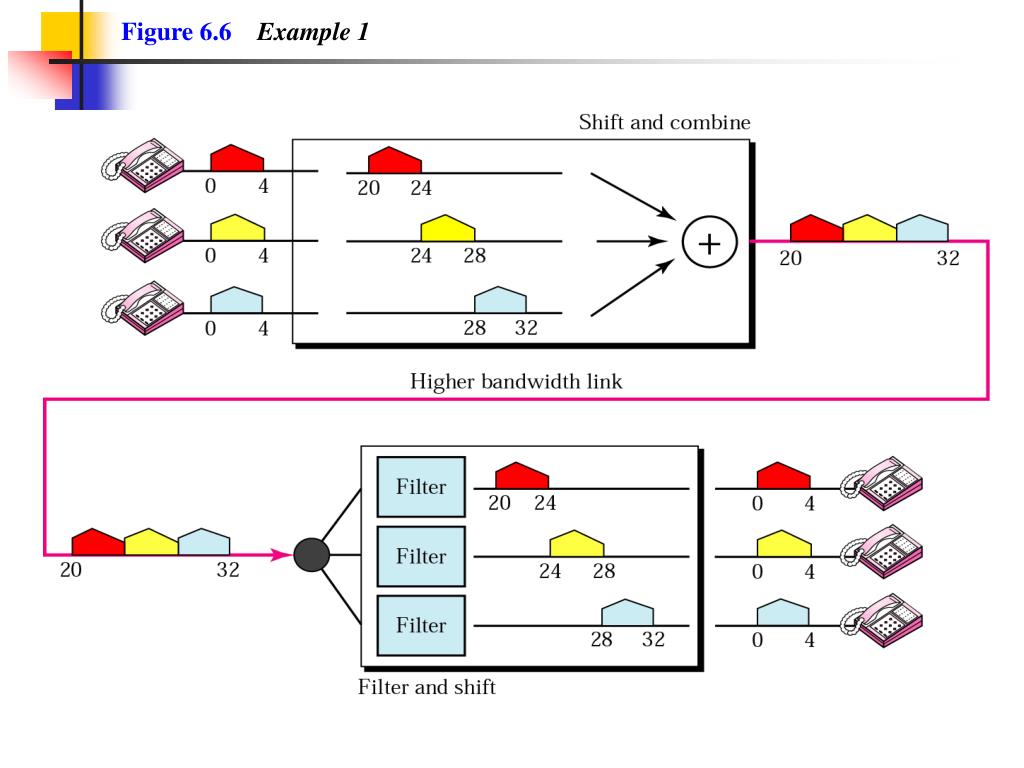

  9. Figure 6.6Example 1

  10. Figure 6.7Example 2

  11. FDM (Continued…) • FDM are used in the following applications: • AM (amplitude modulation) and FM (frequency modulation) radio broadcasting – filtering at the receiving end is done by tuning. • TV broadcasting – filtering is done by choosing the desired channel. • First generation mobile phones. Physical Layer

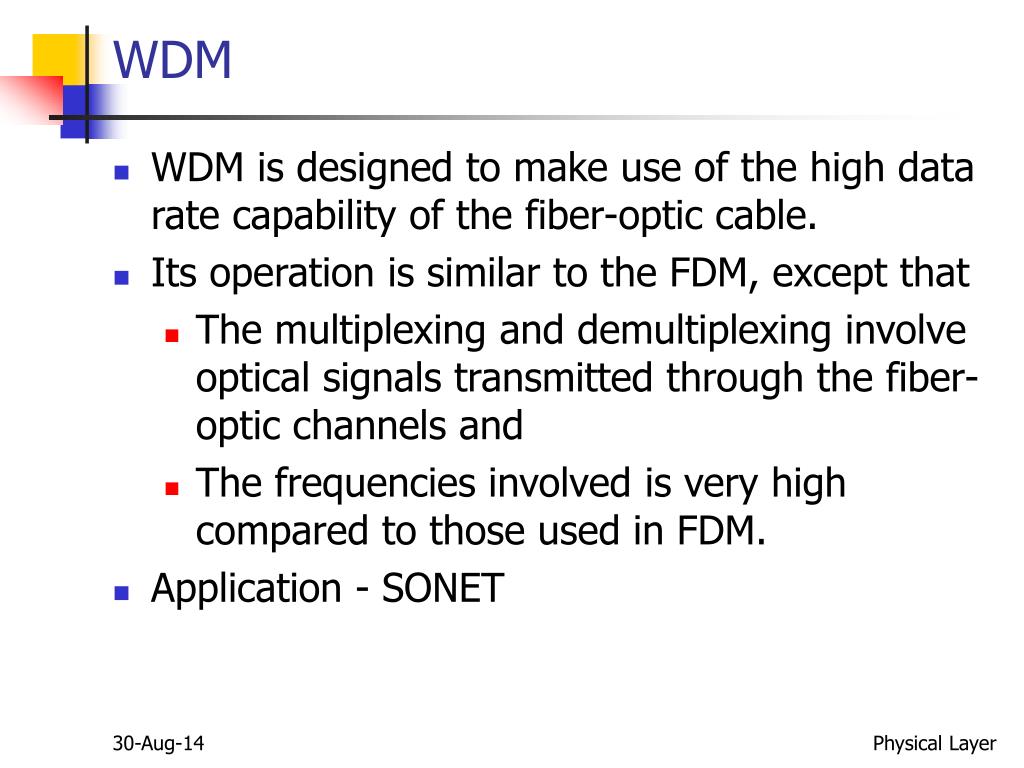

  12. WDM • WDM is designed to make use of the high data rate capability of the fiber-optic cable. • Its operation is similar to the FDM, except that • The multiplexing and demultiplexing involve optical signals transmitted through the fiber-optic channels and • The frequencies involved is very high compared to those used in FDM. • Application - SONET Physical Layer

  13. Figure 6.10WDM

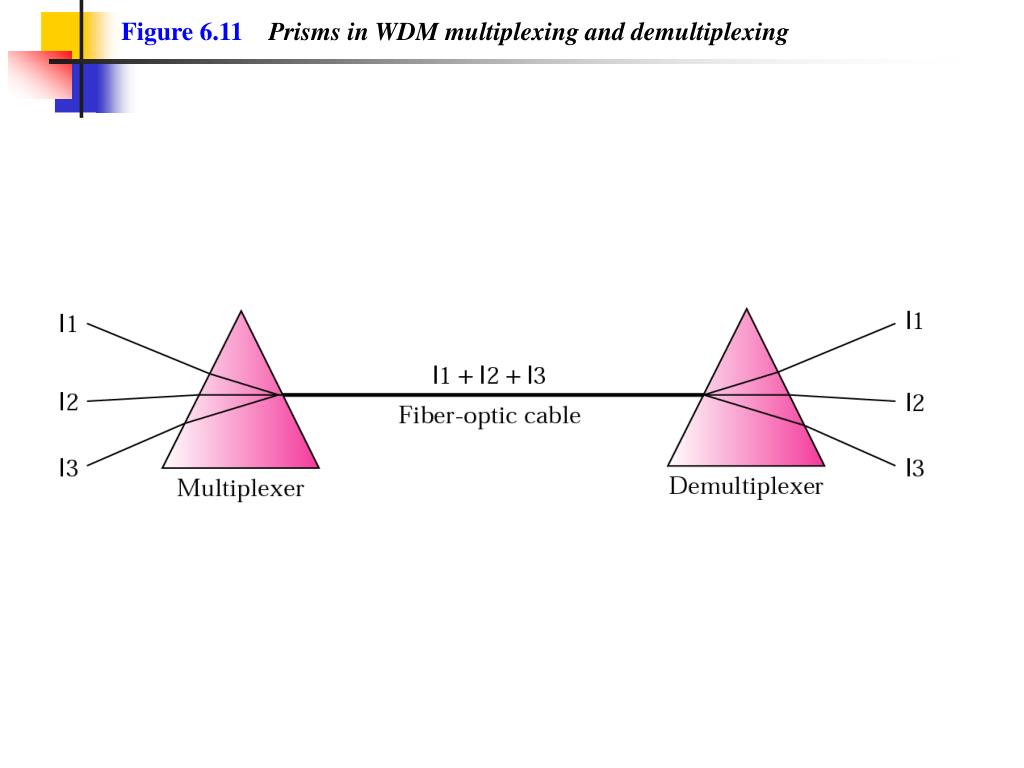

  14. Figure 6.11Prisms in WDM multiplexing and demultiplexing

  15. TDM • TDM is a digital process that allows several connections to share the high bandwidth of a link. • In TDM, a portion of a time is shared instead of bandwidth. • The data flow in each connection is divided into units. • The link combines one unit of each connection to make a frame. • The size of the unit can be 1 or several bits. Physical Layer

  16. TDM (Continued…) • For n connections, n time slots are at least required in each frame. • The data rate of the combined link = n x data rate of each connection. • Therefore, the duration of a unit in a connection is n times longer than its duration in the frame/combined link. • The operation of a TDM can be visualised as a a pair of rotating switch operating at the same speed but opposite direction. Physical Layer

  17. Figure 6.12TDM

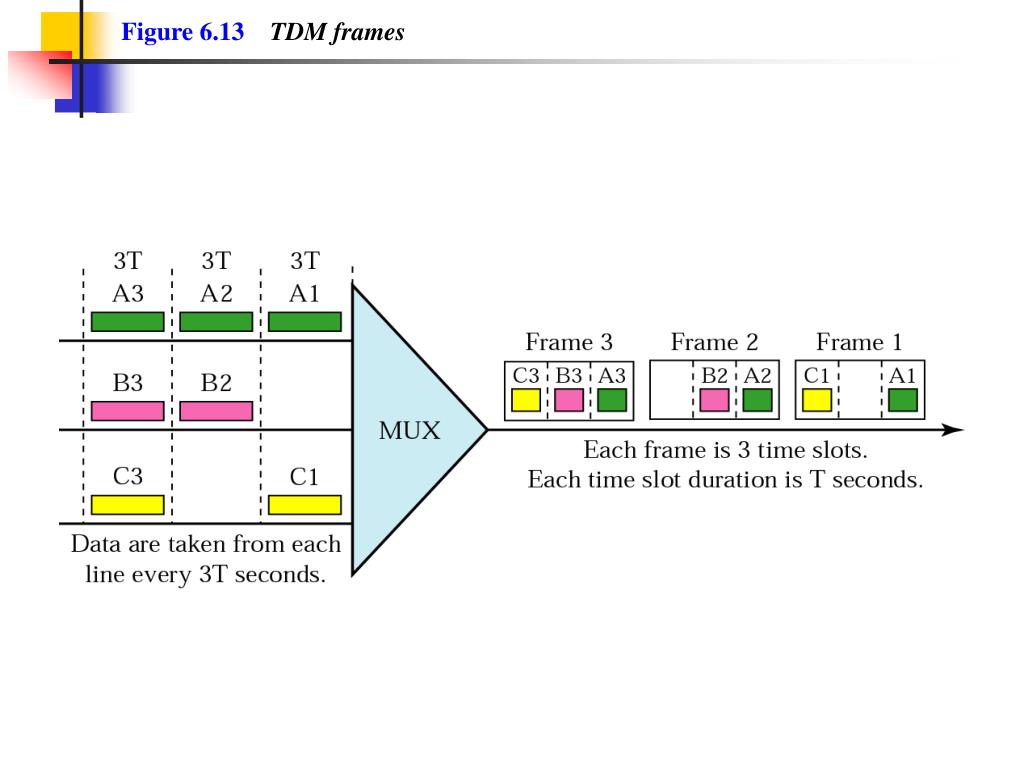

  18. Figure 6.13TDM frames

  19. Figure 6.14Interleaving

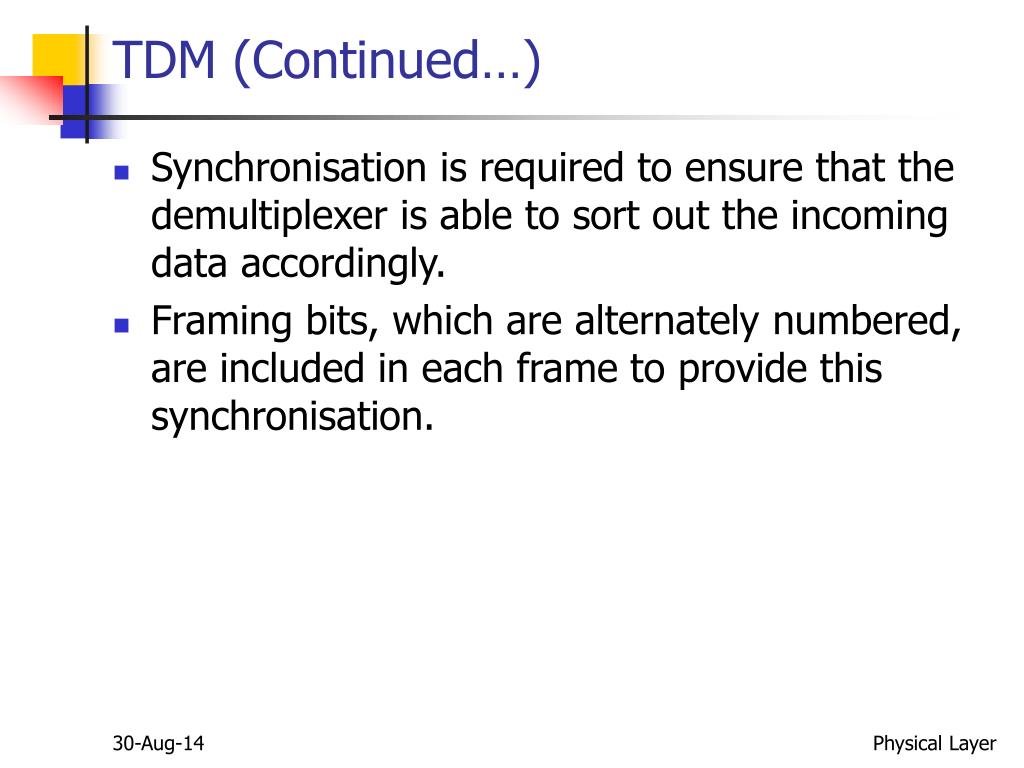

  20. TDM (Continued…) • Synchronisation is required to ensure that the demultiplexer is able to sort out the incoming data accordingly. • Framing bits, which are alternately numbered, are included in each frame to provide this synchronisation. Physical Layer

  21. Figure 6.17Framing bits
