Single Line Tethered Glider

Kyle Ball

Matthew Douglas

William Charlock

Problem Definition Presentation

9/9/2013

P14462

agenda
Agenda
  • Team introduction
  • Problem definition
  • Private and academic development
  • Customer needs
  • Engineering requirements
  • Timeline moving forward

Problem Definition Presentation

9/9/2013

P14462

team introduction
Team Introduction

Problem Definition Presentation

9/9/2013

P14462

problem definition
Problem Definition
  • Goal: Design, build, and test a tethered, small-scale, human-controlled glider.
  • Critical project objectives
    • Maintain maximum tension on the tether
    • Sustaining horizontal and vertical flight paths
    • Measure/record tether tension & position
    • Understand the influential parameters for sustained, tethered, unpowered flight

Glider

Tether

Base

Station

Operator w/

controller

Problem Definition Presentation

9/9/2013

P14462

private development
Private Development
  • Ampyx Power
    • Tethered Glider
    • Ground power generation
    • Figure-8 pattern
    • Capable of generating 850kW

Problem Definition Presentation

9/9/2013

P14462

private development1
Private Development
  • Makani Power
    • Tethered Glider
    • Airborne wind turbines
    • Circular pattern
    • Tested 30kW; Goal of 600kW

Problem Definition Presentation

9/9/2013

P14462

academic papers
Academic Papers
  • Loyd
  • 1980 Paper outlining how to harness high altitude wind energy
  • 3 Different Methods
    • Simple Kite
    • Crosswind Powered Kite
    • Drag Powered Kite
      • Uses turbines on kite rather than a ground based generator

Problem Definition Presentation

9/9/2013

P14462

academic papers1
Academic Papers
  • Lansdorp
  • Two Different Arrays of Kites
    • Pumping Mill
    • Laddermill
  • Created a system to measure the tension magnitude and direction using 3D load cell assembly
    • Basis for our system

Three axis load cell system created by Lansdorp et al.Image taken from [Lansdorp 2007].

Problem Definition Presentation

9/9/2013

P14462

academic papers2
Academic Papers
  • Donnelly
    • Fighter Kites
    • Theoretical model to predict motion of fighter kite
    • Created a method to control the fighter kite motion
    • Created an experimental rig with generator and variable tether length similar to Lansdorp’s.

Three axis load cell allowing for variable tether length created by Chris Donnelley. Image taken from [Donnelly 2013].

Problem Definition Presentation

9/9/2013

P14462

customer needs
Customer Needs

Problem Definition Presentation

9/9/2013

P14462

engineering requirements

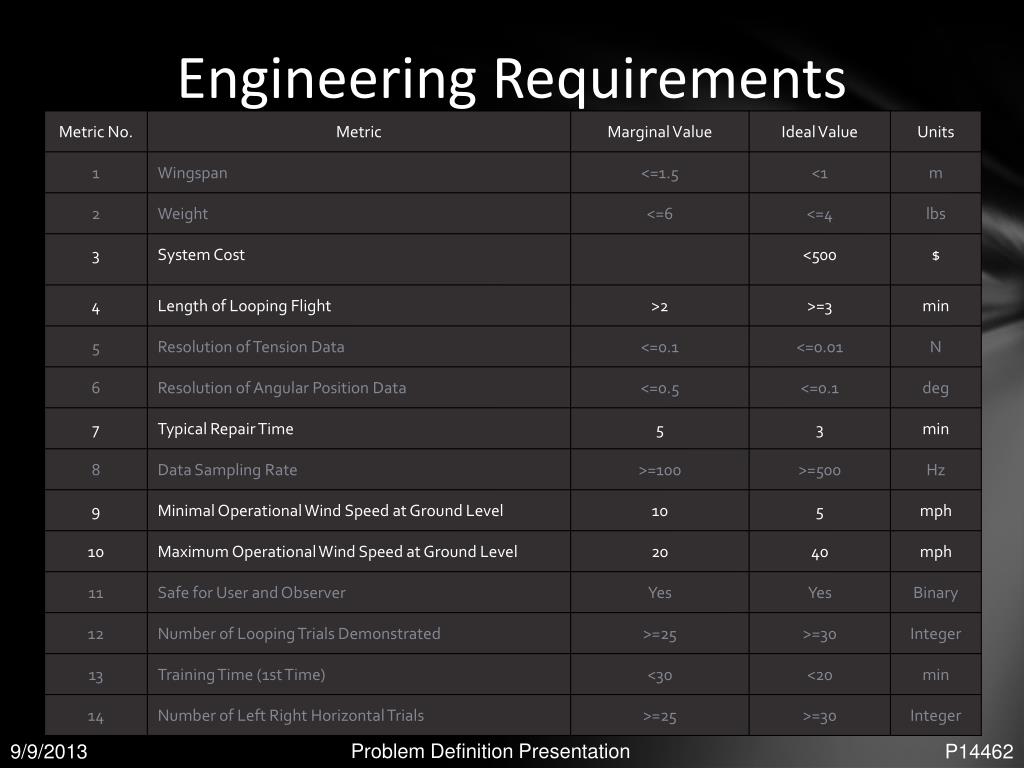

Engineering Requirements

Problem Definition Presentation

9/9/2013

P14462

house of quality
House of Quality

Problem Definition Presentation

9/9/2013

P14462

timeline
Timeline
  • Phase 1 (wk 1-3) - COMPLETE!
    • Define/understand problem definition
    • Research similar projects
    • Organize as a team
  • Phase 2 (wk 4-6) - In progress
    • Learn to fly
    • Research production load cells & gliders
    • Identify/understand critical engineering theory

Problem Definition Presentation

9/9/2013

P14462

timeline1
Timeline
  • Phase 3 (wk 7-9)
    • Determine glider design
    • If building glider from scratch
      • Identify airfoil types, materials, control/communication features
    • Develop theoretical simulation of flight
  • Phase 4 (wk 10-13)
    • Refine glider design
    • Refine theoretical simulations
  • Phase 5 (wk 14-15)
    • Order materials

Problem Definition Presentation

9/9/2013

P14462

using asana
Using Asana

Problem Definition Presentation

9/9/2013

P14462

summary
Summary
  • Team introduction
  • Problem definition
  • Private and academic development
  • Customer needs
  • Engineering requirements
  • Timeline moving forward

Problem Definition Presentation

9/9/2013

P14462

references
References
  • Ampyx Power. http://www.ampyxpower.com/
  • Makani Power. http://www.makanipower.com/home/
  • Loyd, Miles L. “Crosswind Kite Power.” Journal of Energy 4.3 (1980): 106–111. Print.
  • Lansdorp, Bas. “Comparison of Concepts for High-altitude Wind Energy Generation with Ground Based Generator.” Proceedings of the NRE 2005 Conference,Beijing, (2005): 1–9. Web. 17 Feb. 2011.
  • Donnelly, Christopher. “Dynamics and control of a single-line maneuverable kite.” Rochester Institute of Technology. (2013).

Problem Definition Presentation

9/9/2013

P14462

questions
Questions?

Problem Definition Presentation

9/9/2013

P14462
