  1. Single Line Tethered Glider Sub-System Level Design Review Team P14462 Kyle Ball Matthew Douglas William Charlock Jon Erbelding Paul Grossi Sajid Subhani

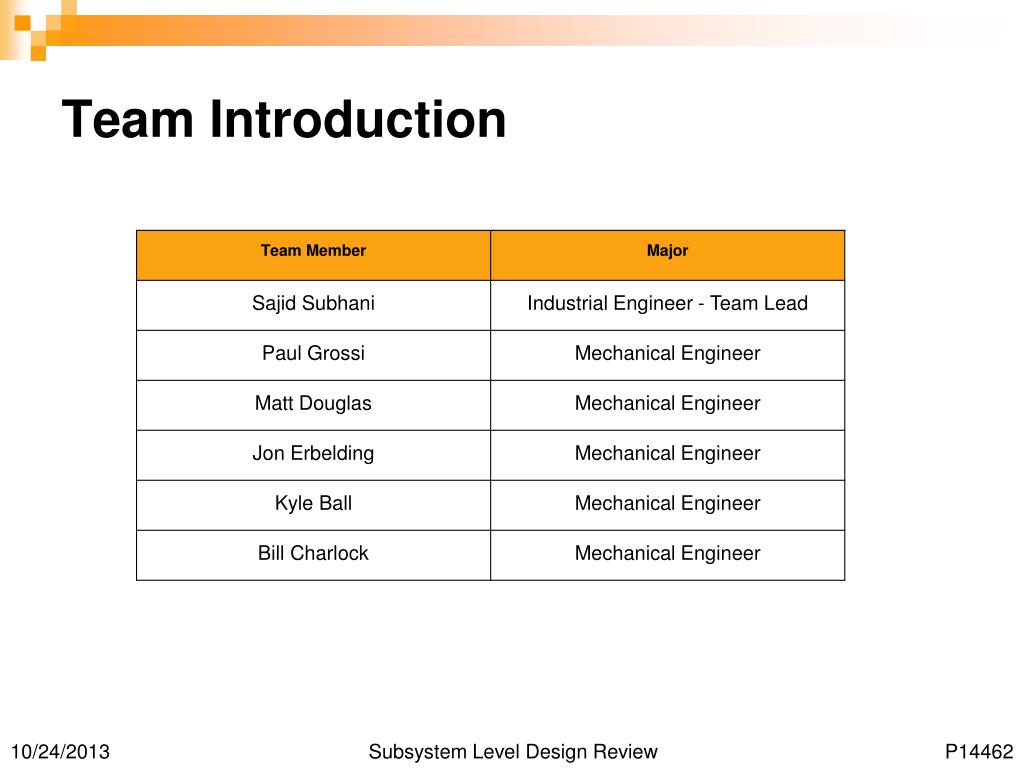

  2. Team Introduction

  3. Agenda • Project Description Review • Engineering Requirements Review • Top 3 Concepts from Last Review • Concept Feasibility • Glider Analysis and Feasibility • Base Station Analysis and Feasibility • Project Planning • Work Breakdown Structure

  4. Project Description Review • Goal: Design, build, and test a tethered, small-scale, human-controlled glider. • Critical Project Objectives: • Maintain maximum tension on the tether • Sustaining horizontal and vertical flight paths • Measure and record tether tension and position • Understand the influential parameters for sustained, tethered, unpowered flight Glider Tether Base Station Operator w/ controller

  5. Engineering Requirements Yellow: Major design Biege: DAQ Grey: Test flight White: System environment

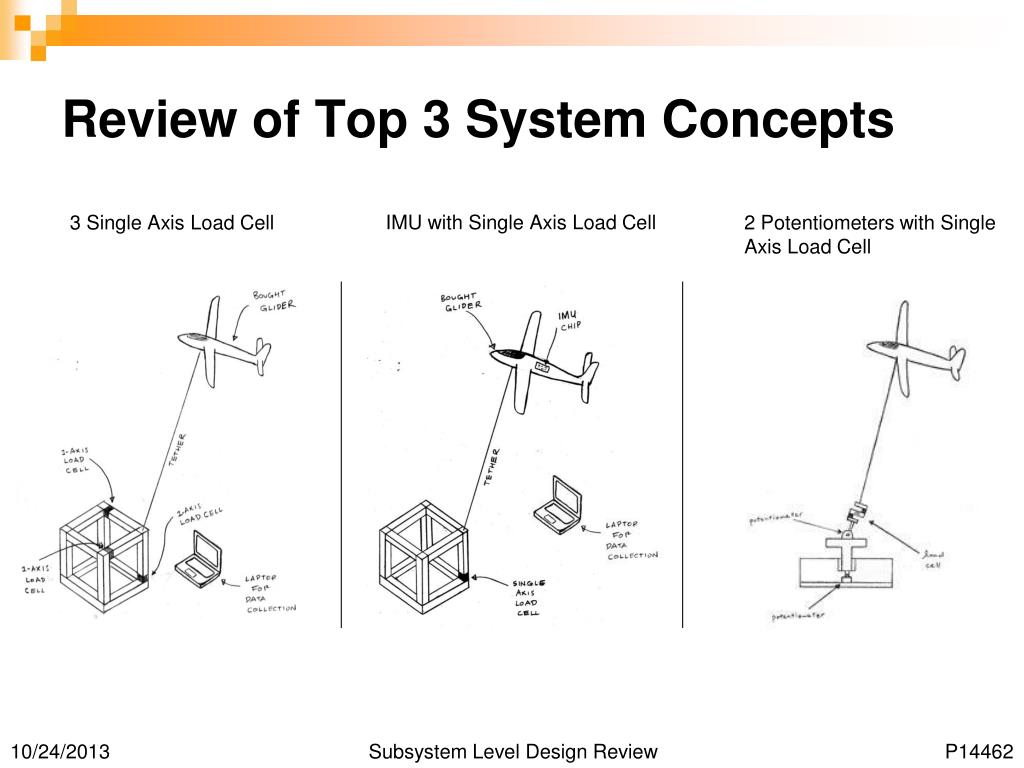

  6. Review of Top 3 System Concepts IMU with Single Axis Load Cell 3 Single Axis Load Cell 2 Potentiometers with Single Axis Load Cell

  7. Glider Analysis

  8. Choosing the Glider Bixler v1.1 EPO Foam Phoenix 2000 EPO Foam Wing span: 2 [m] Chord length: 0.3 [m] Mass: 0.98 [kg] Front mounted propeller Reinforced $150 • Wing span: 1.4 [m] • Chord length: 0.2 [m] • Mass: 0.65 [kg] • Middle mounted propeller • Only EPO Foam • $120

  9. Price Sheet for Glider

  10. Choosing the Glider The smaller Bixler glider creates less tension for a larger operating range Able to operate with an affordable load cell

  11. Flight Orientation

  12. Flight Orientation

  13. Flight Analysis Wind Speed: ~ 11 mph

  14. Flight Analysis Wind Speed: ~ 22 mph

  15. Flight Analysis Wind Speed: ~ 44 mph

  16. Qualitative DOE • Slower wind speed: lower tension • Larger flight path radius: lower tension • Beta angle peaks: ~ 94-95° • Tension peaks: ~ 20 [m] tether length • Tension must be less than 5000 [N] (1100 lbs)

  17. Quantitative DOE • Choosing flight configuration • Decision variables • Beta angle • Tether length • Flight path radius • Constraints • Maximum allowable tension • Observed wind speed

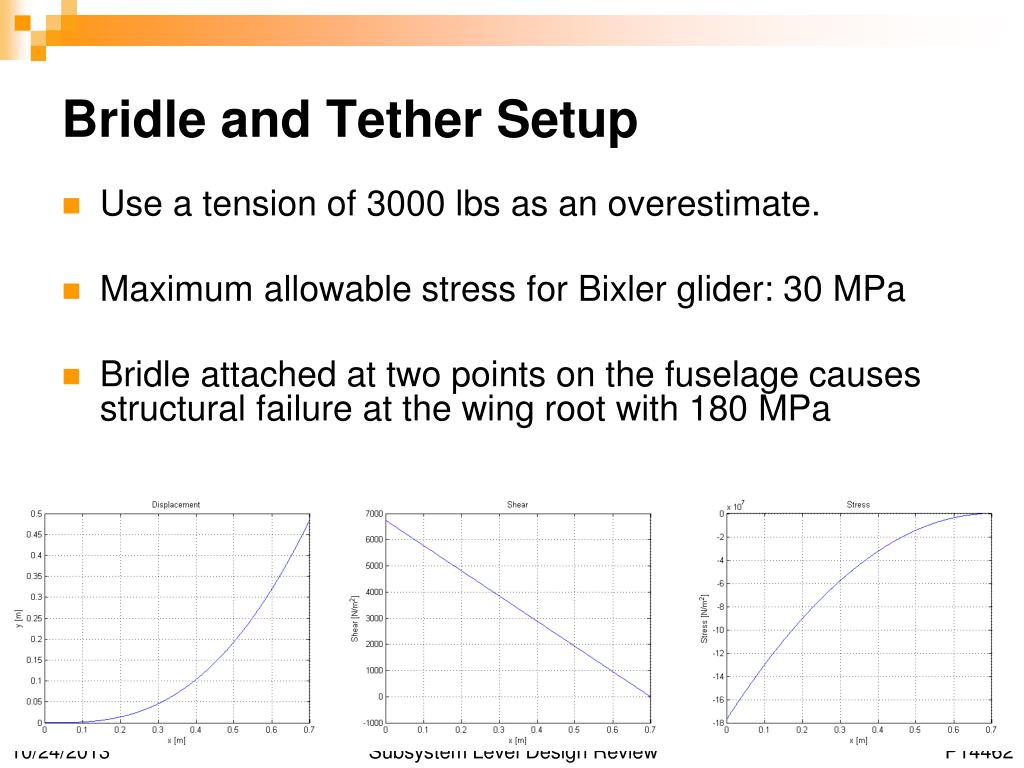

  18. Bridle and Tether Setup Use a tension of 3000 lbs as an overestimate. Maximum allowable stress for Bixler glider: 30 MPa Bridle attached at two points on the fuselage causes structural failure at the wing root with 180 MPa

  19. Proposed Tether and Bridle Design

  20. Ideal Bridle Location Analysis Optimum tether location: 0.51 m from root. Optimum tether angle: 54 deg from airplane

  21. Wing Stress Analysis

  22. Wing Stress Analysis • Maximum stress: 15 MPa

  23. Fuselage Stress Analysis

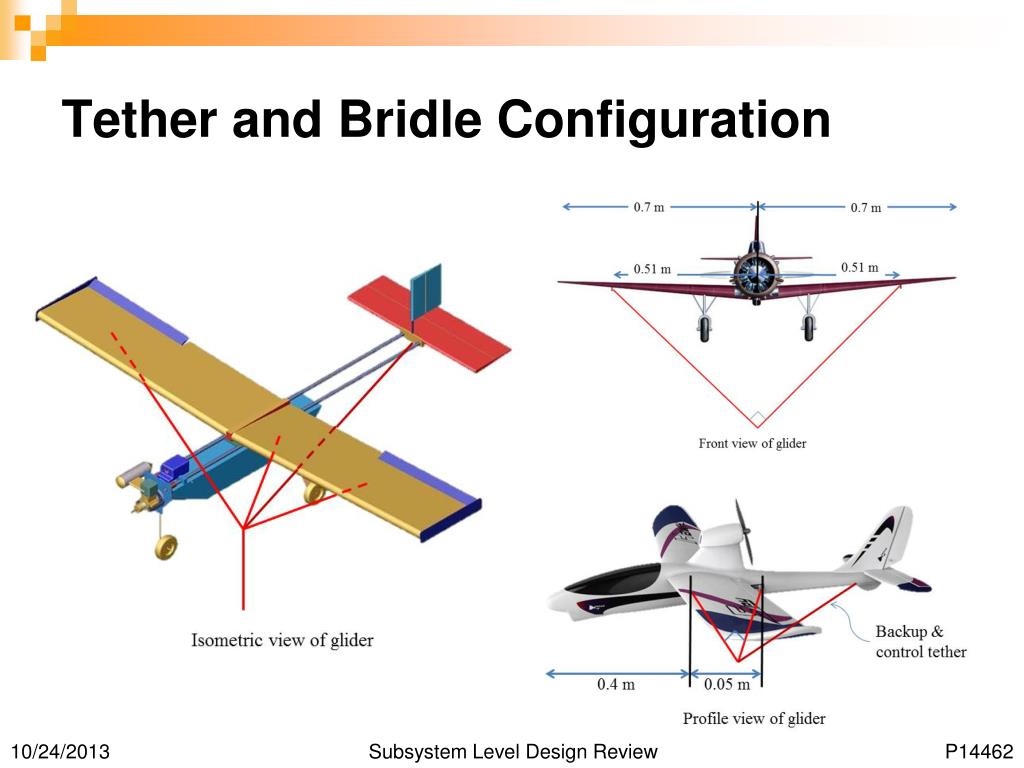

  24. Tether and Bridle Configuration

  25. Base Station Analysis and Feasibility

  26. 2 Potentiometers and Single-Axis Load Cell Concept 1

  27. Vertical Rotation

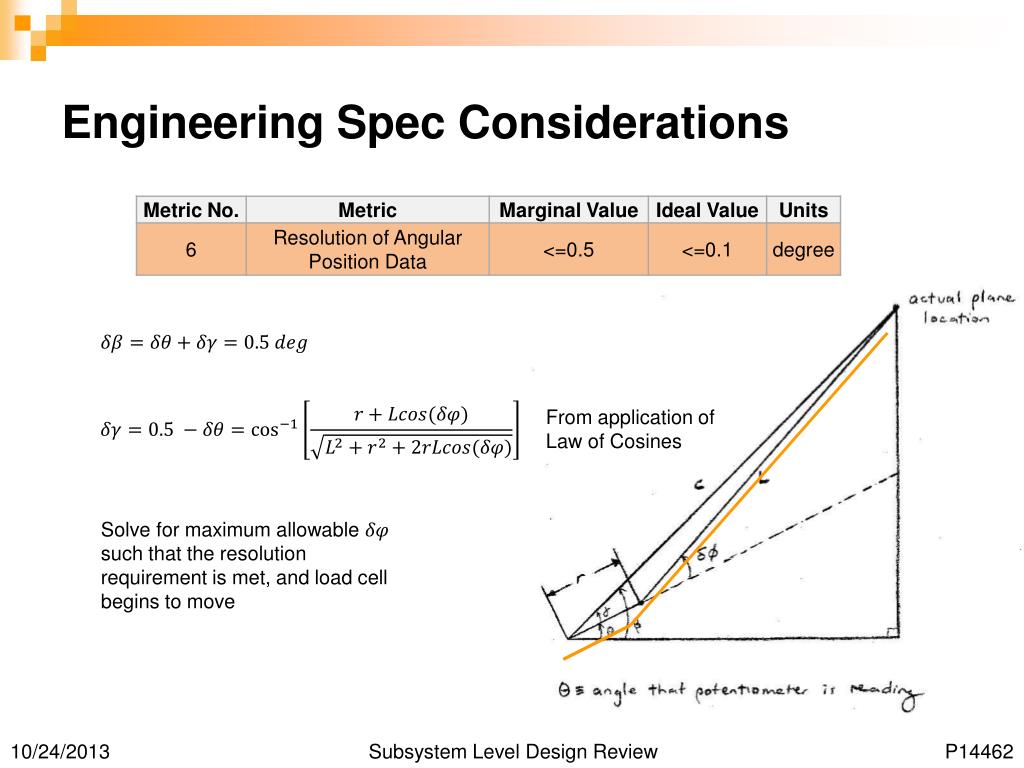

  28. Engineering Spec Considerations From application of Law of Cosines Solve for maximum allowable such that the resolution requirement is met, and load cell begins to move

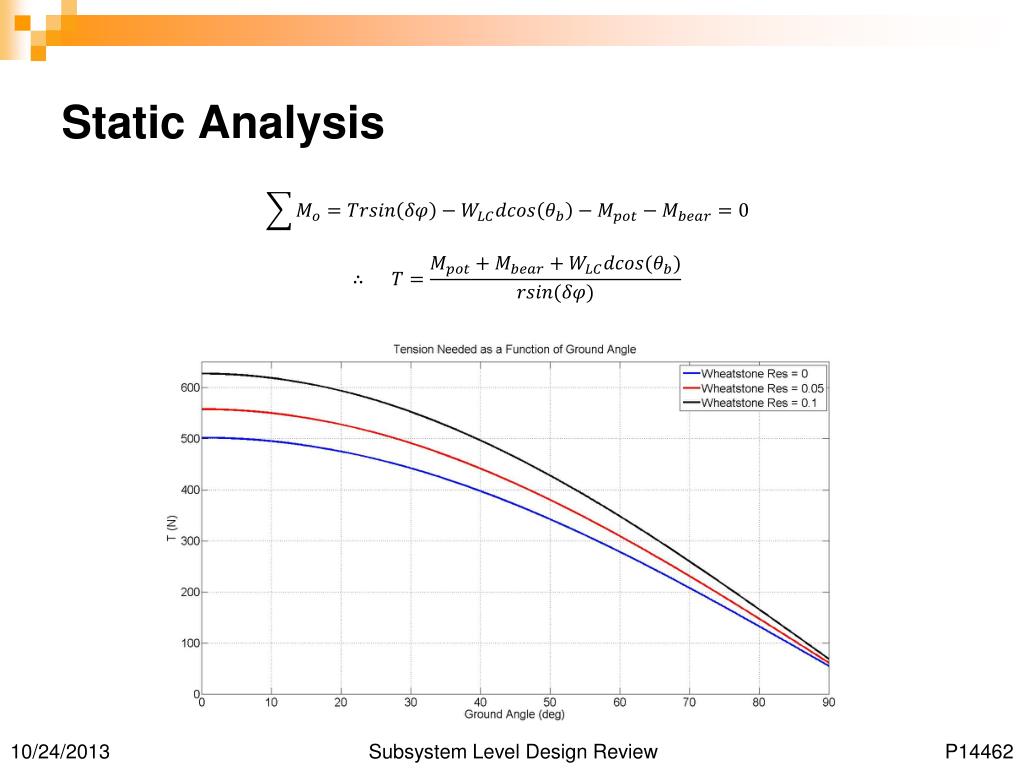

  29. Static Analysis

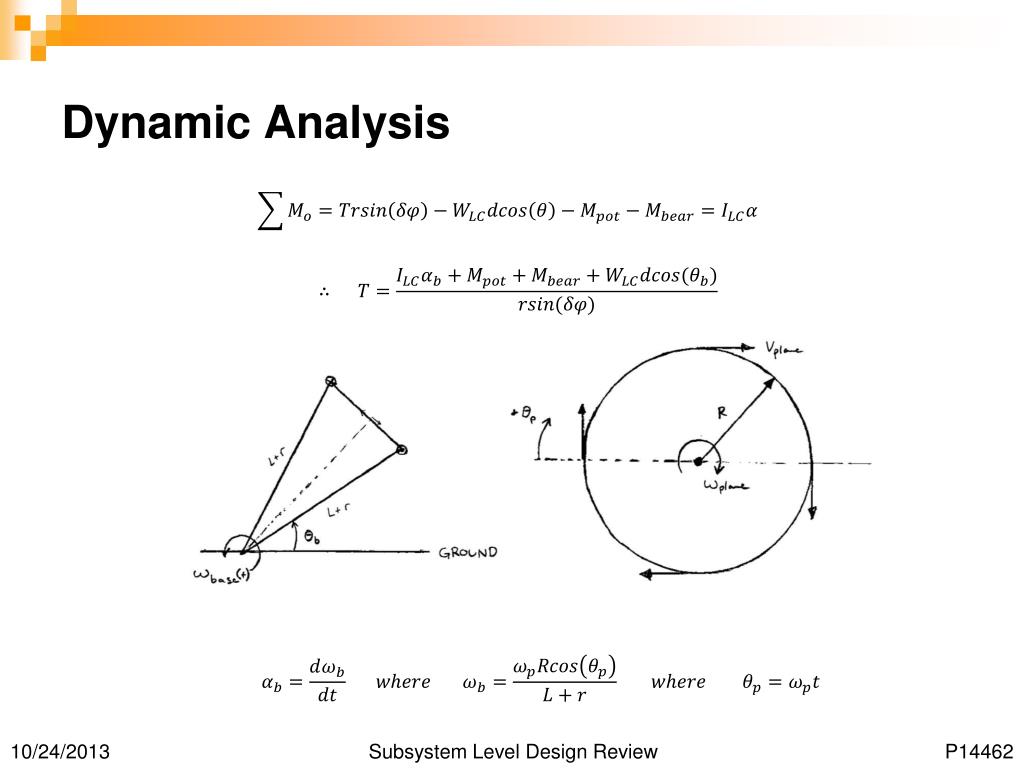

  30. Dynamic Analysis

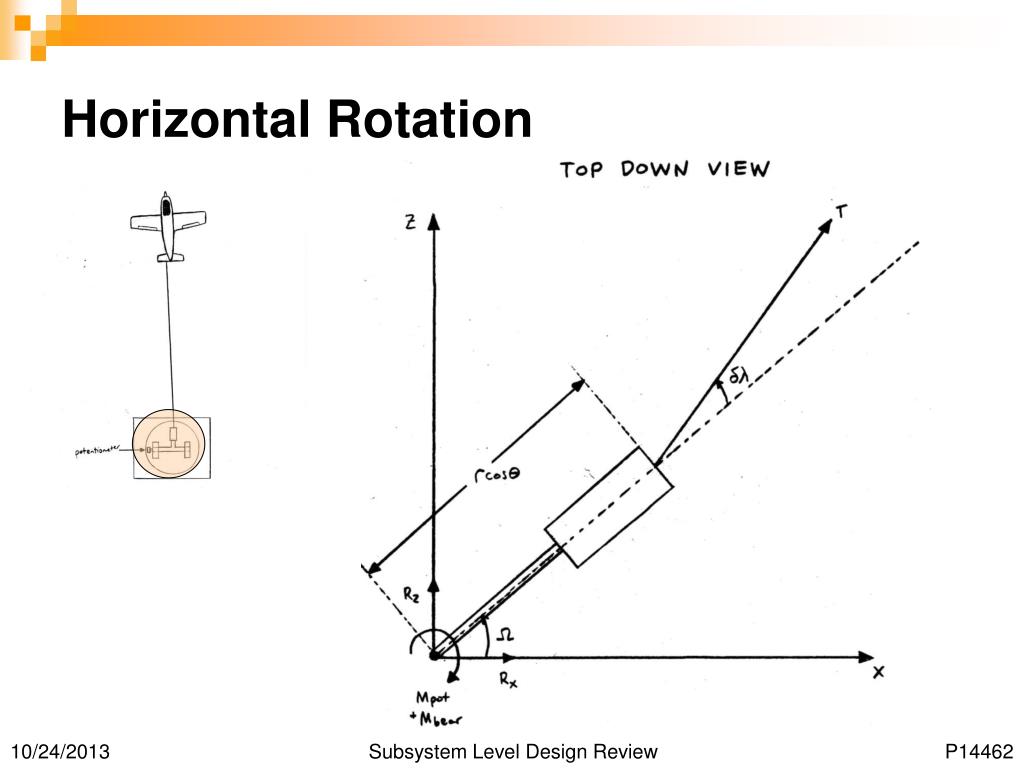

  31. Horizontal Rotation

  32. Static Analysis

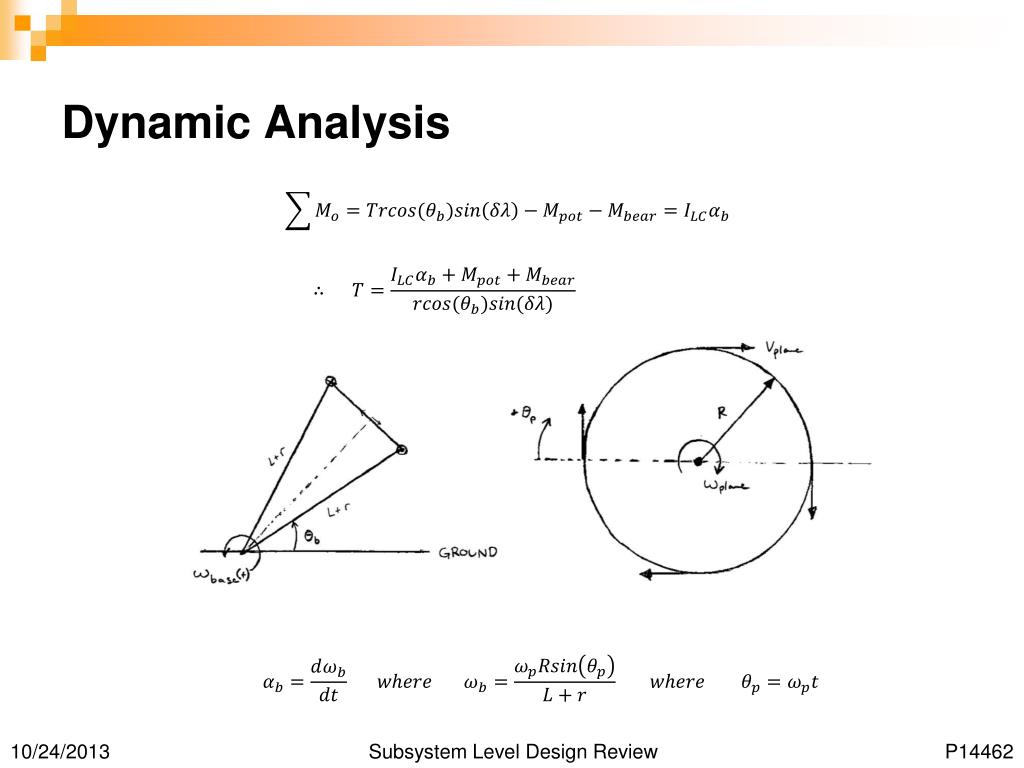

  33. Dynamic Analysis

  34. 3 Single-Axis Load Cells Concept 2

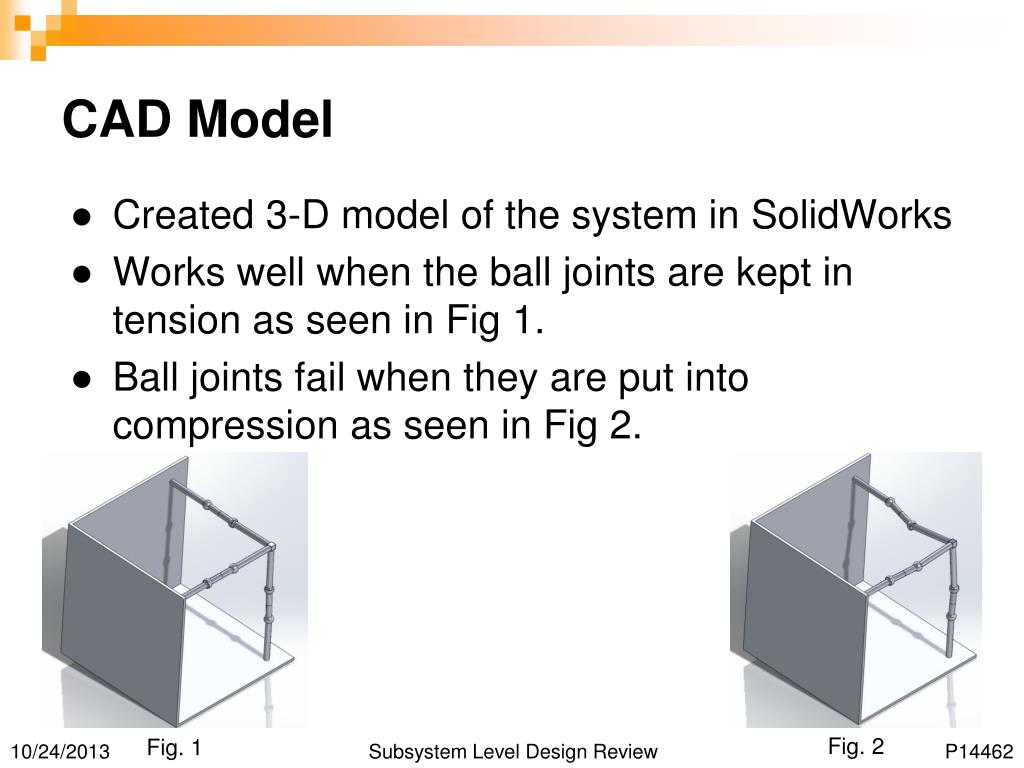

  35. CAD Model • Created 3-D model of the system in SolidWorks • Works well when the ball joints are kept in tension as seen in Fig 1. • Ball joints fail when they are put into compression as seen in Fig 2. Fig. 2 Fig. 1

  36. Base Station Cost Feasibility

  37. Base Station Equipment Phidgets 3140_0 – S Type Load Cell Bourns 3540S-1-103L Potentiometer

  38. Initial Base Station Budget Comparison

  39. Project Planning

  40. Project Planning

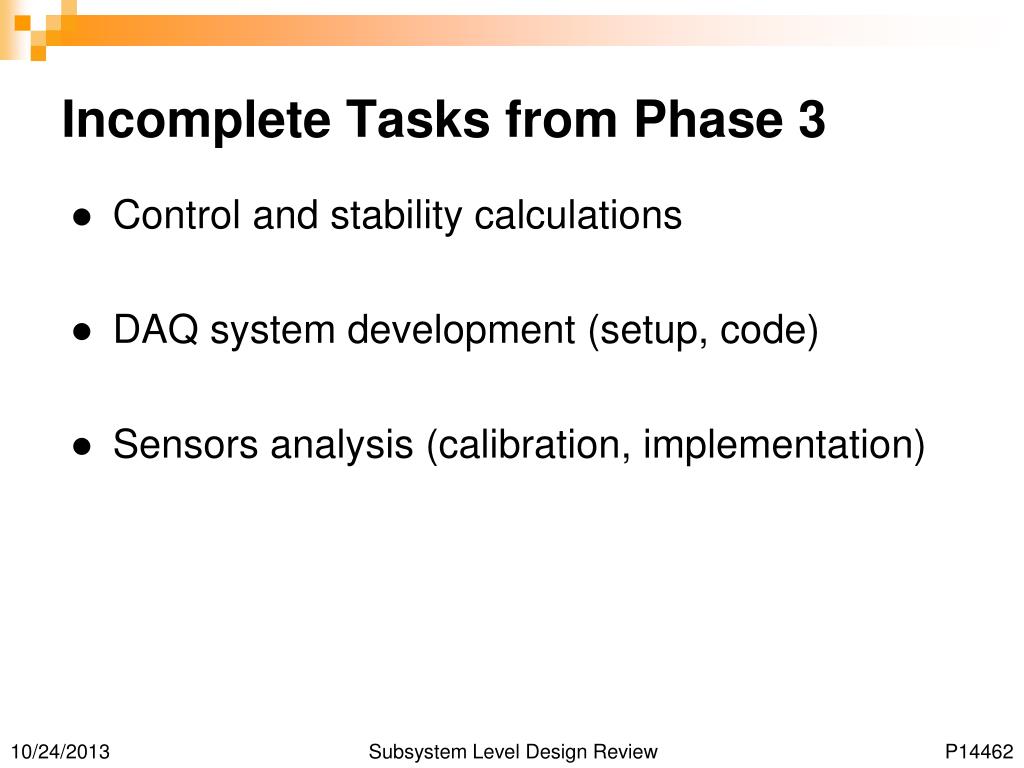

  41. Incomplete Tasks from Phase 3 • Control and stability calculations • DAQ system development (setup, code) • Sensors analysis (calibration, implementation)

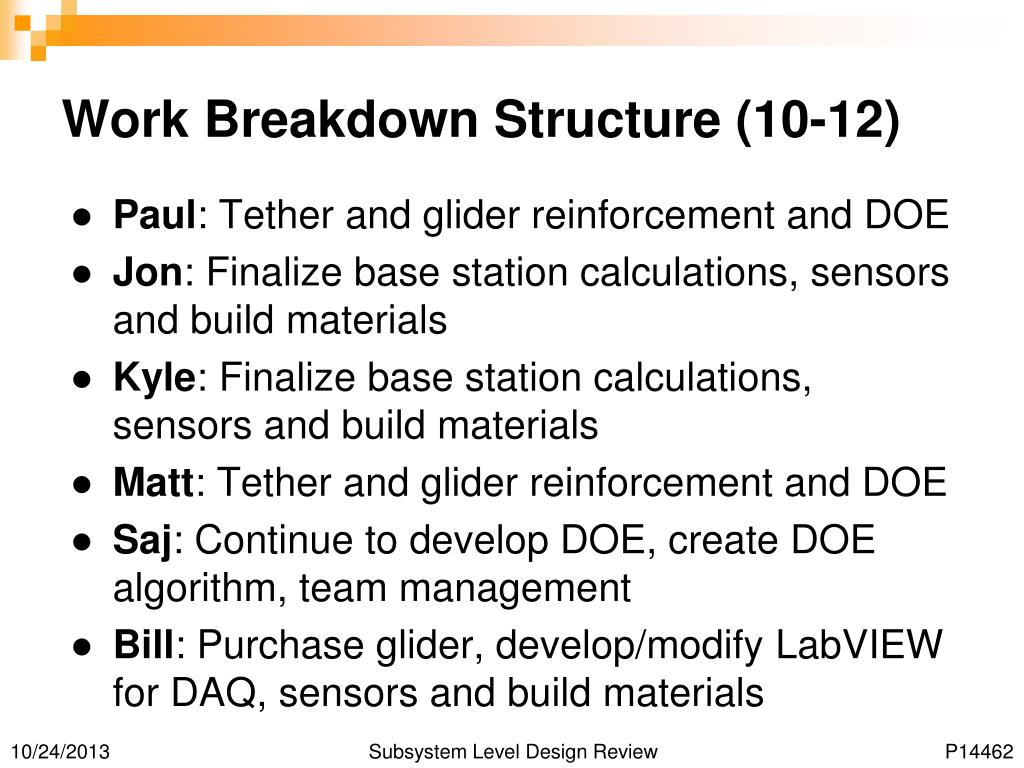

  42. Work Breakdown Structure (10-12) • Paul: Tether and glider reinforcement and DOE • Jon: Finalize base station calculations, sensors and build materials • Kyle: Finalize base station calculations, sensors and build materials • Matt: Tether and glider reinforcement and DOE • Saj: Continue to develop DOE, create DOE algorithm, team management • Bill: Purchase glider, develop/modify LabVIEW for DAQ, sensors and build materials

  43. Questions?
