HEAD AND NECK: X-RAYS AND SCANS 2008. 6 Lateral view of skull 1. Ramus of mandible 2. Styloid process of temporal bone. PA VIEW OF SKULL. Posteroanterior view of skull 1) Nasal septum 2) Mastoid air cells 3) Lambdoid suture (don't confuse with fracture). AP view of skull.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'HEAD AND NECK: X-RAYS AND SCANS 2008' - posy


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

6 Lateral view of skull

1. Ramus of mandible

2. Styloid process of temporal bone

slide3

PA VIEW OF

SKULL

Posteroanterior view of skull

1) Nasal septum

2) Mastoid air cells

3) Lambdoid suture (don't confuse with fracture)

slide4

AP view of skull

Antero-posterior film of skull

1. Transverse process of C2

2. Ramus of mandible

3. Odontoid process (dens) of C2

slide5

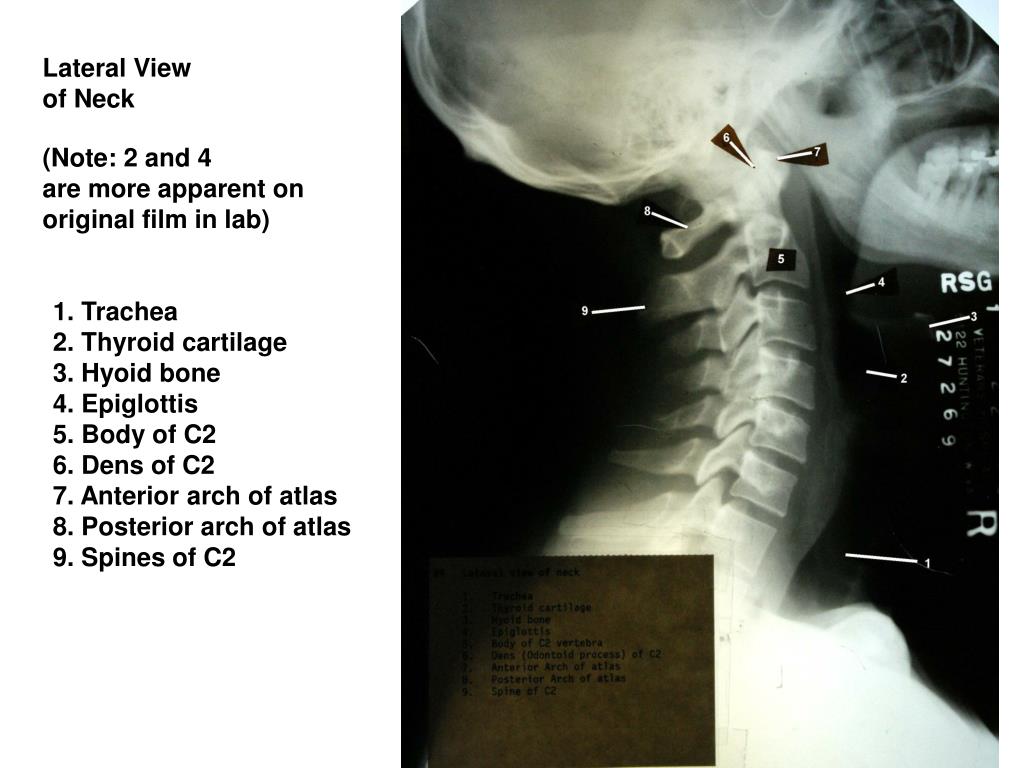

Lateral View of Neck

(Note: 2 and 4

are more apparent on

original film in lab)

1. Trachea

2. Thyroid cartilage

3. Hyoid bone

4. Epiglottis

5. Body of C2

6. Dens of C2

7. Anterior arch of atlas

8. Posterior arch of atlas

9. Spines of C2

slide6

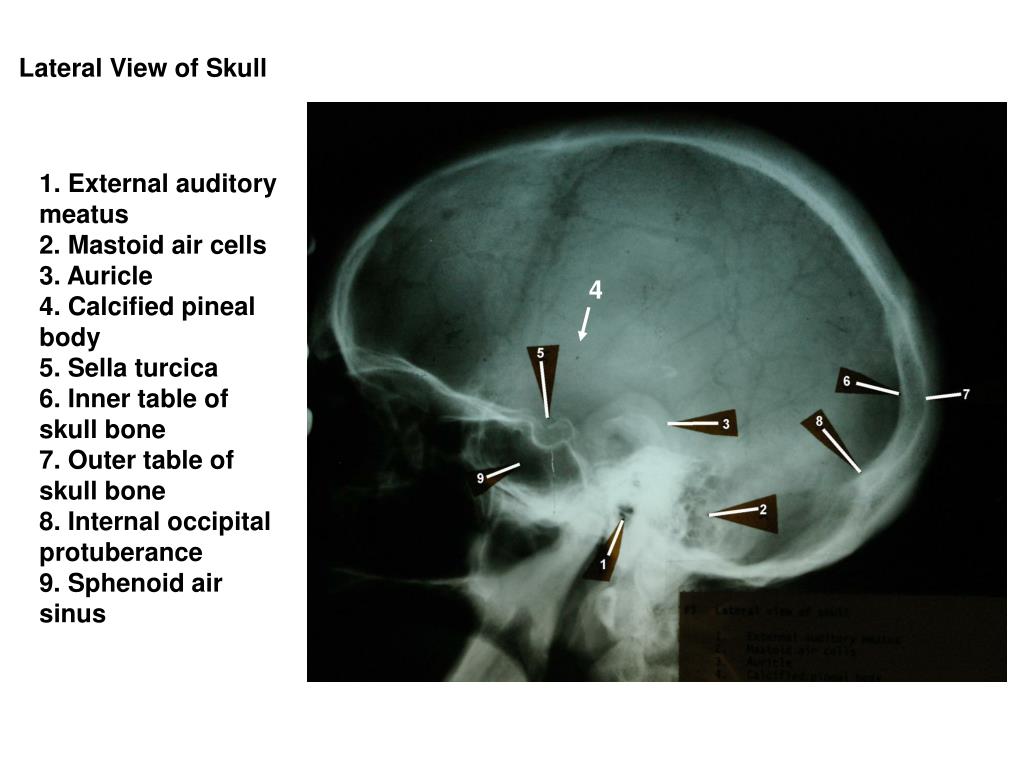

Lateral View of Skull

1. External auditory meatus

2. Mastoid air cells

3. Auricle

4. Calcified pineal body

5. Sella turcica

6. Inner table of skull bone

7. Outer table of skull bone

8. Internal occipital protuberance

9. Sphenoid air sinus

4

slide7

CAROTID ANGIOGRAM

1- Common Carotid Artery

2- Superior Thyroid Artery

3- Lingual Artery

4- Facial Artery

5- Occipital Artery

6- Maxillary Artery

7- Superficial Temporal Artery

8- Carotid Siphon

slide8

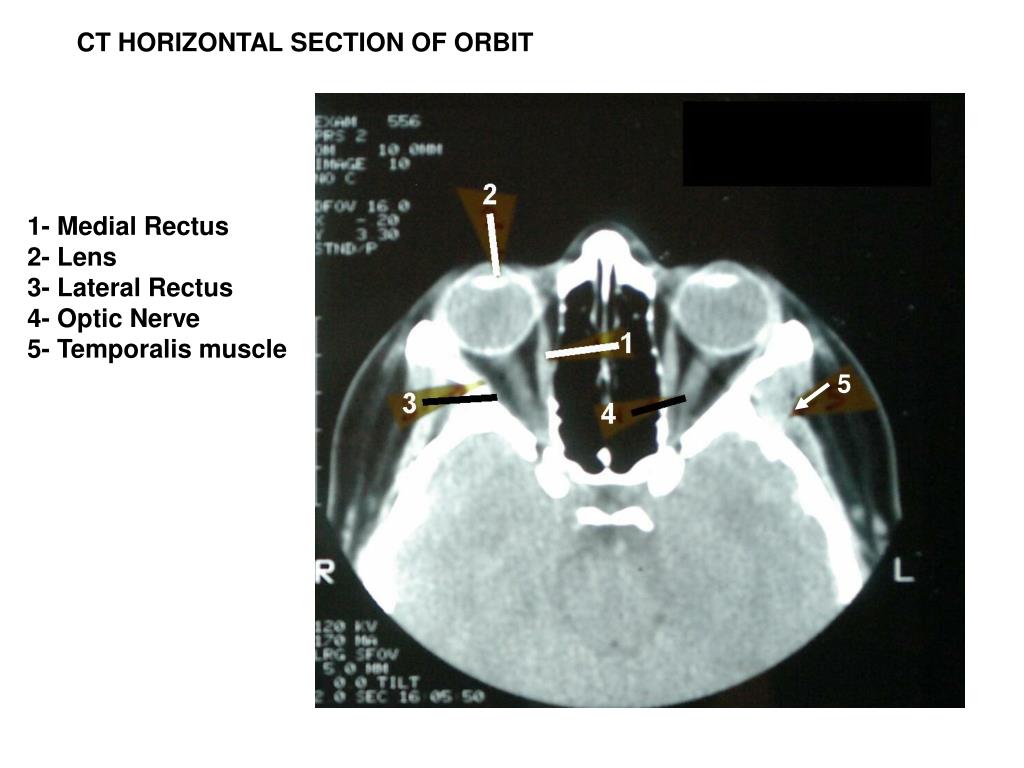

CT HORIZONTAL SECTION OF ORBIT

1- Medial Rectus

2- Lens

3- Lateral Rectus

4- Optic Nerve

5- Temporalis muscle

5

slide10

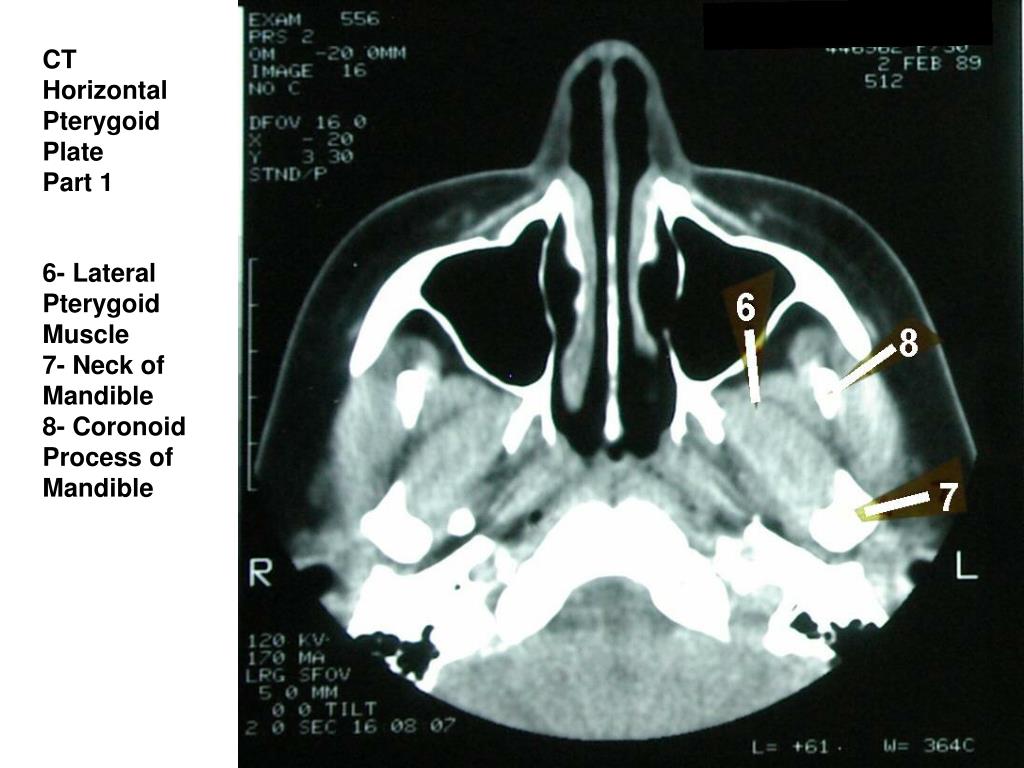

CT Horizontal Pterygoid Plate

Part 1

6- Lateral Pterygoid Muscle

7- Neck of Mandible

8- Coronoid Process of Mandible

slide11

CT Horizontal Pterygoid Plate

Part 2

1- Nasal Septum

2- Maxillary Sinus

3- Medial Pterygoid Plate

4- Lateral Pterygoid Plate

slide12

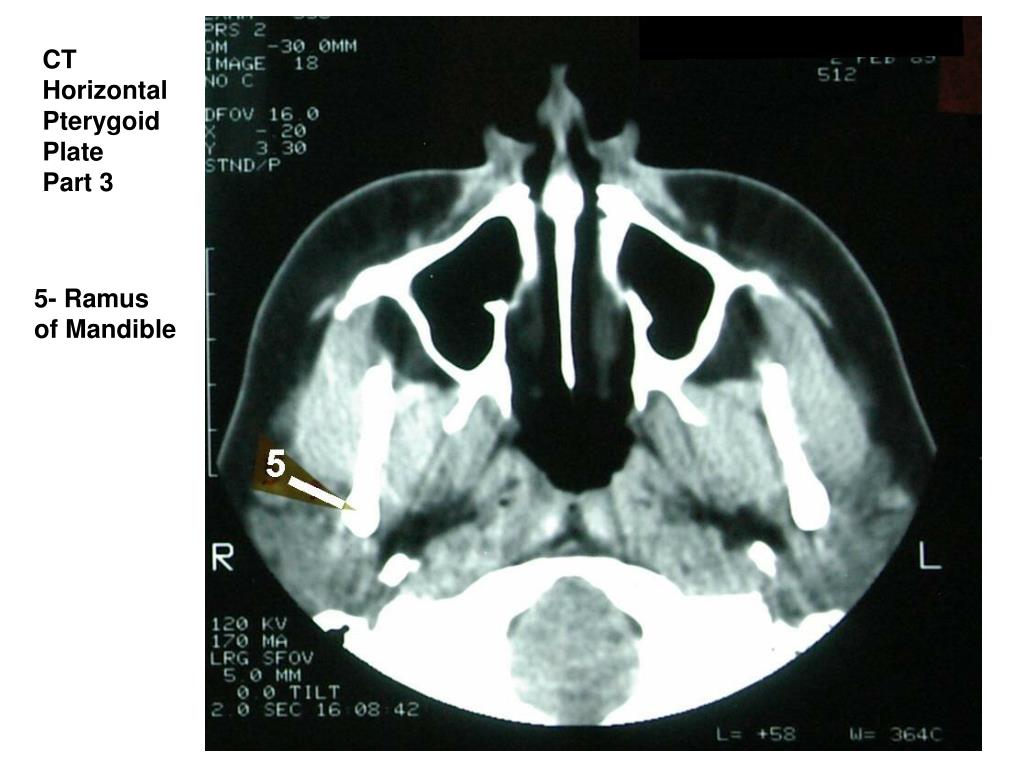

CT Horizontal Pterygoid Plate

Part 3

5- Ramus of Mandible

slide13

CT Horizontal Pterygoid Plate (three preceding slides)

1- Nasal Septum

2- Maxillary Sinus

3- Medial Pterygoid Plate

4- Lateral Pterygoid Plate

5- Ramus of Mandible

6- Lateral Pterygoid Muscle

7- Neck of Mandible

8- Coronoid Process of Mandible

slide14

MRA - Magnetic Resonance Angiography - Blood Supply to Head

Vertebral

Artery

Vertebral

Artery

Common

Carotid

Artery

Common

Carotid

Artery

Brachiocephalic

Trunk

Arch of Aorta

slide15

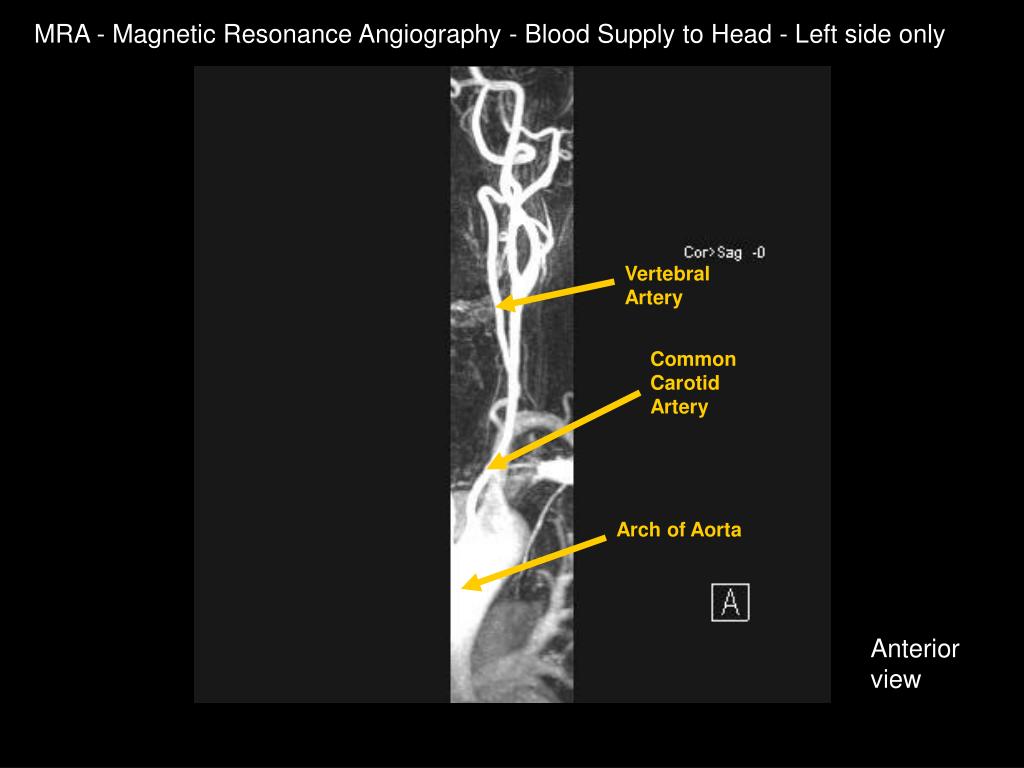

MRA - Magnetic Resonance Angiography - Blood Supply to Head - Left side only

Vertebral

Artery

Common

Carotid

Artery

Arch of Aorta

Anterior

view

slide20

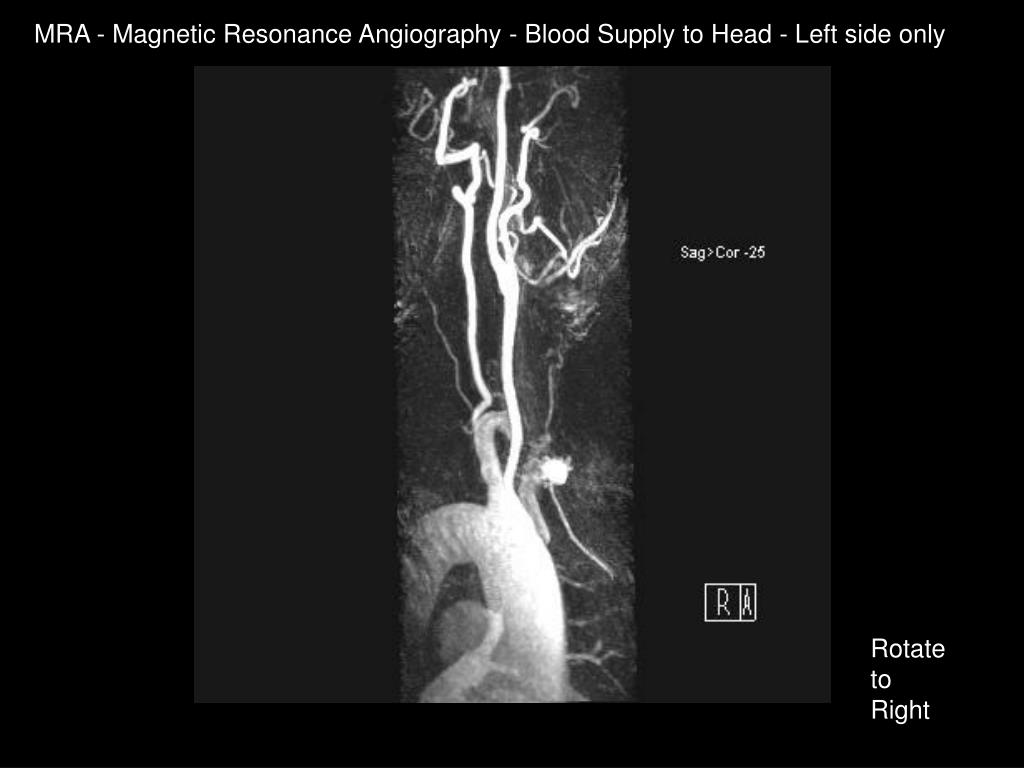

MRA - Magnetic Resonance Angiography - Blood Supply to Head - Left side only

Vertebral

Artery

Common

Carotid

Artery

Arch of Aorta

Rotate

to

Right

slide21

Left side only

High

Mag

Maxillary Artery

Occipital Artery

Facial Artery

Internal

Carotid

Artery

Bifurcation

Vertebral

Artery

Lingual Artery

External Carotid Artery

Common

Carotid

Artery
