Lecture 2: Basic principles of electromagnetic magnetic radiation (EMR)

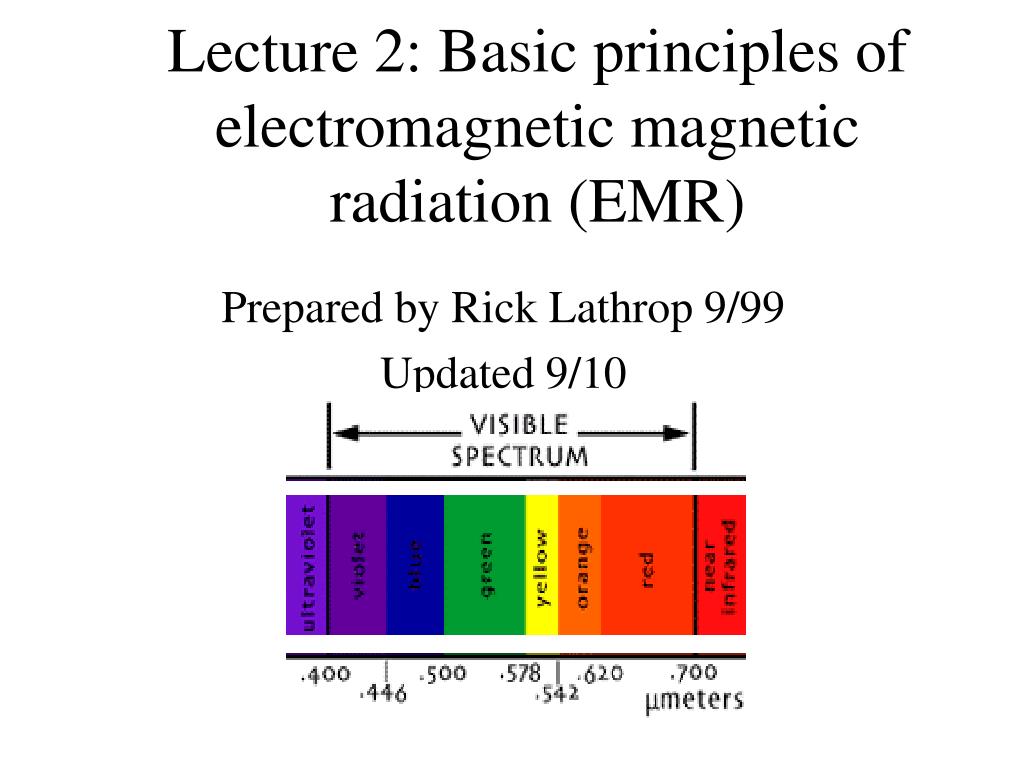

1. Lecture 2: Basic principles of electromagnetic magnetic radiation (EMR) Prepared by Rick Lathrop 9/99 Updated 9/10

3. Where in the World? • Great Salt Lake, Utah

4. Learning objectives • Remote sensing science concepts • Basic interactions between EMR & earth surface • Principle of conservation of energy • Wave nature of EMR: translating between wavelength and frequency • Particle nature of EMR: relationship between energy and wavelength • Relationship between temperature and EMR • Atmospheric interference with EMR • Fundamental assumptions concerning the concept of a “spectral signature” • Interaction of EMR and green plants • Math Concepts • Inverse vs. positive relationships between variables • Skills • Working with mathematical formulas for simple problem solving • For example - If a lava flow has a temperature of approximately 1000oC, what would be the best wavelength to sense it?

5. What do Xrays, microwaves, thermal infrared, near infrared, radiowaves, ultraviolet, visible light all have in common? They are all light arrayed somewhere on the electromagnetic spectrum!

6. The electromagnetic spectrum

7. Dual nature of EMR • EMR as a wave • EMR as a particle (photon)

8. Wave nature of EMR • c = n * l where • c = 3 x 108 m/sec • n = frequency, measured in hertz (cycles/sec) l = wavelength • inverse relationship between wavelength and frequency

9. EMR wavelength vs. frequencyas l gets shorter, n goes higher l = 10 mm n = 1013 Hz l = 1.0 mm n = 1014 Hz l = 0.1 mm n = 1015 Hz

10. Wave nature of EMR: translating between wavelength and frequency • c = n * l where • c = 3 x 108 m/sec Example: n = 600 Mhz l = ? n = c / l or l = c /n l = 3 x 108 m/sec / 600 x 106 hz = l = 3 x 108 m/sec / 6 x 108 hz = 0.5 m What EMR region is this wavelength? microwave

11. The electromagnetic spectrum Comparative Sizes: from subatomic to human scales Atom Nucleus Molecule Human & larger Pinhead Atom Bacteria Honeybee adapted from NY Times graphic 4/8/2003

12. The visible spectrum • The visible spectrum is only a tiny window • We are blind to 99.99% of the energy in the universe • One of the strengths of remote sensing is that we have created devices that allow us to see beyond the range of human vision

13. Gee Whiz: Why do UV and not NIR rays cause sunburn?

14. Particle nature of EMR • E = h * n = (h * c)/l where • E = energy of a photon, measured in joules • h = Planck’s constant 6.626 x 10-34 J sec • inverse relationship between wavelength and energy

15. Why do UV and not NIR rays cause sunburn? • E = (h * c)/l = (6.626 x 10-34 J sec)(3 x 108 m/sec)/l = 19.878x10-26 J m / l • UV l = 0.3 mm • E = 19.878x10-26 J m / 0.3x10-6m = 66.26 x 10-20 J • NIR l = 0.9 mm • E = 19.878x10-26 J m / 0.9x10-6m = 22.09 x 10-20 J UV has approximately 3x the amount of energy per quanta

16. All objects (above absolute 0o Kelvin) emit EMR. • Objects emit energy over a range of wavelengths. • Making waves in a bath tub analogy • If you splashed around violently, you would generate waves of many different wavelengths/frequencies. • Now splash more rhythmically and generate more consistent waves of a single wavelength/frequency

17. Gee Whiz: Which emits more energy – the Sun or Earth?

18. Relationship between temperature and EMR • M = s * T4 where • M = total radiant exittance W m-2 • s = Stefan-Boltzman constant 5.6697 x 10-8 W m-2 K-4 • T = temperature in Kelvin (K) • 0oC = 273.15K

19. Relationship between temperature and EMR • M = s * T4 where • What is M for the Sun? T= 6000K • (5.6697 x 10-8 W m-2 K-4)(6000K)4 = • (5.6697 x 10-8 W m-2 K-4)(1.296 x 1015 K4)= = 7.35 x 107 W m-2 • What is M for the Earth? T= 300K (27oC) - (5.6697 x 10-8 W m-2 K-4)(3000K)4 = 4.59 x 102 W m-2

20. Relationship between temperature and EMRObjects emit energy over a range of wavelengths. As the temperature of the object increases, its radiant flux increases. The wavelength of maximum flux depends on the temperature of the object. Blackbody at temperature T1 Radiant Flux T1 > T2 Blackbody at temperature T2 Wavelength

21. Gee Whiz: Why is the outside of a candle’s flame red, while the inner flame is blue?

22. Relationship between wavelength and temperature • lm = A / T • where • lm = wavelength of max radiant exittance • A = 2898 mm K • T = temperature K • Inverse relationship between temperature and lm

23. Relationship between wavelength and temperature • lm = A / T where A = 2898 mm K • What is lm for the Sun? T= 6000K • lm = 2898 mm K/6000K = 0.483mm • lm for the sun is in the visible • What is lm for the Earth? T= 300K (27oC) • lm = 2898 mm K/300K = 9.7mm • lm for the earth is in the thermal IR

24. Herschel Discovers Infrared Light • Sir Frederick Herschel (1738-1822) used a prism to split sunlight to create a spectrum and then measured the temperature of each color. He also included a control just outside the visible colors. He found to his surprise that the control actually had a higher temperature than the visible colors. Based on this observation, he concluded that there must be additional light energy beyond the visible, now known as near infrared. Incidentally if the peak of sunlight energy is in the shorter visible wavelengths, why did Herschel find the infrared to be hotter. Due to the nonlinear nature of refraction, his prism concentrated the infrared light, while dispersing the shorter wavelength visible colors. http://coolcosmos.ipac.caltech.edu/cosmic_classroom/classroom_activities/herschel_experiment.html

25. Gee Whiz: Why do humans see in the ‘visible’ and not the NIR?

27. Human Color Vision • Human eye contains 2 types of photoreceptors: rods and cones • Rods are more numerous and more sensitive to the amount of visible light but are not sensitive to color • 3 types of cones: roughly sensitive to blue (445nm), green (535nm) and orange-red (575nm) For more info on color vision go to: http://hyperphysics.phy-astr.gsu.edu/hbase/vision/colviscon.html#c1

28. Gee Whiz: Why is the sky blue and clouds white?

29. Basic interactions between EMR and the earth surface • Reflection: specular reflection or scattering • Absorption • Transmission q1q2 q1 = q2 emission EMR re-emitted as thermal energy Shorter ls refracted more

30. First law of thermodynamics • Principle of conservation of energy • Energy can neither be created or destroyed, it can only be transformed • Incident E = R + A + T E R A T Adapted from Lillesand & Kiefer Remote Sensing and Image Interpretation

31. Units of EMR measurement • Irradiance - radiant flux incident on a receiving surface from all directions, per unit surface area, W m-2 • Radiance - radiant flux emitted or scattered by a unit area of surface as measured through a solid angle, W m-2 sr-1 • Reflectance - fraction of the incident flux that is reflected by a medium

32. Atmospheric windows • Specific wavelengths where a majority of the EMR is absorbed by the atmosphere • Wavelength regions of little absorption known as atmospheric windows Graphic from http://earthobservatory.nasa.gov/Library/RemoteSensingAtmosphere/

33. Ref 0.4 0.5 0.6 0.7 0.8 1.1 um Atmospheric interference with EMR • Shorter wavelengths strongly scattered, adding to the received signal • Longer wavelengths absorbed, subtracting from the received signal Signal decreased by absorption Signal increased by scattering Adapted from Jensen, 1996, Introductory Digital Image Processing

34. Why is the sky blue and clouds white? Incoming sunlight Clouds scatter all ls of visible light, appear white Mie scattering Air molecules scatter short l blue light, longer ls transmitted Rayleigh scattering

35. Breakdown of EMR components received at the sensor

36. Fundamental assumptions • Objects that are related can be detected, identified, and described by analyzing the energy that is reflected or emitted from them • Measurements over several bands make up a “spectral response pattern” or signature • This signature is different for different objects • This difference can be analyzed

38. Gee Whiz: Why are plants green?

39. Chlorophyll pigment is contained in minute structures called plastids that are found in the leave’s parenchyma cells. Chlorophyll differentially absorbs red and blue wavelengths of light, there is less absorption in the green and nearly no absorption in the near IR. Graphic from: http://iusd.k12.ca.us/uhs/cs2/leaf_cross-section.htm

40. As light waves move from medium of one density to another (e.g., from water to air), the waves are refracted (i.e., changes direction). Graphic from: http://www.olympusmicro.com/primer/lightandcolor/refraction.html

41. How plant leaves reflect lightAs light moves from a hydrated cell to an intercellular space it gets refracted, sometimes multiple times. Eventually, some light may be scattered back out through the upper leaf surface and some transmitted down through the leaf. NIR light (which is not absorbed) is scattered within leaf: some reflected back, some transmitted through Blue & red light strongly absorbed by chlorophyll. Green light is not as strongly absorbed Cross-section of leaf

42. Sunlight B G R NIR Incoming light Reflected light Leaf Transmitted light How plant leaves reflect light

43. An example-plant leaves • Chlorophyll absorbs large % of red and blue for photosynthesis- and strongly reflects in green (.55mm) • Peak reflectance in leaves in near infrared (.7-1.2mm) up to 60% of infrared energy per leaf is scattered up or down due to cell wall size, shape, leaf condition (age, stress, disease), etc. • Reflectance in Mid IR (2-4mm) influenced by water content-water absorbs IR energy, so live leaves reduce mid IR return

44. Spectral reflectance characteristics are both spatially and temporally variable. For example, each leaf (even within the same species) is different and can change. Thus you should think of a spectral signature as more as a spectral “envelope”.

45. Gee Whiz: Why do plants turn yellow as they senesce?

46. As a leaf undergoes stress, chlorophyll absorption decreases increasing the reflectance in the red. Continued senescence will start to break down the cellular structure and may change the NIR reflectance.

47. Detection of Xylella fastidiosa Infection of Amenity Trees Using Hyperspectral ReflectanceGH Cook project by Bernie Isaacson 2006

48. Hyperspectral reflectance curves Green – not scorched yellow – scorching brown - senesced

49. A leaf’s chlorophyll (1) begins to break down as the leaf senesces (as in the autumn). Accessory plant pigments (such as carotenoids and anthocyanins) are also found in the leaf cells but are generally masked by chlorophyll. Without chlorophyll, these pigments dominate. Carotenoids absorb blue to blue green wavelengths and thus appear yellow to orange (2). Anthocyanins absorb blue to green wavelengths and thus appear magenta (purple) to red (3) . Graphic from: http://www.fs.fed.us/conf/fall/leafchng_nf.htm

50. Homework 1 • Access via eCompanion • Also check out Example 1 for additional problems with answers
