In summary, while both stripping and distillation columns are crucial for separation processes, they are tailored to different applications, principles, and operational conditions. Understanding these differences helps engineers choose the appropriate technology for specific separation tasks.<br>
E N D

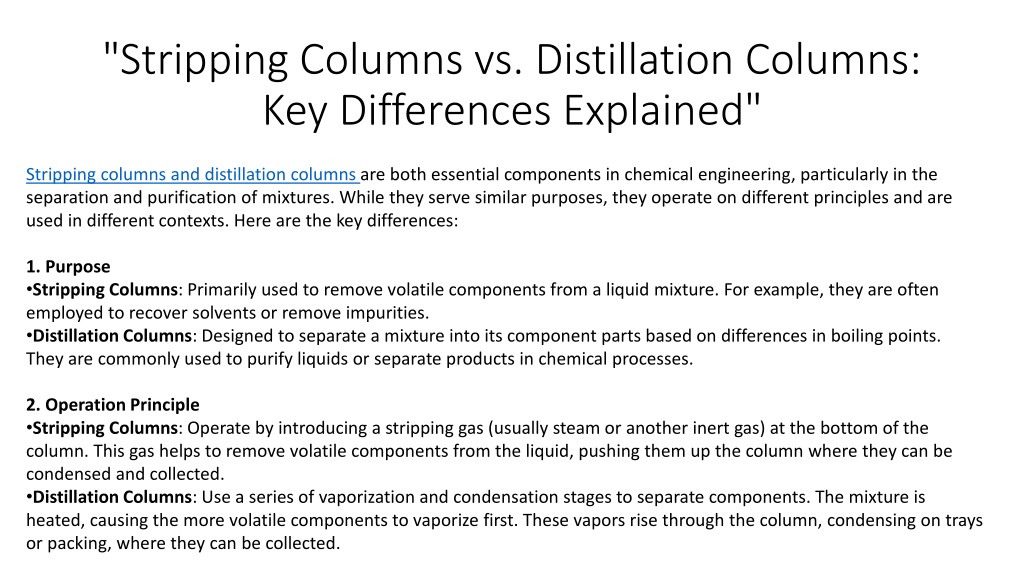

"Stripping Columns vs. Distillation Columns: Key Differences Explained" • Stripping columns and distillation columns are both essential components in chemical engineering, particularly in the separation and purification of mixtures. While they serve similar purposes, they operate on different principles and are used in different contexts. Here are the key differences: • 1. Purpose • Stripping Columns: Primarily used to remove volatile components from a liquid mixture. For example, they are often employed to recover solvents or remove impurities. • Distillation Columns: Designed to separate a mixture into its component parts based on differences in boiling points. They are commonly used to purify liquids or separate products in chemical processes. • 2. Operation Principle • Stripping Columns: Operate by introducing a stripping gas (usually steam or another inert gas) at the bottom of the column. This gas helps to remove volatile components from the liquid, pushing them up the column where they can be condensed and collected. • Distillation Columns: Use a series of vaporization and condensation stages to separate components. The mixture is heated, causing the more volatile components to vaporize first. These vapors rise through the column, condensing on trays or packing, where they can be collected.

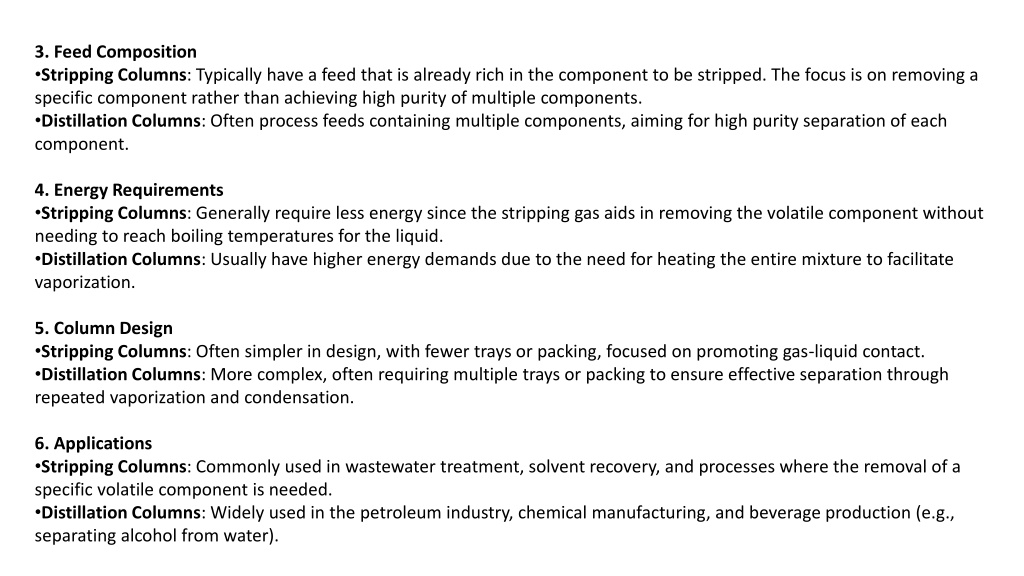

3. Feed Composition • Stripping Columns: Typically have a feed that is already rich in the component to be stripped. The focus is on removing a specific component rather than achieving high purity of multiple components. • Distillation Columns: Often process feeds containing multiple components, aiming for high purity separation of each component. • 4. Energy Requirements • Stripping Columns: Generally require less energy since the stripping gas aids in removing the volatile component without needing to reach boiling temperatures for the liquid. • Distillation Columns: Usually have higher energy demands due to the need for heating the entire mixture to facilitate vaporization. • 5. Column Design • Stripping Columns: Often simpler in design, with fewer trays or packing, focused on promoting gas-liquid contact. • Distillation Columns: More complex, often requiring multiple trays or packing to ensure effective separation through repeated vaporization and condensation. • 6. Applications • Stripping Columns: Commonly used in wastewater treatment, solvent recovery, and processes where the removal of a specific volatile component is needed. • Distillation Columns: Widely used in the petroleum industry, chemical manufacturing, and beverage production (e.g., separating alcohol from water).

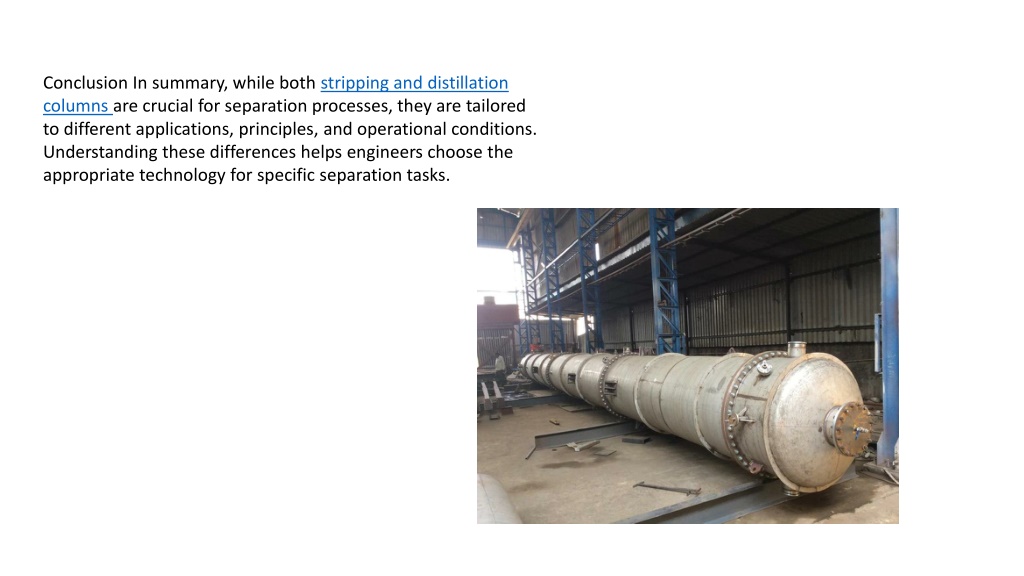

Conclusion In summary, while both stripping and distillation columns are crucial for separation processes, they are tailored to different applications, principles, and operational conditions. Understanding these differences helps engineers choose the appropriate technology for specific separation tasks.
